USER MANUAL WG929.1 WORX

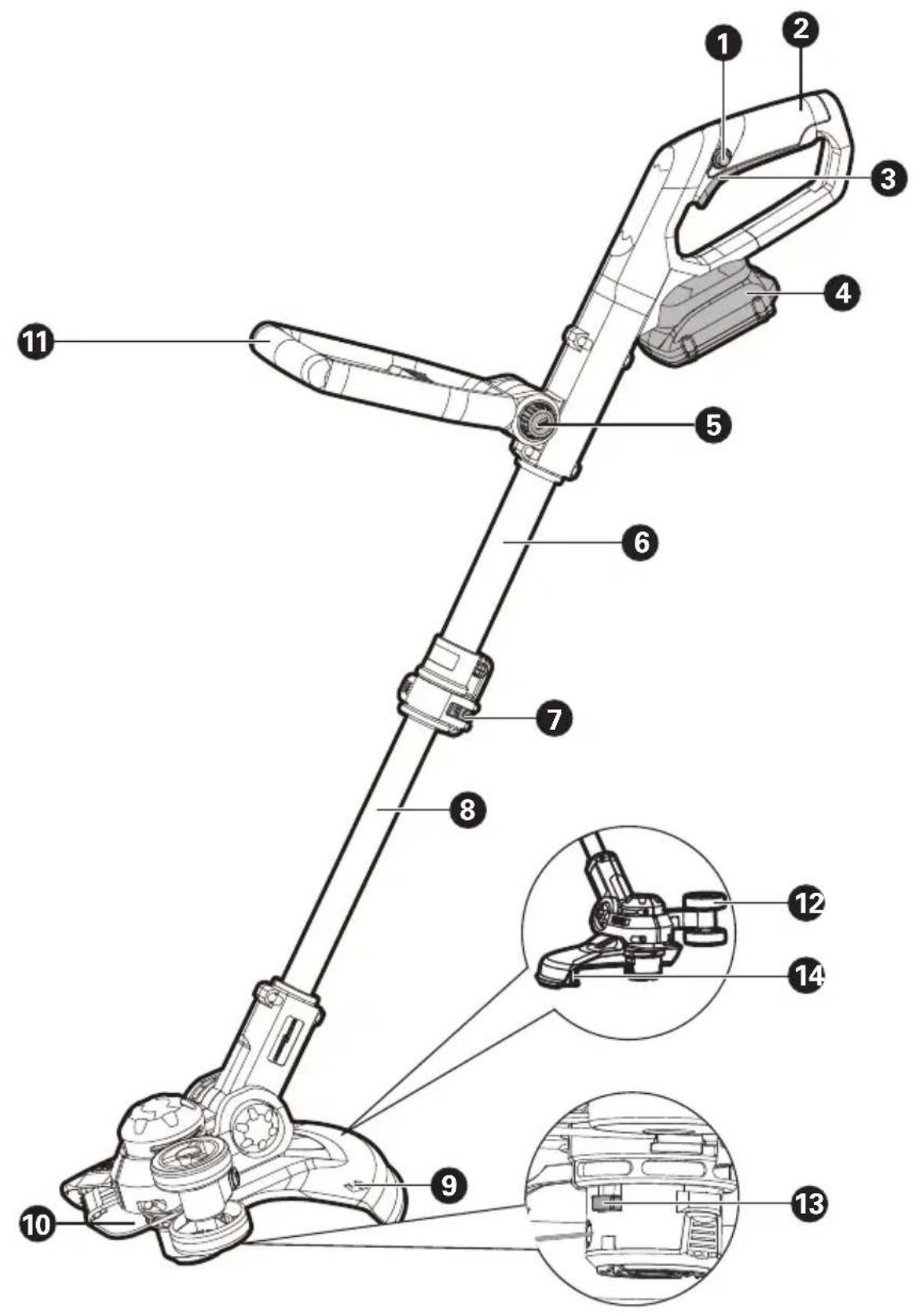

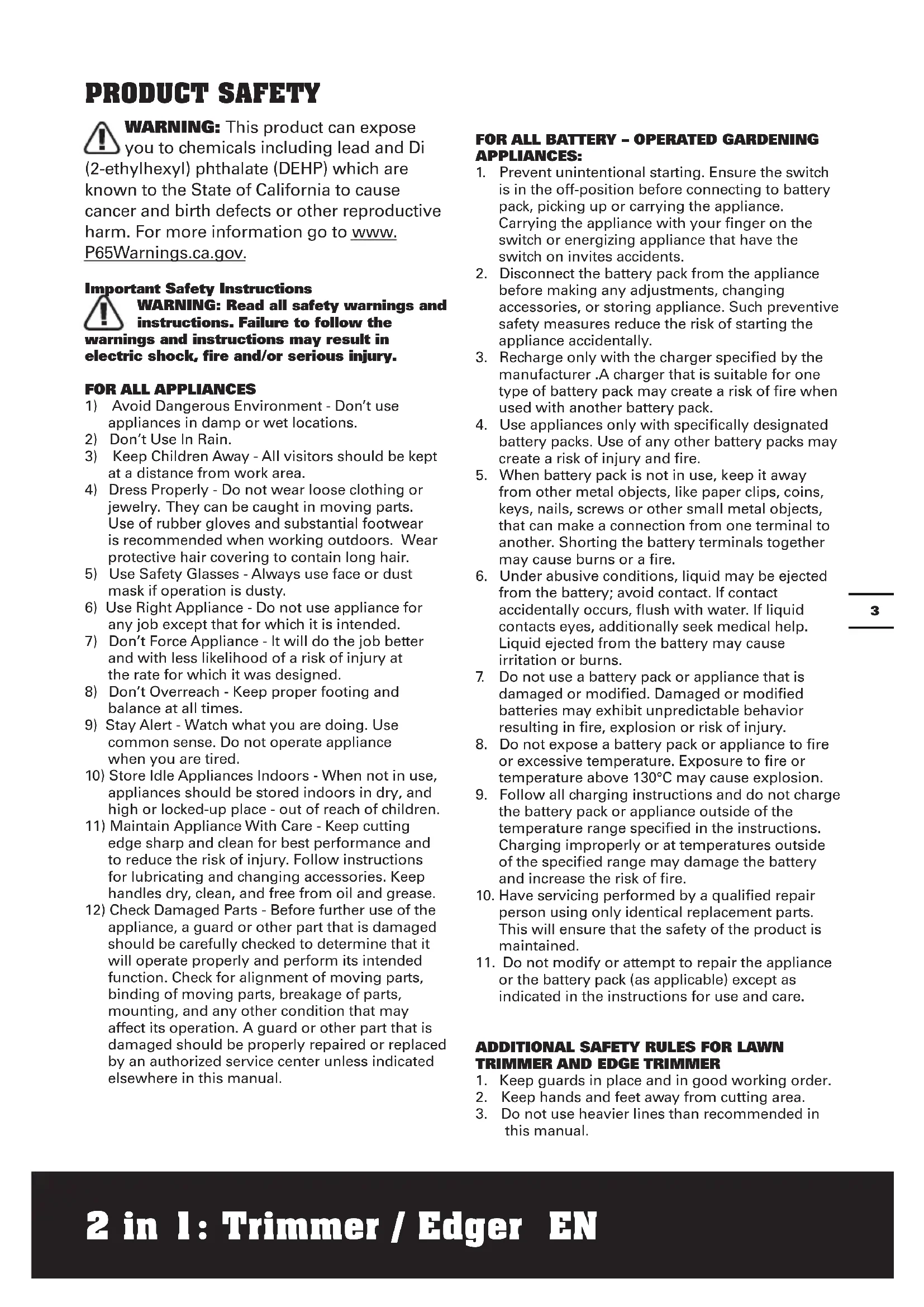

WARNING: This product can expose

you to chemicals including lead and Di (2-ethylhexyl) phthalate (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65Warnings.ca.gov. Important Safety Instructions

WARNING: Read all safety warnings and

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

appliances in damp or wet locations.

2) Don’t Use In Rain.

3) Keep Children Away - All visitors should be kept

at a distance from work area.

4) Dress Properly - Do not wear loose clothing or

jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.

5) Use Safety Glasses - Always use face or dust

mask if operation is dusty.

6) Use Right Appliance - Do not use appliance for

any job except that for which it is intended.

7) Don’t Force Appliance - It will do the job better

and with less likelihood of a risk of injury at the rate for which it was designed.

8) Don’t Overreach - Keep proper footing and

balance at all times.

9) Stay Alert - Watch what you are doing. Use

common sense. Do not operate appliance when you are tired.

10) Store Idle Appliances Indoors - When not in use,

appliances should be stored indoors in dry, and high or locked-up place - out of reach of children.

11) Maintain Appliance With Care - Keep cutting

edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Keep handles dry, clean, and free from oil and grease.

12) Check Damaged Parts - Before further use of the

appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

1. Prevent unintentional starting. Ensure the switch

is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

2. Disconnect the battery pack from the appliance

before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

3. Recharge only with the charger specified by the

manufacturer .A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

4. Use appliances only with specifically designated

battery packs. Use of any other battery packs may create a risk of injury and fire.

5. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

6. Under abusive conditions, liquid may be ejected

from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

7. Do not use a battery pack or appliance that is

damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

8. Do not expose a battery pack or appliance to fire

or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.

9. Follow all charging instructions and do not charge

the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

10. Have servicing performed by a qualified repair

person using only identical replacement parts. This will ensure that the safety of the product is maintained.

11. Do not modify or attempt to repair the appliance

or the battery pack (as applicable) except as indicated in the instructions for use and care.

1. Keep guards in place and in good working order.

2. Keep hands and feet away from cutting area.

3. Do not use heavier lines than recommended in

4. Do not use line materials of other types – for

example, metal wire, rope, and the like.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred battery pack. b) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. c) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or fire. d) Do not remove battery pack from its original packaging until required for use. e) Do not subject battery pack to mechanical shock. f) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. g) Observe the plus (+) and minus (–) marks on the battery back and equipment and ensure correct use. h) Do not use any battery pack which is not designed for use with the equipment.

i) Keep battery pack out of the reach of

children. j) Seek medical advice immediately if a cell or battery has been swallowed. k) Always purchase the battery pack recommended by the device manufacturer for the equipment. l) Keep battery pack clean and dry. m) Wipe the battery pack terminals with a clean dry cloth if they become dirty. n) Battery pack need to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment manual for proper charging instructions. o) Do not leave battery pack on prolonged charge when not in use. p) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. q) Battery pack gives its best performance when it is operated at normal room temperature (20 °C ± 5 °C). r) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. s) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. t) Retain the original product literature for future reference. u) Use only the battery pack in the application for which it was intended.

v) Remove the battery pack from the

equipment when not in use. w) Dispose of properly. SAVE THESE INSTRUCTIONS2 in 1: Trimmer / Edger EN SYMBOLS Make sure the battery is removed prior to changing accessories To reduce the risk of injury, user must read instruction manual Wear ear protection Wear eye protection Do not burn Do not expose to rain or water Li-Ion battery, battery must be recycled POSITEC Inc. has established a partnership with the RBRC Corporation to recycle any Positec batteries with the RBRC-call2recycle seal. For environmental protection, please do not discard batteries in the trash. After the batteries’ life cycle is ended, then please call 1-800-822-8837 for a free service that will properly dispose of the battery. Edging Trimming Lock Unlock 52 in 1: Trimmer / Edger EN

• Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA WG162 WG162.9 Voltage 20V MAX* No Load Speed 7600/min Cutting Diameter 12 inch (30cm) Line Diameter 0.065 inch (1.65mm) Battery type Lithium-ion / Battery capacity WA3525 (2.0Ah) / Charger Model WA3742 / Charger rating Input: 120V~60Hz Output: 20V , 0.4 A

Charging time (approx.) 5hr / Machine Weight 5.5 lbs (2.5 kg) 4.6 lbs (2.1 kg) *Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts. ACCESSORIES WG162 WG162.9 Safety guard 1 1 Flower guard 1 1 Charger (WA3742) 1 / Battery pack (WA3525) 1 / Edger wheel 1 1 Spool (WA0004) 1 1 Only use the appropriate accessories intended for this tool. Accessory information can be found on the product packaging, at a WORX dealer or on our website at www.worx.com or by calling 1-866-354-WORX(9679).

WARNING: any other accessory or attachment may increase the risk of injury.

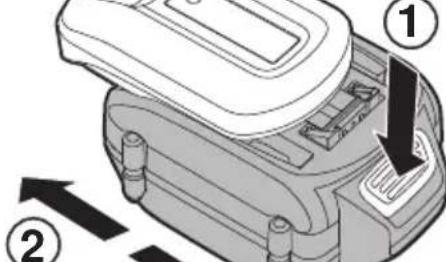

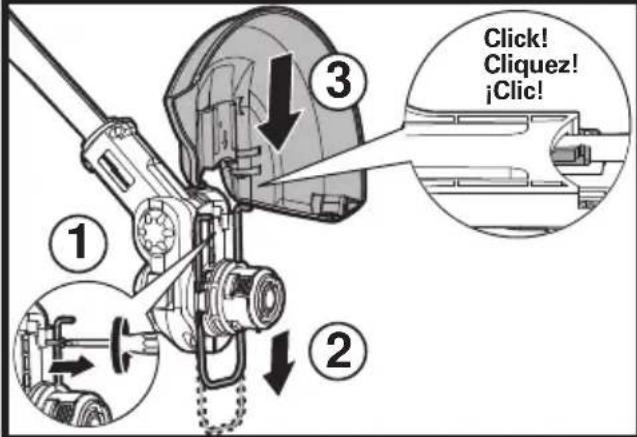

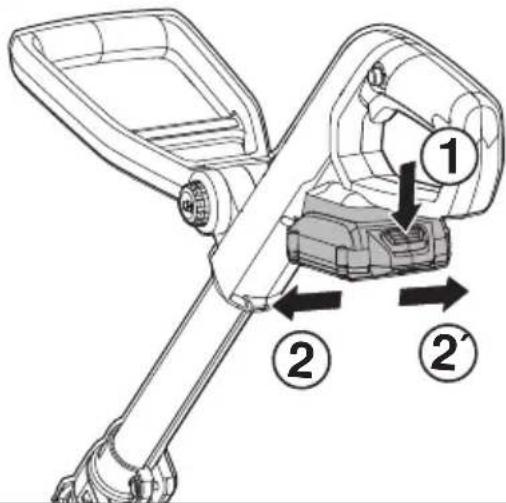

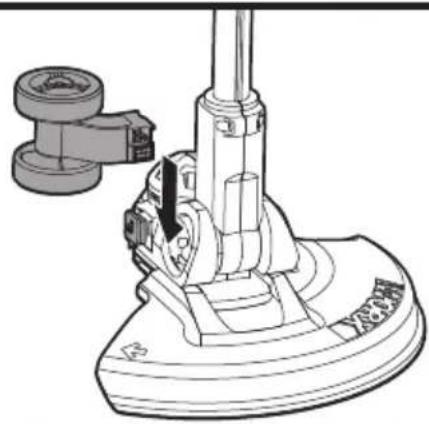

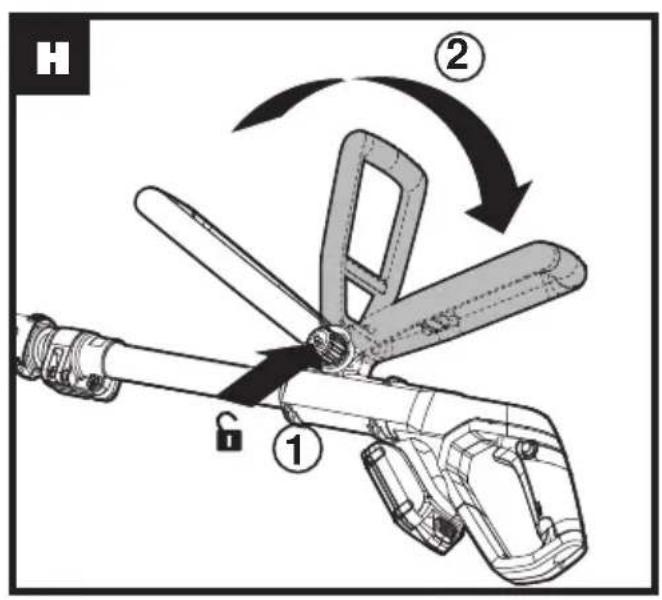

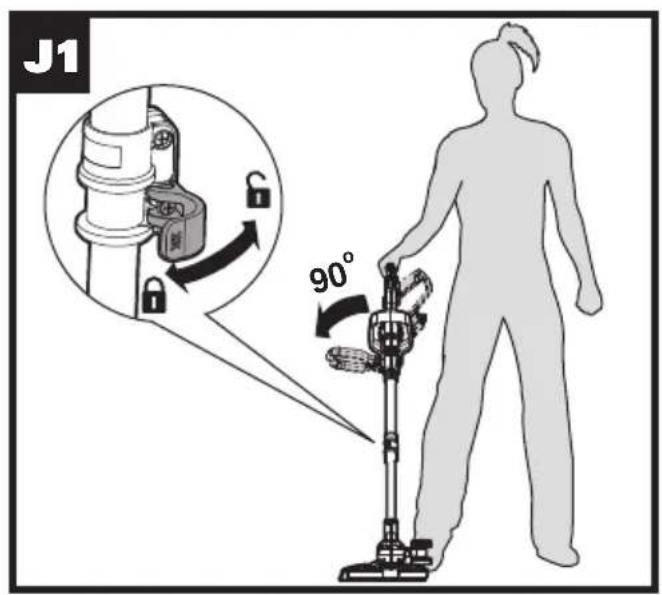

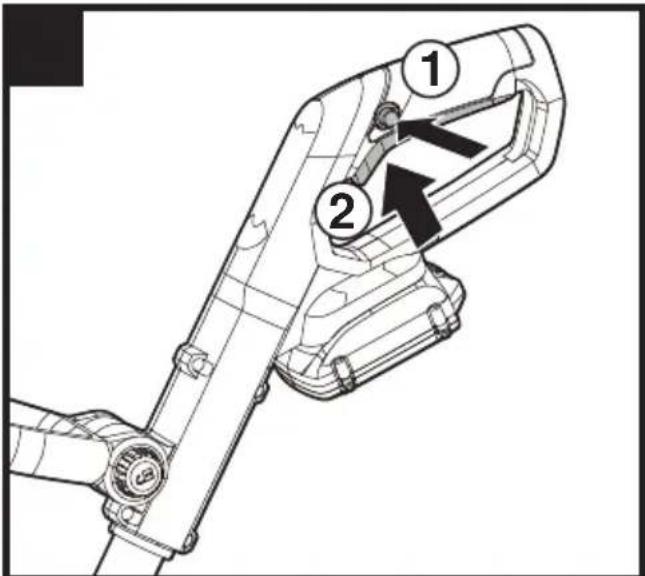

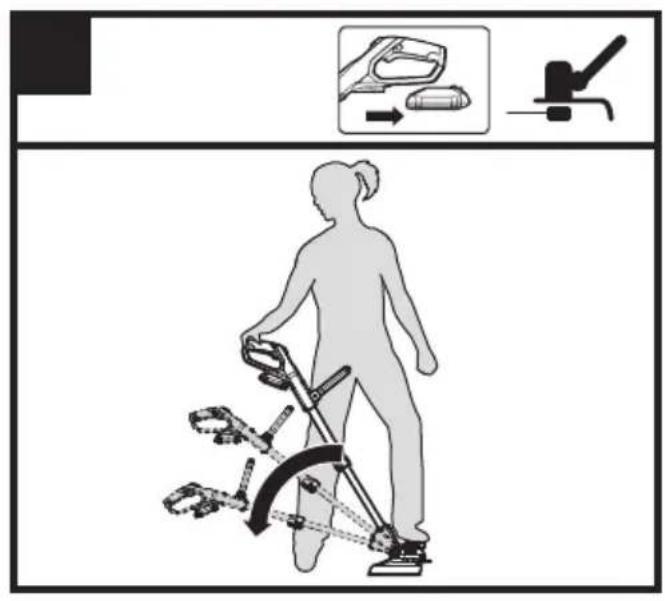

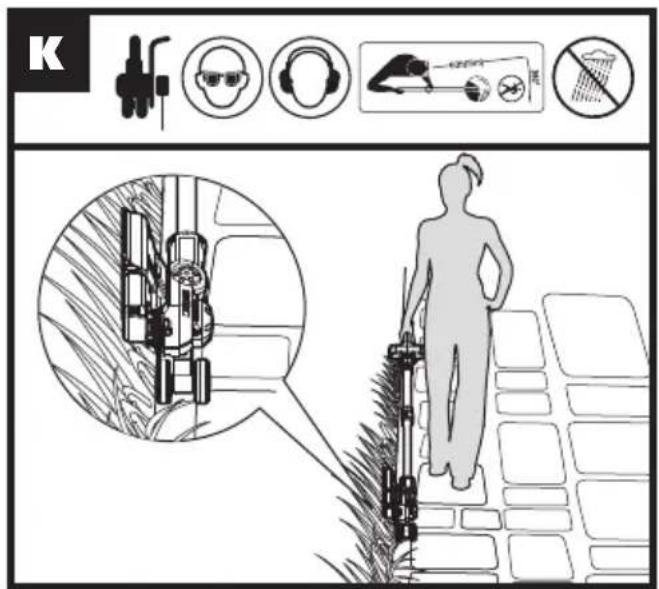

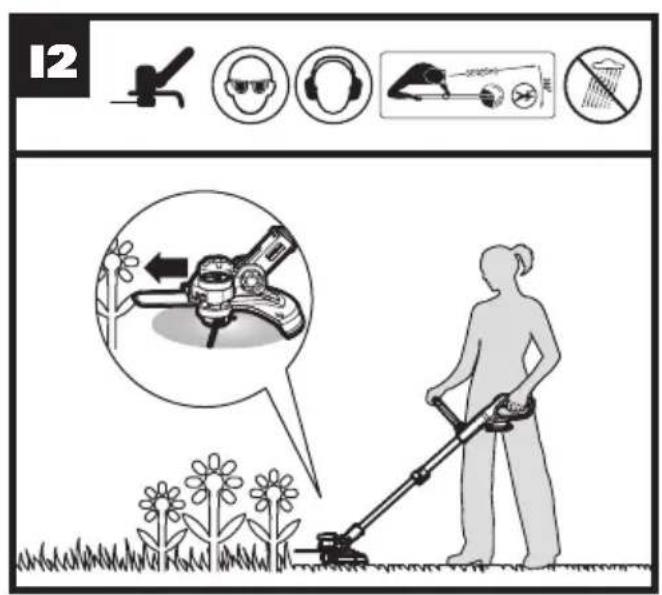

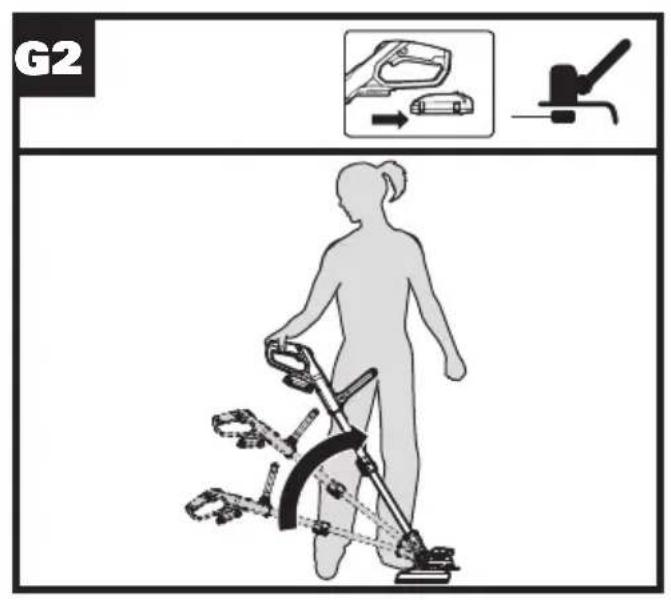

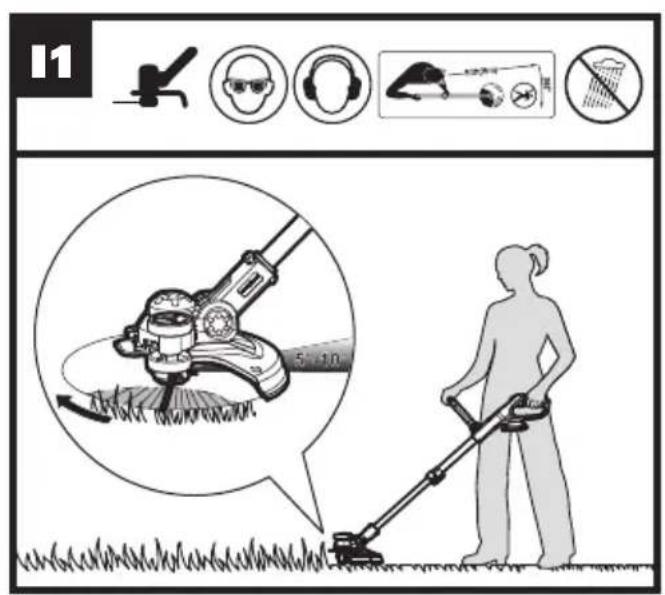

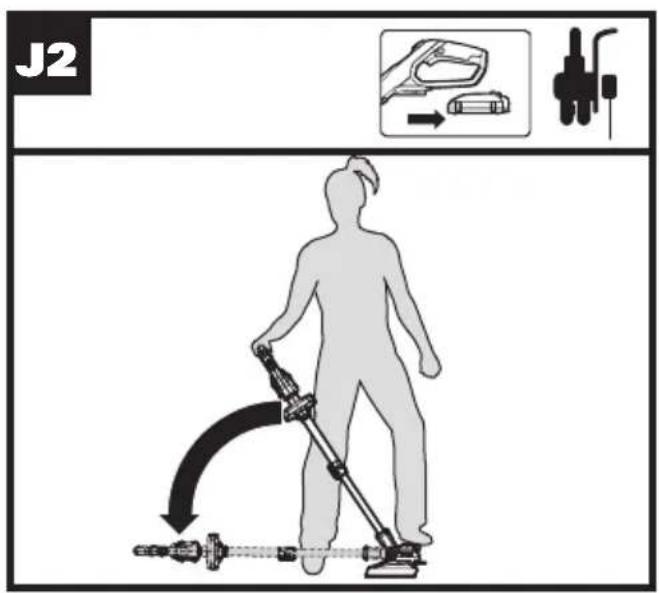

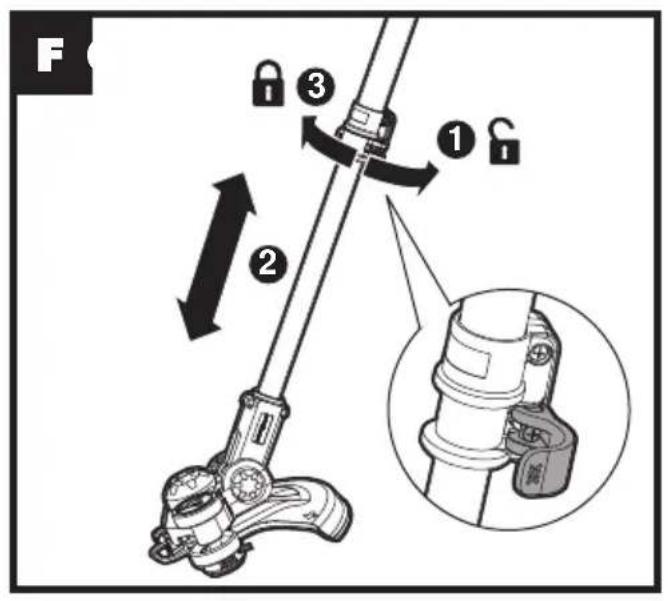

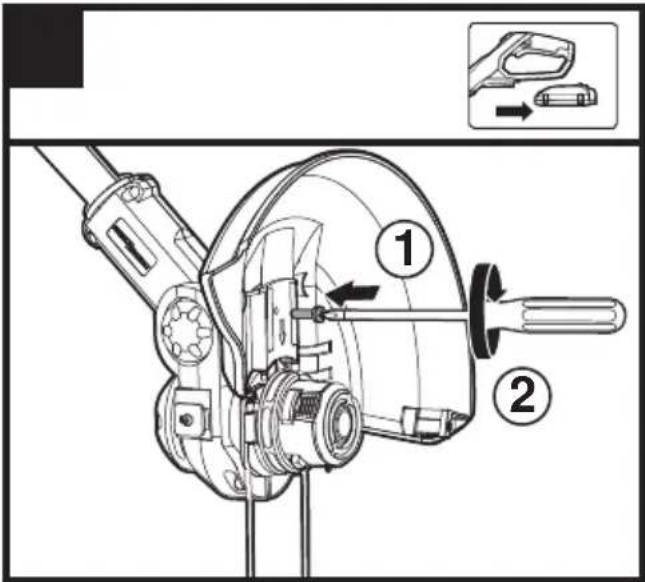

ASSEMBLY & OPERATION Action Figure ASSEMBLY Assembling the Safety Guard See Fig. A1 & A2 Mounting the Edger Wheel See Fig. B Installing and Removing the Battery Pack See Fig. C Charging the battery pack More details can be found in charger’s manual WARNING! The charger and battery pack are specially designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because of an electrical failure and hazard will occur. See Fig. D Operation Safety ON/OFF Switch See Fig. E Trimming Adjusting the Shaft See Fig. F Adjusting the Trimmer Head See Fig. G1, G2 Adjusting the Auxiliary handle See Fig. H Trimming See Fig. I1 Using the Flower Guard See Fig. I2 Edging Changing the tool into the Edging mode See Fig. J1, J2 Edging See Fig. K Manually feeding the line See Fig. L Replacing the trimmer Spool See Fig. M1, M2,

Manually winding the line See Fig. N1, N2, N3, N4 OPERATION INSTRUCTIONS

1. Automatic line feed system

When initially switching on the trimmer, a small length of line is fed out. Each time the tool is started from rest it will advance about 0.25 inches of trimmer line. A ‘clattering’ noise will be heard when the lines hit the Line Cutter. DO NOT BE ALARMED. This is quite normal. After about 5 seconds the line will be cut to the correct length and the noise will reduce as the motor gains full speed. If the noise of the line being cut can’t be heard, more line will need to be fed out. To feed more line, it is first necessary to allow the trimmer to stop completely; it must come to a complete rest, then restart, allowing the motor to reach full speed. Repeat above until you hear the line hitting against the Line Cutter.

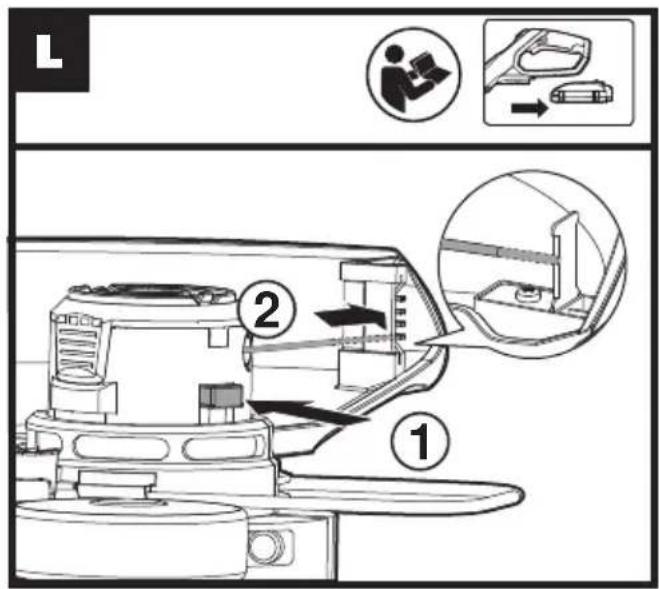

2. Manually feeding the line (See Fig. L)

Turn off the trimmer and remove the battery. If required, line can be fed out manually. To operate, press and release manual Line Feed Button, while gently pulling out the line until it is long enough to reach the Line Cutter. If the line extends past the Line Cutter, too much line has been fed out. If too much line is fed out, remove the Spool Cap and turn Spool counter-clockwise until the line is at the desired length.

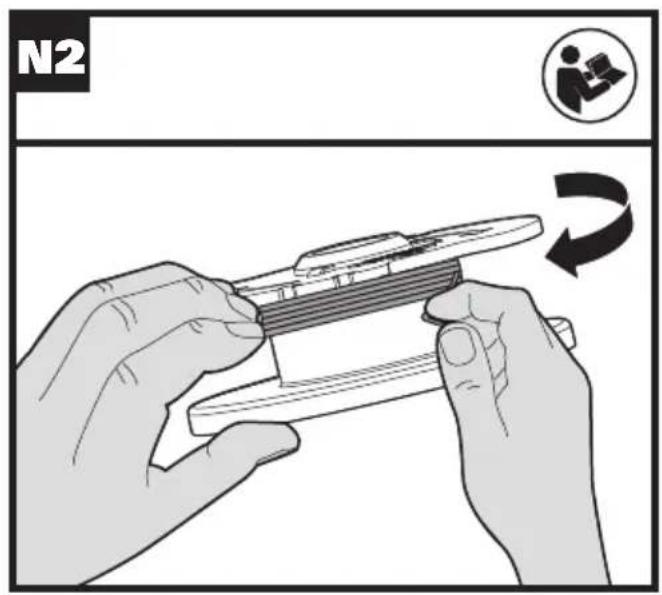

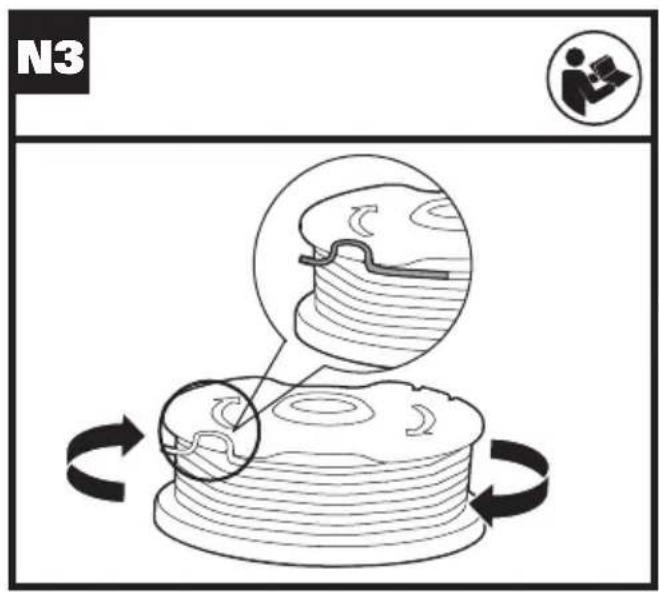

3. Manually winding the line

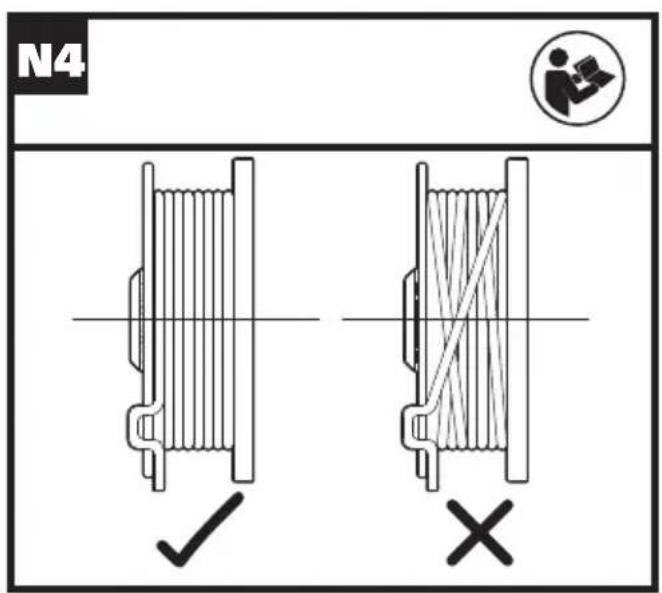

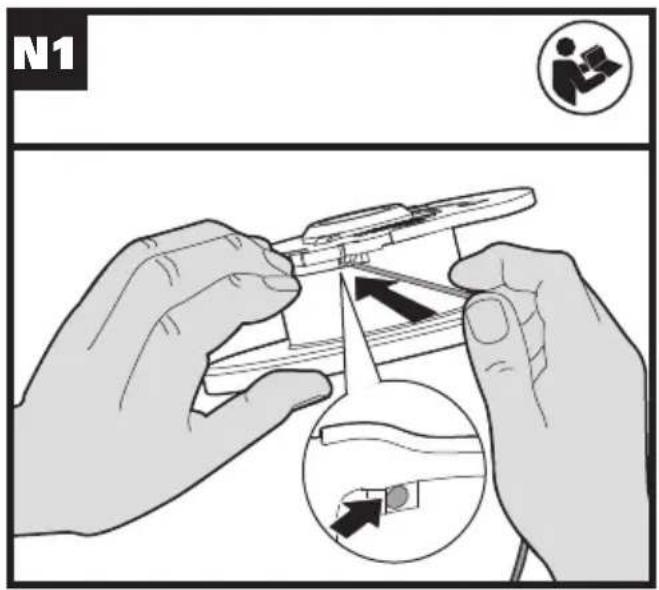

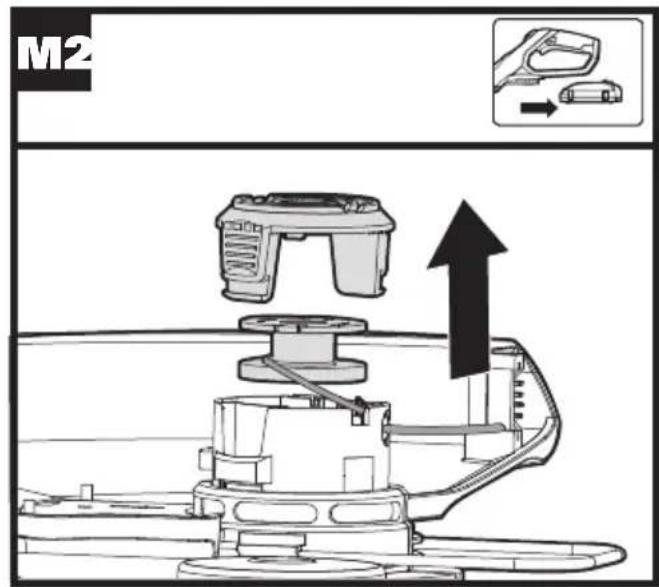

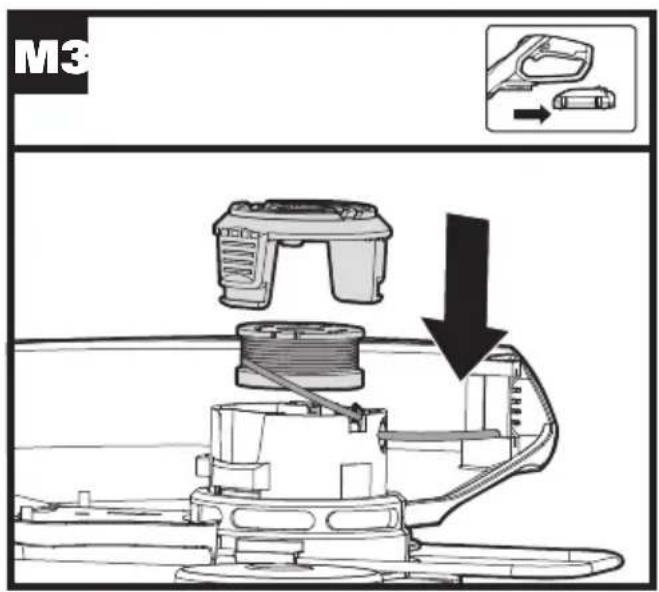

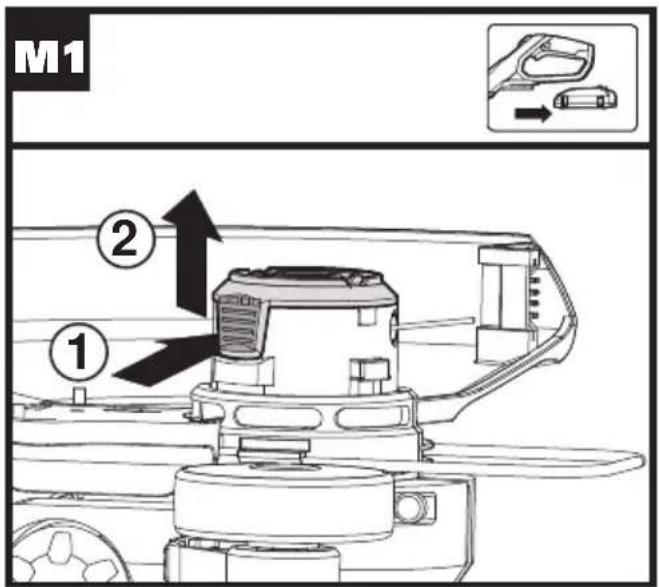

(See Fig. N1, N2, N3, N4) Take approximately 10ft (3m) of line. Insert 5/8 inch (15mm) of line into the Spool holes and wind line in the direction of the arrows on the top of the Spool. Leave approximately 4 inches (100mm) of line unwound and place into the cleat. Ensure that the line is neatly coiled on the Spool. Failure to do so will impair the efficiency of the automatic line feed. Then fit the Spool as shown in Fig. M1, M2, M3 MAINTENANCE After use, disconnect the battery from the tool and check for damage. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry room temperature location. Keep the motor ventilation slots clean. Keep all working controls free of dust. For Battery tools The ambient temperature range for the use and storage of tool and battery is 0

The recommended ambient temperature range for the charging system during charging is 0

TROUBLESHOOTING The following table gives problems and actions that you can perform if your machine does not operate correctly. If these do not identify and correct the problem, contact your WORX Customer Service at 1-866-354- WORX.

WARNING: Switch the machine off and remove the battery prior to any troubleshooting.

Problems Possible Causes Corrective Action Trimmer fails to Battery discharged. Recharge battery; also see operate. Battery too hot/cold. Motor is broken. Internal wiring of machine damaged. the content in charger manual Allow to cool/warm. Contact Service Agent. Contact Service Agent. Trimmer runs intermittently. Motor is broken. Battery not fully charged. On/Off switch defective. Contact Service Agent. Recharge battery. Contact Service Agent. Excessive Machine defective. Contact Service Agent. vibrations/noise. Line spool is not wound well. Rewind the line. See “MANUALLY WINDING THE LINE” (Fig. N1, N2, N3, N4). Cutting time per Battery has not been used for long period Recharge battery; also see battery charge or only charged for short term. the content in charger manual. too short. Grass too high. Battery defective. Cut in stages. Replace the battery. Machine does not cut. Line broken. Battery not fully charged. Motor is broken (speed is too low). Grass entangled around cutting head. Replace the line Recharge battery; also see the content in charger manual. Contact Service Agent. Remove grass. Continuous lighting Battery not (properly) inserted. Properly insert battery into battery of the battery charger. charge indicator. Battery contacts contaminated. Clean the battery contacts or replace No charging the battery. procedure possible. Battery defective. Replace the battery. Battery charge Plug of battery charger not plugged in Insert mains plug (fully) into the indicator does not (properly). socket outlet. light up. Socket outlet, mains cable or battery charger defective. Check the mains voltage; have the battery charger checked by an authorized after-sales service agent.
