Features	Details
Product type	Soundbar
Total power	120 Watts
Connectivity	Bluetooth, AUX, USB
Dimensions	90 x 8 x 8 cm
Weight	3.5 kg
Usage	Ideal for improving the sound quality of televisions, movies, and music.
Maintenance	Clean with a soft cloth, avoid harsh chemicals.
Safety	Do not expose to moisture, use only with the supplied power supply.
Warranty	2 years
Included accessories	Remote control, power cable, AUX cable

Frequently Asked Questions - CEBDS6022B3 CONTINENTAL EDISON

How do I connect my CONTINENTAL EDISON CEBDS6022B3 soundbar to my television?

You can connect your soundbar to your television via an HDMI ARC cable, an optical cable, or an AUX cable. Make sure the ARC function is enabled on your television if you use HDMI.

Why won\u0027t my soundbar turn on?

Check that the power cable is properly plugged in and that the outlet is working. Try plugging another device into the same outlet to ensure it is functioning.

How do I adjust the volume on my soundbar?

Use the remote control provided with the soundbar or the buttons on the device to adjust the volume. Make sure your television volume is not too low.

Why can\u0027t I hear sound from my soundbar?

Check that the soundbar is properly connected to the audio source, that the volume is sufficiently high, and that your television\u0027s audio output mode is set to use the soundbar.

How do I reset my CONTINENTAL EDISON CEBDS6022B3 soundbar?

To reset your soundbar, press and hold the \"Source\" button for about 10 seconds until the LED indicator flashes. This will reset the settings to factory defaults.

Is my soundbar making strange noises?

Strange noises can be caused by a poor audio connection or interference. Check all connections and try moving the soundbar or other nearby electronic devices.

How do I update the firmware on my soundbar?

Visit the CONTINENTAL EDISON website to check if firmware updates are available. Follow the instructions provided to download and install the update on your soundbar.

Is the soundbar compatible with Bluetooth?

Yes, the CONTINENTAL EDISON CEBDS6022B3 soundbar is Bluetooth compatible. Make sure Bluetooth is enabled on your device and follow the instructions to pair it.

USER MANUAL CEBDS6022B3 CONTINENTAL EDISON

• FR (version originale)

• EN (translated from the original)

Please read through this user manual thoroughly, its detailed instructions, warnings and safety precautions to ensure you get the most out of your product.

Keep this manual for future reference.

SAFETYWARNINGS

WARNING

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO PREVENT SHOCK HAZARDS, DO NOT OPEN THE UNIT. DO NOT REMOVE THE HOUSING (OR THE BACK). THIS DEVICE DOES NOT CONTAIN ANY SPARE PARTS THAT CAN BE REPAIRED OR REPLACED BY THE END USER. ONLY A QUALIFIED TECHICIAN SHOULD SERIVCE THIS PRODUCT. ANY DISASSEMBLY OF THE APPLIANCE WILL VOID THE WARRANTY.

The lightning symbol in an equilateral triangle draws the user's attention to the presence, in the case of the device, of a high voltage, not isolated, the amplitude of which could be sufficient to constitute a risk. of electric shock to people.

The exclamation mark written in an equilateral triangle draws the user's attention to the presence of important operating or maintenance safety instructions (routine maintenance) in the instructions accompanying the device.

READ CAREFULLY THE INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE. IN THE CASE YOU RESELL THIS APPLIANCE, PLEASE MAKE SURE TO PROVIDE THIS INSTRUCTION MANUAL TO YOUR BUYER.

WARNING! To prevent any fire or electrical hazards:

• The apparatus shall not be exposed to dripping or splashing.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.

• Minimum distance around the apparatus for sufficient ventilation is 10cm .

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc....

• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• The apparatus shall be used in moderate climates only.
• The plug shall remain readily operable.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Risk of hearing damage due to high sound pressure: In order to avoid possible hearing damage, do not listen at high volume levels for prolonged periods of time.

General precautions

• Do not let children to play with this unit and its accessories alone without adult supervision.
• Do not hit or slam this product. Don't walk on the unit. Don't let the unit fall.
• Keep the device away from liquids, humid and dusty environment; put it away from excessive hot or cold temperature. It's recommended to use the device only with temperature indicated on the technical specification. This device is not adapted to a tropical climate.
• Keep the device away from all metallic objects (coins, keys...). Don't let it close to magnetic field which could damage the device.
• Do not block the area above the speaker mesh
• This device is intended for domestic use and should not be used for any purpose or any other application.
• Respect the instruction of use of external devices that you connect to the tower (USB charging port connection and USB playing port connection)
• The power supply cord is used as the disconnect device, for pluggable equipment, the socket-outlet shall be easily accessible.

Avoid electric shock, fire and explosions

• Do not use any damage power cords and cables or loose electrical outlets.
• Place cable in such a manner that it cannot be walked on, especially the ends connected to the device and the AC adapter.
• Do not twist or bend the power cord.
• Do not pull the power cord when removing it from the outlet
• Do not operate this appliance with wet hand, especially during charging.
• Do not touch the cord or plug if your hands are wet.
• Do not cover or block any ventilation openings.
• Do not overload the electrical outlet. Plug the product into a proper power source as described on the operating instructions.
• In order to prevent any overheating, when the device is on, do not let it in a place without ventilation like a bag for example.
• Do not short circuit in any way.
• Do not drop the device or the AC adapter and avoid jolting shocks.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• To ensure normal operation of the equipment and your personal safety, we recommend you to choose a power adapter whose characteristics correspond to those provided by the manufacturer (see technical specification). Make sure that the adapter receives CC certification, as this could result in overheating and cause a fire, endangering your own life. Charging can cause interference that will disappear immediately after you have disconnected the device.
• The unit must not be installed at sites with gas / flammable sources or explosives (in a petrol station for example).
• Protect the unit from rain and excessive moisture. If water (or any liquids) is introduced into the apparatus, it must be turned off immediately and wipe it.
• Avoid exposing the device to high external pressure, which can lead to an internal short circuit and overheating
• Never put the device in or close to heating appliances such as microwave ovens, stoves, cooking tables, heaters or other (including audio amplifiers).
• Install away from electric or magnetic fields.

Protect the device and power cord for any damage.

• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit otherwise promote corrosion. Clean it with soft and dry tissue.
• Never use any charger that is damaged.
• Never dispose the device in fire.

AND HANDLING OF BATTERIES:

WARNING: Danger of explosion if the batteries are not inserted correctly or if they are replaced by non-like or no similar model. Replaced the batteries only by same type of batteries or equivalent. Batteries must not be exposed to excessive heat like sun or fire. Never throw batteries into fire or expose them to sources of heat. Different types of batteries, or new and used batteries must not be mixed.

Batteries have to be inserted with the correct polarity like indicated on the remote control.

Exhausted batteries have to be removed from the remote control. Only dispose of batteries in specific collection containers (contact your retailer for more information) in order to protect the environment.

Don't ingest the battery, danger of chemical burn

Keep news and used batteries out of reach of children.

If the battery is swallowed, it can cause serious intern burn in 2 hours only and cause the death.

If the battery compartment doesn't close properly, stop using the product and keep away from children.

In case of doubt concerning that the batteries may have been swallowed or introduced into any part of the body, call immediately a doctor.

Information on the signification of the marking presents on the product:

This marking indicates that the product has an electrical insulation of type class II.

This marking indicates that the product is designed to be used only indoor.

This symbol indicates direct current.

This symbol indicates alternating current.

For installation, handling, cleaning, and disposal of the device, refer to the following chapters of the User's Guide.

This instruction manual can be modified without prior notice.

Information on the marking of the Conformity Compliance.

The marking indicates that this product meets the quality requirements set by the European Directives 2014/53/UE (RED), 2014/35/EU (Low voltage), 2014/30/EU (Electromagnetic Compatibility CEM), 2011/65/UE (restriction of the use of certain hazardous substances in electrical and electronic equipment RoHS).

TABLE OF CONTENTS

SAFETYWARNINGS 25

I.DESCRIPTION 31

1.PRODUCT DESCRIPTION 31
2. REMOTE CONTROL DESCRIPTION 32

II. TECHNICAL INFORMATION 33

III. SET UP AND USE 34

1. BEFORE FIRST USE 34
2. REMOTE CONTROL SET UP 34
3. FREE STANDING INSTALLATION 35
   4.WALL MOUNTING INSTALLATION 36
4. CABLES CONNECTIONS 37
   6.AUTOMATIC STANDBY MODE 41

IV. CLEANING AND MAINTENANCE 41

V. TROUBLESHOOTING 42

VI. ENVIRONMENT: RECYCLING 43

VII. WARRANTY 43

I. DESCRIPTION

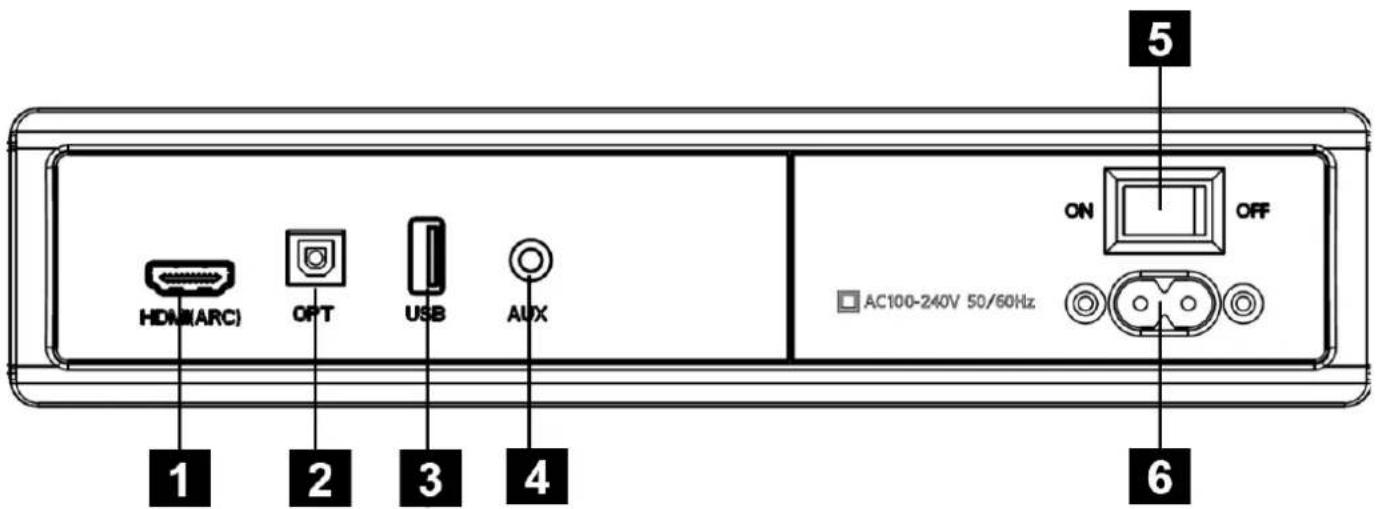

1. Product & accessories description

1.HDMI(ARC): Use to connect compatible devices using a HDMI cable (not provided).
2.OPTICAL IN: Use to connect compatible devices using an optical cable (not provided).
3.USB IN: Use to connect a flash drive for direct MP3/WAV playback (FAT32 format and 64GB max).
4.AUX IN: Use to connect compatible devices using the 3.5mm-3.5mm stereo jack cable (provided).
5. ON/OFF switch
6.AC IN: Use to connect the AC power supply (provided power cord).

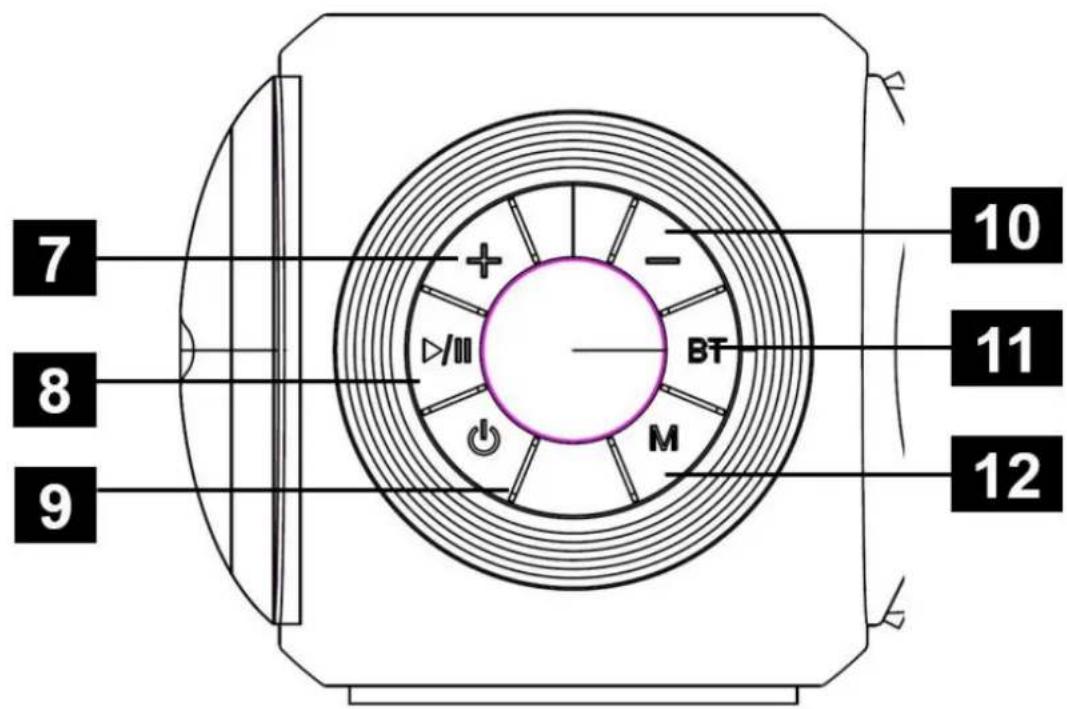

1. Volume turning up/Next track
2. Pause/Play button
3. Power on/Power Off button
4. Volume turning down/Previous track
5. Bluetooth button
6. Mode button

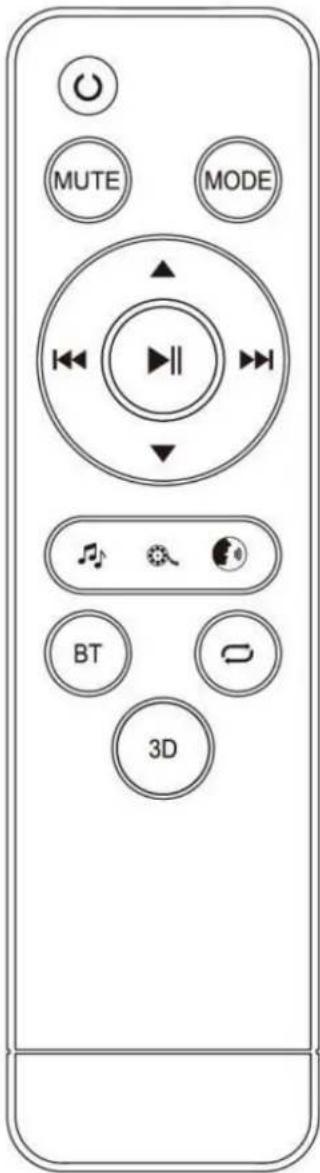

2. Remote control description

Button	Function
	Power on/off
MUTE	Mute or recover the volume
MODE	Cycle through different inputs
▲	Volume turning up
▼	Volume turning down
	USB and BT Previous
II	Pause/Play
	USB and BT Next
	Choose Music sound effect
	Choose Movie sound effect
	Choose News sound effect
BT	Shifting into BT Mode
	USB Playback Repeat
3D	3D ON/OFF

II. TECHNICAL INFORMATION

Soundbar

Brand		Continental Edison
Reference		CEBDS6022B3 (Model HD-112L)
Product information	Electrical parameters	AC 100-240V~50-60Hz
	Output current	21V -2.5A
	Power consumption	52,5W
	Standby power consumption	<0.5W
	Entrée port	1 × USB port 1 × jack input Ø 3.5mm AUX 1 × optical input 1 × HDMI ARC input
	Supplied cables	1 × 3.5mm / 3.5mm Jack cable
	Dimension (LxPxH)	94x7.5x8cm
	Net weight	2,2 kg
Bluetooth	Bluetooth version	Version 5.0
	Protocole	A2DP AVRCP AVDTP AVCTP GAVDP
	Transmission range	Jusqu'à 10m
	Maximum emitted power	0 Dbm
	Frequency band	2.4GHz-2.480GHz
Speakers	Impedance	4 Ω
	Max output power	15W x 4
	Frequency in response	50Hz-18KHz
Remote control	Power supply	2 x AAA/R03 (non supply)
	Transmission range	Up to 6m (Angle ≤30°)

III. SET UP AND USE

1. Before first use

Unpacking the appliance and disposing of the packaging elements:

Remove all packing materials that is protecting the appliance and the protective elements inside the appliance compartments.

• The packing box and the papers sheets are recyclable. They must be thrown in the collection bins provided for this purpose.

• The materials bearing the symbol are recyclable:

PE<= polyethylene; >PS<= polystyrene; >PP<= polypropylene

This means that they can be recycled by depositors in appropriate collection containers.

• The other packaging elements (adhesive, fasteners ...) must be thrown away with household waste.

To know further: www.quefaredemesdechets.fr

2. Remote control set up

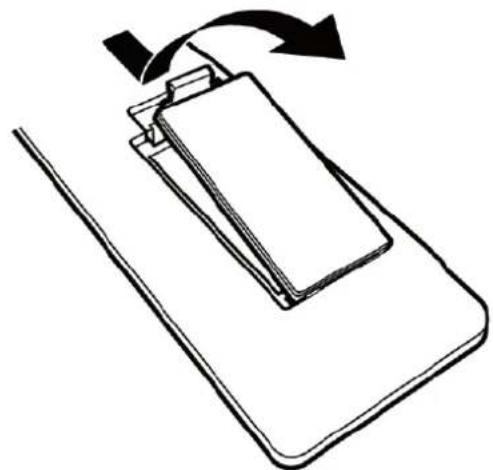

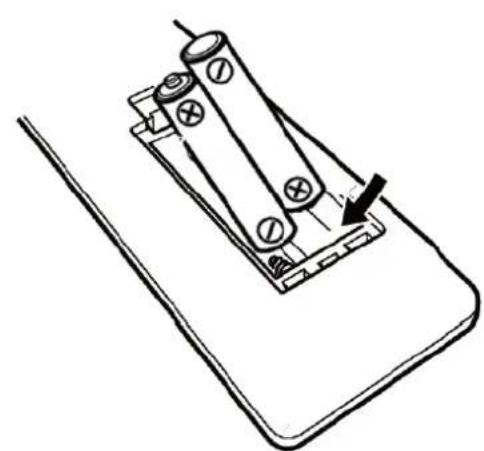

Pull the battery compartment cover towards you to remove it as shown in the diagram below. Then insert two R03 / AAA batteries (not supplied) respecting the polarities (+/-). Replace the cover on the battery compartment and close it by pushing lightly until you hear a click.

The performance of the remote control is optimal at an angle of 30^ and up to a distance of 6m from the remote-control sensor. If the operating range is reduced, the battery may need to be replaced.

Keep batteries, new or used, out of the reach of children. Take care not to swallow the batteries, otherwise there is a risk of chemical burns.

If you do not plan to use your soundbar for a long time, remove the batteries from the remote control.

Make sure there are no obstacles between the unit's remote control sensor and the remote control.

Do not expose the infrared remote control sensor to direct sunlight or other strong light.

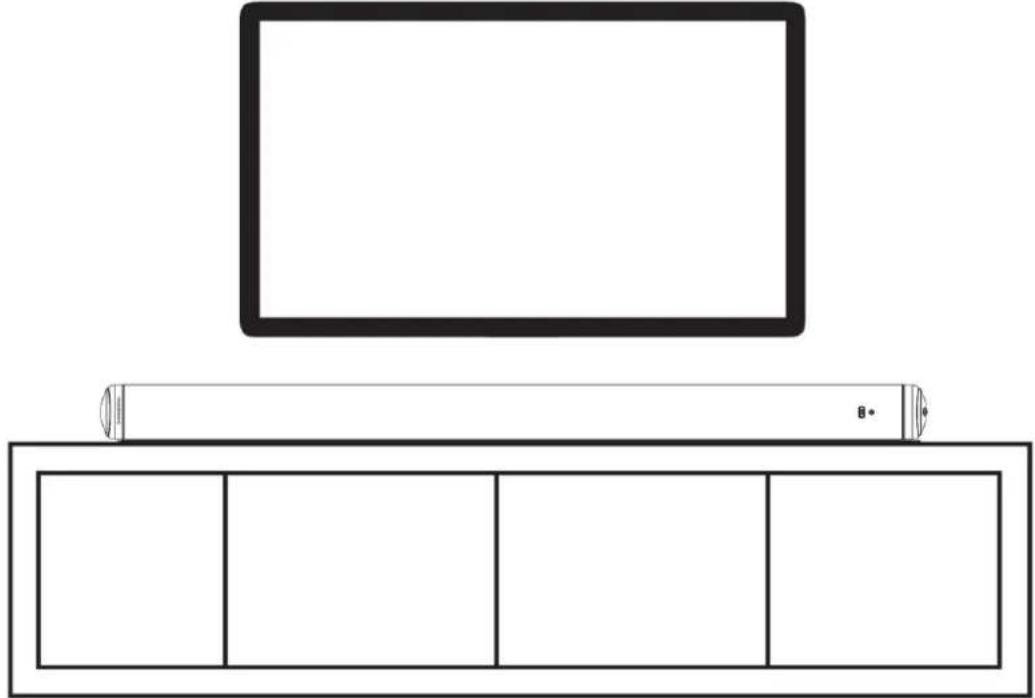

3. Free standing installation

You can choose to install your soundbar by placing it on a table.

To make the most of the sound quality of the product, the sound bar should be installed centrally below your TV, facing the listening position, as shown in the diagram below.

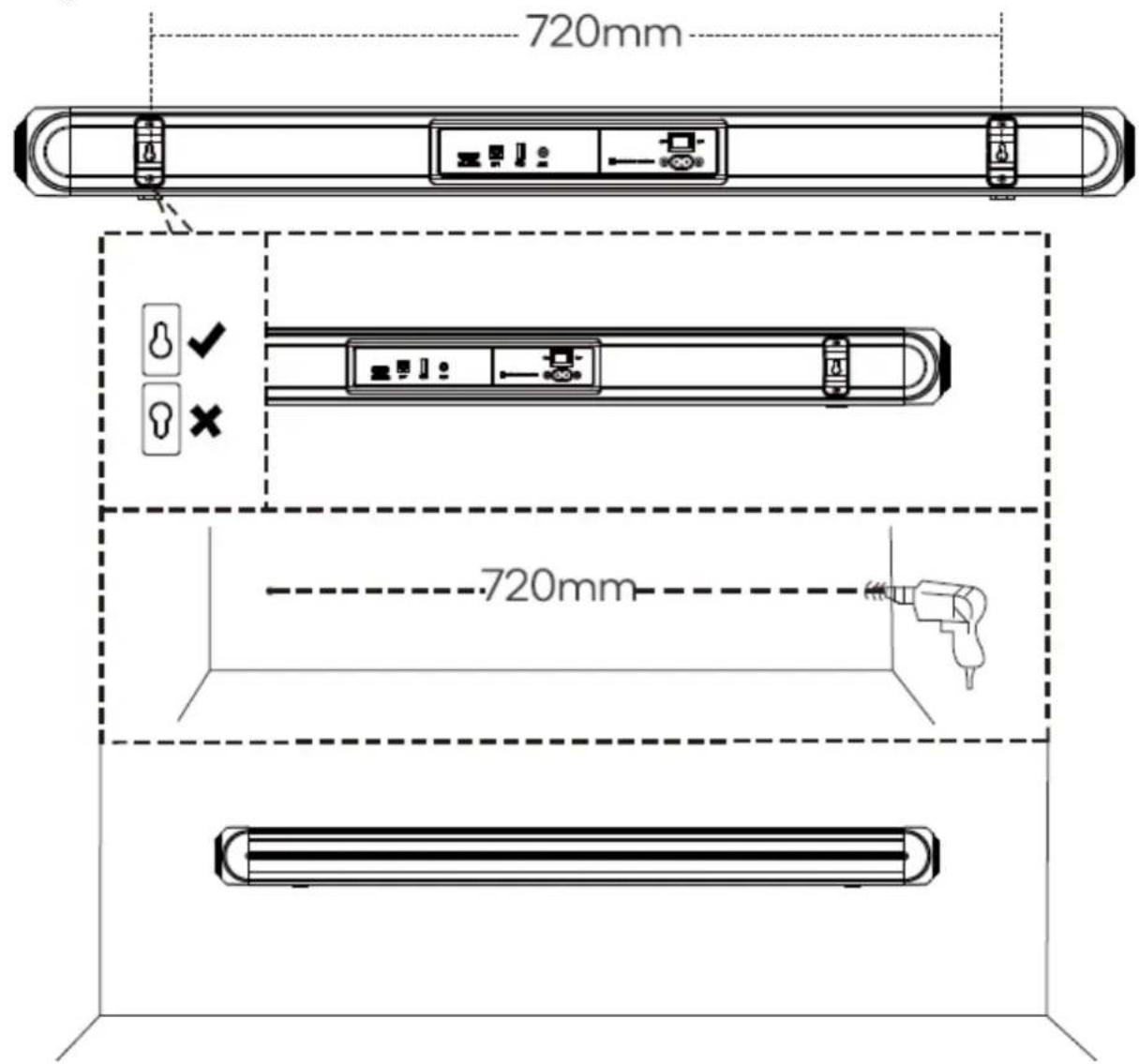

4. Wall mounting installation

You can choose to hang your sound bar on the wall by mounting it directly under the TV screen.

Follow the steps below:

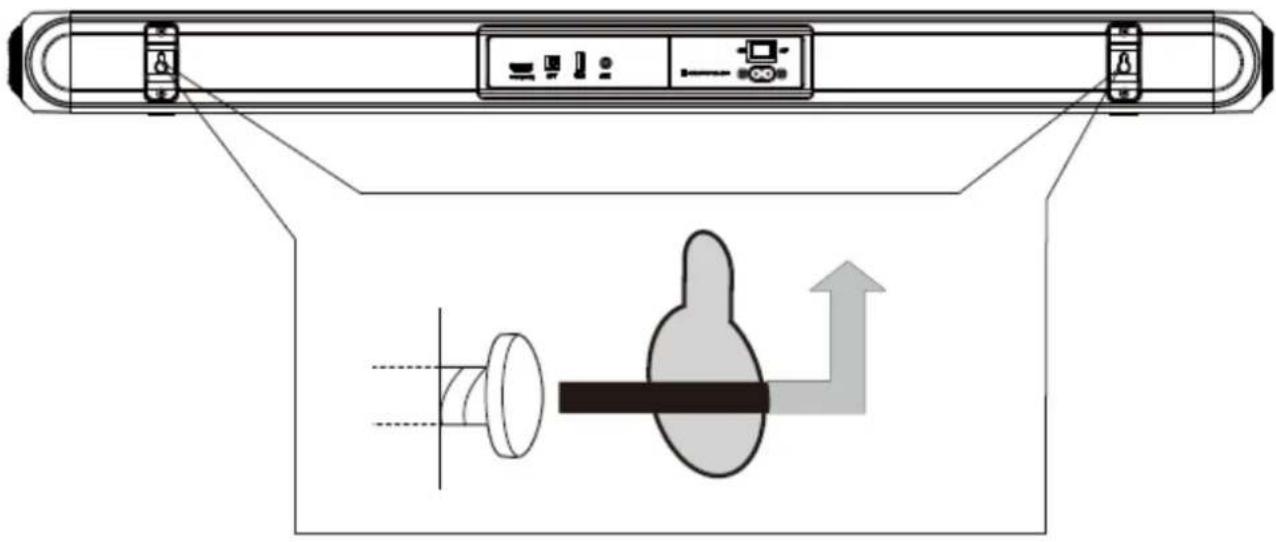

1. Place each wall mount bracket in its location at the back of the sound bar, then screw each bracket using the screws provided.
2. Measure the locations of the two holes in the wall mount bracket and mark two points on the wall for drilling depending on the measurement. Make sure the holes on the wall (concrete) are in the correct positions before drilling.

Note: The recommended diameter for the hole is 6mm.

1. After drilling, insert 2 wall plugs (not supplied) into the drilled holes; use a hammer if necessary.
   Do not drill into plasterboard walls, plaster plastered, wooden slats, etc.
2. Insert the 2 screws (supplied) into the holes and tighten them. Make sure to leave 8mm between the screw heads and the wall.
3. Connect the cables to the soundbar.
4. Lift the unit with its wall brackets fixed above the screw heads. Slide it into place. Fix the screws in the holes with dowels. The screws must protrude far enough for mounting.

The installation must only be carried out by qualified personnel. Improper mounting can cause serious personal injury and property damage. If you have decided to do the wall installation by yourself, make sure that there is no installation such as electrical wiring and piping in the wall. It is the responsibility of the installation to ensure that the wall can safely support the full load of the device and the wall mounts. Additional tools (not supplied) are required to complete the installation.

5. Cables connections

Before making any connections, make sure that the device is disconnected from any electrical supply.

During use, if cables or wires must be reconnected, first disconnect the power cable or the device may be damaged.

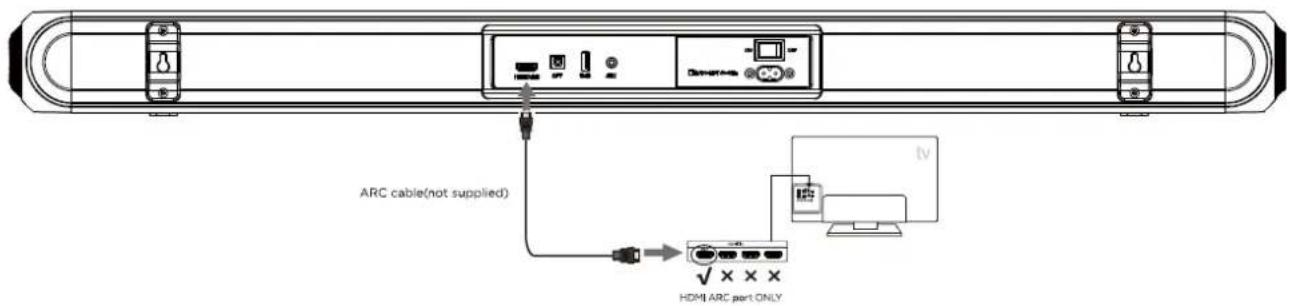

HDMI ARC connection

If you connect your soundbar to an HDMI ARC (Audio Return Channel) compatible TV, you can output audio from your TV via your soundbar without using an additional audio cable.

1. Use a high-speed HDMI cable that supports ARC (not supplied) to connect the HDMI ARC port on your soundbar to the HDMI ARC connector on your TV. For more details on the location of this connection, refer to the TV's user manual.

2. On your TV, activate the HDMI CEC / ARC functions. For this, refer to its user manual.

3. Press on the unit button M or press on the remote-control button MODE. The Led screen will shown ARC
4. Once the connection is established, use the remote control of your TV or soundbar to adjust the volume.

Note: If your TV is not HDMI CEC / ARC compatible, you need to connect an audio cable to output the sound from your TV through your soundbar speakers.

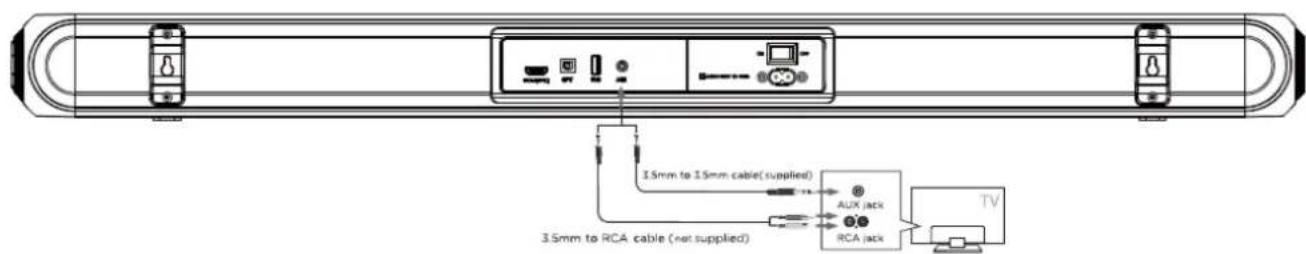

Analog connection with a 3.5 / 3.5mm jack cable (supplied)

You can also connect an external audio device to the soundbar using the AUX jack. This analogy socket is used for the audio connection of all types of sources (smartphone, tablet, CD player or MP3 player, game console, television ...).

1. Use the supplied 3.5mm jack / 3.5mm jack cable to connect the headphone jack of your audio source to the AUX jack on the soundbar.
2. Press on the unit button M or press on the button MODE. The Led screen will shown ARC
3. Start playback on your external audio source. Sound is played through the speakers in the soundbar. Use the remote control of your TV or soundbar to adjust the volume.

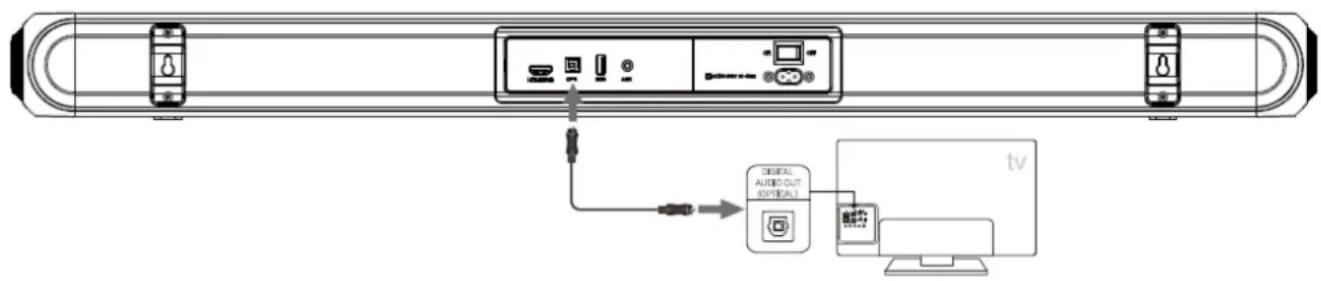

Optical connection

You can also connect an external audio device to the soundbar using the optical jack. This audio connection allows the most exact sound retransmission via a fiber optic cable (not supplied) without loss of signal.

1. Use the optical cable (not supplied) to connect the OPTICAL jack on your audio source to the OPTICAL jack on the soundbar.

2. Press on the unit button M or press on the remote-control button until the LED screen shown OPT

3. Start playback on your external audio source. Sound is played through the speakers in the soundbar. Use the remote control of your TV or soundbar to adjust the volume.

Bluetooth connection

You can also connect an external audio device to the soundbar using Bluetooth wireless mode. This audio connection lets you listen to music stored on your device without using a cable.

Press the BT button on the remote control or repeatedly pressing the MODE button on the soundbar control panel until BT is shown on the LED display.

The LED display will flash to indicate that the soundbar is in Bluetooth pairing mode. Ensure that the device you wish to connect is also in pairing mode and search for "CEBDS6022B3" in its device list.

When the two devices are paired, the LED display on the soundbar will stop flashing and remain constant. (The soundbar will now automatically re-pair with this device whenever it is within range and has Bluetooth turned on.)

Notes:

• This sound bar can be paired with all devices equipped with Bluetooth wireless technology.
• After pairing, your audio source and the soundbar will reconnect automatically as soon as the Bluetooth source is selected.
• The Bluetooth function of the soundbar automatically switches to standby mode after two minutes if no Bluetooth signal is detected. Press the key for 3 seconds to reactivate the Bluetooth mode.
• The device can only be paired with one Bluetooth device at a time. To pair with another device, cancel the Bluetooth pairing of your device then repeat steps 1 to 4 above with the new device.
• For optimal transmission quality, make sure that the sound bar and your Bluetooth device are within 10 meters of each other and that no wall or electronic devices are interfering with the transmission.

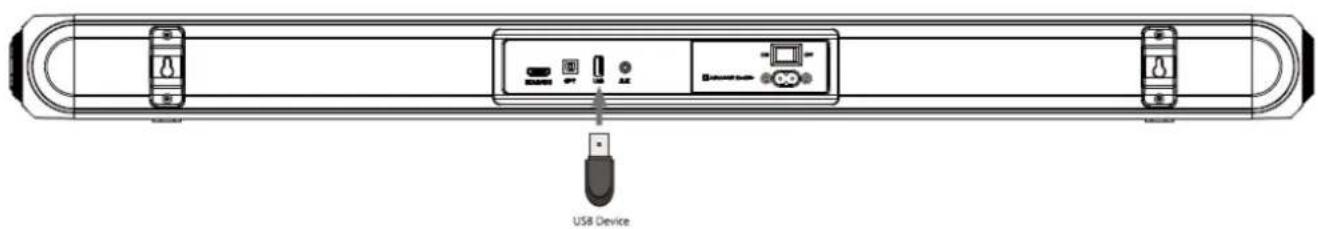

USB mode

The soundbar is compatible with USB flash drives of up to 64GB(Fat32 format) in size and can play MP3 and WAV audio files directly.

Simply insert a compatible drive into the USB port on the back of the soundbar and the unit will automatically switch to USB mode and play the first compatible track.

USB repeat mode (also accessed via the remote control) enables single track repeat (ONE), all track repeat (ALL)

The media player also has a memory function that will recall and continue from the last-played point when a USB flash drive that has previously been used with the soundbar is reinserted.

Equalizer modes

The soundbar has 3 equalizer presets, tailored to complement various styles of music.

Press the EQ button on the remote to choose between Music (EQ1), Movie (EQ2), News (EQ3).

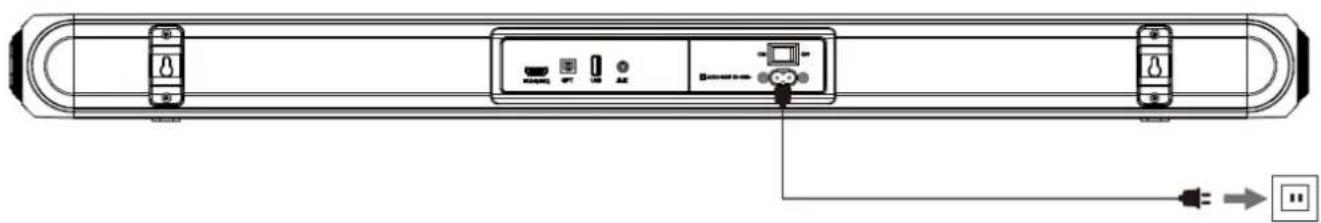

Connection to mains socket

After making the connections to your source cables, proceed to the electrical connection of the soundbar.

Insert the end of power into the power connector port on the back of the sound bar. Wall mount your soundbar if necessary.

Then plug the other end of power cord into the electrical outlet.

6. Automatic standby mode

Your soundbar complies with the standards in force in European legislation regarding the deadlines for automatic standby imposed by the ERP (Energy Related Products) directive.

If the sound bar remains idle (no signal input) for about 15 min, it will shut down automatically.

During normal use of the sound bar, make sure to set the amount of volume from sound bar and external devices (such as DVD, TV, or mobile phone) at normal volume, if the volumes in sound bar or external devices are indeed low, the sound bar may not detect the input signal and it will power off the sound bar automatically

IV. CLEANING AND MAINTENANCE

• At the end of your use, turn off your device by unplugging the power cable from the power outlet.

AWARNING! Always make sure to unplug the appliance before cleaning. Do not immerse the device in water.

Do not use sharp, toxic and aggressive products such as methylated spirits, industrial strippers, solvents to clean your device because they may damage it.

Cleaning the body of the soundbar:

Use a soft cloth to clean the surface of the soundbar.

V. TROUBLESHOOTING

Anomalies	Causes	Solutions
No power supply	The device is not plugged in.	Plug in the soundbar.
	The device is not switched on.	Press on the button ⋅
The soundbar does not emit sound.	The volume is set to minimum or is disabled.	Adjust the volume. Press on the remote-control button ⋅ to reactivate the sound.
	The connections are not correctly made.	Connect an audio cable between your audio device and the soundbar. However, you do not need a separate audio connection if the soundbar and the TV are connected by an HDMI ARC connection.
	The selected source is not correct	Select the appropriate audio source using the button M on the unit or the button MODE on the remote control.
The remote control does not work.	The distance between the remote control and the sound bar is too large.	Bring the remote control closer to the device.
	The batteries are discharged.	Change the batteries.
	There is an obstacle between the remote control and the device.	Remove any obstacle between the two elements.
LED off. Keys do not work.	The control panel is damaged.	Contact the After-Sales Service.
No light indicator.	The device is not plugged in.	Plug in the soundbar.
	The control panel is damaged.	Contact the After-Sales Service.
Dysfunction	The soundbar works abnormally, or makes an unusual sound.	Unplug the appliance for 30 minutes. After 30 minutes, turn on the soundbar again.
Bluetooth connection cannot be established.	A device cannot connect with the soundbar	Restart the Soundbar and try pairing again You have not enabled the Bluetooth function of the device. See the user manual of the device on how to enable the function.
		The device is not correctly connected. The Soundbar is already connected with another Bluetooth device Disconnect the connected device, then try again
	Quality of audio play from a connected bluetooth device is poor	The Bluetooth reception is poor. Move the device closer to the soundbar or remove any obstacle between the device and the soundbar
	The connected bluetooth device connects and disconnects constantly	The Bluetooth reception is poor. Move the device closer to the soundbar or remove any obstacle between the device and the soundbar

For any problem occurring on your device: contact the After-Sales Service.

VI. ENVIRONMENT: RECYCLING

The European Directive on Waste Electrical and Electronic Equipment (WEEE)

requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

VII. WARRANTY

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

1. superficial deterioration due to normal wear of the product;
2. defects or deterioration caused by the product coming into contact with liquids and corrosion caused by rust;
3. any incident, misuse, misuse, alteration, disassembly or unauthorized repair;

4. Any unsuitable maintenance, use not in accordance with product instructions or incorrect voltage connection;

5. any use of accessories not supplied or not approved by the manufacturer.

The warranty will be void if the rating label and / or serial number of the product is removed.
