Product Type	MPO/MTP Optical Patch Panel for Spine-and-Leaf Architecture
Brand	Tripp Lite
Model	N48LSM32X32
Category	Network Hardware
Architecture	Spine-and-Leaf
Form Factor	1U (44.45 mm height)
Front Connector Type	Spine MPO/MTP Ports
Rear Connector Type	Leaf MPO/MTP Ports
Capacity	32 ports (N48LSM32X32 model)
Rack Mounting	Standard EIA 48.26 cm (19 inches)
Material	Steel
Weight	Approximately 2.7 kg
Dimensions (W x H x D)	48.3 x 4.4 x 30.5 cm
Power Supply	None (passive device)
Cable Management	Front and rear management system included
Operating Temperature	0 to 50°C
Relative Humidity	5 to 95% non-condensing
Warranty	Limited Lifetime Warranty
Maintenance and Cleaning	Clean with a dry, lint-free cloth
Safety	Do not use for life support devices; use in a controlled environment
Spare Parts and Repairability	Repairs and parts available from Tripp Lite under warranty
General Information	Manufactured in China (per Tripp Lite standards)

Frequently Asked Questions - N48LSM32X32 Tripp Lite

What is the function of this N48LSM32X32 panel?

This panel is designed for spine-and-leaf multimode fiber optic architectures. It replaces an MPO/MTP to LC cross-connect, with spine ports on the front and leaf ports on the rear, reducing rack congestion.

How to install the panel in a rack?

Extend the front and rear side brackets with the provided screws, then remove the screws to pivot the cable management systems before securing them. Then, mount the panel in a standard EIA 48.26 cm (19-inch) rack and tighten the screws.

What types of fibers are compatible?

The panel is designed for multimode fiber optic with MPO/MTP connectors. It supports spine-and-leaf architectures and is suitable for MPO/MTP cables.

How to clean the optical ports?

Use a dry, lint-free cloth or a special fiber optic cleaning kit. Avoid contact with liquids. Clean the ports regularly to prevent signal loss.

What is the warranty for this product?

Tripp Lite offers a limited lifetime warranty against defects in materials and workmanship, provided the product is used in accordance with instructions. For service, contact Tripp Lite in Chicago.

Can I use this panel with equipment from other brands?

Yes, this panel is compatible with any standard switch supporting MPO/MTP connectors in a spine-and-leaf architecture. It complies with EIA standards for rack mounting.

What if a port is defective?

If a port is defective, contact Tripp Lite for a warranty replacement. Do not attempt to repair it yourself, as this could void the warranty.

What is the difference between spine and leaf ports?

The spine ports (front) connect to the spine switch, while the leaf ports (rear) connect to the leaf switch. This enables an aggregated architecture improving cable management.

How to manage cables to avoid losses?

Use the provided front and rear cable management systems. Route cables carefully to avoid excessive bends and follow recommended fiber bend radii.

Does this panel require power?

No, this panel is a passive device without power. It acts as an optical distributor, connecting MPO/MTP connections without active electronics.

USER MANUAL N48LSM32X32 Tripp Lite

Spine-and-Leaf Multimode MPO/MTP Panels, 1U

Models: N48LSM-16X16, N48LSM-32X32

Español 5 • Français 9 • Русский 13 • Deutsch 17

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

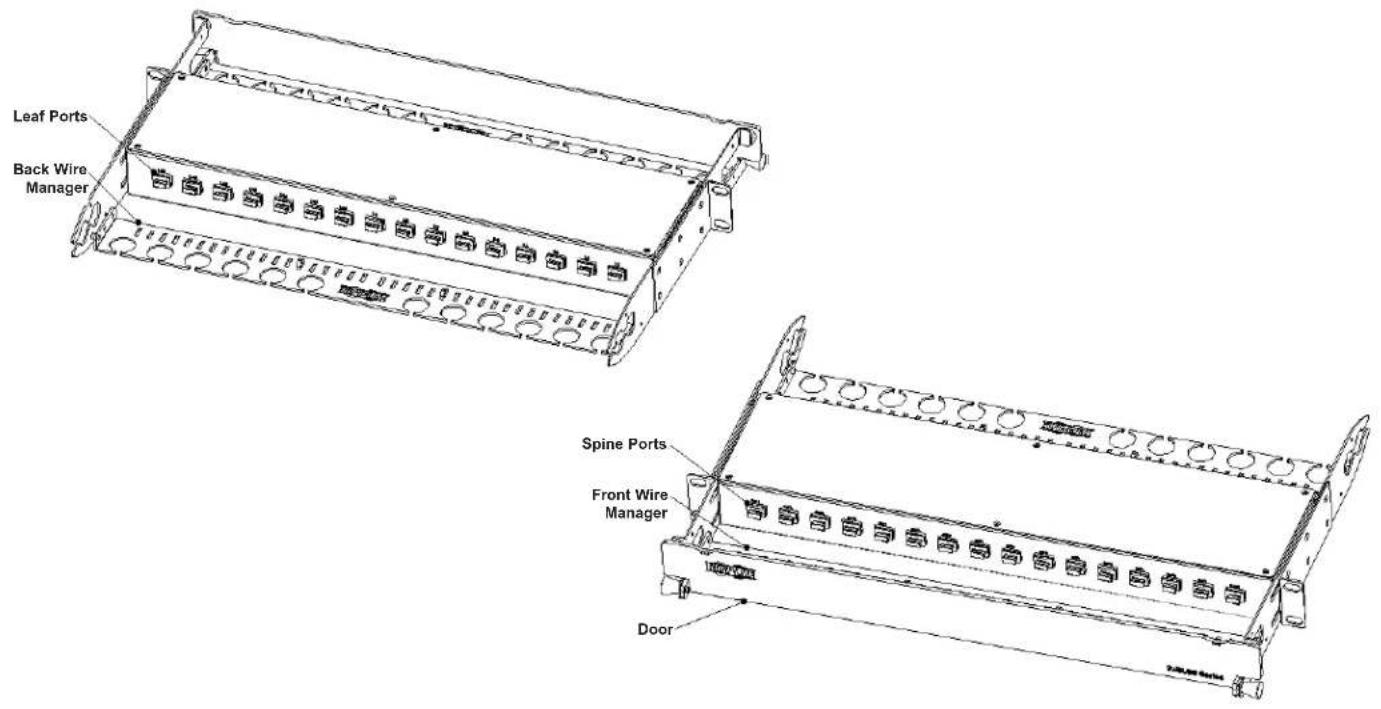

Main Components

The N48LSM-16X16 and N48LSM-32X32 1U network panels are designed for spine-and-leaf architecture, which replaces a standard MPO/MTP-to-LC cross-connect with MPO/MTP ports and helps eliminate significant rack clutter. Spine ports in the front of the panel mate with a spine switch, and leaf ports in the rear mate with a leaf switch. Main components of the panels are shown below:

Installation

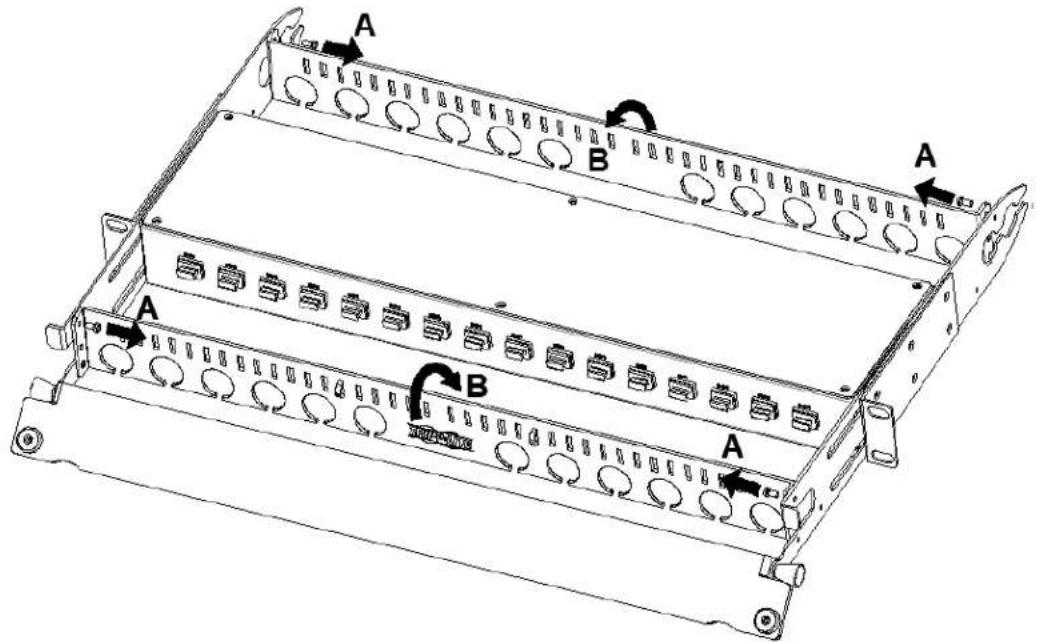

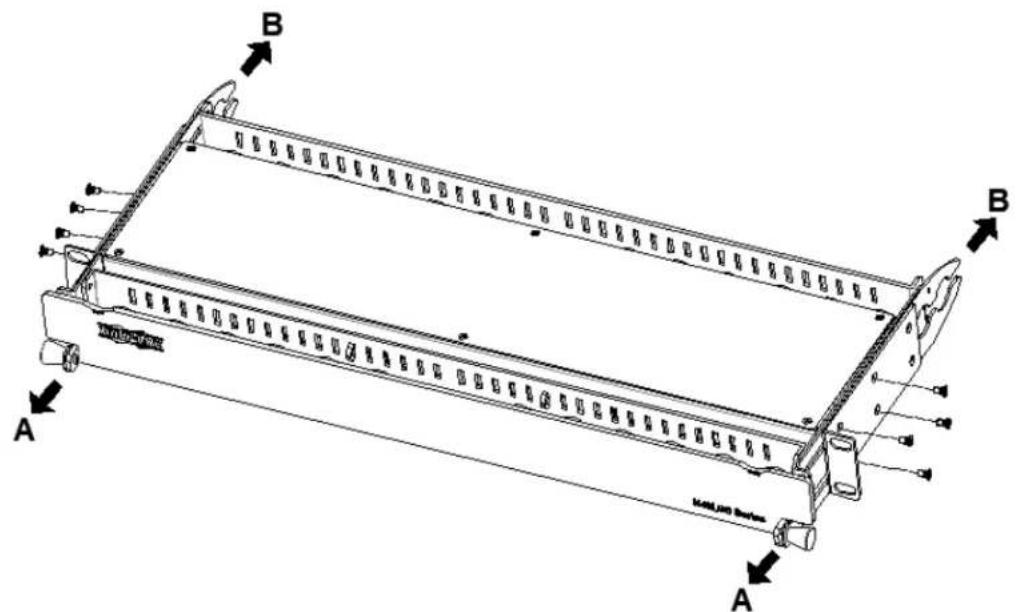

Step 1: Extend the front and back side brackets, and secure the side screws.

Installation

Step 2: Remove screws, rotate the front and back wire manager, and then tighten the screws.

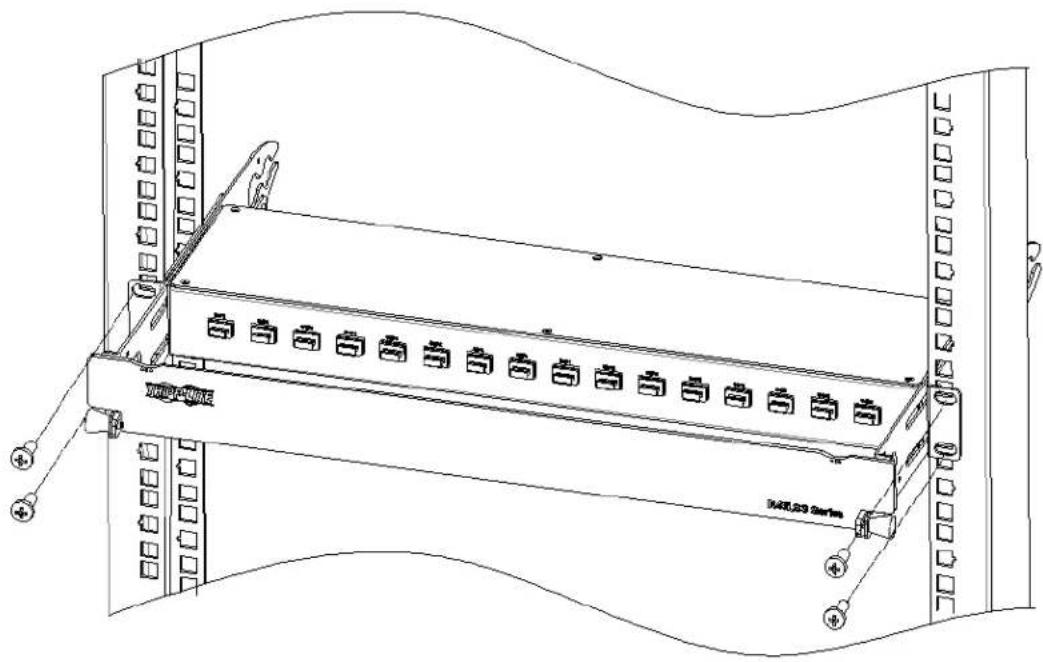

Step 3: Mount the panel into an EIA-standard 19-inch rack, and secure the screws.

Line drawing of a server rack unit with labeled ports and connectors (no text or symbols beyond labels)

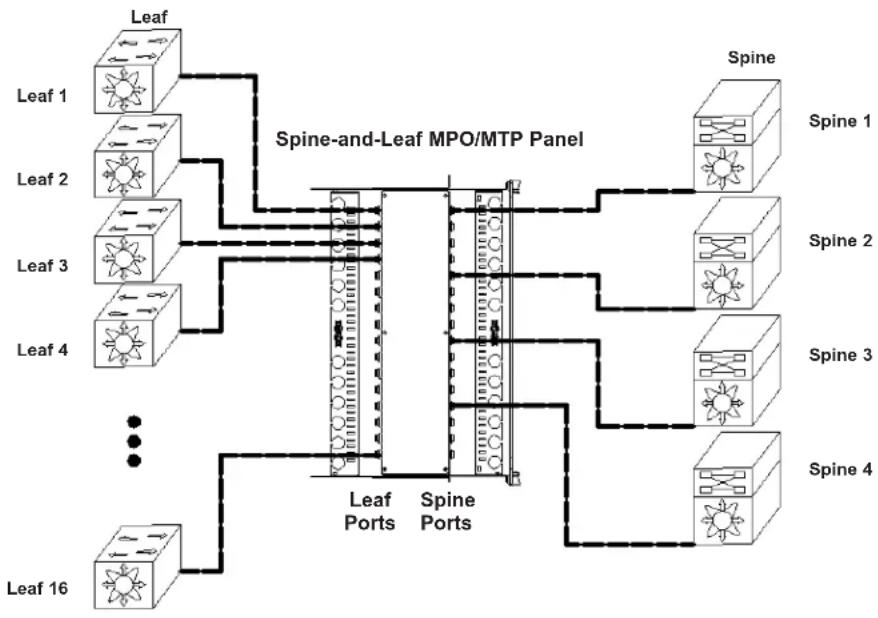

Network Mapping

Warranty and Product Registration

Limited Lifetime Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th St., Chicago, IL 60609. Seller will pay return shipping charges.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

*No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-218·93-3F63 RevA

Line drawing of a server rack with labeled components (no text or symbols beyond labels)

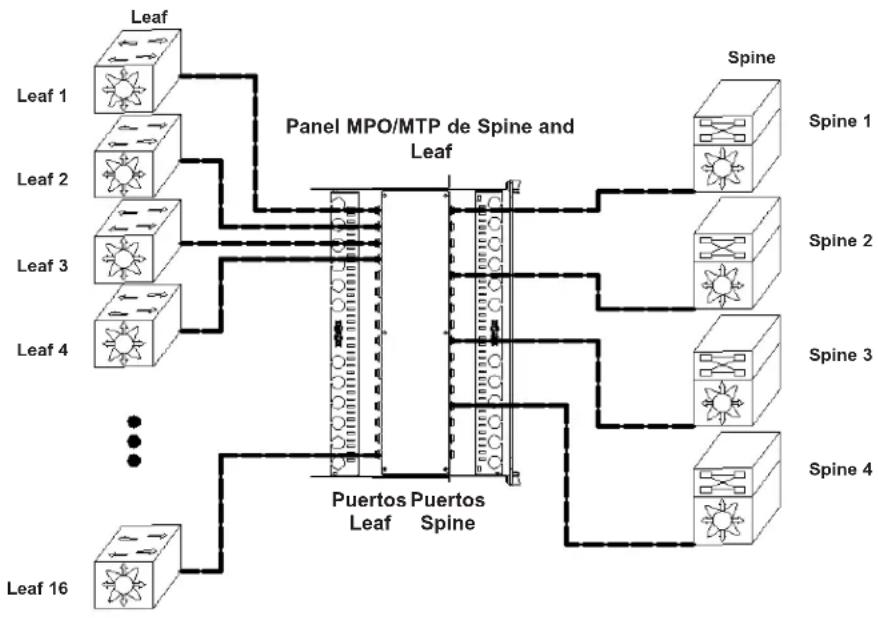

Mapeo de la Red
    G["..."]
    H["Leaf 16"] --> I["Puertos Puerto Leaf Spine"]
    B --> J["Spine"]
    B --> K["Spine 1"]
    B --> L["Spine 2"]
    B --> M["Spine 3"]
    B --> N["Spine 4"]

Garantía

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Line drawing of a server rack unit with labeled ports and connectors (no text or symbols beyond labels)

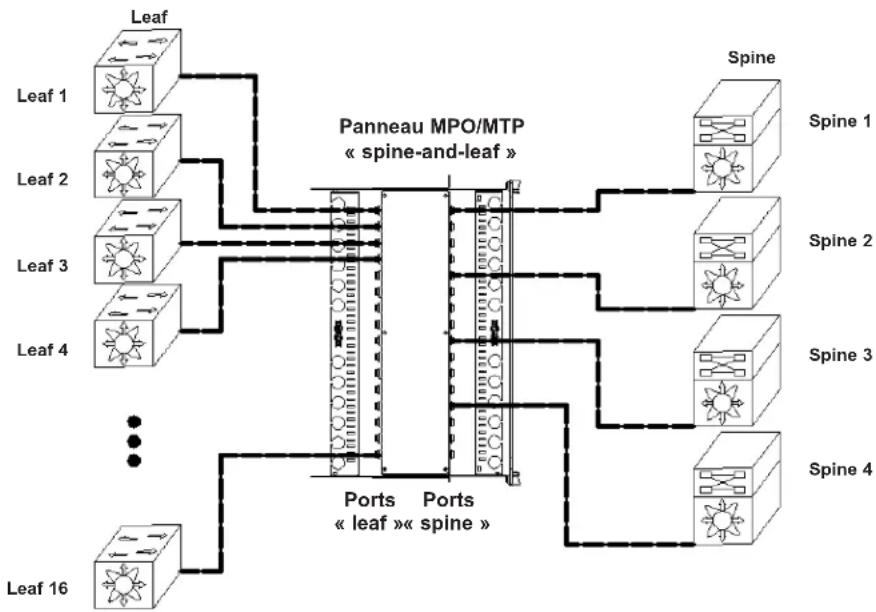

Schéma du réseau

Garantie

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-218·93-3F63 RevA

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Line drawing of a server rack unit with labeled ports and connectors (no text or symbols beyond labels)

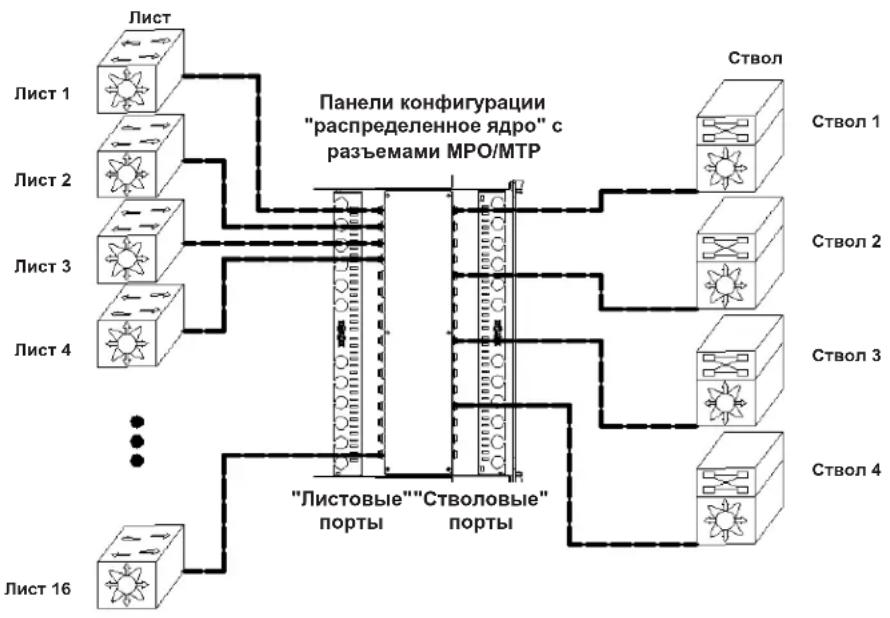

Топология сети

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-219·93-3F83_RevA

Bedienungsanleitung

Spine-and-Leaf Multimode MPO/MTP-Panels, 1-HE

Modelle: N48LSM-16X16, N48LSM-32X32

English 1 • Español 5 • Français 9 • Русский 13

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Line drawing of a server rack with labeled components (no text or symbols beyond labels)

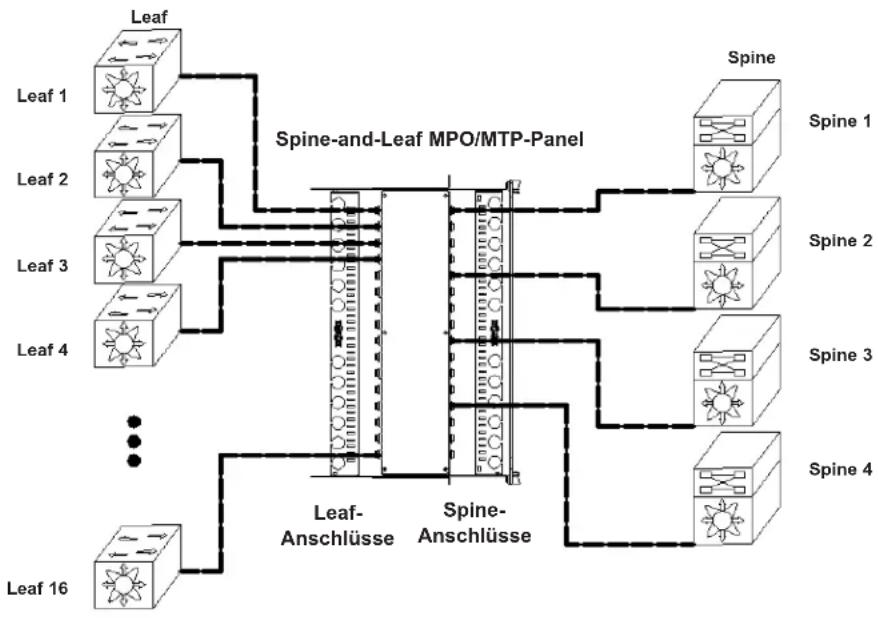

Netzwerkzuordnung

Garantie

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-218·93-3F63 RevA
