USER MANUAL Proheat II ASTRALPOOL

		STANDARD	REFERENCES
			CHILLER	INDOOR
PROHEAT II	35 kW ModBus	65542-MOB	68245-MOB	69649-MOB
PROHEAT II	45 kW ModBus	65543-MOB	68246-MOB	69650-MOB
PROHEAT II	60 kW ModBus	65544-MOB	68247-MOB	69651-MOB
PROHEAT II	90 kW ModBus	65545-MOB	68248-MOB	69652-MOB
PROHEAT II	120 kW ModBus	65546-MOB	68249-MOB	69653-MOB

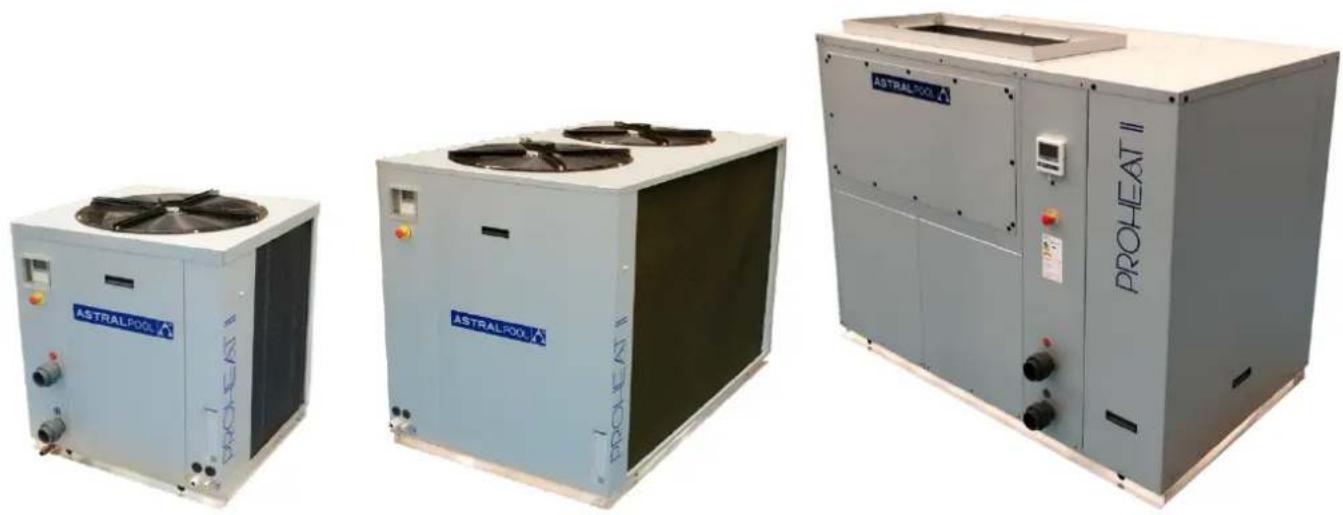

PROHEAT II SERIES HEAT PUMP

TECHNICAL MANUAL. START-UP AND OPERATION · MANUAL TECNICO. ARRANQUE Y FUNCIONAMENTO · MANUEL TECHNIQUE. MISE EN ROUTE ET FONCTIONNEMENT · TECHNISCHES HANDBUCH. INBETRIEBNAHME UND BETRIEBSWEISE · MANUALE TECNICO. AVVIAMENTO E FUNZIONAMENTO · MANUAL TECNICO. ARRANQUE E FUNCIONAMENTO

TABLE OF CONTENTS ENGLISH

1. INTRODUCTION 10
2. SECURITY 11

2.1. RESPONSIBILITY OF HOLDER 11
2.2. REFRIGERANT CIRCUIT 11
2.3. PROTECTION GEAR 12
2.4. HAZARDS. 13

1. PACKAGING INSPECTION 15
2. EQUIPMENT DESCRIPTION 16

4.1. COMPONENTS 16
4.2. TECHNICAL CHARACTERISTICS 17
4.3. ELECTRICAL CHARACTERISTICS 17
4.4. ELECTRICAL DIAGRAMS 17
4.5. SIZE 17

1. EQUIPMENT INSTALLATION 18

5.1. SAFETY INSTRUCTIONS 18
5.2. REQUIREMENTS AND PREVIOUS OPERATIONS 18
5.3. OPERATING CONDITIONS 19
5.4. CONDENSATION DRAIN 22

1. CONTROLLER 23

6.1. MAIN FUNCTIONS 23
6.2. MAIN TECHNICAL CHARACTERISTICS. 24
6.3. PARAMETER SETTINGS 24
6.4. STARTING BASIC OPERATION 27

6.4.1. OPERATING MODE 27
6.4.2. HEAT MODE 28
6.4.3. COOL MODE (CHILLER MODELS) 28
6.4.4. AUTO MODE (CHILLER MODELS) 29
6.4.5. DEFROST FUNCTION 29
6.4.6. WATER PUMP CONTROL 30
6.4.7. FAN OPERATING CONDITIONS 31
6.4.8. REMOTE SWITCH 31

6.5. PROTECTION SYSTEMS 31

6.5.1. COMPRESSOR DELAY PROTECTION 31
6.5.2. PHASE CONTROL 32
6.5.3. OVER CURRENT PROTECTION (If 23 = 0 disable) 32

6.5.4. WATER FLOW PROTECTION (F46=0, disable) 32
6.5.5. HIGH PRESSURE PROTECTION 32
6.5.6. LOW PRESSURE PROTECTION 32
6.5.7. EXHAUST TEMPERATURE PROTECTION 32
6.5.8. THE WATER TEMPERATURE DIFFERENT IS TOO LARGE PROTECTION 33
6.5.9. LOW TEMPERATURE LIMITS THE COMPRESSOR RUNNING 33
6.5.10. ANTIFREEZE PROTECTION IN WINTER 33
6.5.11. SENSOR FAULT PROTECTION 33

6.6. TROUBLESHOOTING GUIDE SYSTEM FAULTS AND LIST OF ERROR CODES.....34
6.7. CONTROL LCD DISPLAY 36
6.8. DISPLAY functions 40

1. GENERAL PRECAUTIONS 42
2. CHECKING THE PACKAGING 43
3. ELECTRICAL CONNECTIONS 43
4. HYDRAULIC CONNECTIONS 45
5. START-UP PROCEDURE 45
6. PREVENTIVE MAINTENANCE 46
7. WARRANTY AND GENERAL CONDITIONS 47
8. RECYCLING INSTRUCTIONS 48
9. WARRANTY CERTIFICATE 49

15.1. GENERAL CONDITIONS 49
15.2. PARTICULAR CONDITIONS 49
15.3. LIMITATIONS 50

Thank you for acquiring your new PROHEAT II equipment. The experience that company has gained during more than 25 years in the world of air conditioning has been put to your service in this product, in which we also incorporate the technical breakthroughs that turn this unit into the equipment that can solve your water conditioning needs offering you the best possible performancese

The information symbol indicates useful information for correct installation and proper performance.

The warning symbol indicates important information to bear in mind to prevent risk of injuries and / or damage for the user and / or the equipment.

The forbidden symbol indicates an operation / procedure that is forbidden and will cancel the warranty.

Please read this manual carefully to ensure proper installation and start-up, become familiar with the full potential of the equipment and to bear in mind all the circumstances required for proper equipment performance and long duration.

This equipment must be installed and repaired by certified professionals in the electrical, hydraulic and refrigeration fields

WE RECOMMEND THAT YOU MAKE A NOTE OF THE FOLLOWING

INSTALLER

DATE

TELEPHONE

MODEL

SERIAL NO.

DISTRIBUTOR'S STAMP

INSTALLER'S STAMP

2. SECURITY

2.1. RESPONSIBILITY OF HOLDER

The owner is the person, people or entity that operates the AIRPOOL series machines for a commercial or economic use, therefore assumes the legal liability to protect the final user of the installations, the operator/s of the machine and any third parties involved in the operation of this machine.

In conjunction with the security measures included in this manual, the owner must respect the following:

• The owner must ensure that all the people in charge of the installation, operation, technical servicing, maintenance and cleaning staff have been instructed concerning the unit security measures, thus interacting with the machine in a safe way and understanding the hazards involved.
• The owner must ensure that all the people that interact with this equipment have read and understood these instructions. In addition, the owner must train and inform the staff periodically.
  The owner must provide the staff adequate protection gear to interact with the unit.

The owner is also responsible for ensuring that the machine is always in perfect condition. Therefore, the following will apply:

• The owner must ensure that maintenance intervals described in these instructions are met.
• The owner must regularly inspect all safety devices in terms of their operational capability and integrity.

2.2. REFRIGERANT CIRCUIT

This machine contains a mechanical refrigeration system. The owner must ensure that the people in charge of the operation, management and maintenance of the unit are subject matter experts. Additionally, the owner must ensure that these people comply with the regulations of the European Union, as well as the technical and legal requirements of the region or country.

REGULATION (EU) No 517/2014 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 16 April 2014 on fluorinated greenhouse gases and repealing Regulation (EC) No 842/2006.

http://eur-lex.europa.eu/legal-content/ES/TXT/HTML/?uri=CELEX:32014R0517&from=EN

2.3. PROTECTION GEAR

Personal protective equipment serves to protect personnel against hazards that have an adverse effect on occupational health safety. To carry out the various work on and with the equipment, personnel must wear personal protective equipment:

SAFETY WORK CLOTHES

They are tight work clothes of low tear resistance, with narrow sleeves and without protruding elements. It is intended for not being trapped by moving parts of the machine. Do not wear rings, necklaces or other adornment objects.

SAFETY SHOES

Safety shoes protect against heavy falling parts and avoid sliding on slippery surfaces.

GLASSES AND EARPLUGS.

They serve to protect the eyes from projections of small-medium materials and to protect the ears against high noise levels.

HEAT AND COLD PROTECTIVE GLOVES.

These gloves help protect hands against heat and cold burns in case of touching very hot or cold surfaces.

2.4. HAZARDS

This section identifies the residual risks identified through a risk assessment.

To reduce health hazards and avoid dangerous situations, pay attention to the safety instructions listed below:

DANGER OF INJURY BY LIQUID ACCUMULATIONS:

Danger of slippage by liquid accumulation.

• Collect liquids accumulation with the proper means.
• Wear non-slip safety footwear.

Place warning and signaling signs in the area where liquid accumulation may occur.

DANGER OF INJURY OR DEATH BY ELECTRICAL SHOCK:

In the event of direct contact with live parts, there is a risk of death from electric shock. Damage to the insulation or damage to various components can lead to death.

• Only qualified people may work on the electrical installation.
• If you notice any damage to the insulation, disconnect power supply and proceed to repair any damage.
• Before starting any work on the electrical installation, follow the following rules:

Remove power supply.
Safeguard against reconnection.
Check voltage absence.
✓ Grounding and short-circuiting Protect the work area.

DANGER OF INJURY BY MOVING PARTS: FANS

Rotating parts of the fans can cause serious injuries.

• Do not put your hands into the fan rotor or maintenance it during operation.
• Do not open the machine's panels during operation.
• Make sure that the fan rotor is not accessible during operation.
• Pay attention to the fan stop interval before opening the machine's panels.
• Before opening the fan, check that it is stationary.

DANGER OF INJURY BY SHARP EDEGES AND SHARP CORNERS:

Danger of injury with sharp edges and sharp corners.

Sharp edges and sharp corners on components housing parts can cause cuts on the skin.

• When working in the vicinity of sharp edges or sharp corners, proceed with caution.
• Wear protective gloves.

DANGER OF INJURY BY REFRIGERANT GAS:

Refrigerant gases may cause disorders in heart rate and frostbite in case of body contact, ingestion or inhalation.

• Avoid contact with refrigerant gases.
• Works on refrigeration systems must be carried out by qualified personnel.
• When working with refrigerants, do not eat, drink or smoke. Wash your hands after finishing work.
• Wear all necessary protection gear: clothing, gloves, glasses ...
  Work in a ventilated place.

DANGER OF INJURY BY HOT SURFACES:

The surfaces of some components may become hot during operation of the equipment. Contact with skin can cause severe burns.

• When working in the vicinity of hot surfaces, wear protection gear: clothing and safety gloves.

DANGER OF INJURY BY COLD SURFACES:

The surfaces of some components may become cold during operation of the equipment. Contact with skin can cause severe freeze-burns.

• When working in the vicinity of cold surfaces, wear protection gear: clothing and safety gloves.

DANGER OF INJURY BY PRESSURIZED GASES:

Pressurized components of the equipment can leak fluids under high pressure if they are handled incorrectly or in case of defect and cause serious injuries.

• Before working with the pressurized elements, remove the pressure.

DANGER OF INJURY BY FIRE:

If the fire extinguishing media is not ready for use or is inadequate, serious injury or death may occur as well as serious material damages.

• Make sure that there is adequate extinguishing media at the site.
• Check extinguishing media periodically.
• Replace or replenish the extinguishing media after each use.
• When using extinguishers, pay attention to the instructions for use.

DANGER OF INJURY OR DEATH BY FAULTY SECURITY SYSTEMS:

If safety devices are not working correctly or have been tampered with or manipulated, there is a risk of serious injury, even death.

• Before starting any work on the equipment, check that all safety devices are in working order and correctly installed.
• Do not override or short circuit any safety device.
  Make sure that all safety devices are accessible at all times.

3. PACKAGING INSPECTION

This equipment comes with RECYCLABLE packaging that can withstand rough transport conditions. However, you should examine the device during installation to ensure there is no damage, thus avoiding any subsequent malfunction. The MANUFACTURER will not be held responsible in this case

If the unit/package is damaged upon delivery, or the delivery itself is incomplete, make a note on the carrier's bill and immediately place a claim to the carrier company.

IS VERY IMPORTANT TO KEEP THE PACKAGED EQUIPMENT UPRIGHT, THE PACKAGING HAS BEEN SPECIFICALLY DESIGNED FOR THIS. ALWAYS MAINTAIN IT IN A VERTICAL POSITION.

IF THE UNIT IS DAMAGED, OR THE DELIVERY IS INCOMPLETE, MAKE A NOTE OF IT ON THE CARRIER'S BILL AND IMMEDIATELY MAKE A CLAIM TO THE COMPANY IN CHARGE OF DELIVERY.

4. EQUIPMENT DESCRIPTION

The Air/Water heat pump is used to heat the pool basin and thereby prolong the bathing season, by taking advantage of the energy in the air provided by the sun.

4.1. COMPONENTS

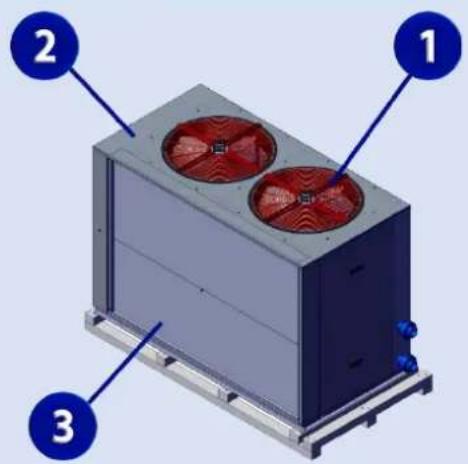

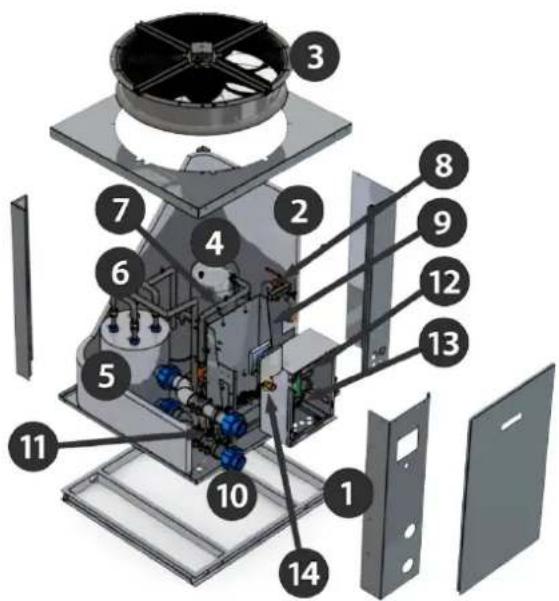

The heat pumps are equipped with the following components:

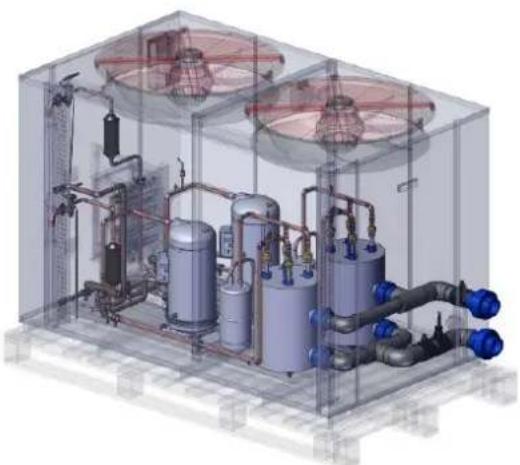

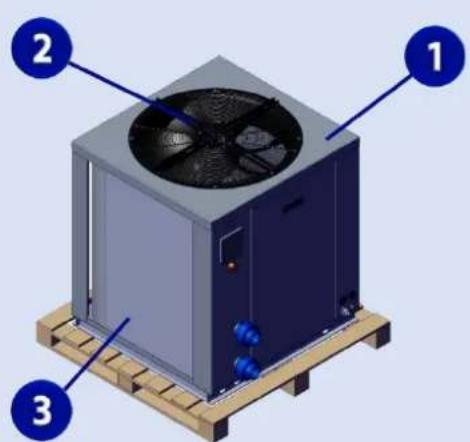

1 Robust and lightweight design in an aluminium magnesium alloy that is resistant to solar radiation over an aluminium frame. The colour does not deteriorate.
2 High performance evaporator battery (gas-air heat sink), manufactured in copper tube with lacquered aluminium fins that are specially designed for corrosive and coastline environments.
3 Fan(s): Axial fan(s). (standard and chiller models). Centrifugal fan (indoor models).
4 Scroll Compressor.
5 G2 titanium water condensers.Guaranteed corrosion resistance. 6 Coolant gas R-410-A.
7 High- and Low-pressure switches (HP/LP).
8 Expansion by thermostatic mixing valve with external balancer. 9 By-flow dehydrator filter.
10 Hydraulic circuit with waterflow switch at the water intake, manufactured in PVC pipe.
11 Flow switch for flow control.
Water treatment system control.
13 Electrical protections for switchgear and power.
14 User-friendly control panel with current temperature, setpoint and alarm messages display

4.2. TECHNICAL CHARACTERISTICS

Main technical data of the machines of the PROHEAT II series:

PROHEAT II, standard and chiller models, consult: TABLE 1: TECHNICAL DATA [STANDARD & CHILLER], pag. 132.
PROHEAT II, indoor models, consult: iError! No se encuentra el origen de la referencia., pag. 133.

4.3. ELECTRICAL CHARACTERISTICS

Electrical control panel for complete process control and to guarantee optimum performance with minimum power consumption at all times. Containing the following components:

• Circuit breakers.
• Contactors and thermal relay
• Interconnection and ground terminals.
  Card controller and Display.
  Power Supply.

Main electrical data of the PROHEAT II machine series:

A general rule for the power cable is: section of 1mm^2 for every 5 amps for cable lengths of up to 20 meters, although this rule has to be verified and adapted for each installation and for lengths of more than 20 meters and always in accordance with local requirements / regulations.

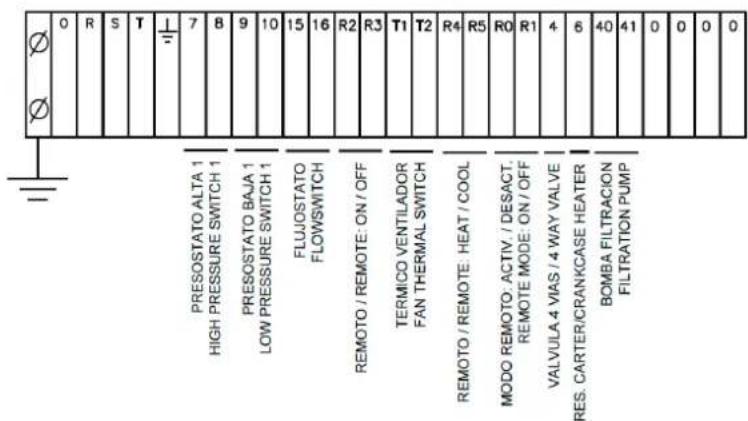

4.4. ELECTRICAL DIAGRAMS

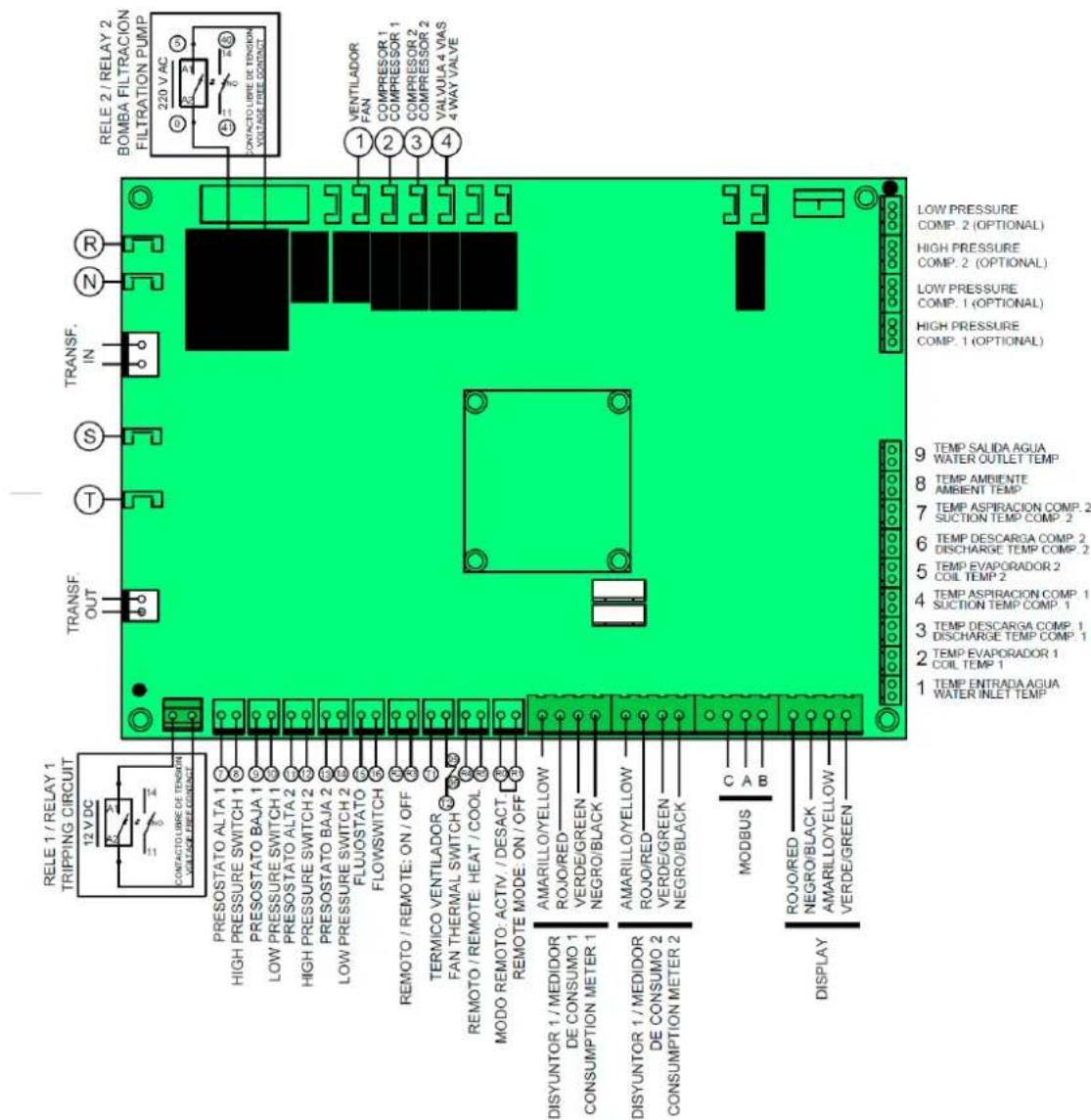

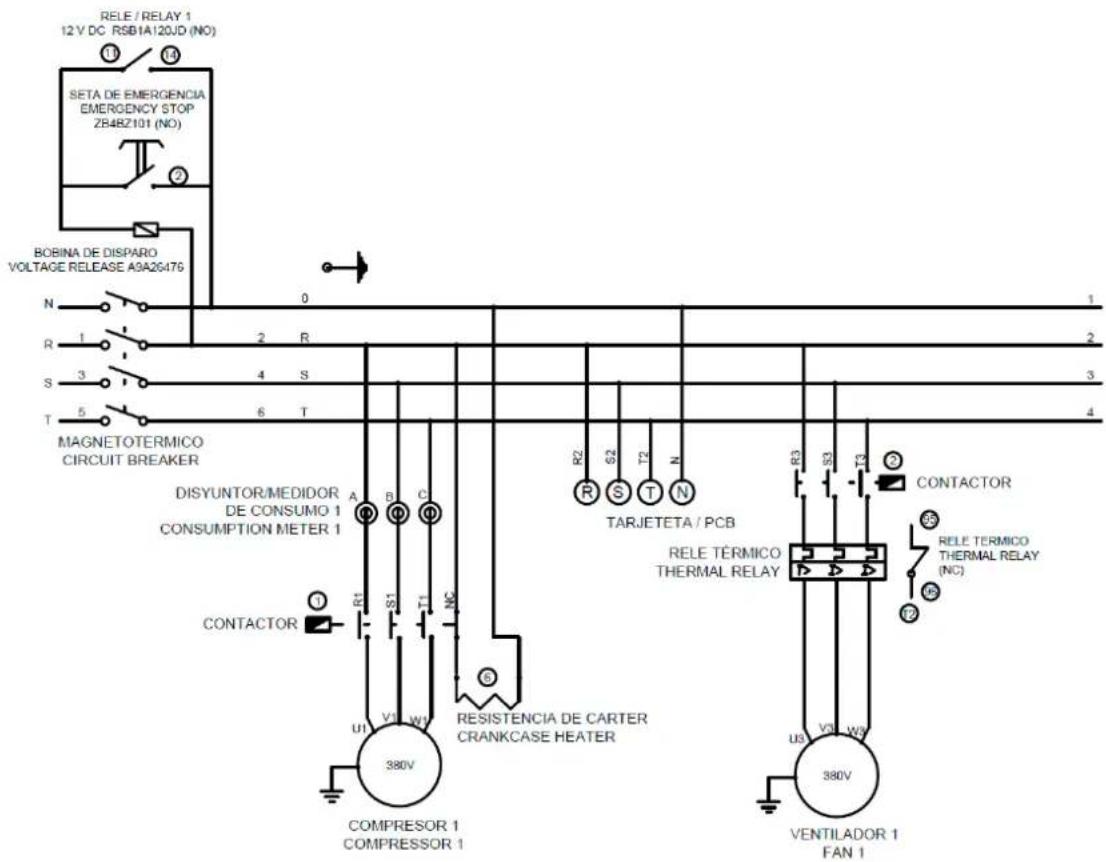

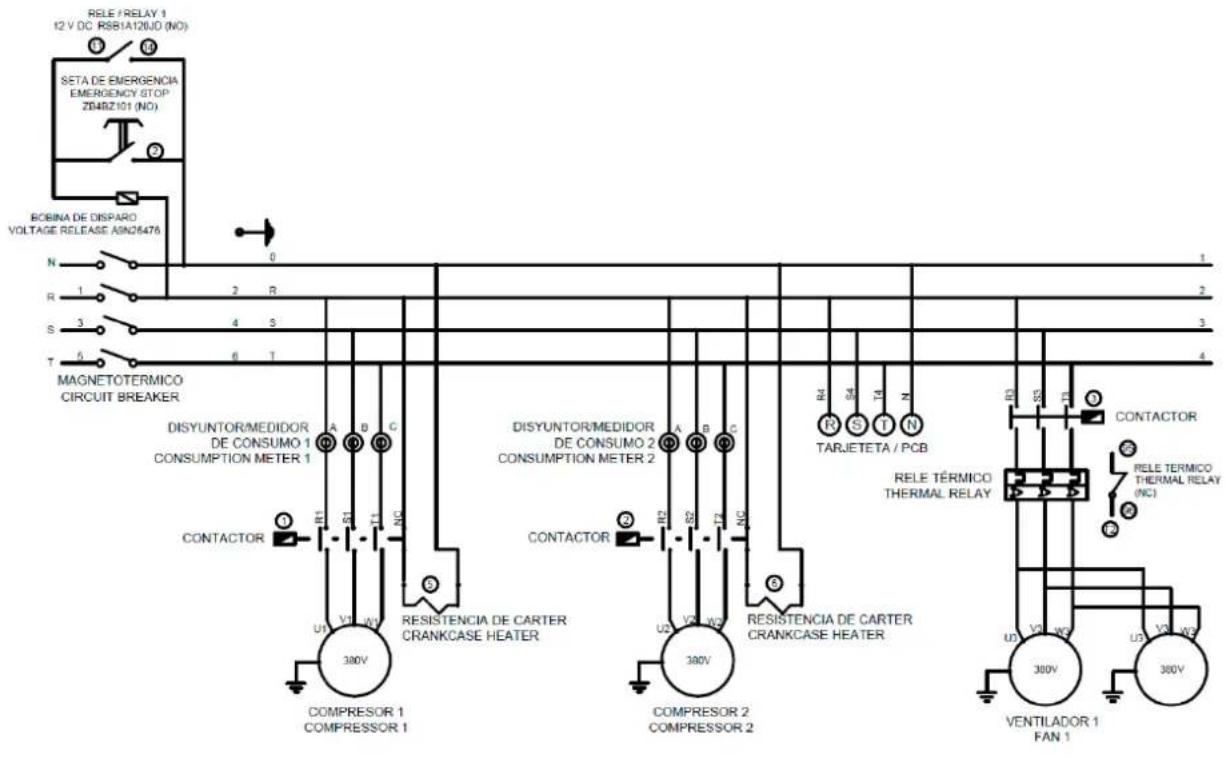

To look up electrical diagrams of the different equipment, consult

PROHEAT II, all equipment with 90 35 kW, 45 kW y 60 kW, consult: IMAGE 1: ELECTRICAL SCHEME [35kW, 45kW & 60kW], page 135.
PROHEAT II, all equipment with 90 kW y 120 kW, consult: iError! No se encontrar el origen de la referencia., page 137.

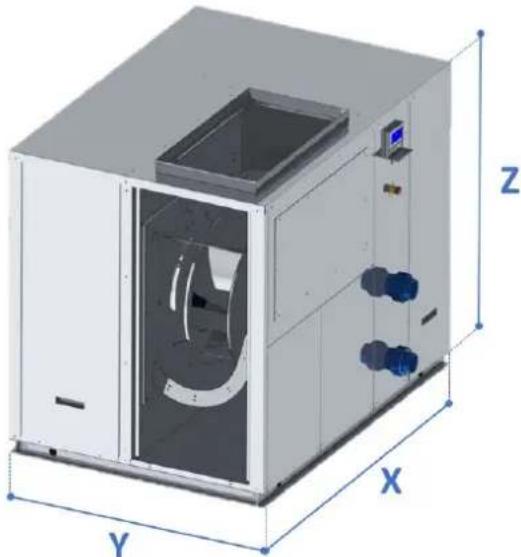

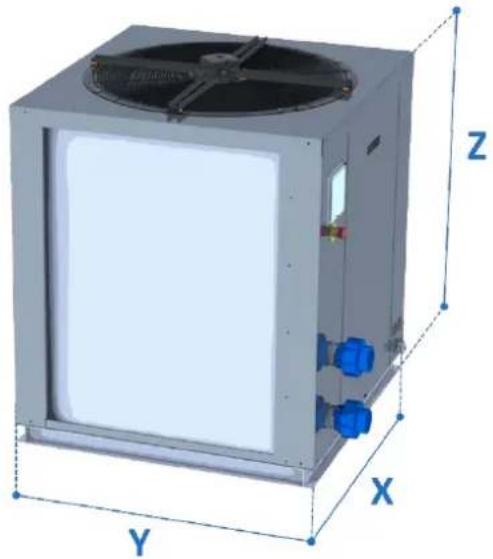

4.5. SIZE

To look up the dimensional data and weight of the product PROHEAT II, see:

This appliance must be installed and serviced by certified professionals, approved in electrical, hydraulic and air conditioning domains.

These units are supplied fully assembled, with complete electrical wiring and its definitive charge of refrigerant gas R410A. Furthermore, every assembled machine has been put to the test inside a test laboratory inside the manufacturing factory before shipping to clients.

The hydraulic circuit of the unit has been carefully drained to avoid residual water in the casing of the evaporator and prevent any risk of corrosion in case of prolonged storage of the machine.

For any questions regarding unit installation, please, take note of the machine model, serial number, manufacture year, and contact us

5.1. SAFETY INSTRUCTIONS

Always ensure that Personal protective equipment is used to protect personnel against hazards that have an adverse effect on occupational health safety. Refer to paragraph 2.3., pag 12.

All the people in charge of the installation of the unit must have been instructed concerning the unit security measures, thus interacting with the machine in a safe way and understanding the hazards involved. Refer to paragraph 2.4. pág. 13

5.2. REQUIREMENTS AND PREVIOUS OPERATIONS

All models:

• Check the place where the equipment is to be located is strong enough to support the weight of this.
• To improve the distribution of weights, the unit will be placed on a bench according to the designer's criteria.
  Always place the machine in a vertical and level position.
  The PROHEAT II equipment is designed to work:

Standard and chiller models: Outdoor installation.
O Indoor models: Indoor installation.

• A space must be provided around the equipment for its maintenance and operation, in addition to checking that the air inlet and outlet are not obstructed.
• It is not advisable to place the machine 1.5 meters above the sheet of water, or 3 meters below.
• During operation, condensation water produced by the evaporator may appear, for which the machine has an evacuation outlet identified on one side.
• To avoid any corrosive process in the evaporator battery, the unit can not be installed in an acidic or alkaline environment.

In addition, the Indoor models must take into account the following:

• The arrangement of the air ducts must be of an adequate size and the loss of load of the ducts must not exceed the available pressure of the installed fans.
• The aspiration and impulsion of the equipment will be installed at a sufficient distance between them so that undesired recirculation can not occur.
• It is also desirable to provide a removable door or plate in the outdoor air intake duct to be able to check its condition and proceed to clean any dirt that may be trapped in the air inlet of the unit.
• Leave at least 1 meter of unused space around the equipment to facilitate personnel access and maintenance operations.

The primary hydraulic circuit, used to heat the pool water, must not be galvanized steel or aluminum. Corrosion problems may appear due to galvanic corrosion

• The standard and chiller models have been designed for outdoor installation (never INDOOR).
  The Indoor models have been designed for installation indoor (never outdoors). THE WARRANTY WILL BE Void IF THIS CONDITION IS NOT FULFILLED

5.3. OPERATING CONDITIONS

Water physical and chemical parameters must be in between:

PH 7,2 a 7,8
Residual chlorine 1 a 2 ppm
Alkalinity 80-125 ppm
Total dissolved solids .. < = 3000mg / l
Hardness 200-300 ppm

The limits established for working conditions in order to guarantee the proper operation of the equipment are:

Minimum outside temperature: 0°C.
Maximum pool water temperature: 40°C.
- Minimum water-cooling temperature. 20^ C (Only CHILLER MODELS, for lower operating temperatures, consult Fluidra Comercial)
Maximum input water pressure: 3,5 bar.
Maximum conditions of the technical room... 35^ / 90% RH (INDOOR MODELS).

The operating conditions will affect the output of the equipment.

The operating conditions will influence the performance of the equipment and the power data provided in the data sheet may vary, if these placement recommendations do not occur. It is extremely important that the minimum water flow indicated in the technical sheet is guaranteed. If this flow is reduced, the compressor dew point is higher, and the energy consumption is higher.

In INDOOR equipment, under certain conditions of temperature and humidity, condensation may appear on the outside of the equipment. This is normal and does not affect the correct operation of the equipment.

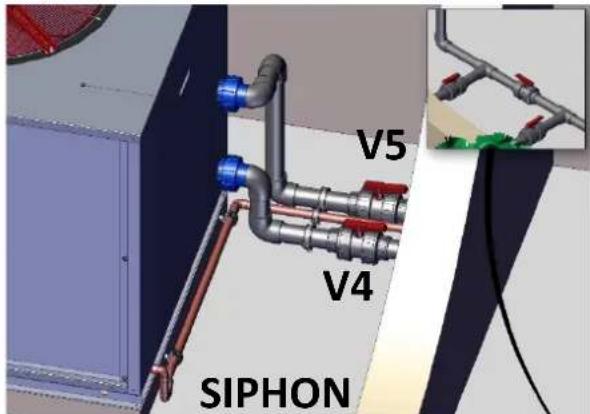

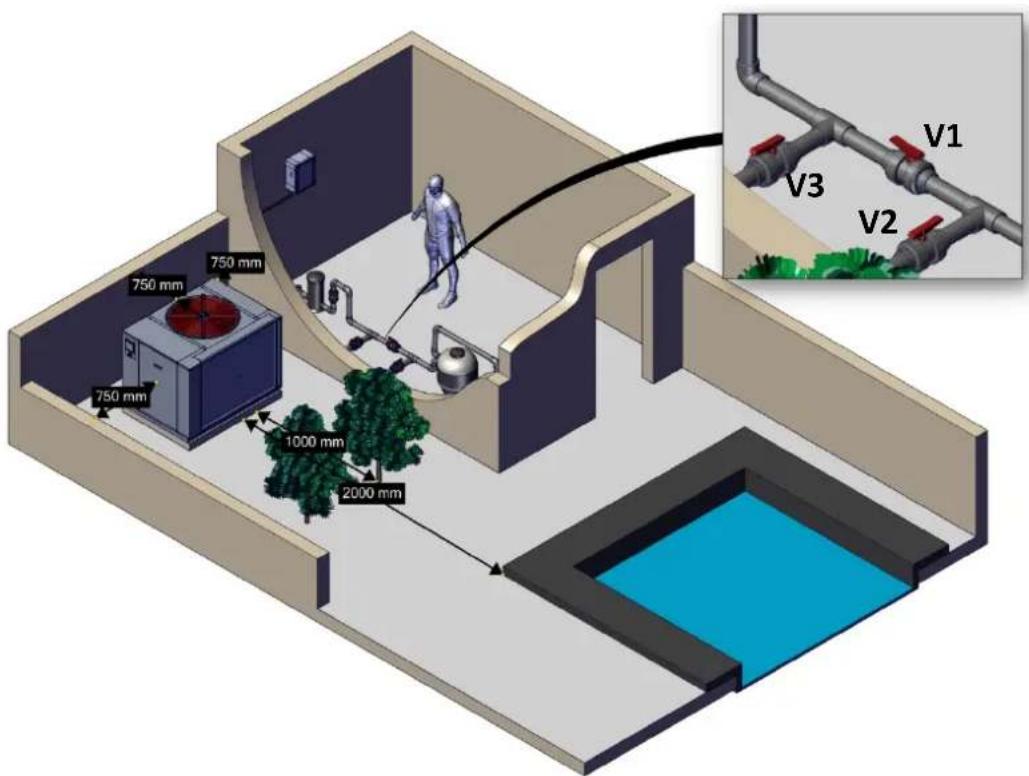

Example of installation of Proheat II equipment with Axial fan for outdoor installation only:

V1-V2-V3: By-pass valves. (Required for all models)

V4-V5: Adjustment valves

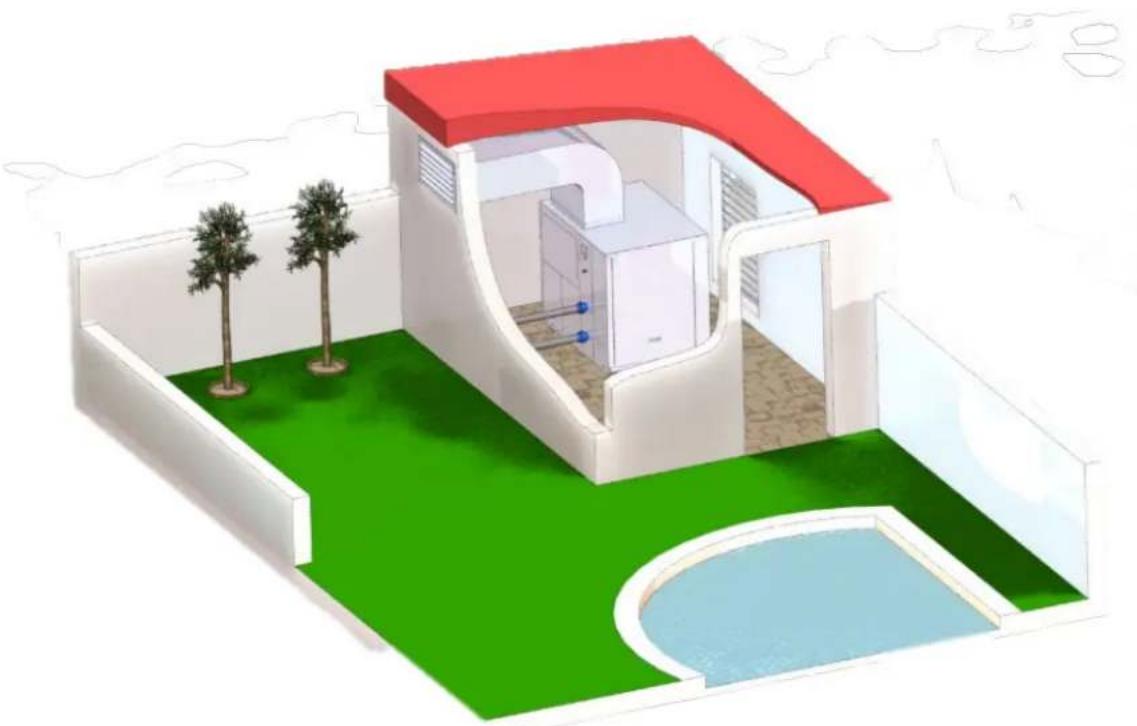

Installation example of the Proheat II INDOOR equipment with centrifugal fan for indoor installation only:

It is necessary to make the duct network so that the air collected by the machine to operate the refrigeration circuit, never return to the machine, and must be expelled to the street. The machine must be located exclusively inside.

In this example of installation, it can be seen that the technical room is perfectly ventilated through a grid of sufficient size to guarantee the correct flow of air through the evaporator. And that the driving air is driven outside.

If the distance between the machine and the outside air is too high, a duct can be connected directly to the evaporator inlet, as long as the nominal air flow of the equipment is guaranteed. The limit of loss of load of these models Indoor is 120Pa , and if this value is not respected, the heat pump can be damaged. For greater load losses available, consult Fluidra Comercial.

5.4. CONDENSATION DRAIN

The AIRPOOL dehumidifier will naturally generate condensation water. This water will be gathered inside the machine and will come out through a condensation drain located on the frame of the equipment. The installation must have a drain to evacuate such condensation water.

The condensation drain is identified by this decal on the machine:

It is advised to install a siphon in the condensation drainage to prevent liquid and odours returns.

6. CONTROLLER

6.1. MAIN FUNCTIONS

The NA8981 regulator is ideal to control air-water heat pumps with on or two compressors. It is equipped with temperature probes (water input and output, evaporator defrost, compressor discharge and ambient temperature). It also has safety sensors (high and low pressure switches, a flow switch to control water flow through the equipment, compressor consumption meter and internal fan thermal switch).

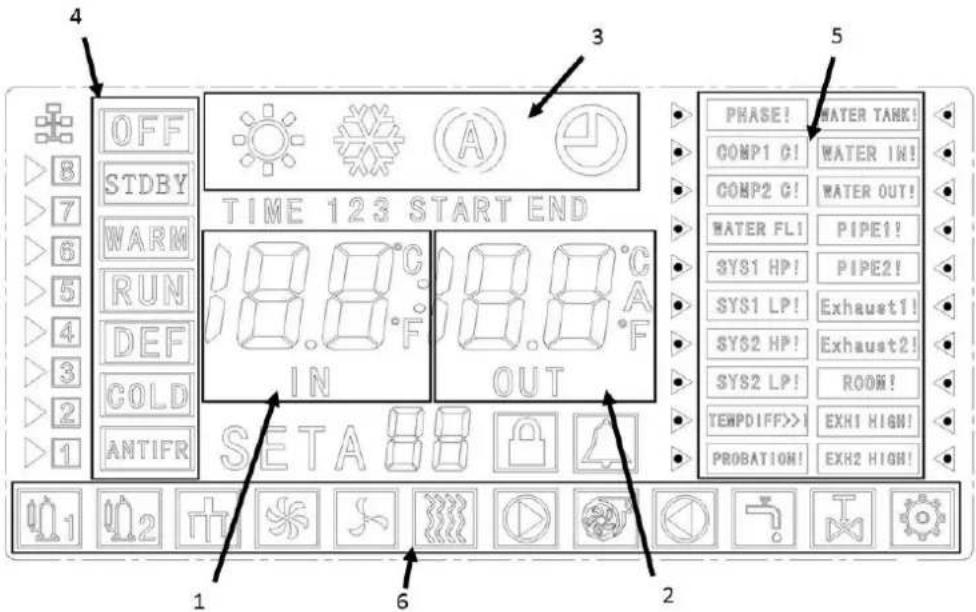

Its main functions are shown below:

• TEMPERATURE DISPLAY AND CONTRILLING: The display shows the water temperature at all times and the user can choose the setpoint between the operating limits. The settings of the temperature probes can also be displayed.
• AUTO DEFROST CONTROLLING: It has an optimized design of logical defrost controlling and can defrost effectively in order to ensure the machine can run normally at low temperature.
  EXHAUST TEMPERATURE PROTECTION: If the discharge temperature of the compressor is too high, the machine will stop and an alarm will appear on the display (A24 or A25).
• HIGH AND LOW PRESSURE PROTECTION: The machine is equipped with high and low pressure switches that stop the machine and displays an alarm if either pressure exceeds its limits (A11, A12, A13 or A14).
• DIFFERENT PERIOD OF OPERATION: The regulator has two operating modes: "Heating" and "Schedule programming". In the "Heating" mode, the machine will operate until the water temperature reaches the setpoint temperature set by the user. In the "Schedule programming" mode, as many as three machine operating periods can be scheduled (See STARTING BASIC OPERATION).
  PHASE MISSING PROTECTION AND SEQUENCE PROTECTION: When any of the 3 phases supplying the equipment fails or the 3 phases have been connected incorrectly, the machine will stop and an alarm will appear on the display (A91).
• DISPLAY OF COMPRESSOR CONSUMPTION AND PROTECTION VERSUS EXCESS CONSUMPTION: The regulator shows compressor consumption (A) on the screen. If consumption is excessive, the machine will stop and an alarm will appear on the display (A93-A94).
• SEQUENTIAL COMPRESSOR START-UP: The regulator starts up the compressors in sequence to avoid excess peak power use in the line.
• WINTER ANTI-FREEZE PROTECTION: This protection allows the regulator to recirculate the water by starting up the water treatment pump so the water does not remain in the frozen pipes (See PROTECTION SYSTEMS).
• TRIP CIRCUIT: The regulator uses this function to protect the machine in the event of faults affecting the contactors or an error in the supply line.
• EMERGENCY OPERATION FUNCTION: If communication fails in the LCD display, the machine can operate with the most recently saved settings.
• EMERGENCY STOP: The equipment is prepared with an emergency push-button with a manual interlock and reset that cuts off the general power to the machine if pressed.

MINIMUM VOLTAGE STOP: The machine is protected against severe voltage drops in the line by an automatic cut-off device in the main circuit breaker; this device triggers when voltage drops to a certain level below the nominal voltage.

6.2. MAIN TECHNICAL CHARACTERISTICS.

Power supply: 230V± 10% or AC 380V± 10% (See circuit diagram)
Maximum output capacity:

Water pump 30A/220VAC (Connecting the water treatment pump to a contactor is recommended)
Fan: 10A/220VAC
O Compressor 1: .5A/220VAC
O Compressor 2: 5A/220VAC
4-way valve: 5A/220VAC

Temperature probes: NTC R25=5kΩ, B(25/50)=3470K

6.3. PARAMETER SETTINGS

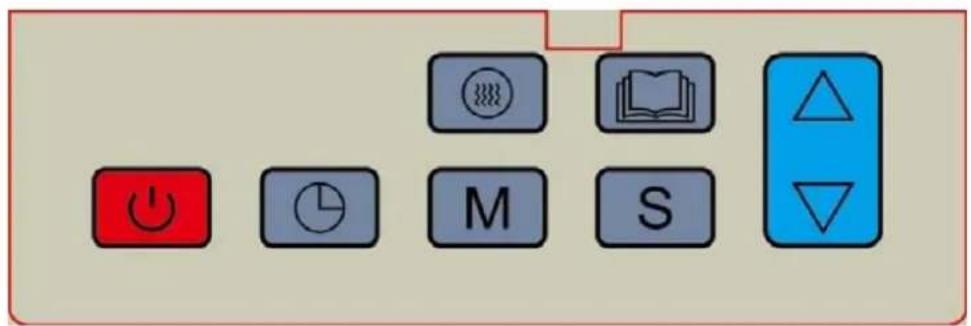

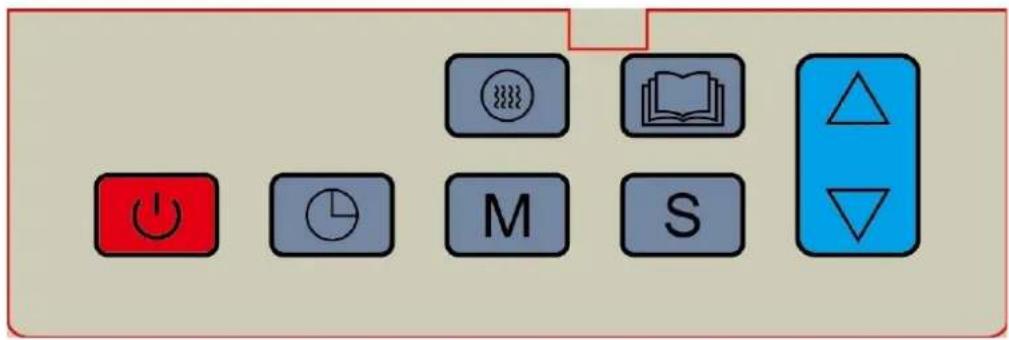

Press "S" for 3 seconds to enter the parameter settings menu:

You can change the following parameters F11, F50~F54, F58, F61, F62, F85, press to select the parameter you want to change.

Use to select the code, press "S to show the parameter setting and use to change it. Press "S" again to save the changes and return to the parameter settings menu.

Press "S" you can see the value of the parameter, after selecting the parameter, use to set the value of the parameter (Holding the key down can change the value quickly). Press "Sagain to save the changes and return to the parameter setting menu. Press "M" to exit parameters menu at any time without saving the changes.

Press "S" for 10 seconds, If a password has been programmed (F19 o F20), the display will show "PAS" to enter the password, use . to introduce each digit, and press "S" to select the next digit, If the password is correct, you can change any parameter from F11 to F99.

Press "M" means cancel and the parameter will not be changed.

The internal list of parameters is as follows:

Concept	Code	Parameter name	Range	Factory setting	Unit	Observations
Temperature	F11	Temperature setting point	F14-F13	28	°C
	F12	Temperature difference 1-10		1	°C
	F13	Max setting temperature	30-100	40	°C
	F14	Min setting temperature 1-29		10	°C
	F15	Auto mode temperature difference	0-20	1	°C
	F17	ID 1-255		8	-
	F19	Password (Installer)	0-999	-	-	0: Without password (Consult your salesman)
	F20	Password (Manufacturer)	0-999	-	-	0: Without password (Consult your salesman)
Compressor	F21	Compressor delay time 1-10		5	min
	F22	Compressor Phase protection	0-1	1		0: no protection1: have protection
	F24	Number of circuits*	1-2	Depends on the model of the machine	2	1: 1 Compressor2: 2 Compressors
	F25	Water flow switch delay time	0-100	1	min
	F26	Low limit temperature	-20-10	0		Not enabled select -20
	F27	The lower limit temperature of Low speed operation	-10~30	-10	°C	1. Temperature differential ±1°C.2. Always working at low speed (-10°C).
	F28	The upper limit temperature of Low speed operation	35~100	44	°C	Temperature differential ±1°C
	F29	OPERATING MODES ENABLED	0/1/2/3	1		0: Automatic mode (C/H)1: Heat mode (Heat)2: Cool mode(Cool)3: Choose the mode (M)
Defrost	F31	Defrost start temperature	-10-0	-3	°C
	F32	Defrost end temperature	5-35	15	°C
	F33	Defrost start time	1-120	1	min
	F34	Max defrost time	3-20	10	min
	F35	Pipe1(2) fault, Defrost start temperature	-10-20	7	°C	Ambient Temp.Defrost according to F33/34.
	F36	Alarm Delay Time after Defrost	0-120	3	min
	F37	4-way valve mode	0-1	0		1: heating 4-way valve has electricity0: heating 4-way valve has not electricity
Remote control	F38	Remote Cooling MODE	0-1	0		0: Always cooling, and the set point is not taken into account1 The set point is taken into account
	F39	Remote Heating MODE	0-1	0		0: Always heating, and the set point is not taken into account..1: The set point is taken into account
Voltage consumption	F40	Maximum consumption protection	2-40	Depends on the model of the machine	10	0: not enablePROHEAT II-35 = 18APROHEAT II-45 = 23APROHEAT II-60 = 32APROHEAT II-90 = 23APROHEAT II-120 = 32A
	F42	Alarm delay time due to excessive consumption	0-30	3	S
	F44	Percentage phase current unbalance	5-50	20	%
	F45	Alarm delay time phase current unbalance	0-60	3	S
	F46	Alarm delay time phase protection failure	0-30	2	S
	F47	Phase failure alarm delay time	0-30	2	S
Autostart	F49	If there is a power failure, when the power is restored, PROHEAT II device is reset in the same condition.	0-1	1		1-Enable 0=Not enable
Water pump and fan	F50	Water Pump Select 0-1		1		0: water pump is not enable 1: water pump is enable Contact Voltage = 220v
	F51	Water pump starts time before compressor starts	1-10	3	min
	F52	Water pump stops time after compressor stops	0-10	3	min
	F53	Water pump start time 0-99		60	min Check water temperature
	F54	Water pump run time 0-99		5	min
	F55	Exhaust Temp.protection 90-135		115	°C	Compressor Exhaust Temp.
	F56	Water flow switch 0-1		1		1: Enable 0: Not enable
	F57	Fan overload 0-1		1		1: Enable 0: Not enable
Alarm and probe calibration	F58	Buzzer alarm sound duration	0.1-10.0	0		0: No alarm sound 606: Alarm sound is always on until pressing any key
	F59	Min. Ambient Temp. of starting the Electrical heater	-10-20	12	°C	If electrical heater is available
	F60	Over high temperature difference between water inlet and water outlet failure	0-20	3	°C
	F61	Water inlet Temp sensor adjustment.	-20-20	0	°C	Adjust the temperature sensor (calibrate)
	F62	Water outlet Temp sensor adjustment	-20-20	0	°C	Adjust the temperature sensor (calibrate)
	F63	1 # Calibration temperature defrost probe 1	-20-20	0	°C	Adjust the temperature sensor (calibrate)
	F64	2 # Calibration temperature defrost probe 2	-20-20	0	°C	Adjust the temperature sensor (calibrate)
	F65	Ambient Temp sensor adjustment	-20-20	0	°C	Adjust the temperature sensor (calibrate)
	F66	Compressor 1 exhaust Temp sensor adjustment	-20-20	0	°C	Adjust the temperature sensor (calibrate)
	F67	Compressor 2 exhaust Temp sensor adjustment	-20-20	0	°C	Adjust the temperature sensor (calibrate)
	F68	Calibration temperature probe suction compressor 1	-20-20	0	°C	Adjust the temperature sensor (calibrate)
	F69	Calibration temperature probe suction compressor 2	-20-20	0	°C	Adjust the temperature sensor (calibrate)
Electronic expansion valve (OPTIONAL)	F70	Electronic expansion valve 0-1		0	-	1: enable, 0: disabled
	F71	Refrigerant 0-1		0	-	0: R-410-A 1: R-407-C
	F72	Maximum output voltage (Pressure Sensor)	0.5-5.0	4.5	V	Maximum pressure sensor output voltage for scaling.
	F73	Max. Sensor pressure	0-5	4.6	MPa	Max. Sensor pressure for scaling
	F74	Initial valve position cool mode	100-480	240	Steps
	F75	Initial valve position heat mode	100-480	240	Steps
	F76	Overheating setting time	0-120	30	S
	F77	Fine tuning steps	0-10	1	Steps	EEV adjust steps
	F78	Middle tuning steps	0-10	3	Steps	EEV adjust steps
	F79	Coarse tuning steps	0-10	6	Steps	EEV adjust steps
	F80	Target overheating in heat mode	3-20	6	°C
	F81	Objective overheat in cold mode	3-25	10	°C
	F82	Maximum evaporation temperature (MOP)	10 - 100	20	°C	Maximum evaporation temperature (MOP)
	F83	M.O.P. 1 - 5		2	°C	High evaporation temperature protection
	F84	Time M.O.P.	1 - 3	2	min	Time of High evaporation temperature protection
System settings	F85	Visualización tiempo en marcha acumulado	-	-	Day
	F86	Probation time	0 - 999	OFF	Hour	The controller will stop if the accumulative time is over probation time, and show the alarm code "A99".OFF means no probation time
	F87	Reset tiempo en marcha acumulado	no/yes	no	-
	F88	Reset factory parameters no/yes		no	-	Reset of all parameters. Reset if the card software is updated.
Test	F90	Show the card model
	F91	Show the card software version
	F92	Show the model of the display
	F93	Display the main board software version number
	F96	Time setting
	F97	Reserved for the manufacturer	This function is only for tests. It is forbidden to use it online. Press "S" to exit.
	F98	Reserved for the manufacturer	Press "S" to exit. After entering this function, it shows the "AdP".
	F99	Test output signals	After entering this function, it will show "CCC". The relays will be activated one by one. This function is only for tests. It is forbidden to use it online. Press "S" to exit.
	F00	Exit

• Observation1 : When F24=1, this means there is only one circuit. Therefore, none of the System 2 inputs/outputs can be used. And no error codes will be displayed. Also, the error codes A13, A14, A23, A25, A27 will not be shown.

The regulator has 4 operating modes, depending on the heat pump model: Cool, Heat, Auto and Manual selection of the operating mode. The available operating mode is controlled by parameter F29.

F29 = 0 only Auto mode (C / H)

F29=1, only Heat mode (C/H).

F29 = 2 only Cool mode (C / H)

F29=3, Manual selection of the operating mode (M).

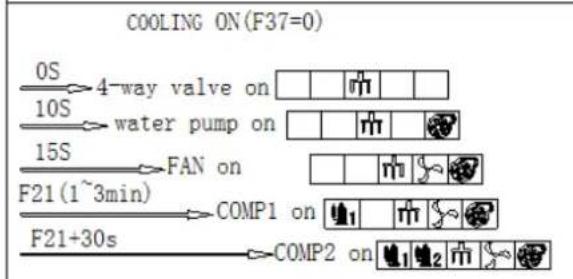

In the Cool mode, the machine starts cooling when the probe temperature is higher than the "Temperature setpoint + Temperature differential" and it stops cooling when the temperature is lower than the "Setpoint temperature - Differential temperature".

In the Heat mode, the machine starts heating the water when the probe temperature is lower than the "Temperature setpoint + Temperature differential" and it stops heating when the temperature is higher than the "Setpoint temperature - Differential temperature".

In the Auto mode, the machine starts cooling when the probe temperature is higher than the "Temperature setpoint + Auto mode temperature differential" and it stops cooling when the

temperature is lower than the "Setpoint temperature". The machine starts heating when the probe temperature is lower than the "Temperature setpoint - Auto mode temperature differential" and it stops heating when the temperature is higher than the "Setpoint temperature".

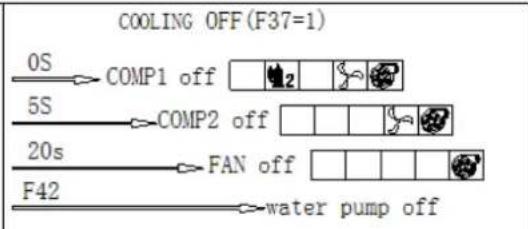

6.4.2. HEAT MODE

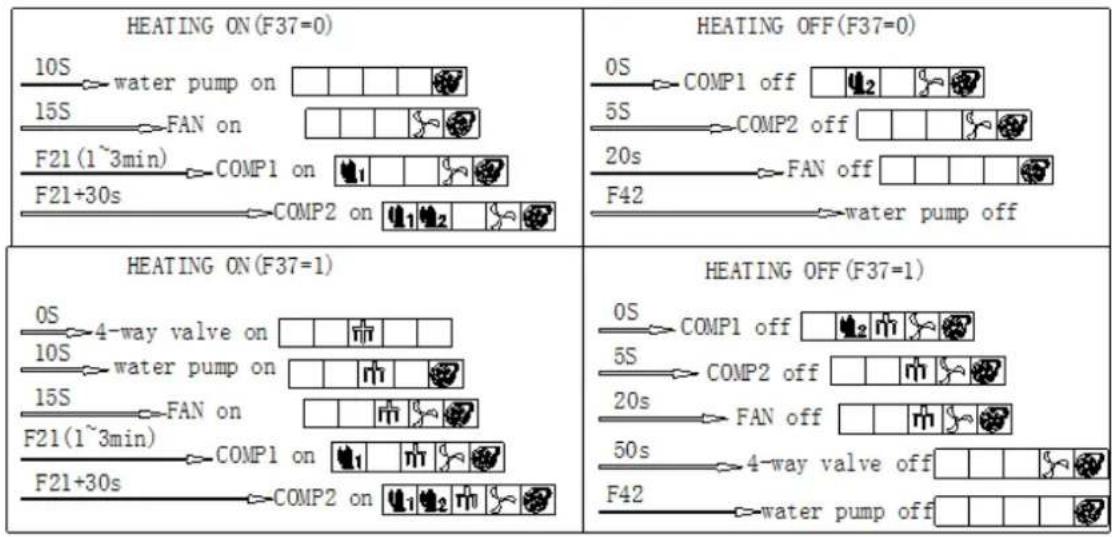

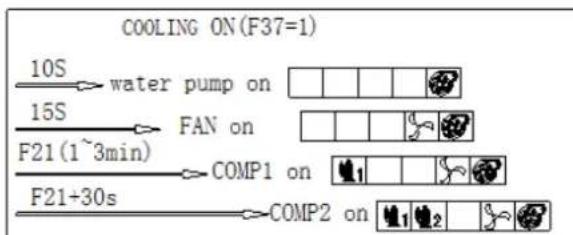

Start-up process:

Start-up conditions: Water intake temperature < (Setpoint temperature - Temperature differential); and the Compressor stop time ≥ Compressor delay time.

Start-up conditions: Water intake temperature < (Setpoint temperature + Temperature differential); and the Compressor stop time ≥ Compressor delay time

Start-up conditions: Water intake temperature < (Setpoint temperature - Auto mode temperature differential); Compressor stop time ≥ Compressor delay time, then it enters Heat mode.

If the water intake temperature > (Setpoint temperature + Auto mode temperature differential); and the Compressor stop time ≥ Compressor delay time, then it enters Cool mode.

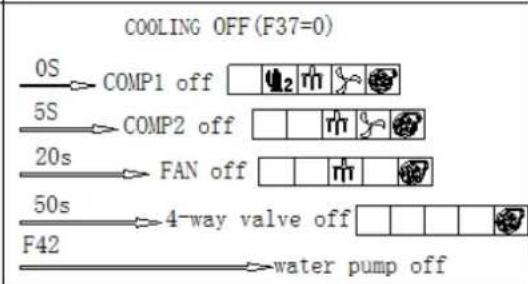

Stop process:

Compressor 1 stops, Compressor 2 stops 10s later, the fans stop and the water pump stops 30s later.

6.4.5. DEFROST FUNCTION

The controller will supervise the temperature in the evaporators when the machine is in heating mode, and decide whether need to defrost according to the working time of the machine in that continuous low temperature state. In other words, the defrosting calculagraph begins to count when the machine evaporator temperature is lower than

"defrost start temperature", and turns on the defrosting when the value of time reaches "defrost start time". The calculagraph will be cleared if the evaporator temperature is higher than "defrost start temperature" when counting, and it begins to count again when the evaporator temperature is lower than "defrost start temperature". In other words, the value of defrosting

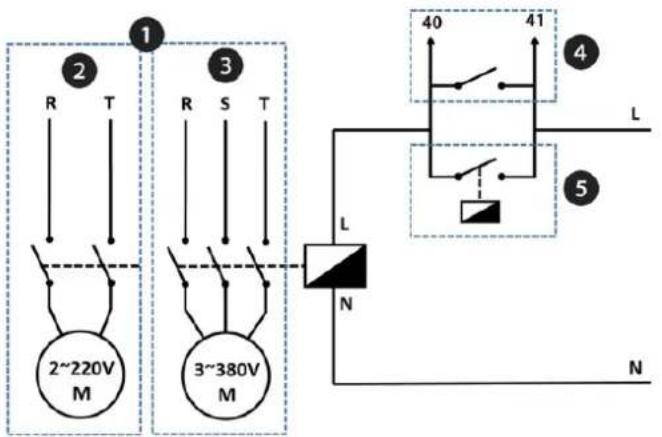

No.	DEFINITION
1	FILTER PUMP
2	SINGLE PHASE
3	THREE PHASE
4	PROHEAT II
5	SCHEDULE TIMER

calculagraph shows the continuous low temperature working time of the machine (For 2 compressor systems as long as a compressor system satisfies the conditions for defrosting, the other system will also defrost).

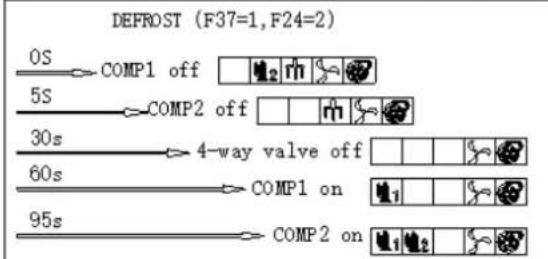

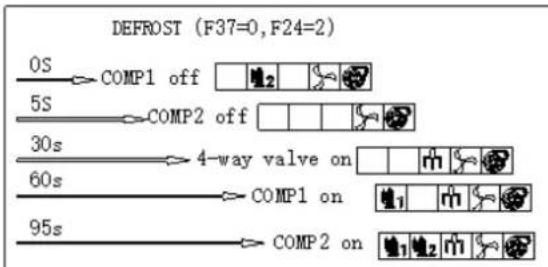

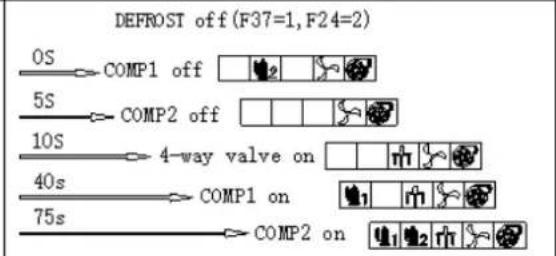

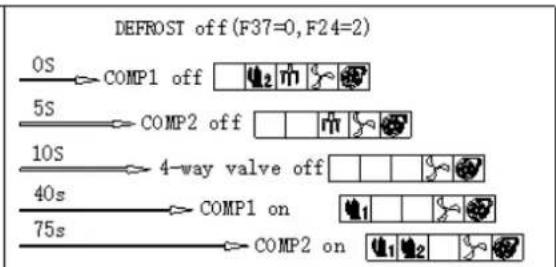

DEFROST SEQUENCE:

The controller can check the defrosting effect with the external air temperature. If the external air temperature is higher than the "defrost end temperature", the controller will turn off the function of defrosting. If the defrosting time is over "max defrost time", the controller will turn off defrosting forcibly. The process explained above can only run in heating state, in other words, the controller will not turn ondefrosting in non-heating mode. After reaching the conditions for stop defrosting in compressor 1, this compressor 1 will wait compressor 2 to reach those conditions. As soon as compressor 2 stops, the heating mode will start for both compressors at

the same time (they will have a delay between them).

Remark: when pipe1 sensor faults, pipe2 temperature sensor will be used.

when pipe1 and pipe2 sensor fault : The system will check external air temperature, if external air temperature < F35 and the machine run time > Defrost start time, the machine will defrost ; if defrost time > Max defrost time then defrost will stop

6.4.6. WATER PUMP CONTROL

The controller can choose whether to use water pump or not (F40), 0 means no water pump function, 1 means control the water pump.

When the water pump is running, the compressor starts some time after (F41) and when the compressor stops, the water pump stops some time later (F42). When we have the external alarm or the over-probation time alarm, the water pump is switch off immediately. The compressor won't start until the water pump achieves the working time of F41. When the machine stop running, the water pump follows the below loop: F43 stop, F44 run.

6.4.7. FAN OPERATING CONDITIONS

When F27=-10, the fan will run at normal speed. In the PROHEAT II model, the fan will rotate at this fixed speed.

When F27-10,

If the ambient temperature ≤ F27(20^) , the fan will run at maximum speed.

If F27 (20^) < Ambient temperature < F28 (45^) , the fan will run at minimum speed.

If ambient temperature ≥ F28 (45°C), the fan will run at maximum speed.

The PROHEAT II machines run at normal speed F27=-10°C.

6.4.8. REMOTE SWITCH

When the remote switch is closed:

If the unit is running. The unit works normally

If the unit is stopped. The unit stops.

When the remote switch is open:

If the unit is running. The unit stops and the screen display "OFF".

If the unit is stopped. The unit stops.

6.5. PROTECTION SYSTEMS

6.5.1. COMPRESSOR DELAY PROTECTION

The compressor delay time is adjustable (F21) and set to 5 minutes by default. The regulator uses this time setting to prevent continuous ON/OFF cycles. When the compressor has been running and then stops, the next time it is started up, the regulator will check that the period of time has passed before starting it up again; if not, it will wait for 5 minutes until the compressor starts again. If the machine has just been started up, there will be a 5-minute wait before the compressor starts.

6.5.2. PHASE CONTROL

When the 3 phases of the machine are connected incorrectly or a fault is detected in any of the phases, the machine will stop and the error code "A91" will be displayed.

6.5.3. OVER CURRENT PROTECTION (If 23=0, disable)

Consumption is checked three seconds after the compressor starts up; if the current > F23 for 5 seconds, the machine will stop and error "A93" will be displayed.

6.5.4. WATER FLOW PROTECTION (F46=0, disable)

After 30 seconds with the water pump ON, the flow switch status is checked; If after another 5 seconds the status of the flow switch is OFF, the machine is stopped and display the error code "A15".

6.5.5. HIGH PRESSURE PROTECTION

It is a normally closed switch in the controller. The controller checks during 5 seconds the status of the high pressure switch and it will take another 5 seconds to act. If it is open, the machine will stop. If at any time, the status of the high pressure switch is closed, the machine will run automatically. But if within an hour we have 3 alarms of this protection, the system will be blocked in alarm status and display error code "A12" or "A14". In order to unblock the system, manual reboot is needed.

6.5.6. LOW PRESSURE PROTECTION

It is a normally closed switch in the controller. During the defrosting and in the first three minutes after switching on the machine, the status of the low pressure switch is not checked. In o not check the low pressure signal;

The controller checks during 5 seconds the status of the low pressure switch and it will take another 5 seconds to act. If it is open, the machine will stop. If at any time, the status of the low pressure switch is closed, the machine will run automatically. But if within an hour we have 3 alarms of this protection, the system will be blocked in alarm status and display error code "A11" or "A13". In order to unblock the system, manual reboot is needed.

6.5.7. EXHAUST TEMPERATURE PROTECTION

When exhaust temperature is higher than F45, the machine stops running, and shows the error code "A24" or "A25". As soon as exhaust temperature drops to (F45 - 10^) , the machine will run again (each compressor works independently).

But if within an hour we have 3 alarms of this protection, the system will be blocked in alarm status. In order to unblock the system, manual reboot is needed.

6.5.8. THE WATER TEMPERATURE DIFFERENT IS TOO LARGE PROTECTION

The difference between inlet and outlet water temperatures will be controlled by the regulator for 5 seconds. If the difference is higher than F72, error code "A44" will appear 5 seconds later and the compressor will stop. If this protection triggers 3 alarms in one hour, the system will lock down in alarm status. The machine will have to be restarted manually to unlock the system.

6.5.9. LOW TEMPERATURE LIMITS THE COMPRESSOR RUNNING

If externa air temperature is < F26 , the compressors cannot be started (except for defrost protection in winter). Only the electrical heating can be started.

6.5.10. ANTIFREEZE PROTECTION IN WINTER

This feature is not active when the external air temperature is over 3^ . If the water in temperature is below 4^ and the air temperature is below 3^ and the machine is OFF or in stand-by mode the machine will activate the water pump to avoid having the water in the pipes iced (piping broken).

6.5.11. SENSOR FAULT PROTECTION

Pipe 1、Exhaust 1、Pipe 2、Exhaust 2 Sensors work independently in each circuit and display different error codes to distinguish between different systems;

Water inlet temperature sensor fault, stops the machine.

If other temperature sensor faults, close the protection.

Auto test: if the sensor failure is corrected, the unit restarts.

Note : If we get a failure when the machine is working, the water pump will continue working during 5 minutes. Then it will be stop.

6.6. TROUBLESHOOTING GUIDE SYSTEM FAULTS AND LIST OF ERROR CODES

ERROR	LCD CODE	REASON SOLUTION
Low pressure Malfunction of system 1	A11	Gas change too low. Possible system blockage	Check pressure switch and gas circuit; thermostatic valve closed, evaporator clogged, fan stopped.
High pressure Malfunction of system 1	A12	Gas change too high. Possible system blockage	Check pressure switch and gas circuit, refrigerant circuit. Insufficient water flow, stop pump
Low pressure Malfunction of system 2	A13	Gas change too low. Possible system blockage	Check pressure switch and gas circuit; thermostatic valve closed, evaporator clogged, fan stopped.
High pressure Malfunction of system 2	A14	Gas change too high. Possible system blockage	Check pressure switch and gas circuit, refrigerant circuit. Insufficient water flow
Flow switch failure	A15	No water/litter water in water system.	Check the water flow volume. Check water pump
Water inlet temp. sensor failure	A21	The sensor is open or short circuit	Check or change the sensor
Cool1 sensor 1 failure	A22	The sensor is open or short circuit	Check or change the sensor
Cool2 sensor 2 failure	A23	The sensor is open or short circuit	Check or change the sensor
Exhaust sensor 1 failure	A24	The sensor is open or short circuit	Check or change the sensor
Exhaust sensor 2 failure	A25	The sensor is open or short circuit	Check or change the sensor
Fault probe aspiration circuit 1	A26	The sensor is open or short circuit	Check or change the sensor
Fault probe aspiration circuit 2	A27	The sensor is open or short circuit	Check or change the sensor
Outdoor air temperature fault	A28	The sensor is open or short circuit	Check or change the sensor
Water outlet temp.sensor失败	A29	The sensor is open or short circuit	Check or change the sensor
Low pressure transducer failure (Optional)	A31	1# The sensor is open or short circuit	Check or change the sensor
High pressure transducer fault (Optional)	A33	2# The sensor is open or short circuit	Check or change the sensor
Exhaust temperature switch 1 failure	A42	Gas temperature (outlet) too high. Possible system blockage	Check sensor and gas circuit
Exhaust temperature switch 2 failure	A43	Gas temperature (outlet) too high. Possible system blockage	Check sensor and gas circuit
Temp. differential between water-in and water-out is too large	A44	Water flow volume not enough. Water pressure is too low	Check the water flow volume or water pipes blocked
External air temperature too low	A46	The external air temperature is lower than the limit fixed	Check sensor and external air temperature
Fan overload protection	A47	Fan overload	Check or change the fan motor
Compressor tripping protection	A51	AC contactor adhesions	Check the AC contactor
Phase unbalance	A52	Power failure	Check electrical connections
Power supply connections wrong	A91	Wrong connections or lack of connection	Check connections of power input wire
Phase loss	A92	Some phase has no voltage	Check electrical connections
Compressor 1 overcurrent protection	A93	Compressor overcurrent	Check the system
Compressor 2 overcurrent protection	A94	Compressor overcurrent	Check the system
The time limit running failure	A99	Running time exceed	Check the time limit
Signal failure	--	The cable between the display and the card is badly connected	Check the continuity of the cable, and the terminal and the cables are well connected

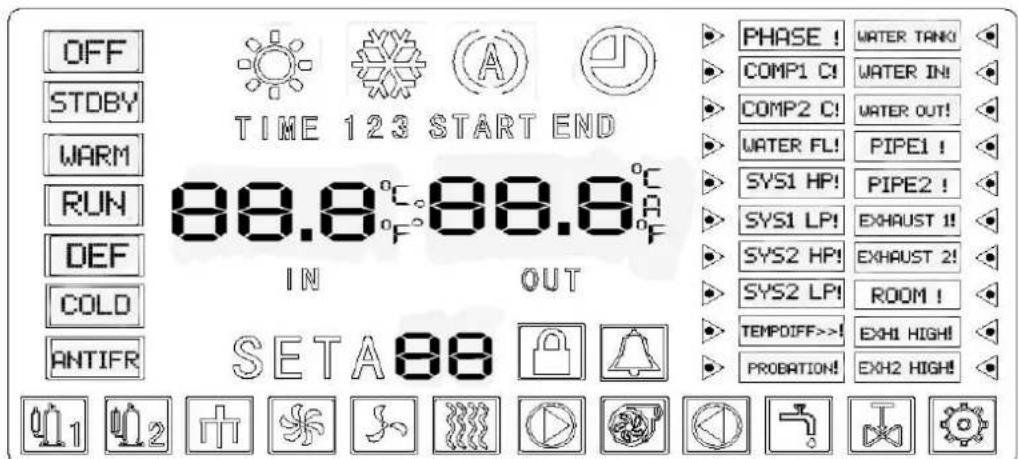

6.7. CONTROL LCD DISPLAY

Note : The error codes flash when displayed on the LCD screen

Icono	Descripción	Observación
OFF	The machine is off
STDBY	The machine is setting and standby
WARM	-
RUN	The machine is running
DEF	The machine is doing defrost
COLD	-
ANTIFR	Frost protection
	HEAT MODE
	COOL MODE
	AUTOMATIC MODE
	PROGRAMMING MODE TIME
	Compressor 1
	Compressor 2
	4-way valve activated
	High Fan Speed
	Normal Fan Speed
	Electric resistance (Optional)
	Clean Fan
	Water pump
	communication is abnormally. (RS485)
	Alarm
	Locked keyboard
PHASE!	Phase protection.
COMP1 G!	1# Compressor current too high
COMP2 G!	2# Compressor current too high
WATER FL!	No water/litter water in water system
SYS1 HP!	System 1 high pressure protection
SYS1 LP!	System 1 low pressure protection
SYS2 HP!	System 2 high pressure protection
SYS2 LP!	System 2 low pressure protection
TEMPDIFF>>!	Water flow volume not enough. Water pressure is too low
PROBATION!	Limit of the operation time
WATER TANK!	Fault in the water inlet probe
WATER IN!	Water inlet temp. sensor failure
WATER OUT!	Water outlet temp. sensor failure
PIPE1!	Cool1 sensor1 failure
PIPE2!	Cool2 sensor1 failure
Exhaust1!	1 # Compressor exhaust probe failure 1
Exhaust2!	2 # Compressor exhaust probe failure 2
ROOM!	Failure in the outdoor air temperature probe
EXH1 HIGH!	1# Compressor exhaust too high
EXH2 HIGH!	2# Compressor exhaust too high
TIME 123 START END	Time setting
88.8T-88.8TINOUT	Temperature Input / Output machine
SETA 88	Set-point temperature

1. WATER IN TEMPERATURE
2. WATER OUT TEMPERATURE
3. SYSTEM MODE
4. MACHINE OUTPUT STATUS
5. ERROR CODES
6. MACHINE OUTLETS STATUS

6.8. DISPLAY functions

1. Heart pump ON/OFF

to switch the machine ON and OFF.

2. Water temperature setpoint setting

• Press S to access the water temperature setpoint for the pool.

• Change the setting by pressing or. Keep these buttons pressed to speed up the process.

After changing the setting, press S again to save the change. To exit the setpoint setting, press M

3. Time setting

Press to set the time.

• Change the time using or . Press to adjust the minutes, using or

After setting the time, press again to exit the time setting menu.

4. Timer setting (ECONOMIC MODE)

1. Press M for at least 2 seconds to activate the SCHEDULE PROGRAMMING mode.

2. Press for at least 5 seconds; this will display the start and end times of the first period.

3. Change the start hour of the first period using the or keys. Press to set the start minutes of the first period, using or . Press to set the end time of period 1, using or . Press to set the end minutes of period 1, using or

4. Repeat the process to program periods 2 and 3 (if necessary).

• Press to pass through all the periods and exit the menu.

NOTE: If the Schedule Program mode is activated and there are no periods scheduled, the machine will not start.

5. Setting the machine operating mode

1. Press to choose the machine operating mode (Heat, Cool and Automatic, only if F29=3).

6. Checking the temperatures (Reading variables)

• Press to display the temperature probe settings and compressor consumption (3 settings for each phase of the compressor). Use or to display the various settings.

The values shown refer to the following nomenclature:

T1	T2	T3	T4	T5	T6
Water inlet temperature	Cool sensor 1 (Defrost Probe)	Compressor 1 discharge temperature	Sonda de Aspiración 1	Cool sensor 2 (Defrost Probe)	Discharge probe 2
T7	T8	T9	T10	T11	T12
Aspiration Probe 2	Ambient temperature	Water outlet temperature	Valve steps circuit 1	Valve steps circuit 2	High Pressure circuit 1 (BAR) HP1
T13	T14	T15	T16	T17	T18
Low Pressure circuit 1 (BAR) LP1	High Pressure circuit 2 (BAR) HP2	Low Pressure circuit 2 (BAR) LP2	Current phase 1-compressor 1	Current phase 2-compressor 1	Current phase 3-compressor 1
T19	T20	T21
Current Phase 1-compressor 2	Current phase 2-compressor 2	Current phase. 3-compressor 2

NOTE: The compressor consumption settings vary depending on water and outside temperature and the settings of phase consumptions does not have to be the same.

7. Blocking the keypad

and at the same time for 5 seconds to block the buttons on the display. A icon will appear on the screen. Press another 5 seconds to unblock the keys.

8. Manual Reset

to switch the machine ON and OFF.

7. GENERAL PRECAUTIONS

The installation, start-up and maintenance operations must be performed by qualified personnel.

This equipment should not be installed in inflammable or explosive environments.

The electrical power supply at the main circuit breaker must be switched off before any maintenance work is performed inside the machine.

It is mandatory to use personnel protection equipment, such as goggles, gloves, etc. during maintenance work.

During operation of the unit, it is normal that the condensation produced in the evaporation battery will produce a certain quantity of water which will have to be evacuated. The machine is equipped with a drain for this purpose that must always be unobstructed.

This water condensation doesn't need to be specially treated.

8. CHECKING THE PACKAGING

This equipment comes with RECYCLABLE packaging that can withstand rough transport conditions. However, you should examine the device during installation to ensure there is no damage, thus avoiding any subsequent malfunction.

The MANUFACTURER will not be held responsible in this case

IS VERY IMPORTANT TO KEEP THE PACKAGED EQUIPMENT UPRIGHT, THE PACKAGING HAS BEEN SPECIFICALLY DESIGNED FOR THIS. ALWAYS MAINTAIN IT IN A VERTICAL POSITION.

IF THE UNIT IS DAMAGED, OR THE DELIVERY IS INCOMPLETE, MAKE A NOTE OF IT ON THE CARRIER'S BILL AND IMMEDIATELY MAKE A CLAIM TO THE COMPANY IN CHARGE OF DELIVERY.

Inside the parcel you will find the following elements:

Pool heating equipment

Installation manual.

Warranty.

9. ELECTRICAL CONNECTIONS

The electrical connection must be carried out by the fitter taking the following points into account:

• Please perform the connection according to the circuit diagram included in this manual.
• Place a differential circuit breaker in the general power connection to protect the equipment from possible grounding problems. The differential breaker should be minimum 30mA .
• Differential breaker.
  Automatic or circuit breakers.
• Before connecting the equipment, you must check that the electrical installation is disconnected and that there is no voltage between the power supply phases.
• Connect the lead-in wires to the machine's input terminal.
• Connect the ground wire to the relevant terminal.
• The provision of any legislation in force with respect to any electric lines against direct or indirect faults and contacts must be followed at all times.
• Verify the tightness of all electrical connections.
• You must check that the electrical resistance between the ground and any electrical terminal is over 1 megaohm. If not, the equipment cannot be started up until the electrical loss may be located and repaired.
• If there are fluctuations of the input voltage, it is recommended to install a voltage stabilising system to prevent damaging the equipment.

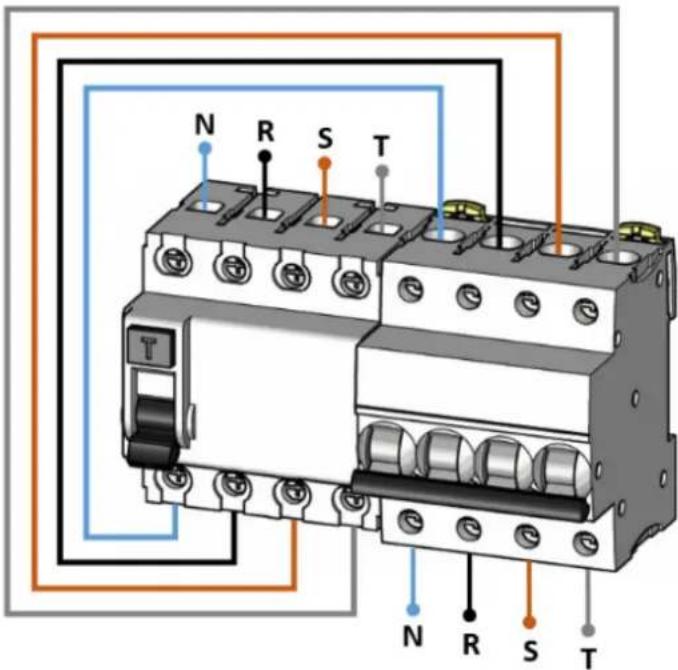

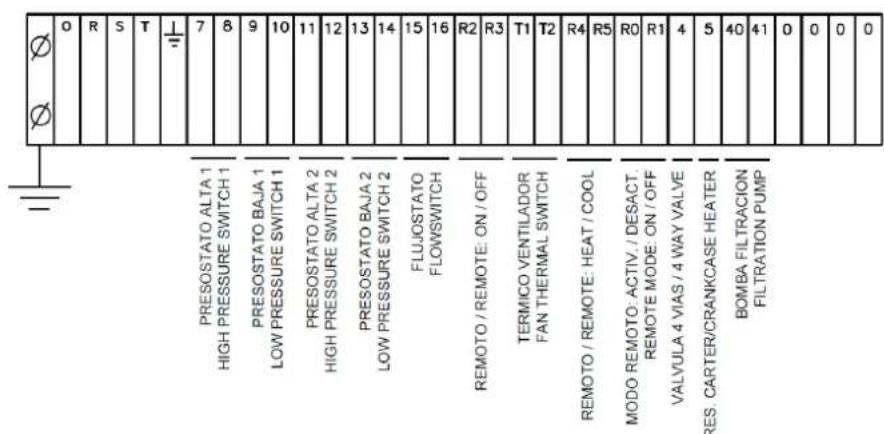

  The illustration below shows a diagram of a proper connection.

The heat pump should never be operated without the water treatment pump running. Do not interconnect timers or programmers that may leave the unit running after the water treatment pump has been switched off.

Do not change the calibration of the motor protection breakers. If in doubt, contact the distributor.

The heat pump should be connected to a by-pass prepared for that purpose at the exit of the water treatment system and always before any chemical dosing system. If the intake of the dosing system is less than 25cm under the heat pump water outlet, a syphon should be installed. A no-return valve should be installed as an additional safety measure to prevent the return of chemical products to the pump when water circulation is interrupted.

The equipment should never be run without water circulating through the hydraulic system.

Do not place concentrated chemical products in the pool skimmers.

Always respect the hydraulic connection diameters specified for each machine.

A full-flow shut-off valve should be installed on each of the hydraulic elements in the equipment, so that each of these may be isolated if needed (filter cleaning, repairs, replacements, etc.) without the need to drain the circuit.

Anti-vibration dampers should be installed in the inlet and outlet of the machine, in order to avoid vibrations which may cause cracks or breakage in the hydraulic connections.

Do not force the PVC pipes when connecting the equipment to the hydraulic network. This will prevent them from breaking or cracking.

11. START-UP PROCEDURE

When setting-up, the electrical connections, as well as the general power supply and voltage should be verified

• Check that the hydraulics are connected properly.
• Give power to the equipment by connecting the general power switch on the outside of the unit. Once the unit is connected, verify the current absorbed by the phases.
• It is important to note that the equipment comes with a standard crankcase heater and should be under voltage for at least 1 hour before start-up so the oil in the compressor can reach its ideal condition to lubricate the compressor components.
• Three phase machines are equipped with a phase control relay that ensures that the compressor rotates in the right direction. Alarm in the regulator.
• With the machine running, verify the intensities absorbed by the electric motors, making sure they do not exceed the limits mentioned in the technical specification sheet.
• Check that there are no gaps between currents in the various lines, except those caused by single phase circuits.
• High and low pressure switches should be installed in the cooling circuit and verify the refrigerant charge (Refrigerant Charge section).
• Disconnect the ON/OFF switch to stop the equipment.

12. PREVENTIVE MAINTENANCE

You must keep a record of each component maintained as well as the actions or repairs undertaken.

• DISCONNECT THE EQUIPMENT FROM THE POWER SUPPLY before performing any maintenance procedures.
• The surface of the exterior panels may be cleaned with a soft cloth and non-abrasive cleaner.
  The machine has been designed to operate outdoors.
• It is important that the equipment be installed on stable ground and protected from flooding.

Things to take into account:

EVAPORATOR COIL:

The evaporator coil should be kept clean and free of obstacles which may hinder the circulation of air through them. In order to clean it, use water at low pressure and non-abrasive detergents or cleaning liquids made specifically for that purpose.

COMPRESSOR:

Compressor oil must be checked in those unit models provided with an oil viewer.

Make sure the crankcase heater works properly.

Verify that the compressor refrigerates adequately with the circulating gas (verify the refrigerant charge).

Verify that the power consumption has not increased.

Verify that the compressor discharge pressure is not too high and that the intake pressure is not too low.

Verify that the compressor fasteners are not deteriorated.

Verify that no frost develops on the compressor.

CONDENSEN:

Install the chemical product dosifiers "downstream" from the heat pump, at a height lower than the pump itself and always as far away from the pump as possible. Never in the suction pipe of the water treatment pump, since this will damage the condenser.

NEVER place concentrated chemical products in the pool skimmers; this will damage the titanium condenser.

In climates subject to sporadic freezing temperatures, the water can be circulated by the water treatment pump to ensure that the water temperature remains above freezing (0^) .

In the event of persistent freezing conditions, all the water treatment and heating system components should be completely drained. Draining is performed by removing the drain plug on the side of the condenser

FAN:

Verify the flows of the fan each year.

Clean the louvers of the fan as well as the protection grill regularly.

ELECTRICAL PANEL:

Check all electrical connections.

Verify that there is no over-heating of the electrical terminals.

Check that the safety systems are working correctly.

Verify that the thermostat or main control operates correctly and verify the temperature with a mercury thermometer (probe calibration).

13. WARRANTY AND GENERAL CONDITIONS

The manufacturer guarantees the quality of the equipment referred to in the LETTER OF WARRANTY that should be delivered with this start-up and operation manual.

The manufacturer's warranty does not cover breakdowns or damage caused by the following circumstances:

• Inadequate installation or use.
• Not following the cleaning and maintenance instructions.
• Inappropriate chemical conditions.
• Work performed by unauthorised personnel.
• Damage caused by inadequate watering.
• Damage caused by natural phenomena.

14. RECYCLING INSTRUCTIONS

This unit has a refrigeration gas in liquid state and electrical components. When the heat pump concludes its working life, it should be dismantled by a specialist company or you may take it to your local authority's disposal facility.

In order to reduce the amount of electric and electronic waste, the danger of its components, to promote the reuse of the equipment, waste reclamation and to establish an adequate waste management that may improve the efficiency of environmental protection, a number of regulations applicable to the manufacture of the product and others related to an adequate environmental management once the product has become waste are set out.

Furthermore, it is intended to improve the environmental behaviour of

all stakeholders involved in the lifecycle of electric and electronic devices such as manufacturers, distributors, users and, in particular, those directly involved in managing the waste from such equipment.

From 13th of August 2005, whenever you want to discard this equipment, you have two possible return options:

• If you buy a new one that is of equivalent type or has the same functions, you may hand it back to the distributor, at no cost to you, when buying the new one.

• Or you may take it to your local authority's disposal facilities.

The equipment is tagged with a symbol that has been cross-over (rubbish bin), and this symbol means that it must be separated from other urban waste and collected separately.

Potential effects on the environment or human health of the hazardous elements it may contain.

PVC

The most widely used plasticizing agent in applications of PVC is DEHP (Diethylhexyl phthalate). Trials carried out in several laboratories show that it does not pose a risk to human health in the concentrated levels used in finished products, according to reports from BUA in Germany (Advisory Committee on Existing Chemicals of Environmental Relevance) and the BGA (Health German Authority), amongst others. The results from such trials, together with data obtained from biodegradatio studies, confirm that DEHP cannot be considered hazardous for the environment. All additives used in PVC formulations and, thus, in food applications are fully regulated both at European and Spanish level.

In Europe, there is the EU 90/128/EEC Commission Directive subsequently amended by EU 95/3/EEC. In Spain, there is the Spanish Royal Decree 1125/1982 of 30th of April, ratified by the Spanish Royal Decree 1042/1997 of 27th of June of that same year.

Modern technology applied to PVC production plants for some years allows us to declare that such plants do not pose a threat to the environment, the Life Cycle Analyses (LCA) show that the environmental impact of PVC is equivalent to that of other materials or even more favourable.

TITANIUM

Health effects. Elemental titanium and titanium dioxide are of a low order of toxicity. Excess exposure in humans to titanium dioxide due to inhalation can result in mild alterations in the lungs.

Effects of overexposure to titanium powder. Dust inhalation may cause tightness and pain in chest, coughing, and difficulty breathing. Contact with skin or eyes may cause irritation. Entry pathways: Inhalation, skin contact, eye contact.

Carcinogenicity. The International Agency for Research on Cancer (IARC) has listed titanium dioxide within Group 3 (The agent is not classifiable as to its carcinogenicity to humans.)

Environmental effects. Low toxicity. No negative environmental effects of titanium have been reported.

15. WARRANTY CERTIFICATE

15.1. GENERAL CONDITIONS

• In accordance with these provisions, the seller guarantees that the product under this warranty (the "Product") does not show any non-compliance at the time of sale.
• The warranty period covers the Product for 2 years from the moment it is given to the buyer.
• In the event of non-compliance of the Product, and if the buyer notifies the seller during the Warranty Period, the seller must repair or replace the Product (bearing this cost) wherever it may be deemed appropriate, unless it may not be possible or disproportionate.
• Whenever the Product is not repairable or may not be replaceable, the buyer may request a proportional reduction in price or, if the non-compliance is significant, the termination of the sale agreement.
• Those parts replaced or repaired pursuant to this warranty will not extend the original Warranty Period, although they will have their own warranty.
• For this warranty to be effective, the buyer will have to prove date of purchase and the delivery of the Product.
• If six months have passed since the delivery of the Product to the buyer and the buyer claims non-compliance of the Product, the buyer must show proof of origin and existence of the alleged malfunction or defect.
• This Warranty Certificate does not limit or prejudice the rights of the consumer afforded to the consumer by national statutory law.

15.2. PARTICULAR CONDITIONS

This warranty covers any product referred to in this manual.
This Warranty Certificate applies exclusively to European Union countries.
- For this warranty to be effective, the buyer will have to strictly follow the manufacturer's instructions included in the documentation accompanying the Product, whenever such documentation is applicable by Product range and model.

• Whenever a time schedule is set for replacement, maintenance or cleaning of Product parts or components, the Warranty will only be valid when such schedule has been duly followed.

15.3. LIMITATIONS

• This warranty is only applicable to those sales made to consumers, "consumer" being the person who acquires the Product not for professional purposes.
• No guarantees are made regarding normal wear and tear of the Product. With regard to parts, components and/or perishable or consumables such as batteries, bulbs, etc., the documentation accompanying the Product will be followed, where necessary.
• The warranty does not cover those events where the Product: (I) has been subject to abuse; (II) repaired, maintained or handled by unauthorised persons or (III) repaired or maintained with non-original parts.

Whenever the non-compliance of the Product may be the result of incorrect installation or startup, this warranty will only be valid whenever such installation or start-up is included in the Product's purchase-sale agreement and has been carried out by the seller or under the seller's responsibility.

1. INTRODUCCION

d^* = According to Standard UNE-EN 12102 / ISO 3744:2010

POWER AT MAXIMUM FLOW, DEPENDING ON THE MODEL

Energy Classification according to European Standard EN 14511-4 (According to FPP classification) (Conditions: Air temp. 15^ / Water temp. 26^ / Relative humidity 70% )

TABLE 2: TECHNICAL DATA [INDOOR]

PROHEAT II		35 KW	45 KW	60 KW	90 KW	120 KW
CODES	INDOOR	69649-MOB	69650-MOB	69651-MOB	69652-MOB	69653-MOB
POWER SUPPLY		400 V / 50 Hz / III+N
CONDenser		TITANIUM
COMPRESSOR		SCROLL
FANS	UNITS	Uds.	1	1	2	2
	TYPE			RADIAL
	FLOW	m³/h	7.850	11.500	14.500	23.000
REFRIGERANT GAS R410-A		KG	6	9	12	2X7
WATER FLOW		m³/h	12-15	15-25	25-35	30-50
CONNECTION DIAMETER		mm	63	63	75	75
Air = 0 °C	INLET POWER	kW	6,45	8,37	11,13	16,74
Water = 26 °C	OUTLET POWER	kW	24,08	30,94	39,90	61,88
	COP		3,74	3,70	3,59	3,70
Air = 5 °C	INLET POWER	kW	6,46	8,45	11,16	16,90
Water = 26 °C	OUTLET POWER	kW	27,39	35,24	45,17	70,48
	COP		4,24	4,17	4,05	4,17
Air = 10 °C	INLET POWER	kW	6,43	8,50	11,14	17,00
Water = 26 °C	OUTLET POWER	kW	30,76	39,75	50,82	79,50
	COP		4,78	4,68	4,56	4,68
Air = 15 °C	INLET POWER	kW	6,62	8,55	11,04	17,09
Water = 26 °C	OUTLET POWER	kW	34,93	45,03	57,47	90,06
	COP		5,27	5,27	5,20	5,27
Air = 25 °C	INLET POWER	kW	6,72	9,36	11,77	18,72
Water = 26 °C	OUTLET POWER	kW	43,63	56,56	70,95	113,12
	COP		6,49	6,04	6,03	6,04
Air = 30 °C	INLET POWER	kW	7,31	9,61	12,74	19,23
Water = 26 °C	OUTLET POWER	kW	48,11	61,63	78,50	123,26
	COP		6,58	6,41	6,16	6,41
SOUND	dbA (d*)	TBD	TBD	TBD	TBD	TBD
PRESSURE	dba (5 m)	TBD	TBD	TBD	TBD	TBD
d* = According to Standard UNE-EN 12102 / ISO 3744:2010

POWER AT MAXIMUM FLOW, DEPENDING ON THE MODEL

Energy Classification according to European Standard EN 14511-4 (According to FPP classification) (Conditions: Air temp. 15^ / Water temp. 26^ / Relative humidity 70% )

TABLE 3: MAXIMAL ELECTRICAL DATA [STANDARD & CHILLER]

CODES VOLTAGE		WIRE MINIMUN SECTION	POWER SUPPLY	COMPRESSOR	FAN	TOTAL
STANDARD & CHILLER	[V]	[mm2]		[A]	[A]	[A]
35 kW		4		22	1,4	23,4
45 kW		6		28	1,8	29,8
60 kW	400	10	III+N+PE	36	3,8	39,8
90 kW		16		2 x 28	2 x 3,8	63,6
120 kW		25		2 x 36	2 x 3,8	79,6

TABLE 4: MAXIMAL ELECTRICAL DATA [INDOOR]

CODES VOLTAGE		WIRE MINIMUN SECTION	POWER SUPPLY	COMPRESSOR	FAN	TOTAL
INDOOR	[V]	[mm2]		[A]	[A]	[A]
35 kW		4		22	1,9	23,9
45 kW		6		28	3,4	31,4
60 kW	400	10	III+N+PE	36	4,7	40,7
90 kW		16		2 x 28	2 x 3,4	62,8
120 kW		25		2 x 36	2 x 4,7	81,4

• Los consumos de las tablas son consumos mímos.
  The consumption of the tables are maximum consumptions.
  Les consommations des tables sont des consommations maximales.

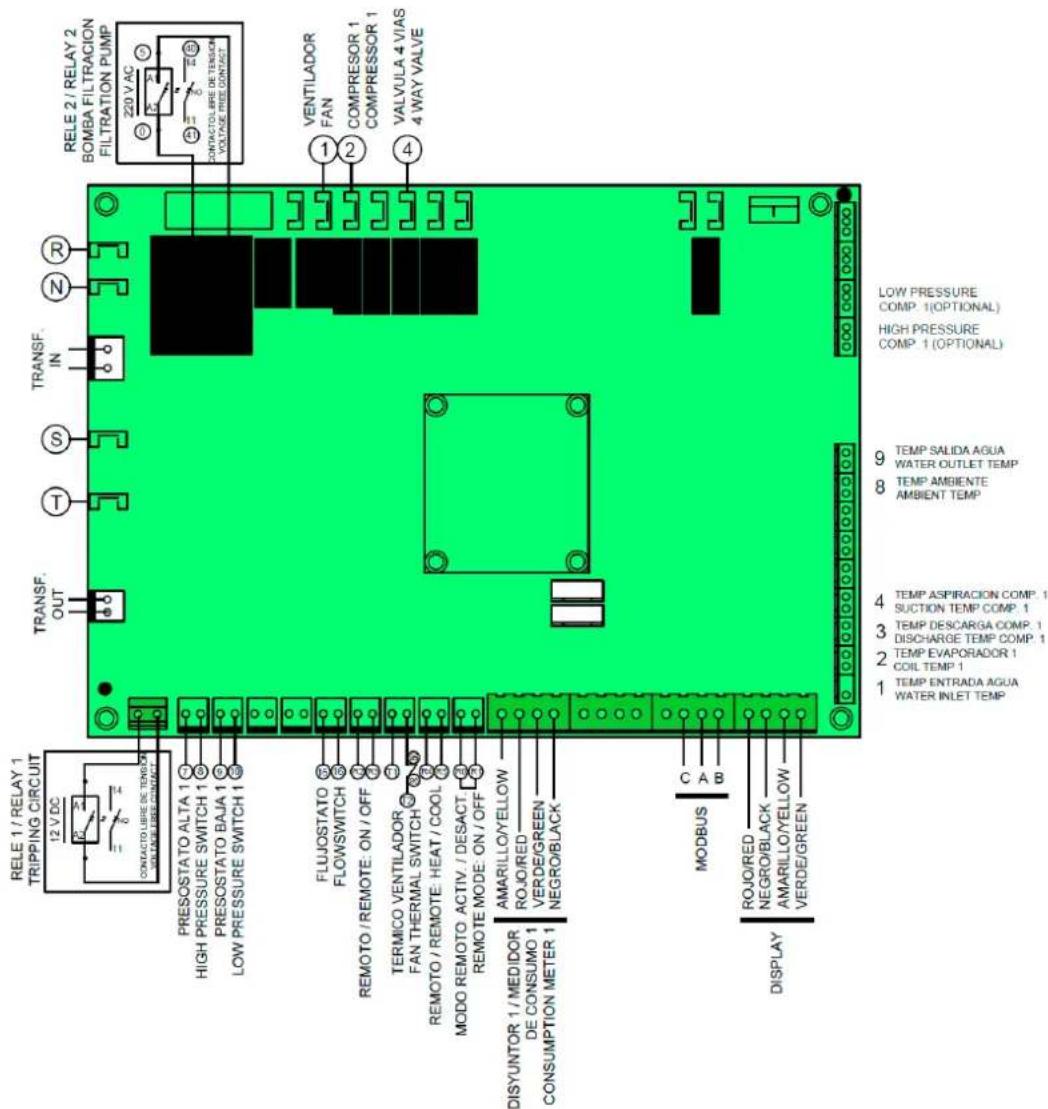

IMAGE 1: ELECTRICAL SCHEME [35kW, 45kW & 60kW]

IMAGE 2: ELECTRICAL SCHEME]90kW,120kW]

IMAGE 3: DIMENSIONS: PROHEAT II STANDARD & CHILLER

CODES	X	Y	Z
STANDARD & CHILLER	[mm]	[mm]	[mm]
35 kW	1000	950+100	1140+60
45 kW	1000	950+100	1140+60
60 kW	1700	1200+100	1500+60
90 kW	2100	1200+100	1500+60
120 kW	2400	1200+100	1700+60

IMAGE 4: DIMENSIONS: PROHEAT II INDOOR

*Appliance consists of two modules / Diseño formado de 2发展模式.

CODES	X	Y	Z
INDOOR	[mm]	[mm]	[mm]
35 kW	1610	1160+100	1330
45 kW	1910	1160+100	1477
60 kW	1910	1200+100	1477
90 kW*	2110+100	1925	1590
120 kW*	2400+100	2025	1690

TABLE 5: REPLACEMENT PARTS: HOUSING

HOUSING
N°	DESCRIPTION	MODEL			CODE MATERIAL
		STANDARD	CHILLER	INDOOR
1	Aluminium housing	35		-	65542-MOBR001
		45		-	65543-MOBR001
		60	-	-	65544-MOBR001
		90		-	65545-MOBR001
		120	-	-	65546-MOBR001
		-	60	-	68247-MOBR001
		-	120	-	68249-MOBR001
		-	-	35	69649-MOBR001
		-	-	45	69650-MOBR001
		-	-	60	69651-MOBR001
		-	-	90	69652-MOBR001
		-	-	120	69653-MOBR001
2	Fan	35		-	65542-MOBR002
		45		-	65543-MOBR002
		60-90-120		-	65544-MOBR002
		-	-	35	69649-MOBR002
		-	-	45-90	69650-MOBR002
		-	-	60-120	69651-MOBR002
3	Air coil	35-45	-	-	65542-MOBR003
		60	-	-	65544-MOBR003
		90	-	-	65545-MOBR002
		120	-	-	65546-MOBR002
		-	-	35	69649-MOBR003
		-	-	45-60	69650-MOBR003
		-	-	90	69652-MOBR002
		-	-	120	69653-MOBR002

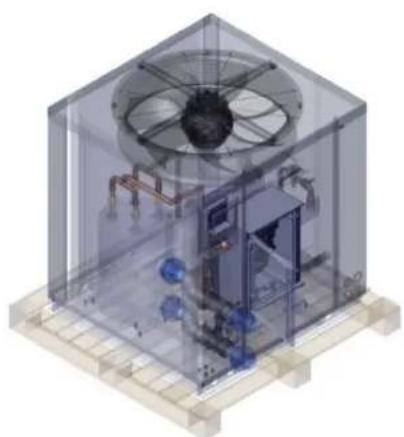

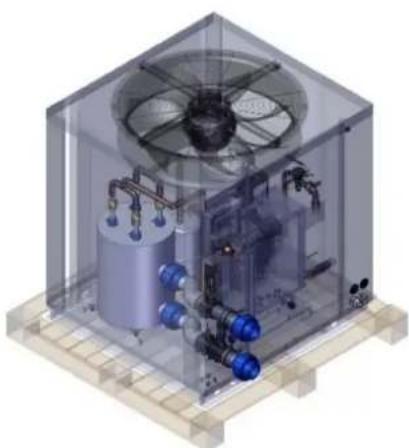

Fig. Single circuit (35-45-60 kW)

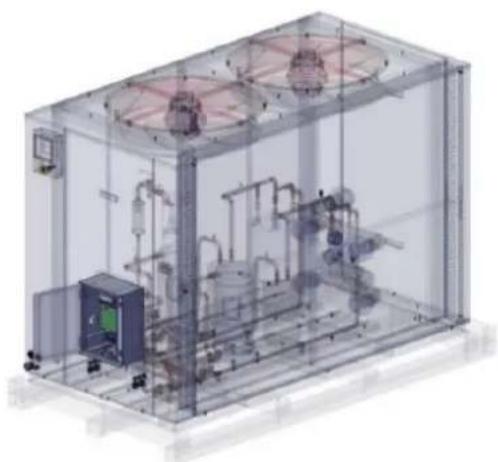

Fig. Double circuit (90-120 kW)

TABLE 6: REPLACEMENT PARTS: REFRIGERANT CIRCUIT

REFRIG. CIRCUIT
N°	DESCRIPTION	MODEL			CODE MAT.
		STANDARD	CHILLER	INDOOR
1	Compressor	35			65542-MOBR004
		45-90			65543-MOBR003
		60-120			65544-MOBR004
2	Carter resistance	35			65542-MOBR005
		45-60-90-120			65543-MOBR004
3	Liquid reciver	35			65542-MOBR006
		45-90			65543-MOBR005
		60-120	-	-	65544-MOBR005
		-	60-120		68247-MOBR002
4	Condenser	35			65542-MOBR007
		45-60-90-120	45-90	45-60-90-120	65543-MOBR006
		-	60-120	-	68247-MOBR003
5	Safety valve	All			65542-MOBR008
6	Valve 4 way	35-45-90	35	35-45-90	65542-MOBR009
		60-120	45-60-90-120	60-120	65544-MOBR006
7	Coil 4-way valve	All			65542-MOBR010
8	High pressure	All			65542-MOBR011
9	Low pressure	All			65542-MOBR012
10	Expansion valve	35			65542-MOBR013
		45-90			65543-MOBR007
		60-120			65544-MOBR007
11	Drier	35			65542-MOBR014
		45-60-90-120			65543-MOBR008
12	3 pieces	35-45			65542-MOBR015
		60-90-120			65544-MOBR008
13	Tapping sleeve ¾"	35-45-60			65542-MOBR016
		90-120			65545-MOBR003
14	Tapping sleeve ½"	35-45-60			65542-MOBR017
		90-120			65545-MOBR004
15	Pod temperature probe	All			65542-MOBR018
16	Flow switch	All			65542-MOBR019
17	Suction accumulator	-	35	-	68245-MOBR001
		-	45-60-90-120	-	68246-MOBR001
18	Check valve 1	-	All	-	68245-MOBR002
	Check valve 2	-	All	-	68245-MOBR003

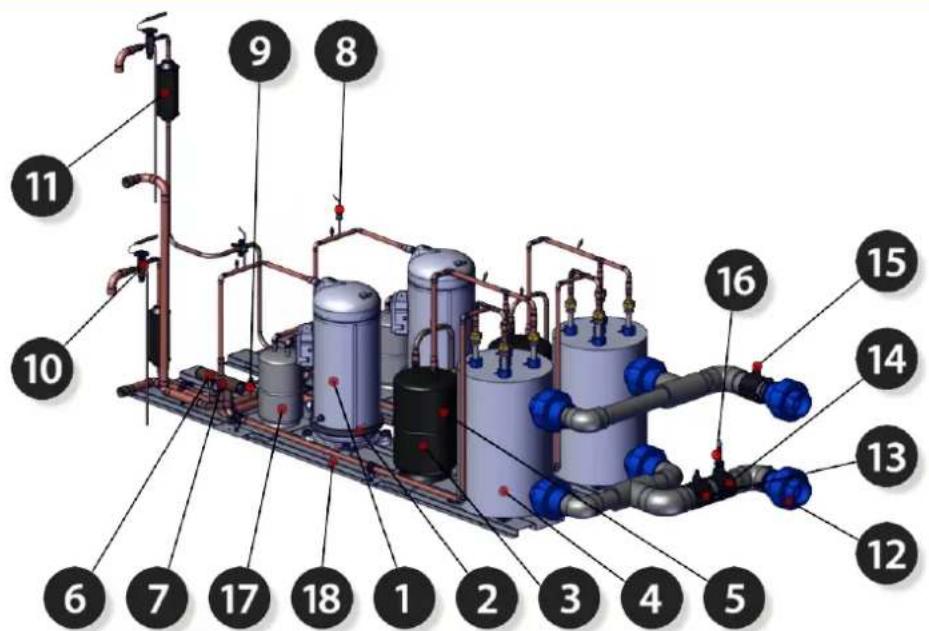

Fig. Refrigerator circuit of double circuit PROHEAT (90-120 kW)

Fig. Single circuit (35-45-60 kW)

Fig. Double circuit (90-120 kW)

TABLE 7: REPLACEMENT PARTS: ELECTRIC CIRCUIT

ELECTRIC. CIRCUIT
No	DESCRIPTION	MODEL			CODE MAT.
		STANDARD	CHILLER	INDOOR
1	Electrical box	35-45-60-90-120		-	65542-MOBR020
2	Display	All			65542-MOBR021
3	Emergency stop	All			65542-MOBR022
4	Coil undervoltage	35-45-60-90			65542-MOBR023
		120 65546-MOBR003
5	Breaker	35			65542-MOBR024
		45 65543-MOBR009
		60 65544-MOBR009
		90 65545-MOBR004
		120 65546-MOBR004
6	Consumption meter	All			65542-MOBR025
7	Contactor compressor	35-45-90			65542-MOBR026
		60-120			65544-MOBR010
8	Contactor Fan	All			65542-MOBR027
9	Thermal relay	35			65542-MOBR028
		45 65543-MOBR010
		60	60	60-90	65544-MOBR011
		90-120	90-120	120	65545-MOBR005
10	Base relay	All			65542-MOBR029
11	Relay	All			65542-MOBR030
12	Relay	All			65542-MOBR031
13	Transformer	All			65542-MOBR032
14	Electronic card	All			65542-MOBR033
15	Temperature sensor 1,5 mts	All			65542-MOBR034
16	Temperature sensor 3,5 mts	60-90-120			65544-MOBR012

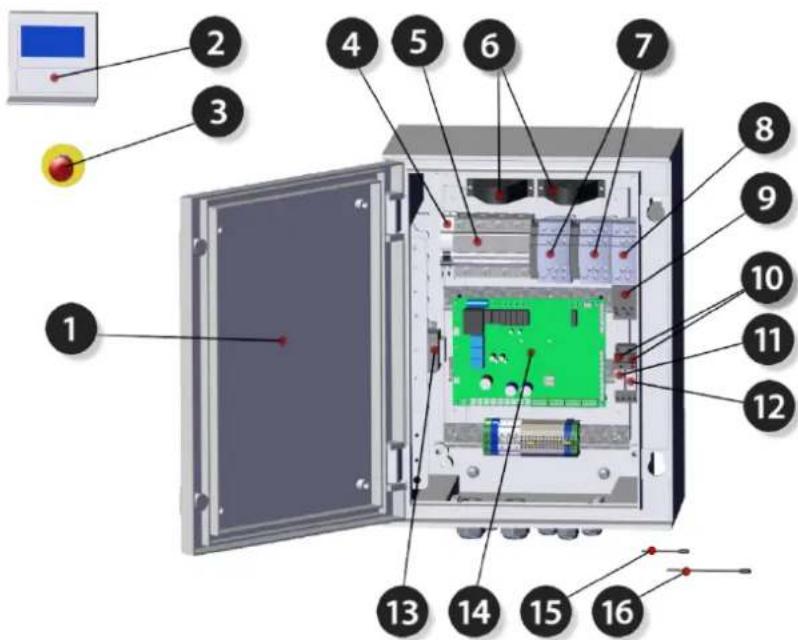

Fig. Electrical panel of double circuit PROHEAT (90-120 kW)

Fig. Single circuit (35-45-60 kW)

Fig. Double circuit (90-120 kW)

Al Aluminium	Cu Copper	Fe Iron
Stainless steel	Zn Zinc	Plastic
Electrical / Electronics	Papier	Wood

ASTRALPOOL

Declares under their own responsibility that all the heatpumps: PROEHAT II

Manufactured since 01/01/2016, independent of the serial number, are in compliance with:

Machine safety directive 2006/42/EC.

Electromagnetic compatibility directive 2004/108/EC and its modifications.

Low-voltage equipment directive 2006/95/EC.

Directive 2000/14/CE concerning noise produced by equipment for outdoors use, as amended by Directive 2005/88/EC.

Restrictions in the use of certain risky substances in the electrical and electronic instruments 2011/65/EU (RoHS).

Relative to the electrical and electronic waste products 2012/19/UE (WEEE).

Relative to the electrical and electronic instruments and the management of their waste products Spanish R.D. 208/2005 & 219/2013.

The registration, the evaluation, the authorization and the restriction of the chemical substances EC No 1907/2006 (REACH) and amendment 126/2013 (REACH).

Signed the present conformity evidence / Signe la presentedeclaration / Firma la presentedeclaracion / Firma la seguente dichiarazione/ UnterzeichnettheseErklärung / Assina a presentedeclaracao:

More languages for this manual and further information, please visit: https://www. astralpool.com/en/products/

Para másidiomasdeestemanualymasinformacion,porfavor,visite: https://www. astralpool.com/products/

WE RESERVE THE RIGHT TO CHANGE ALL OR PART OF THE FEATURES OF THE ARTICLES OR CONTENTS OF THIS DOCUMENT, WITHOUT PRIOR NOTICE.

NOS RESERVAMOS EL DERECHO DE CABIARTOTAL O PARCIALMENTE LAS CARACTERISTICAS DE NUESTROS ARTICULOS O CONTENIDO DE ESTE DOCUMENTO SIN PREVIO AVISO.

NOUS NOUS RÉSERVONS LE DROIT DE MODIFIER EN TOUT OU EN PARTIE LES CARACTERISTIQUES DE NOS ARTICLES OU LE CONTENU DE CE DOCUMENT SANS Avis.
