Ultra Compact WD3000 - Waffle Maker TEFAL - Free user manual and instructions

Product type	Waffle maker
Brand	Tefal
Model	Ultra Compact WD3000
Power supply	220-240 V, 50/60 Hz
Power	1000 W
Capacity	1 waffle
Adjustable thermostat	Yes
Indicator lights	Red (heating), Green (ready)
Plate material	Non-stick coating
Plate cleaning	Damp sponge with dish soap
Storage	Vertical storage possible
Cord winding	Yes, around the hinge with plug housing
Safety	Grounded outlet required, do not immerse
Usage	Household use only
Cooking time	About 2 to 3 minutes depending on recipe
Cooking temperature	Adjustable via thermostat
Approximate dimensions (L x W x H)	25 x 20 x 10 cm
Approximate weight	1.2 kg

Frequently Asked Questions - Ultra Compact WD3000 TEFAL

How to use my Tefal Ultra Compact WD3000 waffle maker for the first time?

Before first use, remove all packaging and stickers. Pour a little oil on the plates and wipe with a soft cloth. Plug in the appliance closed, the red light turns on. Wait for the green light to turn on indicating the temperature is reached. Then you can pour the batter and close.

What to do if an odor or smoke is emitted during first use?

This is normal. During first use, a slight emission of odor or smoke may occur. Make sure you are in a well-ventilated area. This disappears after a few uses.

How to clean the plates of my waffle maker?

Unplug the appliance and let it cool down. Clean the plates with a damp sponge and dish soap. Rinse and dry thoroughly. Never use an abrasive pad or scouring powder. Never immerse the appliance in water.

Can I use metal utensils on the plates?

No, avoid metal and sharp utensils as they could damage the non-stick coating of the plates. Use a wooden or silicone spatula.

How to store my waffle maker after use?

The appliance can be stored vertically to save space. Wrap the cord around the hinge and insert the plug into the housing provided.

What is the recommended cooking time for waffles?

The cooking time is about 2 to 3 minutes, but it varies depending on the recipe and thermostat setting. Monitor the cooking and adjust as necessary.

Why does the green light turn on and off during cooking?

This is normal. The green regulation light turns on and off regularly to maintain a constant cooking temperature. If you find the temperature insufficient or too high, you can adjust the thermostat at any time.

Can I leave the handle held down during cooking?

No, do not hold the handle down during cooking to allow the batter to rise properly. Leave the appliance closed without pressure.

What to do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid a hazard. Do not use the appliance.

Where can I find recipes for my waffle maker?

The user manual provides several recipes: traditional waffles, crispy waffles, beer waffles, and crunchy waffles with hot chocolate and ice cream. You can also find other recipes online.

USER MANUAL Ultra Compact WD3000 TEFAL

Laddeersta i en time.

Sprødevafler

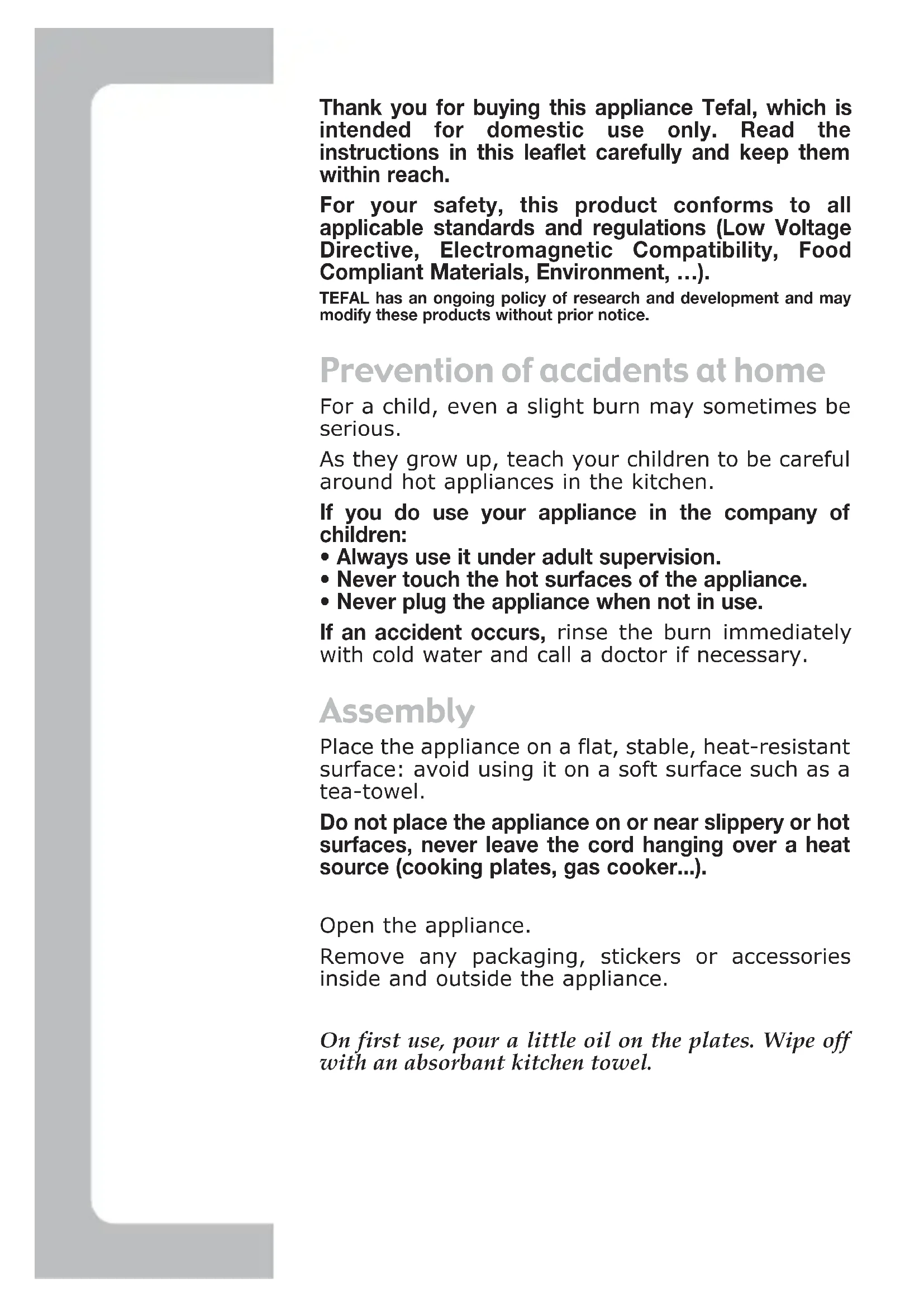

Thank you for buying this appliance Tefal, which is intended for domestic use only. Read the instructions in this leaflet carefully and keep them within reach.

For your safety, this product conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).

TEFAL has an ongoing policy of research and development and may modify these products without prior notice.

Prevention of accidents at home

For a child, even a slight burn may sometimes be serious.

As they grow up, teach your children to be careful around hot appliances in the kitchen.

If you do use your appliance in the company of children:

• Always use it under adult supervision.
• Never touch the hot surfaces of the appliance.
• Never plug the appliance when not in use.

If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.

Assembly

Place the appliance on a flat, stable, heat-resistant surface: avoid using it on a soft surface such as a tea-towel.

Do not place the appliance on or near slippery or hot surfaces, never leave the cord hanging over a heat source (cooking plates, gas cooker...).

Open the appliance.

Remove any packaging, stickers or accessories inside and outside the appliance.

On first use, pour a little oil on the plates. Wipe off with an absorbant kitchen towel.

Connection and pre-heating

Close the appliance.

Plug the cord in the wall socket: the red light comes on A

During first use, the appliance may give off a slight odour and smoke. This is normal.

Check that your electric supply is compatible with the power and the voltage indicated under the appliance.

Connect the appliance to a wall socket with an earth connection.

If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Cooking

Allow the appliance to pre-heat, the green light comes on when the correct cooking temperature is reached B

Do not touch the metallic surfaces of the appliance during pre-heating, because they are very hot.

Select the desired temperature using the thermostat

Open the appliance.

Pour the waffle batter into the centre of the hollow part of the plate D

Immediately close the appliance, using the handle, so that the batter is evenly distributed over the whole surface of the plate E

Do not hold onto the handle of the appliance during cooking, as this will prevent the batter from rising.

Note: During cooking, the green thermostat indicator light will come on and go off again at regular intervals in order to ensure the cooking temperature remains constant. Equally, you can adjust the thermostat at any time during cooking if you feel that the temperature is not high enough, or again, is too high.

The cooking time is around 2-3 minutes and may vary depending on the recipe.

Once cooking is complete, remove the waffle using a spatula F

Place the waffles on a cooling tray and wait for 1 minute before eating: they become more crispy.

Do not use metallic or sharp utensils, as they could damage the coating on the plate.

After use

Before cleaning the appliance, unplug it and allow it to cool down.

Never place the appliance in water or under running water.

To clean the outside of the appliance, use a damp sponge and dry carefully.

To clean the plates, use a damp sponge with washing up liquid.Rinse and dry them with care.

Never use a scouring pad or powder.

Storage

The appliance can be stored vertically G

Wind the cord around the hinge and insert the plug into the casing provided

If you have any problems or queries, please contact our Customer Relations Team first for expert help and advice:

HELPLINE: 0845 602 1454 - UK

[phone] - Ireland

Or consult our web site: www.tefal.co.uk

Waffles

Traditional waffles

• 300 g plain flour - 1 tbsp baking powder - salt - 75 g caster sugar - 100 g melted butter - 2 eggs - 500 ml milk

Mix the flour and the baking powder in a bowl. Make a well in the centre and add the salt, the sugar, the melted butter and the eggs. Gradually beat in the milk.

Leave the batter to stand for 1 hour.

Crispy waffles

• 300 g plain flour - 1 tbsp baking powder - 1 pinch of salt - 1 tbsp sugar
• 2 eggs - 400 ml milk

Beat the eggs to a frothy consistency. Mix the other dry ingredients in a bowl. Gradually mix in the egg and milk. Beat until a smooth consistency.

Waffles made with beer batter

• 330 ml beer • 250 g plain flour • 1 tbsp baking powder • 1 tsp salt • 75 gcaster sugar • 50 g melted butter • 4 eggs • 1 tsp lemon juice

Pour the beer into a jug and leave to stand for 5 minutes, until the foam disappears. Mix the flour, the baking powder and the salt. In a large bowl, beat the eggs, the beer, the butter, the sugar and the lemon juice for about 2 minutes. Add the mixture gradually to the flour, one tablespoon at a time. Beat until a smooth consistency.

Crunchy waffles with chocolate sauce and ice cream

• 250 g plain flour • 1 tbsp baking powder • 1 pinch of salt • 2 tsp sugar
• 75 g melted butter • 2 eggs • 250 ml milk • 1 glass of Brandy • vanilla ice cream • chocolate sauce

Sift the baking powder, leaving it to stand for 15 minutes in a glass of water with the sugar. Mix this preparation to the beaten eggs and butter. Then add the milk, the flour, the Brandy and the salt until you obtain a runny consistency.

Leave the batter to stand for 3 hours in a warm room.

Before serving, add 2 scoops of vanilla ice cream and top it with some chocolate sauce (they can also be eaten with sugar or jam).

FRA

Environment protection first!

• Your appliance contains valuable materials which can be recovered or recycled.
• Leave it at a local civic waste collection point.
