Product type	Waffle maker
Brand	Tefal
Model	Waffle Time WD1502
Usage	Household only
Number of waffles per batch	1 (estimated)
Plate coating	Non-stick
Indicator lights	Power indicator (red) and temperature indicator (green)
Handle	General handle with locking latch
Power supply	Mains, earthed outlet required
Power	850 W (estimated)
Voltage	220-240 V (estimated)
Frequency	50/60 Hz (estimated)
Dimensions (L x W x H)	Approx. 25 x 25 x 10 cm (estimated)
Weight	Approx. 2 kg (estimated)
Cord length	Approx. 0.8 m (estimated)
Cleaning	Sponge and dish soap, do not immerse
Not dishwasher safe	Yes
Included accessories	None
Safety	Use under supervision, keep out of reach of children under 8 years
Thermostat	Built-in, automatic temperature maintenance
Preheating required	Yes, indicated by green light
Cooling before cleaning	At least 2 hours

Frequently Asked Questions - Waffle Time WD1502 TEFAL

How to use the Tefal Waffle Time WD1502 waffle maker for the first time?

Before first use, wash the plates with a sponge, hot water, and dish soap. Pour a little oil on the plate and wipe with a soft cloth. Plug in the appliance, the red light turns on. Wait for the green light to indicate the appliance is ready. Place batter on the lower plate, close, and cook for the desired time. Unplug after use and let cool for at least 2 hours.

How to clean the plates after use?

Unplug the appliance and let it cool for at least 2 hours. Clean the cooking plates and body with a sponge, hot water, and dish soap. Never immerse the appliance or cord. Do not put in dishwasher. Do not use metal sponge or scouring powder to preserve the non-stick coating.

What to do if the green light does not turn on?

Check that the appliance is properly plugged into an earthed outlet. If the red light turns on but the green remains off, wait a few minutes: the green light turns on when cooking temperature is reached. If the problem persists, contact customer service.

Can I use a metal spatula on the plates?

No, to preserve the non-stick coating, always use a plastic or wooden spatula. Metal utensils can scratch and damage the cooking surface.

Can the waffle maker be used by children?

Children aged 8 years and older may use the appliance under adult supervision, after receiving instructions on safe use. Children must not play with the appliance. Cleaning and maintenance must not be performed by children under 8 years. Keep the appliance and its cord out of reach of children under 8 years.

What to do in case of a burn from the waffle maker?

In case of a burn, immediately run cold water over the affected area for several minutes. If the burn is severe, call a doctor. Avoid applying ice directly.

Can I leave the waffle maker plugged in permanently?

No, never leave the appliance plugged in when not in use. Unplug after each use. This prevents any risk of overheating or accident. Only plug in the appliance when you are ready to use it.

Why does smoke or odor come out during first use?

During first use, it is normal for a slight odor or smoke to occur. This is due to manufacturing residues on the plates. Make sure to wash the plates before first use and heat the appliance empty for a few minutes to eliminate these residues.

How to store the waffle maker?

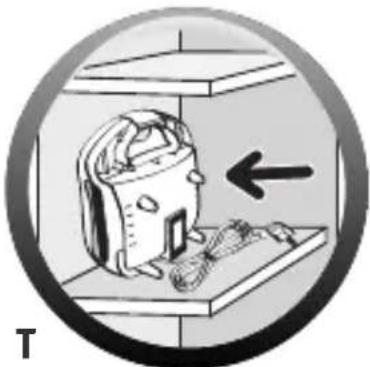

After use, unplug the appliance and let it cool completely. Clean the plates, coil the cord (without tightening), and store the appliance in a dry place away from dust. Do not place it on a fragile surface or near a heat source.

Is the waffle maker compatible with an extension cord?

Yes, but you must use an extension cord with a cross-section at least equivalent to that of the cord and with an earth connection. Ensure that no one can trip over the extension cord. Take all necessary precautions to avoid any risk of falling or disconnection.

USER MANUAL Waffle Time WD1502 TEFAL

croc time waffle time

FR CONSIGNES DE SÉCURITÉ PRÉCAUTIONS IMPORTANTES

SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS

- Please read these instructions for use carefully before using your appliance for the first time and keep them to hand for future reference.

- This appliance is intended for indoor, domestic household use only. It is not intended to be used in the following applications, and the guarantee will not apply for:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

- Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

- Never leave the appliance unattended when in use.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an adult responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

- Accessible surface temperatures can be high when the appliance is operating.

- Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Any connection error will invalidate your guarantee.

- Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.

- If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent person in order to avoid a hazard.

- Inspect the appliance and power cord for signs of wear or damage before to connecting to the power supply.

- Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged. To maintain safety, these parts must be replaced by an Approved Service Centre.

- Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.

• Never immerse the appliance or power supply cord in water or any other liquid. They are not dishwasher safe.

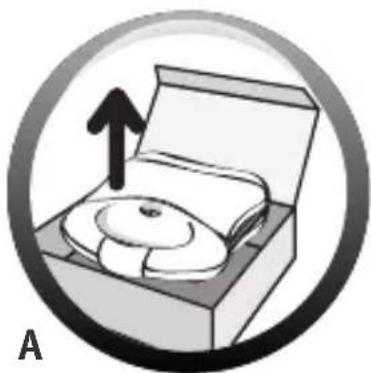

• Before first use, remove all packaging materials, stickers and accessories from the inside and the outside of the appliance.
• Fully unwind the power cord before plugging in.
• If it is necessary to use an extension lead ensure that it is of suitable construction and power rating, with an earth connection; take all necessary precautions to prevent anyone tripping over an extension cord.
• Always plug the appliance into an earthed socket.
• Never disconnect the plug by pulling on the power cord.

Do

• Read the instructions carefully, common to different versions depending on the accessories supplied with your appliance, and keep them within reach.
• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.
• Before first use, wash the plates, pour a little cooking oil onto the plates and wipe with a soft cloth or paper kitchen towel.
• The appliance must be placed and used on a flat, stable, heat-resistant work surface, away from water splashes.
• The power cord must never be close to or in contact with hot parts of the appliance, close to a source of heat or resting on sharp edges.
• Position the power cord carefully, whether an extension is used or not, so that guests can move freely around the table without tripping over it.
• Always use a wooden or plastic spatula to avoid damaging the cooking plate.
• Allow the appliance to cool down completely before you clean and store it.
• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.
• If the appliance is used in the centre of the table, keep it out of the reach of children.
• If parts of the appliance should catch fire, never try to extinguish flames with water. Disconnect the appliance and smother the flames with a damp cloth.

Do not

• Never leave the appliance plugged in when not in use.
• Never leave the appliance unattended whilst connected to the power supply, even if for a few moments, especially where children are present.
• To prevent the appliance from overheating, do not place it in a corner or against a wall or below a wall cupboard.
• Never place the appliance below or close to easily inflammable objects (e.g. curtains, etc.).
• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a tea-towel.
• Never place the appliance on or near hot or slippery surfaces; never leave the cord hanging over a heat source (hotplates, gas stove, etc.).
• Do not place cooking utensils on the cooking surfaces of the appliance.
• Never cut food directly on the plates.
• Do not use metal scourers or scouring powders to avoid damaging the cooking surface (non-stick coating).
• Do not heat the appliance in vertical position.
• Do not touch the hot surfaces of the appliance: use the handles.
• Do not use the appliance empty.

Advice/information

• Thank you for buying this appliance, which is intended for domestic use only.
• Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• For your safety, this appliance conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).
• On first use, there may be a slight odour and a little smoke during the first few minutes.
• Our company has an ongoing policy of research and development and may modify these products without prior notice.

Description

1. Operating indicator light

2. Lid closing latch

3. Plates

4. Temperature indicator light

5. Handle

6. Power cord

Instructions for use

Explanatory drawings are at the end of this leaflet.

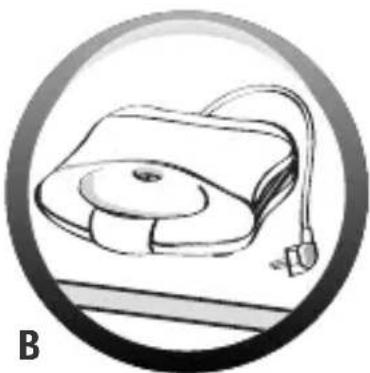

• Place your appliance on a flat, stable and heat-resistant surface.

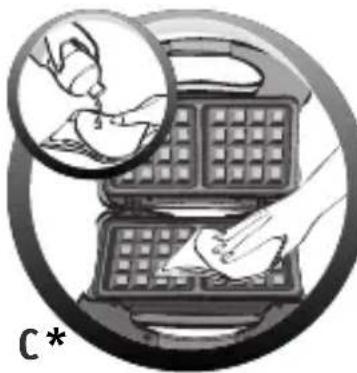

• To clean the plates, open the appliance using the lid closing latch (3) - C.

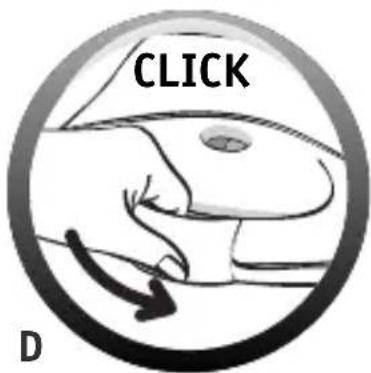

• Close the appliance - D.

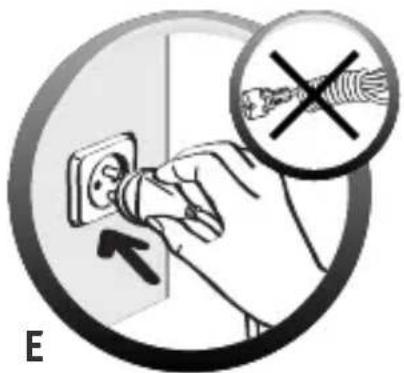

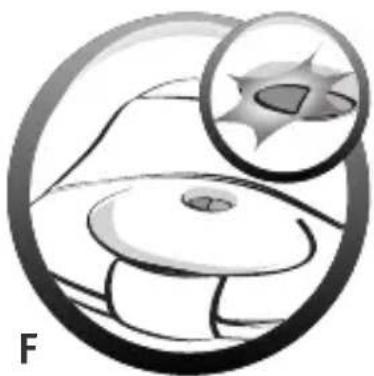

• Plug the cord into the mains - E : the red light will light up (1) - F.

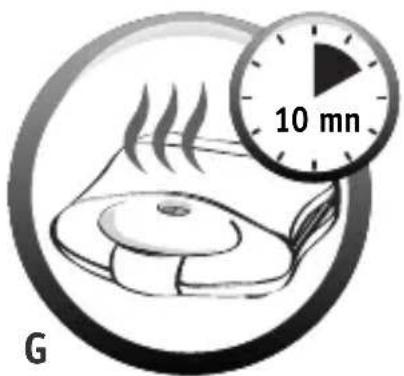

• Allow the appliance to pre-heat - G : the green light will light up (2) showing that the appliance is ready to use - H.

• The green light goes out and lights up again regularly during the cooking process, to show that the temperature is maintained.

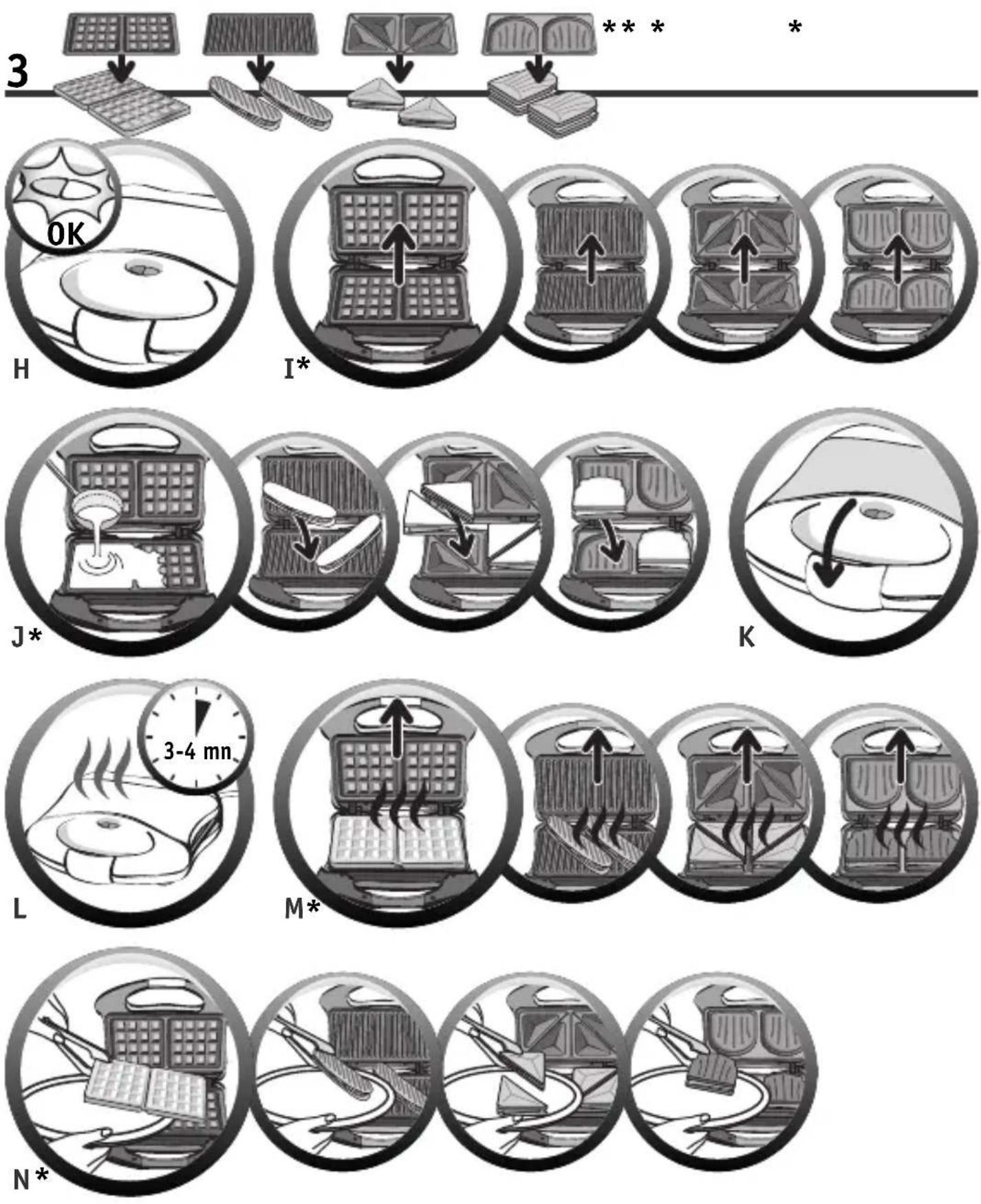

• Open the appliance and carefully pour the batter on the lower plate - I - J. Do not let it overflow into the groove along the edges.

• Close the appliance - K.
• Leave the preparations to cook for the desired time - L.

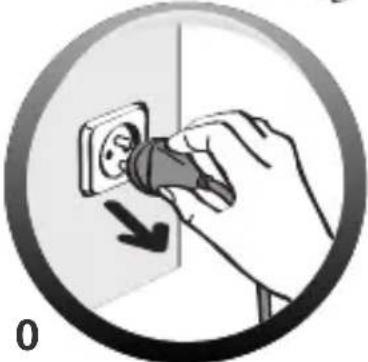

• Unplug the appliance when cooking is complete - 0.

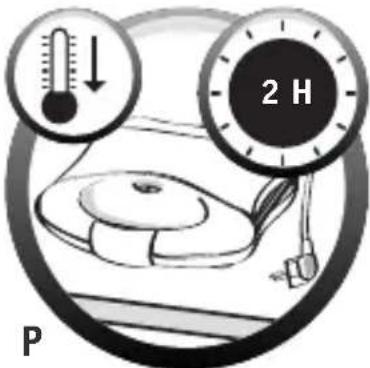

• Leave it to cool down at least 2 hours - P.

Cleaning

• Check that the appliance is unplugged before cleaning.

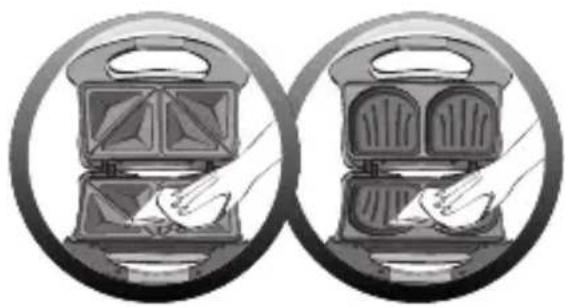

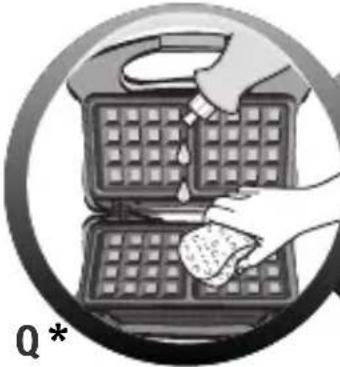

• Clean the plates and body of the appliance using a clean cloth, hot water and washing-up liquid - Q.

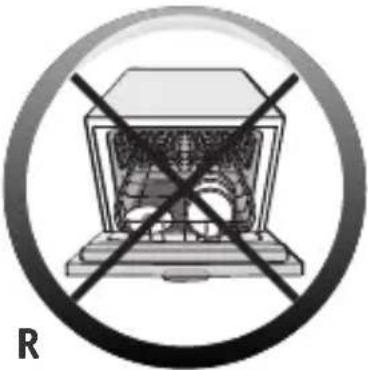

• The appliance and its power supply cord must not be put in the dishwasher.

Environment

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

SIGURNOSNE UPUTE VAŽNA UPOZORENJA

- Ovaj aparat namijenjen je samo za upotrebu u domaćinstvu. On nije namijenjen za upotrebu u slijedećim slučajevima, koji nisu obuhvaćeni garancijom :

• u kancelarijskim kuhinjama, kuhinjama prodavnica i drugim radnim okruženjima,
• na farmama,
• od strane gostiju hotela, motela i sličnih objekata,

• u prenoćištima i sl.

• Nikada ne ostavljajte aparat u upotrebi bez nadzora.

• Ovaj aparat nije predviđen za upotrebu od strane osoba (uključujući djecu) sa smanjenim fizičkim, čulnim ili mentalnim sposobnostima, osoba bez iskustva ili znanja, osim ako se upotrebljava pod nadzorom ili prema uputama osobe zadužene za njihovu sigurnost. Djecu treba nadzirati tako da se ni u kom slučaju ne igraju s aparatom.
• Ovaj aparat mogu koristiti djeca starija od 8 godina i osobe čije su fizičke, čulne ili mentalne sposobnosti smanjene, ili osobe bez iskustva ili znanja, ukoliko su pod

nadzorom ili sa prethodnim instrukcijama u vezi s upotrebom ovog aparata. Djeca se ni u kom slučaju ne smiju igrati ovim aparatom. Ako čišćenje i održavanje aparata ponekad i povjerite djetetu, ono mora biti starije od 8 godina i pod nadzorom odraslih.

SIGURNOSNE UPUTE VAŽNA UPOZORENJA

- Ovaj uređaj namijenjen je isključivo kućnoj uporabi. Jamstvo ne pokriva uporabu uređaja :

Diagram showing a 3D block being converted into a circular device (no text or symbols)

Illustration of a CD or DVD disc with an upward arrow, enclosed in a circular frame (no text or symbols)

Illustration of a desk lamp with a bulb and adjustable arm, enclosed in a circular frame (no text or symbols)

Illustration of hands using a waffle to clean food, showing the pan and side menu (no text or symbols)

Illustration of a hand using a tool to press down a cylindrical object, enclosed in a circular frame (no text or symbols)

Illustration of two kitchen grilles with hand cleaning, showing interior and exterior views (no text or symbols)

2

Line drawing of a computer mouse with a cable (no text or symbols)

Abstract circular diagram with a central oval and an inset showing a star-like shape, labeled 'F' at the bottom left (no text or symbols within the diagram itself)

4

Simple line drawing of a medical device with thermometer and pressure gauge (no text or symbols)

Illustration of a hand inserting a plug into an electrical socket, with a downward arrow indicating the cable (no text or symbols present)

Illustration of hands cleaning a waffle with a cloth (no text or symbols)

Illustration of a hand cleaning a griddle with a cloth (no text or symbols)

Illustration of a hand placing a small object into a container (no text or symbols visible)

Illustration of a hand cleaning a waffle with a cloth (no text or symbols)

Cross symbol of a device with crossed lines indicating prohibition (no text or labels)

5

Illustration of a portable electronic device with cables and connectors (no text or symbols)

Illustration of a kitchen appliance with a bag and utensils, enclosed in a circular frame (no text or symbols)
