Product type	Range hood
Brand	Blaupunkt
Model	5DW66750
Minimum safety distance	650 mm
Exhaust duct diameter	minimum 120 mm
Electrical class	I (mandatory grounding)
Power supply	According to rating plate
Grease filter	Washable (every 2 months, dishwasher safe)
Charcoal filter	Non-washable, replace every 4 months
Controls	3 speeds (V1, V2, V3) + lighting (L)
Use	Domestic use, removal of cooking odors
Maintenance	Clean with a damp cloth and mild detergent
Safety	Do not flambé under the hood; ensure adequate ventilation when operating with gas appliances
Installation	To be connected by a qualified technician; comply with local exhaust regulations
Manual available in	French, German, English, Spanish, Italian, Dutch, Slovenian, Serbian, Swedish

Frequently Asked Questions - 5DW66750 BLAUPUNKT

What is the minimum safety distance between the hood and the cooking surface?

The minimum safety distance is 650 mm. However, if the instructions for your gas cooktop specify a greater distance, please comply with them.

How to clean the grease filters?

Grease filters must be cleaned every 2 months (or more often with heavy use). They can be washed in the dishwasher or by hand with mild detergent.

When should the charcoal filter be replaced?

The activated charcoal filter cannot be washed or regenerated. It must be replaced approximately every 4 months (or more frequently with heavy use).

Can I use the hood without external exhaust?

Yes, the hood can operate in recirculation mode (with charcoal filter) or exhaust mode. For recirculation mode, the charcoal filter is required.

What to do in case of a power outage?

In case of a power outage, the hood stops. Once power is restored, you can restart it normally using the control buttons.

How to install the hood correctly?

Installation must be carried out by a qualified technician. Ensure the safety distance is respected and the exhaust duct has a diameter of at least 120 mm. Connect to a grounded outlet.

Can I use the hood simultaneously with a gas appliance?

Yes, but ensure the room is adequately ventilated to prevent backflow of exhaust gases. The negative pressure must not exceed 0.04 mbar.

How to adjust the suction speed?

Use the V1 (first speed), V2 (second speed), and V3 (third speed) buttons. To stop the motor, press the current speed button or the L button if dedicated.

The lighting no longer works, what to do?

First check that the hood is powered. If the lighting is defective, contact authorized after-sales service to replace the bulb (the type is not specified in the manual).

What to do if the hood is noisy?

Ensure the filters are clean and properly installed. Also check that the exhaust duct is not blocked. If the noise persists, contact an authorized technician.

USER MANUAL 5DW66750 BLAUPUNKT

Illustration of a hand interacting with a small electronic device on a tablet screen (no text or symbols)

Three-step illustration showing hand positioning and lock mechanism (no text or symbols)

Lampada Assorbimento (W) Attacco	Voltaggio (V)	Dimensione (mm)	Codice ILCOS
	5 GU10 230	50x50		DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

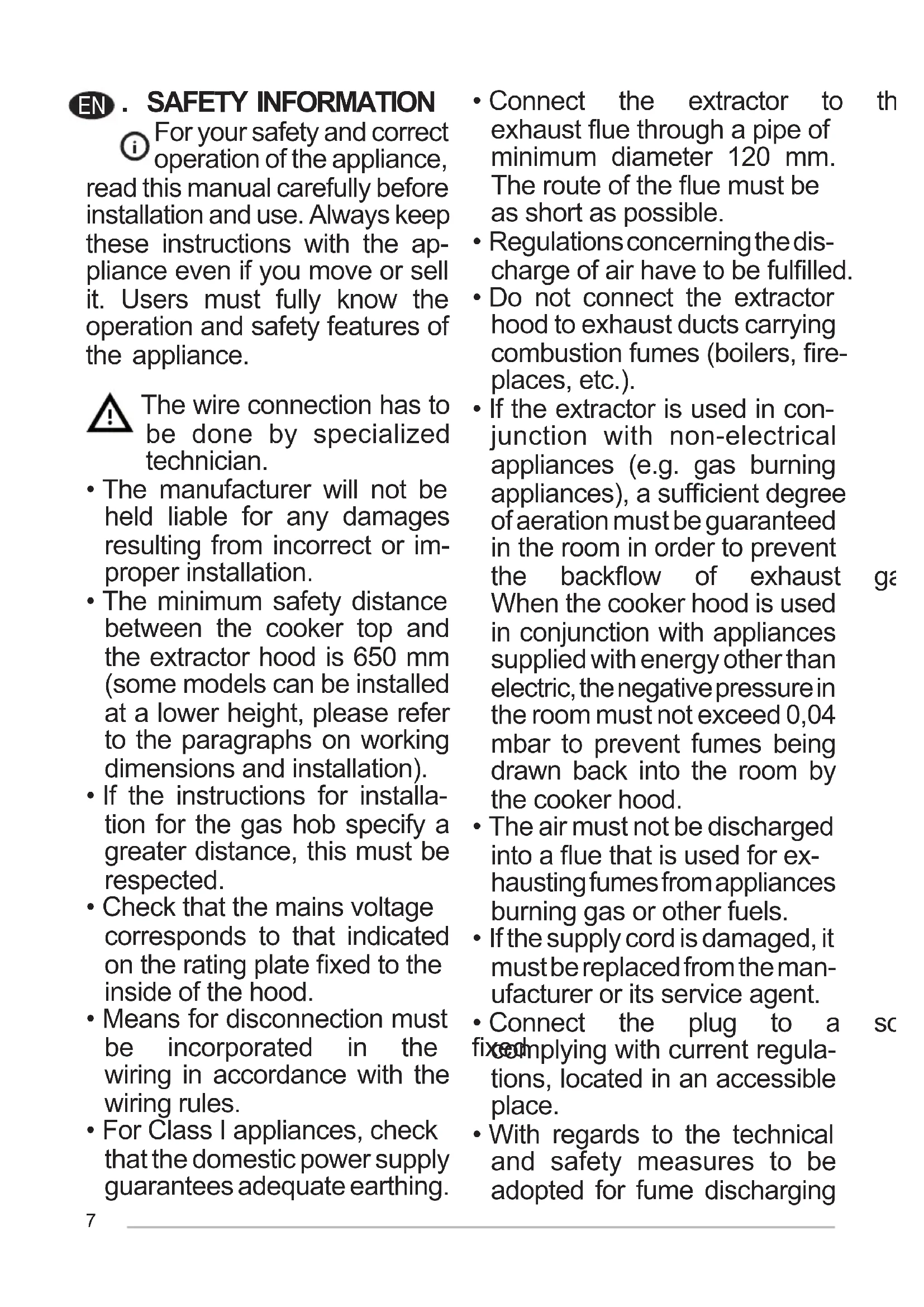

EN. SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a fixed complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...). - Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

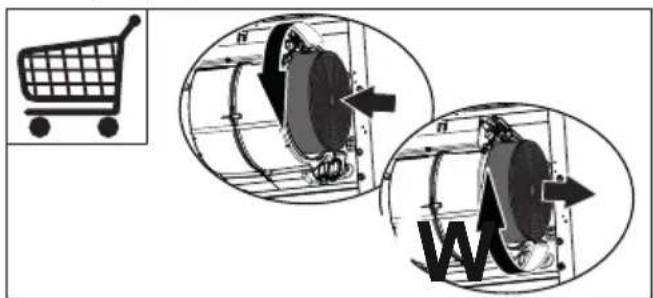

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

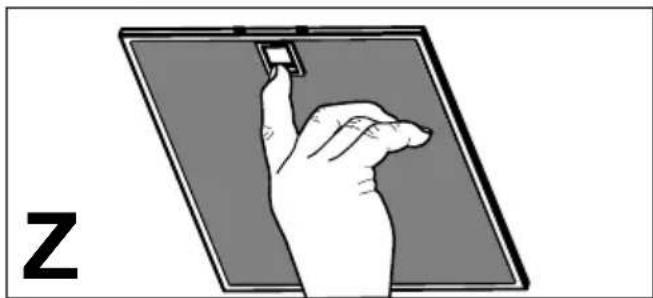

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand holding a small electronic component on a flat surface, labeled 'Z' (no text or symbols on the diagram itself)

- Clean the hood using a damp cloth and a neutral liquid detergent.

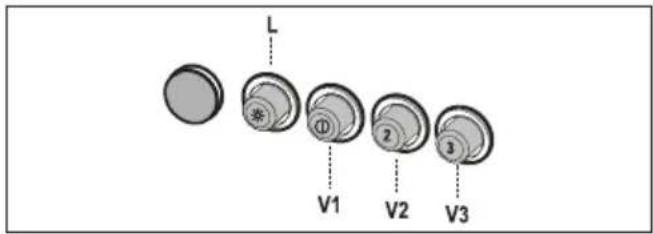

4. CONTROLS

BUTTON FUNCTIONS

L Light Tums the Lighting System on and off.

V1 Speed Turns the Motor on at Speed one.

V2 Speed Turns the Motor on at Speed two.

V3 Speed Turns the Motor on at Speed three.

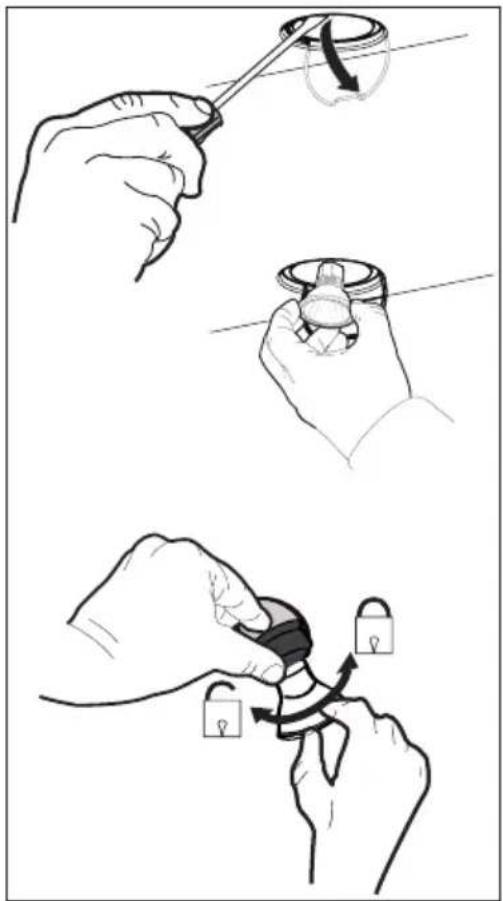

5. LIGHTING

Illustration showing three-step hand manipulation of a mechanical component, with no text or symbols present.

Lamp Power (W) Socket	Voltage (V) Dimension (mm) ILCOS Code
	5 GU10 230 50x50			DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Illustration showing three-step hand manipulation of a mechanical component, with no text or symbols present.

Illustration showing three steps of a hand holding a tool, with no visible text or symbols

Ampoule Absorption (W) Culot	Voltage (V) Dimensions (mm) Code ILCOS
	5 GU10 230 50x50			DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

NL 1. VEILIGHEIDSINFORMATIE

Illustration of a hand interacting with a device on a screen (no text or symbols)

Lamp Stroomopname (W) Aanslutting Voltage (V) Afmeting (mm) ILCOS-code
	5 GU10 230	50x50			DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

SEM.SÄKERHETSINFORMATION

Illustration of a hand holding a small object on a screen, with the letter 'Z' in the corner (no text or symbols on the diagram itself)

Lampa Förbrukning (W) Sockel Spänning (V) Mått (mm) ILCOS art.nr
	5 GU10 230	50x50			DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Lámpara	Consumo de energía (W)	Casquillo	Voltaje (V) Dimensión (mm)	Código ILCOS
	5 GU10 230	50x50			DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

HR 1. INFORMACIJE O SIGURNOSTI

Illustration of a hand holding a small object on a flat surface, labeled 'Z' (no text or symbols on the diagram itself)

- Očistite napu koristeći vlažnu krpu i neutralni tekući deterdžent.

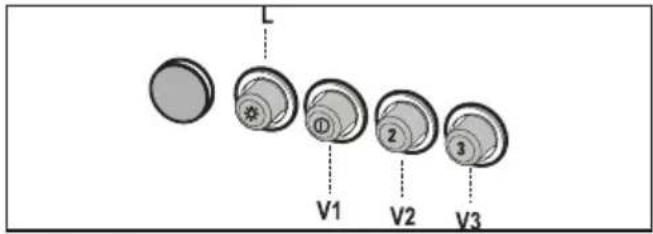

4. UPRAVLJANJE

TIPKA FUNKCIJE

L Svjetlo Uključuje i isključuje rasvjetni uređaj

V1 Brzina Uključuje motor na prvu brzinu.

V2 Brzina Uključuje motor na drugu brzinu.

V3 Brzina Uključuje motor na treću brzinu.

6. RASVJETA

Žarulja	Apsorpcija (W)	Grlo žarulje	Voltaža (V)	Dimenzije (mm)	Sustav označavanja ILCOS
[wc8w]	5 GU10 230	50x50			DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

SL 1. VARNOSTNE INFORMACIJE

Illustration of a hand holding a small electronic device on a flat panel (no text or symbols)

TIPKA FUNKCIJE

L Luč Vključi in izključi osvetljavo.

V1 Hitrost Prestavi motor v prvo hitrost.

V2 Hitrost Prestavi motor v drugo hitrost.

V3 Hitrost Prestavi motor v tretjo hitrost.

5. OSVETLJAVA

Three-step illustration showing hand positioning and lock mechanism (no text or symbols)

Svetilka Absorpcija (W) Vtičnica	Napetost (V)	Mere (mm) Koda ILCOS
	5 GU10 230	50x50		DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols visible)

Three-step illustration showing hand positioning and locking mechanism (no text or symbols)
