USER MANUAL H525 MOTOROLA

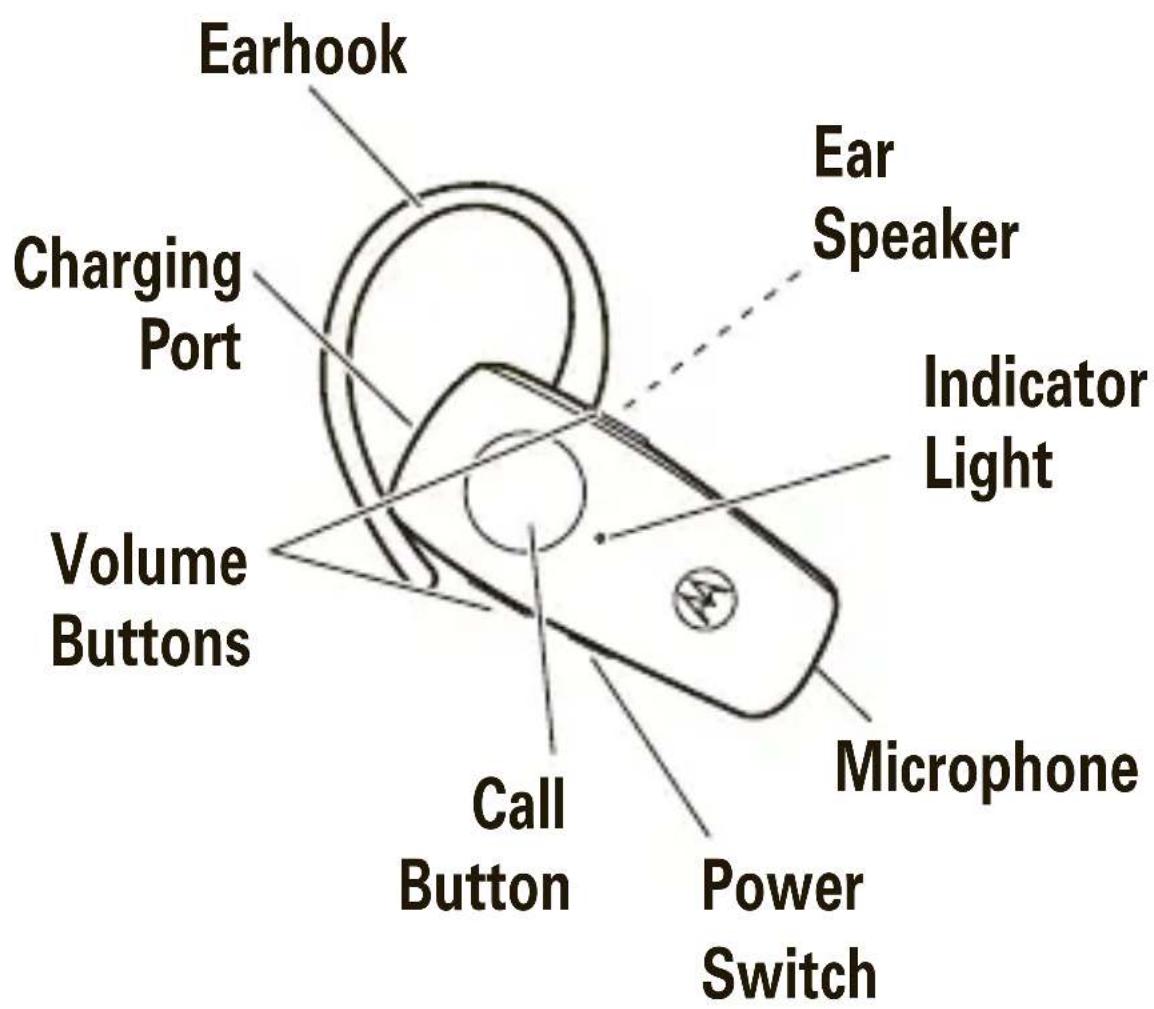

Take a moment to familiarize yourself with your new H520 Headset.

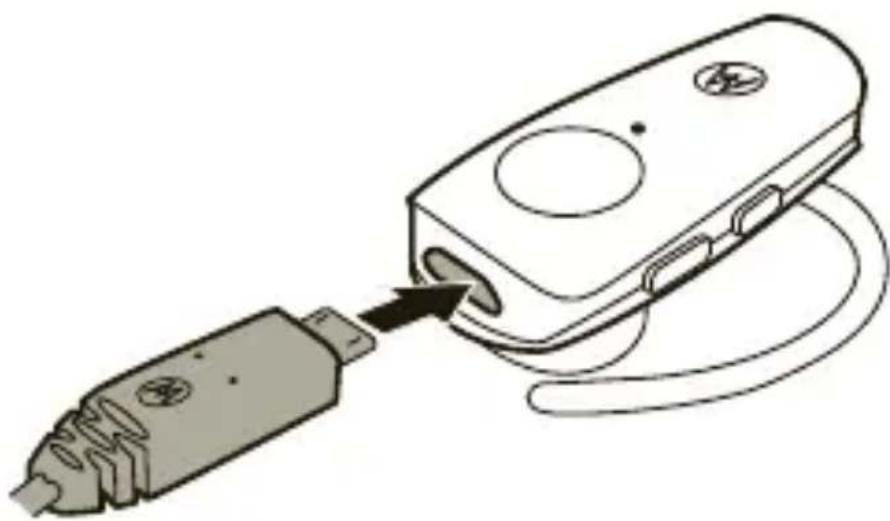

charge it
You'll need to charge your headset overnight before using it. Plug the charger into the charging port on your headset and a wall outlet.
The indicator light is red or purple while the battery is charging. When the battery is fully charged, the indicator light turns blue.
Note: Before first time use, leave headset charging overnight.
Note: Headset is not functional while charging.
Note: Your battery is designed to last the life of your product. It should only be removed by a recycling facility. Any attempt to remove or replace your battery will damage your headphones.
pair & connect
pair & connect
Let's get your headset paired and connected to your Bluetooth phone.
1 Turn off any Bluetooth devices previously paired with your headset.
Turn on the Bluetooth feature on your phone.
3 Turn on your headset (see page 8 for help). The indicator light becomes steadily lit in blue.
4 Set your phone to search for Bluetooth devices.
5 Select Motorola H520 from the search results on your phone.
Select Ok or Yes to pair your headset with your phone.
Note: When prompted for the passkey, enter0000.
The indicator light rapidly flashes blue and purple to indicate successful pairing and connecting with your phone.
pair & connect
reconnect
After initially pairing and connecting your phone and headset, you don't need to do it again.
For daily use, make sure your headset is turned on, and your phone's Bluetooth feature is on. Your headset and phone will connect automatically!
test your connection
1 Place the headset over your ear.
On the phone, dial a number and press Call/Send key.
If your phone and headset are successfully connected, you hear ringing on the headset.
put it on
You can wear your headset using either an earhook or ear cushion.

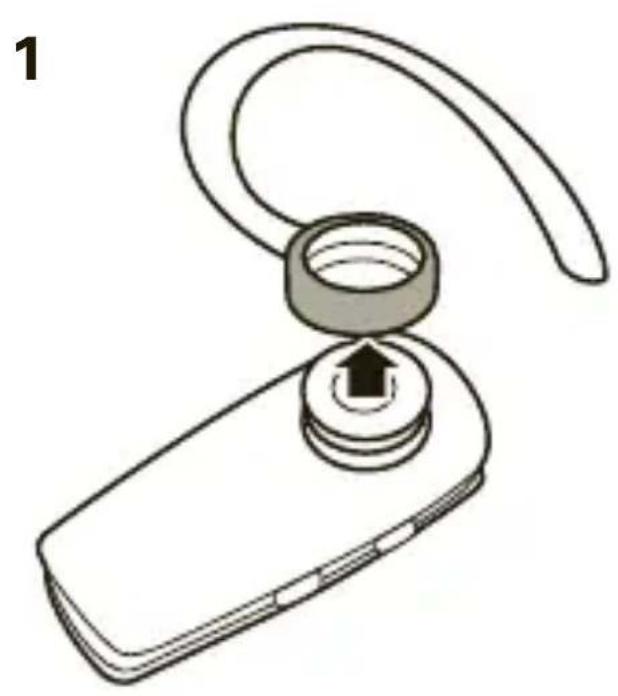

wear with earhook
1 Remove and install all the supplied earhooks to find a good fit.

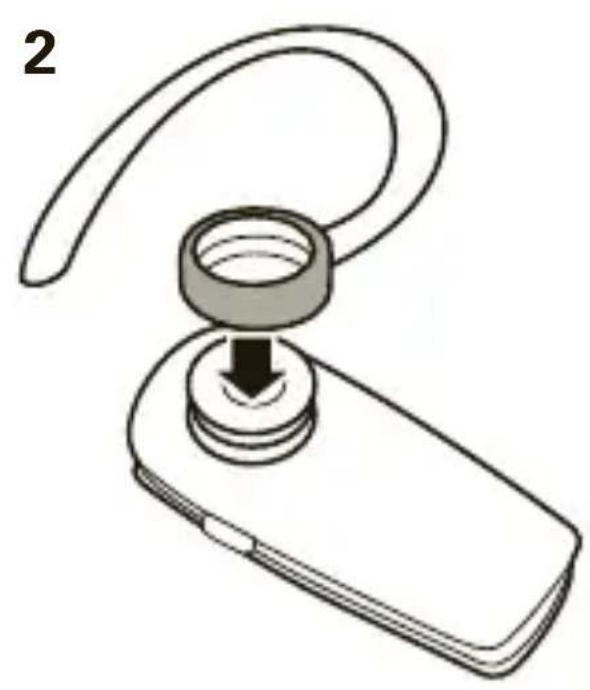

2 Your headset comes ready for your right ear. To change for your left ear:
From Right Ear To Left Ear
put it on

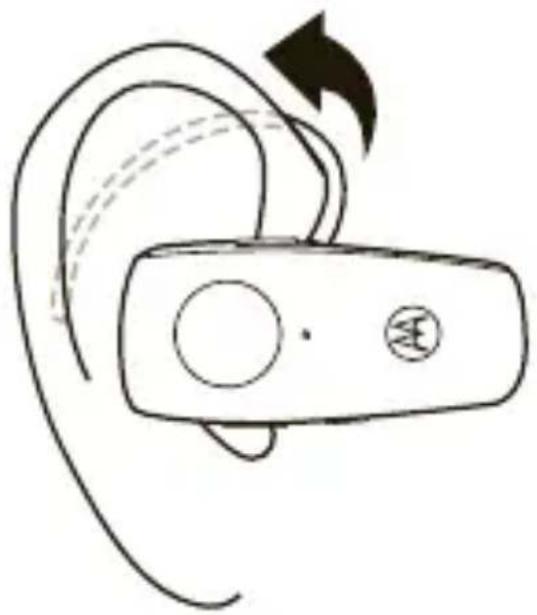

3 Flex the earhook and loop it over your ear.
wear with ear cushion

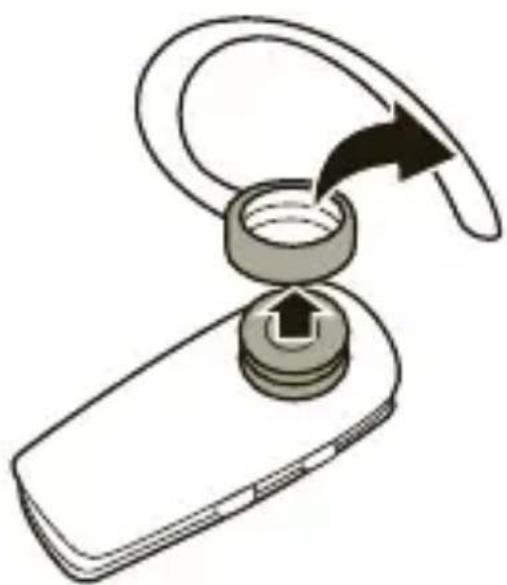

1 Remove earhook from headset.
put it on

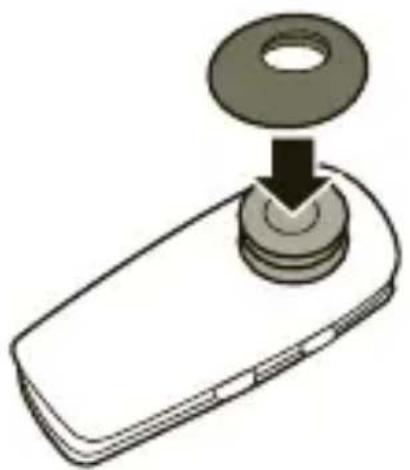

Try out all the supplied ear cushions to get a good fit.

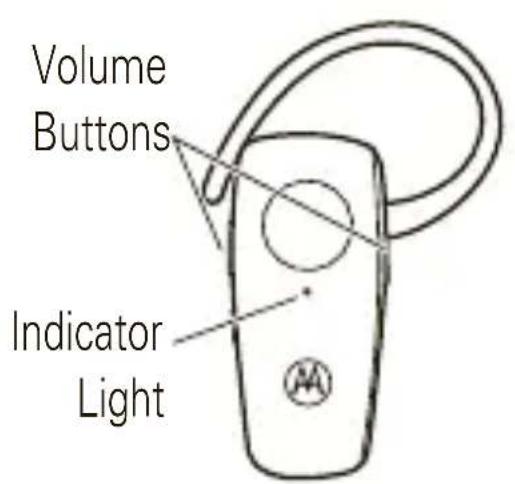

set volume buttons
1 Turn the headset power off.
Press and hold the Volume button you want to assign as the "volume up" button and slide the Power switch on. The indicator light flashes blue three times. When connected, it will flash blue/purple.
turn on & off
turn on
Slide the Power switch to the on position (no red is shown under the switch). The indicator light flashes blue three times, then flashes in blue and purple (if connected with a device) or is steadily blue (if ready to be paired).
turn off
Slide the Power switch to the off position (red is shown under switch). The indicator light flashes three times then turns off.
battery check
Press and hold both Volume buttons while not on a call.
| indicator light available talk time |
| red less than 1.5 hours |
| purple between 1.5 to 3.5 hours |
| blue up to 5 hours |
To save battery power, turn off the headset when you don't use it for an extended time.
calls
| To... | |
| answer call | Press the Call button. |
| mute or unmute a call | Press both Volume buttons. |
| reject call | Press and hold a Volume button until you hear a tone. |
| end a call | Press the Call button. |
| redial last call | Press and hold the Call button until you hear two tones. |
| make a voice dial call | Press the Call button and wait for voice prompt. |
| answer or reject second incoming call | Use phone to answer/reject second call (follow your phone's instructions) |
Note: Your H520 supports both Handsfree and Headset Profiles. Accessing call functions depends upon which profile your phone supports. See your phone's user's guide for more information.
Note: Some features are phone/network dependent.
status indicators
indicator light (with charger plugged in)
| headset indicator | headset status |
| red charging (battery level less than 50% charge) | |
| purple charging (battery level more than 50% charge) | |
| blue charging complete | |
status indicators
indicator light (with charger not plugged in)
| headset indicator | headset status |
| off power off | |
| three blue flashes powering on/off | |
| steady blue pairing/connect mode | |
| rapid blue/purple flashes connection successful | |
| quick blue flash incoming/outgoing call | |
| slow blue pulse connected (on a call) | |
| slow blue flash standby (not on a call) | |
| slow red flash idle (not connected to a phone) | |
| slow purple pulse connected (call muted) | |
| steady red attempting to connect | |
| quick red flash low battery | |
Note: After 20 minutes on a call or of inactivity, the light stops flashing to conserve power, but the headset remains on.
status indicators
audio tones
| audio tone headset status | |
| ascending tone powering on | |
| two descending tones powering off | |
| ring tone incoming call | |
| two short tones when pressing Volume button | volume at maximum or minimum |
| high/low tones repeated every 60 seconds | low battery |
| no audio indications; deteriorating quality | out of range |
| three ascending tones connected to phone | |
| two rapid ascending tones | mute enabled |
| two rapid descending tones | mute disabled |
| low tone every 10 seconds | mute reminder |
restore headset
Caution: This action erases all pairing information stored in your headset.
To restore your headset to original factory settings, with the headset turned on, press and hold both Volume buttons and Call button for 10 seconds until the indicator light is steady blue.
troubleshooting
My headset will not enter pairing mode.
Make sure that any devices previously paired with the headset are turned off. If the indicator light is not steadily lit in blue, turn off both the other device and headset, wait 10 seconds, then turn headset back on. Wait for the indicator light to become steadily lit in blue, indicating the headset is now in pairing mode.
My phone doesn't find my headset.
Make sure the indicator light on your headset is on (lit in blue) and steady when your phone is searching for devices.
My headset worked before but now it's not working.
Make sure your phone is on and the Bluetooth feature is turned on in your phone. If the Bluetooth feature was turned off or was turned on only temporarily, you may need to restart the Bluetooth feature and pair your phone and headset again (see "pair & connect" on page 3).
Support.
If you need more help, contact us at 1-877-MOTOBLU or visit us at www.motorola.com/Bluetoothsupport or www.motorola.com/bluetoothconnect.
Safety & General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR DEVICE.
Approved Accessories
Use of accessories not approved by Motorola, including but not limited to batteries, antennas, and convertible covers, may cause your mobile device to exceed RF energy exposure guidelines and may void your mobile device's warranty. For a list of approved Motorola accessories, visit our Web site at: www.motorola.com
Batteries & Chargers
Your battery, charger, or mobile device may contain symbols, defined as follows:
| Symbol Definition | |
| Important safety information follows. | |
| Do not let your battery, charger, or mobile device get wet. | |
Use & Safety for Battery-Powered Accessories
- Do not store or use your battery-powered accessory (such as a Bluetooth® headset or other device) in temperatures below -10°C (14°F) or above 60°C (140°F).
- Do not recharge your accessory in temperatures below 0^ ( 32^ ) or above 45^ ( 113^ ).
- Conditions inside a parked car can exceed this range. Do not store your accessory in a parked car.
-
Do not store your accessory in direct sunlight.
-
Storing your fully charged accessory in high-temperature conditions may permanently reduce the life of the internal battery.
- Battery life may temporarily shorten in low-temperature conditions.
Caution About High Volume Usage
Warning: Exposure to loud noise from any source for extended periods of time may temporarily or permanently affect your hearing. The louder the volume sound level, the less time is required before your hearing could be affected. Hearing damage from loud noise is sometimes undetectable at first and can have a cumulative effect. To protect your hearing:
- Start your volume control at a low setting and use as low a volume as possible.
- Limit the amount of time you use headsets or headphones at high volume.
- Where possible, use your headset in a quiet environment with low background noise.
- Avoid turning up the volume to block out noisy surroundings.
- Turn the volume down if you can't hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked by your doctor.
Smart Practices While Driving
Using a mobile device while driving may cause distraction. End a call if you can't concentrate on driving. Also, using a mobile device or accessory may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products.
Responsible driving practices can be found at www.motorola.com/callsmart (in English only).
Industry Canada Notice to Users
Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. See RSS-GEN 7.1.5.
FCC Notice to Users
The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the product label.
Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user's authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Motorola Limited Warranty for the United States and Canada
What Does This Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its telephones, pagers, messaging devices, and consumer and professional two-way radios (excluding commercial, government or industrial radios) that operate via Family Radio Service or General Mobile Radio Service, Motorola-branded or certified accessories sold for use with these Products ("Accessories") and Motorola software contained on CD-ROMs or other tangible media and sold for use with these Products ("Software") to be free from defects in materials and workmanship under normal consumer usage for the period(s) outlined below. This limited warranty is a consumer's exclusive remedy, and applies as follows to new Motorola Products, Accessories and Software purchased by consumers in the United States or Canada, which are accompanied by this written warranty:
Products and Accessories
| Products Covered Length of Coverage | |
| Products and Accessories as defined above, unless otherwise provided for below. | One (1) year from the date of purchase by the first consumer purchaser of the product unless otherwise provided for below. |
| Decorative Accessories and Cases. Decorative covers, bezels, PhoneWrap™ covers and cases. | Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product. |
| Monaural Headsets. Ear buds and boom headsets that transmit mono sound through a wired connection. | Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product. |
| Consumer and Professional Two-way Radio Accessories. | Ninety (90) days from the date of purchase by the first consumer purchaser of the product. |
| Products and Accessories that are Repaired or Replaced. | The balance of the original warranty or for ninety (90) days from the date returned to the consumer, whichever is longer. |
Exclusions (Products and Accessories)
Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to normal wear and tear are excluded from coverage.
Batteries. Only batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that leak are covered by this limited warranty.
Abuse & Misuse. Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products, Accessories, Software or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Motorola, or its authorized service centers, are excluded from coverage.
Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show
evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola housings, or parts, are excluded from coverage.
Communication Services. Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you may subscribe to or use with the Products Accessories or Software is excluded from coverage.
Software
| Products Covered Length of Coverage | |
| Software. Applies only to physical defects in the media that embodies the copy of the software (e.g. CD-ROM, or floppy disk). | Ninety (90) days from the date of purchase. |
Exclusions (Software)
Software Embodied in Physical Media. No warranty is made that the software will meet your requirements or will work in combination with any hardware or software applications provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected.
Software NOT Embodied in Physical Media. Software that is not embodied in physical media (e.g. software that is downloaded from the Internet), is provided "as is" and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price of any Products, Accessories or Software that does not conform to this warranty. We may use functionally equivalent reconditioned/refurbished/pre-owned or new Products, Accessories or parts. No data, software or applications added to your Product, Accessory or Software, including but not limited to personal contacts,
games and ringer tones, will be reinstalled. To avoid losing such data, software and applications please create a back up prior to requesting service.
How to Obtain Warranty Service or Other Information
| USA Phones: | 1-800-331-6456 Pagers: 1-800-548-9954 Two-Way Radios and Messaging Devices: 1-800-353-2729 |
| Canada All Products | 1-800-461-4575 |
| TTY | 1-888-390-6456 |
| For Accessories and Software, please call the telephone number designated above for the product with which they are used. | |
You will receive instructions on how to ship the Products, Accessories or Software, at your expense, to a Motorola Authorized Repair Center. To obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) the name and location of the installation facility (if applicable) and, most importantly; (e) your address and telephone number.
What Other Limitations Are There?
ANY IMPLIED WARRANTY, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTYES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or from one jurisdiction to another.
Product Registration
Online Product Registration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new Motorola product. Registering permits us to contact you for product or software updates and allows you to subscribe to updates on new products or special promotions.
Registration is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For warranty service of your Motorola Personal Communications Product you will need to provide a copy of your dated sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Export Law Assurances
This product is controlled under the export regulations of the United States of America and Canada. The Governments of the United States of America and Canada may restrict the exportation or re-exportation of this product to certain destinations. For further information contact the U.S. Department of Commerce or the Canadian Department of Foreign Affairs and International Trade.
Caring for the Environment by Recycling
This symbol on a Motorola product means the product should not be disposed of with household waste.
Disposal of your Mobile Device & Accessories
Please do not dispose of mobile devices or electrical accessories (such as chargers, headsets, or batteries) with your household waste. Do not dispose of your battery or mobile device in a fire. These items should be disposed of in accordance with the national collection and recycling
schemes operated by your local or regional authority. Alternatively, you may return unwanted mobile devices and electrical accessories to any Motorola Approved Service Center in your region. Details of Motorola approved national recycling schemes, and further information on Motorola recycling activities can be found at: www.motorola.com/recycling
Disposal of your Mobile Device Packaging & Product Guide
Product packaging and product guides should only be disposed of in accordance with national collection and recycling requirements. Please contact your regional authorities for more details.
European Union Directives Conformance Statement
Hereby, Motorola declares that this product is in compliance with:
- The essential requirements and other relevant provisions of Directive 1999/5/EC
All other relevant EU Directives

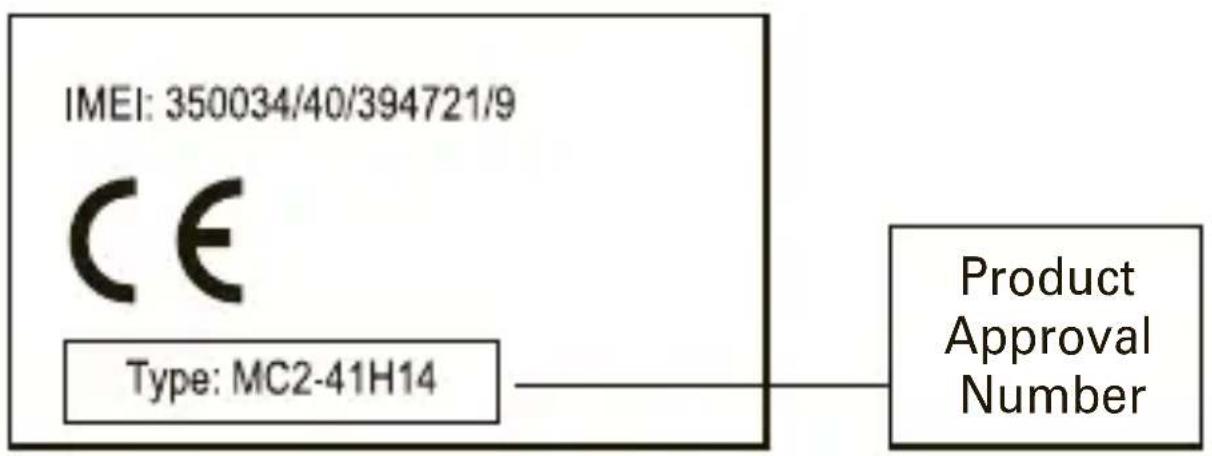

The above gives an example of a typical Product Approval Number.
You can view your product's Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte. To find your DoC, enter the Product Approval Number from your product's label in the "Search" bar on the Web site.
C
motorola H520
Guía de inizio=rápido
su audifono
www.motorola.com/Bluetoothsupport
www.motorola.com/bluetoothconnect.
A工程技术 center, a lab and a lab and a lab.
A很喜欢 working in the lab.
I love working in the lab.
It's a great job to work in the lab.
It's a great job to work in the lab.
It's a great job to work in the lab.
Conditiones
Diagonal 127A N. 17-64
Bogota, Colombia
Teléfono: 615-5759
Teléfono: 216-1743
- Motorola Inc. a工程技术 center, where the company is working on developing a new technology center for motorized vehicles. The center will be located in Los Angeles, California, USA, and will be used to produce motorized vehicles. The center will be located in Los Angeles, California, USA, and will be used to produce motorized vehicles.
Motorola Inc. a工程技术 Center, Los Angeles, USA, to develop and market a new commercial product called Motorola Auto Propietario de Automólico (MOTOROLA) for the market of motor vehicle manufacturers. The new product is designed to be used in the market of motor vehicle manufacturers. It is intended to be used in motor vehicle manufacturers as part of their commercial strategy.
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.motorola.com
Motorola Argentina S.A.
Suipacha 1111 - Piso 18
C1008AAW Buenos Aires
ARGENTINA
0800 666 8676 (Argentina)
800-201-442 (Chile)
01-800-700-1504 (Columbia)
www.motorola.com/Bluetoothsupportou
www.motorola.com/bluetoothconnect
www.motorola.com/us/productregistration
www.motorola.com/recycling
Motorola, Inc.
Consumer Advocacy Office
600 N. US Hwy 45
Libertyville, IL 60048
www.motorola.com
1 877 MOTOBLU (assistance Motorola Bluetooth)
