SV 1250 - Iron Orbegozo - Free user manual and instructions

Product Type	Iron
Brand	Orbegozo
Model	SV 1250
Power Supply Voltage	220-240 V
Frequency	50/60 Hz
Power	1200 W
Soleplate	Stainless Steel
Temperature Control	Yes, by rotary knob
Indicator light	Indicates heating
Power cord length	Approximately 1.8 m
Ironing type	Dry ironing
Care	Clean after cooling with a damp cloth, do not immerse
Safety	Do not leave unattended, hot surface
Child Safety	Keep out of reach of children under 8 years
Storage	Vertical on the heel, after cooling
Intended use	Household
Recycling	Compliant with WEEE Directive 2002/96/EC
Certifications	CE (Low Voltage 2006/95/EC, EMC 2004/108/EC)

Frequently Asked Questions - SV 1250 Orbegozo

How to adjust the temperature of the iron?

Turn the temperature control to the desired position according to fabric type. Wait for the indicator light to turn off and then on again before starting to iron. The light turns on and off during use.

What if the iron does not heat up?

Check that the iron is properly plugged in and the socket works. Make sure the temperature control is not on the minimum position. If the problem persists, contact an authorized technical service.

Can I use water in this iron?

This model is a dry iron: it is not designed for use with water or steam. Do not add water to the reservoir as there is none.

How to clean the stainless steel soleplate?

Wait until the iron is completely cool. Clean the stainless steel soleplate with a soft damp cloth. Do not use abrasive products that could scratch the surface.

The indicator light stays on permanently, is this normal?

Yes, it's normal. The indicator light turns on when the iron heats up and turns off when the temperature is reached. It turns on again as soon as the temperature drops, indicating the iron maintains heat.

How to store the iron after use?

Set the temperature control to the minimum position, unplug the iron and let it cool for 30 minutes. Then place it vertically on its heel to avoid damaging the soleplate.

What if the power cord is damaged?

Do not use the iron. Have the power cord replaced by an authorized technical service to avoid any risk of electrocution.

Can I iron delicate clothes with this iron?

Yes, but set the temperature to the lowest position for synthetic and delicate fabrics. Wait until the indicator light indicates that the temperature is stable.

The iron has fallen, what should I do?

If the iron has fallen and shows visible signs of damage, do not use it. Have it checked by a professional.

How to know if the iron is hot?

The indicator light turns on when the iron heats up. Additionally, never touch the soleplate during or after use, as the surface remains hot long after unplugging the appliance.

USER MANUAL SV 1250 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

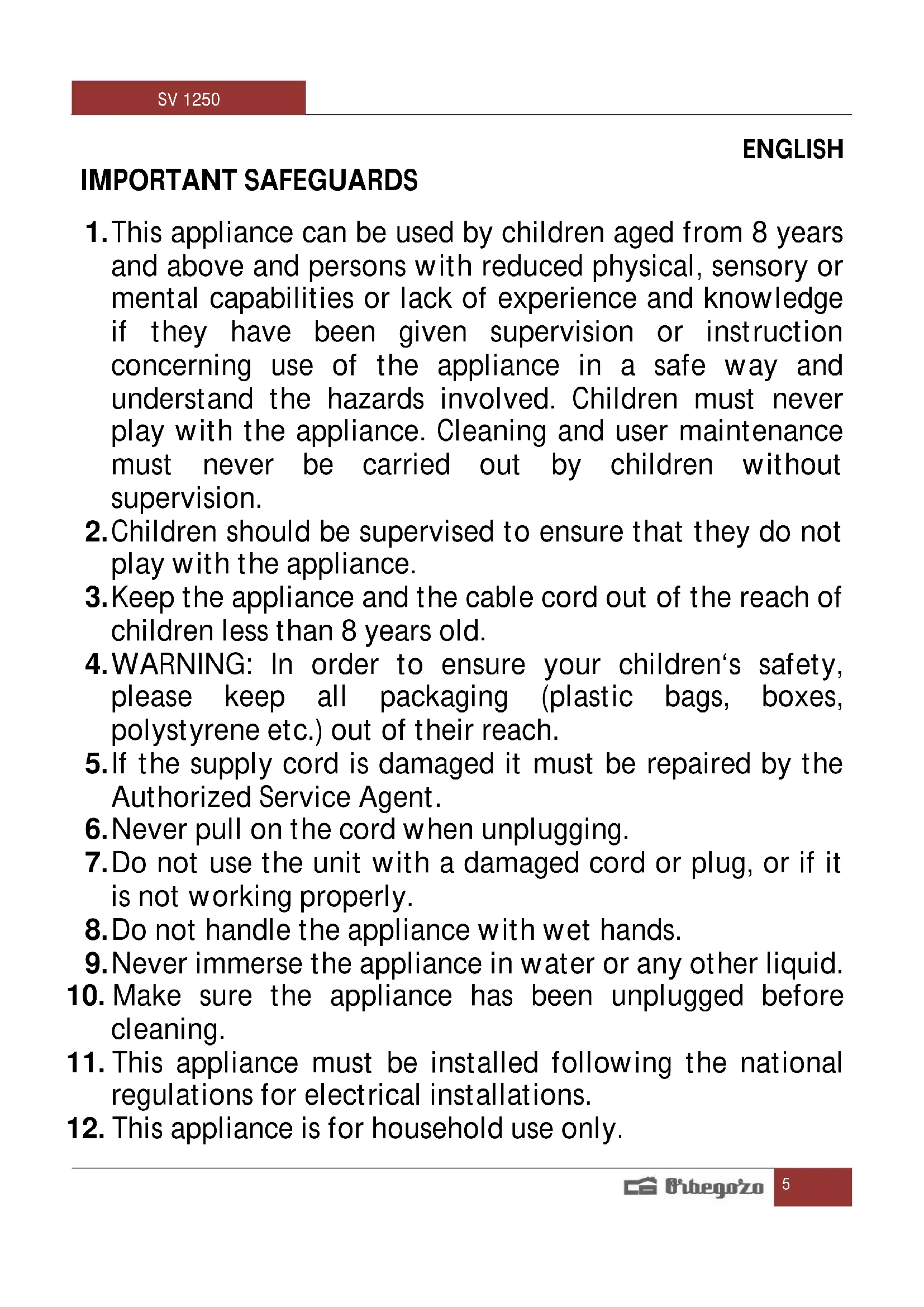

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

Specific Instructions

• The iron must not be left unattended while it is connected to the supply mains.
• The appliance must be used and placed on a stable surface.
• When placed on its stand, make sure that the surface on which the stand is placed is stable.
• The iron should not be used if it has been dropped or if there are visible signs of damage..
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
• ATTENTION: Hot surface. The surface can remain hot during or after use, or when it is getting hot.

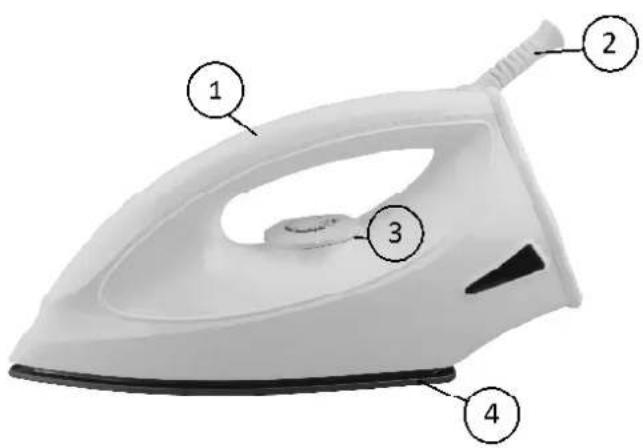

CHARACTERISTICS AND STRUCTURE

1. Handle
2. Cord Protect
3. Temperature controller
4. Soleplate

OPERATING

• Set the temperature control to the suitable position.
  Wait until the pilot light goes off and it comes on again. Then you can start ironing.
  The pilot light will turn on and off during the ironing process. It does not affect to the process.
  While the iron is hot and not in use, place it upright on a stable surface.
  Once finished:

Set the temperature control to the minimum level and unplug the device
o Let the iron gets cold during 30 minutes. Put the iron on its rear side.
Store it in this position to prevent damage in the soleplate.

MAIN TECHNICAL PARAMETERS

Model	Voltage	Frequency	Power
SV 1250	220-240V	50/60Hz	1200 W

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
