SV 2210 - Iron Orbegozo - Free user manual and instructions

Product Type	Steam Iron
Brand	Orbegozo
Model	SV 2210
Power Supply	230 V ~ 50 Hz
Power	2000 - 2400 W
Temperature Setting	Thermostat with positions ., .., ...
Steam Function	Variable steam (steam control)
Spray Function	Yes, Spray button
Steam Shot Function	Yes, Steam Shot button
Dry Ironing	Yes, by turning the steam control to minimum
Anti-Drip Function	Yes, automatically stops water flow if temperature too low
Self-Cleaning Function	Yes, self-cleaning button to use every 15 days
Power Indicator Light	Yes, turns off when temperature is reached
Water Tank	With filling cap
Safety	Hot surface, do not leave unattended, keep out of reach of children
Maintenance	Regular self-cleaning, clean after unplugging
Cord Length	Approximately 1.8 m (estimate)
Weight	Approximately 1.2 kg (estimate)
Dimensions (L x W x H)	Approximately 28 x 12 x 15 cm (estimate)
Usage	Domestic use only

Frequently Asked Questions - SV 2210 Orbegozo

How to fill the water tank?

First unplug the iron. Set the steam control to minimum. Remove the cover of the filling opening (D) and pour water. Do not exceed the maximum level.

How to use the steam function?

Turn the steam control to minimum, set the thermostat to a position (., .., ...). Wait for the indicator light to turn off, then turn the steam control to the desired position to produce steam.

What to do if the iron does not heat up?

Check that the iron is plugged in and that the thermostat is set to a position (., .., ...). If the indicator light does not turn on, contact an authorized technical service.

How to use the steam shot?

Set the thermostat to the '...' position (maximum temperature). Press the Steam Shot button (F) to project a powerful jet on stubborn wrinkles.

How to perform self-cleaning?

Set the thermostat to the maximum position. Press the self-cleaning button (K) for about 1 minute. Steam will be projected to clean the boiler. Perform this operation every 15 days.

The iron drips water on the laundry, what to do?

The anti-drip function prevents water from flowing if the temperature is too low. Make sure the thermostat is set to a position sufficient to produce steam (at least .). If the problem persists, wait for the indicator light to turn off.

Can I use the iron without water?

Yes, for dry ironing. Turn the steam control to the minimum position and set the thermostat to the desired temperature.

How to clean the soleplate?

Let the iron cool down. Use a non-abrasive damp cloth. Never use harsh chemicals. The self-cleaning function also helps keep the soleplate clean.

The power cord is damaged, what to do?

Do not use the iron. Contact an authorized technical service to replace the cord to avoid any hazard.

How to store the iron after use?

Set the steam control to 0, place the iron on its heel and unplug it. Wait for it to cool completely before storing.

USER MANUAL SV 2210 Orbegozo

FÉR A VAPEUR - MANUEL D'INSTRUCTIONS

FERRO DE ENGOMAR A VAPOR - MANUAL DE INSTRUÇÕES

Ceramic steam iron with blue and white coloring, no visible text or symbols on body

SV 2210

Sonifer,S.A.

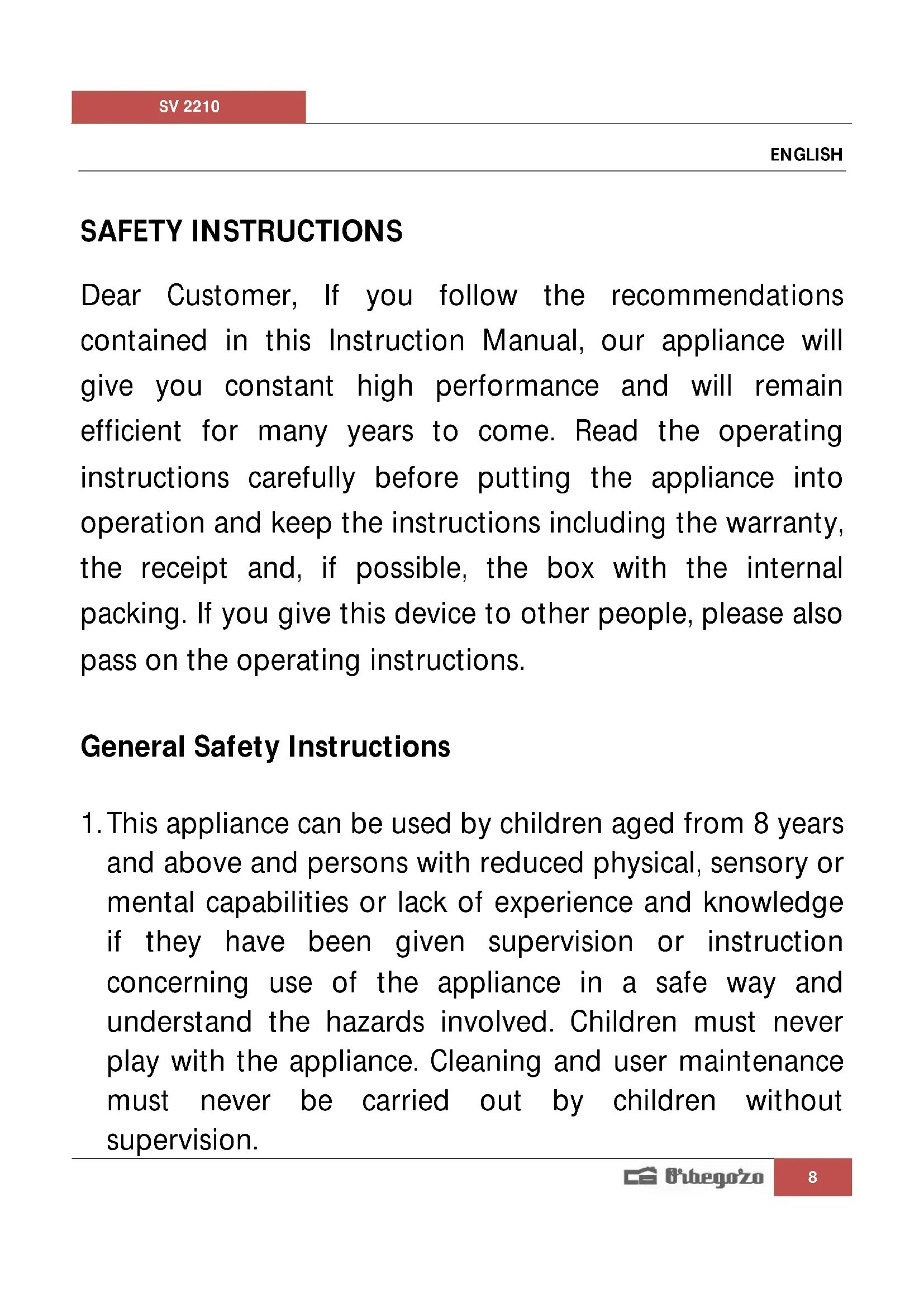

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].
14. WARNING: In case of misuse, there is a risk of possible injury.

Other specific safeguards

. The iron must not be left unattended while it is connected to the supply mains.
- Remove the plug from the socket before filling the appliance with water.
- The appliance must be used and placed on a stable surface.
- When placed on its stand, make sure that the surface on which the stand is placed is stable.
- The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water.
- Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
. ATTENTION. Hot surface.

The surface can become hot during operation

The soleplate of the iron can become extremely hot and may cause burns if touched.

• Do not allow the cord to come into contact with the soleplate when it is hot.
• When you have finished ironing, when you clean the appliance, when you fill or empty the water tank and

also when you leave the iron even for a short while: set the steam control to position O, put the iron on its heel and remove the mains plug from the wall socket.

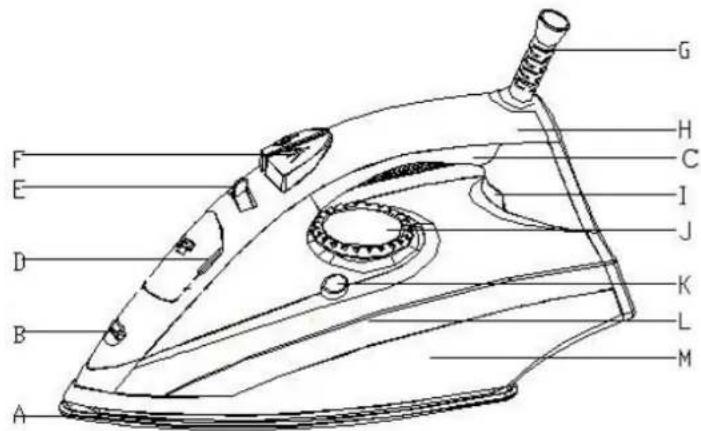

CHARACTERISTICS AND STRUCTURE

The product has many functions such as temperature regulating, spraying, dry ironing, variable steam, bursting steam, etc. And it with characteristics: luxury shape, high heat efficiency, easy using, good ironing result, work saving and time saving, and so on.

A: Soleplate

B: Spray ASM

C: Souft touch handle

D: Fill cover

E: Steam knob

F: Spray & Burst steam button

G: Cord guard

H: Top handle

I: Pilot light

J: Temperature knob

K: Clean button

L: Water tank

M: Skirt

FILLING WATER

1. Before filling water, please pull out the plug first.
2. Set the steam control to the minimum position.
3. Pull down the cover of water filling mouth, and then fill water.

SPRAYING

Press the spraying button, steam will be sprayed out from the spraying nozzle. At that time, you should keep enough water in the water tank.

STEAM IRONING

1. Use steam ironing, turn the steam control to minimum position and set the temperature control at the “.”, “.” or “...” position.
2. After the indicator goes out, turn the steam control to the suitable position, steam will be sprayed, ironing can start.

BURSTING STEAM

Set the temperature control at the “...” position, then press down the bursting steam button, the base plate will spray out bursting steam.

DRY IRONING

Turn the steam control to minimum position, set the temperature control to the suitable position, you can dry ironing.

SELF CLEANING

Set the temperature control to the maximum position, press the self clean button for about 1 minter, strong steam will be sprayed to clean the steam chamber. Use the function once every two weeks.

STORAGE

After using, pull out the plug, pour out the remaining water, turn the steam control to minimum, turn the temperature control to "min", let the iron cool down, put the iron on the safe and dry place vertically.

ANTI-DRIP

The iron automatically stops steaming when the temperature is too low in order to prevent water from dripping out of the soleplate.

MAIN TECHNICAL PARAMETERS

Appliance	Voltage	Frequency	Power
SV 2210	230 V (~)	50Hz	2000 - 2400 W

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product

reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
