Hypernova CKHN3366 - Watch Christiaan van der Klaauw - Free user manual and instructions

Technical Features	Mechanical hand-wound watch, exclusive Christiaan van der Klaauw movement
Materials	Stainless steel case, scratch-resistant sapphire glass
Dimensions	Case diameter: 39 mm, thickness: 11 mm
Water Resistance	Water resistant up to 30 meters
Features	Displays hours, minutes, and moon phases
Usage	Suitable for daily use and special occasions
Maintenance	Recommended maintenance every 3 to 5 years, cleaning with a soft cloth
Safety	Avoid strong shocks and chemicals
General Information	2-year warranty, after-sales service available

Frequently Asked Questions - Hypernova CKHN3366 Christiaan van der Klaauw

How do I set the time on the Christiaan van der Klaauw Hypernova CKHN3366 watch?

To set the time, gently pull the crown to position 2 and turn it clockwise or counterclockwise to adjust the time. Push the crown back to position 1 to lock it.

How do I change the watch battery?

It is recommended to have the battery changed by a professional watchmaker to avoid damaging the mechanism. Do not attempt to do it yourself.

What is the water resistance of the Christiaan van der Klaauw Hypernova CKHN3366?

The watch is water resistant up to 30 meters, meaning it can withstand splashes and rain but should not be submerged.

How do I clean the watch without damaging it?

Use a soft, dry cloth to clean the case and strap. Avoid chemicals and do not immerse the watch in water.

What should I do if the watch stops?

If the watch stops, it may need to be wound. Pull the crown and manually wind the mechanism if necessary.

Where can I find spare parts for my watch?

For spare parts, please contact an authorized Christiaan van der Klaauw dealer or the brand's customer service.

Is the watch under warranty?

Yes, the Christiaan van der Klaauw Hypernova CKHN3366 is generally covered by a 2-year warranty against manufacturing defects. Keep your proof of purchase.

How do I adjust the watch strap?

To adjust the strap, it is recommended to visit a jeweler or watchmaker who can professionally remove or add links.

Is the watch equipped with an automatic mechanism?

Yes, the Christiaan van der Klaauw Hypernova CKHN3366 is equipped with an automatic movement that winds itself through the wearers wrist movements.

USER MANUAL Hypernova CKHN3366 Christiaan van der Klaauw

INSTRUCTION MANUAL HYPER NOVA

Handleiding

Mode d'emploi

Bedienungshinweise

ASTRONOMICAL WATCHES

A P C F I E K H G D 60 30 J B ①②①

H YPER NOVA

INSTRUCTION MANUAL HYPERNOVA

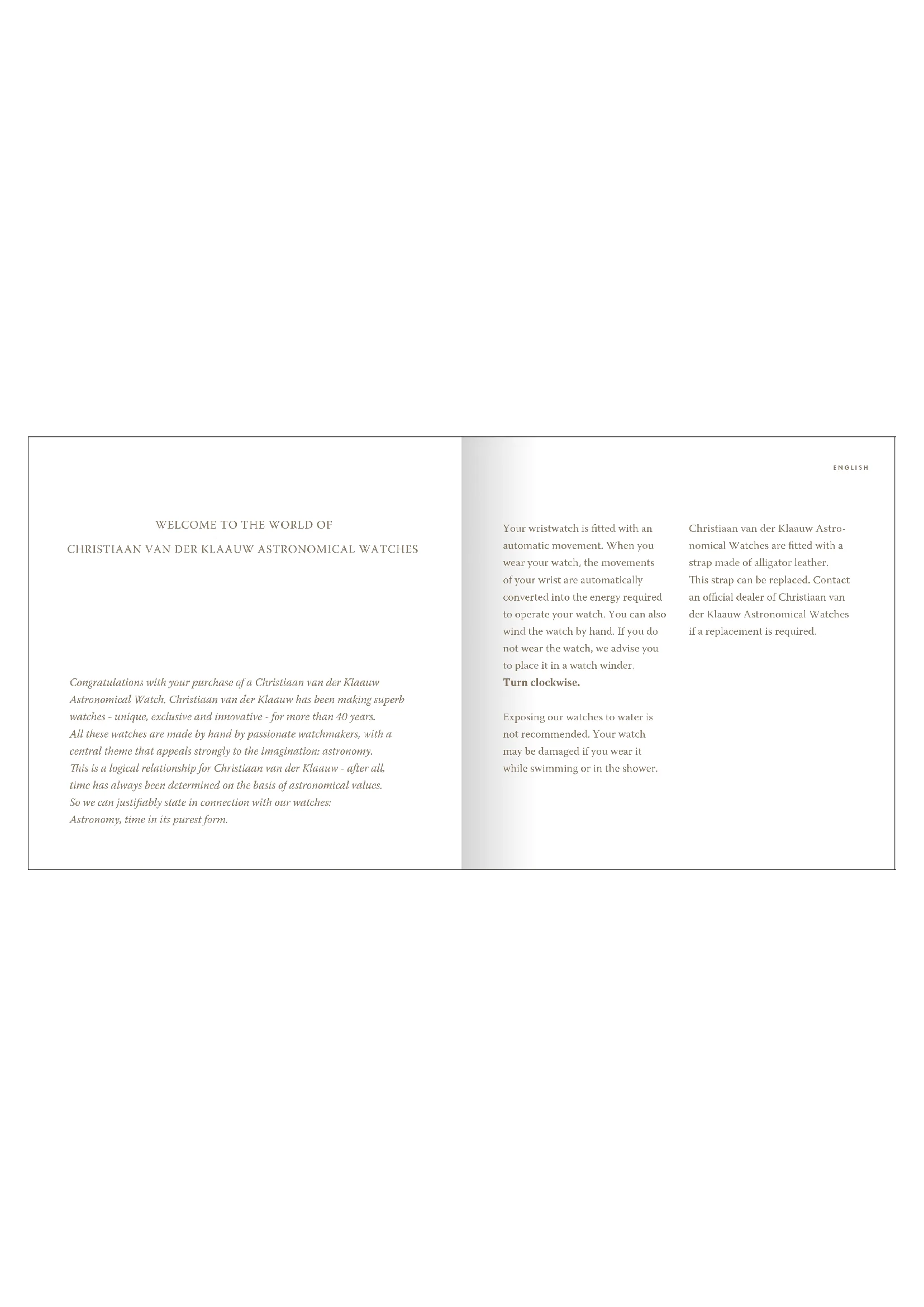

WELCOME TO THE WORLD OF CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

Congratulations with your purchase of a Christiaan van der Klaauw Astronomical Watch. Christiaan van der Klaauw has been making superb watches - unique, exclusive and innovative - for more than 40 years. All these watches are made by hand by passionate watchmakers, with a central theme that appeals strongly to the imagination: astronomy. This is a logical relationship for Christiaan van der Klaauw - after all, time has always been determined on the basis of astronomical values. So we can justifiably state in connection with our watches: Astronomy, time in its purest form.

Your wristwatch is fitted with an automatic movement. When you wear your watch, the movements of your wrist are automatically converted into the energy required to operate your watch. You can also wind the watch by hand. If you do not wear the watch, we advise you to place it in a watch winder.

Turn clockwise.

Exposing our watches to water is not recommended. Your watch may be damaged if you wear it while swimming or in the shower.

ENGLISH

Christiaan van der Klaauw Astronomical Watches are fitted with a strap made of alligator leather. This strap can be replaced. Contact an official dealer of Christiaan van der Klaauw Astronomical Watches if a replacement is required.

Specifications

The following information is displayed on the Hypernova:

Ⓐ hours with luminova;
⑧ minutes with luminova;
© seconds and a day/night indicator;
⑭ date (day of the week + month);
© calendar day;
⑤ the moon phase;
© chronograph, seconds;
(H) recorder, 30 minutes;
① recorder; 12 hours;
① start and stop pusher;
K reset pusher.

Adjustment

The settings of your watch can be adjusted by using the different positions of the crown and the push button Ⓟ.

The crown has three positions:

① this is the position of the crown when you are wearing the watch. In this position, you can wind the watch by hand.
① setting the date and the moon phase.
② setting the time.

To adjust the settings of the Hypernova, pull out the crown to position ②. You can now set the time to 12:00. Caution: do not do

this at 24:00. Then push the crown in by one position ① to set the date and month by turning the crown counterclockwise. Set the moon phase by turning the crown clockwise.

ENGLISHENGLI

Important

Always set the moon phase to the previous day. Once this is the case, use the enclosed accessory to push in the push button ⑦ located at the 10 o'clock position on the left-hand side of the watchcase to set the day. Set this to the previous day as well. When the correct month is shown in the window and the day, date and moon phase are set to the previous day, then pull out the crown to position ②, and then turn the hands clockwise until everything is set to today. When the hands also show the right time, then push the crown in again completely.

Functionalities

© A second hand and a day/night indicator are located at the 9 o'clock position.
① The day and month are displayed at the 12 o'clock position.
⑤ The hand with the arrow at the end points to the calendarday of the month.

⑦ The moon phases are shown at the 6 o'clock position. When the moon picture is shown left of the centre, the Moon is in the first quarter. When the image is in the middle, it is full moon, and when it is on the right, the Moon is in the last quarter. If the image is not visible, then it is new moon.

Chronograph

The chronograph function is located at the 6 o'clock position (hours) ① and the 12 o'clock position (minutes) ②. The hand shows the number of seconds ③.

The chronograph start and stop pusher ⏻ is above the crown at the 2 o'clock position. The reset button Ⓜ below the crown at the 4 o'clock position can be used to reset the chronograph to the original starting position.

ENGLISHENGLI

WELKOM IN DE WERELD VAN CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

WILLKOMMEN IN DER WELT VON CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

ASTRONOMICAL WATCHES

CHRISTIAAN VAN DER KLAAUW HORLOGE ATELIER B.V.

BUSINESSPARK FRIESLAND-WEST 47, 8447 SL HEERENVEEN, THE NETHERLANDS

T: [phone], [e-mail], WWW.KLAAUW.COM
