USER MANUAL Bravia KD75XG8796 SONY

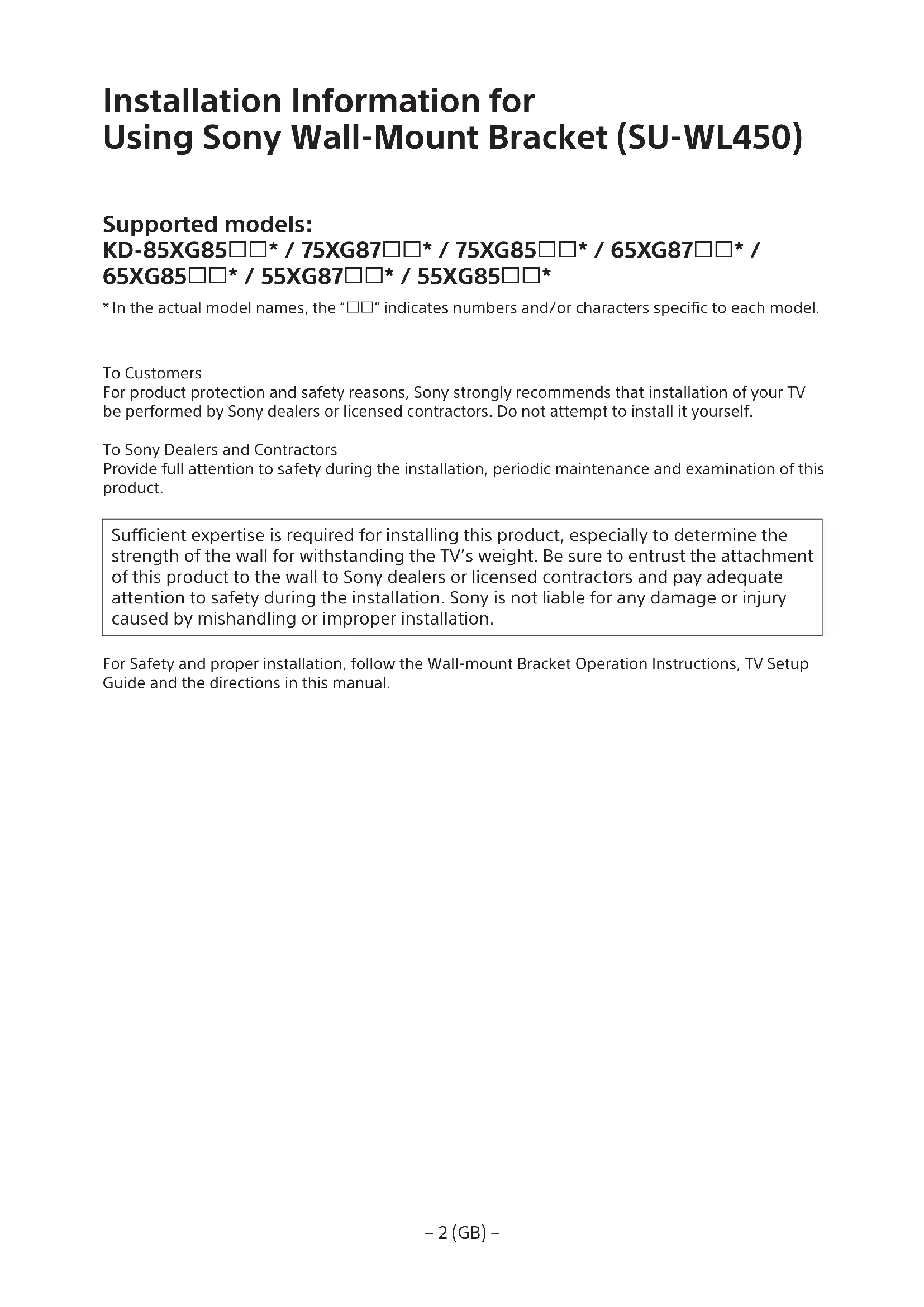

• In the actual model names, the “” indicates numbers and/or characters specific to each model. To Customers For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself. To Sony Dealers and Contractors Provide full attention to safety during the installation, periodic maintenance and examination of this product. Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation. For Safety and proper installation, follow the Wall-mount Bracket Operation Instructions, TV Setup Guide and the directions in this manual.− 3 (GB) −

On Safety Thank you for purchasing this product. To Customers Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation. Sony is not liable for any damages or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected. To Sony dealers Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation. Please give this manual to the customer after installation. This instruction manual shows the correct handling of the product and important precautions necessary to prevent accidents. Be sure to read this manual thoroughly and use the product correctly. Keep this manual available for future reference. Products by Sony are designed with safety in mind. If the products are used incorrectly, however, it may result in a serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such accidents. CAUTION Specified products This Wall-Mount Bracket is designed for use with the products specified TVs. For TVs, refer to their Reference Guide to verify that the Wall-Mount Bracket can be used. To Customers WARNING If the following precautions are not observed, serious injury or death through fire, electric shock, or the product dropping can result. Be sure to subcontract the installation to licensed contractors and keep small children away during the installation. If the Wall-Mount Bracket or the TV is not installed correctly, the following accidents may occur. Be sure licensed contractors carry out installation.

The TV may fall and cause a serious injury such as a bruise or a fracture.

If the wall on which the Wall-Mount Bracket is installed is unstable, uneven, or not perpendicular to the floor, the unit may fall and cause injury or property damage. The wall should be capable of supporting a weight of at least four times the TV weight. (Refer to your TV’s Reference Guide for its weight.)

If the installation of the Wall-Mount Bracket on the wall is not sufficiently sturdy, the unit may fall and cause injury or property damage. Be sure to subcontract moving or dismounting of the TV to licensed contractors. If persons other than licensed contractors transport or dismount the TV, it may fall and cause injury or property damage. Be sure that two or more persons (three or more persons for 75 inches and above TV set) carry or dismount the TV. Do not remove screws, etc., after mounting the TV. If you do so, the TV may fall and cause injury or property damage. Do not make alterations to the parts of the Wall- Mount Bracket. If you do so, the Wall-Mount Bracket may fall and cause injury or property damage. Do not mount any equipment other than the specified product. This Wall-Mount Bracket is designed for use with the specified product only. If you mount equipment other than specified, it may fall or break, and cause injury or property damage. Do not apply any load other than the TV on the Wall-Mount Bracket. Do not shake the TV left/ right, up/down. If you do so, the TV may fall and cause injury or property damage. Do not lean on or hang from the TV. Do not lean on or hang from the TV as it may fall on you and cause serious injury. CAUTION If the following precautions are not observed, injury or property damage may occur. Do not handle the product with excessive force during cleaning or maintenance. Do not apply excessive force on the topside of the TV. If you do so, the TV may fall and cause injury or property damage. Precautions

If you use the TV installed on the Wall-Mount Bracket for a long time, the wall behind or above the TV may become discolored or the wallpaper may come unstuck, depending on the material of the wall.

If the Wall-Mount Bracket is removed after installing it on the wall, the screw holes are left.

Do not use the Wall-Mount Bracket in a place where it is subjected to mechanical vibrations. Installing the Wall- Mount Bracket To Sony Dealers WARNING The following instructions are for Sony dealers only. Be sure to read safety precautions described above and pay special attention to safety during the installation, maintenance and checking of this product. Do not install the Wall- Mount Bracket on wall surfaces where the corners or the sides of the TV protrude away from the wall surface.− 4 (GB) − Do not install the Wall-Mount Bracket on wall surfaces such as a pillar, where the corners or the sides of the TV protrude away from the wall surface. If a person or object happens to hit the protruded corner or side of the TV, it may cause injury or property damage. Do not install the TV over or under an air- conditioner. If the TV is exposed to water leaks or air current from an air conditioner for a long time, it may cause a fire, an electric shock or a malfunction of the TV. Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual. If any of the screws are loose or fall out, the Wall-Mount Bracket may fall and cause injury or property damage. Be sure to use the appropriate screws for the material of the wall and install the unit securely using four or more screws of 8 mm diameter (or equivalent). Be sure to use the supplied screws and attachment parts properly following the instructions given in this instruction manual. If you use substitute items, the TV may fall and cause bodily injury to someone or damage to the TV. Be sure to assemble the bracket properly following the instructed procedure explained in this instruction manual. If any of the screws are loose or fall out, the TV may fall and cause bodily injury to someone or damage to the TV. Be sure to tighten the screws securely in the designated position. If you fail to do so, the TV may fall and cause bodily injury to someone or damage to the TV. Be careful not to subject the TV to shock during installation. If the TV is exposed to shock, it may fall or break apart. This may cause injury. Be sure to install the TV on a wall that is both perpendicular and flat. If you fail to do so, the TV may fall and cause injury. After proper installation of the TV, secure the cables properly. If people or objects get tangled with cables, this may result in injury or damage to the TV. Do not allow the mains lead or the connecting cable to be pinched. If the mains lead or the connecting cable is pinched between the unit and the wall or is bent or twisted by force, the internal conductors may become exposed and cause a short circuit or an electrical break. This may cause a fire or an electric shock. The screws needed to secure the Wall-Mount Bracket to the wall are not supplied. Use the appropriate screws for the wall material and structure when mounting the Wall-Mount Bracket.− 5 (GB) −

Installing the TV onto the wall Installation procedure differs, depending on your TV. Use the Wall-Mount Bracket SU-WL450 to install the TV to the wall. Note

Be sure to store the removed screws in a safe place, keeping them away from children. Preparing for installation

Have the TV’s Reference Guide and Setup Guide at hand before installation.

Be sure to have a Phillips screwdriver that fits the screws prior to the assembly.

Confirm the installing position of your TV.

Prepare four or more screws of 8 mm diameter and one screw of 5 mm or equivalent (not supplied). Select screws suitable for the material of the wall. Checking the parts Supplied with SU-WL450

• Verify that all the parts are included. Base (20) (1) Pulley (2) PSW 6x20 (4) PSW 4x20 with Bush (2) Spacer (20) (2) Belt (1) Bush (20) (M4) (2) PSW 4x20 (2) Base Adaptor (2) PSW 4x10 (8) Spacer (60) (2) PSW 6x50 (2) Bush (M4) (2) PSW 4x50 (2) Table of Contents Preparing for installation p. 5
• Checking the parts p. 5
• Deciding on the installation location p. 6
• Installing the Base on the wall p. 8
• Preparing for the installation of the TV p. 9
• KD-85/75XG85, KD-75XG87 p. 9
• KD-65/55XG87, KD-65/55XG85 p. 11
• Installing the TV on the wall p. 13
• KD-85/75XG85, KD-75XG87 p. 13
• KD-65/55XG87, KD-65/55XG85 p. 15
• Confirming the completion of the installation p. 18
• Other information p. 18
• Specifications − 6 (GB) − Deciding on the installation location 1 Decide on the installation location. Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. Refer to your TV’s Reference Guide for the TV’s weight. Screen centre point Standard mounting Slim mounting Unit: mm Model Name Display dimensions Screen centre dimension Length for mounting Standard mounting Slim mounting KD-85XG85 1,909 1,097 251 803 142 100 KD-75XG87 KD-75XG85 1,673 963 107 595 116 75 KD-65XG87 KD-65XG85 1,450 836 99 523 115 73 KD-55XG87 KD-55XG85 1,231 713 106 468 115 73 Note Figures in the table may differ slightly depending on the installation.When your TV is installed on the wall, the upper side of the TV slightly leans forward.− 7 (GB) − p. 18

Allow for suitable clearance between the TV and the ceiling and protruding parts of the wall as shown below. Unit: mm

To ensure proper ventilation and prevent the collection of dirt or dust:ˋ Do not lay the TV set flat, install upside down, backwards, or sideways.ˋ Do not place the TV set on a shelf, rug, bed or in a closet.ˋ Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.ˋ Do not install the TV set as shown below. Air circulation is blocked. Wall Note

If you intend to route the cables in the wall, make a hole in the wall to insert the cables before beginning the installation. To prevent pinching the cables, prepare a hole in the wall somewhere outside the perimeter of the Base (20) , Base Adaptor and Spacer (20) , Spacer (60) . 2 Select Wall mounting style. It is selectable as shown below. 2-a Standard mount 2-b Slim mount Refer to the table of step 1. WARNING

When 2-b is selected, rear terminal access is limited. 2-a 2-b 3 Refer to the below table about the Base Adaptor fitting location. In case of selecting 2-b, then skip this step. Model Name Hook location KD-85XG85 KD-75XG87 KD-75XG85

c− 8 (GB) − Fit Base Adaptor by using Screw (PSW 4x10) to Base (20) when selecting 2-a.

4 Decide the positions of the screws for installing the Base (20) . Refer to the specifications on page 18. When selecting 2-a, please use the hole positions of Base Adaptor . WARNING The wall that the TV will be mounted on should be able to support a weight of at least four times that of the TV (Refer to your TV’s Reference Guide for its weight.). Determine the strength of the wall the TV will be mounted on. Reinforce the wall sufficiently, if necessary. Installing the Base on the wall

Use four or more screws of 8 mm diameter or equivalent (not supplied).

Fit four screws to the holes of Base Adaptor with Base (20) (2-a only).

Install the Base (20) on the wall horizontally. 2-a

Preparing for the installation of the TV Refer to the Setup Guide for stand installation. KD-85/75XG85ÿÿ, KD-75XG87ÿÿ 1 Mark the installation location on the wall.

Use masking tape, etc. (not supplied) to mark the location of the TV near the Base or Base Adaptor. Refer to the following table. Screen centre point Masking tape (1,000) (300) Unit: mm Model Name Length for marking Screen centre dimension KD-85XG85ÿÿ 1,909 683 200 251 KD-75XG87ÿÿ KD-75XG85ÿÿ 1,673 468 200 107 2 Remove the screws from the rear of the TV. 3 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to “Supplied with SU-WL450” in “Checking the parts” on page

Firmly secure the Attachment parts using screws. When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}. Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference. Standard mounting (2-a) Belt ʲ Spacer (60 mm) ʷ Screw (+PSW 6 x 50) ʸ Pulley ʮ Screw (+PSW 6 x 20) ʯ Slim mounting (2-b) Note

You cannot use some of the terminals on the rear of the TV when using this mounting style. Belt ʲ Screw (+PSW 6 x 20) ʯ Pulley ʮ Spacer (20 mm) ʱ− 10 (GB) − 4 Connect the necessary cable(s) to the TV. Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed. Refer to the Reference Guide supplied with your TV. Note

Subcontract the cable routing in the wall to a licensed contractor. Bundle the connecting cables to prevent stepping on them before wall mounting. 5 Detach the Table-Top Stand from the TV.

Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV. KD-85XG85 KD-75XG87, KD-75XG85

Repeat the previous step and remove the other side of the Table-Top Stand. Note

Three or more people are required to detach the Table-Top Stand. Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV. Take care when handling the Table-Top Stand to prevent damage to the TV. Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury. Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.− 11 (GB) −

KD-65/55XG87ÿÿ, KD-65/55XG85ÿÿ 1 Remove the screws from the rear of the TV. 2 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to “Supplied with SU-WL450” in “Checking the parts” on page

Firmly secure the Attachment parts using screws. When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}. Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference. Standard mounting (2-a) Belt ʲ Spacer (60 mm) ʷ Screw (+PSW 6 x 50) ʸ Pulley ʮ Screw (+PSW 6 x 20) ʯ Slim mounting (2-b) Note

You cannot use some of the terminals on the rear of the TV when using this mounting style. Belt ʲ Screw (+PSW 6 x 20) ʯ Pulley ʮ Spacer (20 mm)

3 Connect the necessary cable(s) to the TV. Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed. Refer to the Reference Guide supplied with your TV. Note

Subcontract the cable routing in the wall to a licensed contractor. Bundle the connecting cables to prevent stepping on them before wall mounting.− 12 (GB) − 4 Detach the Table-Top Stand from the TV.

Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

Repeat the previous step and remove the other side of the Table-Top Stand. Note

Three or more people are required to detach the Table-Top Stand. Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV. Take care when handling the Table-Top Stand to prevent damage to the TV. Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury. Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.− 13 (GB) −

Installing the TV on the wall KD-85/75XG85, KD-75XG87 1 Lift the TV.

For the location of the Pulleys to the hang on the Base or Base Adaptor, refer to the table of step 3 in “Deciding on the installation location” on page 7.

Make sure that the rear of the TV touches the Base or Base Adaptor when holding the TV. Note

Hold the TV securely with both hands and make sure the Belt and the bottom of the TV align with the masking tape. Carry the TV with three people and the person who is in front of the TV leads the others to adjust the position. Take great care when installing the TV to the wall especially for the person who is supporting the TV from below, the television set may fall, causing serious bodily injury or even death.

2 Install the TV onto the Base or Base Adaptor.

Gently slide down the TV and hang the Pulleys attached to the rear of the TV to the Base or Base Adaptor, making sure to confirm the shape of the holes.

After installing the TV on the wall, confirm the Pulleys are firmly latched into the Base or Base Adaptor.

Release both hands slowly to ensure that the TV does not fall.

WARNING Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when carrying it. 3 Preventing the bottom of the TV from shifting.

Take up the slack of Belt and attach it to the wall tightly. 2-a 2-b

Try to pull the bottom of the TV towards yourself slightly, to make sure that it does not move forward. If there is any movement, it is not fixed correctly, and the Belt should be secured firmly again. KD-65/55XG87, KD-65/55XG85 1 Lift the TV.

For the location of the Pulleys to the hang on the Base or Base Adaptor, refer to the table of step 3 in “Deciding on the installation location” on page 7.

Make sure that the rear of the TV touches the Base or Base Adaptor when holding the TV.

Hold the TV securely with both hands. 2 Install the TV onto the Base or Base Adaptor.

Gently slide down the TV and hang the Pulleys attached to the rear of the TV to the Base or Base Adaptor, making sure to confirm the shape of the holes.

After installing the TV on the wall, confirm the Pulleys are firmly latched into the Base or Base Adaptor.

Release both hands slowly to ensure that the TV does not fall.− 16 (GB) − 2-a

Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when carrying it. 3 Preventing the bottom of the TV from shifting.

Take up the slack of Belt and attach it to the wall tightly. 2-a 2-b

Try to pull the bottom of the TV towards yourself slightly, to make sure that it does not move forward. If there is any movement, it is not fixed correctly, and the Belt should be secured firmly again.− 18 (GB) − Confirming the completion of the installation Check the following points.

The Pulleys are firmly hung onto the Base or Base Adaptor.

The cord and the cable are not twisted or pinched.

The Belt is tight with no slack. WARNING

Improper placement of the mains lead, etc. may cause fire or electric shock through a short circuit. Be sure to confirm the completion of the installation for safety. Other information When removing the TV, reverse the previous installation procedure. WARNING

Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when removing it. Specifications
