USER MANUAL WX283 WORX

Line drawing of a WORX electric drill (no text or symbols on the diagram itself)

3 in1 drill/driver/impact driver EN	P06
12 Volt Lithium-lonen-3-in-1-Schlagschrauber D	P14
Moteur d'entraînement à impact 3 en 1 fonctionnant sur batteries12V li-lon F	P22
Avvitatore ad impulso 3 in 1, da 12V con batteria agli ioni di litio I	P30
Atornillador de impacto 3-en-1 de iones de litio de 12V ES	P38
Aparafusadora de impacto 3-em-1 com bateria de iões de lítio de 12V PT	P46
3-in-1-slagschroevendraaier op 12V Li-lon-batterij NL	P54
12V lithium-lon 3-i-1 hammer/skruetrækker DK	P62
12V li-loni 3 1:ssä iskumeisseli FIN	P70
12V li-lon 3-i-1 slagtrekker NOR	P78
12V li-jon 3-i-1 sammansatt medbringare SV	P86
12V li-lon 3’ü 1 arada darbeli tornavida TR	P94
Кроустико брапао 3-σε-1 με μπαταρία ιόντων λιθίου 12V GR	P102
Ударная дрель «3 в 1» с 12-В литий-ионным аккумулятором RU	P110
Original instructions EN
Originalbetriebsanleitung
Notice originale F
Istruzioni originali	I
Manual original ES
Manual original PT
Oorspronkelijke gebruiksaanwijzing NL
Original brugsanvisning DK
Alkuperäiset ohjeet FIN
Original driftsinstruks NOR
Bruksanvisning i original SV
Orijinal isletme talimatı TR
Прωτότυπο οδηγιών χρήσης GR
Оригинальное руководст-во по эксплуатации RU

Completely black image with no visible content, text, or symbols.

10789 WORX DDD ① ② ③ ④ ⑤ ⑥

Illustration of a WORX electric drill with a mechanical component, showing no text or symbols on the device itself.

A

Diagram showing a drill bit connected to a screwdriver, with bidirectional arrows indicating alignment or connection.

B

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction

C

Illustration of a WORX electric drill with blade blades (no text or symbols)

D

Top-down line drawing of a vehicle rear view showing front, side, and top views (no text or symbols)

E1

Technical line drawing of a mechanical device with no visible text or symbols

E2

Top-down line drawing of a cabinet or storage unit with three cylindrical components and a door (no text or symbols)

E3

WORX ⑧

F

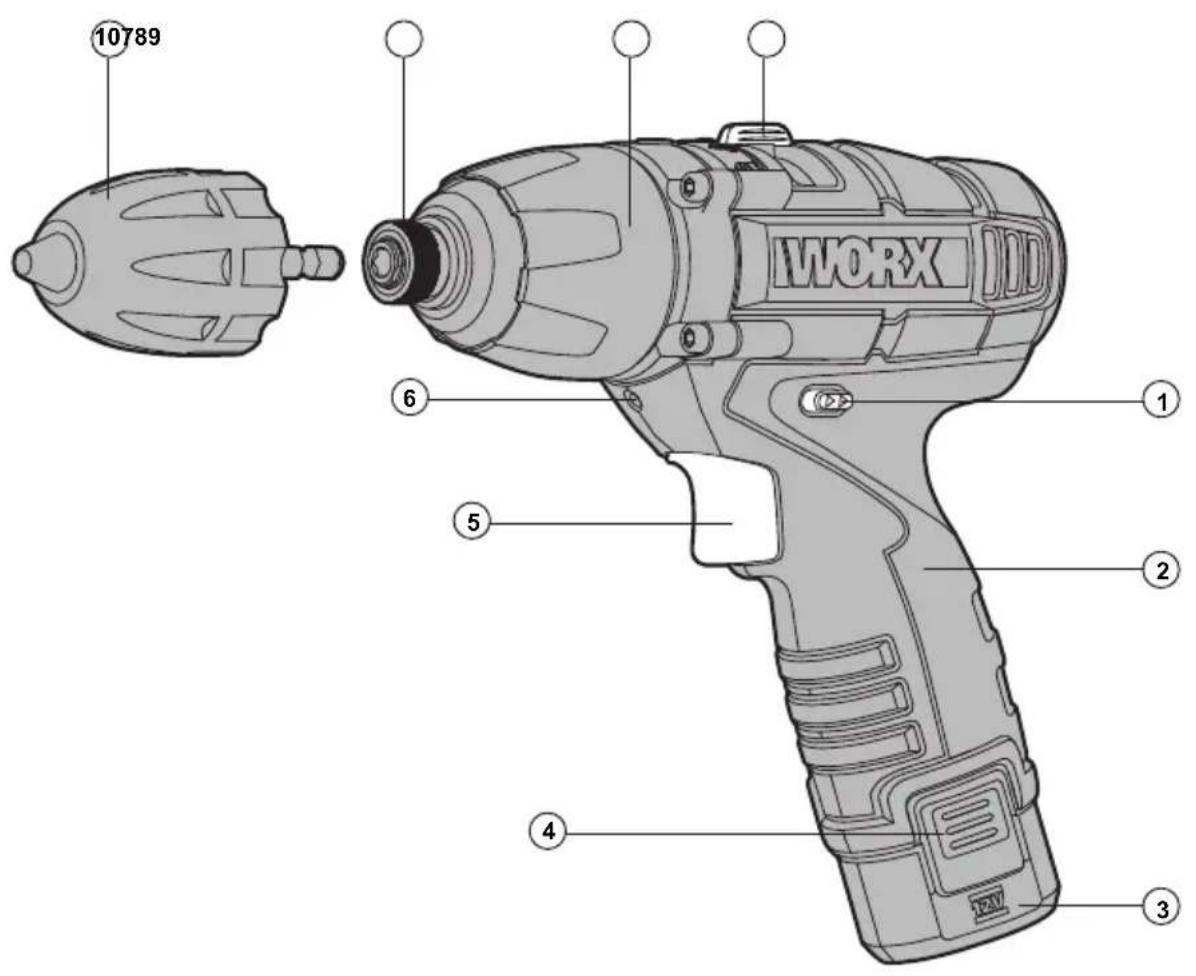

1. FORWARD, REVERSE ROTATION AND LOCK CONTROL
2. SOFT GRIP HANDLE
3. BATTERY PACK *
4. BATTERY PACK LATCH
5. ON/OFF SWITCH WITH VARIABLE SPEED CONTROL
6. LED LIGHT
7. COLLET LOCKING SLEEVE
8. TORQUE ADJUSTMENT RING
9. FUNCTION MODE SELECTION SWITCH
10. DETACHABLE KEYLESS CHUCK

TECHNICAL DATA

Type WX283 WX283.3 WX283.9 (280\~289-designation of machinery, representative of Cordless Impact Driver)

Voltage 12V
No load speed	Screwdriver mode 0-600/min
	Drill mode (Lo-Hi) 0-600/ 0-2200/min
	Impact driver mode 0-2200/min
Impact rate 0-3000 /min
Max torque	Impact driver mode 100 N.m
	Drill mode 15 N.m
Torque setting 22
Drilling capacity	Wood 20mm
	Steel 8mm
Chuck type	6.35 mm (1/4") hex
Machine weight	1.2kg

NOISE INFORMATION

A weighted sound pressure	L_pA :80.9dB(A)
A weighted sound power	L_wA :91.9dB(A)
K_pA & K_wA	3.0dB(A)
Wear ear protection when sound pressure is over	80dB(A)

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:
Typical weighted vibration	Vibration emission value a_h = 3.74m/s^2
	Uncertainty K = 1.5m/s^2

WARNING: The vibration emission value during actual use of the power tool can differ

from the declared value depending on the ways in which the tool is used dependant on the

following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained

Always use the correct accessories for the tool and ensure they are sharp and in good condition.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if it is not managed correctly.

3 in 1 drill/driver/impact driver EN

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool

is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk.

Always use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^0 C or less.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

	WX283 WX283.3 WX283.9
1.3Ah lithium battery pack	1 1 /
Charger	3-5hr 30min /
2" Driver bits	2 2 2
Hex shank drill bits	2 2 2
10mm detachable keyless chuck	1 1 1

We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

ADDITIONAL SAFETY RULES FOR YOUR CORDLESS IMPACT DRIVER

1. Remove the battery pack from the impact wrench before carrying out adjustments.

2. Do not expose to rain or water.

3. Do not store the battery pack in temperatures over 40^ C.

4. Always charge the battery pack between temperatures 0^ C to 30^ C. Ideal charging temperature is 18^ C to 24^ C.

5. Only use the charger and the battery pack provided no others.

6. Avoid short circuit of the battery pack connections (screws & nails).

7. Do not incinerate or burn the battery pack, it may explode.

8. Do not charge a damaged battery pack.

9. Replace any damaged supply cords on your charger.

10. Always disconnect the charger power supply before making or breaking the connections to the battery pack.

11. Battery pack and charger will be warm during charging, this is normal.

12. When not in use, remove a charged battery pack from the charger.

13. Always remove the battery pack from the charger immediately after re-charging is completed.

14. Your impact wrench and battery pack will be warm when working, this is normal.

15. Do not dispose of batteries in fire, or with household waste. Return exhausted batteries to your local collection or recycling point.

16. Wear ear protection when operating cordless impact wrench. Exposure to noise can cause hearing loss.

17. Accessories and metal parts can become very hot.

18. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

WARNING: If a small amount of electrolyte should leak from the battery pack under extremes of temperature or after heavy use, then wash off immediately from your skin and hands using clean water. For eye contact, rinse thoroughly with clean water and seek medical treatment immediately.

Warnings for the charger:

1. Before using the tool, read the instruction book carefully.

2. Charger is for indoor use only. Do not expose to rain or water.

3. Do not charge non-rechargeable batteries.

SYMBOLS OPERATING INSTRUCTIONS

To reduce the risk of injury, user must read instruction manual

Warning

Wear eye protection

Wear ear protection

Wear dust mask

Indoor use only

Do not expose to rain or water

Do not burn

Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point

Li

Always charge the battery pack between temperatures 0°C to 30°C

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic.

The battery charger supplied is matched to the Li-Ion battery installed in the machine. Do not use another battery charger.

The Li-lon battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The chuck no longer rotates. In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging.

When the battery is charged for the first time and after prolonged storage, the battery will only accept approximately 60% charge. However, after several charge and discharge cycles the battery will accept a 100% charge.

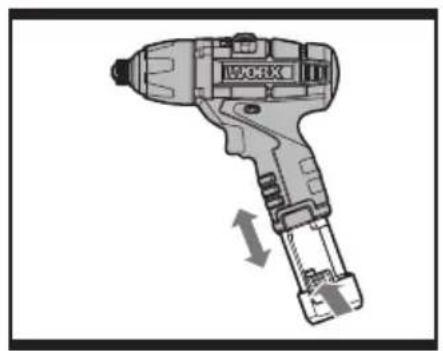

B) TO REMOVE OR INSTALL BATTERY PACK (See Fig. A)

Depress the battery pack release button to release and slide the battery pack out from your tool. After recharge, slide it back into your tool. A simple push and slight pressure will be sufficient.

OPERATION

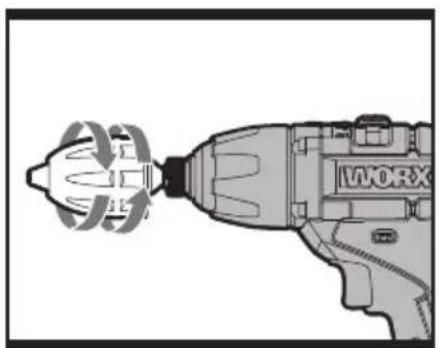

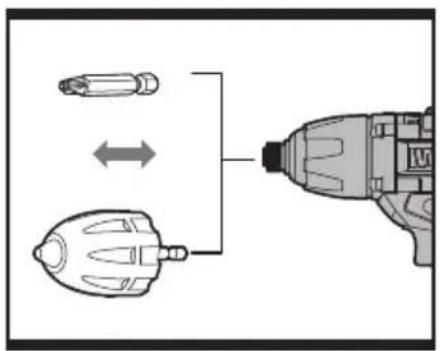

1. INSTALLING OR REMOVING A DRIVER BIT, DRILL BIT OR DETACHABLE KEYLESS CHUCK (See Fig. B)

To install the desired bit or the detachable keyless chuck, pull the collet locking sleeve (7) forward and insert the desired bit or hex shank of the detachable keyless chuck into the sleeve as far as it will go. Then release the collet locking sleeve to secure the bit or the chuck. To remove the bit or the chuck, pull the collet locking sleeve (7) forward and take the tool out firmly.

2. ON / OFF SWITCH (See Fig. C)

Depress the On/Off switch (5) to start and release it to stop your tool. The on/off switch is fitted with a brake function which stops your chuck immediately when you quickly release the switch.

It is also a variable speed switch that delivers higher speed and torque with increased trigger pressure. Speed is controlled by the amount of switch trigger depression.

WARNING: Do not operate for long periods at low speed because excess heat will be produced internally.

3. SWITCH LOCK

The switch trigger can be locked in the OFF position. This helps to reduce the possibility of accidental starting when not in use. To lock the switch trigger, place the rotation control in the center position.

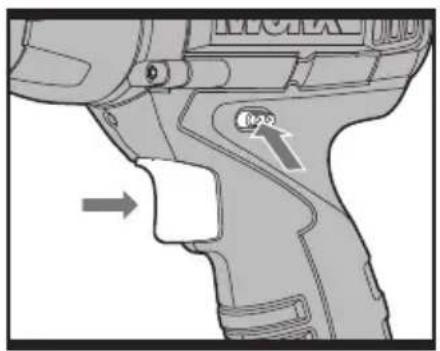

4. REVERSIBLE (See Fig. C)

For drilling and screw driving use forward rotation marked “◀(lever is moved to the left). Only use reverse rotation marked “▶(lever is moved to the right) to remove screws or release a jammed drill bit.

WARNING: Never change the direction of rotation when the chuck is rotating, wait until it has stopped!

5. CHUCK ADJUSTMENT (See Fig. D)

Detachable chuck is suggested for using in the drill mode.

To open the chuck jaws, firmly hold the rear sleeve of the chuck, and then rotate the front sleeve. Insert the drill bit between the chuck jaws and rotate the front sleeve in the opposite direction. Ensure the drill bit is in the center of the chuck jaws. Finally, hold the rear sleeve of the chuck and firmly rotate the front sleeve in the opposite directions. Your drill bit is now clamped in the chuck.

6. USING THE LED LIGHT

To turn on the light simply press the on/off switch. When you release the on/off switch, the light will be off.

LED lighting increases visibility-great for dark or enclosed area. LED is also a battery capacity indicator. It will flash when power gets low.

7. FUNCTION MODE SELECTION

The operation of the tool for each application is set with the function mode selection switch (9). To change between functions, slide the function mode selection switch (9) to the desired operating mode as follows:

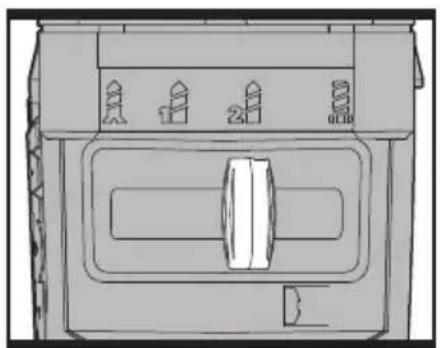

	Screwdriver mode (See Fig. E1)
	Drill driver mode (See Fig. E2)

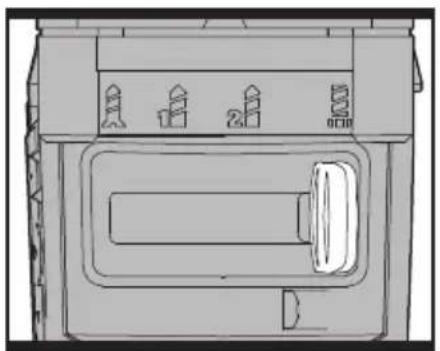

	Impact driver mode (See Fig. E3)

WARNING: When using the function mode selection switch, use only when the tool stops. But when the switch does not easily move, depress the On/off switch slightly to rotate the spindle and then move the function mode selection switch.

Slide the function mode selection switch (9) to mark "A". Adjust the adjusting ring (8) to the proper torque level for your work.

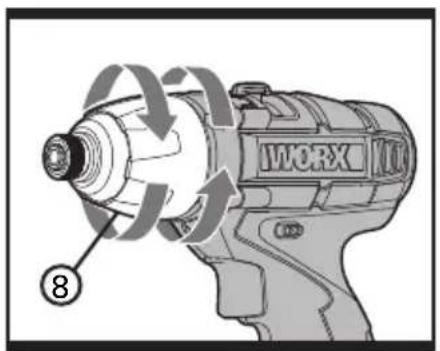

The torque is adjusted by rotating the torque adjustment ring (See Fig. F). The torque is greater when the torque adjustment ring is set on a higher setting. The torque is less when the torque adjustment ring is set on a lower setting.

Make the setting as follows:

1 - 4 For driving small screws
5 - 9	For driving screws into soft material
10 - 14	For driving screws into soft and hard material
15 - 19	For driving screws into hard wood
20 - 22	For driving larger screws

DRILLING OPERATION

Slide the function mode selection switch (9) to mark

“” “” The adjusting ring can be aligned in any torque levels for this operation. The drill has a two-speed gear control designed for drilling or driving at LO (mark is 📋or HI (mark is ) speed (See Fig. E2). When using the drill in the LO speed range, the speed will decrease and the drill will have greater power and torque. When using the drill in the HI speed range, the speed will increase and the drill will have less power and torque.

WARNING: To prevent gear damage, always allow the chuck to come to a complete stop before changing the direction of rotation or the two-speed gear control.

When drilling into a hard smooth surface, use a center punch to mark the desired hole location. This will prevent the drill bit from slipping off center as the hole is started. Hold the tool firmly and place the tip of the bit at the point to be drilled. Depress the switch trigger to start the tool. Move the drill bit into the workpiece, applying only enough pressure to keep the bit cutting. Do not force or apply side pressure to elongate a hole.

Tungsten carbide drill bits should always be used for concrete and masonry. When drilling in metal, only use HSS drill bits in good condition. Always use a magnetic bit holder (not included) when using short screwdriver bits. When screw-driving, apply a small quantity of liquid soap or similar to the screw threads to ease insertion.

Slide the function mode selection switch (9) to mark "

The adjusting ring can be aligned in any torque levels for this operation.

8. DISPOSAL OF AN EXHAUSTED BATTERY PACK

To preserve natural resources, please recycle or dispose of the battery pack properly. This battery pack contains

Lithium batteries. Consult your local waste

authority for information regarding available recycling and/or disposal options. Discharge your battery pack by operating your tool, then remove the battery pack from the tool housing and cover the battery pack connections with heavy-duty adhesive tape to prevent short circuit and energy discharge. Do not attempt to open or remove any of the components.

9. OVERLOAD PROTECTION

When overloaded, the motor comes to a stop. Relieve the load on the machine immediately and allow cooling for approx. 30 seconds at the highest no-load speed.

10. TEMPERATURE DEPENDENT OVERLOAD PROTECTION

When using as intended for the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature of 75^ C is exceeded, the electronic control switches off the power tool until the temperature is in the optimum temperature range again.

11. PROTECTION AGAINST DEEP DISCHARGING

The Li-lon battery is protected against deep discharging by the "Discharging Protection System". When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.

MAINTENANCE

Your power tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

3 in I drill/driver/impact driver EN

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.

Check with your local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product, Description

WORX 3 in1 drill/driver/impact driver Type WX283 WX283.3 WX283.9

(280\~289-designation of machinery, representative of Cordless Impact Driver)

Function Drilling, tightening and loosening screws, nuts with a rotary impact mechanism

Complies with the following Directives, Machinery Directive 2006/42/EC

Electromagnetic Compatibility Directive

2004/108/EC

RoHS Directive 2011/65/EU

Standards conform to

EN 55014-1

EN 55014-2

EN 60745-1

EN 60745-2-1

EN 60745-2-2

The person authorized to compile the technical file,

Name: Russell Nicholson

Address: Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK

keo.yue

C€

2012/12/07

Leo Yue

POSITEC Quality Manager

Name: Russell Nicholson

Anschrift: Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK

$$ \text {leo.yue} $$

C€

2012/12/07

Leo Yue

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

DÉCLARATION DE CONFORMITÉ

Nous,

POSITEC Germany GmbH

Directive RoHS 2011/65/EU

Ltd, PO Box 152, Leeds, LS10 9DS, UK

keo.yue

C€

2012/12/07

Leo Yue

Codice WX283 WX283.3 WX283.9

Ltd, PO Box 152, Leeds, LS10 9DS, UK

keo.yue

C€

2012/12/07

Leo Yue

EndereçoL Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK

keo.yue

C€

2012/12/07

Leo Yue

Gestor de Qualidade POSITEC

1. KNOP VOOR LINKS OF RECHTS DRAAIEN EN VERGRENDELING
2. HANDGREEP MET SOFT-GRIP
3. ACCUPACK *
4. PAL ACCUPACK
5. AAN/UITSCHAKELAAR MET INSTELBAAR TOERENTAL
6. WERKLAMPJE
7. VERGRENDELINGSBUS SPANHULS
8. KOPPELINSTELLINGEN
9. FUNCTIEMODUS
10. AFNEEMBARE, SLEUTELLOZE BOORHOUDER VAN 10mm

TECHNISCHE GEGEVENS

VOORDAT U HET APPARAAT IN BEDRIJ NEEMT

A) HET ACCUPACK OPLADEN

Type WX283 WX283.3 WX283.9

Type WX283 WX283.3 WX283.9

Ltd, PO Box 152, Leeds, LS10 9DS, UK

keo.yue

C€

2012/12/07

Leo Yue

Chef for kvalitetskontrollen hos POSITEC

1. SUUNTAVALITSIN
2. SOFT GRIP -KAHVA
3. AKKUPAKKAUS *
4. AKKUPAKKAUKSEN SALPA
5. VIRTAKYTKIN NOPEUDENSÄÄDÖLLÄ
6. TYÖVALO
7. LUKKOHOLKKI
8. VETOKYTKIN
9. TOIMINTAMUODON VALINTAKYTKIN
10. IRROTETTAVA AVAIMETON ISTUKKA

TEKNISET TIEDOT

Tyyppi WX283 WX283.3 WX283.9

Ltd, PO Box 152, Leeds, LS10 9DS, UK

keo.yue

C€

2012/12/07

Leo Yue

Type WX283 WX283.3 WX283.9

Ltd, PO Box 152, Leeds, LS10 9DS, UK

keo.yue

C€

2012/12/07

Leo Yue

Typ WX283 WX283.3 WX283.9

Adress: Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

keo.yue

C€

2012/12/07

Leo Yue

Tipi WX283 WX283.3 WX283.9

Adress: Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

leo.yue

C€

2012/12/07

Leo Yue

Τύπος WX283 WX283.3 WX283.9

(Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK

leo.yue

C€

2012/12/07

Leo Yue

you've got the power

Copyright © 2013, Positec. All Rights Reserved.

2CDS81PPK11001A2
