Features	Details
Capacity	1.4 kg
Power	2225 W
Cooking Technology	Airfryer with rapid air circulation
Adjustable Temperature	From 40 to 200 C
Cooking Modes	Frying, roasting, baking, grilling
User Interface	Digital touch screen
Included Accessories	Fryer basket, recipe book
Cleaning	Removable and dishwasher-safe components
Safety	Overheat protection system, automatic shut-off
Dimensions	403 x 302 x 306 mm
Weight	7.99 kg
Warranty	2 years

Frequently Asked Questions - Premium Airfryer XXL HD9861 PHILIPS

How do I clean my PHILIPS Premium Airfryer XXL HD9861?

To clean your Airfryer, unplug the device and let it cool down. Remove the drawer and basket, then wash them with warm soapy water or place them in the dishwasher. Wipe the outside of the device with a damp cloth.

What is the capacity of the PHILIPS Premium Airfryer XXL HD9861?

The PHILIPS Premium Airfryer XXL HD9861 has a capacity of 1.4 kg, allowing you to cook up to 6 servings of food.

Can I cook frozen food in my Airfryer?

Yes, you can cook frozen food in your Airfryer. It is recommended to slightly increase the cooking time compared to fresh food.

Why is my frying not cooking evenly?

Make sure not to overload the basket, as this can prevent proper air circulation. Stir or turn the food halfway through cooking for more even results.

What type of oil should I use with my Airfryer?

You can use a small amount of vegetable oil or olive oil to enhance the taste and texture of your food, but it is not mandatory.

Does the Airfryer emit odors during cooking?

It is normal for odors to be emitted during cooking, especially during the first use. This should decrease after several uses. Make sure the device is clean.

How do I adjust the cooking time?

The cooking time can be adjusted using the Airfryer's timer button. Refer to the manual for specific cooking times depending on the food.

Can I prepare desserts in my Airfryer?

Yes, you can prepare various desserts such as cakes and muffins. Make sure to use molds suitable for cooking in the Airfryer.

Is the Airfryer easy to use?

Yes, the PHILIPS Premium Airfryer XXL HD9861 is designed to be intuitive and easy to use with simple settings for temperature and cooking time.

Is there a warranty for my Airfryer?

Yes, the PHILIPS Premium Airfryer XXL HD9861 is generally covered by a 2-year warranty. Check your manual for specific details.

USER MANUAL Premium Airfryer XXL HD9861 PHILIPS

General description 5

Before first use 7

Preparing for use 7

Placing the removable mesh bottom and fat reducer 7

Food table for manual time/temperature settings 8

Using the appliance 10

Airfrying 10

Food table for Smart Chef programs 14

Cooking with Smart Chef programs 15

Making home-made fries 16

Choosing the keep warm mode 16

Save your favorite setting 17

Cleaning 19

Cleaning table 21

Storage 21

Recycling 21

Guarantee and support 21

Troubleshooting 22

Important

Read this important information carefully before you use the appliance and save it for future reference.

Danger

• Never immerse the appliance in water nor rinse it under the tap.
• Do not let any water or other liquid enter the appliance to prevent electric shock.
• Always put the ingredients to be fried in the basket, to prevent them from coming into contact with the heating elements.
• Do not cover the air inlet and the air outlet openings while the appliance is operating.
• Do not fill the pan with oil as this may cause a fire hazard.
• Do not use the appliance, if the plug, the mains cord or the appliance itself is damaged.
• Never touch the inside of the appliance while it is operating.
• Never put any amount of food that exceeds the maximum level indicated in the basket.
• Always make sure heater is free and no food stuck in heater.

Warning

• If the supply cord is damaged, it must be replaced by Philips, its service agent or similarly qualified persons in order to avoid a hazard.
• Only connect the appliance to an earthed wall socket. Always make sure that the plug is inserted into the wall socket properly.
• This appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• The accessible surfaces may become hot during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of the reach of children less than 8 years.
• Do not place the appliance against a wall or against other appliances. Leave at least 10 cm free space at the back, on both sides and above the appliance. Do not place anything on top of the appliance.
• During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also, be careful of hot steam and air when you remove the pan from the appliance.
• Never use light ingredients or packing paper in the appliance.
• Accessible surfaces may become hot during use.

Warning symbol with steam inside a triangle, indicating heat or noise hazard

4 ENGLISH

• Storage of potatoes: The temperature shall be appropriate to the potato variety stored and it shall be above 6°C to minimize the risk of acrylamide exposure in the prepared foodstuff.
• Do not place the appliance on or near a hot gas stove or all kinds of electric stove and electric cooking plates, or in a heated oven.
• Never fill the pan with oil.
• This appliance is designed to be used at ambient temperatures between 5°C and 40°C.
• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Keep the mains cord away from hot surfaces.
• Do not place the appliance on or near combustible materials such as a tablecloth or curtain.
• Do not use the appliance for any other purpose than described in this manual and use only original Philips-accessories.
• Do not let the appliance operate unattended.
• The pan, basket and fat reducer becomes hot during and after use of the appliance, always handle carefully.
• Thoroughly clean the parts that come into contact with food before you use the appliance for the first time. Refer to the instructions in the manual.

Caution

• This appliance is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.
• Always disconnect the appliance from the supply if it is left unattended and before you assemble, disassemble, store or cleaning.
• Place the appliance on a horizontal, even and stable surface.
• If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and Philips refuses any liability for damage caused.
• Always return the appliance to a service center authorised by Philips for examination or repair. Do not attempt to repair the appliance yourself, otherwise the guarantee becomes invalid.
• Always unplug the appliance after use.
• Let the appliance cool down for approximately 30 minutes before you handle or clean it.
• Make sure the ingredients prepared in this appliance come out golden yellow instead of dark or brown. Remove burnt remnants. Do not fry fresh potatoes at a temperature above 180^ C (to minimise the production of acrylamide).

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding electromagnetic fields.

Automatic shut-off

This appliance is equipped with an automatic shut-off function. When the time of the timer has elapsed, the device will shut off automatically. If you do not press a button within 30 minutes, the appliance switches off automatically. To switch off the appliance manually, press the power On/off button.

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

With Philips Airfryer, you can now enjoy perfectly cooked fried food—crispy on the outside tender on the inside—Fry, grill, roast and bake to prepare a variety of tasty dishes in a healthy, fast and easy way.

For more inspiration, recipes and information about the Airfryer, visit

www.philips.com/kitchen or download the free NutriU App* for IOS® or Android™.

*The NutriU app may not be available in your country.

In this case please download the Airfryer App.

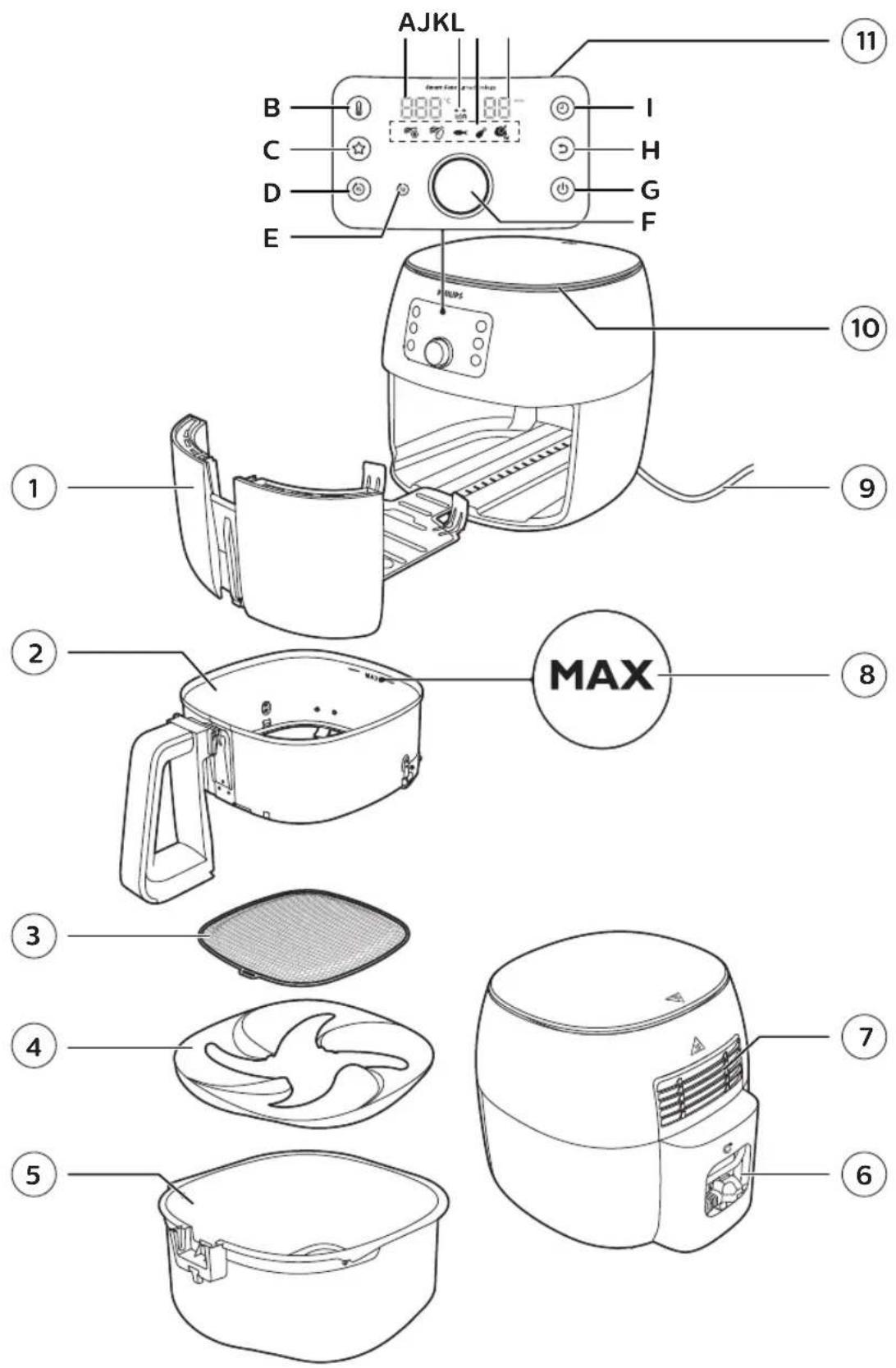

General description

1 Drawer
2 Basket with removable mesh bottom
3 Removable mesh bottom
4 Fat reducer
5 Pan
6 Cord storage compartment
7 Air outlets
8 MAX indication
9 Power cord
10 Air inlet
11 Control panel
A Temperature indication
B Temperature button
C Favorites button
D Keep warm button
E Keep warm indication
F QuickControl dial
G Power On/Off button
H Return button
| Timer button
J Time indication
K Smart Chef programs: Frozen fries/home-made fries/ whole fish/chicken drumsticks/whole chicken
L Shake indication

6 ENGLISH

AJKL B C D E I H G F 11 10 9 8 MAX 3 4 5 6 7

Before first use

1 Remove all packing material.
2 Remove any stickers or labels (if available) from the appliance.
3 Thoroughly clean the appliance before first use, as indicated in the cleaning chapter.

Preparing for use

Placing the removable mesh bottom and fat reducer

Illustration of a hand using a toaster to clean or prepare food items (no text or symbols visible)

1 Open the drawer by pulling the handle.

Illustration of a hand pressing a cooking pot with an upward arrow, next to a toaster (no text or symbols)

2 Remove the basket by lifting the handle.

Illustration of a hand pouring liquid into a container with a handle (no text or symbols)

3 Place the fat reducer into the pan.

Diagram illustrating a process with labeled steps 1 and 2, showing a container with contents and directional arrows indicating flow or movement.

4 Insert the removable mesh bottom into the slot on the right bottom side of the basket. Push the mesh bottom down until it locks into position ("click" on both sides).

8 ENGLISH

Illustration of a hand using an air fryer to press down a pot, with a toaster visible in the background (no text or symbols)

Illustration of a food air fryer with a cooking pan inside (no text or symbols)

5 Put the basket in the pan.

6 Slide the drawer back into the Airfryer by the handle.

Note

- Never use the pan without the fat reducer or the basket in it.

Food table for manual time/temperature settings

The table below helps you select the basic settings for the types of food you want to prepare.

Note

• Keep in mind that these settings are suggestions. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.
• When preparing larger amount of food (e.g. fries, prawns, drumsticks, frozen snacks), shake, turn, or stir the ingredients in the basket 2 to 3 times in order to achieve a consistent result.

Ingredients	Min.- max. amount	Time (min)	TemperatureNote
Home-made fries(12 x 12 mm/0.5 x 0.5 in)	200–1400 g7–49 oz	18–35	180°C/350°F	Soak 30 minutes in cold water or 3 minutes in luke warm water (40°C/104°F), dry then add 1 tbsp of oil per 500 g/18 oz.Shake, turn, or stir halfway
Homemade potato wedges 200	-1400 g7–49 oz	20–42	180°C/350°F	Soak 30 minutes in water, dry then add 1/4 to 1 tbsp of oil.Shake, turn, or stir halfway
Frozen snacks(chicken nuggets)	80–1300 g/3–46 oz(6–50 pieces)	7–18	180°C/350°F	Ready when golden yellow and crispy outside.Shake, turn, or stir halfway
Frozen snacks(small spring rolls around 20 g/0.7 oz)	100–600 g/4–21 oz(5–30 pieces)	14–16	180°C/350°F	Ready when golden yellow and crispy outside.Shake, turn, or stir halfway
Chicken breast Around 160 g/6 oz	1-5 pieces 18-22	180°C/350°F
Chicken fingers bread crumbed	3-12 pieces (1 layer)	10-15	180°C/350°F	· Add oil to the breadcrumbs. Ready when golden yellow.
Chicken wings Around 100 g/3.5 oz	2-8 pieces (1 layer)	14-18	180°C/350°F	· Shake, turn, or stir halfway
Meat chops without bone Around 150 g/6 oz	1-5 chops 10-13	200°C/400°F
Hamburger Around 150 g/6 oz (diameter 10 cm/4 in)	1-4 patties 10-15	200°C/400°F
Thick sausages Around 100 g/3.5 oz (diameter 4 cm/1.6 in)	1-6 pieces (1 layer)	12-15 200°C/400°F
Thin sausages Around 70 g/2.5 oz (diameter 2 cm/0.8 in)	1-7 pieces 9-12	200°C/400°F
Pork roast 500-1000 g/	18-35 oz	40-60	180°C/350°F	· Let it rest for 5 minutes before cutting.
Fish filets Around 120 g/4.2 oz	1-3 (1 layer)	9-20	160°C/325°F	· In order to avoid sticking, place the skin side to the bottom and add some oil.
Shellfish Around 25-30 g/0.9-1 oz	200-1500 g/7-53 oz	10-25	200°C/400°F	· Shake, turn, or stir halfway
Cake	500 g/18 oz	28	180°C/350°F	· Use a cake pan.
Muffins Around 50 g/1.8 oz	1-9	12-14	180°C/350°F	· Use heat-proof silicone muffin cups.
Quiche (diameter 21 cm/8.3 in)	1	15	180°C/350°F	· Use a baking tray or oven dish.
Pre-baked toast / bread rolls	1-6	6-7	180°C/350°F
Fresh bread	700 g/25 oz	38	160°C/325°F	· The shape should be as flat as possible to avoid that the bread touches the heating element when rising.
Fresh rolls Around 80 g/2.8 oz	1-6 pieces	18-20	160°C/325°F
Chestnuts	200-2000 g/7-70 oz	15-30	200°C/400°F	· Shake, turn, or stir halfway
Mixed vegetable (roughly chopped)	300-800 g/11-28 oz	10-20	200°C/400°F	· Set the cooking time according to your own taste. · Shake, turn, or stir halfway

Using the appliance

Airfrying

Illustration of a hand pouring liquid into a cup with a cross mark (no text or symbols)

Caution

• This is an Airfryer that works on hot air. Do not fill the pan with oil, frying fat or any other liquid.
• Do not touch hot surfaces. Use handles or knobs. Handle the hot pan and fat reducer with oven-safe gloves.
  • This appliance is for household use only.
• This appliance may produce some smoke when you use it for the first time. This is normal.
• Preheating of the appliance is not necessary.

1 Place the appliance on a stable, horizontal, level and heat-resistant surface. Make sure the drawer can be opened completely.

Note

- Do not put anything on top or on the sides of the appliance. This could disrupt the airflow and affect the frying result.

Line drawing of a portable air conditioner unit with a black arrow pointing to the interior panel (no text or symbols)

2 Pull the power cord out of the cord storage compartment at the back of the appliance.

Illustration of a wall socket connected to a plug, with an arrow indicating direction (no text or symbols)

3 Put the plug in the wall outlet.

Illustration of an air fryer and a cooking pot (no text or symbols)

4 Open the drawer by pulling the handle.

MAX

Illustration of a hand pouring liquid into a cooking pot using an air fryer (no text or symbols visible)

Smart Device Interface Control Button

Smart Kitchen Temperature 180°C

190 @ ○ @ ○ @ ○

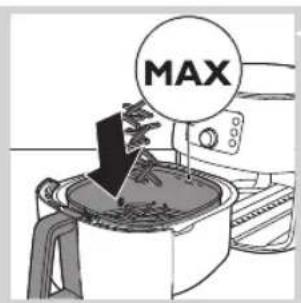

5 Put the ingredients in the basket.

Note

• The Airfryer can prepare a large range of ingredients. Consult the 'Food table' for the right quantities and approximate cooking times.
• Do not exceed the amount indicated in the 'Food table' section or overfill the basket beyond the 'MAX' indication as this could affect the quality of the end result.
• If you want to prepare different ingredients at the same time, make sure you check the suggested cooking time required for the different ingredients before you start to cook them simultaneously.

6 Slide the drawer back into the Airfryer by the handle.

Caution

• Never use the pan without the fat reducer or basket in it. If you heat up the appliance without basket, use oven gloves to open the drawer. The edges and inside of the drawer become very hot.
• Do not touch the pan, fat reducer or basket during and for some time after use, as they get very hot.

7 Press the power On/Off button to switch on the appliance.

Note

- To start with the Smart Chef programs, refer to chapter "Cooking with Smart Chef programs".

8 Press the temperature button.

→The temperature indication blinks on the screen.

Note

- If you press the timer button Ⓞ first, the appliance will start cooking right after the cooking time has been confirmed.

9 Turn the QuickControl dial to choose your desired cooking temperature.

12 ENGLISH

190°C --

190°C 20 min

Smart Ordering Technology 190°C 20

Illustration of a hand using a tool to interact with a container, showing directional arrows and a clock (no text or symbols)

Line drawing of a standard air fryer with a bell icon above it (no text or symbols)

10 Push the QuickControl dial to confirm the selected temperature.

→After the temperature is confirmed, the time indication starts blinking on the screen.

11 Turn the QuickControl dial to choose your desired cooking time.

Note

• If you press the favorite button ⭐ you will save this cooking temperature and time as your favorite cooking settings. Any previously saved settings will be overwritten. For more details, refer to chapter "Save your favorite setting".
• Refer to the food table for manual time/temperature settings for different types of food.

12 Push the QuickControl dial to confirm the selected time.

13 The appliance starts cooking after the cooking time has been confirmed.

Tip

• To pause the cooking process, push the QuickControl dial. To resume the cooking process, push the QuickControl dial again.
• To change the cooking temperature or time during cooking, repeat steps 8–10.
• To cancel any ongoing process and go back to the main menu, press the return button ➤

Note

• If you do not set the required cooking time within 30 minutes, the appliance automatically shuts off for safety reasons.
• If “- -” is selected as the time indication, the appliance goes into preheating mode.
• Some ingredients require shaking or turning halfway through the cooking time (see 'Food table'). To shake the ingredients, press the QuickControl dial to pause cooking, open the drawer and lift the basket out of the pan and shake it over the sink. Then slide the pan with the basket back into the appliance, and press the QuickControl dial to resume cooking.
• If you set the timer to half the cooking time, when you hear the timer bell it is time to shake or turn the ingredients. Be sure to reset the timer to the remaining cooking time.

14 When you hear the timer bell, the cooking time has elapsed.

Illustration of a hand using a toaster to stir contents in a square pot (no text or symbols visible)

Illustration of a hand holding a steamer with an upward arrow, next to an electric cooker (no text or symbols)

Illustration of a container being lifted by a hand using a tool, with no visible text or symbols.

15 Open the drawer by pulling the handle and check if the ingredients are ready.

Note

- If the ingredients are not ready yet, simply slide the drawer back into the Airfryer by the handle and add a few extra minutes to the set time.

16 To remove small ingredients (e.g. fries), lift the basket out of the pan by the handle.

Caution

- After the cooking process, the pan, the fat reducer, the basket, interior housing and the ingredients are hot. Depending on the type of ingredients in the Airfryer, steam may escape from the pan.

17 Empty the basket contents into a bowl or onto a plate. Always remove the basket from the pan to empty contents as hot oil may be in bottom of the pan.

Note

- To remove large or fragile ingredients, use a pair of tongs to lift out ingredients. - Excess oil or rendered fat from the ingredients is collected on the bottom of the pan below the fat reducer. - Depending on the type of ingredients cooking, you may want to carefully pour off any excess oil or rendered fat from the pan after each batch or before shaking or replacing the basket in the pan. Place the basket on a heat-resistant surface. Wearing oven-safe gloves, lift the pan off tracks and place on heat-resistant surface. Carefully remove the fat reducer from the pan using rubber tipped tongs. Pour off excess oil or rendered fat. Return the fat reducer to the pan, the pan to the drawer and the basket to the pan.

When a batch of ingredients is ready, the Airfryer is instantly ready for preparing another batch.

Note

- Repeat steps 4 to 17 if you want to prepare another batch.

Food table for Smart Chef programs

Note

• This appliance is for indoor use only. Start the automatic cooking programs with the appliance at room temperature—do not pre-heat.
  • Always distribute the food evenly in the basket.
• Turn/shake the food if indicated by the appliance. Keep the drawer open as short as possible.
• Do not use any accessories. Make sure that the fat reducer is properly placed in the appliance.
• As food differs in origin, size and brand, make sure it is sufficiently cooked before serving.

Smart Chef programs for Directions
Frozen fries	Thin (7x7mm)Medium (10x10mm)Frozen potato based snacks	200–1400g	·Use frozen fries directly from freezer. Do not thaw before cooking.·The program is developed for thin (7x7mm) and medium (10x10mm) frozen fries.·If you purchased fries specially made for Airfryer, please follow instructions on the package.
Home-made fries	Home made cut (10x10mm)	500–1400g	·Use floury, raw potatoes. Do not pre-cook potatoes.·Do not use potatoes stored below 6°C.·Follow the fresh fries recipe for best results.
Fish	A whole fishBig flat fishFish fillet	1-4 pcs (300-1600g)1 pcs (up to 800g)2-5 pcs (150-200g/pcs), up to 700g	·Do not cook frozen fish·The program is developed for whole fish around 300–400 g.·If smoke occurs, please use manual mode with lower temperatures.
Drumsticks	DrumsticksChicken breast	2-16 pcs (200-2000g)1-5 pcs (up to 150g /pcs)	·The program is developed for fresh (non-frozen) drumsticks. If you want to cook whole chicken legs, add manually 5-10 minutes cooking time after the Smart Chef program has stopped.
A whole chicken	A whole chickenHalf chicken	1000-1800g>1000g	·Only cook raw chicken in the Airfryer. Do not cook frozen chicken.·The program is developed for a whole chicken.

Cooking with Smart Chef programs

Season your ingredients as desired. Put the food inside the basket and slide the basket inside the appliance.

Note

- Do not use honey, syrups or any other sugary ingredients to season your food, since the browning will get very dark.

1 Press the On/Off button to switch on the appliance.

Insert Knowledge Technology OK Cancel Reset

Smart Lighting Technology

Smart Lighting Technology C P

2 To change the Smart Chef program, turn the QuickControl dial until the desired icon is blinking.

3 To confirm the Smart Chef program, press the QuickControl dial.

→The appliance automatically calculates the ideal cooking temperature and time. The screen displays the first estimated cooking temperature and time after a few minutes. During this time the appliance has already started cooking. As long as the screen displays the blinking bars and the temperature/time alternately, the appliance is still calculating the cooking time, and the appliance will automatically adjust the time during cooking.

Note

• To prepare a whole chicken, weigh the chicken before placing it in the basket. Choose the weight by turning the QuickControl dial and pressing it to confirm.
• Do not pull out the drawer as long as the appliance is calculating the cooking time, which is indicated by blinking bars on the display. Otherwise the Smart Chef program will stop, and the appliance will reset to the main menu. Proceed cooking with the manual mode because restarting the Smart Chef program with partially cooked food will lead to a wrong estimation of the cooking time.
• As soon as the calculation phase is finished you will see the temperature and time displayed continuously (without blinking bars), and you may open the drawer to check the status of the food.

Line drawing of an air fryer with a bell icon and control panel (no text or symbols)

4 When you hear the bell and see the shake indication blinking, open the drawer and turn the ingredients or shake the basket with the ingredients. Then slide the basket back into the appliance.
5 When you hear the bell and the timer has elapsed to 0, the food is ready.

Note

- If your food is underdone or the food does not reach your preferred browning level, proceed cooking for several more minutes by pressing the timer button (see steps 11–12 in chapter "Using the appliance").

Making home-made fries

To make great home-made fries in the Airfryer:

1 Peel the potatoes and cut into sticks (10 x 10 mm/0.4 x 0.4 in thick).
2 Soak the potato sticks in a bowl of lukewarm water ( 40^/100^ ) for 3 minutes.
3 Empty the bowl and dry the potato sticks with a dish towel or paper towel.
4 Pour 1–3 tablespoons of cooking oil in the bowl, put the sticks in the bowl and mix until the sticks are coated with oil.
5 Remove the sticks from the bowl with your fingers or a slotted kitchen utensil so excess oil remains in the bowl.

Note

- Do not tilt the bowl to pour all the sticks in the basket at once to prevent excess oil from going into the pan.

6 Put the sticks in the basket.
7 Start the Smart Chef program for home-made fries. When shaking of the fries is needed, you will hear the timer bell and see the blinking shaking icon on the display.

Note

- Consult the chapter "Food table for Smart Chef programs" for the right quantities.

Choosing the keep warm mode

Drami Fanning Technology 30-

1 Press the keep warm button (you can activate the keep warm mode at any time).

→The keep warm indication lights up with pulsing effect.

Sound Display Technology 20 ms 1 2 3

→The keep warm timer is set to 30 minutes. To change the keep warm time (1–30 min), press the timer button @turn the QuickControl dial and then push it to confirm. You cannot adjust the keep warm temperature.

2 To pause the keep warm mode, push the QuickControl dial. To resume the keep warm mode, push the QuickControl dial again.
3 To exit the keep warm mode, press the return button or the On/Off button

Tip

- If food like French fries loses too much crispness during the keep warm mode, either shorten the keep warm time by switching off the appliance earlier or crisp them up for 2–3 minutes at the temperature of 180^ C.

Note

• If you activate the keep warm mode during cooking (the keep warm indication lights up), the appliance will keep your food warm for 30 minutes after the cooking time has elapsed.
• During the keep warm mode, the fan and heater inside of the appliance turn on from time to time.
• The keep warm mode is designed to keep your dish warm immediately after it is cooked in the Airfryer. It is not meant for reheating.

Save your favorite setting

Reset Binding Technology

1 Press the On/Off button to switch on the appliance.

Smart Heating technology 180°C - - +

2 Press the temperature button.

18 ENGLISH

190

3 Turn the QuickControl dial to select the temperature.

190°C Control Settings

4 Press the QuickControl dial to confirm the chosen temperature.

190°C 20°C

5 Turn the QuickControl dial to select the time.

190°C 20+°

6 Press the favorite button ⭐ to save your setting. You will hear a beep after the setting is saved.

Smart Speaker Interface 190°C 20:00

7 Press the QuickControl dial to start the cooking process.

Rearl Drawing Technology

Cooking with a favorite setting

1 Press the On/Off button to switch on the appliance.

Smart Cooking Technology 190°C 20 min

2 Press the favorite button. ☆

Smart Kitchen to be added! 190°C 20° Hand

3 Press the QuickControl dial to start the cooking process.

Note

• You can overwrite your favorite setting by applying the same procedure as mentioned above.
• Pressing the favorite button in the manual mode will overwrite your favorite setting. To apply your favorite setting, press the return button to exit the manual mode first.
  • To exit the favorite mode, press the return button?
• During cooking with the favorite mode, you will be able to change the temperature or time by pressing the temperature or timer button. The change will not overwrite the stored favorite setting.

Cleaning

Warning

• Let the basket, pan, fat reducer and the inside of the appliance cool down completely before you start cleaning.
• Remove the fat reducer from the pan using rubber tipped tongs. Do not remove using your fingers as hot fat or oil collects under the fat reducer.
• The pan, basket, fat reducer and inside of the appliance have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials as this may damage the non-stick coating.

Clean the appliance after every use. Remove oil and fat from the bottom of the pan after every use.

1 Press the power On/Off button to switch off the appliance, remove the plug from the wall outlet and let the appliance cool down.

Line drawing of a hand cleaning an air fryer with a cloth (no text or symbols)

Line drawing of a hand using an air fryer with a coiled fan nearby (no text or symbols)

Line drawing of a toaster oven with handle and lid (no text or symbols)

Tip

- Remove the pan and basket to let the Airfryer cool down more quickly.

2 Remove the fat reducer from the pan using rubber tipped tongs. Dispose of rendered fat or oil from the bottom of the pan.
3 Clean the pan, basket and fat reducer in a dishwasher. You can also clean them with hot water, dishwashing liquid and a non-abrasive sponge (see 'cleaning table').

Tip

• If food residues stuck to the pan, fat reducer or basket, you can soak them in hot water and dishwashing liquid for 10–15 minutes. Soaking loosens the food residues and makes it easier to remove. Make sure you use a dishwashing liquid that can dissolve oil and grease. If there are grease stains on the pan, fat reducer or basket and you have not been able to remove them with hot water and dishwashing liquid, use a liquid degreaser.
• If necessary, food residues stuck to the heating element can be removed with a soft to medium bristle brush. Do not use a steel wire brush or a hard bristle brush, as this might damage the coating on the heating element.

4 Wipe the outside of the appliance with a moist cloth.

Note

• Make sure no moisture remains on the control panel. Dry the control panel with a cloth after you have cleaned it.
  5 Clean the heating element with a cleaning brush to remove any food residues.
  6 Clean the inside of the appliance with hot water and a non-abrasive sponge.

Cleaning table

Storage

1 Unplug the appliance and let it cool down.
2 Make sure all parts are clean and dry before storing.
3 Insert the cord into the cord storage compartment.

Note

• Always hold the Airfryer horizontally when you carry it. Make sure that you also hold the drawer on the front part of the appliance as it can slide out of the appliance if accidentally tilted downwards. This can lead to damaging of the drawer.
• Always make sure that the removable parts of the Airfryer e.g. removable mesh bottom, etc. are fixed before you carry and/or store it.

Recycling

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

• This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).
• Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

22 ENGLISH

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause	Solution
The outside of the appliance becomes hot during use.	The heat inside radiates to the outside walls.	This is normal. All handles and knobs that you need to touch during use stay cool enough to touch.
		The pan, basket, fat reducer, and the inside of the appliance always become hot when the appliance is switched on to ensure the food is properly cooked. These parts are always too hot to touch.
		If you leave the appliance switched on for a longer time, some areas get too hot to touch. These areas are marked on the appliance with the following icon:As long as you are aware of the hot areas and avoid touching them, the appliance is completely safe to use.
My home-made fries do not turn out as I expected.	You did not use the right potato type.	To get the best results, use fresh floury potatoes. If you need to store the potatoes, do not store them in a cold environment like in a fridge. Choose potatoes whose package states that they are suitable for frying.
	The amount of ingredients in the basket is too big.	Follow the instructions in this user manual to prepare home-made fries (see ‘Food table for Smart Chef programs’ or download the free Airfryer App).
	Certain types of ingredients need to be shaken halfway through the cooking time.	Follow the instructions in this user manual to prepare home-made fries (see ‘Food table for Smart Chef programs’ or download the free Airfryer App).
The Airfryer does not switch on.	The appliance is not plugged in.	Check if the plug is inserted in the wall outlet properly.
	Several appliances are connected to one outlet.	The Airfryer has a high wattage. Try a different outlet and check the fuses.
After starting a Smart Chef program the appliance stopped the calculation phase.	The cooking chamber temperature is too high either because the appliance is pre-heated or has not cooled down sufficiently between two batches.	Keep the drawer open for some minutes to cool it down. Close it and start the Smart Chef program again.
	The drawer is opened during the calculation phase.	Close the drawer and proceed cooking with the manual mode.
	The drawer is not closed properly.	Make sure that the drawer is closed properly.
The appliance has stopped cooking with the Smart Chef program.	The drawer is opened during the calculation phase.	Do not pull out the drawer as long as the appliance is calculating the cooking time, which is indicated by blinking bars on the display.
I see some peeling off spots inside my Airfryer.	Some small spots can appear inside the pan of the Airfryer due to the incidental touching or scratching of the coating (e.g. during cleaning with harsh cleaning tools and/or while inserting the basket).	You can prevent damage by lowering the basket into the pan properly. If you insert the basket at an angle, its side may knock against the wall of the pan, causing small pieces of coating to chip off. If this occurs, please be informed that this is not harmful as all materials used are food-safe.
White smoke comes out of the appliance.	You are cooking fatty ingredients and the fat reducer is not put in the pan.	Carefully pour off any excess oil or fat from the pan, place the fat reducer in the pan and then continue cooking.
	The pan still contains greasy residues from previous use.	White smoke is caused by greasy residues heating up in the pan. Always clean the pan, basket and fat reducer thoroughly after every use.
	Breading or coating did not adhere properly to the food.	Tiny pieces of airborne breading can cause white smoke. Firmly press breading or coating to food to ensure it sticks.
	Marinade, liquid or meat juices are splattering in the rendered fat or grease	Pat food dry before placing it in the basket.
My display shows 5 dashes as illustrated in the picture below.	This is an error code. 1. Unplug	the appliance and let it rest for 5 minutes before plugging in again.2. If your display still shows the dashes, call the Philips service hot line or contact the Consumer Care Center in your country.

24 DEUTSCH

INHALTSVERZEICHNIS

Wichtig! 25

Einführung 27

Warning sign with steam symbol inside triangle, indicating hazardous material

Illustration of a person using an electric cooker to clean food (no text or symbols visible)

Illustration of a hand holding a kitchen appliance with a lid and handle, showing a black arrow pointing to the lid (no text or symbols present)

Illustration of a hand pouring liquid into a square container (no text or symbols)

Diagram illustrating a process with labeled components and directional arrows, likely illustrating a mechanical or fluid system.

Illustration of a hand using an air fryer to press down a pot, with a toaster visible in the background (no text or symbols)

Illustration of a hand using an air fryer to clean a small container (no text or symbols visible)

Illustration of a hand pouring liquid into a container with a cross mark (no text or symbols)

Vorsicht

Diagram of a portable air conditioner unit with a door and airflow arrow (no text or symbols)

Hinweis

Illustration of a wall socket with a plug inserted, showing an arrow pointing to the socket (no text or symbols present)

Illustration of an air fryer and a cooking pot (no text or symbols)

Illustration of a hand pouring food into a cooking pot using an air fryer (no text or symbols visible)

Shelf Opening Technology Control buttons Control buttons Control buttons

Smart Kitchen Temperature 180°C

190° ① ② ③ ④ ⑤ ⑥

190°C Control knob

Illustration of a hand opening a box with arrows indicating direction, and a clock showing time (no text or symbols)

Illustration showing four steps of cooking a hot air fryer with a bell, including heating, cooking, and drying.

Line drawing of an air fryer with a control panel and sound icons (no text or symbols)

Start cooking technology 30 min OK * * - * - OK OK

Smart Ordering Technology

Smart Lighting Technology Power Battery

Smart Refrigerator 190°C 20 min

190°C 20-

Line drawing of a hand cleaning a food item from an air fryer (no text or symbols)

Line drawing of a hand using a hairdryer to clean food from a tray (no text or symbols)

Line drawing of a hand using a toaster to clean food items (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Warning symbol with steam inside a triangle (no text or numbers)

Illustration of a hand using an electric cooker to open a microwave oven (no text or symbols visible)

Illustration of a hand using a cooking pot to press a kitchen appliance (no text or symbols visible)

Illustration of a hand pouring liquid into a container (no text or symbols)

Diagram illustrating a process with labeled steps 1 and 2, showing a container with internal components and heat emission.

Illustration of a hand using a cooking pot to add liquid into a kitchen appliance (no text or symbols visible)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols visible)

Illustration of a hand pouring liquid into a cup with a cross mark (no text or symbols)

Diagram of a portable air conditioner unit with airflow direction arrow (no text or symbols)

Illustration of a wall socket with a plug inserted, showing internal wiring (no text or symbols)

Illustration of a food air fryer and a microwave oven (no text or symbols)

MAX

Illustration of a hand pouring food into a cooking pot using an air fryer (no text or symbols visible)

Smart Heating control panel Control buttons Control buttons Control buttons

190°C Control panel technology

190°C 20

190°C 20°C

Illustration of a hand pouring liquid into a container with arrows indicating flow, accompanied by a clock showing time (no text or symbols)

Line drawing of an air fryer with a bell icon above it (no text or symbols)

Illustration of a hand using a toaster to press a hot air fryer (no text or symbols visible)

Illustration of a hand using a cooking pot to fill food with an air fryer (no text or symbols visible)

Conseil

Illustration of a hand pouring liquid into a container on a circular plate (no text or symbols)

Smart Lighting Technology OK Cancel Reset Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support Reset Support

Line drawing of an air fryer with control panel and warning symbols (no text or labels)

Reset-Being technology 30 ms OK OK OK OK

20 m 1 2 3

Smart Lighting Technology

Smart Heating technology 180°C - - +

190° Control panel

Reset Binding Technology

Start cooking time: 5 p.m. 190°C 20-

Line drawing of a hand cleaning an air fryer with a cloth (no text or symbols)

Conseil

Line drawing of a hand using a toaster to clean air from a microwave oven (no text or symbols)

Line drawing of a toaster oven with handle and lid (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, accompanied by a blank rectangular block below (no text or symbols present)

Warning symbol with steam inside a triangle, indicating hazardous or hazardous material

74 NEDERLANDS

Illustration of a hand using a toaster to clean or prepare food items (no text or symbols visible)

Illustration of a hand holding a cooking pot with a kitchen appliance, no text or symbols present

Illustration of a hand pouring liquid into a container (no text or symbols)

Diagram illustrating a process with labeled steps 1 and 2, showing a container with material inside and heat dissipation indicated by arrows.

Illustration of a hand using a toaster to press a cooking pot (no text or symbols visible)

Illustration of a hand holding a cooking pot next to an air fryer (no text or symbols visible)

Illustration of a hand pouring liquid into a cup with a cross mark (no text or symbols)

Diagram of a portable air conditioner unit with a black arrow pointing to the interior panel (no text or symbols present)

Let op

Illustration of a plug inserted into an electrical socket with a black arrow indicating direction (no text or symbols)

Illustration of a food air fryer and a microwave oven (no text or symbols)

MAX

Illustration of a hand using an air fryer to cut a piece of food into a bowl (no text or symbols visible)

Smart Loading Technology My Computer My Computer My Computer My Computer My Computer

Smart Heating technology 180°C

Smart Lighting Technology 190°C - - -

190°C 50%

Brand Washing (in km/h) 190°C 20 ★ ☆ ◎ ◎ ◎ ◎ ◎

Smart Kitchen kitchen 190°C 20min

Illustration of a hand using a device to lift a box with arrows indicating motion, next to a clock (no text or symbols)

Line drawing of an air fryer with a bell icon above it (no text or symbols)

Illustration of a hand using a toaster to stir or steam from a steaming appliance (no text or symbols)

Illustration of a hand holding a steamer with a toaster in the background (no text or symbols)

Tip

Diagram of a robotic arm pouring material into a circular container (no text or symbols)

Reset Printing Technology 3 0

Line drawing of an air fryer with control panel and sound icons (no text or symbols)

Dental Enabling to be ready 30° OK

Smart Lighting Technology 20 °C 1 2 3

Smart Binding Technology

Smart Lighting Technology 180°C - - +

190°C 20°

190°C 20+

Smart Gaming with Buy 190°C 20-

Line drawing of a hand cleaning a toaster oven with a cloth (no text or symbols)

Tip

Line drawing of a toaster oven with a side panel and handle, no text or symbols present

Line drawing of a kitchen air fryer with a bag attached (no text or symbols)

Symbol of a trash bin with crossed and unbroken lines, no text or numbers present

Specifications are subject to change without notice

© 2021 Philips Domestic Appliances Holding B.V.

All rights reserved

100% recycled paper

100% papier recyclé

3000 039 33152 A
