USER MANUAL 3070S Q-ACOUSTICS

ACOUSTICS

Line drawing of a multi-tiered speaker setup with speakers and a tall tower (no text or symbols)

Modelle: Q3090C, Q3010, Q3020, Q3050

WICHTIGE INFORMATIONEN - BITTE SORGFÄLTIG LESEN

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Technical line drawing of a rectangular electronic device with two circular ports and a central connector (no text or symbols)

Pure mechanical diagram showing a piston-cylinder assembly with rotational arrows (no text or symbols)

Stereoanschlüsse

Standardanschlüsse

Armour Home Electronics Ltd.

Stortford Hall Industrial Park

Bishops Stortford, Herts, UK

CM23 5GZ

3000 Series
User Manual and Product Specifications

Line drawing of a multi-tiered speaker setup with speakers and a tall tower (no text or symbols)

Models: Q3090C, Q3010, Q3020, Q3050

Safety Information

IMPORTANT INFORMATION - PLEASE READ CAREFULLY

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings.

Install in accordance with the manufacturer instructions.

Use only attachments / accessories specified by the manufacturer. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

Caution: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this device.

Service: Equipment for servicing should be returned to the supplying dealer, or to the service agent for your area. The addresses of the main Service Agents for the UK are listed in this manual.

Introduction

Thank you for purchasing Q Acoustics.

This manual is intended to take you through setup and installation and will help provide optimum performance from the product.

Please read the instructions, important safety information and warnings carefully before installation and use, to ensure the safe and satisfactory operation of this product.

We hope you enjoy the Q Acoustics experience.

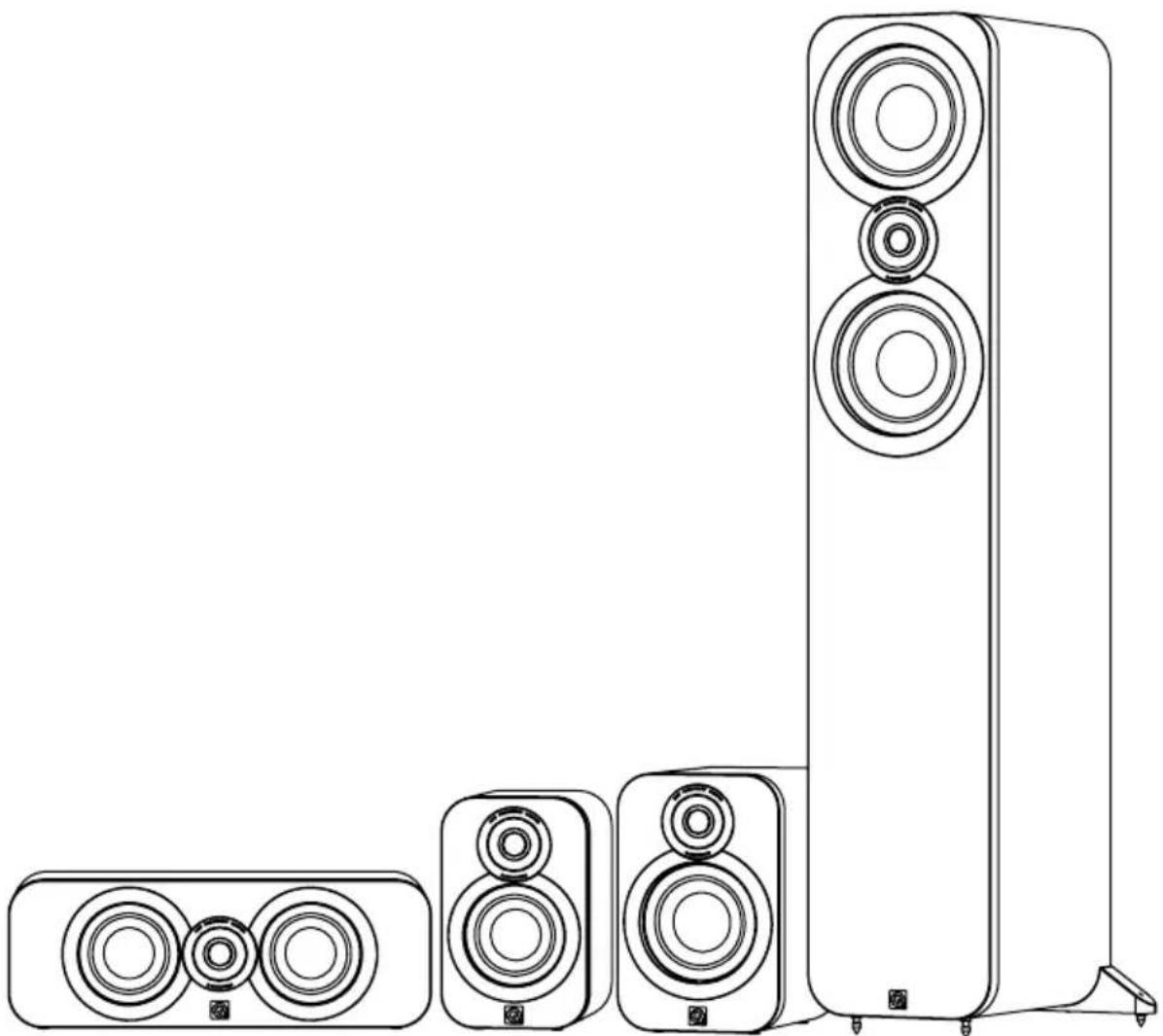

The Q Acoustics 3000 series is a range of loudspeakers designed to meet the highest expectations of dedicated 2-channel audiophiles and discerning movie enthusiasts.

The range comprises:

3010: Compact bookshelf speaker with a 100 mm bass driver.

3020: Bookshelf speaker with a 125 mm bass driver.

3050: Floorstander with two 165 mm bass drivers

3070S: 140 Watt active subwoofer with 2 x 165 mm drivers.

3090C: Centre channel with 2 x 100 mm bass drivers.

3050 speakers are bi-wireable. All the loudspeakers may be operated close to TV monitors with no ill-effects with the exception of the 3070S which should not be operated within 500mm of TV screens monitors or other magnetically sensitive equipment. Plasma and LCD screens are unaffected.

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains.

When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

Never play your sound system at full volume. The position of the volume control is deceptive and does not indicate the power level of the system. Using very high volume settings may damage your hearing.

Do not connect your loudspeaker terminals to the mains supply.

Do not expose your loudspeakers to excessive cold, heat, humidity or sunlight.

If you play your loudspeakers without their grilles on, be careful to protect the drive units from damage.

Do not use makeshift stands. Fit the Q Acoustics dedicated stand according to the instructions and using any fixings provided. Your dealer will advise you.

Do not dismantle the loudspeaker. You will invalidate the warranty.

Unpacking your loudspeakers

Unpack the speakers fully. Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050 and 3070S are heavy - get assistance to lift them if necessary.

When manoeuvring loudspeakers, do not drag them across the floor as this may cause damage - lift them before moving them.

In the carton you will find: The loudspeaker/s and this product manual.

In addition the packing for the following models contains:

3050: Rear stabiliser and spike covers for each speaker. An Allen key to adjust the spikes once fitted.

3070S: A mains power cord or cords, spikes and spike covers.

Check the product carefully. If any items are damaged or missing, report this to your dealer as soon as possible.

Retain the packing for future transport. If you dispose of the packing, please do so following all recycling regulations in your area.

Preparation

Spikes are sharp. Exercise care!

Never place a spiked loudspeaker where it can cause damage!

Always move your loudspeakers by lifting them - never drag them!

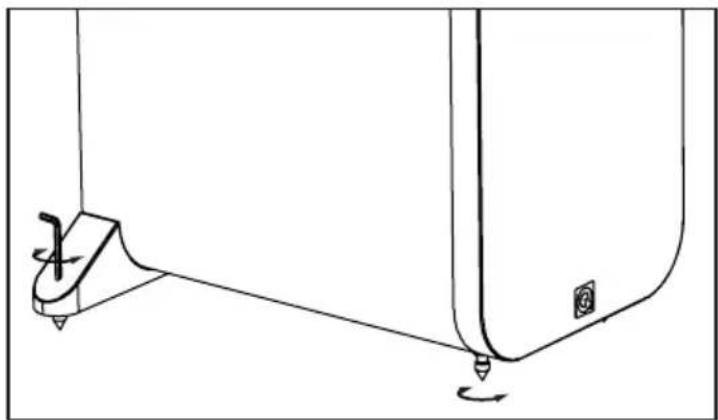

Attach the rear stabiliser - 3050

Thread the spikes fitted with locking nuts half way into the base and return the loudspeaker to the upright position. (If you have a wood or stone floor push a spike protector over each spike before turning the speaker upright) When the speaker is the right way up, insert the Allen key into each rear spike from the top and adjust all the spikes in and out until the loudspeaker is level and stable.

Simple line drawing of a mechanical device with a lever and rotating component (no text or symbols)

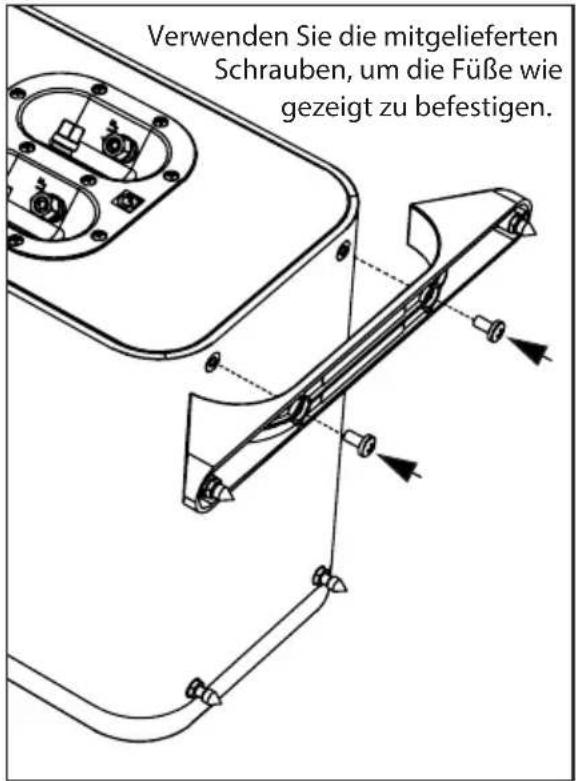

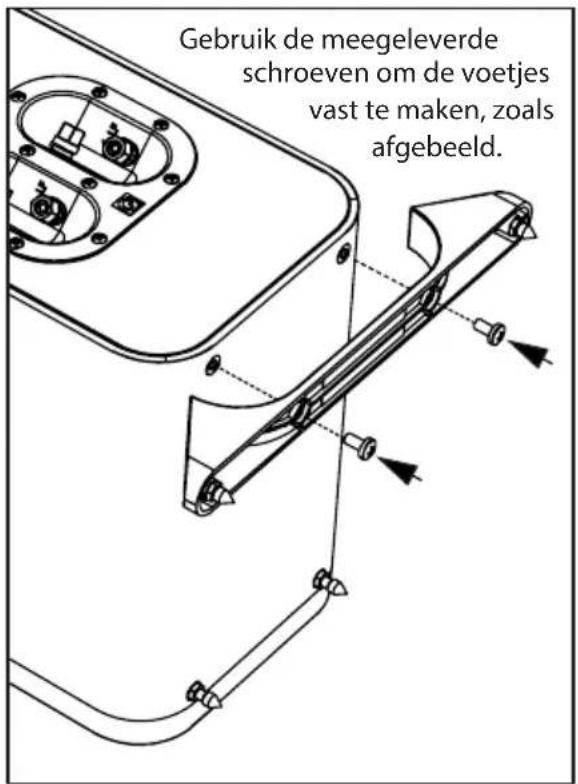

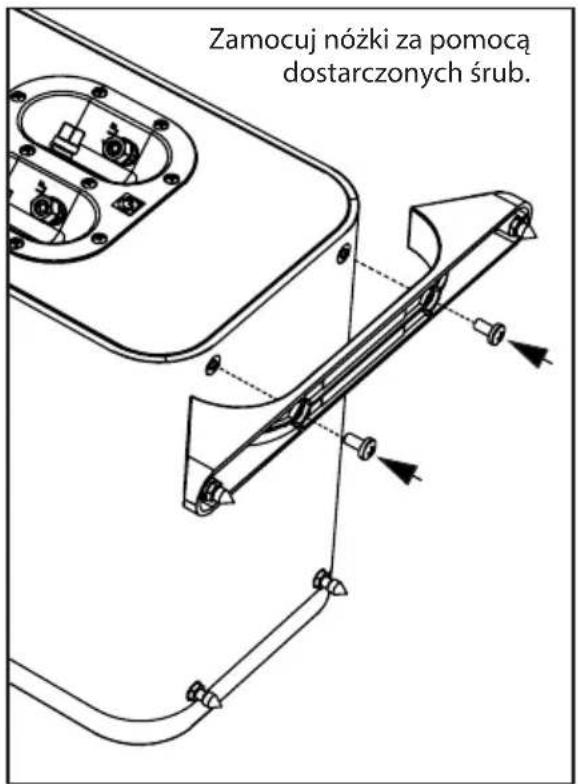

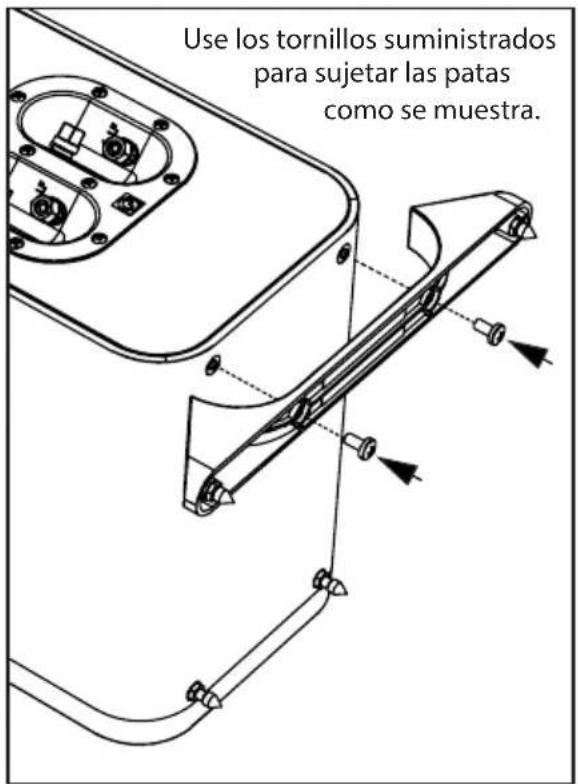

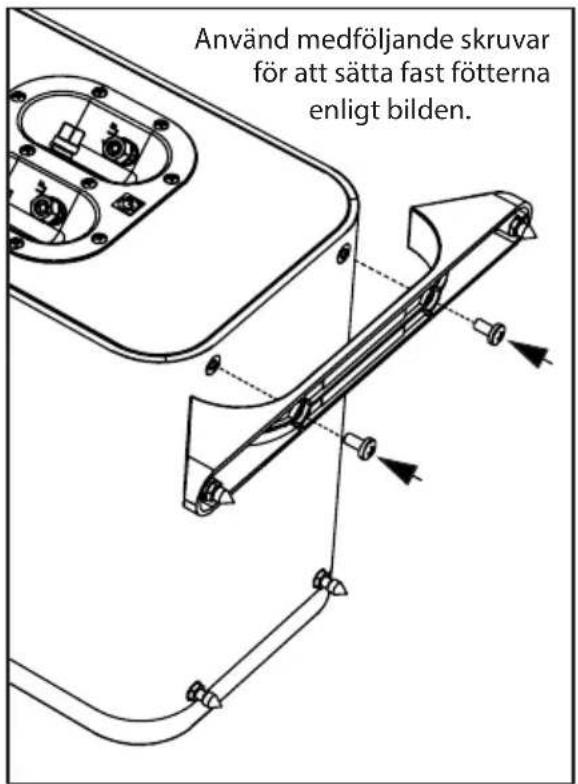

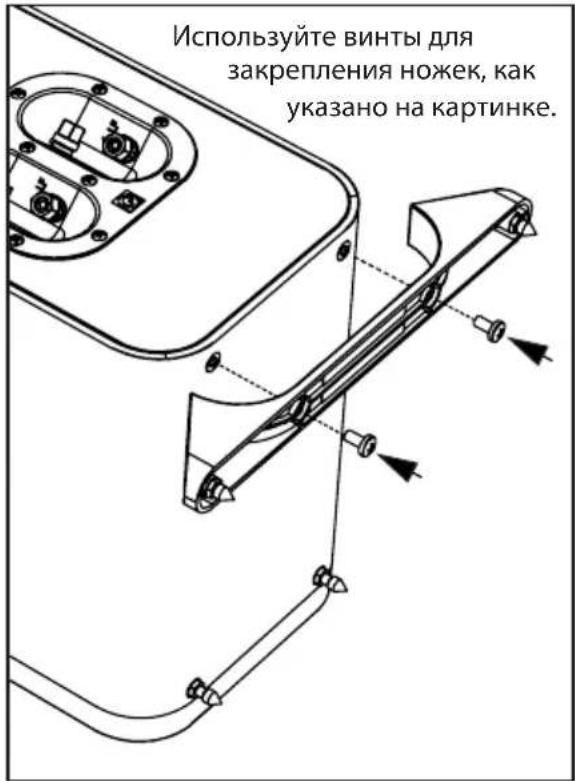

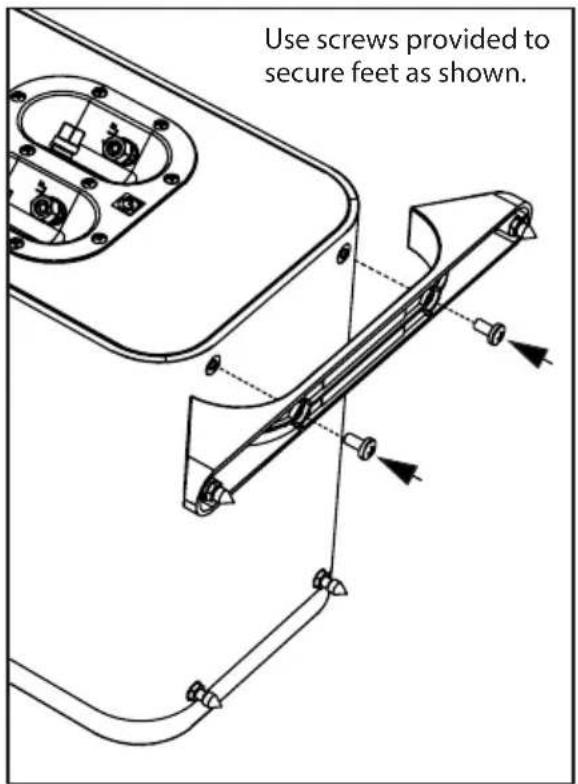

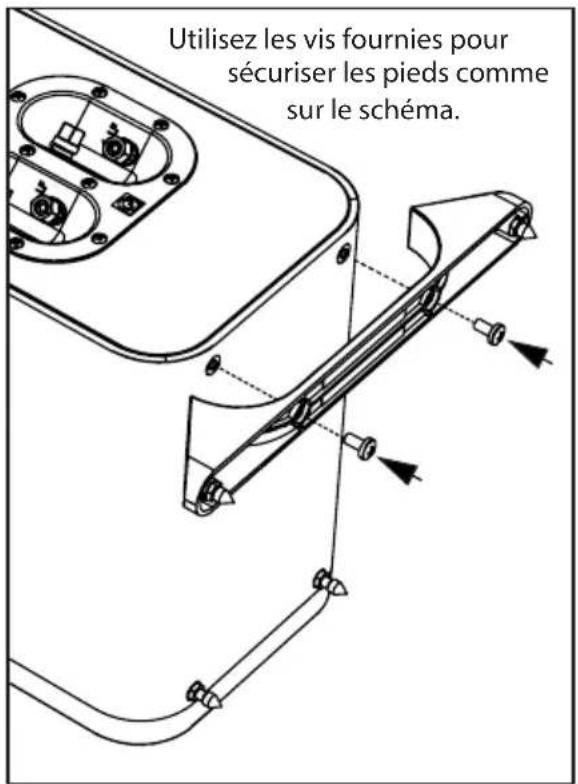

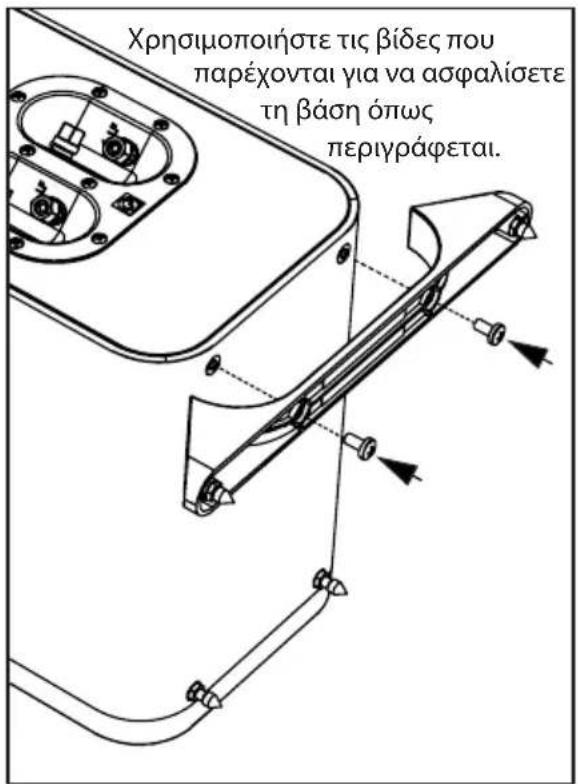

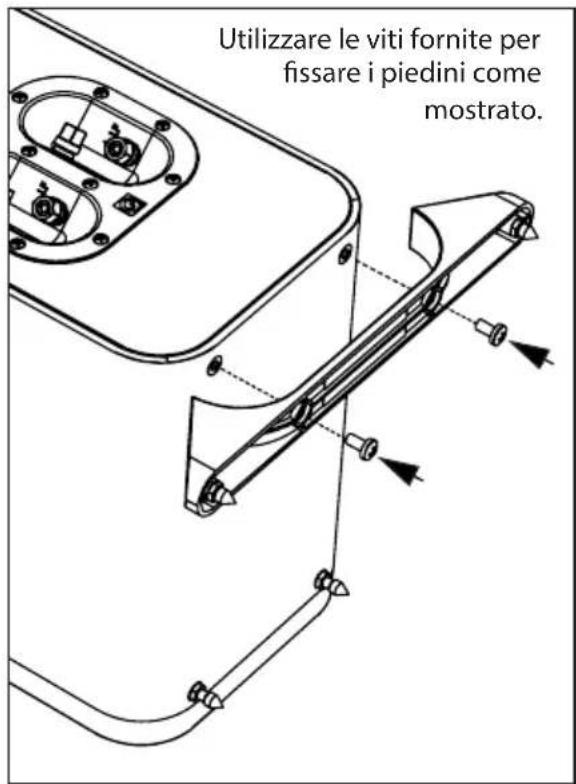

Use screws provided to secure feet as shown.

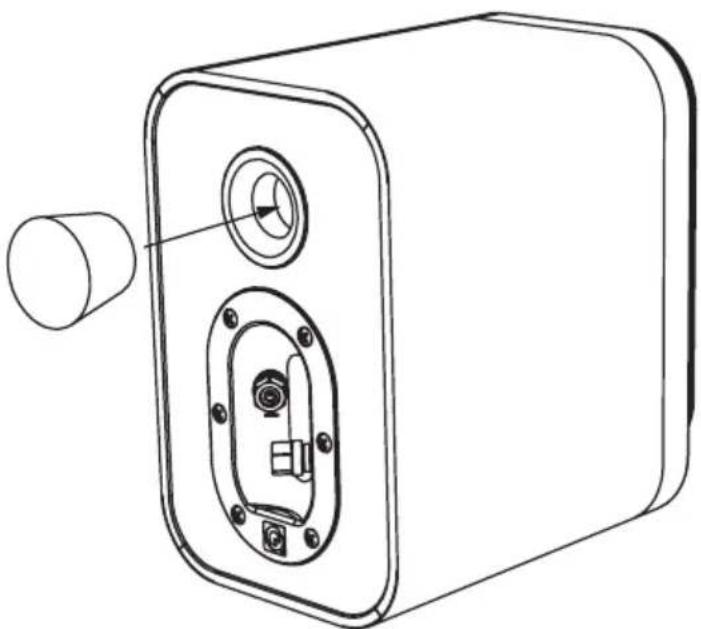

Foam Bung

The 3000 series speakers are rear ported and designed to work best with some space behind them i.e. 200mm or so away from a wall. If you position your speakers close to a wall / corner then the foam bungs should be inserted into the rear ports or there could be too much bass.

Ensure the bungs are fitted snugly into the port without inserting them too far. You will find the level of bass is reduced but definition and bass extension is increased. Experiment to see what you prefer and try making small changes to the position of the speaker to optimise the final result.

Technical line drawing of a rectangular electronic device with mounting holes and a cylindrical component (no text or symbols)

3050

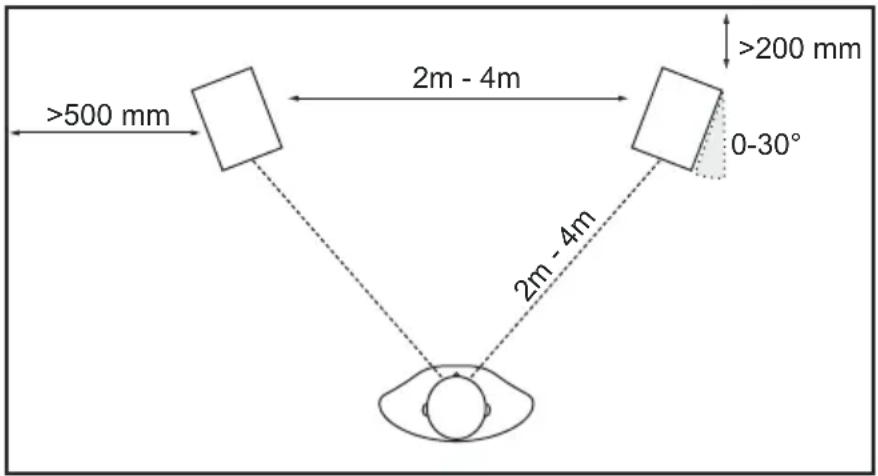

The 3050 loudspeakers should be positioned at least 200mm from a back wall and 500mm from the side walls. Placing the speakers closer to the wall will increase bass but could cause the sound to boom and lack precision and detail. The speakers should be 2m - 4m apart and central to the seated listener. Turning the speakers slightly inwards will sharpen a stereo image but may cause narrowing of the sound source.

>500 mm 2m - 4m >200 mm 0-30° 2m - 4m

3010 and 3020

The 3010 and 3020 are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted slighter higher with the speaker angled down. Stand mounted speakers should be treated as floorstanding speakers except that the speaker may be placed a little closer to the back wall. Shelf mounting is also possible.

An optional bracket designed specifically to wall mount the Q Acoustics 3010, 3020 and 3090C is available from your dealer. Floor stands for the 3010 and 3020 are also available. Be prepared to experiment to find the best setup for your taste in your particular listening room.

Effects loudspeakers

3090C

The 3090C is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090C to the wall or other suitable surface immediately above or below the screen using the Q-Acoustics Wall Bracket. If not, consider placing the TV on a cabinet with the 3090C on a secure shelf immediately below the TV.

Surround Speakers

There are recommendations from Dolby labs for 5.1 effects speakers. Surround speakers should be mounted on either side of the listener, slightly behind the listening position. The speakers should be sited facing inward either mounted on the side walls of the room or if the room is large, on high stands and with their centres above ear level to a seated listener.

400 mm

Connecting Passive Loudspeakers

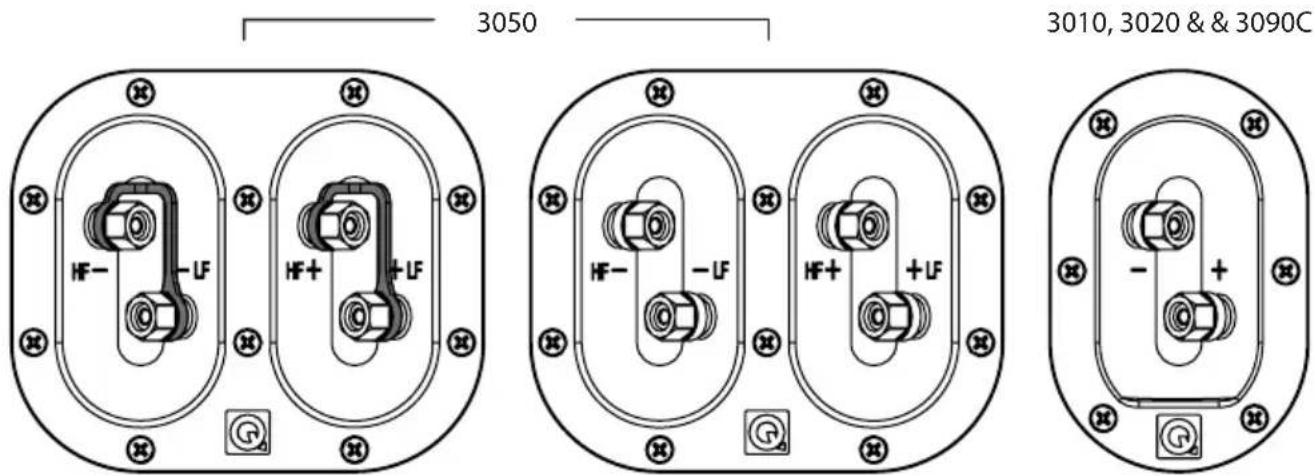

Terminals and Connectors

The 3050 is bi-wireable. A bi-wireable crossover has four terminals. The upper pair of terminals connects to the treble (HF) speaker and the lower pair to the bass (LF) speaker/s. As supplied the crossovers are fitted with removable links to connect the terminal pairs. This permits you to connect the loudspeaker conventionally using one pair of cables or in bi-wired mode with two pairs. The 3010, 3020 and 3090C have standard two terminal crossovers.

3050 3010, 3020 & & 3090C

Standard Connection Standard ConnectionBi-Wired Connection

Loudspeaker Cables

Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose 'bell' or 'zip' wire. Use cable with generous amounts of copper for the front and centre channels. Thin cables reduce the bass and restrict the dynamic range. Surround (rear) channels are less critical.

Speaker cable has a stripe or tracer along one core. By convention this is connected to the positive terminals. The cables connecting the amplifier to the front loudspeakers should ideally be the same length. Never join cables - use complete lengths.

Preparing Cables

Split the cable to a depth of about 40 mm. Bare the wire to a depth of 10mm and twist the ends to gather any stray wires. Crop the cable leaving 7mm of bare wire exposed.

Connecting a Terminal

Unscrew the terminal anticlockwise to expose the mounting hole in the base of the terminal column.

Insert the bare end of the cable into the hole. Re-tighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. In the EU it is against safety regulations to use 4mm loudspeaker plugs.

7mm 30mm

Tight Loose

Pure mechanical diagram showing a piston-cylinder assembly with rotational arrows (no text or symbols)

Connecting Passive Loudspeakers

Stereo Connections

Standard Connections

Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT channel of the amplifier. Connect the BLACK (−) terminal of the loudspeaker to the matching BLACK, Negative (−) terminal of the amplifier. Repeat this procedure for the LEFT channel.

In the case of the 3050 you may use any convenient Positive(+) or Negative (−) terminal. Refer to the illustration below.

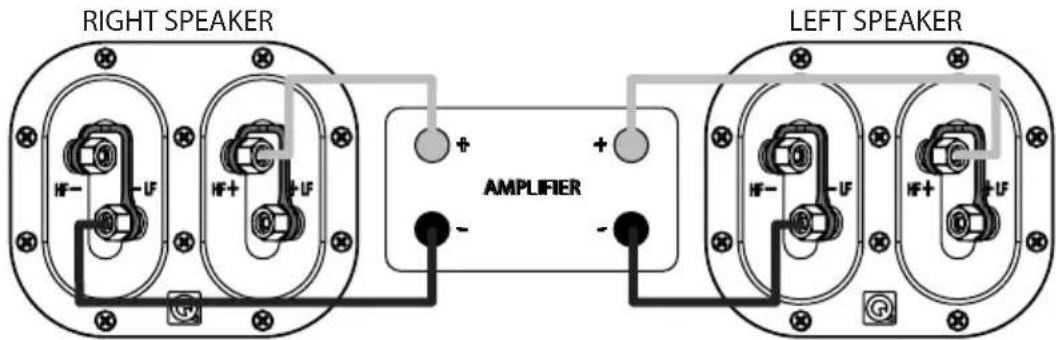

Standard Wiring: 3050

RIGHT SPEAKER LEFT SPEAKER HF- UF HF+ UF AMPLIFIER HF- UF HF+ UF

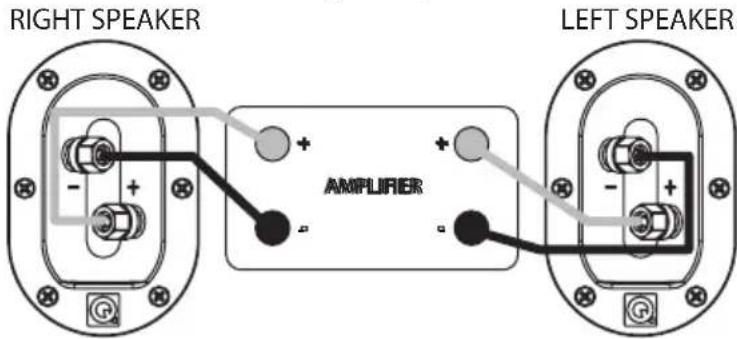

Standard Wiring: 3010, 3020 & 3090C

RIGHT SPEAKER AMPLIFIER LEFT SPEAKER

Bi-Wiring

Directly connecting the treble and bass networks of a loudspeaker to an amplifier improves both bass performance and dynamic range.

To bi-wire: Prepare two twin cables for each loudspeaker. Unscrew all the loudspeaker terminals and remove both links. Now connect the treble terminals and the bass terminals to the amplifier following the procedure described in Standard Wiring. Refer to the illustration below.

When your speakers are connected: Switch on the system and play some music at moderate level. Fine tune the speaker placement to suit.

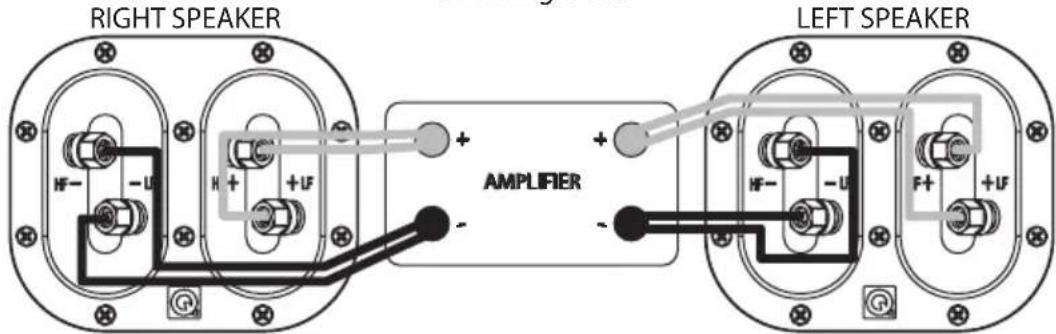

Bi-Wiring: 3050

RIGHT SPEAKER AMPLIFIER LEFT SPEAKER

Care and Cleaning

Cabinet Care

Clean cabinets with a dry cloth. Do not use solvent based cleaning materials. If the cabinets become stained, remove the stain with a cloth lightly moistened with water, white spirit or isopropyl alcohol depending on the stain. Then lightly buff with a cloth to remove any residue of the cleaning agent. Never use abrasives of any kind.

Grilles

Lightly brush out grilles with a soft brush.

Drive Units.

Drive units are best left untouched as they are easily damaged when exposed.

Warranty

Q Acoustics loudspeakers are warranted free of defects in materials and workmanship as follows:

Passive Loudspeakers: 5 years from the date of purchase

Active Loudspeakers & Subwoofers: 2 years from the date of purchase

During the warranty period Q Acoustics will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.

Misuse and fair wear and tear are not covered by warranty.

Within the warranty period faulty units should be returned to the supplying dealer. Q Acoustics does not support an International Warranty and if it is not possible to return to the supplying dealer please contact Q Acoustics for advice.

Items that cannot be taken in for repair must be sent carriage paid, preferably in the original packing, and with the proof of purchase. Damage sustained by goods in transit to the repair centre is not covered by warranty. Return carriage for items covered by the warranty will be paid by Q Acoustics or their distributor or agent as appropriate.

This warranty does not in any way affect your legal rights.

For service information In other countries contact: [e-mail]

Q ACOUSTICS

Armour Home Electronics Ltd.

Stortford Hall Industrial Park

Bishops Stortford, Herts, UK

CM23 5GZ

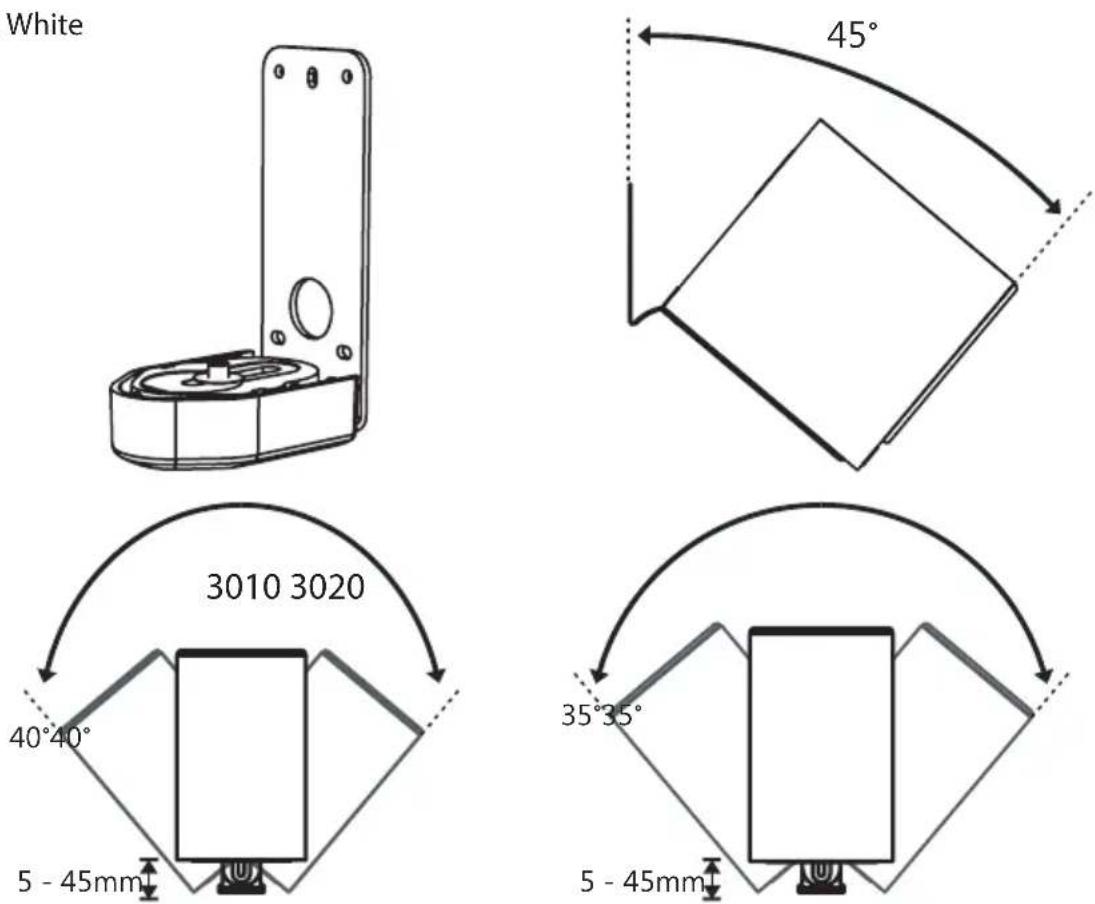

3010 / 3020 / 3090C Wall Bracket (Single)
Black and White

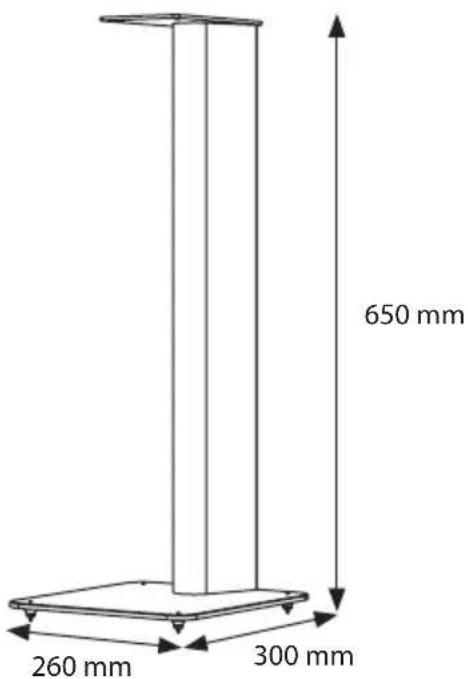

3010 / 3020 Speaker Stand (Pair)
Black or White

650 mm 260 mm 300 mm

Passive Loudspeakers	3010	3020	3050	3090C
Enclosure type:	2-way reflex	2-way reflex	2-way reflex	2-way reflex
Bass unit (mm):	100 mm	125 mm	2 x 165 mm	2 x 100 mm
Treble unit (mm):	25 mm	25 mm	25 mm	25 mm
Frequency response (+/-3dB):	68 Hz - 22 kHz	64 Hz - 22 kHz	44 Hz - 22 kHz	75 Hz - 22 kHz
Nominal impedance:	6 Ω	6 Ω	6 Ω	6 Ω
Sensitivity (2.83v@1m):	86dB	88dB	92dB	89dB
Recommended amplifier power:	15 - 75W	25 - 75W	25 - 100W	25 - 100W
Crossover frequency:	2.8 kHz	2.9 kHz	2.6 kHz	2.7 kHz
Effective volume:	3.8 litres	5.9 litres	35.6 litres	10.3 litres
Cabinet dimensions (WxHxD mm):	150 x 235 x 200	170 x 260 x 226	200 x 1000 x 298	430 x 150 x 200
Weight (per cabinet):	3.6 Kg	4.6 Kg	17.8 Kg	6.0 Kg

Active Subwoofer

3070S

Enclosure type:

Ported

Bass unit (mm):

2 x 165 mm long throw

Amplifier power:

140W rms

Crossover frequency:

50 Hz - 150 Hz (var.)

Cabinet dimensions

(WxHxD mm):

200 × 400 × 425

Weight:

13.6 Kg

Q ACOUSTICS

www.Qacoustics.co.uk

Q ACOUSTICS

Serie 3000

Line drawing of a multi-tiered speaker setup with speakers and a tall tower (no text or symbols)

Modelos: Q3090C, Q3010, Q3020, Q3050

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a rectangular electronic device with two circular ports and a central hub (no text or symbols)

[e-mail]

Q ACOUSTICS

Armour Home Electronics Ltd.

Stortford Hall Industrial Park

Bishops Stortford, Herts, Reino Unido

CM23 5GZ

Line drawing of a two-tiered speaker tower with dual speakers (no text or symbols)

Line drawing of a multi-tiered speaker setup with speakers and a tall tower (no text or symbols)

Modèles : Q3090C, Q3010, Q3020, Q3050

INFORMATIONS IMPORTANTES - VEUILLEZ LIRE ATTENTIVEMENT

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a rectangular electronic device with two circular ports and a central hub (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Armour Home Electronics Ltd.

Stortford Hall Industrial Park

Line drawing of a two-tiered speaker tower with dual speakers (no text or symbols)

Line drawing of a multi-tiered speaker setup with speakers and a tall tower (no text or symbols)

Μοντέλα: Q3090C, Q3010, Q3020, Q3050

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a rectangular electronic device with two circular ports and a central connector (no text or symbols)

3050

Pure mechanical diagram showing a piston-cylinder assembly with rotational arrows (no text or symbols)

Armour Home Electronics Ltd.

Stortford Hall Industrial Park

Bishops Stortford, Herts, UK

CM23 5GZ

Line drawing of a multi-tiered speaker setup with speakers and a tall tower (no text or symbols)

Modelli: Q3090C, Q3010, Q3020, Q3050

Diagram of a mechanical device with a lever and rotating component (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and a cylindrical pin (no text or symbols)

Pure mechanical diagram showing a piston-cylinder assembly with rotational arrows (no text or symbols)

Armour Home Electronics Ltd.

Stortford Hall Industrial Park

Bishops Stortford, Herts, UK

CM23 5GZ

Line drawing of a two-tiered speaker tower with dual speakers (no text or symbols)

Subwoofer attivo

3070S

Tipologia di cassa:

A cassa aperta

Unità bassi (mm):

Line drawing of a multi-tiered speaker setup with speakers and a tall tower (no text or symbols)

Simple line drawing of a mechanical device with a lever and rotating component (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and a cylindrical pin (no text or symbols)

安置无源音箱

Armour Home Electronics Ltd.

Stortford Hall Industrial Park

Bishops Stortford, Herts, UK

CM23 5GZ

650mm 260mm 300mm

无源音箱

箱体类型:	2 路反射	2 路反射	2 路反射	2 路反射
低音单元(mm):	100mm	125mm	2 x 165mm	2 x 100mm
高音单元(mm):	25mm	25mm	25mm	25mm
频率响应(+/-3dB):	68Hz - 22kHz	64Hz - 22kHz	44Hz - 22kHz	75Hz - 22kHz
额定阻抗:	6Ω	6Ω	6Ω	6Ω
灵敏度(2.83v@1m):	86dB	88dB	92dB	89dB
推荐功放功率:	15 - 75W	25 - 75W	25 - 100W	25 - 100W
分频频率:	2.8kHz	2.9kHz	2.6kHz	2.7kHz
有效容积:	3.8升	5.9升	35.6升	10.3升
箱体尺寸(宽x高x深mm):	150 x 235 x 200	170 x 260 x 226	200 x 1000 x 298	430 x 150 x 200
重量(单个箱体):	3.6Kg	4.6Kg	17.8Kg	6.0Kg

Line drawing of a two-tiered speaker tower with two circular speakers (no text or symbols)

有源重低音音箱

Line drawing of a multi-tiered speaker setup with speakers and a tall tower (no text or symbols)

Modellen: Q3090C, Q3010, Q3020, Q3050

BELANGRIJKE INFORMATIE – LEES ZORGVULDIG DOOR

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a rectangular electronic device with two circular ports and a central hub (no text or symbols)

3050

Pure mechanical diagram showing a piston-cylinder assembly with rotational arrows (no text or symbols)

Stereoansluitingen

Stereoansluitingen

Armour Home Electronics Ltd.

Stortford Hall Industrial Park

Line drawing of a multi-tiered speaker setup with speakers and a tall tower (no text or symbols)

Modele: Q3090C, Q3010, Q3020, Q3050

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a rectangular electronic device with a circular vent and mounting holes (no text or symbols)

3050

Pure mechanical diagram showing a piston-cylinder assembly with rotational arrows (no text or symbols)

Podłączenia stereo

Armour Home Electronics Ltd.

Stortford Hall Industrial Park

Bishops Stortford, Herts, Wielka Brytania

CM23 5GZ

Line drawing of a multi-tiered audio amplifier with speakers and a tall tower (no text or symbols)

Модели: Q3090C, Q3010, Q3020, Q3050

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a rectangular electronic device with mounting holes and a cylindrical component (no text or symbols)

Модель 3050

Pure electrical circuit lines without any symbols

Pure mechanical diagram showing a lever mechanism with no text or symbols

Armour Home Electronics Ltd.

Stortford Hall Industrial Park

Line drawing of a two-tiered speaker tower with two circular speakers (no text or symbols)

Line drawing of a multi-tiered speaker setup with speakers and a tall tower (no text or symbols)

Modeller: Q3090C, Q3010, Q3020, Q3050

VIKTIG INFORMATION - LÄS NOGGRANT

Simple line drawing of a mechanical device with a lever and rotating component (no text or symbols)

Technical line drawing of a rectangular electronic device with mounting holes and a cylindrical component (no text or symbols)

Pure mechanical diagram showing a piston-cylinder assembly with rotational arrows (no text or symbols)

HÖGER HÖGTALARE VÄNSTER HÖGTALARE AMPLIFIER

Armour Home Electronics Ltd.

Stortford Hall Industrial Park

Bishops Stortford, Herts, UK

CM23 5GZ
