USER MANUAL UHD8610PC HITACHI

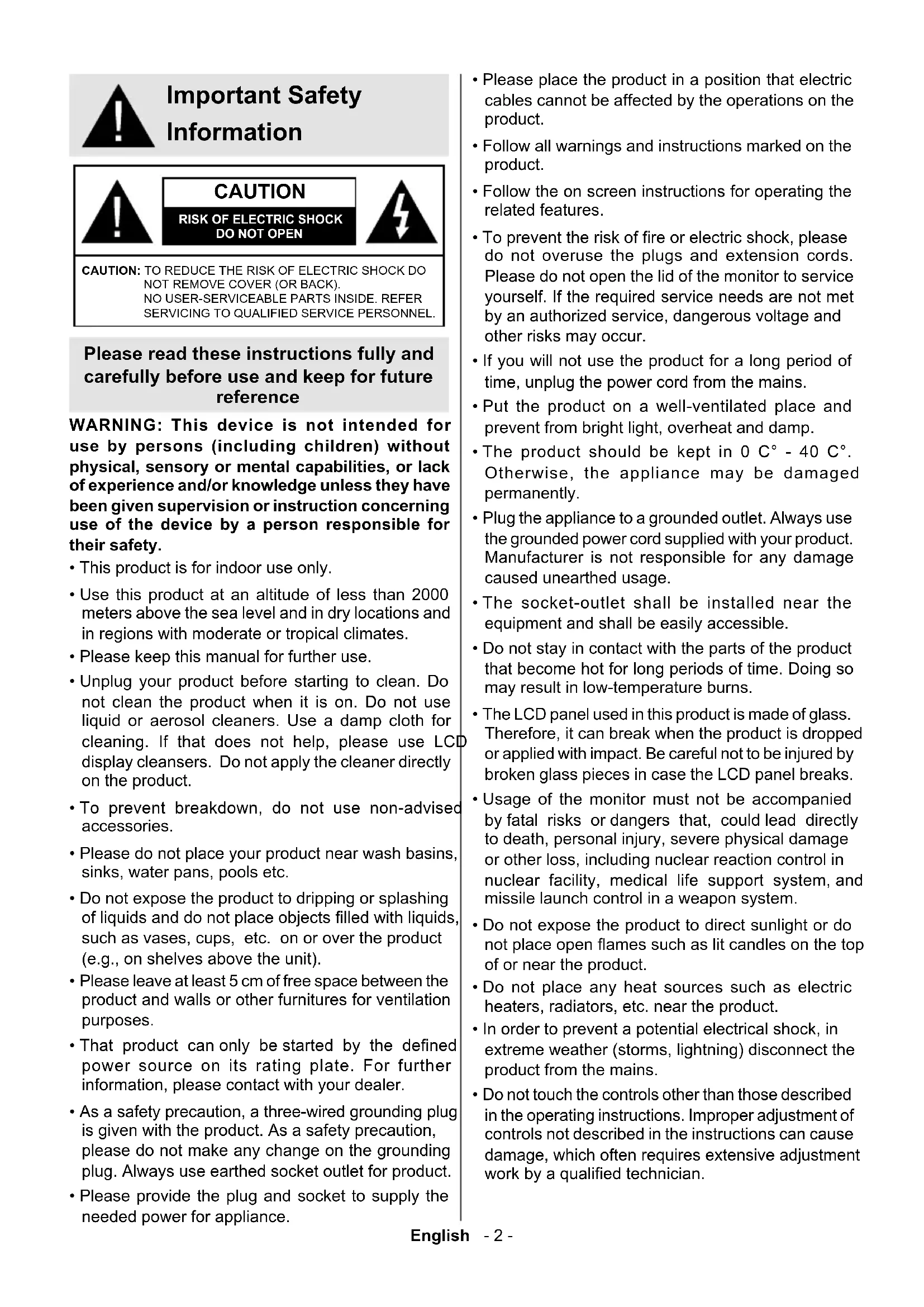

• Please place the product in a position that electric cables cannot be affected by the operations on the product.

• Follow all warnings and instructions marked on the product.

• Follow the on screen instructions for operating the related features.

• To prevent the risk of re or electric shock, please do not overuse the plugs and extension cords. Please do not open the lid of the monitor to service yourself. If the required service needs are not met by an authorized service, dangerous voltage and other risks may occur.

• If you will not use the product for a long period of time, unplug the power cord from the mains.

• Put the product on a well-ventilated place and prevent from bright light, overheat and damp.

• The product should be kept in 0 C° - 40 C°. Otherwise, the appliance may be damaged permanently.

• Plug the appliance to a grounded outlet. Always use the grounded power cord supplied with your product. Manufacturer is not responsible for any damage caused unearthed usage.

• The socket-outlet shall be installed near the equipment and shall be easily accessible.

• Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.

• The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.

• Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.

• Do not expose the product to direct sunlight or do not place open ames such as lit candles on the top of or near the product.

• Do not place any heat sources such as electric heaters, radiators, etc. near the product.

• In order to prevent a potential electrical shock, in extreme weather (storms, lightning) disconnect the product from the mains.

• Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualied technician. Important Safety Information CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Please read these instructions fully and carefully before use and keep for future reference

WARNING: This device is not intended for

use by persons (including children) without physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.

• This product is for indoor use only.

• Use this product at an altitude of less than 2000 meters above the sea level and in dry locations and in regions with moderate or tropical climates.

• Please keep this manual for further use.

• Unplug your product before starting to clean. Do not clean the product when it is on. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. If that does not help, please use LCD display cleansers. Do not apply the cleaner directly on the product.

• To prevent breakdown, do not use non-advised accessories.

• Please do not place your product near wash basins, sinks, water pans, pools etc.

• Do not expose the product to dripping or splashing of liquids and do not place objects lled with liquids, such as vases, cups, etc. on or over the product (e.g., on shelves above the unit).

• Please leave at least 5 cm of free space between the product and walls or other furnitures for ventilation purposes.

• That product can only be started by the dened power source on its rating plate. For further information, please contact with your dealer.

• As a safety precaution, a three-wired grounding plug is given with the product. As a safety precaution, please do not make any change on the grounding plug. Always use earthed socket outlet for product.

• Please provide the plug and socket to supply the needed power for appliance.English - 3 -

• Do not shake the product. Ensure that it stays in a balanced stance on its position.

• Do not throw or drop any object on your product.

• Do not interfere on your products screen or any other surface with a sharp object.

• Do not keep your product in a humid environment.

• Do not keep your product in an extremely cold environment.

• Do not keep your product in an extremely hot environment.

• Do not place the product on the oor and inclined surfaces.

• To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals. Vent holes of the product The vent holes are designed to provide the product to work constantly and prevent it from overheat. Do not block these openings in anyway. For the same reason, please do not place your product on beds, sofas, carpets and similar surfaces. Never insert an object into the product through vents or openings. High voltage ows in the product, and inserting any objects in the vents or openings of the product may cause electric shock, short circuit of the internal parts and/or re. For the same reason, do not spill water or liquid on the product. Repair Unless a basic implementation on the product is specied by the producers’ technical department on a document, do not repair your product by yourself. Otherwise, your guarantee may get suspended and you may risk your health or your product. In case of need, consult your authorized service.

• When the cable is worn off or harmed.

• If the product has been dropped or the cabinet has been damaged.

• If the performance of the product is changed or the appliance needs to be repaired.

• When a liquid was spilled on the product or when objects have fallen into the product.

• When the product has been exposed to rain or water.

• When the product does not operate properly as described in the operating instructions. Replacement parts In case the product needs replacement parts, make sure that the service person uses replacement parts specied by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in re, electric shock and/or other danger. Safety checks Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition. Wall mounting When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer.

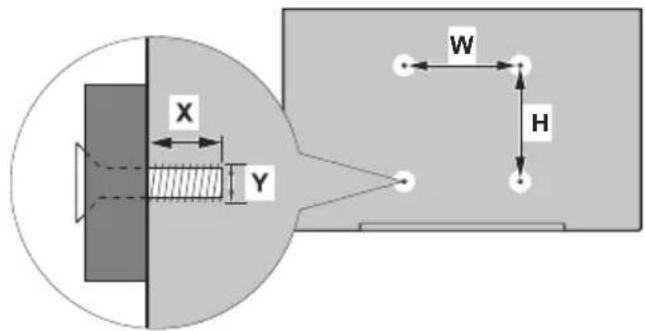

• Read the instructions before mounting the product on the wall.

• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with the product.

• Do not install the product on a ceiling or on an inclined wall.

• Use the specied wall mounting screws and other accessories.

• Tighten the wall mounting screws rmly to prevent the product from fall. Do not over-tighten the screws. Power Cord

• The power cord is used to disconnect the product from the mains and therefore it must remain readily operable. If the product is not disconnected electrically from the mains, the device will still draw power for all situations even if the product is in standby mode or switched off.

• Use only the power cord supplied with the monitor.

• Do not damage the power cord nor place heavy objects on it, stretch it, over bend it or step on it. Also, do not add extension cords. Damage to the cord may result in re or electric shock.

• When unplugging the appliance, always pull directly on the plug. Do not pull from the cable when unplugging the appliance.

• Do not use the power cord with a power tap. Adding an extension cord may lead to re as a result of overheating.

• Do not remove or insert the power plug with wet hands. Doing so could result in electric shock.

• Unplug the power cord if it is not used for a long time.

• Do not attempt to repair the power cord if it is broken or malfunctioning. When damaged it must be replaced, this should only be done by qualied personnel. Especially for child safety

• Don’t allow children to climb on or play with the monitor.

• Don’t place the monitor above furniture that can easily be used as steps.

• Remember that children can become excited while watching a program, especially on a “larger than life” monitor. Care should be taken to place or install theEnglish - 4 - Foreseeable misuse and incorrect use

or aircraft or at altitudes exceeding 2000m above sea

other than mentioned in user manual additional requirements may be necessary. CAUTION Do not leave a static image displayed for pro- longed period of time. If a static image is displayed

may cause image sticking on the display. This con-

erable amount of operational display time to dissi-

120 minutes of continuous motion display will elim- inate most image sticking effects at normal room temperature (not lower than 10 C).

fect the performance of the computer and are not accepted as a defect. Warning This is a class A. In a domestic environment this may cause radio interference in which case the user may be required to take adequate measures.

dependable source of portable power. Problems can occur if they are misused or abused resulting in

Here are some simple guidelines to safe battery use designed to eliminate any such problems.

plus and minus marks on the battery and appliance.

care not to mix old and new batteries or batteries of

• Store unused batteries in their packaging and away from metal objects which may cause a short-circuit

• Remove dead batteries from equipment and all batteries from equipment you know you are not going

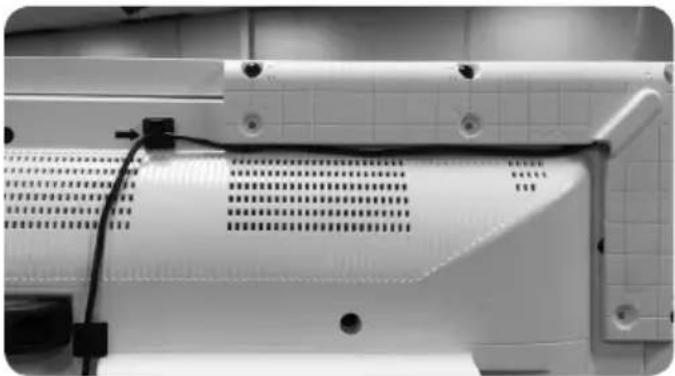

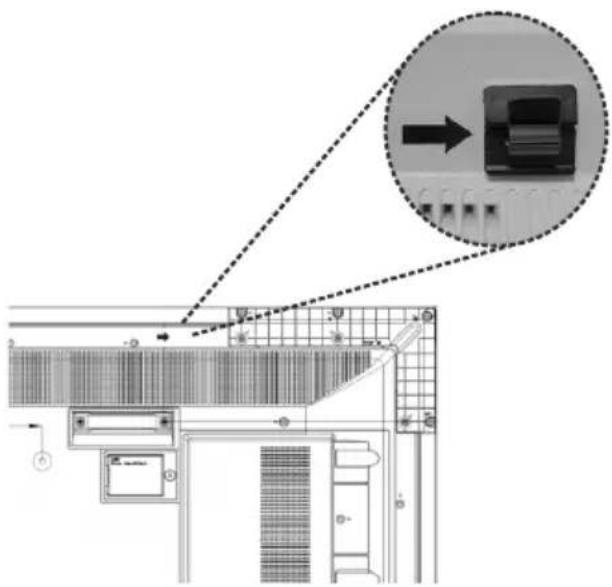

• Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children. Connections Be sure to turn off the main power switch and disconnect the plug from the power outlet before

manual of the equipment to be connected. Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and other problems. Positioning

by taking simple pre-cautions such as:

• Using fixing devices like wall mount brackets recommended or supplied by the manufacturer.

• Educating children about the dangers of climbing on furniture to reach the monitor or its controls. If your

same considerations as above should be applied Transport and Shipping

• Your device must be kept in its original package to protect from damage to its accessories during transport and shipping.

• Keep the product in normal position during transport.

• Do not drop the device during transport and protect it against impacts.

• Damages and faults that occur during transport after the delivery of the appliance to the customer are not included in the warranty cover.

• This product is intended to be used in public places

• Product is only suitable for connecting commercial mains socket outlets. Do not connect product industrial socket outlets.English - 5 - to use for a long time. Otherwise the batteries may leak and cause damage.

• Batteries must not be exposed to excessive heat

explode. Please recycle dead batteries; do not put with the normal household waste.

in a charger or by applying heat to them. They may

rechargeable batteries which are clearly marked as such.

• Supervise children if they are replacing batteries themselves in order to ensure these guidelines are followed.

• This product or the accessories supplied with the product may contain a coin/button cell battery. If the

severe internal burns in just 2 hours and can lead to death.

• Remember that small button cell batteries such as

and this can be dangerous.

• Make sure battery compartments are secure. If the

rinse immediately and thoroughly. If it gets into your

seek medical treatment immediately. Leaked battery

cause a skin irritation or damage your eye. CAUTION

RISK OF EXPLOSION IF BATTERY IS

REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS. Markings on the Product The following symbols are used on the product as a marker for restrictions and precautions and safety

such information for security reasons. Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth. Class II Equipment With Functional Earthing: This appliance is designed in such a way that it does not require a safety

used for functional purposes. Protective Earth Connection: The marked terminal is intended for connection of the protective earthing conductor associated with the supply wiring. Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions. Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries. Any issues which are caused by customer mis-adjustment of any software including the operating system are not covered by the warranty. Depending on the model you buy, the actual appearance of the product may differ from the images used in this manual. iEnglish - 6 - General View Front Side

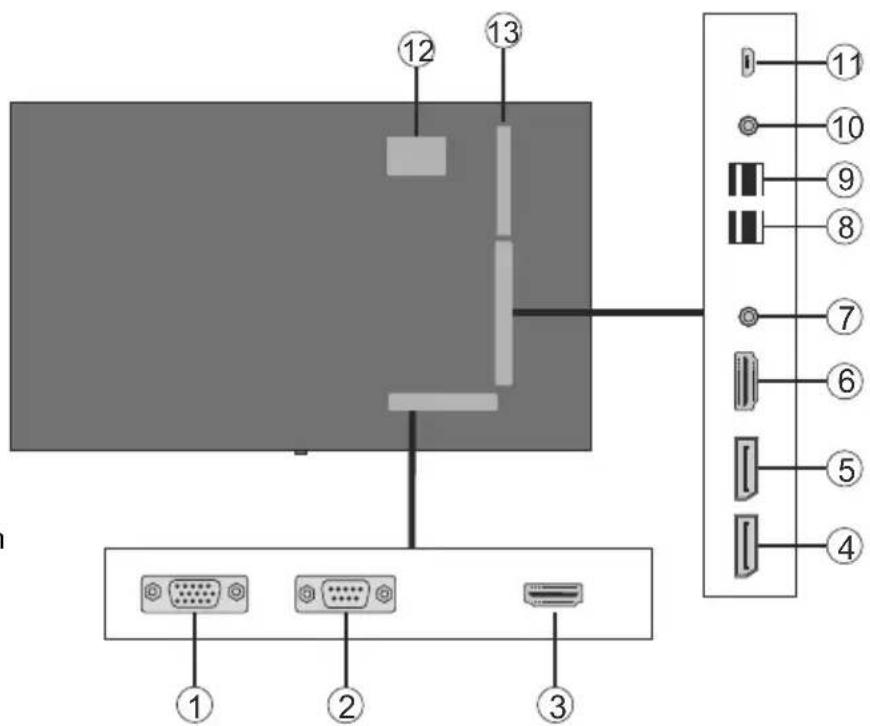

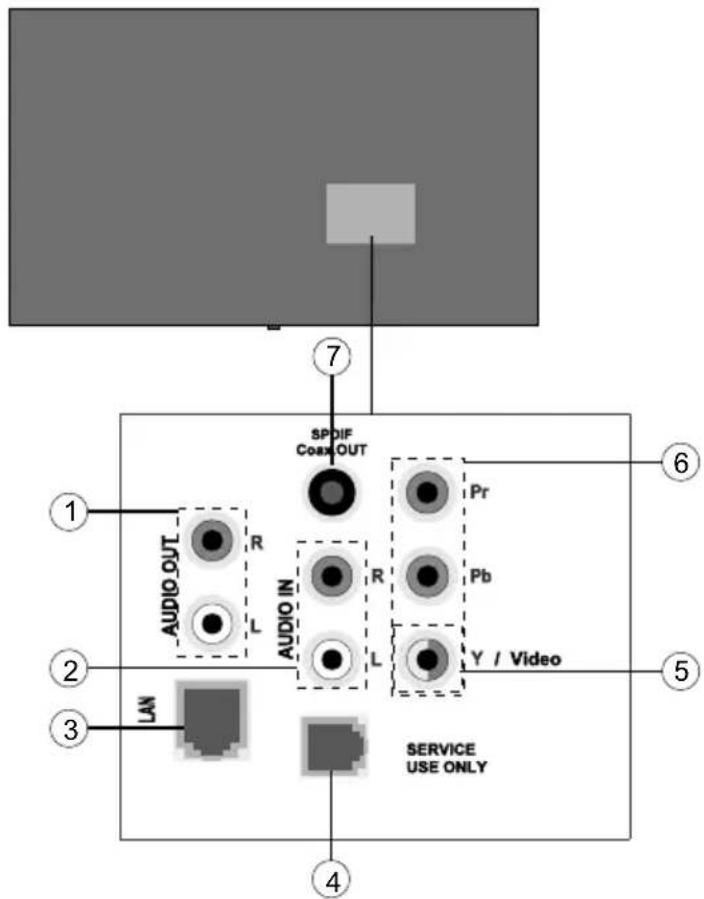

12. Covered panel for USB

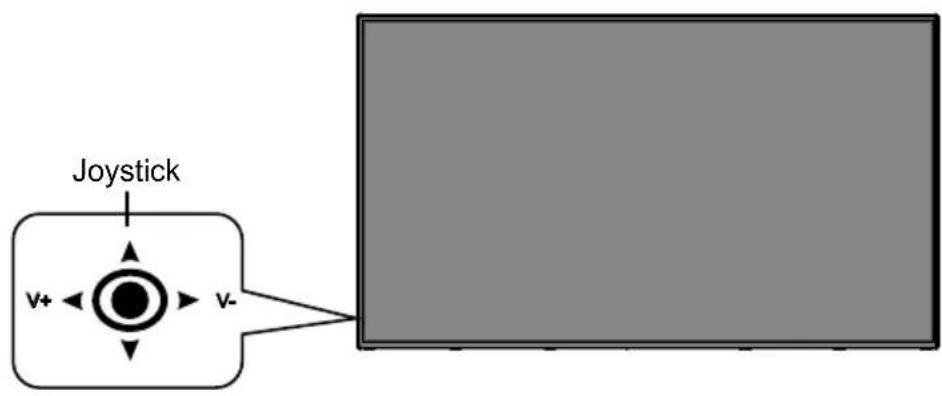

Control Buttons on the Display To turn on the Display: Press the

will turn on and hold for 5 seconds until RED LED on the IR receiver goes out. To turn the Display off: Press the centre of the joystick in and hold it

will turn into standby mode. To change source: Press the centre

appear on the screen. Scroll through the available sources by pushing the joystick up or down. To change volume: Increase the volume by pushing the joystick right. Decrease the volume by pushing the joystick left. Note: Main menu OSD cannot be displayed via joystick.

V-English - 8 - Connecting the IR (Infrared Receiver)

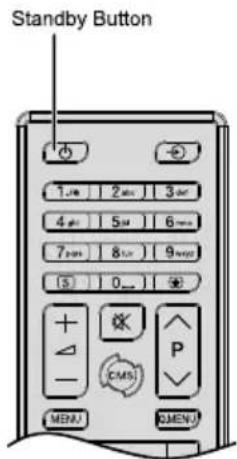

Turning the Display On/Off Press the Standby button on the remote or by pressing and holding the joystick on rear left of the Display to switch it on from standby or to switch it into standby mode.

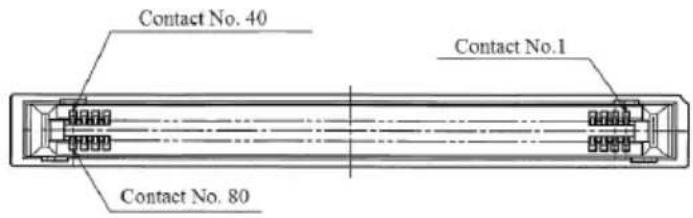

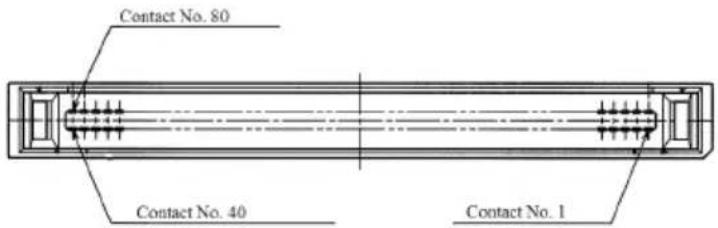

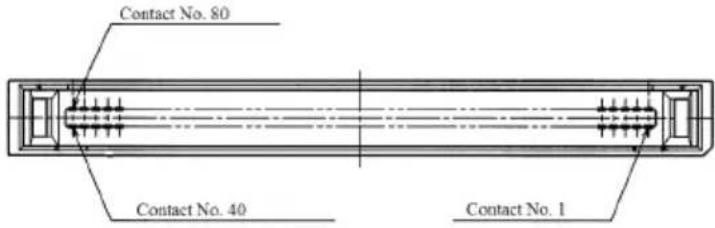

Joystck LED Status Status of the monitor Power LED not lit Power on Power LED lit Power off (Standby mode) Scheduler active Power up/down and software updateEnglish - 9 - OPS PC (Optional Built In PC) Disconnect the Display from the power supply before connecting or disconnecting the OPS. Failure to do so may cause damage to the OPS and/or the Display. Open Pluggable Specication (OPS) is a standardized system architecture between displays and media players. It may be based on x86 or ARM structure. This Panel complies with both structures. The OPS size is standard (180 mm x 119 mm x 30 mm) Rear Side

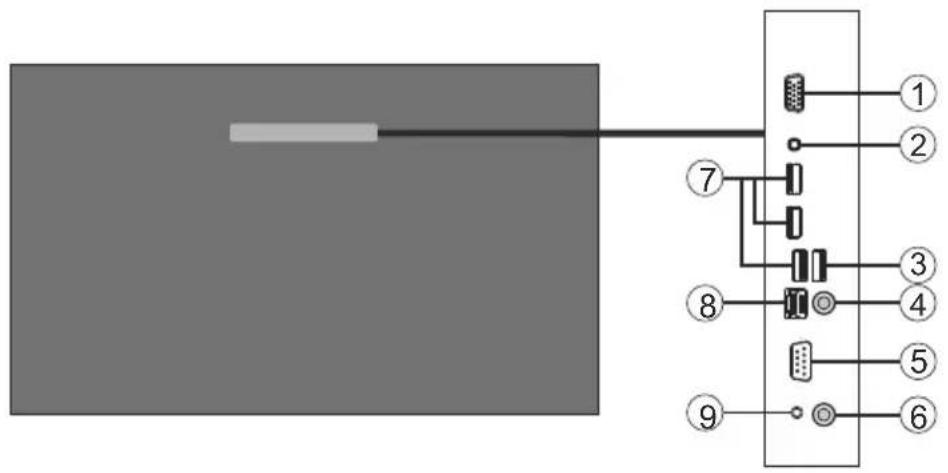

2. Microphone / Headphone

USB 2.0 / USB 3.0 Ports Use a commercially available USB cable to bidirectional transfer data. Lan Terminal/Ethernet Use commercially available Ethernet cable to connect Local Area Network. Microphone and Headphone terminals Use headphone terminal to listen the stereo sound les. Use Microphone terminal to record the sounds. Wi-Fi Antenna Connect a wireless antenna to this connector. OPS Connection Scheme Connection Scheme refers to both Intel and ARM OPS PC. OPS PC has an 80 pin OPS standard connection interface. Interconnection of ARM/Intel OPS PC and another board (i.e. docking board, monitor board or main board…) is provided by JAE TX24/TX25 plug and receptacle connectors. Left: OPS PC plug connector (p/n: TX25-80P) Right: Receptacle connector (p/n: TX24-80P)English - 10 - OPS PC Plug Connector / TX25 Pinout Receptacle Connector / TX24 PinoutEnglish - 11 - Remote Control

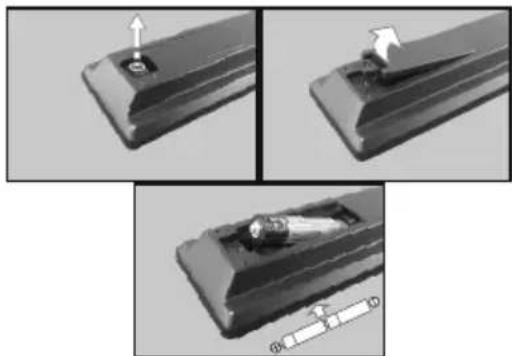

Inserting the Batteries into the Remote Remove the screw that secure the battery compartment cover on the back side of the remote control rst. Lift the cover gently. Insert two AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Place the cover back on. Then screw the cover back on again.1. Standby: Switches On / Off the Display2. Numeric buttons: Enters a number or a letter in the text box on the screen.3. Signage: Displays Signage Settings menu4. Volume +/-: Increases or decreases the volume

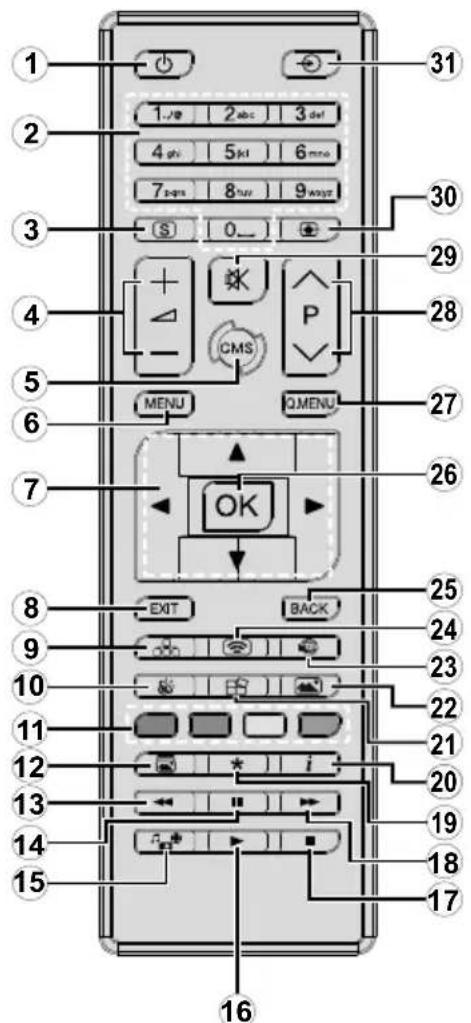

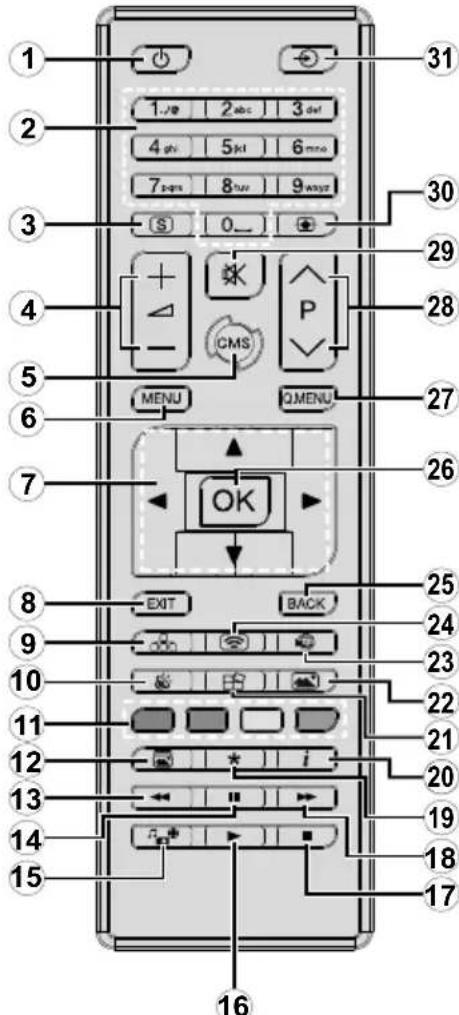

5. CMS: Opens the predefined Start url (in Signage

Settings>Link options menu). Press and hold 3 seconds to open the predened Settings url (in Signage Settings>Link options menu).6. Menu: Displays the main menu7. Directional buttons: Helps navigate menus, content etc.8. Exit: Closes and exits from displayed menus or returns to previous screen9. Network: Displays Network/Internet Settings menu10. Sound: Displays Sound Settings menu11. Coloured Buttons: Blue button is also screen freeze.12. Picture Mode: Cycles between picture modes13. Rapid reverse: Moves frames backwards in media such as movies14. Pause: Pauses the media being played15. Media browser: Opens the media browsing screen16. Play: Starts to play selected media17. Stop: Stops the media being played18. Rapid advance: Moves frames forward in media such as movies19. No function 20. Info: Displays information about on-screen content21. Video Wall: Displays Video Wall Settings menu22. Picture: Displays Picture Settings menu23. Internet: Opens the predened Open browser initial page (in Signage Settings>Link options menu).24. Wireless Display: Opens the wireless display connection screen25. Back/Return: Returns to previous screen26. OK: Conrms user selections27. Quick Menu: Displays a list of menus for quick access28. No function29. Mute: Completely turns off the volume of the Display30. Screen: Changes the aspect ratio of the screen31. Source: Shows all available content sources*Buttons 13-18 only apply to media playback from USB stick.English - 12 - First Time Installation

selection screen will be displayed. Select the desired language and press OK.

press OK to continue.

number combination. You have to enter this PIN if you are asked to enter a PIN for any menu operation later. The Signage Settings menu will be displayed next. Set IDOSD Orientation(*)Auto software update Model nameSerial number and Software version options are for information only. They will be grayed out and not selectable. Refer to the Signage Settings Menu Contents section for more information on the options of this menu. While this menu is displayed on the screen you can copy USB device to the Display by pressing the Yellow button. You can also save the model information data of the Display to a connected USB device by pressing the Blue press OK to continue. (*) This option may not appear depending on the model Network/Internet Settings menu will be displayed. Please refer to Connectivity

anything press the Rapid advance button. The First Time Installation is completed. To repeat this process and reset the Display's settings to the factory defaults enter the Signage Settings First time installation and press OK. You will be asked to enter the PIN that you have First Time Installation. If the correct PIN

asking whether you want to delete all settings and reset the Display. Select Yes and press OK Note: Do not turn off the Display while initializing rst time installation. Note that, some options may not be available depending on the country selection. Media Playback via USB Input Note: If internal USB device (*) is inserted and external device is also inserted, media player will use the external device only.

power supply) external hard disk drives or USB memory stick to your Display by using the USB input/s of the Display. IMPORTANT! Back up the files on your storage devices before connecting them to the Display. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this Display. The Display supports FAT32 and NTFS disk formatting.

Wait a little while before each plugging and unplugging

so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive

input/s. External power supplied USB hubs are recommended in such a case.

a USB disk by connecting it to your Display. Connect a USB disk to one of the USB inputs located on the side of the Display. Pressing the Menu button while in the Media Browser mode will access the Picture Sound and Settings menu options. Pressing the Menu button again will exit from this screen. You can set your Media Browser preferences by using the Settings menu. Loop/Shufe Mode Operation Start playback with the Play button and activate

uously played in original order Start playback with the OK but- ton and activate The same file will be played continuously (repeat) Start playback with the Play button and activate

once in random order Start playback with the Play button and activate

tinuously played in the same random order. USB Auto Play Feature USB AutoPlay feature is to start playing the media

the Media Browser. The media content types have different priorities in order to be played. The reducing

content and as last Audio. This feature will only work if all of the following cir- cumstances occur:

• The USB device is plugged in.English - 13 -

• Auto Play option is enabled. It is placed in the Media Browser>Settings menu. Failover Feature If No Signal option in the Signage Settings menu is set as Failover the Display checks the connected USB device for available les to play. If no playable les are available or there is no USB device connected to the Display, the No Signal image will be displayed and the Display will turn itself off after a period of 5 minutes. If there isn’t any No Signal Image available, No Signal OSD will be displayed on the screen and the Display will turn itself off after a period of 5 minutes. Note: The setting of the Auto Play option in the Media Browser>Settings menu is not important, in Failover mode it will function anyway.English - 14 - Display Menu Contents System - Picture Menu Contents Mode You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Text, Game, Sports, Signage and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen. Sharpness Sets the sharpness value for the objects displayed on the screen. Colour Sets the colour value, adjusting the colours. Energy Saving This Display is designed to be environmentally friendly. If you set this option to Minimum, Medium, Maximum or Auto the Display will reduce energy consumption by regulating the backlight level accordingly. If you like to set the backlight level to a xed value set as Custom and adjust the Backlight (located under this setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off. If pressed Right button while Auto option is selected or Left button while Custom option is selected, “Screen will be off in 15 seconds.” message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don’t press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again. When the Display is not in use, please switch off or disconnect the Display from the mains plug. This will also reduce energy consumption.Note: Available options may differ depending on the selected Mode. Backlight This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom. Advanced Settings Dynamic Contrast You can change the dynamic contrast ratio to desired value. Noise Reduction If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise. Colour Temp Sets the desired colour temperature value. Cool (1300K), Normal (9300K) and Warm (8500K) options are available. Picture Zoom Sets the desired image size format. Movie Sense Press left/right buttons to set Movie Sense to Low, Medium, High or Off. While Movie Sense is active, it will optimize the Display’s video settings for motional images to acquire a better quality and readability. When Movie Sense option is set to Low, Medium or High, Movie Sense demo option will be available. If one of these options is selected and if you press OK button, then the demo mode starts. While demo mode is active, the screen will be divided into two sections, one displaying the movie sense activity, the other displaying the normal settings for Display screen.Note: This feature may not be available depending on the model of your unit. Film Mode Films are recorded at a different number of frames per second. Turn this feature on when you are watching lms to see the fast motion scenes clearly. RGB Gain Adjust the strength of the red, green and blue colours. You can use this feature for ne adjustment of white balance in the picture. HDMI Full Range While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture. PC Position Appears only when the input source is set to VGA/PC. Autoposition Automatically optimizes the display. Press OK to optimize. H Position This item shifts the image horizontally to the right hand side or left hand side of the screen. V Position This item shifts the image vertically towards the top or bottom of the screen. Dot Clock Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.English - 15 - Phase Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error. Reset Resets the picture settings to factory default settings (except Game mode). While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode. System - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Headphone Sets headphone volume. Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing. Only available if Headphone/Lineout option is set to Headphone. Audio Link Press OK to open the Audio Link menu screen. Using this screen you can discover and connect the sound devices to your Display wirelessly. AVL (Automatic Volume Limiting) Sets the sound to obtain xed output level between sources. Headphone/Lineout When you connect an external amplier to your Display using the headphone jack, you can select this option as Lineout. If you have connected headphones to the Display, set this option as Headphone. Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing. Digital Out Sets digital out audio type. PCM and Compressed options are available. Surround Sound Surround sound mode can be changed as On or Off. System - Settings Menu Contents Language Sets the OSD menu language preference. Date/Time Sets date and time. Sources Enables or disables selected source options. There will be Regular, Enhanced and Disabled options available for HDMI sources, if your Display supports Ultra HD. Regular and Enhanced options are affecting the colour settings of the selected HDMI source. To be able to watch 4K images from an HDMI source related source setting should be set as Enhanced if the connected device is HDMI 2.0 compatible. Set as Regular if the connected device is HDMI 1.4 compatible. Set acoordingly or disable the related HDMI source by setting as Disabled. Network/Internet Settings Displays network/internet settings. More Displays other setting options of the Display. Menu Timeout Changes timeout duration for menu screens. Standby Led Enables or disables the functionality of the standby led. If disabled the led will not function. Software upgrade Ensures that your Display has the latest rmware. Press OK to see the menu options. Application Version Displays current software version. Auto Display OFF Sets the desired time for the Display to automatically go into standby mode when not being operated.English - 16 - Audio Video Sharing Audio Video Sharing feature allows you to share les stored on your smartphone or tablet pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your Display. See instructions of your sharing software for more information. Video Wall Settings Press OK to open the Video Wall Settings menu screen. Row Count, Column Count, Cell and Offset options are available. Speakers To hear the Display audio from the connected compatible audio device set as Amplier. You can use the remote control of the Display to control the volume of the audio device. DP Stream Setting (*) Sets the DisplayPort stream type. MST and SST options are available. (*) This menu item appears only when the input source is set to DP. Signage Settings Menu Contents Device Info Set ID Sets the device ID. You can select a value between 0-99 using the numeric buttons on the remote in order to identify your Display. Software upgrade Displays current software version. Press OK to see the Upgrade options menu. You can use these options to start a manual search for software updates and set your automatic scan preference. Serial number Displays serial number of the unit. (Cannot changed by user) Model name Displays model name of the unit. (Cannot changed by user) Save model information Copies the model information data of the unit to a connected USB device. Temperature Settings Press OK to open the Temperature Settings menu screen. Current system temperature will be displayed. You can also change the maximum system shutdown temperature using the related option. Note: This feature may not be available depending on the model of your unit. Display Life Time Displays the duration of life of the unit. Controls OSD Orientation Sets the OSD (On Screen Display) rotation of your Display. Landscape and Portrait options are available. Pixel shift Enables or disables pixel shifting. This option can be used to avoid image retention (after image effects) that can occur when displaying xed patterns or still images for a long periods of time. If enabled, the picture and OSD (On-Screen Display) will be shifted at specied time intervals. No Signal Sets the behavior preference of the Display, when no signal is detected from the currently set input source. Failover and Input Search options are available. If Failover is selected the Display checks the connected USB device for available les to play. If no playable les are available or there is no USB device connected to the Display, the No Signal image will be displayed. If there isn’t any No Signal Image available, No Signal OSD will be displayed on the screen. The setting of the Auto Play option in the Media Browser>Settings menu is not important, in Failover mode it will function anyway. If Input Search is selected the Display will search all available input sources consecutively to nd signal. If no signal is detected from other available sources, No Signal OSD will be displayed and the Display will turn itself off after a period of 30 seconds. No Signal Delay Sets a delay value to the ‘No Signal’ preferences when the Display is in No Signal state. After the set delay time is expired ‘No Signal’ preferences will be applied.English - 17 - No signal Power off

received from the selected source. This feature will only work if all of the following circumstances occur: - No Signal option is set as Failover. - USB device is not connected to the Display / USB device is connected but there are

Panel Lock Set as Off to prohibit the use of the buttons on the Display. RCU Inhibit Set as On to inhibit the use of the remote. Remote control will function in Stand-By mode independently from the setting of this option.

buttons on the remote consecutively. Signage Settings menu will appear. Enter the Controls menu and set this option as Off

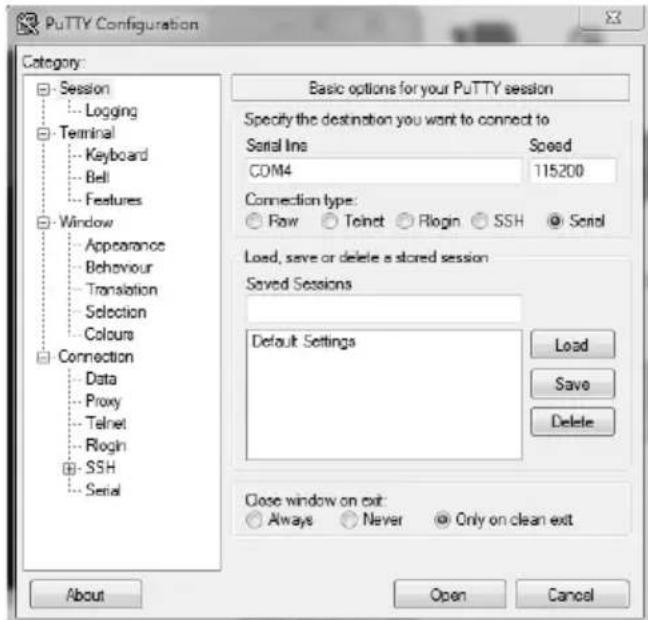

UART 0 Select ASCII/HEX protocol for UART 0. Default value is ASCII. There is no need to restart the Display after selection in order to work with the protocols correctly. If the

the Display is booted up. Note that ASCII/HEX selection is not working while debug logs are enabled. If it is

reboot the Display in order to correct the debug logs and the ASCII protocol behaviour. Also note that HEX protocol will work with the baud rate value 19200 for UART0 UART 1 Select ASCII/HEX protocol for UART 1. Default value is HEX. There is no need to restart the Display after selection in order to work with the protocols correctly. If the

the Display is booted up. Note that ASCII/HEX selection is always working as expected. It does not matter if the debug logs are enabled or not. Also note that HEX protocol will work with the baud rate value 9600 for UART1 Embedded Touch Enables or disables the functionality of the embedded touch screen. Power Up Settings Power Up Mode Last State, Always On and Standby options are available. Quick Standy If this feature is enabled the Display can be turned on again commands if it is turned off through it. Press Left or Right button to enable or disable the feature. Power on Delay Sets a delay value at power on. This value can be set from 0 to 2000 ms in steps of 100 ms. The Display will turn on after the set delay time is expired. Boot Up Picture Mode Off the last set picture mode will be used at power on. HDMI1 Wake Up Enabled If this option is set as Enabled when it is switched on. This feature works based on HDMI 5V signal. When this signal is active the Display wakes up and when the signal is inactive the Display shuts down. You can disable this option by setting as Disabled.

inactive and can not be set as Enabled. Note: This feature may not be available depending on the model of your unit. USB Clone to USB

Internal USB operations

connected. Copy app cache from USB Copies app cache data from a connected USB device to the unit. Note: This feature may not be available depending on the model of your unit.English - 18 - USB Information Press OK to open the USB information menu screen. Current Total space and Free space informations of the connected USB device will be displayed. You can also format the connected USB device using the Format Disk option in this menu (FAT32 format only). USB operations Highlight and press OK to perform USB operations. USB Option Set as Off to disable the USB ports on the Display. You can also set this option as 5V to provide 5 volts power over USB. In this case it will still not be available to browse the USB content via Media Browser feature of the Display. Video Wall Settings Press OK to open the Video Wall Settings menu screen. Row Count, Column Count, Cell and Offset options are available. OPS Settings Press OK to open the OPS Settings menu screen. Three sub-menu options are available. OPS Information: Displays read-only information about the OPS unit, if supported. OPS Status: Displays whether the OPS module is on or off. Allows the change of status via soft PSON signal (0.5s) Boot Signal: Enables or disables sending of a PSON signal. The Display checks the status signal of the OPS at bootup in order to turn it on by sending a PSON signal if it is off. Some OPS’s send incorrect information on their status during the bootup of the Display, so they seem to be on even though they are off. For such non-standard OPS’s, this option must be enabled. In this case, a PSON signal will be send for the OPS regardless of the received status information at bootup. Powerdown: Turns the OPS off via hard PSON signal (5s) Note: This menu will not be available if OPS is not supported or not connected to the unit. Scheduler Settings Press OK to open the Scheduler Settings menu screen. You can set up to 4 different schedulers. Highlight the Status column of the desired scheduler option and set as Enabled by using the Left/Right directional buttons after pressing the OK button.

If the Source option is set as Last SourceSource option is set as USB

as explained in the section entitled ‘USB Auto Play Feature. Press the Green button

Link options Press OK to open the Link Options menu screen. Current Start url and Settings url links will be displayed. These items are for information only and not selectable. Open browser initial page and NTP server related options. Volume Settings Press OK to see available menu options. Reset to Default Values Highlight this option and press the OK button on the remote to return the Display to default settings. First time installation Highlight and press OK to perform First Time Installation and reset all settings to factory settings. You will need to enter the correct PIN to carry out this operation. Note: Enter the PIN you have dened during the First Time Installation process.English - 19 - Connectivity

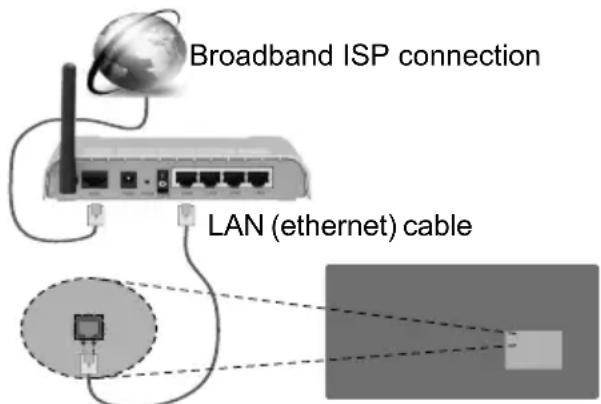

to the System>Settings menu. Wired Connectivity To Connect to a Wired Network

• You must have a modem/router connected to an

Network Type The Network Type can be selected as Wired Device, Wireless Device or Disabled active connection to the Display. Select this as Wired Device if you are connecting via an ethernet. Internet Speed Test Internet Speed Test and press the OK

Advanced Settings Advanced and press the OK but- ton. On the next screen you can change the IP and

from to Manual. Now you can enter the Manual IP and / or Manual DNS values. Select the

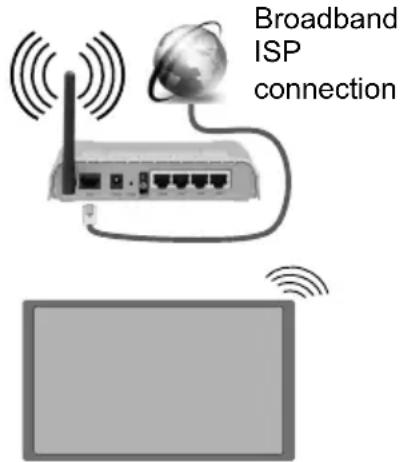

Press the OK Wireless Connectivity To Connect to a Wireless Network The Display cannot connect to the networks with a hidden SSID (wireless network name). To make your

Broadband ISP connection

• A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for

transfers and wireless gaming.

Open the menu and select Network Type as process.

Note: If the modem supports N mode, you should set N mode settings.English - 20 -

buttons and the OK button on the remote control.

you can directly connect your Display to the modem/ router without entering a password or adding the Highlight the router option and press the OK button. Then press the WPS button on your router/modem to connect. Internet Speed Test and press the OK button

Advanced and press the OK button to open

buttons to set. Press the OK when complete. Wireless Display Wireless Display is a standard for streaming video and sound content by Wi-Fi Alliance. This feature provides the ability to use your Display as wireless display device. Using with mobile devices There are different standards which enable sharing of

between your mobile device and Display.

Then press the Source button on the remote and switch to Wireless Display source. A screen appears stating that the Display is ready for connection. Open the sharing application on your mobile device. These applications are named differently for each

mobile device for detailed information. Scan for devices. After you select your Display and

on your Display. Note: This feature can be used only if the mobile device supports this feature. Scanning and connecting processes differ according to the programme you use. Android based mobile devices should have the software version V4.2.2 and above. Connecting Other Wireless Devices Your Display supports another short range wireless connection technology too. A pairing is required before using these kind of wireless devices with the Display set. You should do the followings to pair your device with the Display:

• Set the device to pairing mode

• Start device discovery on the Display Note: Refer to the user manual of the wireless device to learn how to set the device to pairing mode. You can connect audio devices wirelessly to your Display. Unplug or switch off any other connected audio device in order for wireless connection feature to work correctly. For audio devices you should use the Audio Link option in the System>Sound menu. Select the menu option and press the OK button to open the related menu. Using this menu you can discover and connect the devices that use the same wireless technology and start to use them. Follow the on-screen instructions. Start the device discovery. A list of available wireless devices will be displayed. Select the device you want to connect from the list and press the OKDevice connected is successfully established. If the connection fails try it again. Note: Wireless devices may operate within the same radio frequency range and may interfere with one another. To improve the performance of your wireless device place it at least 1 meter away from any other wireless devices. Connectivity Troubleshooting Wireless Network Not Available

Display wireless connection.

using the wired network in your home. Refer to the Wired Connectivity section for more information on the process.

Distruption during playback or slow reactions You could try the following in such a case: Keep at least three meters distance from microwave

other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.English - 21 - Internet Connection Not Available

Invalid Domain Ensure that you have already logged on to your PC

be displayed as Speed Dial options along with the Edit Speed Dial and the Add to Speed Dial options. You can press the Internet button on the remote to open the initial internet browser page. If the Open browser initial page URL in the Signage Settings>Link Options will open on this page. Otherwise this button will not be functional.

buttons on the remote or a connected mouse. To see

Speed Dial and the Opera buttons are available. To add a desired website to the Speed Dial list for

The browser bar will appear. Highlight the Speed Dial

button and press the OK button. Then select Add to Speed Dial option and press the OK button. Fill in the blanks for Name and AddressOK and press the OK button to add. Whilst you are on the site you wish to add to the Speed Dial the Opera- button and press the OK button. Then highlight Add to Speed Dial option in the submenu and press the OK button again. Name and Address

visiting. Highlight OK and press the OK button to add. You can also use the Opera menu options to manage the browser. Highlight the Opera- button and press the OK general options. There are various ways to search or visit websites using the web browser. Enter the address of a website(URL) into the search/ address bar and highlight the Submit button on the virtual keyboard and press the OK button to visit the site. Enter keyword/s into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to start a search for the related websites. Highlight a Speed Dial thumbnail and press the OK button to visit the related website. Your Display is compatible with USB keyboard/mice. Plug your device into the USB input of your Display for easier and quicker navigation.

supported by the browser. Your Display does not support any download processes from the internet via the browser. All sites on the internet might not be supportted. According to the site; content problems may occur. In some circumstances video contents might not be able to be played. Internal USB Operations Your Display has an internal memory. There are 4 operations available that can be performed with the internal memory: Copy From USBCopy To USB Delete and Format Disk (FAT32 only). These options can be found in the Signage Settings>Internal USB operations menu. The internal memory of your Display has a default int_usb Copy From/To USB operations are performed using this folder. If you want to copy data from an external USB storage device to the internal memory of your

copy_to_int_usb of the external USB storage device. If you want to copy data from the internal memory of your Display English - 22 - copy_from_int_usb directory of the external USB storage device. Copy From/To USB operations will only be available if a USB storage device is connected to your Display. Delete and Format Disk even if no USB storage device is connected. The int_usb internal memory will be automatically recreated after each time Delete and Format Disk operations are performed. OSD Rotation Support (*) You can change the OSD (On Screen Display) rotation of your Display if desired. While performing First time installation set the OSD Orientation option as desired when the Signage Settings menu is dis- played. You can also change this setting later from the Signage Settings>Controls menu. Available options are: Landscape and Portrait. (*) This feature may not be available depending on the model of your Display DisplayPort DisplayPort version 1.2 is supported via the Display- Port input and output connectors on your Display. DP Stream Setting option in the System>Set- tings>More menu is set as MST(Multi-Stream Trans- port) by default. If a MST compliant source device is

If DisplayPort version 1.1 compliant or SST (Single- Stream Transport) compliant source device with DisplayPort version 1.2 support is connected to the

in all connected Displays. To be able to stream the same image to all connected DP Stream Setting option in the System>Settings>More menu should be set as SST. The maximum amount of the Displays that can be connected by using daisy-chaining function may differ

capable of supporting this operation. Note: It is recommended to use a DisplayPort certied cable for connection. In SST operation mode the total amount of the Displays is limited (a maximum of 7 units) due to HDCP encryption. If the signal is stable and there is no cable loss, there will be no limitation in case the source content is not HDCP-encrypted. When using cascade-connected Displays, it is recommended to set the DP Stream Setting as SST on all Displays in SST operation mode. For proper operation in MST operation mode make sure your source device is MST compliant. If your source device is a computer check the specications of its graphic card to ensure MST compatibility. When using daisy-chained Displays, it is recommended to set the DP Stream Setting as MST on all Displays in MST operation mode. Controlling With An External PC RS-232 Input Socket To COM port

RS-232 to USB Adaptor

You can control the product from an external PC via RS-232 (COM port) or LAN (Ethernet port) on the

RS-232 from remote computer. When a command is

according to the received command and sends a response message to the PC. (NOTE: Only certain commands are supported according to your model) Equipment/Tools:

• RS-232 (female) to RS-232(male) cable or LAN cable (connected via router)

• USB to RS-232(male) cable

• Notebook or PC which has USB or LAN port

• Installed program on remote PC to send commands:

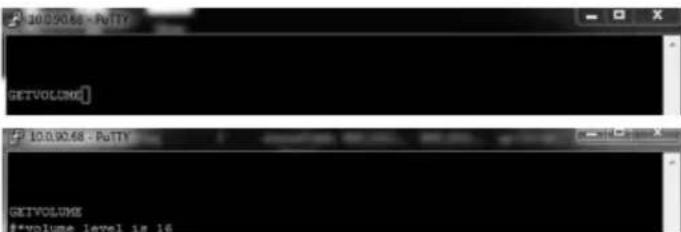

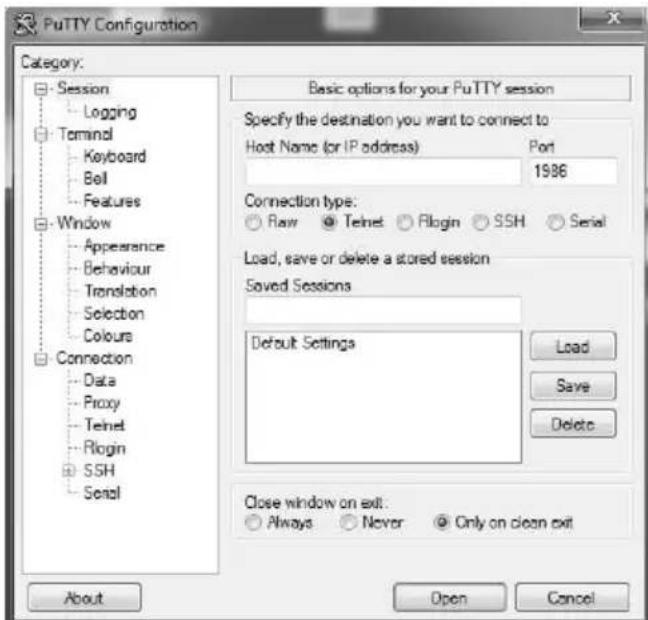

operating the implemented functions via serial portEnglish - 23 - and utility. A suitable utility can be used such as described below. Connecting to the Display (LAN port) Download and install the PuTTY software from the following link rst: http://www.putty.org/. Run the software and enter the Display’s IP address in the eld Host Name. Enter “1986” as a default value in the eld Port. Then select “Telnet” as Connection type and click the Open button. Note: Refer to the Connectivity section of this manual for information on connecting the Display to a network and displaying the IP address of the Display. Use the commands in the RS232 Command Table. For example, if “GETVOLUME” command is entered, current volume level should be displayed on the putty window as shown in the pictures below. Another example; Volume level can be changed by using “VOLUME” command. After sending this command, you can verify the changes from the Display. The last example ; When “GETSOURCE” command is entered, current source should be displayed on the putty window as shown in the picture below. Connecting to the Display (RS232 port) Run the software and select Serial as Connection Type. Enter the Display’s serial port in the field Serial Line (in the following example it is COM4) and “115200” in the eld Speed. Then click the Open button. Note : Some commands apply to certain models only and may not work for your particular model.English - 24 - RS232/LAN Command Tables AUDIO COMMANDS Command Description Parameter Return GETVOLUME Volume level information. no parameter #*volume level is … HEADPHONEVOLUME "Set headphone volume level." integer n (0 ≤ n ≤ 100) #*set headphone volume to n GETHEADPHONEVOLUME "Headphone volume level information." no parameter #*headphone volume is … GETMUTE Get mute value on/off. no parameter "#*MUTE OFF

#*You can NOT increase volume LEVEL further. Conrmed Max Volume Level is …" VOLUMEDOWN Decrease Volume Level by 1 step no parameter "#*volume LEVEL is decreased to ..

#*You can NOT decrease volume LEVEL further. Current Volume level is ... "English - 25 - SETHEADPHONEOUTPUT Set headphone output string n (headphone,lineout) "#*set headphone output to n

Command Description Parameter Return SETRC Enables/disables remote control commands. string-integer n (n = ON, n = OFF) set remote state On or set remote state OFF SETSOURCE Set source as enable/ disable. "string n, integer b (n = SCART1, n = SCART2, n = FAV, n = SVHS, n = HDMI1, n = HDMI2, n = HDMI3, n = HDMI4, n = YPBPR, n = VGA, n = SCART1S, n = SCART2S) (b = 1(enable), b = 0(disable))" "#*Selected source n #*Enable/Disable state : b" GETSOURCE Gets source. no parameter #*source is ... GETCOUNTRY Get country in channels state. no parameter #*COUNTRY IS : ... GETSWVERSION Returns the software version of tv. no parameter #*V... KEY Send key to Eclipse. string-integer n (n = 0, n = 1, ......, n = up, ......, n = menu, .....ext.) n key send to Eclipse RESET Reset the device. no parameter Reset process was successfully accomplished. You need to establish the connection again. STANDBY Switch display to hard standby. (Note: Don’t use this com- mand with the product that has OPS. You can use other “KEY standby” command.) no parameter "#*enterLowPowerMode() returns successfully.

#*enterLowPowerMode() returns unsuccessfully!

#*standby on" STARTFTI Start First Time Installation. no parameter #*FTI was initialising.English - 28 - CHANGELNG Change active language. "integer-integer x y x = language type (0 = System Language, 1 = Event Language, 2 = Primary Audio Language, 3 Secondary Audio Language, 4 = Primary Subtitle Language, 5 = Secondary Subtitle Language, 6 = Primary Teletext Language, 7 = Secondary Teletext Language) y = language (0 = Danish, 1 = German, 2 = Estonian, 3 = English, 4 = Spanish, 5 = Greek, 6 = French, 7 = Gaelic, 8 = Croatian, 9 = Italian, 10 = Latvian, 11 = Lithuanian, 12 = Hungarian, 13 = Dutch, 14 = Norwegian, 15 = Polish, 16 = Portuguese, 17 = Russian, 18 = Romanian, 19 = Albanian, 20 = Slovenian, 21 = Slovak, 22 = Serbian, 23 = Finnish, 24 = Swedish, 25 = Turkish, 26 = Czech, 27 = Ukranian, 28 = Bulgarian, 29 = Arabic, 30 = Persian, 31 = Hebrew , 32 = Belarussian, 33 = Macedonian, 34 = Montenegrin, 35 = Kazakh, 36 = Thai) Example: CHANGELNG 0 25 (To set system language to Turkish)

"#*Active language was changed

#*Country should be set only in the FTI mode (no channels state)" SETQUICKSTANDBY SETQUICKSTANDBY n, where n is one of (off, on). string-integer n (n = ON, n = OFF) "#*Set Quick Standby on

• Before testing, please know the board type you have. There are two types of board. The UART 0 and UART 1 connections of the these boards are explained below:

1. RJ12 is connected to UART 0, DSUB9 is connected to UART 1. Therefore, UART 0 and UART 1 could

be tested separately in this type of the board

2. RJ12 and DSUB9 both are connected to UART 0. UART 1 is supported for OPS module but not

reachable. Therefore, only UART 0 could be tested in this type of the board.

• NAK reply: 15 When the display cannot understand the received command, it returns this value. In such a case, check the sending code and send the same command again.

• Error reply: 1C 00 00 When the display cannot execute the received command for any reasons, it returns this value. In such a case, check the sending code and the setting status of the display.English - 34 - Command received by display Reply sent by display for successful operation Byte Number 0 1 2 3 4 5 6 7 8 9 10 11 12 0 1 2 Notes Header Data Header code Packet Data Size CRC

XY can be either 00 or 01. 00 means OFF, 01 means ON. Mute ON BE EF 03 06 00 D6 D2 01 00 02 20 01 00 06

XY can be either 00 or 01. 00 means OFF, 01 means ON. Screen ON BE EF 03 06 00 6B D9 01 00 20 30 01 00 06

OFF BE EF 03 06 00 FB D8 01 00 20 30 00 00 06

GET BE EF 03 06 00 C8 D8 02 00 20 30 00 00 1D 00 XY XY can be either 00 or 01. 00 means OFF, 01 means ON. Source

GET BE EF 03 06 00 CD D2 02 00 00 20 00 00 1D 00 XY XY can be one of the following: 01: OPS, 02: HDMI, 03: VGA, 04: S-Video, 05: HDMI2, 0B: YPbPr, 6: DVI, 7: DP, 8: WIDI Note that all of the sources are not enabled. Volume

D3 03 00 01 20 01 XY 06 XY can take 00 as a minimum and 1D as a maximum.English - 35 - Command received by display Reply sent by display for successful operation Byte Number

XY can be either 00 or 01. 00 means OFF, 01 means ON. Backlight

Auto Adjust ON BE EF 03 06 00 32 D4 01 00 19 20 01 00 06 Auto adjust command is for only VGA.

XY can be either 00 or 01. 00 means OFF, 01 means ON. Remote Controller Lock ON BE EF 03 06 00 77 97 01 00 16 24 00 00 06

XY can be either 00 or 01. 00 means OFF, 01 means ON. OSD Menu ON BE EF 03 06 00 6A 63 01 00 00 37 01 00 06

Clock commands are for VGA Clock. They would work independently of the selected source.

XY would be in the range of 00 and 64 Phase

INCREMENT BE EF 03 06 00 2F 83 04 00 03 21 00 00 06

Phase commands are for VGA Phase shift. They would work independently of the selected source.

XY would be in the range of 00 and 64 H-Position

XY would be in the range of 00 and

64. Central position is 32.

XY would be in the range of 00 and

64. Central position is 32.English - 36 -

Command received by display Reply sent by display for successful operation Byte Number

Action Type Setting code Name Operation L H L H L H L H L H L H Color Temp Gain R

802.11 a/b/g/n built in WIFI Support (optional)

i5-6200U Processor 2 cores, 4 threads 3MB L3 smart cache 15W TDP System Memory: 2 x SO-DIMM DDR3L Up to 16GB Network: LAN: 10/100/1000 Mbps LAN support WLAN: 802.11 a/g/n wireless support Bluetooth 4.0 Storage: 2.5” 500GB HDD 256GB SSD Input/Output Ports: 1 x RS232 1 x RJ45 3 x USB 3.0 (5V DC, 900mA) 1 x USB 2.0 (5V DC, 500mA) 1 x VGA 1 x Mic-In / Line-Out 2 x WiFi antenna Wireless LAN Transmitter Specications Frequency Ranges Max Output Power 2400 - 2483,5 MHz (CH1-CH13) < 100 mW 5150 - 5250 MHz (CH36 - CH48) < 200 mW 5250 - 5350 MHz (CH52 - CH64) < 200 mW 5470 - 5725 MHz (CH100 - CH140) < 200 mW Country Restrictions This device is intended for home and ofce use in all EU countries (and other countries following the relevant EU directive) without any limitation except for the countries mentioned below. Country Restriction Bulgaria General authorization required for outdoor use and public service France In-door use only for 2454-2483.5 MHz Italy If used outside of own premises, general authorization is required Greece In-door use only for 5470 MHz to 5725 MHz band Luxembourg General authorization required for network and service supply(not for spectrum) Norway Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Fed- eration In-door use only The requirements for any country may change at any time. It’s recommended that user checks with local authorities for the current status of their national reg- ulations for both 2.4 GHz and 5 GHz wireless LAN’s.English - 40 - Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful in- terference in a residential installation. This equipment generates, uses and can radiate radio frequency ener- gy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is en- couraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. IMPORTANT NOTE FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Accessories Included

• OPS Antenna (if your model includes OPS)

• 4 x Cable Holder Information for Users on Disposal of Old Equipment and Batteries [European Union only] Equipment bearing these symbols should not be disposed as general household waste. You should look for appropriate recycling facilities and systems for the disposal of these products. Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead. Products Battery For drivers and additional information please visit: www.hitachidigitalmedia.com For technical support please contact pj.support@ hitachi-eu.comEnglish - 41 - Notication TRADEMARK ACKNOWLEDGMENT The terms HDMI and High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby Audio and the double-D symbol are trademarks of Dolby laboratories. Dolby Audio™ (supporting Dolby Digital Plus™)English - 42 - Vesa Wall Mount Measurements Hole Paern Sizes (mm) W H 600 400Screw SizesLength (X)min. (mm) 15mmmax. (mm) 15mmThread (Y) M8

Installation On An Indented Wall Side view

the product and wall for ventilation and ensure that the ambient temperature is kept between Do not expose the product to direct sunlight.We will take no responsibility for any damages or failures in case our products are not being used subject to these recommendations and/or instructions for use.English - 43 -

EXPLOSIONSGEFAHR. ENTSORGEN SIE DIE
