Ibrido Top - Barbecue BORETTI - Free user manual and instructions

Features	Details
Type of barbecue	Hybrid barbecue (charcoal and gas)
Cooking surface	Spacious cooking area for multiple foods
Materials	High-quality stainless steel
Power	Adjustable cooking power
Additional features	Cast iron cooking grate, built-in thermometer
Usage	Easy to light and control temperature
Maintenance	Easy to clean thanks to smooth surfaces
Safety	Equipped with safety devices for confident use
Dimensions	Compact for easy storage
Included accessories	Cooking grates, grease trays
Warranty	Manufacturer's warranty

Frequently Asked Questions - Ibrido Top BORETTI

How do I light the BORETTI Ibrido Top?

To light the BORETTI Ibrido Top, open the lid, place charcoal at the bottom of the barbecue, and use a firelighter to ignite the charcoal. Then close the lid and wait for the embers to turn red.

What is the cooking capacity of the BORETTI Ibrido Top?

The BORETTI Ibrido Top has a cooking surface of 64 cm x 44 cm, which is sufficient to cook multiple portions at once.

How do I clean the BORETTI Ibrido Top after use?

After each use, let the barbecue cool down, then remove the ashes and clean the grates with a steel brush. For a deeper clean, you can disassemble some parts.

Can I use gas and charcoal at the same time?

No, the BORETTI Ibrido Top is designed to use either gas or charcoal, but not both at the same time. Select the cooking mode you want to use before starting.

Is the BORETTI Ibrido Top portable?

Yes, the BORETTI Ibrido Top is designed to be easily transportable thanks to its wheels and compact construction.

What is the warranty for the BORETTI Ibrido Top?

The BORETTI Ibrido Top generally comes with a 2-year warranty, but it is recommended to check the specific details in the user manual.

How do I adjust the barbecue temperature?

The temperature can be adjusted by regulating the air vents for charcoal or by using the gas regulator for gas mode. Also monitor the position of the food on the grate for even cooking.

Is the BORETTI Ibrido Top suitable for outdoor use in all weather?

Although the BORETTI Ibrido Top is designed for outdoor use, it is recommended to protect it with a cover when not in use, especially in rain or snow.

What are the dimensions of the BORETTI Ibrido Top?

The dimensions of the BORETTI Ibrido Top are approximately 120 cm wide, 55 cm deep, and 110 cm high.

Where can I buy spare parts for the BORETTI Ibrido Top?

Spare parts can be purchased directly from the manufacturer\'s website or from authorized dealers. Also check online platforms.

USER MANUAL Ibrido Top BORETTI

WAARSCHUWING AATSING BARBECUE

Welcome & Congratulations

Congratulations on your purchase of a new grill! We are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority.

Please read this Use & Care Manual very carefully. It contains valuable information on how to properly maintain your new grill. We know you'll enjoy your new grill and thank you for choosing our product. We hope you consider us for future purchases.

Boretti

Please read and save these instructions

This Use & Care Manual provides specific operating instructions for your model. Use your grill only as instructed in this manual. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Please record your model and serial numbers below for future reference. This information is found on the serial plate located on the inside of the grill door.

Table of contents

General safety instructions 65

Use of the grill 66

Technical characteristics of the barbecue 68

Parts list 69

Grill Assembly 71

L.P. Gas installation 78

Pre-operation leak testing 79

Lighting the Grill 80

Using the side Burner 81

Bottom infrared cooking tips 82

General Instructions 83

Frequently asked questions 84

Care and maintenance 96

Troubleshooting 98

Limited warranty 90

Environmental Regulations 91

IMPORTANT SAFETY INFORMATION

• Read this manual carefully before using your grill to reduce the risk of fire, burn hazard or other injury.
• Extreme care should be used because of the high temperatures produced by this appliance.

CHILDREN SHOULD NOT BE LEFT UNATTENDED IN AN AREA WHERE THE GRILL IS BEING OPERATED.

• This appliance must be kept clear from combustible materials, gasoline or other flammable vapors and liquids. Do not allow flammable materials to come in contact with grate, burner or hot surfaces.
• Use only outdoors and provide good ventilation to avoid carbon monoxide buildup which could result in injury or death.
• DO NOT repair or replace any part of this appliance unless it is specifically recommended in this manual. A qualified service technician should conduct all other service.
• Follow the installation and servicing instructions provided with this product. Have your grill installed by a qualified service technician.
• Locate the main gas supply valve so that you know how to shut the gas off to your grill.
• If you smell gas, make sure all gas connections are tight before operation. If you continue to smell gas call a qualified technician.
• When lighting a burner, always pay close attention to what you are doing and be certain you are pushing the igniter that lights the burner you intend on using.
• Always keep your face and body as far away from the grill as possible when lighting to reduce the risk of burn.
• Extinguish all flames and DO NOT smoke while engaging gas and igniting the grill.

INSTALLER

Please retain these instructions with the owner so that they may maintain them for future reference.

WARNING

GRILL LOCATION

DO NOT use the grill in garages, breezeways, sheds or any enclosed area. Never operate the grill in enclosed areas as this could lead to a carbon monoxide buildup, which could result in injury or death. Place the grill on a level surface. Avoid moving the grill while it is in operation.

NOTE: The grill will operate best if it is not facing directly into the wind.

Clearance to combustible construction

• A minimum of 15" from the sides and back must be maintained from the gas grill above and below the cooking surface to adjacent vertical combustible construction.

Clearance to non-combustible construction

• A minimum of 6" clearance from the back of the grill to non-combustible construction is required for the lid to fully open.

Storage of an outdoor gas cooking appliance indoor is permissible only if the cylinder is disconnected and removed from the appliance.

WARNING

Heat and smoke exhaust out of the back of the grill hood opening. Make sure not to have the grill back facing your home or anything that could be damaged by heat or smoke.

FOR YOUR SAFETY

1 Make sure the grill has been leak tested and is properly located.
2 Light the grill burners using the instructions provided in this manual.
3 Turn the control knobs to desired temperature "HIGH, MEDIUM, OR LOW" and pre-heat the grill for 10 minutes before cooking.
4 Adjust heat settings to meet your cooking needs for desired results.
5 Allow grill to cool down, wipe off any splatters or grease and clean the drip tray as needed.
6 DO NOT put a cover on the grill while it is still hot, as it could cause a fire.

WARNING

Do not use the rotisserie in the rain.

WARNING

NOTE: DO NOT operate the main burners and infrared back burner at the same time. This can cause warping of the roll top grill hood.

WARNING

Electrical Grounding Instructions

This appliance (rotisserie motor) is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. DO NOT cut or remove the grounding prong from this plug.

WARNING

DO NOT use the grill in garages, breezeways, sheds or any enclosed area. Never operate the grill in enclosed areas as this could lead to a carbon monoxide buildup, which could result in injury or death. Place the grill on a level surface. Avoid moving the grill while it is in operation.

WARNING

Keep any electrical supply cords and the fuel supply hose away from any heated surfaces.

WARNING

Always have a qualified service technician perform difficult conversions or modifications.

WARNING

DO NOT try lighting this appliance without reading the "LIGHTING INSTRUCTIONS" section of this manual.

WARNING

Never attach an unregulated gas line to the appliance. Connection to an unregulated gas line can cause excessive heat or fire.

WARNING

The Spare L.P. Gas Tank Barrier must be installed to prevent storage of spare L.P. Gas Tanks. Failure to comply with these instructions could result in a fire or explosion that could cause serious bodily injury, death, or property damage.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flames.

3. Open grill hood.

4. If odor continues, immediately call your gas supplier and local Fire Department.

FOR YOUR SAFETY

DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

An L.P. cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

FOR YOUR SAFETY

This appliance is not intended to be installed in or on recreational vehicles or boats.

THIS GRILL IS FOR OUTDOOR USE ONLY

Installation must conform with local codes.

1. Hood handle
2. Hood assembly
3. Warming rack
4. Side shelf lid
5. Side shelf assembly
6. Side shelf handle
7. Knob for rear IR burner
8. Knob for main burner
   9.Trash bag (sold at Boretti store)

9. Left door assembly

10. Windshield

11. Side burner lid

12. Side burner
13. Trivet
14. Side burner handle
15. Side burner assembly
16. Electronic igniter
17. Knob for side burner
18. Brand
19. Door handle
20. Right Door Assembly

TOOLS YOU WILL NEED: A Phillips screwdriver, adjustable wrench, 1/2'' wrench or socket and a 1/4'' nut driver or socket will be needed to assemble this grill. All other necessary hardware has been included.

Parts list

Body Assembly 1x	Side Shelf Assembly 1x	Side Burner Assembly 1x
Trash Bag System Guide Rail B 1x	Electronic Igniter 1x	Battery 1x
Grease Cup 1x	Frame for Trash Bag 1x	Charcoal Tray Assembly 1x
Charcoal Net 1x	Black Enamel Flame Tamer I 2x	Black Enamel Flame Tamer II 1x

Step 1 - Take away the side burner bracket, and loose screw M4 and nut M4 to remove the side burner.

Step 2 - a) Loosen screws M6 X 4 PCS and screw M4 X 1 PCS of the fire box right side panel;

b) Attach the side burner by inserting the 5 screws on the side of the grill head into the holes on the side burner.
c) Fasten the 5 screws to secure the shelf.

Step 3 - Insert one valve screw M4 through the bezel and in to the side burner valve and tighten.

Step 4 - a) Attach one end of the side burner wire to the terminal space of the side burner electrode. b) Attach five (5) wires coming out from the side of the grill and the side burner wire to the igniter terminals.

Grill Assembly

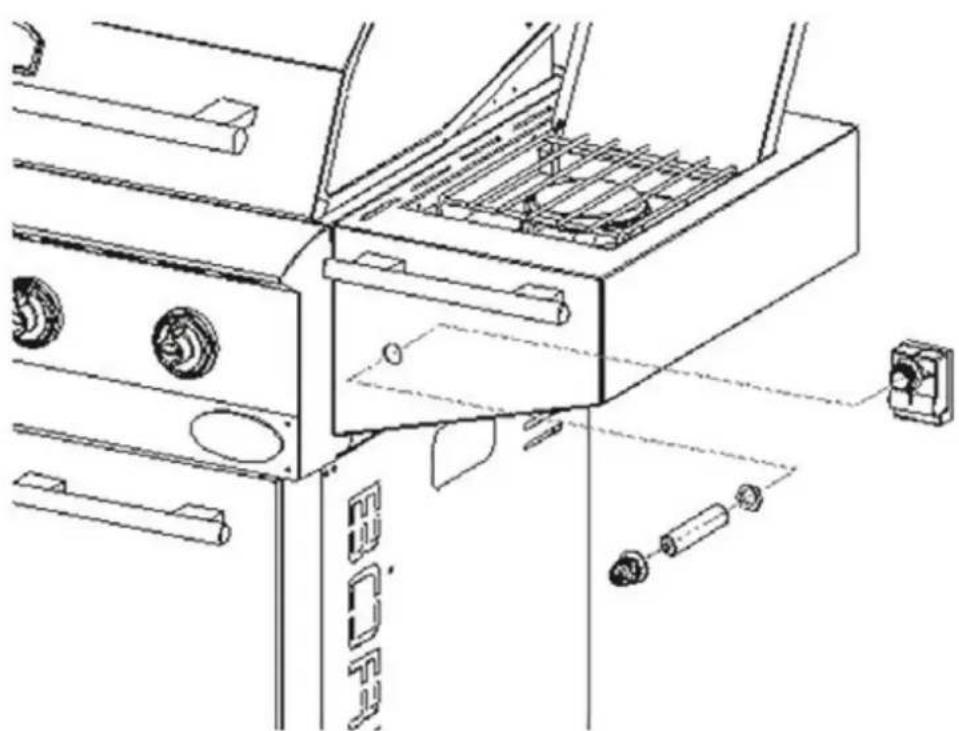

Step 5 - a) Slide the threaded part of the igniter through the igniter hole in the front of the side burner shelf, then install the locknut.

b) Install the battery with positive side facing out.
c) Screw igniter cap onto igniter.

Step 6 - Attach the trash bag system guide rail B to the left side of the BBQ, and fix it with 2 pcs M6X10.

Grill Assembly

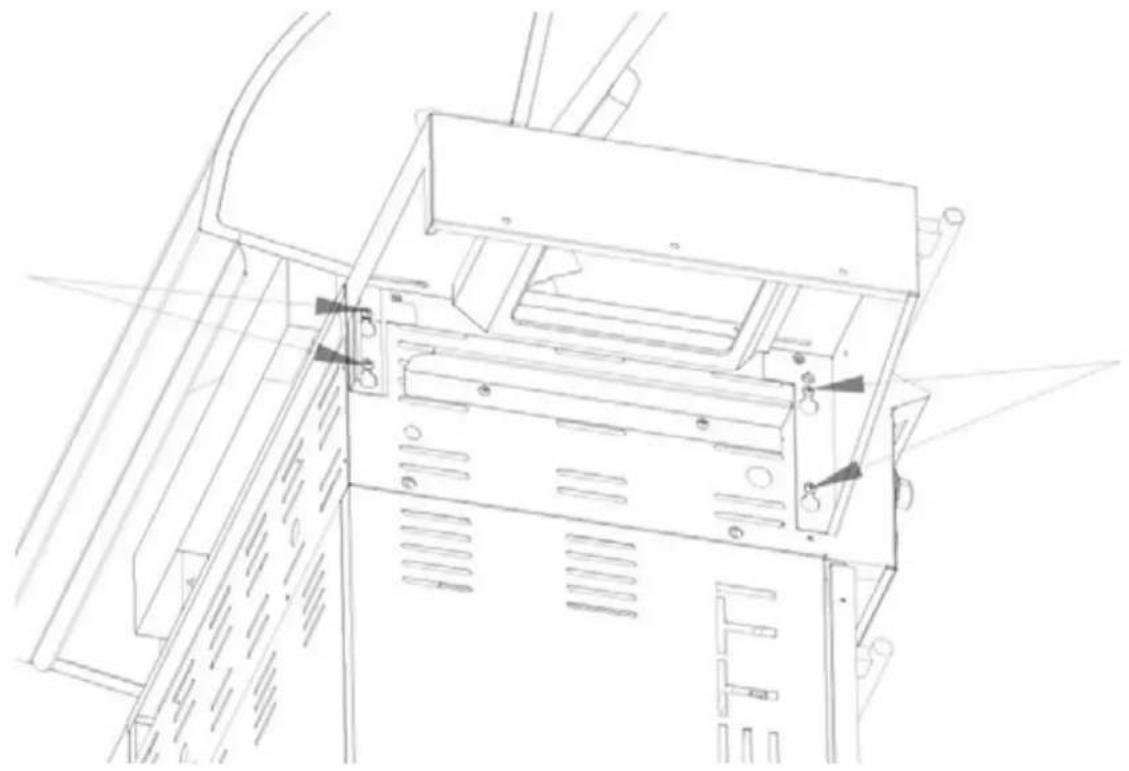

Step 7 - a) Loosen screws M6 X 4 PCS of the fire box left side panel;

b) Attach the side shelf by inserting the 4 screws on the side of the grill head into the holes on the side shelf.

c) Fasten the 4 screws to secure the shelf.

Step 8 - Fix the panel with the screw which is pre installed on the base.

Step 9 - Put the drip pan into the drip pan guides under the grill head.

Step 10 - a) Insert the top row of flame tamers into the cutouts with triangle ridges facing up. Make sure the flame tamer 3 with the long side is installed next to the charcoal tray.

b) According to the below picture, put the charcoal tray into the BBQ.

Grill Assembly

Step 11 - a) Install cooking grates on the ledges provided on the grill to create your cooking surface. b) Rest warming shelf on the bracket on the hood support.

Step 12 - Hang the trash bag on the frame.

Step 13 - Put the frame into the guide rail system.

L.P. Gas installation

1 Never store any extra cylinder under or near your grill.
2 The gas supply must be turned off at the LP gas supply cylinder when this gas grill is not in use.
3 Storage of this gas grill indoors is permissible only if the cylinder is disconnected and removed from the gas grill.

Tank connection Regulator

inlet connector

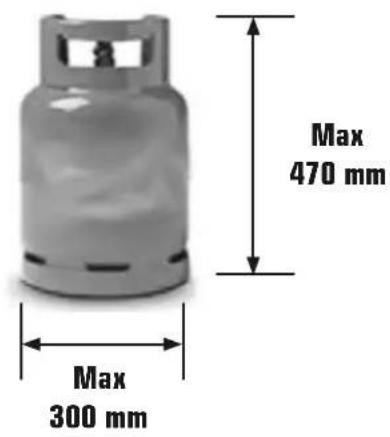

L.P. Gas cylinder installation

1 Lift the cylinder lock ring up and place the propane cylinder in the hole on the cart base. (Pic 1)
2 Secure the ring on the neck of the propane cylinder to lock the cylinder in position. (Pic 2)

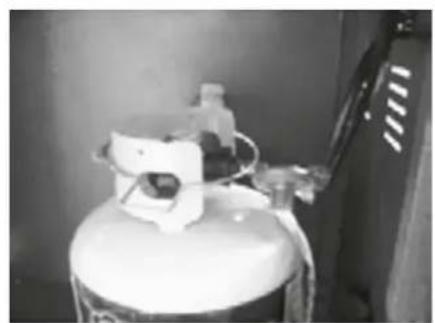

3 Attach the LP hose and regulator to the propane cylinder. (Pic 3)

picture 1 picture 2 picture 3

General information

Although all gas connections on the grill are leak tested prior to shipment, a complete gas tightness check must be performed at the installation site due to possible shifting during shipment, installation or excessive pressure unknowingly being applied to the unit. Periodically check the whole system for leaks and immediately check the system if the smell of gas is detected.

Before testing

DO NOT smoke while leak testing.
- Extinguish all open flames.
- Never leak test with an open flame.
- Mix a solution of equal parts mild detergent or liquid soap and water.

Testing

1 Turn off the burner control knobs
2 Turn the top knob of the fuel supply cylinder counter-clockwise (right to left) two (2) rotations to open.
3 Apply the soap solution to connections of the fuel supply assembly. If no soap bubbles appear, there is no gas leak. If bubbles form at the connections, a leak is detected. If a leak is detected, immediately turn off the gas supply, tighten any leaking fittings, turn gas ON, and repeat steps 1 - 3.
4 Turn off the knob on the fuel supply cylinder.
5 Turn on the burner control knobs for a moment to release the pressure in the hose, then turn the control knobs back off.
6 Wash off soapy solution with cold water and towel dry.

Check all gas supply fittings before each use and each time the gas supply cylinder is connected to the regulator. Have a qualified service technician leak test the grill any time a part of the gas system is replaced. It is also recommended to perform a leak test a least once a year whether or not the L.P. gas supply cylinder has been disconnected.

NOTE: When leak testing this appliance, make sure to test and tighten all loose connections, including the side burner. A slight leak in the system can result in a low flame, or hazardous condition. Most L.P. gas tanks now come equipped with a leak detector mechanism internal to the tank, when gas is allowed to escape rapidly, it shuts off the gas supply. A leak may significantly reduce the gas flow making the grill difficult to light or causing low flames.

NOTE: If you cannot stop a gas leak turn off the gas supply and call your local gas supplier or the dealer you purchased the appliance from. If necessary, replace the faulty part with the manufacturer's recommended replacement part. A slight leak could cause a fire.

NOTE: If the grill will not light after several attempts, see the Trouble Shooting section of this manual. Turn the control knobs to the OFF position when not in use.

DO NOT ATTEMPT TO “LIGHT” THE GRILL IF THE ODOR OF GAS IS PRESENT!

Before and after lighting

1 Ensure your grill is located on a level surface.
2 Keep the gas grill area clean and free from combustion materials, gasoline, and other flammable vapors and liquids.
3 Ensure nothing is obstructing the flow of combustion and ventilation air.
4 Ensure the ventilation of the cylinder enclosure are free and tear of debris.
5 Visually check burner flames.

WARNING: Check the gas supply line for cuts, wear or abrasion. Always keep your face and body as far away from the grill as possible when lighting.

Grill burner lighting

Lighting the Grill with Electronic Igniter

1 Make sure all control knobs are in the "OFF" position
2 Open the gas supply valve located on top of your L.P. tank

ATTENTION: When turning the L.P. tank on, make sure to open the valve very SLOWLY two (2) complete turns to ensure proper gas flow.

3 Always open the hood before attempting to light.
4 Push and turn one of the control knobs counter-clockwise to the "HIGH" position and immediately press the electronic igniter button. You will hear a snapping sound. It may be necessary to hold the electronic starter button for about 4 seconds. (See Fig. 4)

Fig. 4

NOTE: If the burner does not light in 4 seconds, turn the knob to the "OFF" position and wait 5 minutes before trying again.

5 Repeat above steps to light remaining burners.

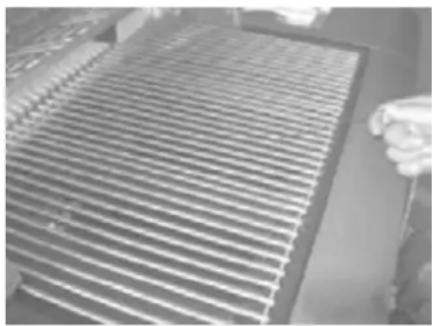

Match lighting

If by chance the electronic igniter does not light the burner, the burner may be lit with a match attached to the match extender, located on the inside of the cart door. Keep your face as far away from the grill surface as possible and pass the match extender through the spaces in the grill grates to the ports of the back crossover burner between the flavor grids. Position the match near the burner ports and push and turn the control knob counter-clockwise to the "HIGH" position. (See Fig. 5) The match extender can be stored inside the cart door by sliding the extender ring through the opening on the inside, back of the cart door. (See Fig. 6).

NOTE: If the grill will not light after several attempts see the trouble-shooting section of this manual. Turn the control knobs to the OFF position when not in use. Keep any electrical supply cords and the fuel supply away from any heated surfaces.

Fig. 5
Fig. 6

Side burner lighting

Lighting with Electronic Igniter

Push and turn the control knob to the "HIGH" position and immediately press and hold the electronic igniter button. You'll hear a snapping sound. It may be necessary to hold the electronic starter button for about 4 seconds. If the burner does not light in 4 seconds, turn the knob to the "OFF" position and wait 5 minutes before trying again. (See Fig. 7)

Fig. 7

Side burner lighting

Match lighting

If by chance the electronic igniter does not light the burner, the burner may be lit with a match. Attach the match to the match extender, located inside the right cart door.

Keep your face as far away from the grill surface as possible and hold a match, attached to the match extender, near the burner ports, then push and turn the control knob counter-clockwise to the "HIGH" position.

Bottom infrared cooking tips

Even with an expert chef, infrared cooking can be quite a challenge. If you follow these simple suggestions, you will soon be making juicier, more savory foods than you have ever experienced before. In general, foods will cook in less time than they would take on an ordinary grill. If you rotate food regularly (about every 2 minutes), extreme charring is avoided.

Infrared grills work by producing concentrated heat which quickly sears the meat. Searing holds in flavor and juices while allowing the surface to soak in smoke and food aroma that is produced as grease and drippings are vaporized by the infrared burner. The outcome is a crisp, savory exterior with a tender, moist interior - just the outcome you want with most grilled foods.

How to grill with bottom infrared burner

• Place food on grill grids and turn every 2 to 2 1/2 minutes until food is cooked to desired doneness. Do not let food cook more than 2 1/2 minutes without turning.
• Perfect cross sear marks can be made by rotating food 90^

We recommend that you turn food being grilled on an infrared burner every two minutes during the cooking period. Never allow food to cook more than 2 1/2 minutes without turning.

Food Item Approx. Cook Time

Chicken Breast, boneless

8-10min.

Chicken Breast, bone-in

20 - 24 min.

Hambuger, 1/2 thick

5 min. Medium

6 min. Well Done

Steak, 1" thick

6 min. Rare

8 min. Medium

10 min. Well Done

These are recommended times only. Due to variations in cuts of meat and personal taste, your cooking times may vary. Use your discretion when using your infrared burner.

Controlling flare-ups

Never attempt to control a flare-up by dousing with water. Burner damage will result and void your warranty.

With proper care, fl are-ups should not present a problem with your grill. Minimize fl are-ups by:

• Properly pre-heating the grill
• Trimming excess fat from meat
• Cleaning grill regularly to avoid grease build-up
• Repositioning meat during cooking

If fl are-up occurs, move meat to a different portion of the grill until the fl are-up is under control.

General Instructions

Gas barbecues are designed for outdoor use only.

Barbecues have wheels making them portable and easy to transport.

Your Barbeque came to you assembled and after being tested.

If not, please read assembly instructions before you begin to assemble your barbecue.

Make sure barbecue is properly assembled before using the appliance.

Do not let children play with the barbecue.

Storage

After using your gas barbecue, turn off gas at the gas cylinder and allow appliance to cool down.

Store in a well ventilated area and keep children away from the appliance.

Do not put anything flammable on the storage shelf under the barbecue.

If leaving barbecue outside, use an outdoor cover to protect from weather damage.

Allow barbecue to cool down before covering or moving the appliance.

Cooking

Use heat resistant gloves when operating the barbecue.

Do not place fingers or hands near the edge of the cooking area as this gets very hot.

Use suitable barbecue tools to turn food on the grill. Do not use fingers!

Operating

Ensure barbecue is secure and positioned on level ground.

Always perform a gas leak test prior to using the unit and after a prolonged period of non-use (see 'Gas Leak Tests' above).

Cleaning

Allow appliance to cool down before cleaning.

Use hot soapy water on outer surface areas and rinse well with clean water. Dry with a soft, clean cloth.

Do not use abrasive cleaning products on the barbecue as these can scratch and damage the surface.

Remove the grills for cleaning in hot soapy water. Rinse well with clean water and dry before replacing in the barbecue.

When cleaning the valves and burners be careful not to stretch the valve orifices or burner ports.

I have just bought my first gas barbecue – what gas do I need?

We recommend propane for all our barbecues.

Use the 10 kg. gas tanks, which you'll find at specializing stores and gas stations.

There appears to be something peeling off the inside of the hood. What should I do?

Do not worry, this isn't paint. Many of our barbecue hoods are coated either with a baked-on porcelain enamel, which cannot peel, or a high-temperature paint finish. What you can see is a deposit of grease and smoke that collects during normal use to form a carbon layer. This will eventually peel and looks very similar to paint. The peeling normally starts in the centre of the lid and spreads outwards and may come off in sheets or flakes. These carbon deposits are non-toxic and easy to remove which we suggest you do on a regular basis. Brush off all loose particles with a barbecue brush before you start grilling and, while the hood is warm rather than hot, wipe it with a cloth soaked in a mild soap and water solution.

What is direct and indirect cooking?

Direct cooking (flatbed or hooded models) is simply placing foods directly over the heat source. For indirect cooking (hooded models only) the food is placed to the sides of the heat source, not directly over it. As a general rule when barbecuing joints or roasts that require longer cooking times, you should use the indirect method. This allows the food to cook through thoroughly while still adding the extra barbecue flavour.

Will my porcelain coated (matt) cast iron grills be safe in the dishwasher?

Do not place any grills/griddles into your dishwasher as they could become damaged or in fact damage your dishwasher.

How should I care for my porcelain coated, cast iron grills/griddle?

You should soak them in warm soapy water and then use a non-abrasive scourer after each use of the barbecue. Also by oiling the grills/griddle before cooking you will reduce foods from sticking and this will also help with cleaning them after use.

My gas barbecue has a yellow flame - is this normal?

The flame on your gas barbecue should be blue. If you have a yellow flame it could be caused by a couple of different problems:

First check the burner to make sure there are no cracks or holes and that all the burner holes are the same size.

Also, check that there is nothing blocking the burner holes, or the burner venturi tube. (This is the tube that is part of the burner, between the burner body and the gas valve)

Small insects, and spiders in particular, like to crawl into the burners and cause obstructions to the gas and airflow – this particularly happens over a prolonged period of non-use/storage. Spider guards are fitted to the air intakes in an effort to reduce this problem, but will not eliminate it. Spider guards should also be kept clean. A simple pipe cleaner will allow you to clear any blockages.

If the burner appears to be fine then the problem might be with the regulator. Sometimes regulators get stuck. This can reduce the gas flow, make a yellow flame and prevent your barbecue from reaching its correct cooking temperature.

If the regulator remains stuck it should be tested or replaced. Also check that your gas bottle is not running low, as this would affect the amount of gas your barbecue is receiving.

Can I use charcoal in my gas barbecue?

No. Gas barbecues are designed to handle the heat created by the burners and not the heat created by burning charcoal or other fuels. Such actions would cause damage to your gas barbecue as well as creating significant risk to the user and any others nearby.

Frequently asked questions

Why do I get flare ups when using my gas barbecue?

Flare-ups occur when meat is barbecued, and its fat and juices fall upon the flame tamer. Smoke helps give food its barbecued flavour, but excessive flare-ups should be avoided to prevent the food being burned. Excessive flare-ups will actually burn the outside of the food and leave the middle possibly undercooked. To control flare-ups it is advisable to trim away excess fat from meat and poultry before grilling. The burner should always be placed on the low to medium setting during cooking. Always protect your hands when touching anything near the cooking surfaces. We also suggest that you do not overload the barbecue with too much food at one time.

Is there any taste difference between charcoal and gas?

The common belief that charcoal gives barbecued food its unique taste is, in fact, untrue. The juices and fat from the food drip on to the lava rock/flame tamer/charcoal and vaporise into smoke which then rises, basting the food and creating its "barbecue" flavour. Charcoal itself does not add any flavour however flavoured wood chips, of which there are many varieties, will do.

How high should the flame be on my gas barbecue?

The flame you see is only 50% of the total of the flame as it comes from under a lip on the burner, designed to help spread the flame. Typically you will only see 3mm of the flame.

Finally, make sure your barbecue is located on safe, level ground, ensuring the barbecue is at least 1 metre away from flammable materials such as trees or fences.

How should I care for my burners?

It is normal for rust to form on the cast iron but any food debris should be removed on a regular basis. This can be cleaned off using a wire brush. Burners should be periodically removed for inspection and cleaning, particularly after a period of non-use/storage. They should be checked for general condition and to ensure the portholes are not becoming blocked. These can be cleaned with the use of a wire brush or pipe cleaner. Care should be taken not to damage the gas valve or ignition electrode when removing the burners.

When the barbecue is being stored, we advise wrapping the burners in foil to keep the burner holes free from insects and other debris.

My barbecue will not light using the ignition system what should I do?

Check your gas bottle and replace if necessary. Check that the burners are not blocked and if necessary clean and replace. Make sure the gas hose has no kinks or obstructions.

First check that the electrode wire is not loose, to do this you must remove the front control panel. Also check that the gas collector box around the electrode is in line with the burner with a gap of 3 to 4mm between the end of the electrode and the tag on the end of the gas collector box. Realign the collector box as required.

Can I replace my grill with a griddle?

We do not suggest that the cooking area is more than 50% griddle as this could cause the barbecue to overheat and be damaged. You may however convert the whole cooking area to grills as this will not impair performance or cause any excess heat build-up.

My burner is loose fit where it goes onto the gas valve, won't gas leak out?

No, as the gas is injected from the valve it creates a small vacuum. This draws air in which is actually required in order for the gas to burn when it comes out of the burner. There is actually a slot in the burner tube under the mesh to ensure that there is an adequate supply of air.

Care and maintenance

Infrared burner cleaning

After each use, it is necessary to burn the bottom infrared burner with the hood open for at least five minutes to vaporize any food drippings or particles. Failure to perform this step will damage the burner. It may occasionally be necessary to brush, blow, or vacuum accumulated ash from the burner surface. Do so carefully and only when the burner is cool.

Protection of infrared burners

The burners of your grill are designed to provide a long life of satisfactory performance. However, there are steps you must take to prevent cracking of the burner's ceramic surfaces, which will cause the burners to malfunction. The following are the most common causes of cracks and the steps you must take to avoid them.

Damage caused by failure to follow these steps is not covered by your grill warranty.

Impact with hard objects

Never allow hard objects to strike the ceramic. You should take particular care when inserting or removing cooking grids and accessories into or from the grill. If objects such as these fall onto ceramic, it is likely to crack the ceramic.

Impaired ventilation of hot air from grill

In order for the burners to function properly, hot air created by the burners must have a way to escape, the burners may become deprived of oxygen, causing them to backfire, especially if the burner output is set to "HIGH". If this occurs repeatedly, the burners may crack. This is the reason your grill was designed with ventilation louvers. These design features give the hot air an escape route. Accordingly, never operate your grill with very little or no open space at the cooking surface (the cooking grids provide sufficient space). Also, never cover the ventilation louvers with foil or other materials that prevent air flow. Specifically, DO NOT cover the entire surface with foil, a large pan, etc.

General maintenance

• Keep outdoor cooking gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
  DO NOT obstruct the flow of combustion and ventilation air.
• Keep the ventilation opening of the cylinder enclosure free and clear from debris.
• Visually check the burners.

Normal

Soft blue flames

Out of Adjustment

Hard blue flames too much air

Poor Combustion

Wavy, yellow flamestoolittle air

Drip tray

The drip tray should be cleaned periodically to prevent heavy buildup of debris.

NOTE: Allow the drip tray to cool before attempting to clean.

IMPORTANT: DO NOT leave the grill outside during inclement weather unless it is covered. Rain water can collect inside of the grill, the grill cart or the drip tray if left uncovered. If the drip tray is not cleaned after use and the grill is left uncovered, the drip tray will fill with water causing grease and water to spill into the grill cart. We recommend cleaning and storing the drip tray after every use.

Cooking grates

The cooking grates can be cleaned immediately after cooking is completed and after turning off the grill. Wear a barbecue mitt and scrub the cooking grates with a damp cloth. If the grill is allowed to cool down, cleaning the grates will be easier if removed from the grill and cleaned with a mild detergent.

Stainless steel

After initial usage, areas of the grill may discolor from the intense heat given off by the burners, this is normal. Purchase a mild stainless steel cleaner and rub in the direction of the grain of the metal. Specks of grease can gather on the surface of the stainless steel and bake on to the surface and give a worn appearance. For removal, use a nonabrasive oven cleaner in conjunction with a stainless cleaner.

NOTE: Always scrub in the direction of the grain.

Porcelain parts

Certain parts of your grill have a porcelain coating. Porcelain is a glass-based product, and is highly durable to standard wear and tear. However, porcelain is sensitive to concussive blows, which can create interlaced micro-fractures, or "spider webs". Please take care not to strike any porcelain covered parts with solid objects, drop them, or create any other concussive blows. These interlaced micro-fractures are common and may lead to minor chipping. Neither the chipping nor the interlaced micro-fractures will adversely affect the performance of your grill, and are not covered under the warranty for porcelain parts.

Troubleshooting

General trouble shooting

You should inspect the burners at least once a year or immediately if any of the following conditions occur:

The smell of gas.
- Flames appearing mostly yellow. (some yellow at the tips is OK)
- The grill will not get hot enough.
- Burners make a snapping noise.
The grill heats unevenly.

Spider and insect warning

Spider and insects can nest in the burners of this or any other grill and cause the gas to flow from the front of the burner. This is very dangerous condition which can cause a fire to occur behind the valve panel, thereby damaging the grill and making it unsafe to operate. We recommend you check the grill and remove any spiders, insects and webs at least once a year to reduce this risk.

Before calling customer service

If the grill does not function properly, use the following checklist.

Problem Solution

Grill will not light when the igniter button is pushed.

Is your gas supply turned on?

If this is an L.P. grill, is there gas in your tank? Check your gas level.

Is one of your burners turned on? Allow up to four seconds of gas flow to ignite.

Is your igniter working?

• You should hear a snapping sound when you press the igniter?
• If you hear a snapping sound can you see a spark at the electrodes?

Note - You will need to remove your cooking grates and flavor grids to see the electrodes.

Check to see if your igniter battery is installed correctly with the negative side in.

Check your igniter battery and replace if needed.

Check for loose wire connections to the igniter or electrodes.

Check to see if debris is blocking the electrodes.

If the igniter is not working can you light the grill with a match?

Troubleshooting

Problem Solution Grill will not light with a match or low heat with dial set to "HIGH" position.	Is your gas supply fully turned on? Is there gas in your L.P. tank? Check your gas level. Shut off gas supply, disconnect gas line at the tank, re-connect the line to the tank. Make sure all the knobs are in the "OFF" position, then open the gas supply valve on the L.P. tank very slowly 1/4 turn, then open fully (at least two full turns). Check flame. Check to ensure the gas supply line or hose is not kinked. If only one burner appears low, check and clean the burner ports if clogged or dirty. Check for leaks. NOTE: Pre-heating time can take from 5-10 minutes
Flame is erratic	Check gas connection. Look for kinked hose and make sure gas supply valve is fully open. Gas level may be low. Grill may be in need of cleaning.
Flare-ups	Check flavor grids and cooking grates for excess food or grease buildup. Ensure grill is not placed directly in the path of wind. Be sure drip tray is clean (DO NOT use aluminum foil on drip tray). NOTE: Some flare-ups may be inevitable if cooking greasy foods.
Burner flame is mostly yellow or orange, possibly in conjunction with smell of gas.	Check the burner inlet for obstructions. Particularly at air inlets for each burner. Grill may be in an area that is too windy.
Cart door does not align properly with cart	Loosen the four 1/2" bolts under the grill hood that hold grill to cart. Slide grill head left or right as needed until door is aligned properly. Retighten bolts. WARNING: Move grill head gently to the left or right on the cart! After the four bolts have been loosened, the grill is not attached to the cart and could fall, causing damage or physical injury.

Limited warranty

Boretti warrants that for 2 years from the date of purchase, the stainless steel panels will not break due to defects in material or workmanship. All other components of this grill are warranted free from defects in material and workmanship for 2 years from the date of purchase. Boretti at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new manufactured product or component.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.

Keep the original sales receipt. Proof of purchase is required to obtain warranty parts.

This warranty does not cover normal wear of parts such as scratches and dents of the stainless steel components or damage resulting from any of the following:

• negligent use or misuse of the product, including exposing the product to chemicals or cleaning products not approved by Boretti
  corrosion, rust or discolouring of any kind.

• use or installation contrary to specified instructions and applicable building codes, including heating the product to temperatures above its rated specifications which can cause considerable warping
  disassembly, including removal of the product from a built-in installation

• damage resulting from accident, alteration, misuse, abuse, hostile environments, or improper installation

• repair or alteration
• External factors, such as fire, flood hurricanes, tornadoes, etc.
• gas cylinders, propane tanks or other fuel delivery systems, including connections to a household fuel supply
• usage other than single-family household use such as commercial or industrial use
  minor warping or discolouration of parts, which is normal and not a defect under this warranty

DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE

If the Grill does not operate properly, first thoroughly carry out the instructions provided with the unit to ensure that the appliance is installed correctly and check the trouble shooting section in the use and care manual.

Because of continuing product improvement these specifications are subject to change without notice,

If you have other questions or need replacement parts contact us.

Environmental Regulations

Should you wish to discard the machine for any reason, please comply with the following: Take the machine to the local authorized company that collects discarded household appliances. Correct processing enable valuable materials to be recycled in an intelligent manner. Before discarding your machine it is important that you cut off the power supply cord and remove it together with the plug. This machine has been accorded the appropriate mark in accordance with European Directive 2002/96EG regarding discarded electric and electronic equipment. This directive determines the standards for the collection and recycling of discarded equipment that apply to the entire territory of the European Union.

BORETTIB.V.

DeDollard17

1454 AT Watergang

T [phone]

F +31[0]20-4361326

S 0900-2352673 (service)

E [e-mail]

The Netherlands

N.V. BORETTI S.A.

Rupelweg 16

2850 Boom

T [phone]

F +32[0]3-4586847

E [e-mail]

Belgium
