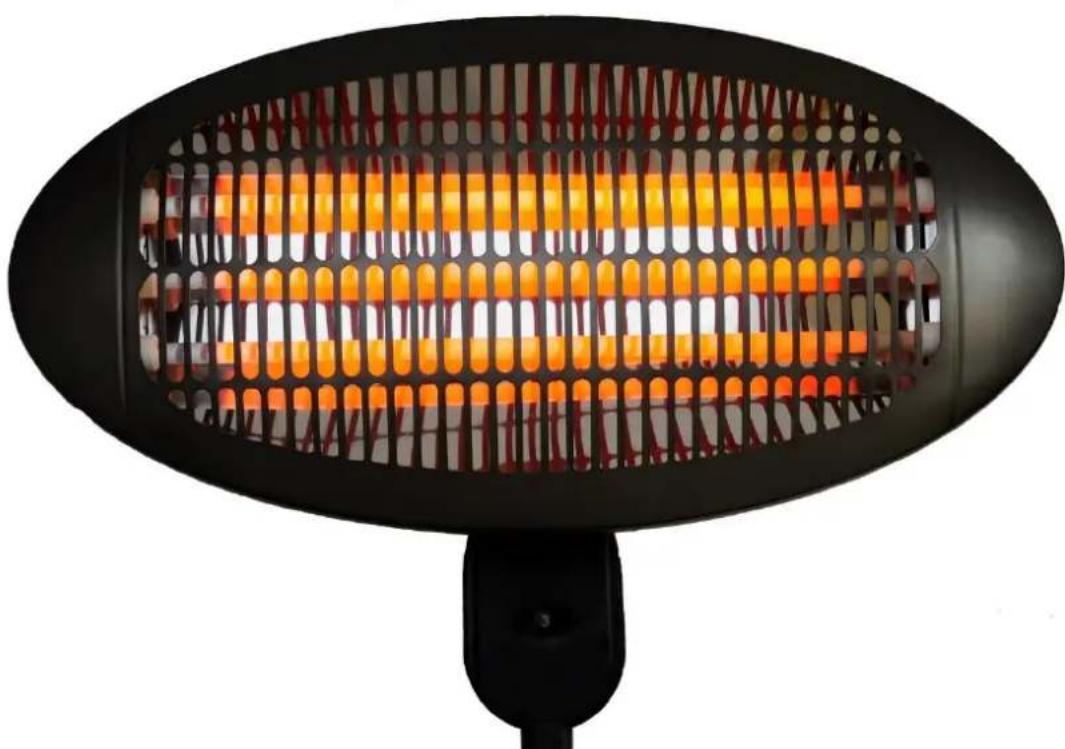

WMQ2000A - Heating SunRed - Free user manual and instructions

Product type	Quartz element electric heater
Brand	SunRed
Model	WMQ2000A
Power	650 W / 1300 W / 2000 W (3 settings)
Heating element type	Quartz
Element lifespan	3000 hours
Weight	1.6 kg
Power cord length	1.9 m
Dimensions (W × H × D)	50 × 36 × 16 cm
Supply voltage	220-240 V ~ 50 Hz
Electrical class	Class I (grounded)
Usage	Indoor and outdoor (garden)
Mounting type	Wall-mounted (bracket included)
Anti-tilt switch	Yes (automatic shut-off if tipped over)
Recommended protection	30 mA residual current circuit breaker
Maintenance	No special maintenance, clean with a dry cloth
Safety	Do not cover, do not use near a bathtub, shower or swimming pool
Warranty	Standard (valid for domestic use only)

Frequently Asked Questions - WMQ2000A SunRed

What are the different power levels available?

The device has 3 positions: off (0), 650 W (position 1), 1300 W (position 2) and 2000 W (position 3). Use the pull switch to select the desired power.

How to install the heater on the wall?

First fix the wall bracket with the 4 screws provided into the wall plugs. Then hang the heater on the bracket by aligning the fixing points marked '1'. Make sure the device is properly locked before use.

What to do if the device accidentally tips over?

The device is equipped with an anti-tilt switch that automatically cuts off power if tipped over. Once placed upright again, the device turns back on automatically.

Can I use this device in a bathroom?

No, it is strictly forbidden to use this heater in the immediate vicinity of a bathtub, shower or swimming pool to avoid any risk of electrocution. The device is designed for indoor and outdoor (garden) use, but the plug must remain indoors.

How to clean the heater?

Unplug the device and let it cool completely before cleaning. Use a dry or slightly damp cloth to wipe the surface. Do not use abrasive products and never immerse the device in water.

What are the essential safety precautions?

Never touch the device while it is operating (risk of burns). Do not cover it and do not place anything on top (fire hazard). Keep children and pets away. Ensure the plug is accessible and use a 30 mA residual current circuit breaker.

Can the device be used outdoors?

Yes, it can be used in a garden or covered outdoor space, but the power plug must be connected to a protected indoor outlet. Avoid direct exposure to rain or moisture.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, an authorized service center or a qualified person to avoid any risk. Do not use the device with a damaged cord.

Can children use this heater?

Children under 8 years of age and persons with reduced abilities should not use the device without supervision. Children must be supervised to ensure they do not play with the device, as the surfaces become very hot.

What to do in case of overheating or suspicious smell?

Immediately turn off the device and unplug it. Check that there is no obstruction of the ventilation grilles. Let it cool before reusing. If the problem persists, contact an authorized service center.

USER MANUAL WMQ2000A SunRed

Manual Wall-mounted Quartz Heater (UK)
Handleiding Wandmodel elektrische heater (NL)
Handbuch Quarz Wandheizung (DU)
Manuel Appareil de chauffage mural (FR)

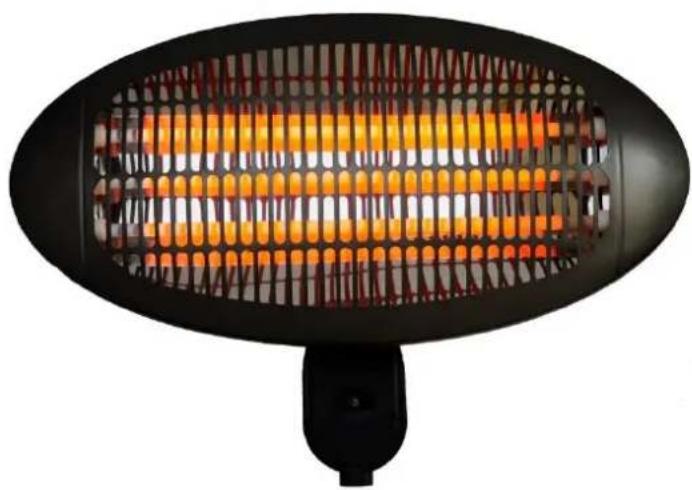

WMQ2000A – Manual Wall-mounted Quartz Heater

Manual Wall-mounted Quartz Heater (WMQ2000A) UK

User instructions - please keep for future reference

TECHNICAL INFORMATION

Wattage: 650W/1300W/2000W

Element type: Quartz

Expected element lifespan: 3000 hrs.

Weight: 1,6 kg

Ingress Protection Rating: IPX4

Certificates: CE, GS, ROHS

Cable Cord: 1,9 Meters

Dimensions: 50 × 16 × 36 cm

All measurements are approximate

www.sunred.nl

IMPORTANT - Carefully remove packaging before use, but retain the safety instructions.

These instructions are part of the product.

Please take note of all the safety regulations listed in these instructions.

Please read these instructions and retain them for future reference.

These instructions should be stored with the product.

This product is for domestic use ONLY and should not be used commercially or for contract purposes.

WARNING

• This electrical appliance comp lies with technical safety and electromagnetic compatibility standards.
• Never touch your heater when in operation (risk of burns).
• Never touch it with wet hands.
• Never rotate the heating part of the appliance during operation. To change the angle of the heating part, we advise you to wait for 15 minutes after the appliance has switched off.
• Never place clothing or towels on your heater's safety guard as this may cause overheating.
• Never use your appliance for dry washing.
• Although the heating element has stopped glowing, It may still be warm and potentially dangerous. Check that the selection indicator is in off position before taking any action.
• Switch off your appliance:

After use
In the event of malfunction
Before cleaning it.

• Never operate your appliance if it has fallen down.
• Never dismantle your appliance. An incorrectly repaired appliance maybe dangerous to the user. If you encounter any problems, please take it to one of the approved service centers in our customer service network.
• The warranty will be void in the event of damage arising from improper use.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

This movable appliance is designed for use in gardens, and can be used indoor and outdoor. The warranty will not apply to appliances used for professional usage. Although the heater may be used outdoors, the main plug must only be connected to the supply indoors.

Children or person who lack the knowledge or experience to use the device or all whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or instruction by a person responsible for their safety. Children are never allowed to play with the device.

The heater is provided with an anti-tilt switch. This will switch off the heater if it is overturned, and it will switch on again automatically when it is restored to its upright position.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervisions or instruction concerning use of the appliance by a person responsible for the safety. Children should be supervised to ensure that they do not play with appliance.

VOLTAGE

Before using the appliance at the first time, ensure that your mains voltage corresponds to pound indicated voltage on the appliance. It is a class I appliance and must be earthed.

SAFETY

CAUTION: Before fitting or removing the appliance, ensure that the heater's power line supplying the heater is disconnected. Check that the power line is connected to a 30mA differential circuit breaker.

• This appliance is designed for use in gardens
• When it is switch on, an electrical heating appliance reaches very high temperature to cause burns.
  Make sure that all other users are aware of the risks.
• If you have any doubts concerning installation possibilities for this heater, please consult a qualified electrician.
• Children may not always be aware of the danger 'involved in using electrical appliances. Never allow this appliance to be used without supervision.
• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similar qualified person in order to avoid a hazard
• The heater must not be located below a socket outlet
• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not place the appliance close to curtains and other combustible materials.

HOW TO ASSEMBLE

• Before installing your appliance, you must disconnect the electrical supply at the circuit breaker.
• Use the four screws to fix the bracket of the heater on the wall on a right position and then fix the heater on the bracket.

OPERATION

The appliance is switched on by means of the pull switch. The slight vibration noticeable when the appliance is switched on will stop after a few seconds.

OUTPUT

Model: PHP-2000D

-Position 0: Stop
-Position 1:650W (normal power)
-Position 2:1300W (intermediate power)
-Position 3:2000W (full power)

MAINTENANCE

Your appliance does not require any particular maintenance. However, in the event of a malfunction, please consult an approved service center.

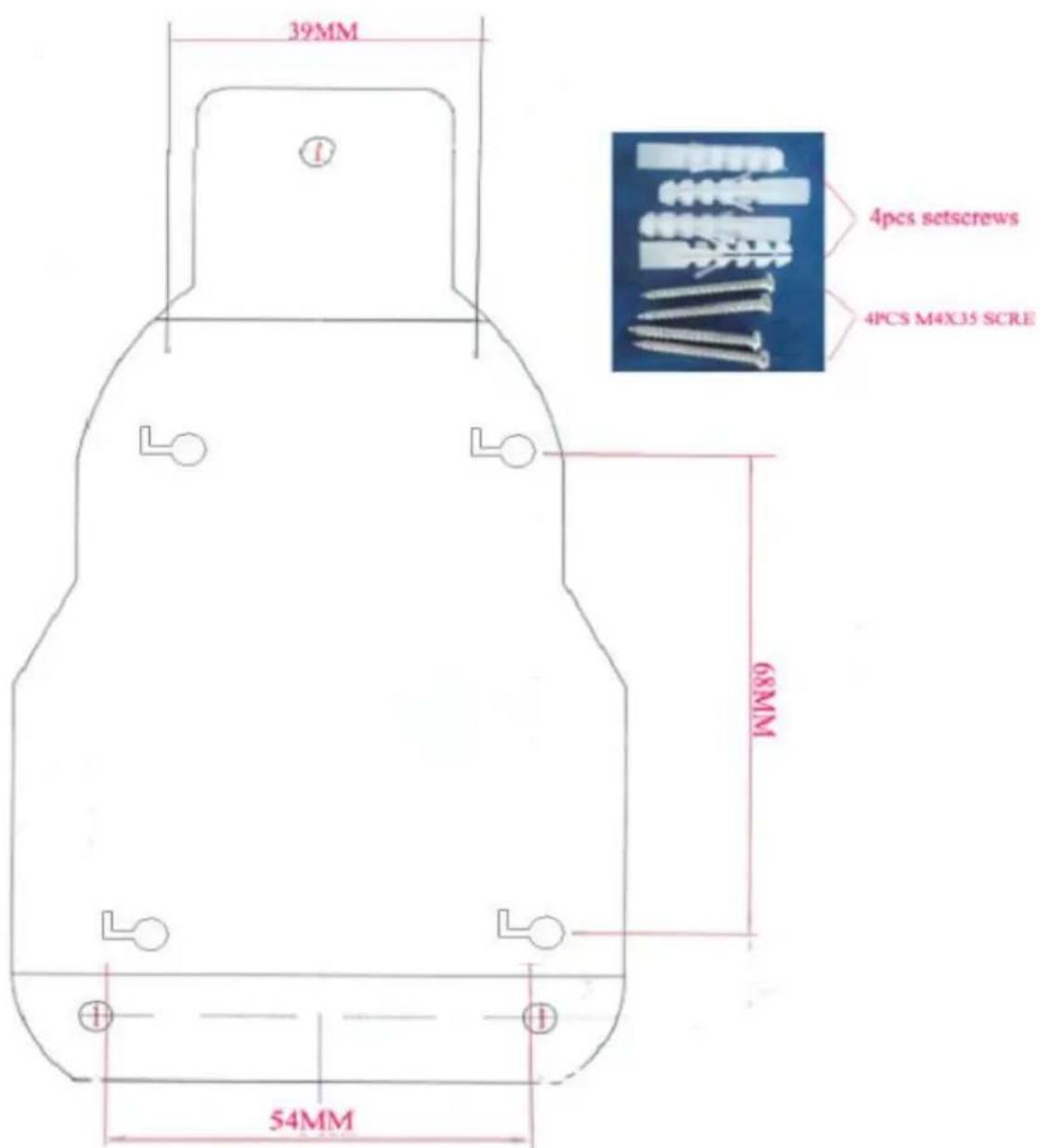

HOW TO HANG THE HEATER ON THE WALL

Remarks:

1. Three positions for "1" are for fixing the item to the bractet.
2. The four positions for "2" are for fixing the bracket to the wall.
3. At the ideal position and height for the heater, firstly you fix the four setscrews on the wall with the distance on the above, and fix four M4X35 screws in the setscrews securely, then you can hang the heater.

IMPORTANT FIXING INFORMATION. PLEASE NOTE!
DO NOT HANG PRODUCT FROM CEILING	DO NOT HANG PRODUCT UPSIDE-DOWN
CORRECT WALL FIXING POSITION

Certificate: CE, GS, ROHS

1. Three positions for "1" are for fixing the item to the bractet.
2. The four positions for "2" are for fixing the bracket to the wall.
3. At the ideal position and height for the heater, firstly you fix the four setscrews on the wall with the distance on the above, and fix four M4X35 screws in the setscrews securely, then you can hang the heater.

Wandmontage:

Ingress Protection IPX4

Zertifikate: CE, GS, ROHS

1. Three positions for "1" are for fixing the item to the bractet.
2. The four positions for "2" are for fixing the bracket to the wall.
3. At the ideal position and height for the heater, firstly you fix the four setscrews on the wall with the distance on the above, and fix four M4X35 screws in the setscrews securely, then you can hang the heater.

WICHTIGE INFO MONTAGE!
Nicht AM DECKE HANGEN	Nicht UMGEDREHT AUFHANGEN
RICHTIGE MONTAGE

Manuel Appareil de chauffage mural (WMQ2000A) FR

Qualification IP:IPX4

Certificates: CE, GS, ROHS

1.Three positions for "1" are for fixing the item to the bractet.
2. The four positions for "2" are for fixing the bracket to the wall.
3. At the ideal position and height for the heater, firstly you fix the four setscrews on the wall with the distance on the above, and fix four M4X35 screws in the setscrews securely, then you can hang the heater.

Montage mural:

Manual Wall-mounted Quartz Heater (UK)

Handleiding Wandmodel elektrische verwarmer (NL)

Handbuch Quarz Wandheizung (DU)

Manuel Appareil de chauffage mural (FR)

OutTrade BV

De Grift 1A

7711 EP Nieuwleusen

Tel [phone]

Fax [phone]

Email [e-mail]

Website www.outtrade.eu

WMQ2000A 02-10-16
