M.Zuiko 45mm f1.2 - Lens OLYMPUS - Free user manual and instructions

Product type	Photo lens
Brand	Olympus
Model	M.Zuiko 45mm f1.2
Mount	Micro Four Thirds
Focal length	45 mm (equivalent to 90 mm in 35 mm)
Maximum aperture	f/1.2
Aperture range	f/1.2 to f/16
Angle of view	27°
Optical construction	14 lenses in 10 groups
Minimum focusing distance	0.5 m
Focus adjustment	AF/MF switching with focus ring
Aperture control	f/1.2 to f/16
Weight (without hood or cap)	410 g
Dimensions (diameter x length)	70 mm x 84.9 mm
Filter diameter	62 mm
Hood mount	Bayonet
L-Fn button	Yes (customizable)
Depth of field scale	Yes
Maintenance	Blow and wipe with cleaning paper
Safety	Do not look at the sun through the lens; avoid concentration of sunlight

Frequently Asked Questions - M.Zuiko 45mm f1.2 OLYMPUS

What is the minimum focusing distance of the M.Zuiko 45mm f1.2?

The minimum focusing distance is 0.5 m (50 cm) from the sensor.

Can I use this lens with a non-Olympus camera?

Yes, if the camera is compatible with the Micro Four Thirds mount. It works perfectly on Panasonic bodies and other brands using this standard.

How to clean the lenses of the M.Zuiko 45mm f1.2?

Use a blower to remove dust, then gently wipe with lens cleaning paper or a microfiber cloth. Avoid solvents.

Is the lens hood included?

Yes, the lens hood is supplied with the lens. It mounts via bayonet and can be reversed for storage.

What does the L-Fn button on the lens mean?

The L-Fn button can be programmed for different functions (e.g., AF lock, focus hold). Its function depends on the body used. Check your camera manual.

What is the filter size for this lens?

The filter diameter is 62 mm. You can use UV, polarizing, or ND filters of this size.

How do I switch from autofocus to manual?

Slide the focus ring forward or backward according to the locking mechanism. In AF position, the camera controls focus; in MF position, you turn the ring manually.

Is the M.Zuiko 45mm f1.2 weather-sealed?

No, this lens is not specifically advertised as weather-sealed. It is recommended to protect it from moisture and dust.

Can I use an adapter to mount this lens on a full-frame camera?

Yes, with a Micro Four Thirds to appropriate mount adapter, but the image circle may not cover the entire full-frame sensor, resulting in vignetting.

What are the recommended accessories for the M.Zuiko 45mm f1.2?

A 62 mm UV filter for protection, a lens hood (included), and a cleaning cloth are recommended. A carrying case can also be useful.

USER MANUAL M.Zuiko 45mm f1.2 OLYMPUS

© 2017 OLYMPUS CORPORATION

date of issue 2017.8

WD242101

Printed in Japan

OLYMPUS

M.ZUIKO DIGITAL

ED 45mm f1.2 PRO

Model No.:IM009

MICRO FourTHRMS

04-12 取级説明書
07-INSTRUCTIONS
11-3 INSTRUCCIONES
15-FR MODE D'EMPLOI
19-HHCTPYKUMN
22.NAVOD KPOUZITI
25.BETJENINGSVEILEDNING
28. BEDIENUNGSANLEITUNG
31-IOAHIEE 85-IR TALMATLAR
34-31JUHISED 88-UKIHCHTPYKLIJI
37. F KAYTTOOHJEET 93-
40.互联网
43-1 HASNZNALATI UTMUTATO
46- I STRUZIONI
49.1INSTRIUKCLIA
52. NORADIUM
55.AANWUZINGEN
58.WINSTRUKIONER
76.SI NAVODILA
93. AB
94：限
97.原使用明细
10.网

61-PLINISTRUKCJA
64- INSTRUÇÖSES
67-ROINSTRUCTIUNI
70- RUMHCTPYKUNM
73-33NAVODNAPOUZITIE
79-雨UPUTSTVOZAUPOTREBU
82-57BRIKSANVISNING
85. JNJ TALMATAR
88-1HCTPYKJU
100
103 - V CAC HONG DAN

取级説明書

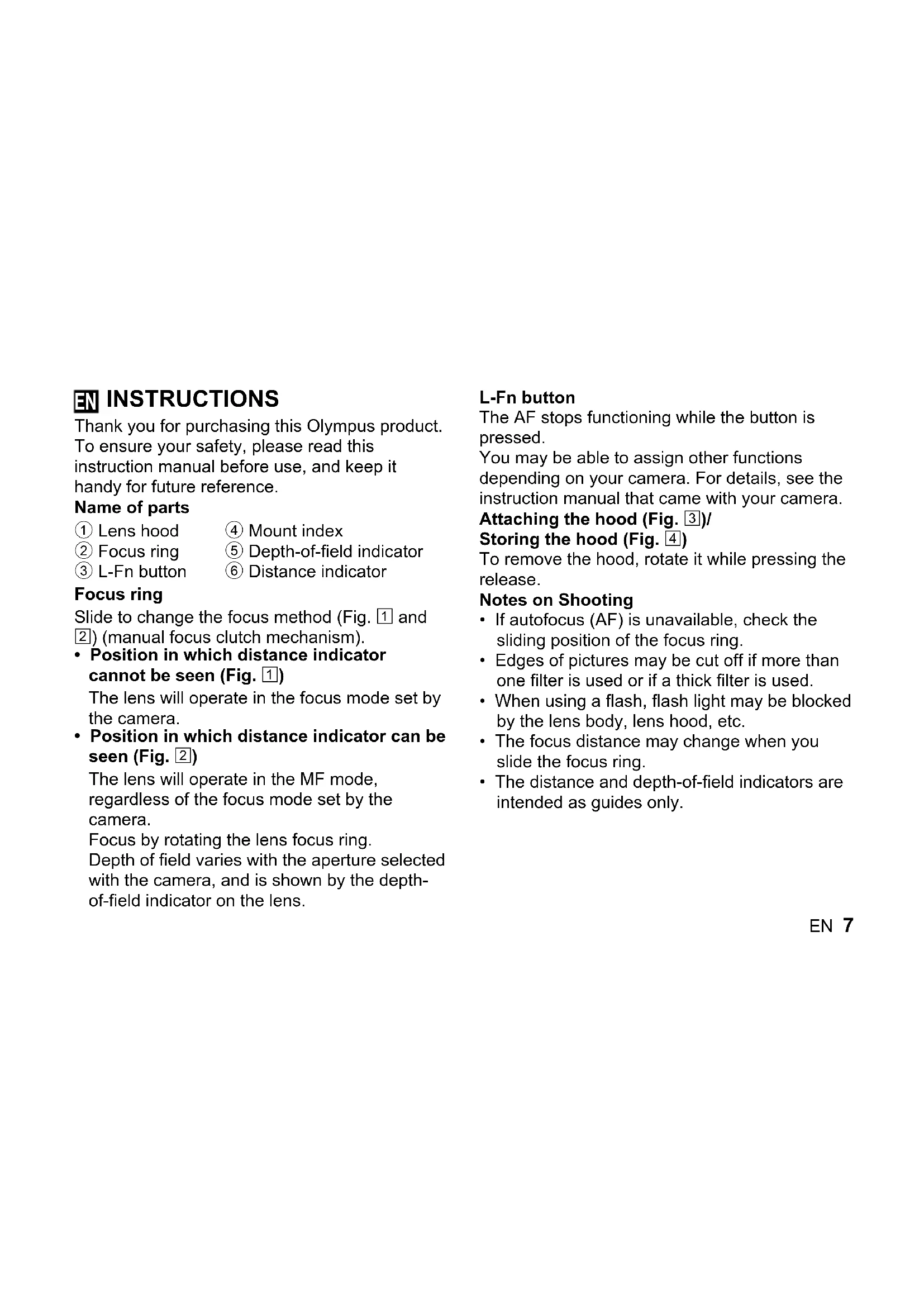

Thank you for purchasing this Olympus product.

To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

Name of parts

① Lens hood
④ Mount index
② Focus ring
⑤ Depth-of-field indicator
③ L-Fn button
⑥ Distance indicator

Focus ring

Slide to change the focus method (Fig. 1 and 2) (manual focus clutch mechanism).
- Position in which distance indicator cannot be seen (Fig. 1)

The lens will operate in the focus mode set by the camera.

• Position in which distance indicator can be seen (Fig. 2)

The lens will operate in the MF mode, regardless of the focus mode set by the camera.

Focus by rotating the lens focus ring.

Depth of field varies with the aperture selected with the camera, and is shown by the depth-of-field indicator on the lens.

L-Fn button

The AF stops functioning while the button is pressed.

You may be able to assign other functions depending on your camera. For details, see the instruction manual that came with your camera.

Attaching the hood (Fig. 3)/

Storing the hood (Fig. 4)

To remove the hood, rotate it while pressing the release.

Notes on Shooting

• If autofocus (AF) is unavailable, check the sliding position of the focus ring.
• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.
• The focus distance may change when you slide the focus ring.
• The distance and depth-of-field indicators are intended as guides only.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 45 mm

(equivalent to 90mm on a 35 mm camera)

Max.aperture:f1.2

Image angle : 27^

Lens configuration : 10 groups, 14 lenses

Shooting range : 0.5 m (19.7 in.) to (infinite)

Focus adjustment : AF/MF switching

Weight : 410 g (14.5 oz.) (excluding hood and ca

Dimensions : Max. dia. 070 length 84.9 mm (3.3 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter 62 mm

• Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Maintenance

Blow dust off the lens with a commercially available blower. For the lens, wipe gently with a lens cleaning paper.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun.

2.8 In light will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

CAN ICES-3(B)/NMB-3(B)

Technical Support (U.S.A. / Canada) 24/7 online automated help: http://www.olympusamerica.com/support Phone customer support: Tel.[phone] (Toll-free) Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail: [e-mail]

For customers in Europe

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.

European Technical Customer Support
Please visit our homepage
http://www.olympus-europa.com
or call: Tel. 00800 - 67 10 83 00 (Toll-free) +49 40 - 237 73 899 (Charged)

The software in this lens may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored at

http://www.olympus.co.jp/en/support/imgg/ digicamera/download/notice/notice.cfm

This product uses T -Kernel source code under the terms of the T-Engine Forum (www.tron.org) T -License.
