USER MANUAL Nespresso Lattissima One DELONGHI

“DESCALING” : descaling alert refer to section “Descaling” / Lid detach button / Machine without Rapid Cappuccino System / Overview / A 19

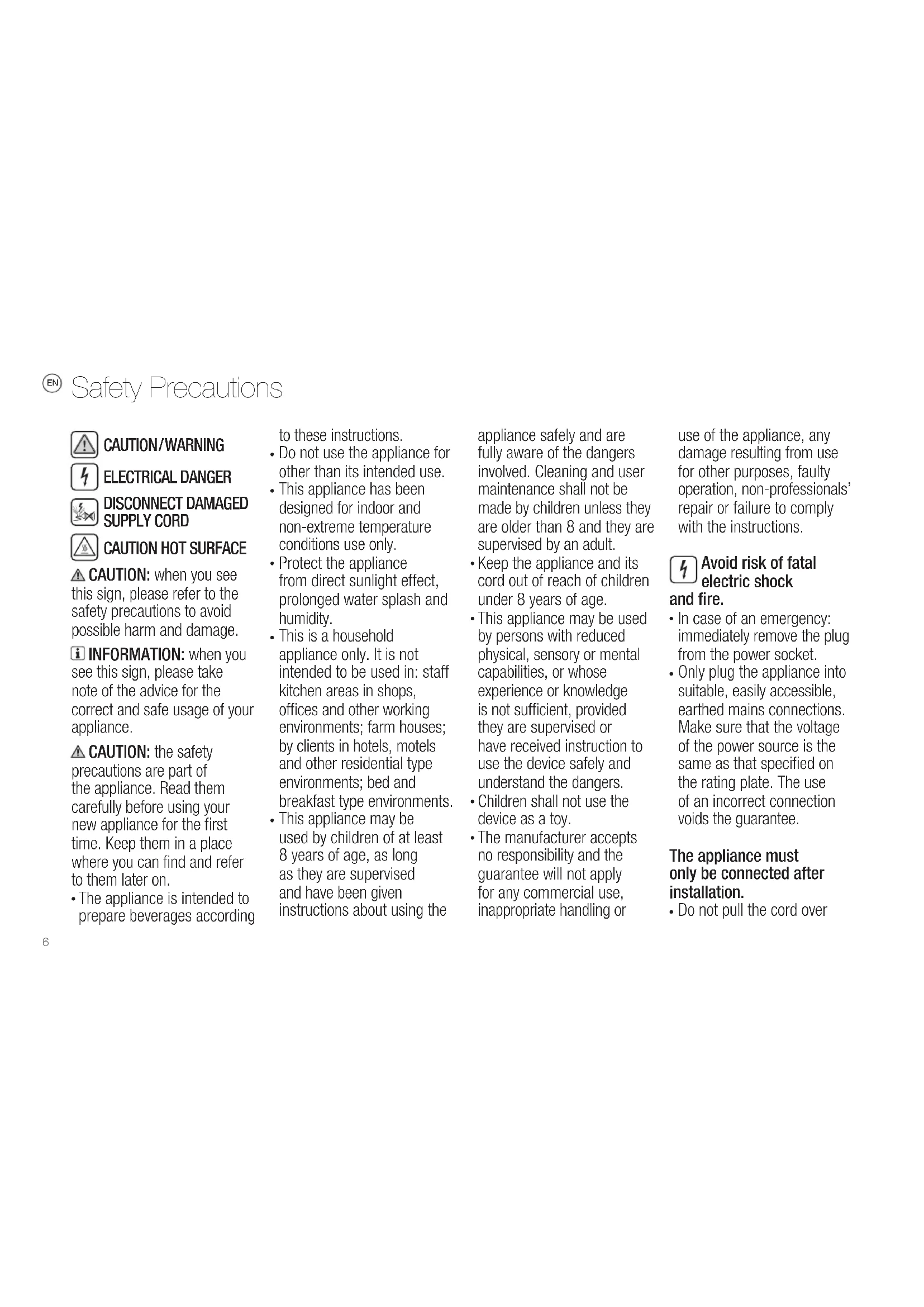

CAUTION: when you see this sign, please refer to the safety precautions to avoid possible harm and damage. INFORMATION: when you see this sign, please take note of the advice for the correct and safe usage of your appliance. CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.

The appliance is intended to prepare beverages according to these instructions.

Do not use the appliance for other than its intended use.

This appliance has been designed for indoor and non-extreme temperature conditions use only.

Protect the appliance from direct sunlight effect, prolonged water splash and humidity.

This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and they are supervised by an adult.

Keep the appliance and its cord out of reach of children under 8 years of age.

This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the device safely and understand the dangers.

Children shall not use the device as a toy.

The manufacturer accepts no responsibility and the guarantee will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operation, non-professionals’ repair or failure to comply with the instructions. Avoid risk of fatal electric shock and fire.

In case of an emergency: immediately remove the plug from the power socket.

Only plug the appliance into suitable, easily accessible, earthed mains connections. Make sure that the voltage of the power source is the same as that specified on the rating plate. The use of an incorrect connection voids the guarantee. The appliance must only be connected after installation.

Do not pull the cord over7

sharp edges, clamp it or allow it to hang down.

Keep the cord away from heat and damp.

If the supply cord or the plug are damaged, they must be replaced by the manufacturer, its service agent or similarly qualified persons, in order to avoid all risks.

If the cord or the plug are damaged, do not operate the appliance. Return the appliance to the Nespresso Club or to a Nespresso authorized representative.

If an extension cord is required, use only an earthed cord with a conductor cross-section of at least 1.5 mm

To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open flame, or similar.

Always place it on a horizontal, stable and even surface. The surface must be resistant to heat and fluids, like water, coffee, descaler or similar liquids.

Disconnect the appliance from the mains when not in use for a long period. Disconnect by pulling out the plug and not by pulling the cord itself or the cord may become damaged.

Before cleaning and servicing, remove the plug from the mains socket and let the appliance cool down.

To disconnect the appliance, stop any preparation, then remove the plug from the power socket.

Never touch the cord and the plug with wet hands.

Never immerse the appliance or part of it in water or other liquid.

Never put the appliance or part of it in a dishwasher, except the Rapid Cappuccino System.

Electricity and water together is dangerous and can lead to fatal electrical shocks.

Do not open the appliance. Hazardous voltage inside!

Do not put anything into any openings. Doing so may cause fire or electrical shock!

The use of accessory attachments not recommended by the manufacture may result in fire, electric shock orinjury to persons. Avoid possible harm when operating the appliance.

Never leave the appliance unattended during operation.

Do not use the appliance if it is damaged, has been dropped or not operating perfectly. Immediately remove the plug from the power socket. Contact the Nespresso Club or Nespresso authorized representative for examination, repair or adjustment.

A damaged appliance can cause electrical shocks, burns and fire.

Always completely close the lever and never lift it during operation. Scalding may occur.

Do not put fingers under coffee outlet, risk of scalding.

Do not put fingers into capsule compartment or the capsule shaft. Danger of injury!

Do not touch surfaces that become hot during and after operation and descaling: descaling pipe8

and milk spout. Use handles or knobs.

If coffee volumes higher than 150 ml are programmed: let the machine cool down for 5 minutes before making the next coffee. Risk of overheating!

Water could flow around a capsule when not perforated by the blades and damage the appliance.

Never use an already used, damaged or deformed capsule.

If a capsule is blocked in the capsule compartment, turn the machine off and unplug it before any operation. Call the Nespresso Club or Nespresso authorized representative.

Always fill the water tank with cold, fresh drinking water.

Empty water tank if the appliance will not be used for an extended time (holidays, etc.).

Replace water in water tank when the appliance is not operated for a weekend or a similar period of time.

Do not use the appliance without the drip tray and drip grid to avoid spilling any liquid on surrounding surfaces.

Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the appliance.

To clean machine, use only clean cleaning tools.

When unpacking the machine, remove the plastic film and dispose.

This appliance is designed for Nespresso coffee capsules available exclusively through the Nespresso Club or your Nespresso authorized representative.

All Nespresso appliances pass stringent controls. Reliability tests under practical conditions are performed randomly on selected units. This can show traces of any previous use.

Nespresso reserves the right to change instructions without prior notice. Descaling

Nespresso descaling agent, when used correctly, helps ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day.

Descale according to user manual recommendations, or consult the descaling information by visiting the Nespresso website www.nespresso.com/ descaling CAUTION: the descaling solution can be harmful. Avoid contact with eyes, skin and surfaces. The use of any unsuitable descaling agent may lead to machine component damage or an insufficient descaling process. For any additional questions you may have regarding descaling, please contact your Nespresso Club.

SAVE THESE INSTRUCTIONS

First use or after a long period of non-use /

Assembling / Disassembling of Rapid Cappuccino System / Preparing Cappuccino-Latte Macchiato / Remove the milk container by pressing the button on the side of the milk jug. Unplug the aspiration tube. Position the milk spout vertically to disassemble and to reassemble. Press the button on the side of milk jug to pull out the milk spout. Fill the milk container up to one of the two levels indicators: Cappuccino Latte Macchiato Close the milk container and connect the Rapid Cappuccino System to the machine. Machine heats up for approximately 15 seconds (blinking lights). For a perfect milk froth, use skimmed or semi-skimmed cow milk at refrigerator temperature (about 4° C). The milk system has not been designed to work with vegetale milk. NOTE: the Rapid Cappuccino System does not work with water. NOTE: all milk will be used for the drink.

Place a Cappuccino cup or a Latte Macchiato glass under the coffee outlet and adjust milk spout position by lifting it up to the right level. At the end of the preparation, the clean alert illuminates orange to indicate it is necessary to clean the Rapid Cappuccino System. Lift and close the lever to eject the capsule into the used capsule container. Press the milk button. NOTE: all milk will be used for the drink. The preparation starts after a few seconds (first milk and then coffee) and will stop automatically. Lift the lever completely and insert the capsule. Close the lever.

After a period of non use of maximum 30 minutes after your milk recipe preparation, disassemble the Rapid Cappuccino System, and clean all components in the upper side of your dishwasher. In case a dishwasher is not available, refer to section "Hand washing of Rapid Cappuccino System". Touch and hold Espresso or Lungo button for at least 3 sec to enter the programming mode. Brewing starts and button blinks fast. Release button when desired volume is reached. Coffee volume is now stored for the next coffee preparations. Button blinks 3 times to confirm the new coffee volume. Programming coffee quantity / Refer to section “Assembling / Disassembling of Rapid Cappuccino System”. The Rapid Cappuccino System is not intended to be stored in the fridge. Follow the step 1-2 of section “coffee preparation”. NOTE: please refer to factory settings section for min / max programmable quantities. Preparing Cappuccino-Latte Macchiato /

Lift and close the lever to eject the capsule into the used capsule container. Remove drip tray, capsule container. Empty and rinse. Remove water tank. Empty, rinse it before filling with potable water. Clean the coffee outlet and machine surface with a clean damp cloth. Place a container under coffee outlet and press the Lungo button to rinse. Daily care / Do not use any strong cleaning agent or solvent cleaner. Use a clean damp cloth and mild cleaning agent to clean the surface of the machine. Do not put any machine components in dishwasher, except the Rapid Cappuccino System components.

Disassemble the Rapid Cappuccino System. Refer to section “Assembling / Disassembling of Rapid Cappuccino System”. Rinse away carefully any milk residue with hot potable water (40°C / 104°F).Soak all components in with hot potable water (40°C / 104°F) together with mild / soft detergent for at least 30 minutes and rinse thoroughly with hot potable water (40°C / 104°F). Do not use odor mild / soft detergents. Clean the interior of the milk tank with mild / soft detergent and rinse with hot potable water (40°C / 104°F). Do not use abrasive material that might damage the surface of the equipment.

• Ensure air inlet is clean.Dry all parts with a fresh and clean towel, cloth or paper and reassemble. Hand washing of Rapid Cappuccino System /

When a dishwasher is not available, the Rapid Cappuccino System components can be washed by hand. The procedure must be performed after each use.

Switch the machine ON. Press the milk button. The milk button blinks to indicate reset mode. Press it to confirm. All buttons blink 3 times: all volumes are reset. The menu exits automatically and machine returns to ready mode. Press the milk button for 3 seconds to enter Menu mode: descaling and clean alert start blinking. Restoring quantity to factory settings / NOTE: the Menu mode exits automatically after 30 sec if no actions are performed or can be exited manually by pressing milk button 3 seconds. NOTE: remove milk jug.

CAUTION: refer to safety precautions. Descale the machine when descaling alert shines orange in ready mode. Lift and close the lever to eject any capsules in the used capsule container. The machine enters the descaling mode. The descaling alert blinks orange during the entire descaling process. The Espresso button illluminates white. Take the descaling pipe situated at the back of the machine and plug the descaling pipe into steam connector of machine. Empty the drip tray and the used capsules container. Fill the water tank with 100 ml of Nespresso descaling agent and 500 ml water. Descaling / NOTE: descaling time is approximately 20 minutes. NOTE: to ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day, follow the below process. www.nespresso.com/descaling

Press the Espresso button again. The rinsing cycle continues through the coffee outlet, descaling pipe and drip tray until the water tank turns empty. Place a container with a minimum 1 litre capacity under both the coffee outlet and under the descaling pipe nozzle. Once the rinsing process is finished, the machine switches off. Remove and store descaling pipe. Empty drip tray and used capsules container. Fill water tank with potable water. Press the Espresso button. Descaling product flows alternately through the coffee outlet, descaling pipe and drip tray. When the descaling cycle is finished (water tank runs empty), the Espresso button shines. Clean the machine using a damp cloth. You have now finished descaling the machine. Empty the used capsules container, drip tray recipient and container, rinse out and fill the water tank with fresh potable water up to level MAX. Descaling / www.nespresso.com/descaling Descaling /

Take water hardness sticker placed on the first page of the UM and place it under water for 1 second. The number of red squares indicates the water hardness level. Press the milk button for 3 seconds to enter Menu mode: descaling and clean alerts start blinking. Switch the machine ON. Water hardness setting / Press the Espresso button. Now, within 15 sec, you can set the desired value by pressing the corresponding button. They blink 3 times rapidly to confirm new value. The menu exits automatically and machine returns to ready mode. Water hardness / Dureté de l’eau Level / Niveau fH dH CaCO3 Milk drink / Boisson à base de lait < 5 < 3 < 50 mg/l Lungo > 7 > 4 > 70 mg/l Espresso > 13 > 7 > 130 mg/l

Lungo + Espresso > 38 > 21 > 380 mg/l NOTE: the Menu mode exits automatically after 30 sec. if no actions are performed. It can be exit manually by pressing the milk button for 3 seconds. NOTE: remove milk jug.

Switch on machine. Remove the water tank. Lift and close the lever to eject any remaining capsule. Place a container under the coffee outlet. Press milk and Lungo buttons simultaneously. Press the milk buttons for 3 seconds to enter Menu mode: the descaling and clean alerts start blinking. The milk button blinks for confirmation. Once pressed, the emptying starts. The coffee buttons blink alternately: emptying mode in progress. When the process is finished, the machine switches off automatically. Emptying the system before a period of non-use / NOTE: remove milk jug. NOTE: appliance will be blocked for approximately 10 minutes after emptying. NOTE: the Menu mode exits automatically after 30 sec. If no actions are performed. It can be exit manually by pressing the milk button for 3 seconds.

Switch on machine. Press the milk button for 3 seconds to enter Menu mode: the descaling and clean alerts start blinking. Press Lungo button. Now, within 15 sec, you can set the desired value by pressing the corresponding button. They blinks 3 times rapidly to confirm new value. The menu exits automatically and machine returns to ready mode. Automatic power off / Automatic power off / Arrêt automatiqueMilk / Lait 9 minutes / minutesLungo 30 minutes / minutesEspresso 8 hours / heures NOTE: remove milk jug. NOTE: the Menu mode exits automatically after 30 sec. If no actions are performed. It can be exit manually by pressing the milk button for 3 seconds. This machine is equipped with an excellent energy consumption profile as well as an automatic power off function (0W) which enables you to save energy. The appliance switches off after 9 minutes after last use (factory settings).
