Features	Details
Vacuum type	Bagless vacuum cleaner
Suction power	2000 W
Tank capacity	2 liters
Filtration	HEPA filter
Weight	5 kg
Dimensions	30 x 30 x 40 cm
Noise level	75 dB
Included accessories	Brush for hard floors, brush for carpets, narrow nozzle
Usage	Suitable for all floor types, ideal for allergies thanks to its HEPA filter
Maintenance	Empty the tank after each use, clean the filter regularly
Safety	Overheat protection, safety cable
Warranty	2 years

Frequently Asked Questions - IF 200EU SHARK

How do I clean the filter of the SHARK IF 200EU vacuum cleaner?

To clean the filter, remove it from the vacuum cleaner, rinse it with cold water until it is clean, then let it dry completely before putting it back in place.

What should I do if the vacuum cleaner does not work?

Check if the device is properly plugged in. Also make sure the dust tank is empty and the filter is clean. If the problem persists, contact customer service.

The SHARK IF 200EU vacuum cleaner makes a strange noise, what should I do?

A strange noise may indicate a blockage. Check the hoses and brushes to ensure there are no obstructions. If the noise continues, it is advisable to have the device checked by a professional.

How do I change the brush of the SHARK IF 200EU vacuum cleaner?

To change the brush, remove the old brush by unscrewing the screws that hold it in place. Install the new brush following the instructions in the user manual.

What type of bag should I use with the SHARK IF 200EU vacuum cleaner?

The SHARK IF 200EU vacuum cleaner is bagless, so it is not necessary to use bags. Just make sure to empty the dust tank regularly.

How do I extend the lifespan of my SHARK IF 200EU vacuum cleaner?

To extend the lifespan of your vacuum cleaner, clean the filter regularly, empty the dust tank after each use, and avoid vacuuming heavy or sharp objects.

The vacuum cleaner is losing suction, what should I do?

Check the dust tank to see if it is full, clean the filter, and inspect the hoses for possible blockages. If suction does not improve, contact customer service.

Can I use the SHARK IF 200EU vacuum cleaner on thick carpets?

Yes, the SHARK IF 200EU vacuum cleaner is designed to work on carpets, including thick carpets. Make sure to adjust the suction power if necessary.

Where can I find spare parts for my vacuum cleaner?

Spare parts for the SHARK IF 200EU vacuum cleaner are available on the official Shark website or from authorized dealers.

USER MANUAL IF 200EU SHARK

DUOCLEAN-GULVMUNDSTYKKET, SKAFTET OG DEN HANDHOLDTE STØVSUGER INDEHOLDER

Der kan IKKE udfores service pappe dele.
MaIKKEbrugesilatstovsguevaesker.
Ma IKKE nedesenkes i vand under rergangening.
His den handholdite stevsugler/skaftet er beskadigert, skul di stoppe med at bruge den.

SMART RESPONSE-TEKNOLOGI

TOMNING AF STOYBEHOLDER

• Data for kobel of apparate (wiltering siter leveringsedd)

Bessag www.sharkcleaneu/uk/regist - g.aarantse for at regisrre dit produkt online

VIGTIGT

Bade 12 manedors garantien og den uvidede 4 aige garanti daekxer kun produkt fra kcbedaleon.

Gem addl kfftbrnng. Kflthering snal bruges ft at bekeite de opnslner, du har givest o, hve der skule were behov tor bruge den uudledte garin. Hw n gwlg kflthering itke kan temwises, dan tare gdoin garin uyogd.

Husk, st drug at uonginsie shk-dale gcr gstanen ugyicg.

Shark|Ninja TO (2) ARS BEGRÄENSET BATTERI-GARANTI

Fornugere, der kober produceri JStorbiriamann, nyder goll at ce udnske righttener f forndelase mad produciers kovalelt (de 'lovestamente rightteder'), Du kan gare cisse righttener geandede over forhandleren. Hos Shark er vig dog sike p ovee producris kovallet, al viger en yoderifige aoriksgaranii da oo l toar. 1r are som standard plus 1 ar, nair du reginister, Dssie beinfelger gaeler edulukkende batherjarganten - eine voistbeimrige pavirkes it. Barenx at den 2ige garanti er tigangeligt) i ale U-land og Storbiriamn, ivs Storbiriamn ocoher met dar at veau et U-land an garantipelerien.

Villarres nederuius besliver beteasingse og omanget af vors garant. Den paxrlikie iine ovoestende righligender aler din forhandier forgipulder og din kontrak med dem.

Shark-garantier

Vorundeservice haseine 600 862 35/3 er aan fio 90 t 18.00 madag-fradg. Det erags at rine, og du oliver onmotl direltle Il shankrepartianl. Onst-upcain kana ogin lnsde pse wsharkdienuuk.

TIP: You can find the model and serial numbers on the QR code label which is located on the bottom of the dust cup.

REGISTER YOUR PURCHASE

sharkclean.eu

$gan QR code using mobile device

RECORD THIS INFORMATION

Model Number:

Date of Purchase (Keep receipt):

Store of Purchase:

TECHNICAL SPECIFICATIONS

Voltage: 25.2V

Watts: 300W

Amps: 11.9A

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This instruction manual is designed to help you get a complete understanding of your new Shark Duoclean Cord-Free Vacuum.

CONTENTS

Important Safety Instructions. 47

Getting To Know Your Shark DuoClean™ Cord-Free Vacuum 50

Using Your Lithium ION Power Pack Battery 51

Installing Your Lithium ION Power Pack Battery 51

Charging Your Lithium ION Power Pack Battery 51

Using the Lithium ION Power Pack Battery 51

Using the Lithium ION Power Pack Battery Charging Dock 51

LED Battery Power Meter 51

Recycling Your Lithium ION Power Pack Battery 51

Assembling Your Vacuum 52

Using the FlexologyTM wand 53

Flexology Storage 53

Using Smart Response™ Technology 54

Choosing a Surface Setting 54

Choosing a Suction Setting 54

Using Your Vacuum in Above-Floor Mode 55

Accessories. 57

Maintaining Your Vacuum 59

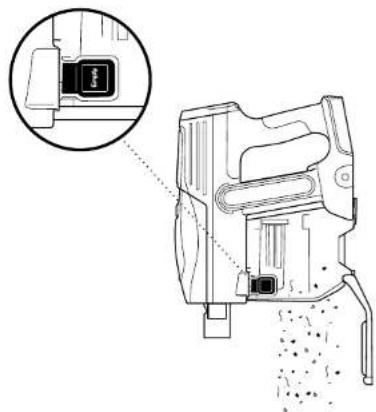

Emptying the Dust Cup. 59

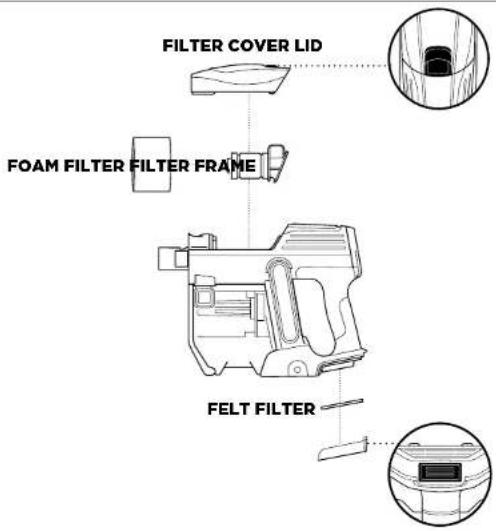

Cleaning the Filters. 60

Maintaining the Brushroll 61

Maintaining the Soft Roller 62

Checking for Blockages 62

Troubleshooting Guide. 63

Warranty 65

Battery Warranty. 66

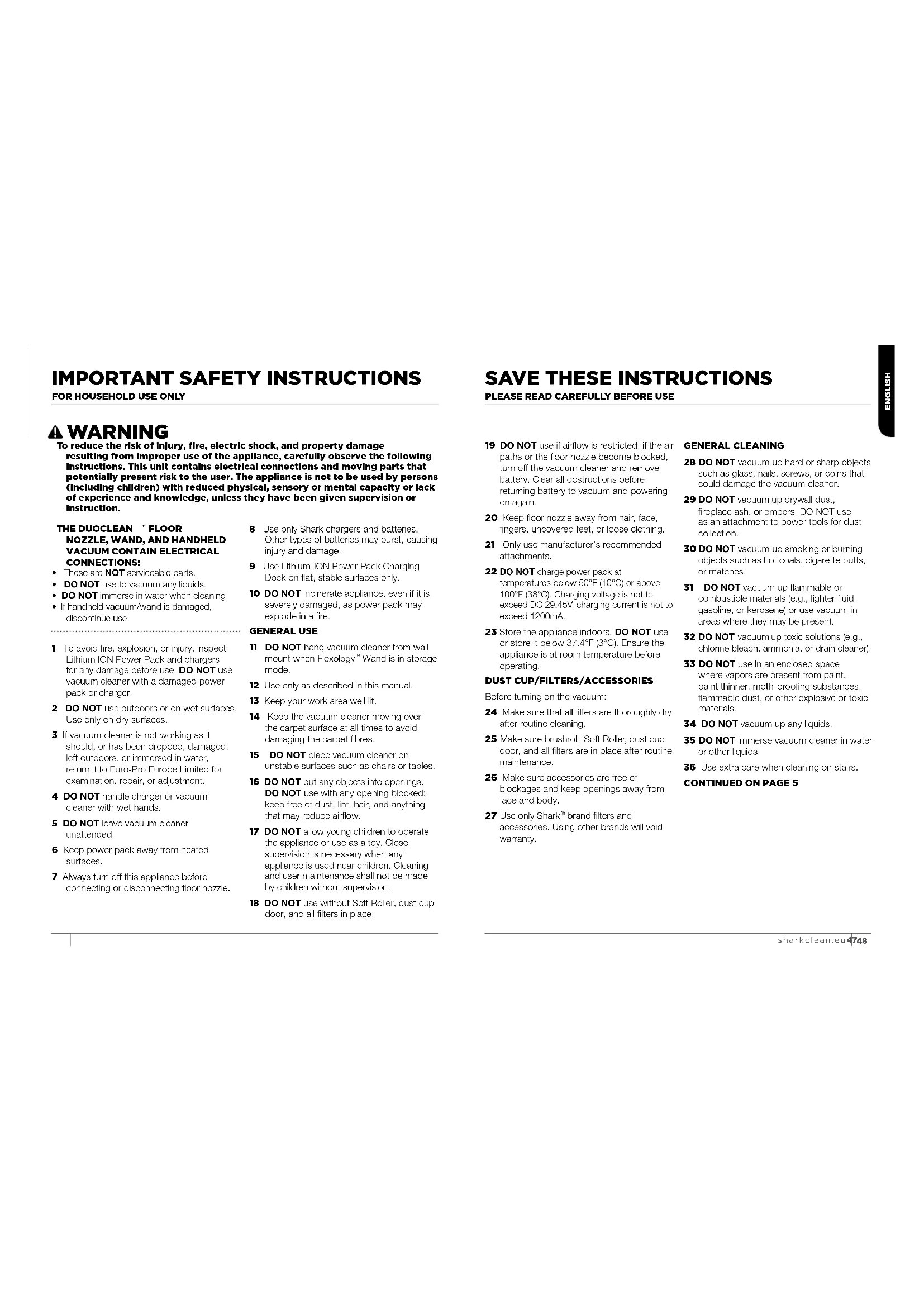

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of Injury, fire, electric shock, and property damage resulting from Improper use of the appliance, carefully observe the following Instructions. This unit contains electrical connections and moving parts that potentially present risk to the user. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capacity or lack of experience and knowledge, unless they have been given supervision or instruction.

THE DUOCLEAN FLOOR NOZZLE, WAND, AND HANDHELD VACUUM CONTAIN ELECTRICAL CONNECTIONS:

These are NOT servicable parts.
DO NOT use to vacuum any liquids.
DO NOT immerse in water when cleaning.
- If handheld vacuum/wand is damaged, discontinue use.

1 To avoid fire, explosion, or injury, inspect Lithium ION Power Pack and chargers for any damage before use. DO NOT use vacuum cleaner with a damaged power pack or charger.
2 DO NOT use outdoors or on wet surfaces. Use only on dry surfaces.
3 If vacuum cleaner is not working as it should, or has been dropped, damaged, left outdoors, or immersed in water, return it to Euro-Pro Europe Limited for examination, repair, or adjustment.
4 DO NOT handle charger or vacuum cleaner with wet hands.
5 DO NOT leave vacuum cleaner unattended.
6 Keep power pack away from heated surfaces.
7 Always turn off this appliance before connecting or disconnecting floor nozzle.

8 Use only Shark chargers and batteries. Other types of batteries may burst, causing injury and damage.
9 Use Lithium-ION Power Pack Charging Dock on flat, stable surfaces only.
10 DO NOT incinerate appliance, even if it is severely damaged, as power pack may explode in a fire.

GENERALUSE

11 DO NOT hang vacuum cleaner from wall mount when Flexology™ Wand is in storage mode.
12 Use only as described in this manual.
13 Keep your work area well lit.
14 Keep the vacuum cleaner moving over the carpet surface at all times to avoid damaging the carpet fibres.
15 DO NOT place vacuum cleaner on unstable surfaces such as chairs or tables.
16 DO NOT put any objects into openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
17 DO NOT allow young children to operate the appliance or use as a toy. Close supervision is necessary when any appliance is used near children. Cleaning and user maintenance shall not be made by children without supervision.
18 DO NOT use without Soft Roller, dust cup door, and all filters in place.

SAVE THESE INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE

19 DO NOT use if airflow is restricted; if the air paths or the floor nozzle become blocked, turn off the vacuum cleaner and remove battery. Clear all obstructions before returning battery to vacuum and powering on again.
20 Keep floor nozzle away from hair, face, fingers, uncovered feet, or loose clothing.
21 Only use manufacturer's recommended attachments.
22 DO NOT charge power pack at temperatures below 50^ (10^) or above 100^ (38^) . Charging voltage is not to exceed DC 29.45V, charging current is not to exceed 1200mA.
23 Store the appliance indoors. DO NOT use or store it below 37.4^ (3^) . Ensure the appliance is at room temperature before operating.

DUST CUP/Filters/ACCESSORIES

Before turning on the vacuum:

24 Make sure that all filters are thoroughly dry after routine cleaning.
25 Make sure brushroll, Soft Roller, dust cup door, and all filters are in place after routine maintenance.
26 Make sure accessories are free of blockages and keep openings away from face and body.
27 Use only Shark® brand filters and accessories. Using other brands will void warranty.

GENERAL CLEANING

CONTINUED ON PAGE 5

28 DO NOT vacuum up hard or sharp objects such as glass, nails, screws, or coins that could damage the vacuum cleaner.
29 DO NOT vacuum up drywall dust, fireplace ash, or embers. DO NOT use as an attachment to power tools for dust collection.
30 DO NOT vacuum up smoking or burning objects such as hot coals, cigarette butts, or matches.
31 DO NOT vacuum up flammable or combustible materials (e.g., lighter fluid, gasoline, or kerosene) or use vacuum in areas where they may be present.
32 DO NOT vacuum up toxic solutions (e.g., chlorine bleach, ammonia, or drain cleaner).
33 DO NOT use in an enclosed space where vapors are present from paint, paint thinner, moth-proofing substances, flammable dust, or other explosive or toxic materials.
34 DO NOT vacuum up any liquids.
35 DO NOT immerse vacuum cleaner in water or other liquids.
36 Use extra care when cleaning on stairs.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of injury, fire, electric shock, and property damage resulting from improper use of the appliance, carefully observe the following Instructions. This unit contains electrical connections and moving parts that potentially present risk to the user.

37 The Lithium ION Power Pack Battery is the power source for the appliance. When the Lithium ION Power Pack Battery is connected to the appliance, DO NOT carry the appliance with your finger on the power button. DO NOT charge appliance with the power on.
38 Disconnect the Lithium ION Power Pack Battery from the appliance before making any adjustments or troubleshooting. If the appliance is to be stored unused for a long period, the batteries are removed.
39 Use only Shark chargers YLS0243A-E288060/YLS0483A-E2880802 to charge. Use of incorrect charger may create a risk of fire when used with Lithium ION Power Pack Battery.
40 Use appliance only with specifically designated Lithium ION Power Pack Batterios. Use of any other battery packs may create a risk of injury and fire.
41 When Lithium ION Power Pack Battery is not in use, keep it away from all metal objects, such as paper clips, coins, keys, nails, or screws. Shorting the battery terminals together increases the risk of fire or burns.

42 Under abusive conditions, liquid may be ejected from the power pack. Avoid contact with liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.
43 DO NOT expose power pack or appliance to fire or temperature above 266^ (130^) as it may cause explosion.
44 Follow all charging instructions and DO NOT charge the power pack or appliance outside of the temperature range specified in the instructions (see #22). Charging improperly or at temperatures outside of the specified range may damage the Lithium Ion Power Pack Battery and increase the risk of fire.
45 Appliance should only be serviced by a qualified repair person using only identical replacement parts. To ensure safety, DO NOT modify or attempt to repair the appliance or the power pack yourself, except as indicated in the instructions for use and care.
46 Lithium Ion Power Pack Battery should not be stored at temperatures below 37.4^ (3^) or above 104^ (40^) to maintain long-term battery life.
47 Lithium Ion Power Pack Battery should not be exposed to or submerged in any water, salt water, or other liquids.

SAVE THESE INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE

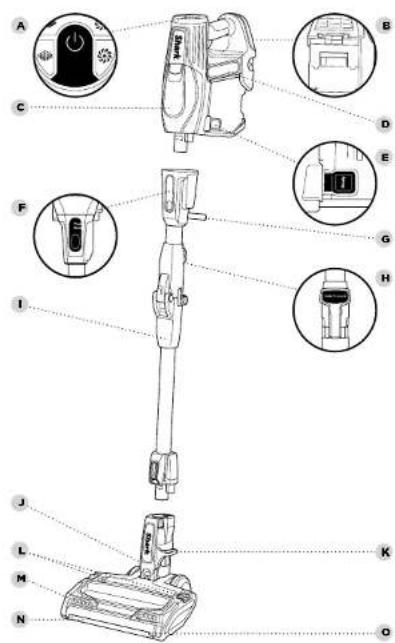

GETTING TO KNOW YOUR SHARK* DUOCLEAN™ CORD-FREE VACUUM

WELCOME!

Congratulations on your purchase. Use this instruction manual to learn about your new vacuum's great features. From assembly to use to maintenance, you will find it all in here.

APowerSwitch
Battery Release
C Handheld Vacuum
D Lithium ION Power Pack Battery
E Dust Cup Release
F FlexologyTM Wand Release
Flexology Storage Carry Handle
H Flexology Wand Button

Flexology Wand
DuoClean Floor Nozzle
K Lower Wand Release Podal
Brushroll Garage Release Buttons
M Headlights
N Soft Roller
Soft Roller Access Tab

NOTE: Some charging options may not be included with your vacuum.

To purchase additional or replacement Lithium ION Power Pack Batteries, chargers, and charging clocks, visit sharkclean.eu

DID YOU KNOW?

The DuoClean floor nozzle has LED headlights that turn on automatically to illuminate the floor surface.

When your Lithium ION Power Pack Battery needs to be replaced, dispose of it or recycle it in accordance with local regulations. In some areas, it is illegal to place spent lithium-ion batteries in the bin or in a municipal solid waste stream. Return spent power packs to an authorised recycling centre or to retailer for recycling. Contact your local recycling centre for information on where to drop off the spent power pack.

NOTE: Lithium-ION Power Pack takes approximately 3.5 hours for full charge.

NOTE: When used in handvac mode, the Lithium ION power Pack provides up to 22 minutes of runtime in EXTENDED RUNTIME setting and up to 10 minutes in MAX POWER setting.

INSTALLING YOUR LITHIUM ION Power Pack BATTERY Slide the Lithium ICN Power Pack Battery into the slot on the back of the handheld vacuum.

To remove, pinch the release tab and slide the Lithium ION Power Pack Battery out of the handheld vacuum.

CHARGING YOUR LITHIUM ION Power Pack BATTERY Using the LITHIUM ION Power Pack Battery Charger

Connect the Lithium ION Power Pack Battery Charger to the port on the side of the Lithium ION Power Pack Battery, then plug the charger into a wall outlet. The ION Power Pack Battery can be charged whether it is inside or outside the handheld vacuum.

Using the Lithium ION Power Pack Battery Charging Dock

Connect Lithium ION Power Pack Battery Charger to the Charging Dock. Place power pack onto dock, then connect charger to wall outlet.

LED BATTERY POWER METER In Use

As the Lithium ION Power Pack discharges, its 3 LED lights will gradually turn off in sequential order. When less than 5% of charge remains, the bottom LED light will flash, indicating a charge is needed.

Charging

As the Lithium ION Power Pack Battery charges, the lights will first blink and then illuminate steadily, in sequential order. All 3 lights will glow steadily upon receiving a full charge, and then turn off after a short period. This preserves long-term battery life and allows the battery to remain connected to the charger even after reaching full charge.

ASSEMBLING YOUR VACUUM

STEP1

STEP2

1 Insert the wand into the DuoClean floor nozzle, pressing it in until it clicks securely into place.
2 Insert the handheld vacuum into the top of the wand, pressing it in until it clicks securely into place.

USING THE FLEXOLOGY™ WAND

WARNING: This

vacuum does not stand up on its own. Using the unit when it lacks stability may result in personal injury. To place in Flexology Storage mode, press the Flexology Wand button and gently fold the handheld vacuum down toward the floor nozzle.

TIP: The carry handle located below the handheld vacuum can be used to assist in ta the vacuum in and ou Flexology Storage mc

NOTE: Before vacuuming your delicate rugs or carpet, refer to the rug manufacturer's recommended cleaning instructions.

WHAT DOES THE BRUSHROLL INDICATOR LIGHT MEAN?

Solid Green

The brushesols are on and working as they should.

SolidRed

There is a jam in the brushroll area. Turn your vacuum off and remove the blockage.

No Light

The brushrolls are off because the vacuum is off, or the nozzle is not correctly connected to the wand or handheld vacuum.

USAGE
STORAGE

1 To start vacuuming, press the Power button, then recline the wand to start the brushrolls.

USING THE FLEXOLOGY WAND

To easily access hard-to-reach areas under furniture without having to bend down, press the Flexology Wand button to position the wand to a lower angle.

FLEXOLOGY STORAGE

1 Press the Flexology Wand Lock Release button and gently fold the handheld vacuum forward toward the floor nozzle until it locks in storage mode. Use the handle to carry the vacuum to its storage location.

To take the vacuum out of storage mode, press the Flexology Wand Lock Release button while lifting up the handheld vacuum. When straightened, the wand will lock in place.

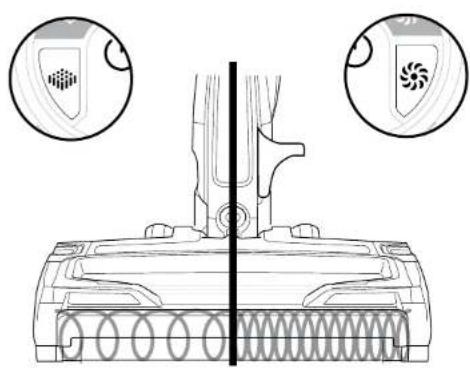

USING SMART RESPONSETECHNOLOGY

SMART RESPONSE TECHNOLOGY

The Smart Response Technology lets you select the ideal power setting and brushroll speed for each cleaning job.

CHOOSING A SURFACE SETTING

Carpet setting - For cleaning thick pile carpets. Both brushrolls spin faster, working together to pick up debris below the surface of your carpets.

Floor setting - For cleaning hard floors and short pile carpets. The brushroll and the Soft Roller both spin together slowly to gently clean hard floors and short pile carpets. The Soft Roller traps fine dust and large particles, while the brushroll directs that debris to the suction channel.

CHOOSING A SUCTION SETTING

There are 2 suction settings:

EXTENDED RUNTIME - For everyday cleaning.

MAX POWER - Maximum power for heavy-duty cleaning. (The MAX POWER setting drains the Lithium ION Power Pack Batteries faster than EXTENDED RUNTIME setting.)

USING YOUR VACUUM IN ABOVE-FLOOR MODE

TIP: To conveniently clean stairs, attach the handheld vacuum directly to the DuoClean™ floor nozzle.

STEP1STEP2

FOR LONG-REACH CLEANING:

1 Stand the vacuum upright. Step on the foot pedal and pull the wand up to disconnect it from the DuoClean floor nozzle. Press the Flexology Wand button to vacuum with the wand at a lower angle.

2 Attach desired cleaning accessory to the wand.

STEP1STEP2

FOR SHORT-REACH CLEANING:

1 Press the Flexology Wand Release button on the top of the wand to disconnect it from the handheld vacuum.

2 Attach desired cleaning accessory to the handheld vacuum.

ACCESSIONS

There are a variety of accessories that are compatible with this vacuum series.

The Quick Start Guide shows the select accessories that are included with your model.

To purchase additional accessories, go to sharkclean.eu.

A Dusting Brush

Cleans hard surfaces and upholstery.

C Anti-Allergen Dust Brush Specially designed for removing fine dust and allergen particles from most delicate surfaces

E Lithium Ion Power Pack Battery Charger

Can be plugged directly into the Lithium ION Power Pack Battery, or used as a power source for the Lithium ION Power Pack Battery Charging Dock.

G Flexology™ Under Appliance Wand

Pivoting wand that extends to clean under appliances and on top of furniture.

B Crevice Tool

Clean tight spaces, reach skirting boards and ceilings with this slim crevice tool.

Lithium Ion Power Pack Battery Charging Docks

Portable units for stand-alone charging of 1-2 batteries wherever an outlet is nearby.

F Deep-Cleaning Motorised Pet Tool

Motorised compact brush powerful enough to remove deeply embedded allergens, dirt and hair from multiple surfaces.

H Upholstery Tool

For removing stubborn pet hair from upholstery and more.

A

B

C

D

E

F

H

MAINTAINING YOUR VACUUM

WARNING: Hand wash filters only with water to prevent damage from cleaning chemicals. Allow ALL filters to air-dry completely before replacing them in the vacuum to prevent liquid from being drawn into electric parts.

CAUTION: Tum off power and remove power pack before servicing.

IMPORTANT: Clean the dust screen inside the dust cup as required.

NOTE: Empty dust cup when deoris reaches the MAX fill line.

RECOMMENDED FILTER CLEANING SCHEDULE:

Pre-Motor Filter Kit (Foam & Folt) Clean once a month.

1 To empty dust cup, first remove the handheld vacuum from the wand by pressing the Wand Release button and pulling up on the handheld vacuum. Position dust cup over a bin, then open the bottom of the dust cup by pressing the Dust Cup release button on the side.

CLEANING THE FILTERS

1 To clean the foam filter, remove the filter cover lid on the top of the handheld vacuum and slide off the foam filter. Rinse foam filter and filter frame with water. Tap loose cirt off filter between washes as needed. Once foam filter is completely dry, return it to the filter frame, then replace the filter frame and the filter cover.
To clean the felt filter, remove the cover on the bottom of the handheld vacuum by pressing the release button. Remove felt filter. Rinse with water. Once completely dry, reinsert the felt filter and close the filter cover lid.

MAINTAINING YOUR VACUUM - CONT.

WARNING:When

cleaning brushroll, be sure to not cut anything other than hair, string, fibres, or other debris.

TIP: Ensure the brushroll garage is completely sealed and closed before using.

NOTE: Heavy usage over time may require minimal upkeep in order to maintain your vacuum's appearance.

STEP1STEP2

1 Open the brushroll lid by sliding both release buttons away from you, toward the back of the floor nozzle, then lifting off the garage. Remove any string, hair, or debris that may be wrapped around the brushroll by running scissors along the guide on the brushroll.
2 Close the brushroll lid by inserting the tabs on the lid into the slots on the floor nozzle, then pressing down on the lid, above the headlights, until both sides click into place.

1 Open the brushroll garage by sliding both release buttons away from you, toward the back of the floor nozzle, then lifting off the garage. Lift out the Soft Roller by the tab on the right side. Clean off any string, carpet fibres, or hair that may be wrapped around the Soft Roller, and remove debris from the roller housing.
2 Wash the Soft Roller as needed, using only water. Air-dry completely for at least 24 hours before returning it to the brushroll garage.
3 Reinsort the Soft Roller by sliding it into the front of the floor nozzle until it clicks into place. Close the brushroll garage by inserting the tabs on the lid into the slots on the floor nozzle, then pressing down on the lid, above the headlights, until both sides click into place.

CHECKING FOR BLOCKAGES:

Handheld, Wand, and Floor Nozzle

1 Turn off vacuum and remove Lithium ION Power Pack.
2 Remove the wand from the handheld vacuum and check all intake openings to the dust cup.
3 Remove the floor nozzle from the wand and check the wand for blockages.
4 Tilt neck of floor nozzle back to straighten the airway to remove blockages.

TROUBLESHOOTING GUIDE

WARNING: To reduce the risk of shock and unintended operation, turn off power and remove power pack before servicing.

Vacuum is not picking up debrils, no suction or light suction. (Refer to Maintenance section for more information.)

• Check filters to see if they need cleaning. Follow instructions for rinsing and completely air-drying the filters before reinserting in the vacuum.
• Dust cup may be full; empty dust cup.
  Check floor nozzle for blockages; clear blockages if required.
• Remove any string, carpet fibres, or hair that may be wrapped around the brushroll and Soft Roller or trapped behind the Soft Roller.
• Check connection between handvac and wand for blockages; clear blockages if required. If the issue persists, please contact Customer Service.

Vacuum lifts rugs.

• Check that vacuum is in EXTENDED RUNTIME mode. Take care when vacuuming rugs with delicately sewn edges.
• Tum off the unit to disengage the brushroll and restart with the Power button.

Brushroll/Soft Roller does not spin.

If Brushroll Indicator Light on the floor nozzle turns red, the brushroll and/or Soft Roller have stopped spinning. Immediately turn off and remove Lithium ION Power Pack from handheld vacuum and remove blockage before reconnecting and turning vacuum back on. If light turns green, the blockage has been successfully cleared. If it remains red, please contact Customer Service.
- If headlights are not illuminated, there is a connection issue between the handheld vacuum, wand, and nozzle. Try disconnecting and reattaching the pieces. If the headlights still do not illuminate, please contact Customer Service.

Vacuum turns off on its own.

There are several possible reasons for the vacuum turning off on its own, including blockages, Lithium Ion Power Pack issues, and overheating. If vacuum turns off on its own, perform the following steps:

1. Check LED lights on Lithium ION Power Pack to see if it needs to be recharged. If power pack does not need charging, turn off vacuum and remove power pack.
2. Empty dust cup and clean filters (see Maintenance section).
3. Check wand, accessories, and inlet openings and remove any blockages.
4. Allow unit and Lithium ION Power Pack to cool for at least 45 minutes, until it returns to room temperature.
5. Return power pack to vacuum and press Power button.

Note: If vacuum still does not operate properly, contact Customer Service.

LED lights on ION Power Pack are flashing.

If top 2 or bottom 2 LED lights are flashing (Fig. A, Fig. B), call Customer Service.
- Bottom LED light is flashing (Fig. C): Lithium ION Power Pack needs to be charged.
- Top and bottom LED lights are flashing (Fig. D): Lithium ION Power Pack temperature is not optimal, so charging is temporarily paused. Leave power pack plugged in and charging will resume soon.

LIGHT INDICATOR WHAT IT MEANS
	“FLOOR” and “CARPET” LEDs alternate illuminating	Unit temperature is high. Turn off vacuum. While unit is cooling, look for blockages and remove any that are found. Filters may also need to be cleaned.
	“EXTENDED” and “MAX POWER” LEDs are flashing together	Blockage detected. Turn off unit and remove blockage.
	Headlights are flashing	Brushroll garage is not properly closed. Close the door by inserting the tabs on the lid into the slots in the floor nozzle, then pressing down on the lid, above the headlights, until both sides click into place.

Hg.AFg.BFg.CHg.D

Shark NIN

FIVE (5) YEAR LIMITED WARRANTY

When a consumer buys a product in the UK, they get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Shark we are so confident about the quality of our products that we give you an additional manufacturer's warranty of up to five years. (If year as standard plus 4 years when you register) These terms and conditions relate to our manufacturer's warranty only - your statutory rights are unaffected. Please note that the 5 year guarantee is available in all EU countries and in the UK if it stops being an EU country during the guarantee term.

The conditions below describe the prerequisites and scope of our warranty. They do not affect your statutory rights or the obligations of your retailer and your contract with them.

The lithium ion power pack is not covered by the 5 year guarantee (see battery warranty on next page)

Shark^* Guarantees

A household appliance like a vacuum cleaner constitutes a valuable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Every Shark machine comes with a free parts and labour guarantee. Our customer service helpline (0800 862 0453) is open from 9:00pm to 8:00pm Monday - Friday. It's free to call, and you'll be put straight through to a Shark representative. You'll also find online support at www.sharkolsen.eu.uk.

How do I register my extended Shark guarantee?

You can register your guarantee online within 29 days of purchase. To save time, you'll need the following information about your machine:

Date you purchased the machine (receipt or delivery note)
To register online, please visit www.sharkclean.eu.uk/registrar-guarantee

IMPORTANT

Both the 12 months and the extended 4 years guarantee will only cover your product from the date of purchase.
Please keep your receipt at all times. Should you need to use your extended guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

What are the benefits of registering my free Shark guarantee?

When you register your guarantee we'll have your details to hand it we ever need to get in touch. You can also receive tips and
advice on how to get the best out of your Shark vacuum and near the latest news about new Shark technology and launches
If you register your guarantee online, you'll get instant confirmation that we've received your details.

How long are new Shark machines guaranteed for?

Our confidence in our design and quality control means that your new Shak vacuum cleaner is guaranteed for a total of five years. (12 months plus an extended warranty of 4 years).

What is covered by the free Shark guarantee?

Repair or replacement of your Shark machine (at Shark's discretion), including all parts and labour. A Shark guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark guarantee?

1. Bockages - For details of how to unlock your vacuum cleaner, please refer to the Operating Manual.
2. Normal wear and tear such as brush bar, fuse, belt, batteries, hose etc.
3. Accideral damge, faits caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum
   cleaner which is not in accordance with the Shark Operating Manual supplied with your machine.
4. Use of the vacuum cleaner for anything other than normal domestic household purposes.
5. Use of parts not assembled or installed in accordance with the operating instructions.
6. Use of parts and accessories which are not Shark Genuine Components.
7. Faulty Installation (except where Installed by Shark).
   B. Repairs or alterations carried out by parties other than Shark or its agents.
8. The Liiumn ON power park battery, Please see page 22 for battery warranty.

What happens when my guarantee runs out?

Shark does not do products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their vacuum cleaner after the warranty has expired. In this case please contact our free phone customer service heline and ask about our out warranty program, on 0800-662-0453.

Where can I buy genuine Shark spares and accessories?

Shark spares and accessories are developed by the same engineers who developed your Shark vacuum. You'll find a full range of Shark spaces, replacement parts and accessories for all Shark machines at www.sharkorean.com.

Please remember that using non-Shark spares invalidates your guarantee.

SharkNINJA

TWO (2) YEAR LIMITED BATTERY WARRANTY

When a consumer buys a product in the UK, they get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Shark we are so confident about the quality of our products that we give you an additional manufacturer's battery warranty of up to two years. (1 year as standard plus 1 year when you register) These terms and conditions relate to our manufacturer's battery warranty only - your statutory rights are unaffected. Please note that the 2 year guarantee is available in all EU countries and in the UK if it stops being an EU country during the guarantee term.
The conditions below describe the prerequisites and scope of our warranty. They do not affect your statutory rights or the obligations of your retailer and your contract with them.

Shark* Guarantees

Our customer service helpline (0800 852 0453) is open from 9:00am to 6:00pm Monday - Friday, it's free to call, and you'll be put straight through to a Shark representative. You'll also find online support at www sharkcoeam.sukj.

How do I register my extended Shark+ guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

Date you purchased the machine receipt or delivery note.
To register online, please visit www.sharkclean.eu/lik/register-guarantee

IMPORTANT

Both the 12 months and the extended 1 years guarantee will only cover your battery from the date of purchase.
Please keep your receipt at all times. Should you need to use your extended guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

What are the benefits of registering my free Shark guarantee?

When you register your guarantee we'll have details to hand if we ever need to gel in touch. You can also receive tips and advice on how to get the best out of your Shark vacuum and hoar the latest news about now Shark technology and launches.

If you register your guarantee online, you'll get instant confirmation that we've received your details.

How long are new Shark power pack batteries guaranteed for?

Our confidence in our design and quality control means that the battery in your new Shark vacuum cleaner is guaranteed for a total of 2 years. (12 months plus an extended warranty of 1 year)

What is covered in my warranty?

1. The original Lithium Ion Power Pack, deemed defective, in Shark's sole discretion, will be replaced for up to 2 years from the original purchase date.
2. In the rare event that a replacement battery is issued, the warranty coverage for the replacement battery ends six months following the receipt date of the replacement battery or the remainder of the existing warranty, whichever is greater.

What is not covered by the free Shark guarantee?

1. Normal wear and tear of Lithium-ION Power Pack within the temperature range set out under the safety Instructions
   section, is not covered by this warranty.
2. Any ballary thal has been tampered with or used for commercial purposes.
3. Damage caused by mleuse, abuse, or ncpigent handling, or damage due to mishanding in transit
4. Consequential and incidental damages.
5. Defects caused by or resulting from damages from shipping or from repairs, services or alteration to the product or any of its parts which have been performed by a repair person not authorised by SharkNinja.

Problems with your battery

If your Lithon ION power pack battery fail to operate properly while in use under normal household conditions within the warranty period, please call our freeshone customer service helpline on 080C 882 0453 for product help and support.

Where can I buy genuine Shark spares and accessories?

Shark spares and accessories are developed by the same origin who developed your Shark vacuum. You'll find a full range of Shark spares, replacement parts and accessories for all Shark machines at www.sharkeladan.com.

Please remember that using non-Shark spares invalidates your guarantee.

GRACIAS

Flexology Storage 75

Uso de la technologia Smart Response 76

USO DE LA TECNOLOGÍA SMART RESPONSE™

TECOLOGÍA SMART RESPONSE

RESERVOIR A POUSSIÈRE/FILTRES/ ACCESSIOSES

poils courts. Le rouleau mou retient la possiere.

fine etes grosses partules, tancis quela.

brosse rotative dirigeos de bois yers en canal

d'admission

SELECTION D'UNE CONFIGURATION D'ASPIRATION

ll y a 2 configurations d'aspiration

LONGUE AUTONOMIE: option ideale

C Brossette anti-allergenes

USO DEL BASTONE FLEXOLOGY

RIPORRE IN MODALITA FLEXOLOGY

TECOLOGIA SMART RESPONSE

STOFBAK/Filters/ACCESSIONS

Flexology Storage 163

Hvordan du bruker Smart Response*-teknologien 164

Hyordan du velger overflateinnstilling 164

SMART RESPONSE TECHNOLOGY

Smart Response-teknologien lag deg velge dan optima krattinnstillingen og bersterull-hastigthen for hyer enkeit rangjoring.

HVDORAN DU VELGER OVERFLATEINNSTILLINGER

E Lader for Lithium ION Power Pack-batteri

Kan plugges rett inn Lithium ION Power Packbatteriet, cller brokes som en stremkilde forladestason tllithium ION Power Pack-batteriet.

VEDLIKEHOLDE STØVSUGEREN

ADVARSEL: Handvask
filtré med kun vann
for à hindre skade fra
rengjöringskjemikalier.
LA ALLÉ filtré lufttorke
heit far du setter dem
tilbake i stovsugeren
for à hindre at väske
trekkeri nì de
elektriske delene.

For a regalere online, gai www.arkclear.co.uk/regisler-guarantee

VIKTIG

Bide 1 asgarantion eg den ubidico 4 asgarantion dokkar produkt kra kipsoalation.
Tae var se kivtoringen. Hdu ma bonylo dog av den ubidico garantien, ma v ha kivtoringen din for a bokefoi at.
intormasjon du har appigt hi es s er konkte.Mangende eune hi a hemlagge en ydgld kuttering k an ophevee garantien.

Disse fordelene far du yed a registrere Shark-garantlen.

Eller, du du rassert tegnation darin. hvi informationen diligengelh vi hvinger &kromae ogdu konopfa lipg od rad o rmand vuo eutnyr derin shark-stovager amppatcderm om vinyr Shark-technogoi og nye iansering.

Hv du reglsterer garetien p nettet, tur umldelbarb bekretsepe st vhar motatt intomasonen din.

Sä lenge varer garantien for Shark-maskiner.

Villil 115 vill design og kealitokontell bolat at din myo Shark stawegor garranki li summon farn ar. 12 maned plus on uvoet gannapai 4 ani.

SMART RESPONSE-TEKNIK

G FlexologyTM-ror for rengoring under apparer

For all registrera online, besok www.sharkclean.co.uk/registor-guarantee

VIKTIGT

Bdo den 12 manader anga och don forlangda lyraigiga garantin lcker bar din prodkt frn inkopedalum.

• Spara atld kwitot. Skule du behwaanda cins for fangda garanti behver v kwitot for at beksta att den intenfuran der ges s arsoned. Osm du inihe kan uva up e got litgkt konan get oglitgkrn kana garin.

Sharks reservoir and chibberuveds as sarman ingcrer onur vndokd in Shark-cammsgare. Du nittt est fullstngortment of Sharks reservoirs on chibber for all Shark-masiner www. sharcoenlan . com

Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice.

Shark is a registered trademark of Euro-Pro Europe Limited. DuoClean and Flexology are trademarks of Euro-Pro Europe Limited.

PRINTED IN CHINA

ESPANOL
