USER MANUAL NNDS596MEPG PANASONIC

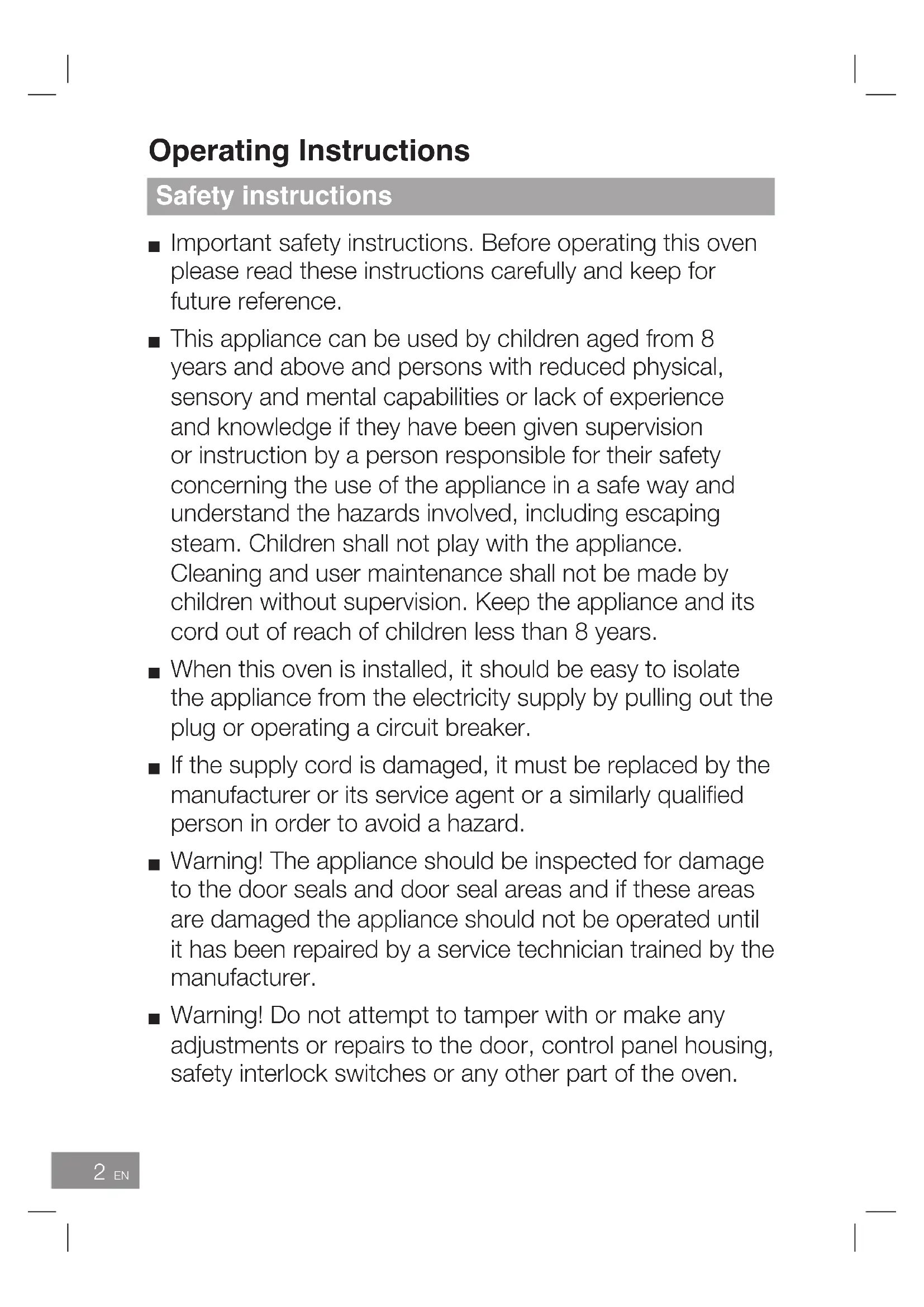

Important safety instructions. Before operating this oven please read these instructions carefully and keep for future reference.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction by a person responsible for their safety concerning the use of the appliance in a safe way and understand the hazards involved, including escaping steam. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years.

When this oven is installed, it should be easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard.

Warning! The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.

Warning! Do not attempt to tamper with or make any adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Operating Instructions Safety instructions3 EN English

Warning! Do not remove the outer panel from the oven which gives protection against exposure to microwave energy.

Repairs should only be made by a qualied service person.

Warning! Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Warning! Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

This oven is intended for counter-top use only. It is not intended for built-in use or for use inside a cupboard. For counter-top use:

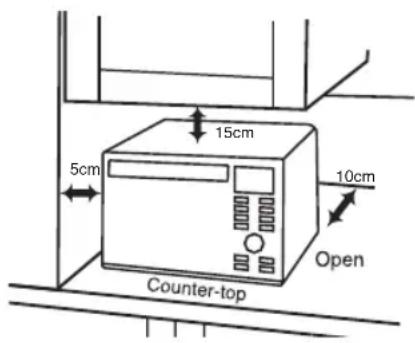

The oven must be placed on a at, stable surface 85 cm above the oor, with rear of oven placed against a back wall. For proper operation the oven must have sucient air ow, i.e. 5 cm at one side, the other being open; 15 cm clear over the top; 10 cm at the rear.

When heating food in plastic or paper containers, check the oven frequently as these types of containers ignite if overheated.

If smoke is emitted or a re occurs in the oven, touch Stop/Cancel and leave the door closed in order to stie any ames. Disconnect the power cord, or shut o power at fuse or circuit breaker panel.

This appliance is intended to be used in household applications only. Safety instructions4 EN

When heating liquids, e.g. soup, sauces and beverages in your oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid.

The contents of feeding bottles and baby food jars are to be stirred or shaken. The temperature has to be checked before consumption to avoid burns.

Do not cook eggs in their shells and whole hard-boiled eggs by microwave. Pressure may build up and the eggs may explode, even after the microwave heating has ended.

Clean the inside of the oven, door seals and door seal areas regularly. When food splatters or spilled liquids adhere to the oven walls, base of the oven, door seals and door seal areas wipe o with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive cleaners is not recommended.

Do not use commercial oven cleaners.

When using the grill, oven, steam, Panacrunch or combination modes, some foods may inevitably splatter grease on to the oven walls. If the oven is not cleaned occasionally, it may start to ‘smoke’ during use.

Failure to maintain the oven in a clean condition could lead to deterioration of surfaces that could aect the life of the appliance and possibly result in a hazardous situation. Safety instructions5 EN English

Warning! The accessible parts may become hot in grill, oven, steam, Panacrunch and combination use. Young children less than 8 years of age should be kept away. Children should only use the oven under adult supervision due to the temperatures generated.

A steam cleaner is not to be used for cleaning the appliance.

Do not use harsh, abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Exterior oven surfaces, including air vents on the cabinet and the oven door will get hot during grill, oven, steam, Panacrunch and combination modes, take care when opening or closing the door and when inserting or removing food and the accessory.

This appliance is not intended to be operated by means of an external timer or separate remote-control system.

Only use utensils that are suitable for use in microwave ovens.

Warning! This appliance produces boiling hot steam.

During and after cooking with steam function, do not open the oven door when your face is very close to the oven. Care must be taken when opening the door as steam may cause injury. Safety instructions6 EN

Warning! Steam may billow out when you open the door. If there is steam in the oven, do not reach in with your bare hands! Risk of burns! Use oven gloves.

Please refer to page 17 for correct installation of the shelf accessory.

The oven has two grill heaters situated in the top of the oven and two heaters situated in the base of the oven. After using the grill, oven, steam, Panacrunch and combination functions, the inside surfaces of the oven will be very hot. Care should be taken to avoid touching the heating elements inside the oven. To prevent burns, care should be taken to avoid touching the inside surfaces of the oven.

This combination oven is intended for heating food and beverages only. Take care when heating foods low in moisture, e.g. bread items, chocolate, biscuits and pastries. These can easily burn, dry out or catch re if cooked too long. We do not recommend heating foods low in moisture such as popcorn or poppadoms. Drying of food, newspapers or clothing and heating of warming pads, slippers, sponges, damp cloths, wheat bags, hot water bottles and similar may lead to risk of injury, ignition or re. Safety instructions7 EN English

The oven lamp must be replaced by a service technician trained by the manufacturer. Do not attempt to remove the outer casing from the oven.

Before using the oven, place the drip tray in position. Refer to page 15 for correct installation.

The purpose of the drip tray is to collect excess water during steam and microwave mode. It should be emptied after each steam and microwave operation.

Do not use the water tank if it is cracked or broken, as leaking water could result in electrical failure and danger of electric shock. If the water tank becomes damaged, please contact your dealer.

Caution! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and o by the utility. Safety instructions8 EN Disposal of waste products Information on disposal for users of Waste Electrical & Electronic Equipment (private households). This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on disposal in other countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.9 EN English Examine your microwave oven Unpack the oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. If you nd any damage, notify your dealer immediately. Do not install a damaged microwave oven. Important! This unit has to be properly earthed for personal safety. Earthing instructions If your AC outlet is not grounded, it is the personal responsibility of the customer to have it replaced with a properly grounded wall socket. Operation voltage The voltage has to be the same as specied on the label on the oven. If a higher voltage than specied is used, it may cause a re or other damages. This oven is intended for counter-top use only. It is not intended for built-in use or for use inside a cupboard. Counter-top use If one side of the oven is placed ush to a wall, the other side or top must not be blocked. Allow 15 cm of space on the top of the oven.

1. Place the oven on a at and stable

surface more than 85 cm above the oor.

2. When this oven is installed, it should be

easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.

3. For correct operation, ensure a

sufcient air circulation for the oven.

4. Do not place this oven near an electric

or gas cooker range.

5. The feet should not be removed.

6. Do not use outdoors.

7. Avoid using the microwave oven in high

8. The power cord should not touch the

outside of the oven. Keep the cord away from hot surfaces. Do not let the cord hang over the edge of a table or work top. Do not immerse the cord, plug or oven in water.

9. Do not block the air vents on the right

side of the oven. If these openings are blocked during operation the oven may overheat. In this case the oven is protected by a thermal safety device and resumes operation only after cooling down.

10. This appliance is intended to be used in

household applications only. Installation and connection Placement of your oven 5cm 15cm 10cm10 EN Warning! Important safety instructions

1. The door seals and seal areas should

be cleaned with a damp cloth. The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.

2. Do not attempt to tamper with or make

any adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy. Repairs should only be carried out by a qualied service person.

3. Do not operate this appliance if it has

a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service.

4. If the supply cord is damaged, it must

be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard.

5. Do not use the water tank if it is cracked

or broken, as leaking water could result in electrical failure and danger of electric shock. If the water tank becomes damaged, please contact your dealer.

6. Only allow children to use the oven

without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

7. Liquids and other foods must not be

heated in sealed containers since they are liable to explode. This appliance produces boiling hot steam.

8. This appliance can be used by children

aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction by a person responsible for their safety concerning the use of the appliance in a safe way and understand the hazards involved, including escaping steam. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years. Read carefully and keep for future reference. Important safety instructions11 EN English Use of your oven

1. Do not use the oven for any reason

other than the preparation of food. This oven is specically designed to heat or cook food. Do not use this oven to heat chemicals or other non-food products.

2. Before use, check that utensils/

containers are suitable for use in microwave ovens.

3. The microwave oven is intended for

heating food and beverages only. Take care when heating foods low in moisture, e.g. bread items, chocolate, biscuits and pastries. These can easily burn, dry out or catch re if cooked too long. We do not recommend heating foods low in moisture such as popcorn or poppodums. Drying of food, newspapers or clothing and heating of warming pads, slippers, sponges, damp cloth, wheat bags, hot water bottles and similar may lead to risk of injury, ignition or re.

4. When the oven is not being used, do

not store any objects inside the oven in case it is accidentally turned on.

5. The appliance must not be operated by

microwave or combination without food in the oven. Operation in this manner may damage the appliance. Exception to this is point 1 under “Heater operation”.

6. If smoke is emitted or a re occurs in

the oven, touch Stop/Cancel and leave the door closed in order to stie any ames. Disconnect the power cord, or shut off power at fuse or circuit breaker panel.

7. During and after cooking with steam

function, do not open the oven door hen your face is very close to the oven. Care must be taken when opening the door as steam may cause injury. Caution! Steam may billow out when you open the door. If there is steam in the oven, do not reach in with your bare hands! Risk of burns! Use oven gloves. Important safety instructions12 EN Heater operation

1. Before using oven, steam, grill,

Panacrunch or combination function for the rst time, wipe excessive oil off in the oven cavity and operate the oven without food and accessory on oven 220 °C, for 10 minutes. This will allow the oil that is used for rust protection to be burned off. This is the only time the oven is used empty.

2. Exterior oven surfaces, including air

vents on the cabinet and the oven door will get hot during grill, oven, steam, Panacrunch and combination modes, take care when opening or closing the door and when inserting or removing food and accessory.

3. The oven has two grill heaters situated

in the top of the oven and two heaters situated in the base of the oven. After using the grill, oven, steam, Panacrunch and combination functions, the inside surfaces of the oven will be very hot. Care should be taken to avoid touching the heating elements inside the oven. Caution! Hot surfaces After cooking by these modes, the oven accessories will be very hot.

4. The accessible parts may become hot

in grill, oven, steam, Panacrunch and combination use. Young children less than 8 years of age should be kept away, and children should only use the oven under adult supervision due to the temperatures generated. Fan Motor Operation After using the oven the fan motor may rotate for a few minutes to cool the electric components. This is normal and you can take out food even though the fan motor operates. You can continue using the oven during this time. Water tank Do not use the water tank if it is cracked or broken, as leaking water could result in electrical failure and danger of electric shock. If the water tank becomes damaged, please contact your dealer. Oven light When it becomes necessary to replace the oven light, please consult your dealer. Cooking times The cooking times given in the cookbook are approximate. The cooking time depends on the condition, temperature, amount of food and on the type of cookware. Begin with the minimum cooking time to help prevent overcooking. If the food is not sufciently cooked you can always cook it for a little longer. Important safety instructions If the recommended cooking times are exceeded the food will be spoiled and in extreme circumstances could catch re and possibly damage the interior of the oven.13 EN English Important safety instructions Meat thermometer Use a meat thermometer to check the degree of cooking of roasts and poultry only when the meat has been removed from the oven. Do not use a conventional meat thermometer in the microwave oven because it may cause sparking. Small quantities of foods Small quantities of food or foods with low moisture content can burn, dry out or catch re if cooked too long. If materials inside the oven should ignite, keep the oven door closed, turn the oven off and remove the plug from the socket. Eggs Do not cook eggs in their shells and whole hard-boiled eggs by microwave. Pressure may build up and the eggs may explode, even after the microwave heating has ended. Piercing Skin Foods with non porous skin, such as potatoes, egg yolks and sausages must be pierced before cooking by microwave to prevent bursting. Liquids When heating liquids, e.g. soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

Avoid using straight-sided containers with narrow necks.

Stir the liquid before placing the container in the oven and again halfway through the cooking time.

After heating, allow it to stand in the oven for a short time, stir again before carefully removing the container. Paper/plastic When heating food in plastic or paper containers, check the oven frequently as these types of containers ignite if overheated. Do not use recycled paper products (e.g. kitchen roll) unless the paper product is labelled as safe for microwave oven use. Recycled paper products may contain impurities which may cause sparks and/or res during use. Remove wire twist-ties from roasting bags before placing the bags in the oven.14 EN Utensils/foil Do not heat any closed cans or bottles because they might explode. Metal containers or dishes with metallic trim should not be used during microwave cooking. Sparking will occur. If you use any aluminium foil, meat spikes or metalware the distance between them and the oven walls and door should be at least 2 cm to prevent sparking. Feeding bottles/baby food jars The top and teat or lid must be removed from feeding bottles or baby food jars before placing in the oven. The contents of feeding bottles and baby food jars are to be stirred or shaken. The temperature has to be checked before consumption to avoid burns. Important safety instructions

1. Do not cook food directly on the base

of the oven. Always place food in a microwave safe dish.

2. The oven accessory provided must

only be used as directed for grill, oven, steam, Panacrunch and combination without microwave cooking. Never use metal accessories when cooking in microwave only mode. Do not use if operating the oven with less than

of food on a manual combination program. The maximum weight that can be used on the oven accessory is

Failure to use the accessory correctly could damage your oven.

3. When cooking with

microwave power arcing may occur if the incorrect weight of food is used, a metal container has been used incorrectly, or the oven accessory has been damaged. If this occurs, stop the appliance immediately. You can continue to cook by grill, steam

4. Always refer to instructions for correct

accessory to use on all auto programs. Accessory advice15 EN English Drip tray

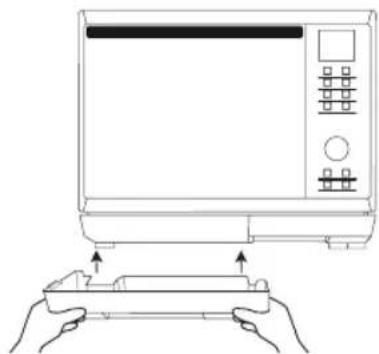

1. Before using the oven, the drip tray

must be tted as it collects excess water during cooking. The drip tray should be removed and cleaned on a regular basis.

2. Fit the drip tray by holding with both

hands and clicking onto the front legs of the oven.

3. To remove the drip tray, hold with both

hands and gently ease forward. Wash in warm soapy water. Re-position the drip tray by clicking back onto the legs.

Do not use a dishwasher to clean the drip tray. Re-position the drip tray by clicking back onto the legs. Water Tank Refer to guidelines for water tank on page 32. Warning label Identication label Air vent exhaust Air inlet Front view Rear view Control panel Drip tray Water tank Parts of your oven Drip tray Water tank Note The above illustration is for reference only.16 EN Parts of your oven Air vents Power supply cord Power supply plug Bottom microwave feeding (refer to page 24) Door handle Pull the door handle downwards to open. When you open the oven door during cooking, the cooking is stopped temporarily without clearing the programmed settings. The cooking is resumed as soon as the door is closed and Start is touched. The oven lamp lights as soon as the oven door is opened. Door hinges To prevent injury when opening or closing the door, keep ngers away from the door hinges. Shelf positions Door safety lock system To prevent injury, do not insert nger, knife, spoon or other object into the latch hole. Oven window Inner plate Menu label Steam outlet Warning label Grill elements LED light Note The above illustration is for reference only.17 EN English The oven comes equipped with an accessory; the Square Panacrunch Pan. Always follow the directions given for use of the accessory. The accessory has a number of uses:

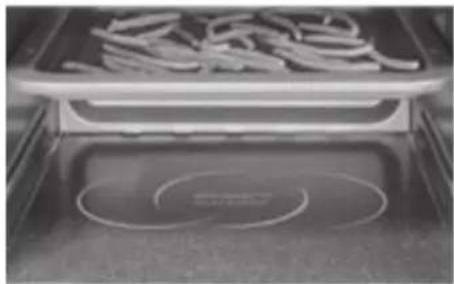

1. It is recommended to use the pan in the

upper shelf position on steam 1, 2 or 3. For steaming larger food items, place the pan in the lower shelf position. During steaming, cooking juices collect in the watercourse of the pan.

2. The pan can be used for

the upper shelf position for small at items. It can be used in the lower shelf position for grilling larger items.

3. The pan can be placed in the lower or

upper shelf position to cook in oven mode 100 - 220 °C or 40 °C.

4. The pan can be used as a

Square Panacrunch Pan in the upper shelf position for the Panacrunch auto programs. It can be used in the upper or lower shelf positions in manual operation for browning and crisping the top and base of foods. Using the Square Panacrunch Pan (manual operation)

1. Place in the upper shelf position. Press

Grill pad 4 times to select Panacrunch mode. Please refer to page 27.

2. Cook according to the guidelines

shown in the cooking chart on page 28.

3. Use oven gloves after cooking as the

pan will be very hot. Care of the pan

1. Never use any sharp utensils on the

pan as this will damage the non-stick surface.

2. After use, wash the pan in hot soapy

water and rinse in hot water. Do not use any abrasive cleaning substances or scouring pads as this will damage the surface of the pan.

3. The pan is dishwasher safe.

1. Do not pre-heat the pan.

2. Always use oven gloves when handling the hot pan.

3. Ensure all food packaging is removed before cooking.

4. Do not place any heat-sensitive materials on the hot pan as this may cause

5. For correct use of accessory for each cooking mode, see pages 23-39.

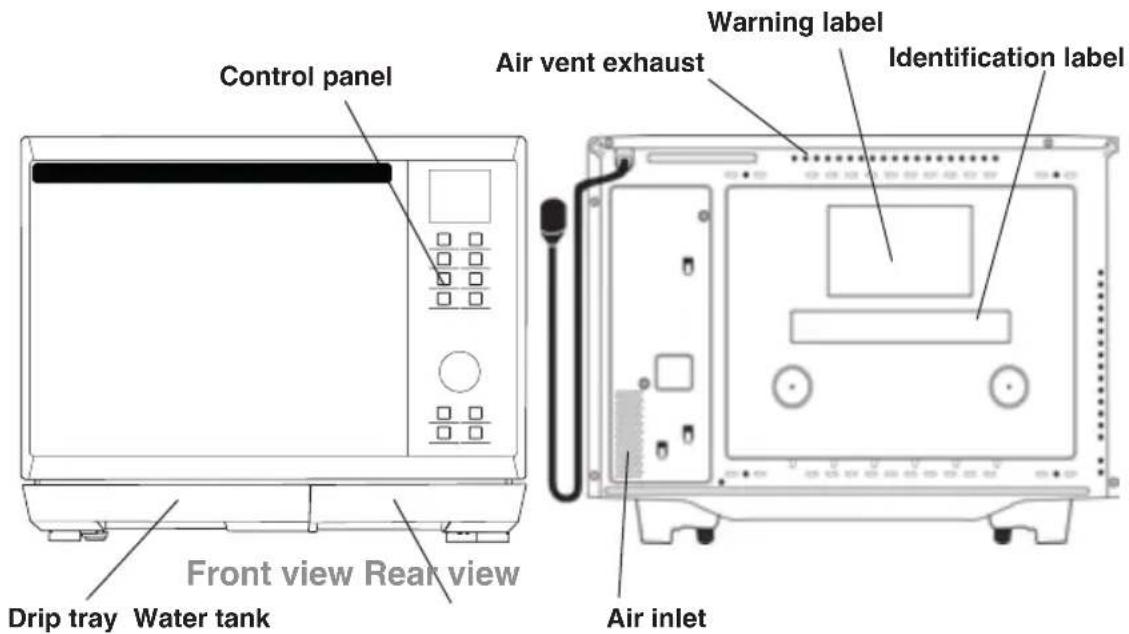

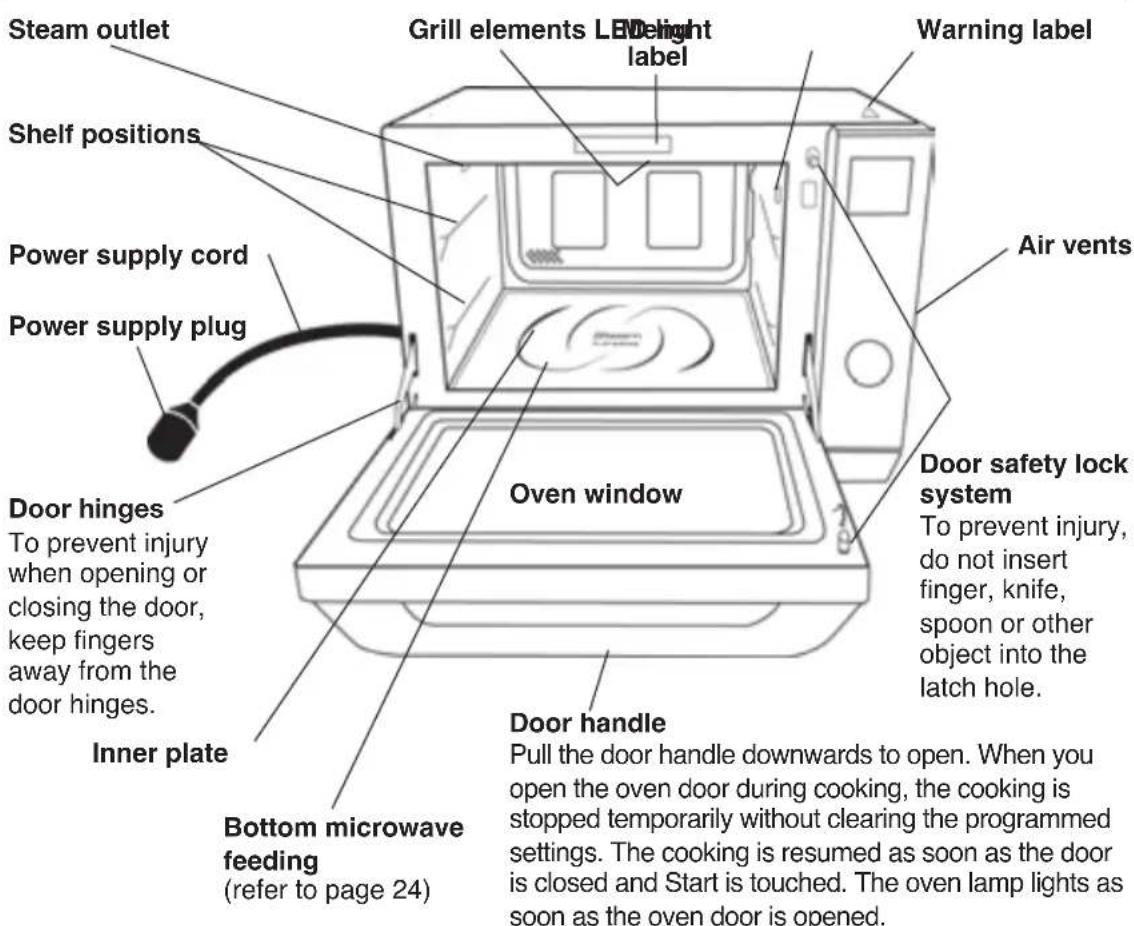

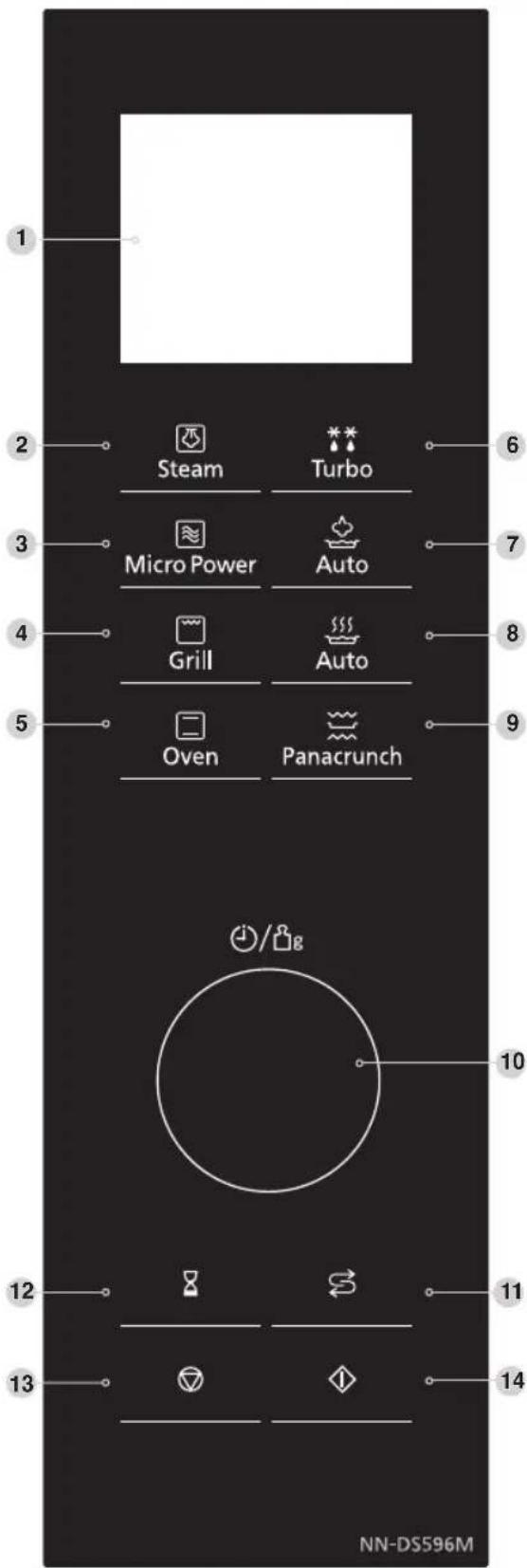

7. Auto steam programs

8. Auto cook programs

9. Panacrunch programs

Before cooking: One touch clears your instructions. During cooking: One touch temporarily stops the cooking program. Another touch cancels all your instructions and a colon or the clock will appear in the display.

Touch to start operating the oven. If during cooking the door is opened or Stop/Cancel is touched once, Start has to be touched again to continue cooking. Beep sound A beep sounds when a key is touched. If this beep does not sound, the setting is incorrect. When the oven changes from one function to another, two beeps sound. After completion of cooking, ve beeps sound. Control panel

The oven will enter stand-by mode after the last operation has completed. When in stand-by mode, the brightness of the display will be reduced.

When in stand-by mode, it is necessary to open and close the oven.

If an operation is set and Start is not touched within 6 minutes, the oven will automatically cancel the operation. The display will revert back to colon or Clock mode.19 EN English Cooking modes Uses Accessories to use Containers

Melting: butter, chocolate, cheese.

Cooking sh, vegetables, fruits, eggs.

Preparing: stewed fruits, jam, sauces, custards, choux, pastry, caramel, meat, sh.

Baking cakes without colour. No Preheating

Use your own Pyrex® dishes, plates or bowls, directly on the base of the oven

Grilling of meat or sh.

Colouring of gratin dishes or meringue pies. Preheating advised Square Panacrunch Pan. Heatproof, metal tin can be used on Square Panacrunch Pan in lower or upper shelf positions or on base of oven.

Baking of small items with short cooking times: puff pastry, cookies, roll cakes.

Special baking: bread rolls or brioches, sponge cakes.

Baking of pizzas and tarts. Preheating advised Square Panacrunch Pan. Heatproof, metal tin can be used on Square Panacrunch Pan in lower or upper shelf positions. Do not place dishes directly on base of oven. STEAM

Cooking sh, vegetables, chicken, rice and potatoes. No Preheating Square Panacrunch Pan. Place food directly on the Square Panacrunch Pan or in a heatproof container on the Square Panacrunch Pan.

Roasting small meat and poultry items.

Reheating and crisping (pizza, bread, potato products). No Preheating Square Panacrunch Pan in upper or lower shelf positions.

The diagrams shown below are examples of the accessories. It may vary depending on recipe/ dish used. Further information can be found in the cookbook. Cooking modes MICROWAVE GRILL OVEN PANACRUNCH20 EN Cooking modes Uses Accessories to use Containers

Cooking lasagne, meat, potatoes or vegetable gratins. No Preheating

Microwaveable and heatproof dishes placed directly on base of oven.

Cooking sh, vegetables, chicken, rice, and potatoes. No Preheating

Microwaveable and heatproof dishes placed directly on base of oven.

Part baked bread No Preheating Square Panacrunch Pan. Microwaveable and heatproof dishes can be used on the Square Panacrunch Pan in the lower or upper shelf positions or directly on the base of the oven..

Puff pastry tarts Preheating advised Square Panacrunch Pan. Microwaveable and heatproof dishes can be used on the Square Panacrunch Pan in the lower or upper shelf positions. Do not place dishes directly on base of oven. Combination cooking modes To use grill + microwave

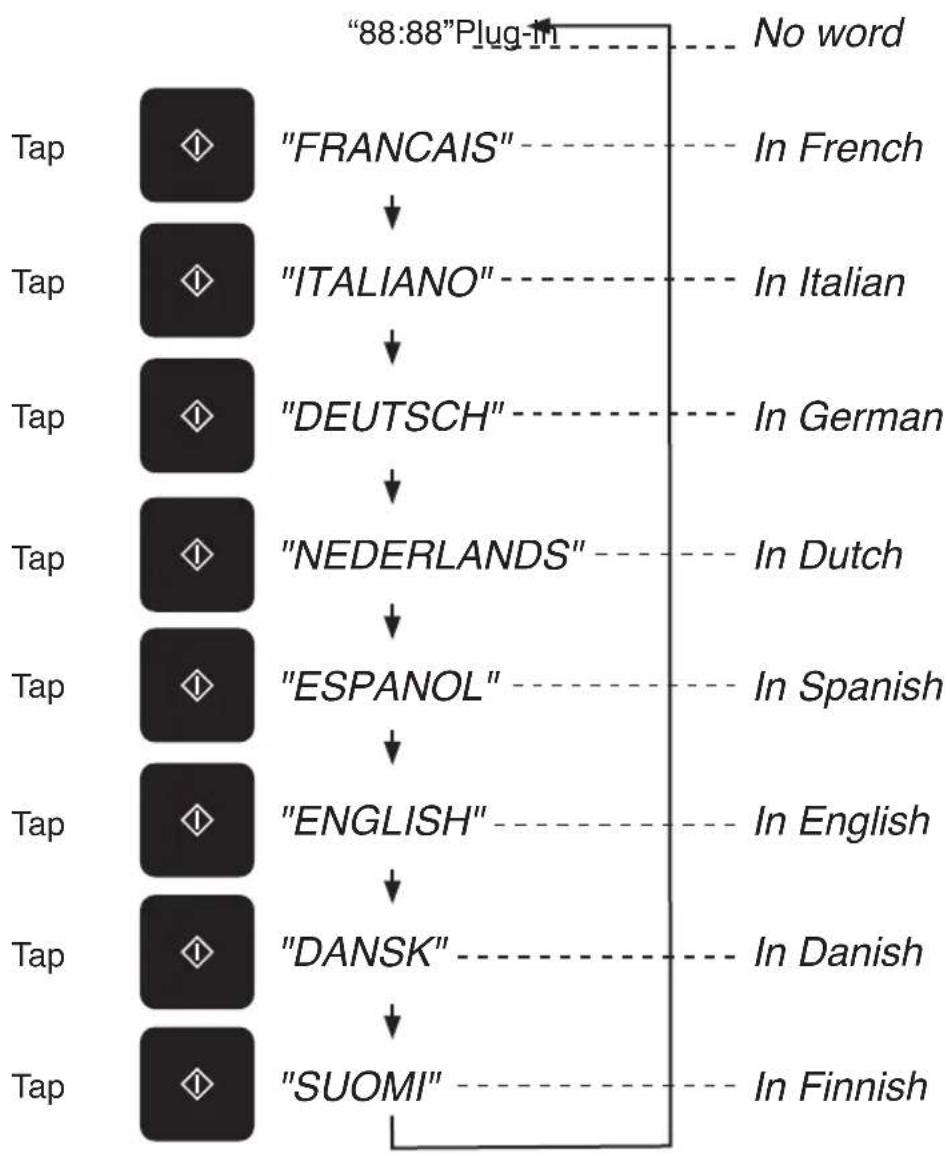

English Word prompting These models have a unique function “Word Prompting” which guides you through the operation of your microwave. After plugging in the oven tap Start until you locate your language. As you tap the keys, the display will scroll the next instruction eliminating the opportunities for mistakes. If for any reason you wish to change the language displayed, unplug the oven and repeat this procedure. If Timer/Clock is tapped 4 times, this will turn off the operation guide. To turn the operation guide back on, tap Timer/Clock 4 times. “88:88”Plug-in Word prompting "FRANCAIS" "ITALIANO" "NEDERLANDS" "DEUTSCH" "ESPANOL" "SUOMI" "DANSK" "ENGLISH" In French No word In Italian In Dutch In German In Spanish In Finnish In Danish In English Tap Tap Tap Tap Tap Tap Tap Tap22 EN Setting the clock Child lock When the oven is rst plugged in “88:88” appears in display window. Note

1. One turn of the dial will increase or decrease the time by 1 minute. Continuously

turning the dial will rapidly increase or decrease the time.

2. To reset the time of day repeat all the above steps.

3. The clock will keep the time of day as long as the oven is plugged in and

electricity is supplied.

4. This is a 24 hour clock.

Using this system will make the oven controls inoperable; however, the door can be opened. Child Lock can be set when the display shows a colon or the time. Tap Start three times. The time of day will disappear. Actual time will not be lost.

is indicated in the display. To Set: To Cancel: Tap Stop/Cancel three times. The time of day will reappear in the display. Note To activate child lock, Start must be tapped 3 times within a 10 second period. Child lock can be set when a colon or the time of day is displayed. Tap Timer/Clock twice. “SET TIME’’ appears in the display window and the colon starts to blink. Touch Timer/Clock. The colon stops blinking. Time of day is now locked into the display. Select the time by turning the Time/Weight dial. The time appears in the display and the colon blinks. e.g. 13:25 (24 hr clock).23 EN English Microwave cooking and defrosting There are 6 different microwave power levels available. Do not place food directly on the base of the oven. Use your own dishes, plates or bowls covered with a lid or pierced cling lm directly on the base of the oven. Tap Micro Power until the power you require appears in the display window.Touch Start. The cooking program will start and the time in the display will count down.Select the cooking time by turning the Time/Weight dial.TouchPower LevelWattageOnce Max 1000 WTwice Defrost 270 W3 Times Medium 600 W4 Times Low 440 W5 Times Simmer 300 W6 Times Warm 100 W Caution The oven will automatically work on 1000 W (Max) microwave power if a cooking time is entered without the power level being selected.24 EN Microwave cooking and defrosting Bottom feeding technology Please note that this product uses bottom feeding technology for microwave distribution which differs from traditional turntable side feeding methods and creates more usable space for a variety of different sized dishes. This microwave feeding style can give a difference in heating times (in microwave mode) when compared against side feeding appliances. This is quite normal and should not cause any concern. Please refer to the reheating and cooking charts in the cookbook. Note

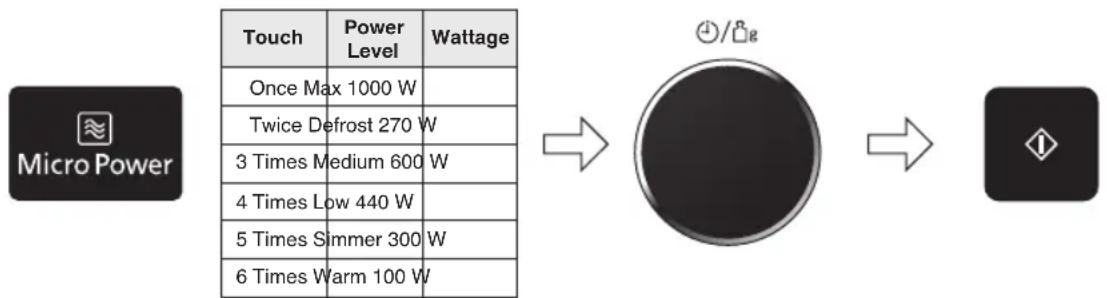

1. Maximum time that can be set on 1000 W (Max) is 30 minutes. On all other

power levels the maximum time that can be set is 1 hour 30 minutes.

2. You can change the cooking time during cooking if required. Turn dial to

increase or decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning dial to zero will end cooking.

Do not attempt to use microwave only with any metal container in the oven.

Do not place food directly onto the base of the oven. Place in a microwavable or glass dish. Foods reheated or cooked by microwave only should be covered with a lid or pierced cling lm, unless otherwise stated.

5. For manual defrosting times, please refer to defrost chart in the cookbook

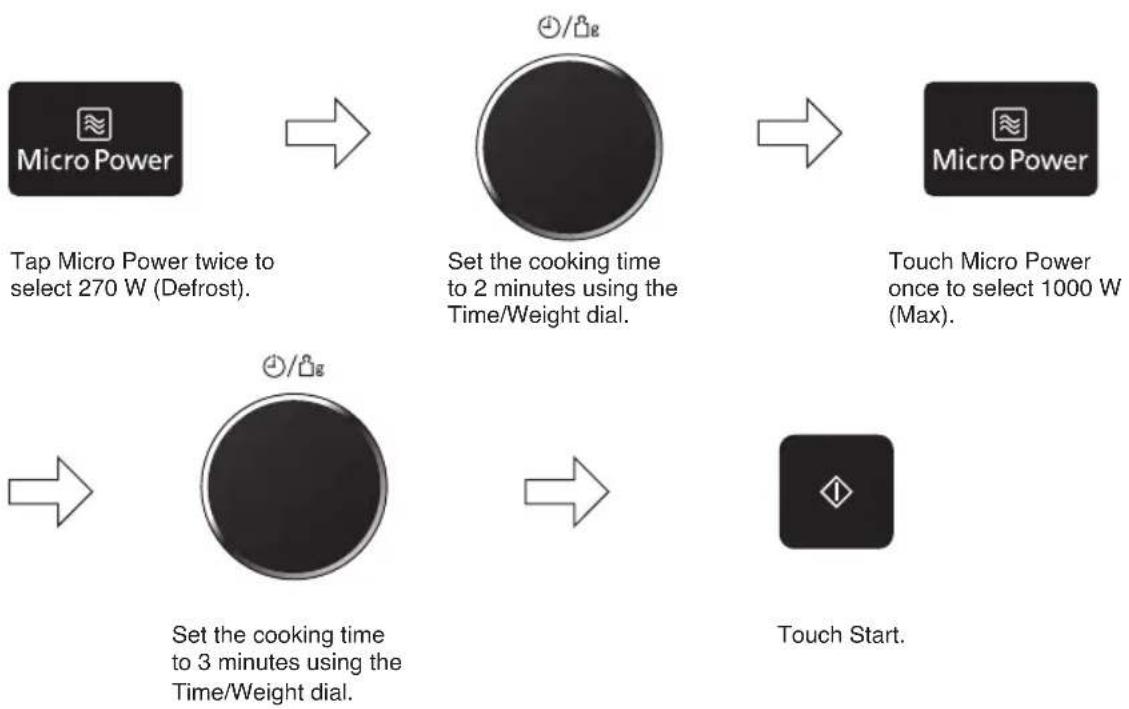

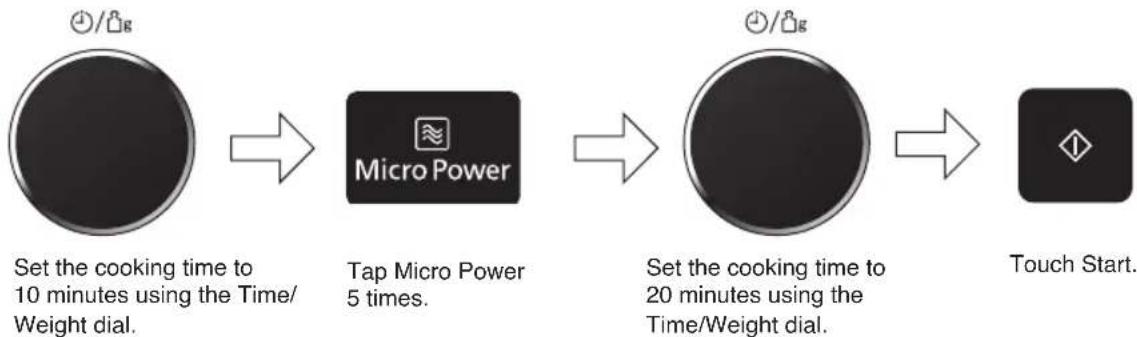

6. For multi-stage cooking refer to pages 40-42.

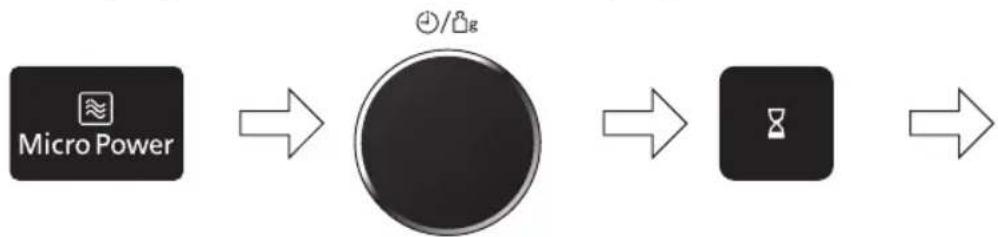

7. Stand time can be programmed after microwave power and time setting.

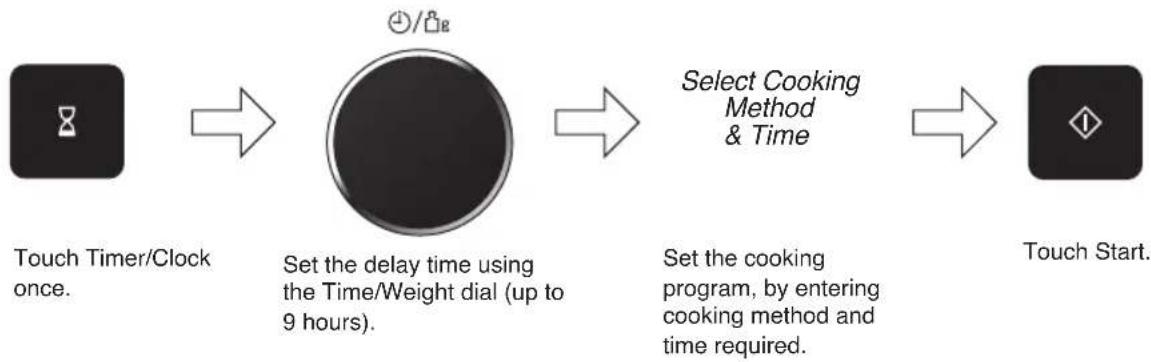

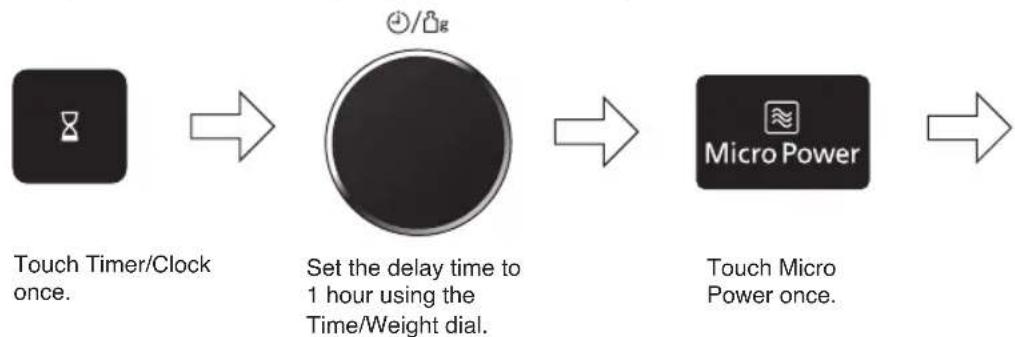

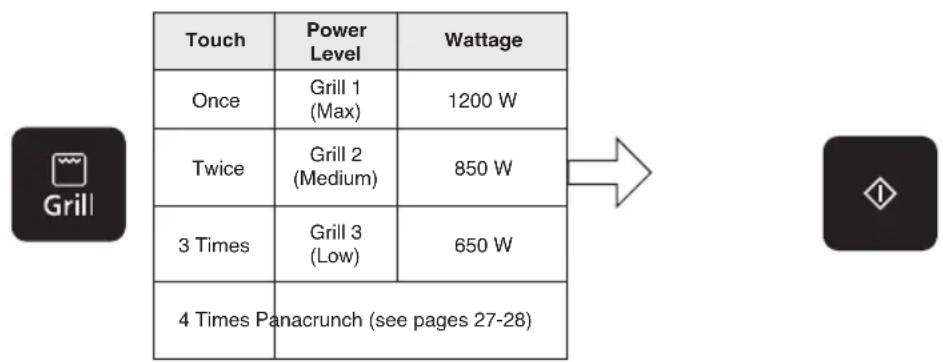

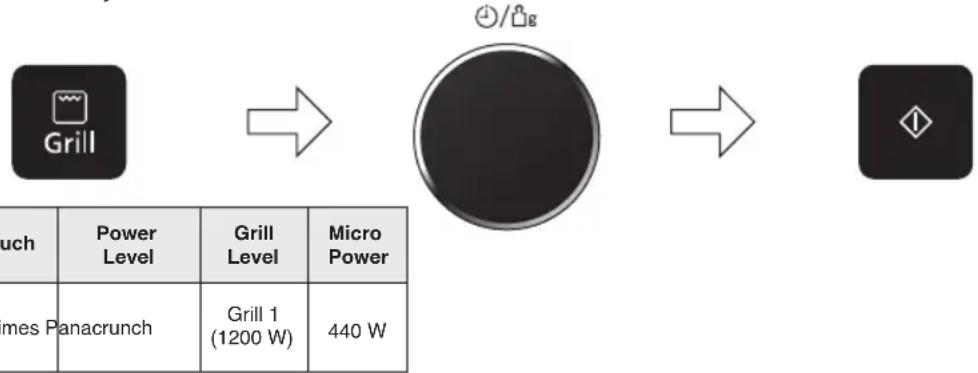

Refer to ‘Using the timer’ pages 43-44.25 EN English Grilling Tap Grill until the power you require appears in the display window.Select the cooking time by turning the Time/Weight dial. Maximum cooking time is 90 minutes.Touch Start. The cooking program will start and the time in the display will count down. The grill system on the oven gives fast efcient cooking for a wide variety of foods e.g. sausages, steaks, toast, etc. There are 3 different grill settings available. TouchPower LevelWattage Once Grill 1 (Max)1200 WTwiceGrill 2 (Medium)850 W3 TimesGrill 3 (Low)650 W4 Times Panacrunch (see pages 27-28)Touch Start to preheat. A “P” will appear in the display window. When the oven is preheated the oven will beep and the “P” will ash. Then open the door and place the food inside. * Skip this step when preheat is not required. Use of accessory Place food directly on the oven accessory in the upper shelf position. For grilling larger food items, place the pan in the lower shelf position. During grilling, cooking juices collect in the watercourse of the pan. Place food in heatproof dish on oven accessory in the lower shelf position.26 EN Grilling Note

1. Never cover foods when grilling.

2. The grill will only operate with the oven door closed.

3. There is no microwave power on the ‘

grill only ’ program.

4. Most foods require turning halfway during cooking. When turning food, open

oven door and carefully remove oven accessory using oven gloves.

5. After turning, return food to the oven and close door. After closing oven door,

touch Start. The oven display will continue to count down the remaining grilling time. It is quite safe to open the oven door at any time to check the progress of the food as it is grilling.

6. The grill will glow on and off during cooking - this is normal. Always clean the

oven after using the grill and before using microwave

7. You can change the cooking time during cooking if required. Turn the Time/

Weight dial to increase or decrease the cooking time. Time can be increased/ decreased in 1 minute increments, up to 10 minutes. Turning dial to zero will end cooking. Caution Use oven gloves when removing accessory. Never touch the outside window or inside metal parts of the door or oven when taking food in or out due to the high temperatures involved.27 EN English Panacrunch (Grilling) Tap Grill 4 times. The Panacrunch icon will appear in the display.Select the cooking time by turning the Time/Weight dial. Maximum cooking time is 30 minutes.Touch Start. The cooking program will start and the time in the display will count down. The Panacrunch ʻconceptʼ Some foods cooked by microwave can have soft and soggy crusts. Your Square Panacrunch Pan accessory will brown and crisp pizzas, frozen potato products, quiches, pies and breaded products. Your Square Panacrunch Pan works by heating the pan by absorbing microwaves and heating the food by the grill. The base of the pan absorbs the microwaves and transfers them into heat. Then the heat is conducted through the pan to the food. The heating effect is maximised by the non-stick surface. TouchPower LevelGrill LevelMicro Power4 Times PanacrunchGrill 1 (1200 W)440 W Important To use Panacrunch with grill level 2 or 3 or 440 W or 300 W; rst tap Grill to select desired grill level. Next tap Micro Power to select 440 W or 300 W. Then select the cooking time and touch Start.28 EN Suggested cooking options Caution The accessory and surrounding oven will get very hot. Use oven gloves. Food Weight Power level Shelf level Cooking time Frozen deep pan pizza

Panacrunch Lower 10 mins Frozen thin and crispy pizza

Panacrunch Upper 7-8 mins Chilled sausage roll

Panacrunch Upper 5 mins Chilled breaded sh

(2) Panacrunch Upper 6 mins Note You can change the cooking time during cooking if required. Turn the Time/Weight dial to increase or decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning dial to zero will end cooking. Panacrunch (Grilling)29 EN English Oven cooking Your combination oven can be used as an oven using the oven mode which uses top and bottom heat. For best results always place food in a preheated oven. When using oven mode, the Square Panacrunch Pan can be placed in the upper or lower shelf position. Do not pre-heat on oven mode with the Square Panacrunch Pan in position. Select the cooking time turning the Time/Weight dial. Maximum cooking time is 90 minutes.Touch Start to preheat. A “P” will appear in the display window. When the oven is preheated the oven will beep and the “P” will ash. Then open the door and place the food inside. * Skip this step when preheating is not required.Tap Oven. The oven starts at 150 °C. Tap Oven and the temperature will count up in 10 °C stages to 220 °C, then 40 °C and 100 °C.Touch Start.Note: Check that only the oven symbol is still in the display. If the microwave symbol is displayed this is incorrect and the program should be cancelled. Reselect the Oven setting. Caution The accessories and surrounding oven will get very hot. Use oven gloves. Note on preheating

1. Do not open the door during preheating. After preheating 3 beeps will be heard

and the “P” will ash in the display window. If the oven door is not opened after preheating, the oven will maintain the selected temperature. After 30 minutes, including preheating, the oven will shut off automatically and revert to time of day.

2. If you want to cook without preheating, after selecting the desired temperature,

set the cooking time then touch Start.

3. The oven cannot preheat to 40 °C.30 EN

Oven cooking Caution Always use oven gloves when removing the food and accessories after cooking as the oven and accessory will be very hot. Note

1. Open the door using the pull down door because if Stop/Cancel is touched the

program may be cancelled.

2. You can change the cooking time during cooking if required. Turn the Time/

Weight dial to increase or decrease the cooking time. Time can be increased/ decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking.

3. After touching Start, the selected temperature can be recalled and changed.

Touch Oven once to indicate the temperature in the display window. While the temperature is recalled in the display window, you can change the temperature by tapping Oven.

4. The oven will maintain the selected preheated temperature for approximately

30 minutes. If no food has been placed inside the oven or a cooking time set, then it will automatically cancel the cooking program and revert to colon or time of day.

oven mode, you can cook food directly on the Square Panacrunch Pan in the upper or lower shelf position. Or you can place your standard metal baking tins and ovenware on the Square Panacrunch Pan in the lower shelf position. Do not place tins and ovenware directly on the base of the oven in oven mode

Roasting meat: Square Panacrunch Pan in lower shelf position. Baking: Square Panacrunch Pan in lower shelf position. You can use the Square Panacrunch Pan as a baking dish for roasting potatoes or vegetables, and for baking fairy cakes and cookies. It is also ideal for re-heating pre-cooked convenience pastry items. Roasting Vegetables / Potatoes: Square Panacrunch Pan in lower shelf position. Reheating: Square Panacrunch Pan in lower shelf position.31 EN English Steam cooking The oven can be programmed as a steamer to cook vegetables, sh, chicken and rice. There are 3 different steam settings available. Select the cooking time by turning the Time/Weight dial. Maximum cooking time is 30 minutes.Touch Start. The cooking program will start and the time in the display will count down.Tap Steam until the power you require appears in the display window. Note

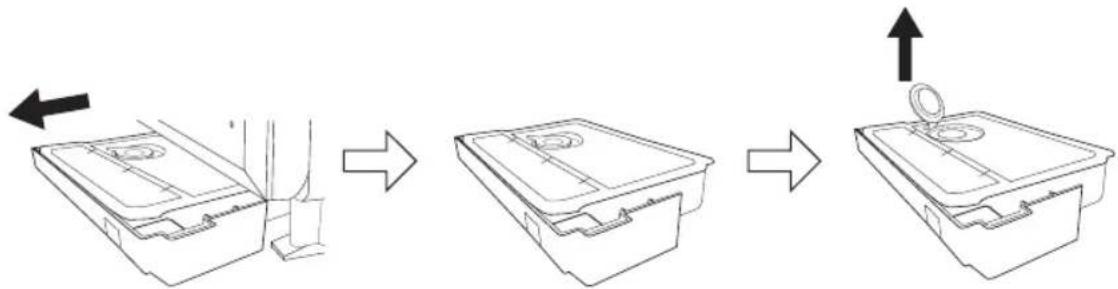

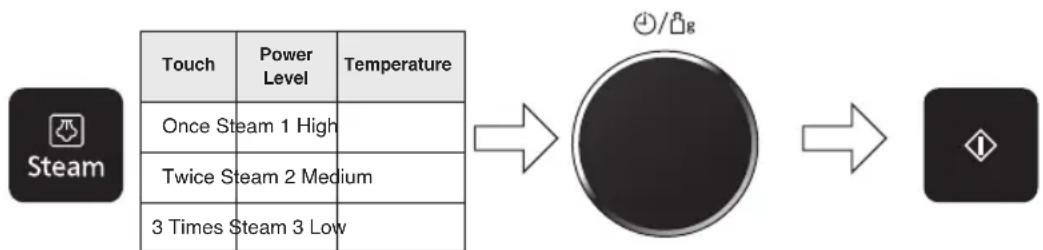

1. Fill the water tank before using the

2. The maximum time for cooking in this mode is 30 minutes. If required to cook for

longer than this time, re-ll the water tank and repeat the above operation for the remaining time.

3. If during operation the water tank becomes empty, the oven will stop operation.

The prompt in the display will ask you to re-ll the water tank. After re-lling the water tank and positioning back in the oven, touch Start. The oven will not continue cooking until the water tank has been re-lled and Start touched.

4. You can change the cooking time during cooking if required. Turn the Time/

Weight dial to increase or decrease the cooking time. Time can be increased/ decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking.

5. It is possible to rell water tank at any time during cooking, without having to

touch Stop/Cancel rst.

6. It may be necessary to wipe the excess water in the cavity after

steam cooking. Caution The accessories and surrounding oven will get very hot. Use oven gloves. When removing the food or cooking accessories, hot water may drip from the oven top. Steam may billow out when you open the door. If there is steam in the oven, do not reach in with your bare hands! Risk of burns! Use oven gloves. Take care when removing the drip tray. Wipe any water that drips from the left side of the oven. This is normal. TouchPowerLevelTemperatureOnce Steam 1 HighTwice Steam 2 Medium3 Times Steam 3 Low32 EN Guidelines for water tank Carefully remove the water tank from the oven. Remove the lid and ll with tap water (do not use mineral water). Replace the lid and position back in the oven. Ensure the lid is closed tightly and securely positioned, otherwise leakage may occur. It is recommended to clean the water tank in warm water once a week. Steam cooking Caution The accessories and surrounding oven will get very hot. Use oven gloves. Use of accessory When steaming place food directly on the oven accessory in the upper shelf position. For steaming larger food items, place the pan in the lower shelf position. During steaming

cooking juices collect in the watercourse of the pan. Use oven gloves when removing accessory as it will be very hot and so will the roof and walls of the oven.33 EN English Guidelines

1. There is no microwave power on the

steam only ’ program.

2. Use the accessories provided, as

steam will only operate with the oven door closed.

During and after cooking with the steam function, do not open the oven door when your face is very close to the oven. Care must be taken when opening the door as steam may cause injury.

Always use oven gloves when removing the food and accessories after steaming as the oven and accessories will be very hot.

6. After each steam operation carefully

remove the drip tray from the front of the oven. Gently ease forwards, holding with both hands. After emptying, wash in warm soapy water. To re-position, click back into position on the oven legs. Steam cooking34 EN As required during operation, hold Steam for 2 seconds and 1 minute will be added.If you want to add 2 or 3 minutes, tap Steam 2 or 3 times within 3 seconds after step 2. The remaining time displayed includes steam shot time. Set and operate the desired program. Optional

This feature allows you to add steam during cooking (for 1, 2 or 3 minutes). There are 5 combinations that you can use steam shot - MICROWAVE GRILL OVEN GRILL + MICROWAVE PANACRUNCH Adding steam during cooking enhances the heat distribution and aids the rising process of breads, cakes and pastries. Note

1. Steam shot is not available during preheating mode or at 40 °C oven.

2. Fill the water tank before use.

3. The original program still counts down when operating steam shot.

4. The steam shot time can not exceed the remaining cooking time.

5. If adding 2 or 3 minutes, Steam must be tapped 2 or 3 times within a 3 second time

6. Wipe away excess water in the cavity and around the water tank after cooking with

7. It is not possible to change the oven temperature and cooking time during steam

shot. Steam shot35 EN English Steam shot Food Cooking mode Steam ShotPuff pastries Oven ²/ total time add 3 mins. Steam ShotBreads Oven ²/ total time add 3 mins. Steam ShotSponge cakes Oven ½ total time add 3 mins. Steam ShotPart baked rolls Oven or Grill ²/ total time add 3 mins. Steam Shot Caution The accessories and surrounding oven will get very hot. Use oven gloves. When removing the food or cooking accessories, hot water may drip from the oven top. Steam may billow out when you open the door. If there is steam in the oven, do not reach in with your bare hands! Risk of burns! Use oven gloves.36 EN Touch Power Level TemperatureOnce Steam 1 HighTwice Steam 2 Medium3 Times Steam 3 LowMicrowave power 440 W, 300 W or 100 W can be set.Grill levels 1, 2 or 3 can be set.Oven 100 °C - 220 °C can be set.Steam + microwave Directly on the base of the oven in a microwaveable and heatproof dish. Oven or grill + steamSquare Panacrunch Pan in upper or lower shelf position. Combination cooking with steam Steam can be used to cook foods simultaneously with microwave, grill or oven mode. This can often reduce traditional oven cooking times and keep the food moist. Oven accessories to use Power and temperature range Tap Steam until the power you require appears in the display window (see the chart below).Select the cooking time by turning the Time/Weight dial. Maximum cooking time is 30 minutes.Touch Start. The cooking program will start and the time in the display will count down.

Select second cooking mode and power level/temperature. It is possible to preheat on Steam + Oven. Refer to pages 29-30.37 EN English Combination cooking with steam Note

1. Fill the water tank before using the

2. The maximum time for cooking in this mode is 30 minutes. If required to cook

for longer than this time, re-ll the water tank and repeat the above operation for the remaining time.

3. If during operation the water tank becomes empty, the oven will stop operation.

The prompt in the display will ask you to re-ll the water tank. After re-lling the water tank and positioning back in the oven, touch Start. The oven will not continue cooking until the water tank has been re-lled and Start touched.

4. Preheating is not available with

5. You can change the cooking time during cooking if required. Turn the Time/

Weight dial to increase or decrease the cooking time. Time can be increased/ decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking.

6. It is possible to rell water tank at any time during cooking, without having to

touch Stop/Cancel rst.

7. It may be necessary to wipe the excess water in the cavity after

steam cooking. Guidelines

1. During and after cooking with

steam function, do not open the oven door when your face is very close to the oven. Care must be taken when opening the door as steam may cause injury.

2. Always use oven gloves when removing the food and accessories after cooking

as the oven and accessories will be very hot.

steam operation carefully remove the drip tray from the front of the oven. Gently ease forwards, holding with both hands. After emptying, wash in warm soapy water. To re-position, click back into position on the oven legs. (See page 15.) Caution

1. The accessories and surrounding oven will get very hot. Use oven gloves.

2. When removing the food or cooking accessories, hot water may drip from the

3. Steam may billow out when you open the door. If there is steam in the oven, do

not reach in with your bare hands! Risk of burns! Use oven gloves.

4. Take care when removing the drain tank.38 EN

On the base of the oven in your own microwaveable and heatproof dishes, this mode is suitable for cooking lasagne, gratins, meat, potatoes. To cook successfully by combination you should always use a minimum of 200

food. Small quantities should be cooked by oven

It is not possible to preheat when using this combination mode and food should always be cooked uncovered. The grill will glow on and off during cooking - this is normal. To use grill + microwave in Panacrunch mode see pages 27-28. Combination grill and microwave Note

1. Preheating is not available for

 1000 W / 600 W / 270 W (Max / Medium / Defrost) microwave power is not available in combination.

3. You can change the cooking time during cooking if required. Turn the Time/Weight

dial to increase or decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking.

4. To turn food just pull the door handle downwards to open, turn the food, return to

the oven, close the door and touch Start. The oven will continue to count down the remaining cooking time. Touch Start. Select the cooking time by turning the Time/Weight dial. Maximum cooking time is 90 minutes. Touch Power level WattageOnce Grill 1 (High) 1200 WTwice Grill 2 (Medium) 850 W3 Times Grill 3 (Low) 650 WTouch Power Level WattageOnce Low 440 WTwice Simmer 300 W3 Times Warm 100 W Tap Grill to select desired grill power level. Tap Micro Power to select desired micro power level. 1000 W / 600 W / 270 W (Max / Medium / Defrost) power is not available.39 EN English Containers to use Do not use plastic microwave containers on Combination programs (unless suitable for combination cooking). Dishes must be able to withstand the heat of the top grill - heatproof glass e.g. Pyrex® or ceramic are ideal. Caution The accessories and surrounding oven will get very hot. Use oven gloves. Guideline Food is always cooked uncovered

Directly on the base of the oven in a microwaveable and heatproof dish. For advice on cooking times refer to cooking charts and recipes in the cookbook. Foods should always be cooked until browned and piping hot. Combination grill and microwave40 EN Multi-stage cooking Tap Micro Power to select desired power level. Tap Micro Power to select desired power level. 2 or 3 stage cooking Select the cooking time by turning the Time/Weight dial. Select the cooking time turning the Time/Weight dial. Touch Start. The cooking program will start and the time in the display will count down.41 EN English Multi-stage cooking Tap Micro Power twice to select 270 W (Defrost).Touch Micro Power once to select 1000 W (Max).Touch Start. Set the cooking time to 2 minutes using the Time/Weight dial. Set the cooking time to 3 minutes using the Time/Weight dial. Example: To 270 W (Defrost) for 2 minutes and cook food on 1000 W (Max) for 3 minutes. Note

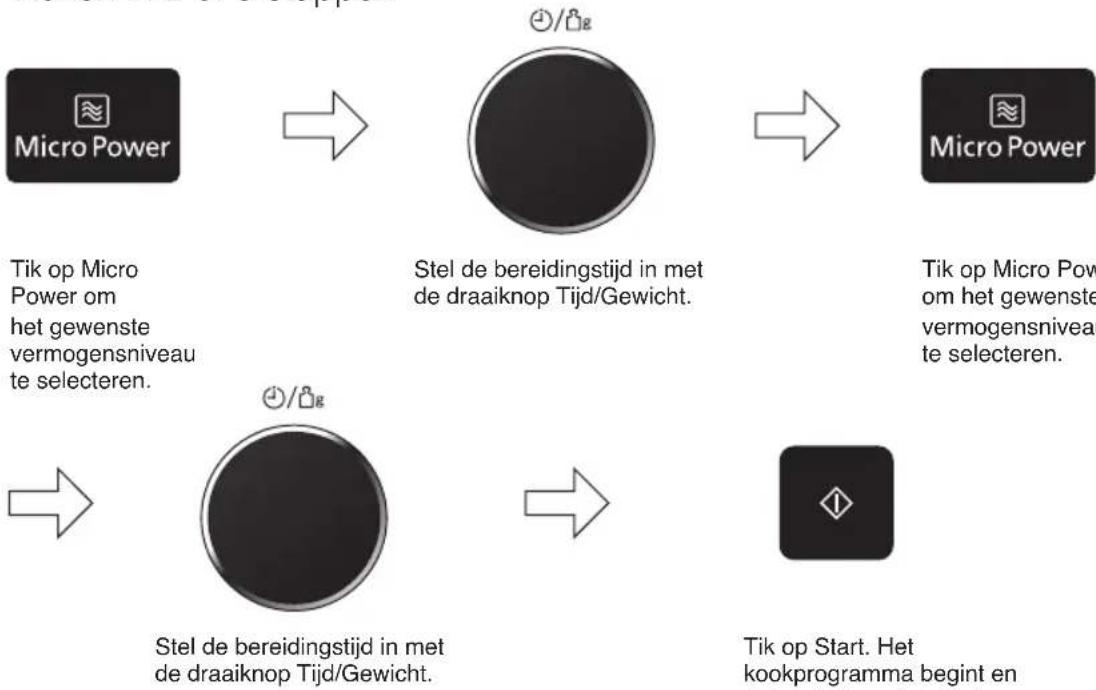

1. For three-stage cooking, enter another cooking program before touching Start.

2. During operation, touching Stop/Cancel once will stop the operation. Touching

Start will re-start the programmed operation. Tapping Stop/Cancel twice will stop and clear the programmed operation.

3. Whilst not operating, touching Stop/Cancel will clear the selected program.

4. Auto programs cannot be used with multi-stage cooking.

Oven and Panacrunch cannot be used with multi-stage cooking.42 EN Note

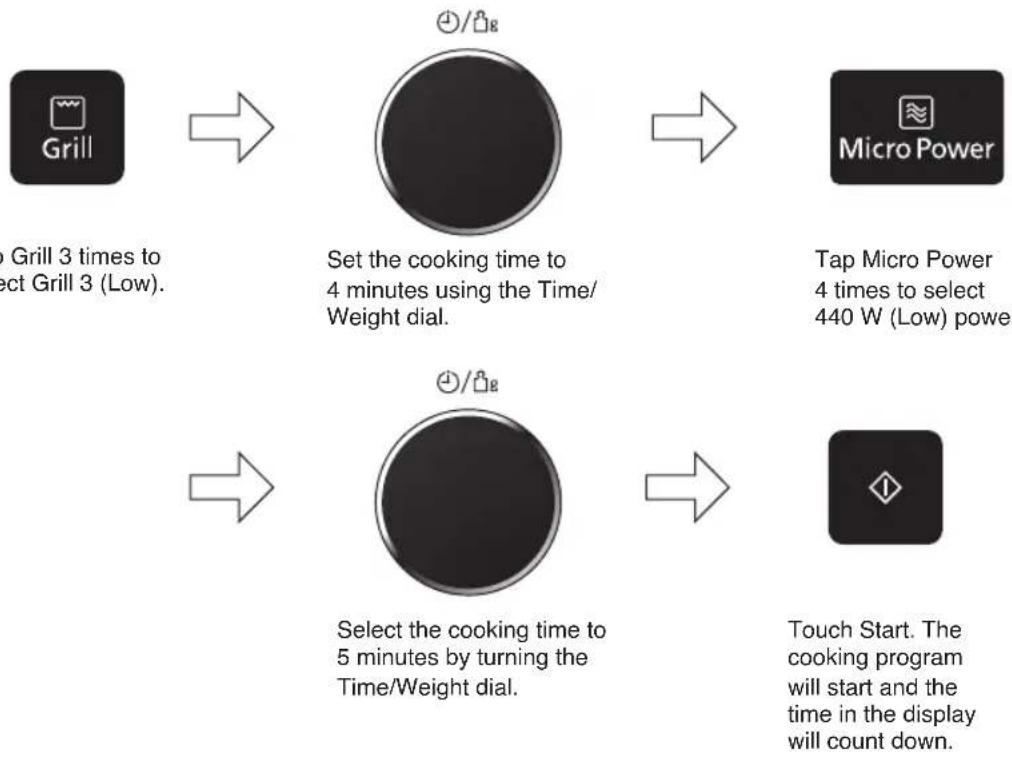

1. For three-stage cooking, enter another cooking program before touching Start.

2. During operation, touching Stop/Cancel once will stop the operation. Touching

Start will re-start the programmed operation. Tapping Stop/Cancel twice will stop and clear the programmed operation.

3. Whilst not operating, touching Stop/Cancel will clear the selected program.

4. Auto programs cannot be used with multi-stage cooking.

Oven and Panacrunch cannot be used with multi-stage cooking. Multi-stage cooking Tap Grill 3 times to select Grill 3 (Low). Tap Micro Power 4 times to select 440 W (Low) power. Touch Start. The cooking program will start and the time in the display will count down. Set the cooking time to 4 minutes using the Time/ Weight dial. Select the cooking time to 5 minutes by turning the Time/Weight dial. Example: To Grill 3 (Low) for 4 minutes and cook food on 440 W (Low) microwave power for 5 minutes.43 EN English Using the timer Select Cooking Method & Time Set the cooking program, by entering cooking method and time required.Touch Micro Power once.Tap Micro Power 5 times.Touch Timer/Clock once.Touch Timer/Clock once.Touch Start.Touch Start.Set the delay time using the Time/Weight dial (up to 9 hours).Set the delay time to 1 hour using the Time/Weight dial.Set the cooking time to 10 minutes using the Time/Weight dial.Set the cooking time to 20 minutes using the Time/Weight dial. Delay start cooking By using the timer, you are able to program delay start cooking. Example: Delay start: 1 hour 1000 W (Max): 10 mins 300 W (Simmer): 20 mins Note

1. Three-stage cooking can be programmed including delay start cooking.

2. If the oven door is opened during the delay time, the time in the display window

will continue to count down.

3. If the programmed delay time exceeds one hour, the time will count down

in units of minutes. If less than one hour, the time will count down in units of seconds.

4. Delay start cannot be used before an auto program.44 EN

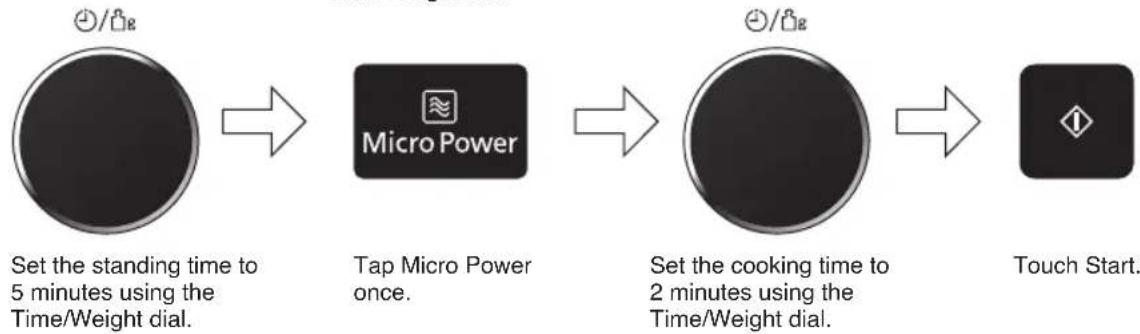

To set a standing time By using the Timer, you can program Stand Time after cooking is completed or use to program the oven as a minute timer. Example: 1000 W (Max): 4 mins Stand Time: 5 mins 1000 W (Max): 2 mins Using the timer Tap Micro Power once. Touch Timer/Clock once. Tap Micro Power once. Set the standing time to 5 minutes using the Time/Weight dial. Set the cooking time to 2 minutes using the Time/Weight dial. Touch Start. Set the cooking time to 4 minutes using the Time/Weight dial. Select Cooking Method & Time Set the cooking program, by entering cooking method and time required. Touch Timer/Clock once. Touch Start.Set the standing time using the Time/Weight dial (up to 9 hours). Note

1. Three-stage cooking can be programmed including stand time.

2. If the oven door is opened during the stand time or minute timer, the time in the

display window will continue to count down.

3. If the programmed stand time exceeds one hour, the time will count down

in units of minutes. If less than one hour, the time will count down in units of seconds.

4. This feature may also be used as a minute timer. In this case touch the Timer/

Clock, set time and touch Start.

5. Standing time cannot be used after an auto program.45 EN

English Turbo defrost This feature allows you to defrost minced meat, chops, chicken portions, meat joints and bread. Tap Turbo defrost to select the correct defrost category and then enter in the weight of the food in grams (see pages 46-47). Foods should be placed in a suitable dish, whole chickens and joints of meat should be on an upturned saucer or on a microwave safe plate. Chops, chicken portions and slices of bread should be placed in a single layer. It is not necessary to cover the foods. The principle used in auto weight defrost programs gives you a quick and more even defrost. The system uses a random sequence of pulsing microwave energy which speeds up the defrosting process. During the program the oven will beep to remind you to check the food. It is essential that you turn and stir the food frequently and shield if necessary. On hearing the rst beep you should turn and shield (if possible). On the second beep you should turn the food or break it up. Note

1. Check foods during defrosting. Foods vary in their defrosting speed.

2. It is not necessary to cover the food.

4. Minced meat/chops/chicken portions should be broken up or separated as soon

as possible and placed in a single layer.

5. Shielding prevents food cooking. It is essential when defrosting chickens and

joints of meat. The outside thaws out rst, so protect wings/breast/fat with smooth pieces of aluminium foil secured with cocktail sticks.

6. Allow standing time so that the centre of the food thaws out (minimum 1-2 hours

for joints of meat and whole chickens).

7. If ‘HOT’ appears in the display window, the oven temperature is too high from

previous use and an auto program can not be set. Cooking mode and time may still be set manually. 1st Beep Turn or Shield 1st Beep Turn or Shield 2nd Beep Turn or break up46 EN Turbo defrost With this feature you can defrost frozen foods according to the weight. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category. Tap Turbo defrost. Once Small Pieces. Twice Big Pieces. Three times Bread. Program Weight Instructions

To defrost small pieces of meat, chicken portions, chops, steaks, minced meat. Place on a plate or shallow Pyrex® dish. Select program number 1. Enter the weight of the small pieces. Touch Start. Turn at beeps and shield.

To defrost whole chicken, meat joints. Place on an upturned saucer on a plate. Select program number

2. Enter the weight of the big piece. Touch Start. Turn

at beeps and shield.

To defrost rolls, buns, slices of bread and loaves. Place on a plate. Select program number 3. Enter the weight of the bread. Touch Start. Turn at beeps. Select the weight by turning the Time/Weight dial. The Time/Weight dial will count up in 10 g steps. Touch Start.47 EN English Note

1. The shape and size of the food will determine the maximum weight the oven can

2. Allow standing time to ensure the food is completely defrosted.

3. If ‘HOT’ appears in the display window, the oven temperature is too high from

previous use and an auto program can not be set. Cooking mode and time may still be set manually. Guidelines

1. SMALL PIECES (mince/chops/chicken portions)

Chops and chicken portions should be arranged in a single layer and turned frequently during defrosting. It is necessary for mince to be broken up frequently during defrosting and this is best carried out in a large shallow Pyrex® dish. Standing time 20-30 minutes. Not suitable for sausages , these can be defrosted manually. Please refer to defrosting chart in the cookbook on page 24.

Whole chickens and meat joints will require shielding during defrosting especially if it is a particularly fatty piece. This is to prevent food starting to cook on the outside edges. Protect wings, breast and fat with smooth pieces of aluminium foil secured with cocktail sticks. Do not allow the foil to touch the walls of the oven. Standing time of at least 1-2 hours should be allowed for joints after defrosting.

This program is suitable for small items which are required for immediate use, they may feel warm straight after defrosting. Loaves can also be defrosted on this program but these will require standing time to allow the centre to thaw out. Standing time can be shortened if slices are separated and buns and loaves cut in half. Items should be turned during defrosting. Standing time 10- 30 minutes. A longer time may be needed for large loaves. This program is not suitable for cream cakes or desserts e.g. cheesecake. Turbo defrost48 EN Auto steam programs SteamSquare Panacrunch Pan When you select an automatic program, symbols will appear in the display to show the cooking mode that will be used and the accessories that are needed. See below to identify the symbols: This feature allows you to steam some of your favourite foods by setting the weight only. The oven determines the steam level and the cooking time automatically. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category. Select desired auto steam program. The food category appears in the window. Touch Start. The cooking program will start and the time in the display will count down. Select the weight by turning the Time/Weight dial. The Time/Weight dial will count up in 10 g steps. Guidelines

1. The auto steam programs must

only be used for foods described.

2. Only cook foods within the weight ranges described.

3. Always weigh the food rather than relying on the package weight information.

4. Only use the accessory as indicated on pages 49-50.

5. For larger weights on the auto programs for chicken breasts and rice, it will

be necessary to re-ll the water tank during cooking.

6. Do not cover foods on the auto steam programs.

7. Most foods benet from a

standing time after cooking on an auto program, to allow heat to continue conducting to the centre.

8. To allow for some variations that occur in food, check that food is thoroughly

cooked and piping hot before serving.

9. The temperature for frozen food is assumed to be -18 °C to -20 °C. The

temperature of chilled food is assumed to be +5 °C to +8 °C (refrigerator temperature).

10. If ‘HOT’ appears in the display window, the oven temperature is too high from

previous use and an auto program can not be set. Cooking mode and time may still be set manually.49 EN English Auto steam programs Program Weight Accessories Instructions

To steam fresh vegetables e.g. carrots, broccoli, cauliower, green beans. Fill water tank. Place prepared vegetables onto Square Panacrunch Pan. Place in the upper shelf position. Select program number 4. Enter the weight of the fresh vegetables. Touch Start.

To steam frozen vegetables e.g. carrots, broccoli, cauliower, green beans. Fill water tank. Place vegetables onto Square Panacrunch Pan. Place in the upper shelf position. Select program number 5. Enter the weight of the frozen vegetables. Touch Start.

To steam potatoes. Fill water tank. Peel potatoes and cut into even sized pieces. Place prepared potatoes onto Square Panacrunch Pan. Place in the upper shelf position. Select program number 6. Enter the weight of the potatoes. Touch Start.

To cook fresh chicken breasts. Each chicken breast should weigh between 100-250

each. Fill water tank. Place chicken onto Square Panacrunch Pan. Place in the upper shelf position. Select program number 7. Enter the weight of the chicken breasts. Touch Start. Check water tank during cooking and re-ll as necessary.50 EN Auto steam programs Program Weight Accessories Instructions

To cook fresh sh llets e.g. salmon, cod, haddock, plaice. Fill water tank. Place fresh sh onto Square Panacrunch Pan. Place in the upper shelf position. Select program number 8. Enter the weight of the fresh sh. Touch Start.

To cook frozen sh llets e.g. salmon, cod, haddock. Fill water tank. Place frozen sh onto Square Panacrunch Pan. Place in the upper shelf position. Select program number 9. Enter the weight of the frozen sh. Touch Start.

For cooking rice for savoury dishes (Thai, Basmati, Jasmine, long grain), not pudding rice. Rinse the rice in cold water. Fill water tank. Place rice in a shallow Pyrex® dish. Add 3 parts cold water to 2 parts rice. Do not cover. Place dish onto Square Panacrunch Pan. Place in the upper shelf position. Select program number 10. Enter the weight of the rice only. Touch Start. Check water level during cooking and re-ll as necessary.51 EN English Auto cook programs This feature allows you to cook some of your favourite foods by setting the weight only. The oven determines the microwave power level and/or combination level and the cooking time automatically. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category. Select the desiredauto cook program. The food category appears in the window.Touch Start. The cooking program will start and the time in the display will count down. Example: Guidelines

1. The auto cook programs must

only be used for foods described.

2. Only cook foods within the weight ranges described.

3. Always weigh the food rather than relying on the package weight information.

4. The temperature for frozen food is assumed to be -18 °C to -20 °C. The

temperature of chilled food is assumed to be +5 °C to +8 °C (refrigerator temperature).

5. The accessory is not used on the auto cook programs. Dishes are placed

directly on the base of the oven.

6. Programs 11-16 are

microwave only. Program 17 uses a combination of microwave + grill

7. Most foods benet from a

standing time after cooking on an auto program, to allow heat to continue conducting to the centre.

8. To allow for some variations that occur in food, check that food is thoroughly

cooked and piping hot before serving.

9. If ‘HOT’ appears in the display window, the oven temperature is too high

from previous use and an auto program can not be set. Cooking mode and time may still be set manually. Select the weight by turning the Time/Weight dial. The Time/Weight dial will count up in 10 g steps. GrillMicro Power When you select an automatic program, symbols will appear in the display to show the cooking mode that will be used and the accessories that are needed. See below to identify the symbols:52 EN Auto cook programs Program Weight Instructions

To reheat a fresh pre-cooked meal. Foods should be at refrigerator temperature approx. + 5 °C. Reheat in container as purchased. Pierce covering lm with a sharp knife once in the centre and four times around the edge. If transferring food to dish, cover with pierced cling lm. Place container on base of oven. Select program number 11. Enter the weight of the meal and touch Start. Stir at beeps. Stir again at end of program and allow a few minutes standing time. Large pieces of meat/sh in a thin sauce may require longer cooking. This program is not suitable for starchy food such as rice, noodles or potatoes. Meals in irregular bowl shaped containers may need longer cooking.

To reheat a frozen pre-cooked meal. All foods must be pre-cooked and frozen (-18 °C). Reheat in container as purchased. Pierce covering lm with a sharp knife once in the centre and four times around the edge. If transferring food to dish, cover with pierced cling lm. Place container on base of oven. Select program number 12. Enter the weight of the frozen meal. Touch Start. Stir at beeps and cut any blocks into pieces. Stir again at end of program and allow a few minutes standing time. Large pieces of meat/sh in a thin sauce may require longer cooking. This program is not suitable for starchy food such as rice, noodles or potatoes. Meals in irregular bowl shaped containers may need longer cooking.

To cook fresh vegetables e.g. carrots, broccoli, cauliower, green beans. Place prepared vegetables into a suitable sized Pyrex® container. Sprinkle with 15 ml (1 tbsp) water per 100

vegetables. Cover with pierced cling lm or a lid. Place food in container on base of oven. Select auto cook program 13. Enter the weight of the fresh vegetables. Touch Start. Stir at beeps.53 EN English Auto cook programs Program Weight Instructions

To cook frozen vegetables e.g. carrots, broccoli, cauliower, green beans. Place frozen vegetables in a suitable sized Pyrex® container. Sprinkle with

15 - 45 ml (1 - 3 tbsp) water. Cover with pierced cling

lm or a lid. Place container on base of oven. Select auto cook program 14. Enter the weight of the frozen vegetables. Touch Start. Stir at beeps.

To cook fresh sh llets e.g. salmon, cod, plaice, haddock. Place in a shallow Pyrex® container. Shield the thinner portions. Ensure the sh is not overlapping. Fold under thin edges. Add 15 - 45 ml (1 - 3 tbsp) of water. Cover with pierced cling lm or a lid. Place container on base of oven. Select auto cook program 15. Enter the weight of the fresh sh. Touch Start. Cook skin side down and turn at beeps. Allow a few minutes standing time.

To cook potatoes without skin. Peel potatoes and cut into even sized pieces. Place prepared potatoes in a Pyrex® dish. Add 15 ml (1 tbsp) water per 100

of potatoes. Cover with pierced cling lm or a lid. Select auto cook program 16. Enter the weight of the potatoes. Touch Start

See recipe below. Place prepared potato gratin on base of oven. Select auto cook program 17. Touch Start (it is not necessary to enter the weight of the food). Allow to stand for 5 minutes after cooking.

ingredients Serves 4700 g peeled potatoes, 1 garlic clove, 70 g emmental, grated, salt and pepper, 200 ml single cream, 200 ml milkDish: 1 x 25 cm shallow Pyrex® dish Accessory: none1. Cut the potatoes into thin slices. Peel and chop the garlic.2. Arrange the potato slices in shallow Pyrex® dish. Scatter over the garlic, half the cheese, salt and pepper. 3. Pour over the cream and milk. Cover with the rest of the grated cheese. Place on base of oven. 4. Select auto cook program 17. Touch Start. Allow to stand for 5 minutes after cooking. Gratin dauphinois54 EN Panacrunch programs This feature allows you to cook some of your favourite foods by setting the weight only. The oven determines the microwave power level and/or combination level and the cooking time automatically. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category. Select the desired Panacrunch program. The food category appears in the window. Touch Start. The cooking program will start and the time in the display will count down. Example: Guidelines

1. The Panacrunch programs must

only be used for foods described.

2. Only cook foods within the weight ranges described.

3. Always weigh the food rather than relying on the package weight information.

4. The temperature for frozen food is assumed to be -18 °C to -20 °C. The

temperature of chilled food is assumed to be +5 °C to +8 °C (refrigerator temperature).

5. Programs 18-20 use a combination of

grill + microwave . Programs 21-23 use a combination of steam

6. Only use the accessory indicated on pages 55-56.

7. Most foods benet from a

standing time after cooking on an auto program, to allow heat to continue conducting to the centre.

8. To allow for some variations that occur in food, check that food is thoroughly

cooked and piping hot before serving.

9. If ‘HOT’ appears in the display window, the oven temperature is too high from

previous use and an auto program can not be set. Cooking mode and time may still be set manually. Select the weight by turning the Time/Weight dial. The Time/Weight dial will count up in 10 g steps. Steam Square Panacrunch Pan When you select an automatic program, symbols will appear in the display to show the cooking mode that will be used and the accessories that are needed. See below to identify the symbols: Grill Micro Power55 EN English Panacrunch programs Program Weight Accessories Instructions

To cook frozen oven chips and potato products, e.g. hash browns, wafes, etc. spread potato products out on Square Panacrunch Pan and place in upper shelf position. Select program number 18. Enter the weight of the frozen potato products. Touch Start. For best results cook in a single layer. Note: Potato products vary considerably. We suggest checking a few minutes before the end of cooking to assess level of browning. Not suitable for potato croquettes.

For reheating and browning chilled , purchased pizza. Remove all packaging and place on Square Panacrunch Pan in upper shelf position. Select program number 19. Enter the weight of the chilled pizza and touch Start. This program is not suitable for deep pan pizzas, stuffed crust pizzas or very thin pizzas.

For reheating and browning frozen , purchased pizza. Remove all packaging and place on Square Panacrunch Pan in upper shelf position. Select program number 20. Enter the weight of the frozen pizza and touch Start. This program is not suitable for deep pan pizzas, stuffed crust pizzas or very thin pizzas.

+56 EN Program Weight Accessories Instructions

each with steam + grill. Fill water tank. Place fresh sh, skin side up, onto Square Panacrunch Pan. Brush skin with oil. Place in the upper shelf position. Select program number 21. Enter the weight of the fresh sh. Touch Start.

To cook fresh whole sh e.g trout, sea bream, mackerel, sea bass, sardines weighing between

each with steam + grill. Fill water tank. Place whole sh directly onto Square Panacrunch Pan. Before cooking non-oily sh (sea bass, trout), brush with oil. Place in the upper shelf position. Select program number 22. Enter the weight of the whole fresh sh. Touch Start.

To cook fresh chicken pieces e.g. chicken drumsticks and chicken thighs with steam + grill . Each chicken piece should weigh between 100

. Pierce the skin a few times before cooking. Fill water tank. Place chicken pieces onto Square Panacrunch Pan. Place in the upper shelf position. Select program number 23. Enter the weight of the chicken pieces. Touch Start. Check water tank during cooking and re-ll as necessary.

Panacrunch programs +57 EN English Add 100 of water to the water tank. Ensure drip tray is empty.Touch System Cleaning once until “F1 DRAIN WATER” program appears in the display.Touch Start. Empty the drip tray after the program has nished.

Water is pumped through the system to clean the pipes. The water is drained into the drip tray. System cleaning programs Note

1. Only run this program with 100

of water in the tank.

2. Do not remove the drip tray during the drain water program.

3. Empty the drip tray and rinse with running water after the program has nished.

If the DRAIN WATER program is used directly after a steam cooking program, hot water may be drained into the drip tray.58 EN Make a solution of 16

of water, add the solution to the water tank. Ensure drip tray is empty. Tap System Cleaning twice until “F2 SYSTEM CLEANING” program appears in the display. After the program has paused, empty the drip tray and ll the water tank with water (to max level). Touch Start. The program will run for approx. 29 minutes. Touch Start. The program will run for approx. 1 minute. Empty the drip tray after the program has nished.

The rst stage of this program cleans the system with a citric acid solution. The second stage runs water through the system to rinse the pipes. Note

1. symbol appears in the display when running the DRAIN WATER

and SYSTEM CLEANING program.

2. If the SYSTEM CLEANING program is not used regularly, the pipe will get

blocked and the steaming performance will be less effective.

3. Do not remove the drip tray during the DRAIN WATER program.

4. Empty the drip tray and rinse with running tap water after the program has

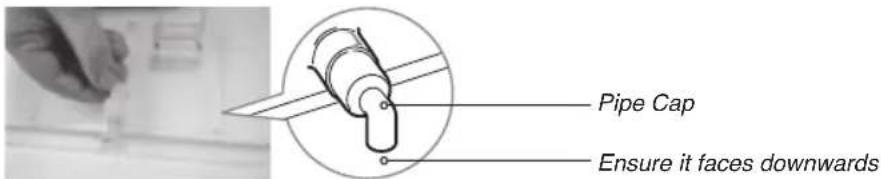

nished. System cleaning programs59 EN English Remove the water tank and clean the compartment where the water tank is inserted. Open the water supply cap, remove the lid and pipe cap and clean. Pipe CapEnsure it faces downwards If the pipe cap is difcult to remove, wiggle from side to side. When re-tting, make sure that the pipe faces down (see diagram). The front of the tank can also be removed for cleaning.

1. Lightly twist the cover until the far side

2. Continue to twist until the near side

1. Align the slots on the cover with the holes

2. Insert and push down until it clicks.

Clean with a soft sponge in water. Removing the front cover Re-tting the front cover

Cleaning the water tank Note

Clean the water tank at least once a week to prevent build up of limescale.

Do not use a dishwasher to clean the water tank or parts of the water tank.60 EN Q: Why won’t my oven turn on? A: When the oven does not turn on, check the following:

1. Is the oven plugged in securely?

Remove the plug from the outlet, wait 10 seconds and reinsert.

2. Check the circuit breaker and the fuse.

Reset the circuit breaker or replace the fuse if it is tripped or blown.

3. If the circuit breaker or fuse is all right,

plug another appliance into the outlet. If the other appliance works, there probably is a problem with the oven. If the other appliance does not work, there probably is a problem with the outlet. If it seems that there is a problem with the oven, contact an authorised Service Centre. Q: My oven causes interference with my TV. Is this normal? A: Some radio, TV, Wi-Fi, cordless telephone, baby monitor, bluetooth or other wireless equipment interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven. Q: The oven won’t accept my program. Why? A: The oven is designed not to accept an incorrect program. For example, the oven will not accept a fourth stage. Q: Sometimes warm air comes from the oven vents. Why? A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air ow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking. Q: I can’t set an auto cook program and ‘HOT’ appears in the display. Why? A: If ‘HOT’ appears in the display window, the oven temperature is too high from previous use and an auto program can not be set. Cooking mode and time may still be set manually. Q: Can I use a conventional oven thermometer in the oven? A: Only when you are using grill/oven cooking modes. The metal in some thermometers may cause arcing in your oven and should not be used on microwave and combination cooking modes. Q: There are humming and clicking noises from my oven when I cook by combination. What is causing these noises? A: The noises occur as the oven automatically switches from microwave power to grill/oven to create the combination setting. This is normal. Questions and Answers61 EN English Questions and Answers Q: My oven has an odour and generates smoke when using the combination, oven and grill function. Why? A: After repeated use, it is recommended to clean the oven and then run the oven without food. This will burn off any food, residue or oil which may cause an odour and/or smoking. Q: The oven stops cooking by microwave and ‘H97’ or ‘H98’ appears in the display. Why? A: This display indicates a problem with the microwave generation system. Please contact an authorised Service Centre. Q: The fan continues to rotate after cooking. Why? A: After using the oven, the fan motor may rotate to cool the electrical components. This is normal and you can continue using the oven at this time. Q: Can I check the pre-set oven temperature while cooking or preheating by oven? A: Yes. Touch Oven and the oven temperature will appear in the display window for 2 seconds. Q: “D” appears in the display and the oven does not cook. Why? A: The oven has been programmed in demo mode . This mode is designed for retail store display. Deactivate this mode by touching Micro Power once and tapping Stop/Cancel 4 times. Q: The word prompt has disappeared on my display, I can only see numbers. Why? A: There may have been a power failure, and the word prompt is disabled. Unplug the oven for a few seconds, then plug it in again. When “88:88” is displayed, tap Start until your language is displayed. Then set the clock. Refer to page 22. Q: The operation guide has disappeared on my display, I can only see numbers. Why? A: The operation guide was turned off by tapping Timer/Clock 4 times. When colon or time of day is displayed, touch Timer/Clock 4 times to turn the operation guide back on. Q: The oven stops cooking by steam or combination with steam and ‘U14’ appears in the display. Why? A: The water tank is empty and the operation guide has been turned off. Re-ll the water tank, position back in the oven and touch Start to resume cooking. If this happens 3 times during operation, cooking will stop. Press Stop/ Cancel to reset. Q: The control panel keys do not respond when tapped. Why? A: Ensure the oven is plugged in. The oven may be in stand-by mode. Open and close the door to activate.62 EN Care of your oven Important It is essential for the safe operation of the oven that it is kept clean, and wiped out after each use. Failure to maintain the oven in a clean condition could lead to deterioration of a surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Switch the oven off before cleaning and unplug at the socket if possible.

Keep the inside of the oven, door seals and door seal areas clean. When food splatters or spilled liquids adhere to oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasives is not recommended.

grill, oven, steam and combination cooking the walls of the oven should be cleaned with a soft cloth and soapy water. Particular care should be taken to keep the window area clean especially after cooking by grill, oven, steam and combination. Stubborn spots inside the oven can be removed by using a small amount of conventional oven-cleaner sprayed onto a soft damp cloth. Wipe onto problem spots, leave for recommended time and then wipe off. Do not spray directly inside the oven.

4. After cooking with a

steam function, wipe away any excess water which may have condensed within the oven cavity. Empty the drip tray (refer to page 15).

5. Do not use harsh abrasive cleaners or

sharp metal scrapers to clean the oven door glass since they may scratch the surface, which may result in shattering of the glass.

outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

control panel becomes dirty, clean with a soft, dry cloth. Do not use harsh detergents or abrasives on control panel. When cleaning the control panel, leave the oven door open to prevent the oven from accidentally turning on. After cleaning touch Stop/ Cancel to clear the display window.

If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit or microwave leakage.63 EN English Care of your oven

oven cavity oor should be cleaned regularly. Simply wipe the bottom surface of the oven with mild detergent and warm water then dry with a clean cloth. Cooking vapours collect during repeated use but in no way affect the bottom surface.

grilling or cooking by oven, steam

combination some foods may splatter grease onto the oven walls. If the oven is not cleaned to eliminate this grease, it can accumulate and cause the oven to ‘smoke’ during use. These marks will be more difcult to clean later.

steam cleaner is not to be used for cleaning the appliance.

12. Ensure the oven accessory is kept

clean, especially when using microwave or combination programs.

air vents clear at all times. Check that no dust or other material is blocking any of the air vents on the right side of the oven. If vents become blocked this could cause overheating which would affect the operation of the oven and possibly result in a hazardous situation.

14. Run the SYSTEM CLEANING program

when the symbol shows in the display. See pages 57-58. Clean the water tank at least once a week to prevent build up of limescale. See page 59.64 EN This product is an equipment that fullls the European standard for EMC disturbances (EMC = Electromagnetic Compatibility) EN 55011. According to this standard this product is an equipment of group 2, class B and is within required limits. Group 2 means that radio- frequency energy is intentionally generated in the form of electromagnetic radiation for purpose of warming or cooking food. Class B means that this product may be used in normal household areas. Manufactured by: Panasonic Appliances Microwave Oven (Shanghai) Co., Ltd. 888, 898 Longdong Road. Pudong, Shanghai, 201203, China. Imported by: Panasonic Marketing Europe GmbH REP. EU: Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany Specications Weight and Dimensions shown are approximate. Manufacturer Panasonic Model
