Product type	Fan heater (forced air heater)
Brand	Steba
Model	KH2
Category	Decentralized electric heating
Nominal thermal power	1800 W
Minimum thermal power	900 W
Supply voltage	230 V ~
Frequency	50 Hz
Auxiliary power consumption (standby)	0 W
Power levels	2 (900 W and 1800 W) + oscillation
Oscillation (swivel)	Yes, separate control
Thermostat	Mechanical, adjustable
Temperature control type	Room temperature control with mechanical thermostat
Overheat protection	Yes, automatic shut-off
Safety switch	Yes, at the bottom of the device (only engages on a flat surface)
Wall mounting possible	Yes, subject to conditions (do not attach to plastic or synthetic walls)
Power cable	Type H05VV-F 2 x 1 mm²
Filter cleaning	Sponge filter washable in lukewarm water
Recommended maintenance	Every 6 months: clean grilles and filter
Intended use	Private domestic use, auxiliary heat source
After-sales service	Steba Elektrogeräte GmbH & Co.KG, Pointstr. 2, 96129 Strullendorf

Frequently Asked Questions - KH2 STEBA

How to clean the filter of the Steba KH2 heater?

Unplug the device, loosen the screw on the back and remove the filter cover. Take out the sponge filter, wash it in lukewarm water, dry it well, then put it back in place.

What to do in case of overheating?

The protection system automatically shuts off the device. Turn it off, eliminate the cause (obstruction, dirt), let it cool for 15 to 20 minutes, then turn it back on.

Can I use the fan heater in a bathroom?

No, it should not be placed near a shower, bathtub or sink to avoid any risk of electric shock.

How to set the thermostat correctly?

Turn the thermostat to maximum, wait until the temperature is comfortable, then turn counterclockwise until you hear a click. Then, turn it very slightly clockwise to maintain the temperature.

What is the maximum power of the Steba KH2?

The maximum thermal power is 1800 W (1800 W setting with or without oscillation).

Can the device be wall-mounted?

Yes, but do not attach it to plastic or synthetic walls. Follow the mounting instructions in the manual.

What to do if the device does not turn on?

Check that the safety switch at the bottom of the device is pressed in (device placed on a flat surface). Also make sure the thermostat is not set too low and the room temperature is below 30°C.

Can I leave the device unattended?

No, never leave your home without turning it off. Make sure the switch is in the OFF (0) position.

How to use the oscillation function?

Select one of the modes with oscillation (900 W Oscillation or 1800 W Oscillation). The device will swivel to distribute heat. Never block the movement.

Where can I get the Steba KH2 heater repaired?

Contact Steba's after-sales service at the address: Steba Elektrogeräte GmbH & Co.KG, Pointstr. 2, 96129 Strullendorf. Only a qualified electrician should perform repairs.

USER MANUAL KH2 STEBA

Red portable electric heater with hexagonal grille and brand logo (Steba®) on base (no visible text or symbols on device body)

230 V\~; 50 Hz; 1.800 W

Keramikheizer

KH2

Instructions for use 9

Prohibition sign with crossed-out document and magnifying glass symbol, indicating no text or document.

1800 W (Oszillation)
900 W (Oszillation)

. OFF
. 900 W
1800 W

Oszillation ↙ :

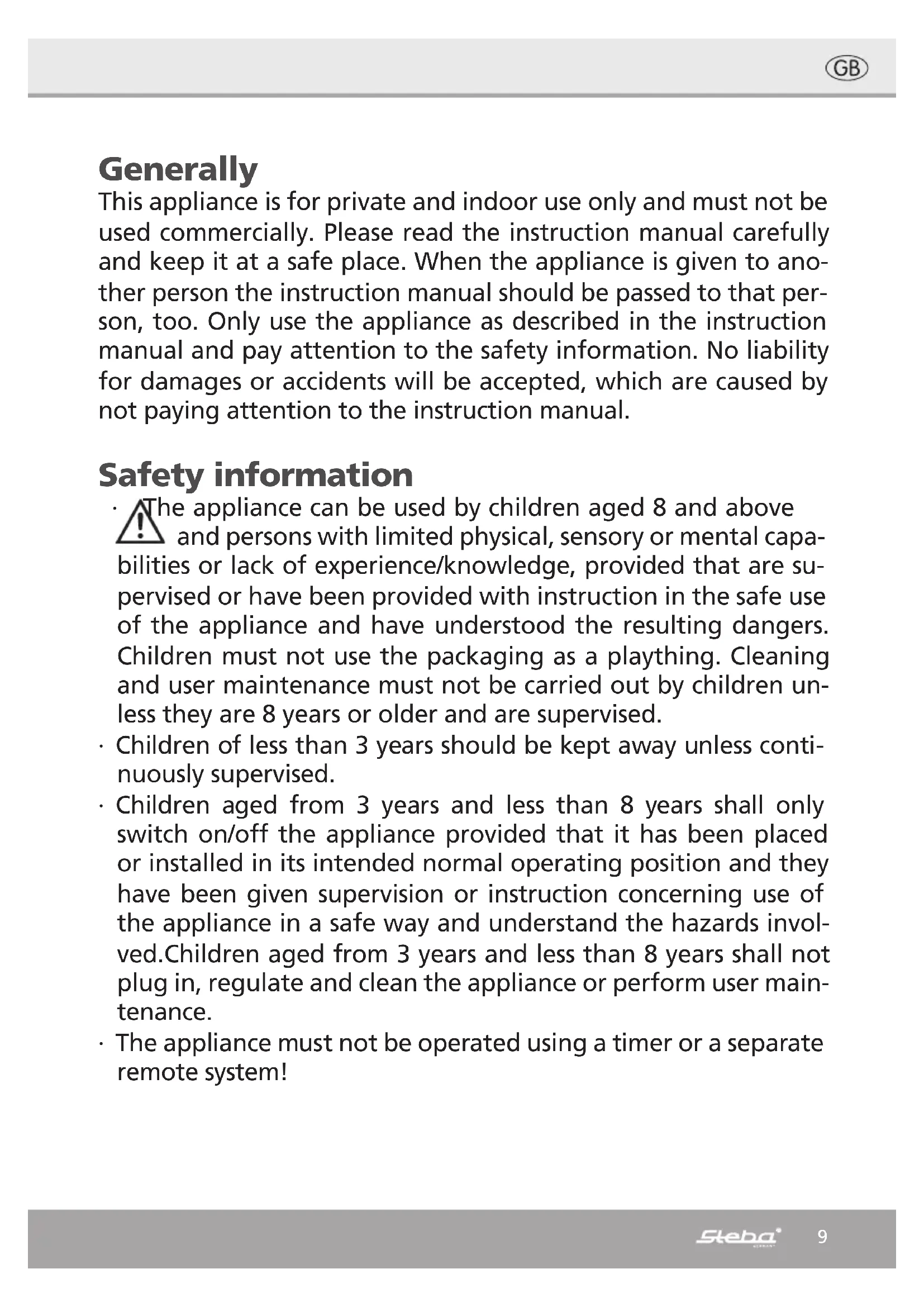

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a plaything. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• The appliance must not be operated using a timer or a separate remote system!

For your own safety

• This fan heater is an extra-heating in the house. It must be used according to this concept.
• Make sure that your supply rating corresponds to what specified on the rating plate i.e. 230 V AC, 50 Hz.

• Don't leave your home while the appliance is in function: ensure in this case that the switch is in OFF (0) position.

• During function, place the heater in a safe position :
  · far (1 mt.) from inflammable objects or furnitures; if wall mounted, not fixed to wooden or synthetic plastic surfaces;

• leaving the air outlet space free : 1 mt. of free space in front of the heater and 50 cm. of free space behind it;
• not located immediately below a socket-outlet.

- Do not leave animals or children touch or play with the appliance.

Pay attention! The air out than 80°C

The air outlet grille gets hot during operation (more than 80°C i.e. 17 5°F). Parts of this product may be very hot and cause burns. Special attention is needed when children or vulnerable persons are present.

- Take care, that children are not playing with packaging material (e.g. Plastic Bags)

Prohibition sign with crossed-out document and checkmark symbol, commonly used to indicate no restrictions or documentation

WARNING: In order to avoid overheating, do not cover the heater. Do not hang anything on the heater and do not cover it while it's working. This is clearly written on the cover of the product or shown by the symbol

- Do not use the heater in rooms with explosive gas or while using inflammable solvents or varnish or glues.

- If the cordset is damaged and you have to change it, do not do the job yourselves! Take the product to an after sales authorised repair centre or to a person with similar skill and knowledge, in order to avoid any risk of danger.

- Do not use this heater close to showers, baths, swimming pools.

- The appliance must be positioned so that the plug is always accessible and not to be hot blown on.

Safe positioning

• The appliance must be used only on a flat, stable surface.
• The fan heater only operates when the safety switch on the bottom of the unit is pressed.
• The appliance must be not accessible for persons who are taking a bath or in the shower.
• Do not place the cable under a carpet.
• Mind that during function the cordset must be always completely pulled out.

Use of the heater

• Due to the oscillation (turning) a more equal temperature in the surrounding is achieved.
  · Never block the oscillation movement.

Use of the thermostat

• In a room where the temperature is too high (more than 30°C), it is normal that the thermostat will not switch on the heater.
• In a room where the temperature is too low (around 5°C or even less) it is also normal that the thermostat will keep the appliance working until the temperature gets higher.
  · To select the right thermostat position we suggest you to

· turn the thermostat in maximum position (clockwise);

• leave the appliance working until the comfortable temperature is reached;
• turn the knob anti clockwise until you hear a „click“ and the red indication light turns off;
• turn clockwise again the knob (just a little): in this position the thermostat will maintain the comfortable temperature you have selected. The red indication light shines if the heater turns on again.

- If the appliance is used for the first time there can be a little smoke due to some production oil residues.

To clean the filter proceed as following (picture)

· Pull out the power plug;
- Loosen the filter-screw at the back of the product and pull it backwards;
- Remove the sponge filter from its holder;
- Clean the filter by water with wash power under the temperature of 30^ .

Safety in case of abnormal operation

- In case of overheating the safety cut out protecting the heating element will automatically switch off the appliance.

- In this case the appliance stops working and the pilot light will remain switched on even if the appliance is not working.

• If this happens:

- switch off the fan heater;

- remove the causes of abnormal operation or overheating (i.e. obstacles in front of air inlet or air outlet grille);

- leave the heater cool down for 15/20 minutes;

- switch on again the fan heater.

Maintenance

• This fan heater does not require any particular maintenance.
• We only recommend to clean at least twice a year the air inlet and air outlet grille with a vacuum cleaner to remove dust from motor and heating element.
• In case you need to repair it, please contact an authorised repairing center.
• If the cordset is to be changed, please mind that a 2x1mm2 H05VVF cordset is to be used.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

Information requirements for electric local space heaters

Model identifier: KH 2
Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Heat output				Auxiliary electricity consumption
Nominal heat output	P_non	1,8	kW	At nominal heat output	el_max	0 kW
Minimum heat output (indicative)	P_min	0,9	kW	At minimum heat output	el_min	0 kW
Maximum continuous heat output	P_max,c	1,8	kW	In standby mode	el_SB	0 kW
Item Unit
Type of heat input, for electric storage local space heaters only (select one)
manual heat charge control, with integrated thermostat							NO
manual heat charge control with room and/or outdoor temperature feedback							NO
electronic heat charge control with room and/or outdoor temperature feedback							NO
fan assisted heat output							NO
Type of heat output/room temperature control (select one)
single stage heat output and no room temperature control							NO
Two or more manual stages, no room temperature control							NO
with mechanic thermostat room temperature control							YES
with electronic room temperature control							NO
electronic room temperature control plus day timer							NO
electronic room temperature control plus week timer							NO
Other control options (multiple selections possible)
room temperature control, with presence detection							NO
room temperature control, with open window detection							NO
with distance control option							NO
with adaptive start control							NO
with working time limitation							NO
with black bulb sensor							NO
Contact details	Steba Elektrogeräte GmbH & Co.KG Pointstr. 2 96129 Strullendorf

Algemeen

Prohibition sign with crossed-out document and checkmark, indicating no document or report restriction

1800 W (Oszillation)
900 W (Oszillation)
. OFF
. 900 W
. 1800 W

Oscillatie

Prohibition sign with crossed-out document and checkmark, indicating no text or document.

Prohibition sign with a diagonal line crossing over a document icon, indicating no text or document.

· 1800 W (Oscillation)
· 900 W (Oscillation)
• OFF
. 900 W
1800 W

Oscillation
