USER MANUAL Boomblaster RVNB100 JVC

POWERED WOOFER CD SYSTEM

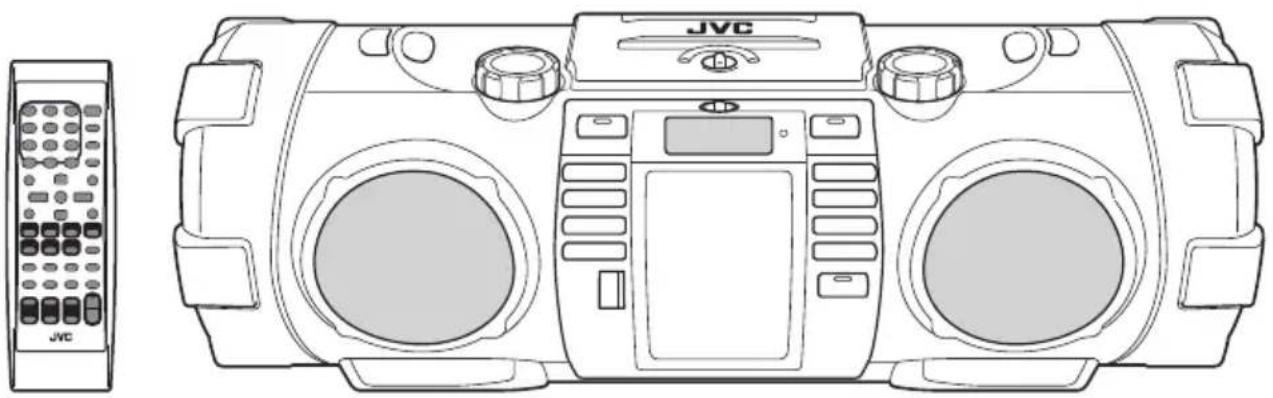

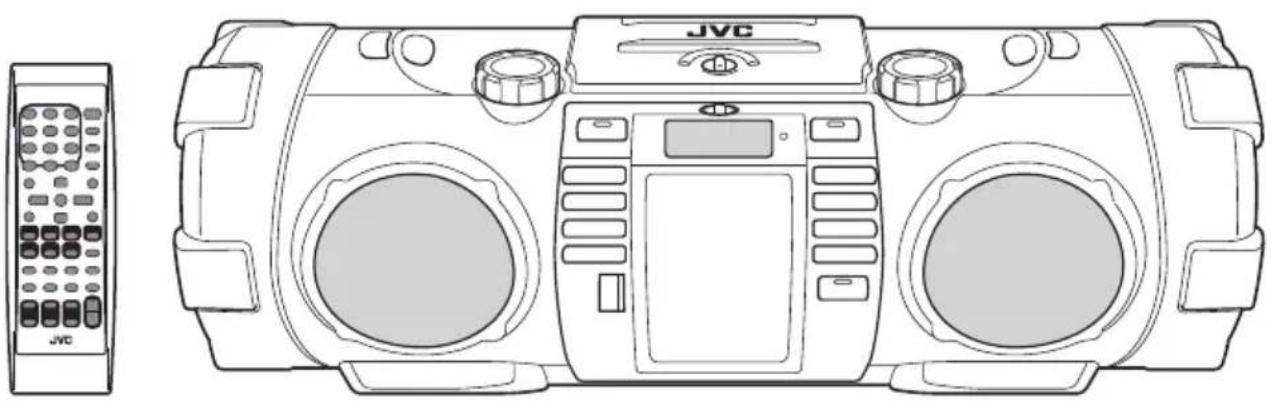

RV-NB100B

Line drawing of a JVC portable radio with control panel and buttons (no text or symbols)

MP3/WMA

Made for

iPod iPhone

Bluetooth®

INSTRUCTIONS

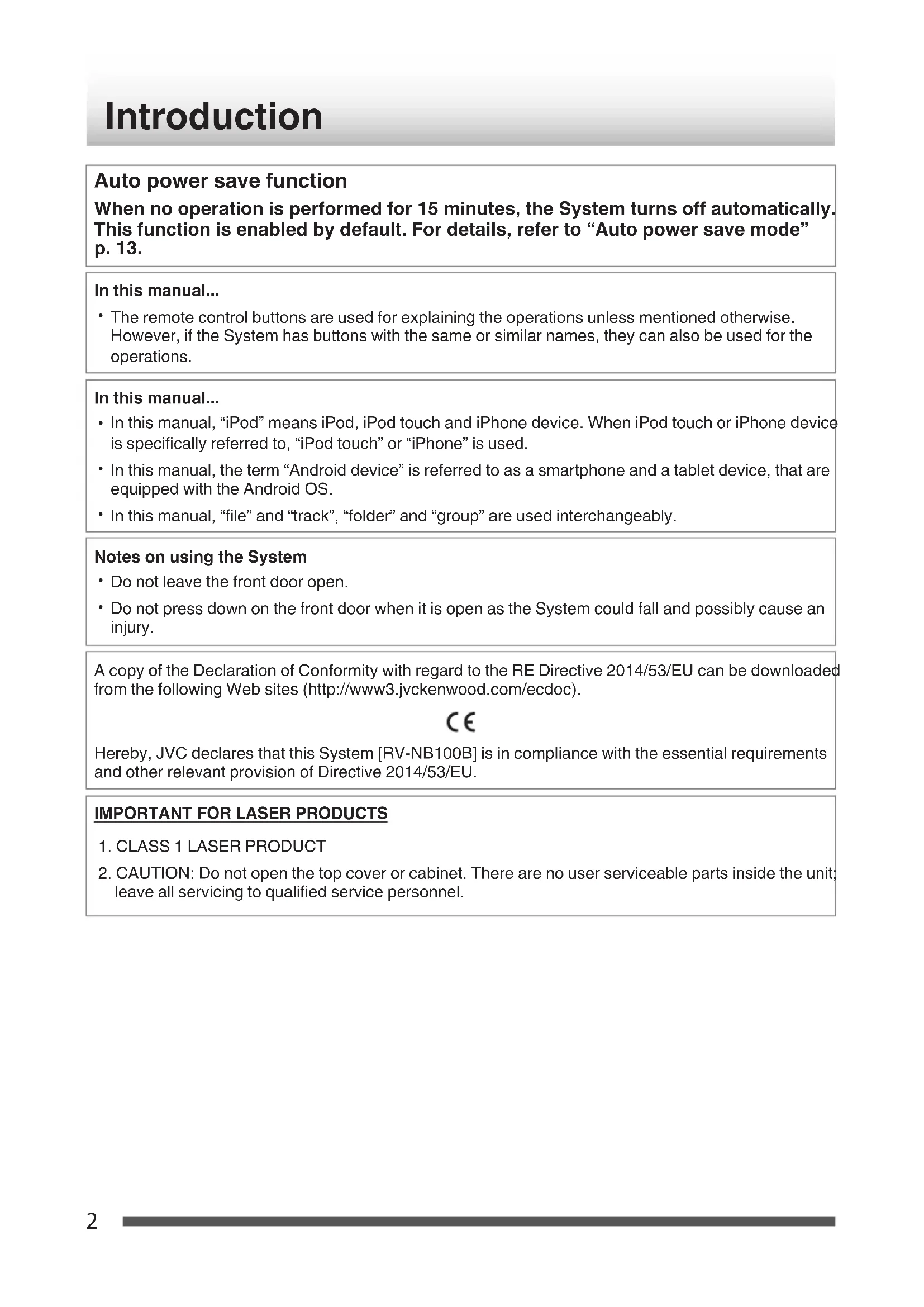

Introduction

Auto power save function

When no operation is performed for 15 minutes, the System turns off automatically. This function is enabled by default. For details, refer to “Auto power save mode” p. 13.

In this manual...

- The remote control buttons are used for explaining the operations unless mentioned otherwise. However, if the System has buttons with the same or similar names, they can also be used for the operations.

In this manual...

• In this manual, “iPod” means iPod, iPod touch and iPhone device. When iPod touch or iPhone device is specifically referred to, “iPod touch” or “iPhone” is used.
• In this manual, the term “Android device” is referred to as a smartphone and a tablet device, that are equipped with the Android OS.
• In this manual, "file" and "track", "folder" and "group" are used interchangeably.

Notes on using the System

• Do not leave the front door open.
• Do not press down on the front door when it is open as the System could fall and possibly cause an injury.

A copy of the Declaration of Conformity with regard to the RE Directive 2014/53/EU can be downloaded from the following Web sites (http://www3.jvckenwood.com/ecdoc).

CE

Hereby, JVC declares that this System [RV-NB100B] is in compliance with the essential requirements and other relevant provision of Directive 2014/53/EU.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover or cabinet. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

Preparation

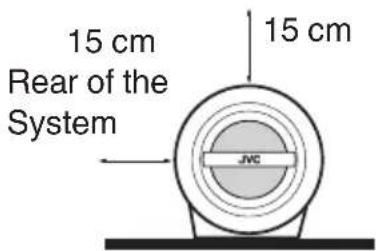

Caution: Proper Ventilation

To avoid the risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1 Front:

No obstructions and open spacing.

2 Sides/Top/Back:

No obstructions should be placed in the areas indicated by the dimensions in the illustration below.

3 Bottom:

Place on a level surface.

Front view

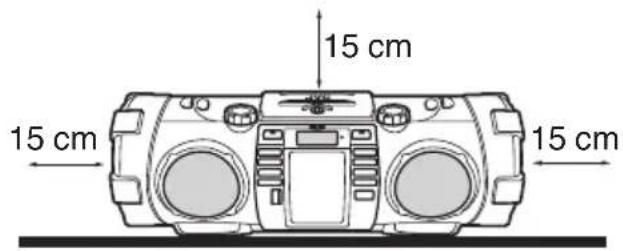

15 cm 15 cm 15 cm

Side view

15 cm Rear of the System 15 cm JWC

Notes on installation

Select a place which is level, dry and neither too hot nor too cold — between 5 °C and 35 °C.

Use the apparatus in moderate climate.

What you can do using the System

Play back files on your iPod or iPhone by operating the System

Front view of a smartphone with blank screen (no visible text or symbols)

P.14

Play back files on your BLUETOOTH device by operating the System

P.17

Illustration of a portable electronic device with two dials and musical notes (no text or symbols)

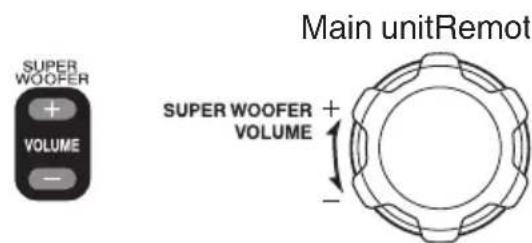

Enjoy listening to music by adjusting the super woofer (bass sound) volume and the sound mode!

P.12

Play back MP3/WMA files on a music CD or USB device

P20

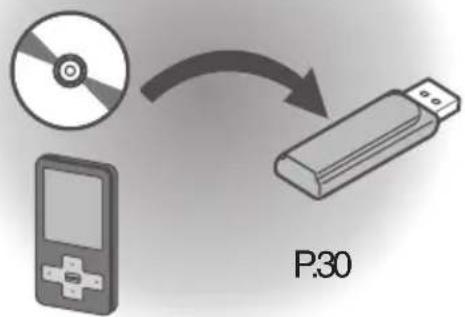

Recording on USB device from CD, FM radio or external device
    C["Radio"]

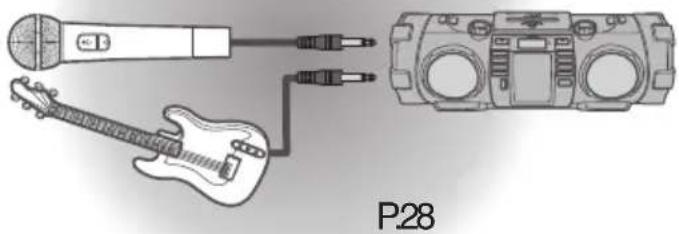

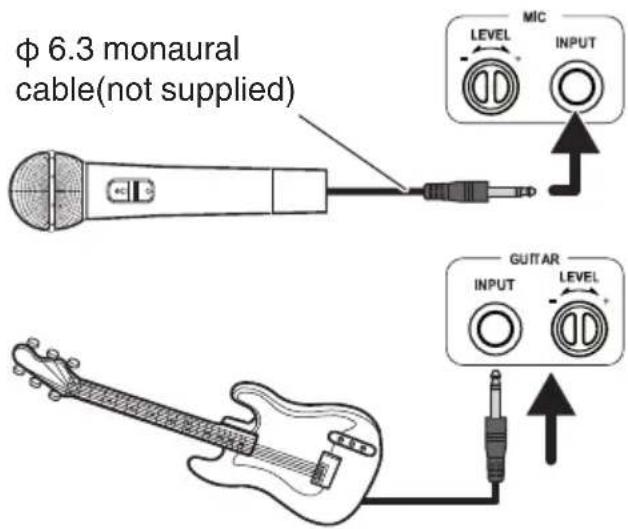

Mixing with a source sound using a microphone or guitar

Diagram showing connections between a microphone, an electric guitar, and a device labeled P28 (no text or symbols on components)

Contents

Introduction 2

Preparation 3

What you can do using the System .... 4

Preparation 6

Accessories 6

Inserting batteries 6

Carrying the System 7

Index of parts and controls ...... 8

Front of the System 8

Rear of the System 9

Display window 9

Remote control 10

Connections 11

Connecting the power cord 11

Connecting headphones 11

Basic operations ...... 12

Turning on/off the System 12

Setting the clock 12

Displaying the clock 12

Getting started 12

iPod 14

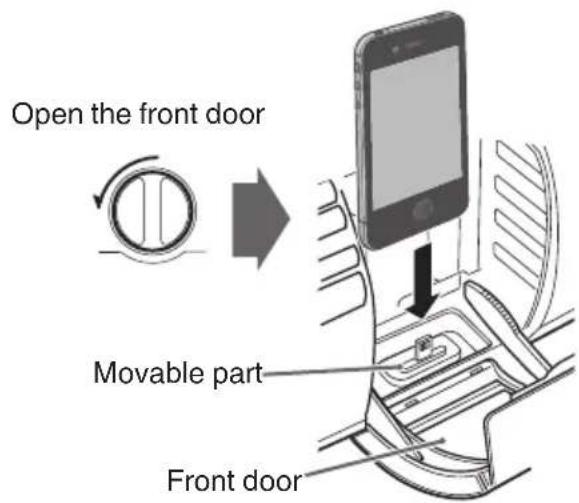

Connecting iPod 14

Playback 15

Shuffle playback 16

Repeat playback 16

iPod menu operation 16

Listening to a BLUETOOTH device ..... 17

Connecting a BLUETOOTH device for the first time ..... 17

Pairing (registering) other BLUETOOTH devices ..... 18

Setting the System to BLUETOOTH standby 19

Using a remote control application 19

Playing back a disc/USB device ..... 20

Preparation 20

Playback 20

Program playback 21

Random playback 22

Repeat playback 22

DAB 23

Listening to DAB stations 23

FM 25

Listening to FM stations 25

Presetting stations 25

External device 26

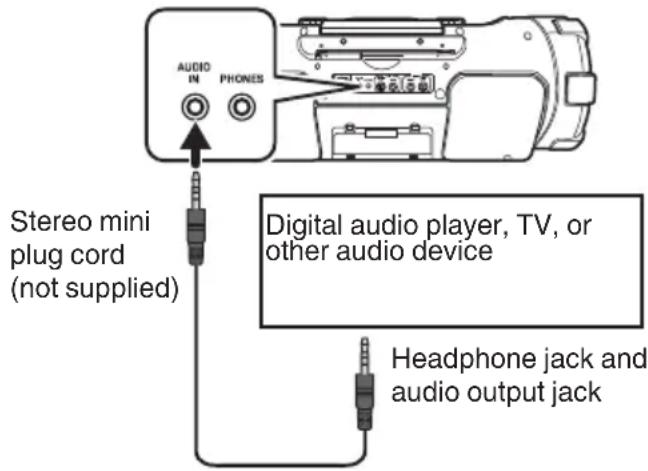

Listening to an external device 26

Metronome 27

Using the metronome function 27

Connecting a microphone/guitar ... 28

Microphone/guitar mixing 28

Adjusting the tone of a guitar 28

Recording on a USB device ..... 30

Recording discs 30

Recording other sources 32

Deleting a track 34

Using the timer 35

Setting the sleep timer 35

Setting the daily timer 35

Setting the recording timer 37

About Discs/Files 39

Compatible iPod 39

Playable BLUETOOTH devices 39

playable discs/files 39

Important for USB mass storage class devices .... 40

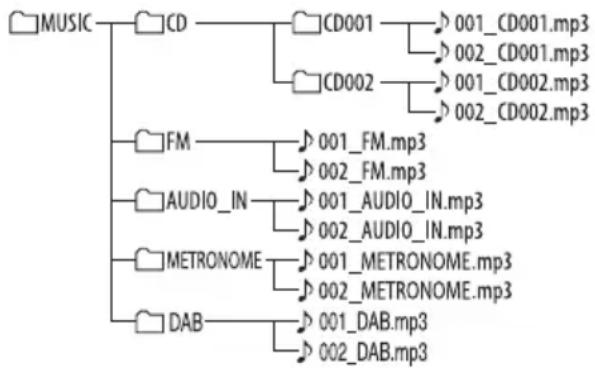

Recorded files created on the System 40

About SCMS (Serial Copy Management System) .... 40

Others 41

Maintenance 41

Trademarks 41

Troubleshooting 42

Specifications 44

Preparation

Accessories

Check that you have all the following items, which are supplied for the system.

• Power cord (1)
  • Remote control RM-SRVNB100A (1)
  • Batteries (for the Remote control) (2)
• Shoulder strap (1)
• Buckle (2)
• Stopper (2)

If any of these items are missing, contact your dealer immediately.

Inserting batteries

Main unit

- Match the polarities (+ and -) of the batteries.


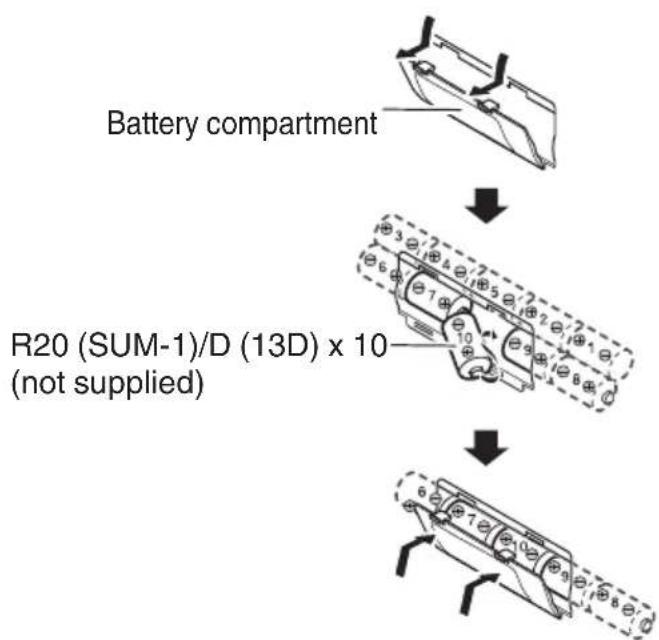

    A["Battery compartment"] --> B["R20 (SUM-1)/D (13D) x 10 (not supplied)"]
    B --> C["Assembly"]

Remote control

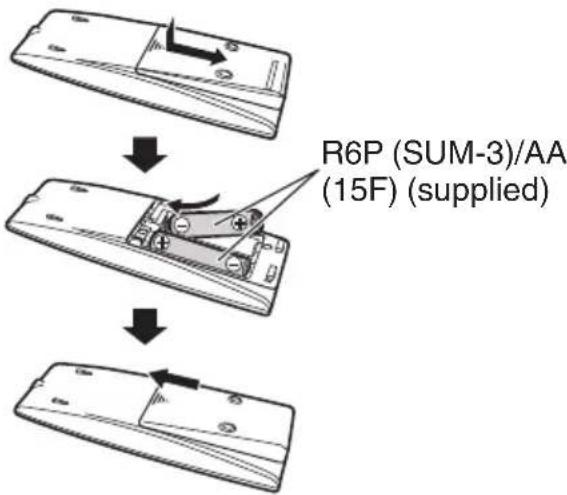

- Match the polarities (+ and -) of the batteries.

- If the range or effectiveness of the remote control decreases, replace the batteries.

NOTE

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.
• The power will not be supplied through the batteries when the power is supplied through the AC outlet.
• The battery is consumed more quickly than usual when operating the System continuously or operating it in a cold place.
• When the power is supplied using the batteries, the display will be blank when the System is turned off (on standby) by pressing the [O/I] button. And, the STANDBY indicator won't be turned on.

CAUTION

To avoid battery leakage or explosion, handle batteries properly.

• If you are not going to use this System for a month or more, remove the batteries from the battery compartment.
• Dispose of batteries in the proper manner, according to federal, state, and local regulations.
• Do not mix with batteries of different types or with new and old ones.
• Do not attempt to charge any batteries other than rechargeable ones.
• Discard leaky batteries immediately. Battery leakage can cause skin burns or other personal injuries.
• If chemicals leak onto the System, clean the System completely.

Carrying the System

Using the carrying handles

Be sure to hold both handles when you carry the System.

If you carry the System by only one handle, the other end may drag on the ground and be damaged.

Carrying handle JVC

NOTE

• Remove a disc, USB device or iPod from the System.
• Disconnect all the cords from the System.
  • The System is not waterproof or dust proof.

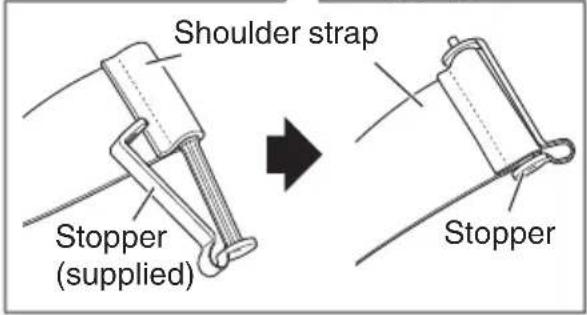

Using the shoulder strap

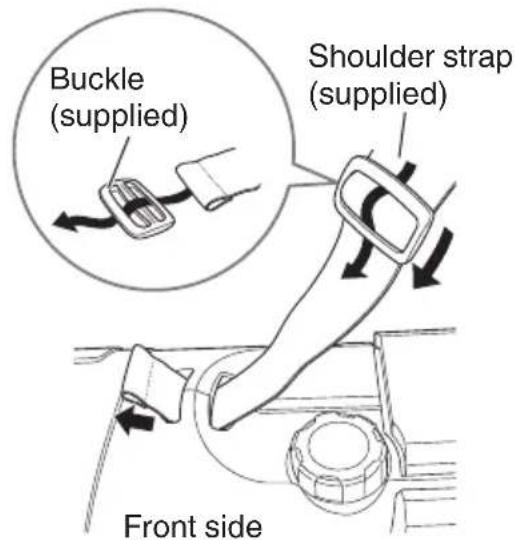

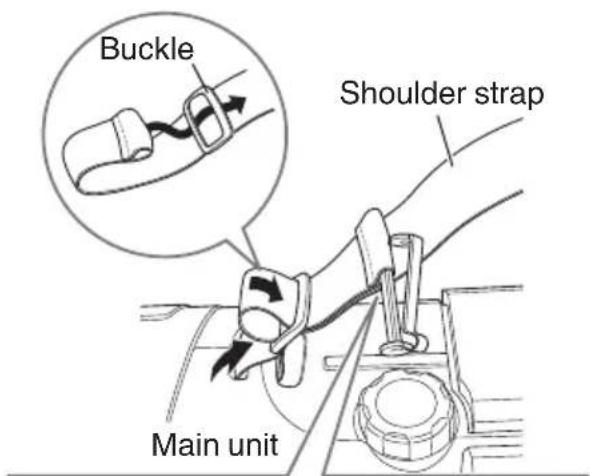

Attach the supplied shoulder strap (adjustable in length) to each end of the System as illustrated below.

Buckle (supplied) Shoulder strap (supplied) Front side

Buckle Shoulder strap Main unit

Shoulder strap Stopper (supplied) Stopper

Index of parts and controls

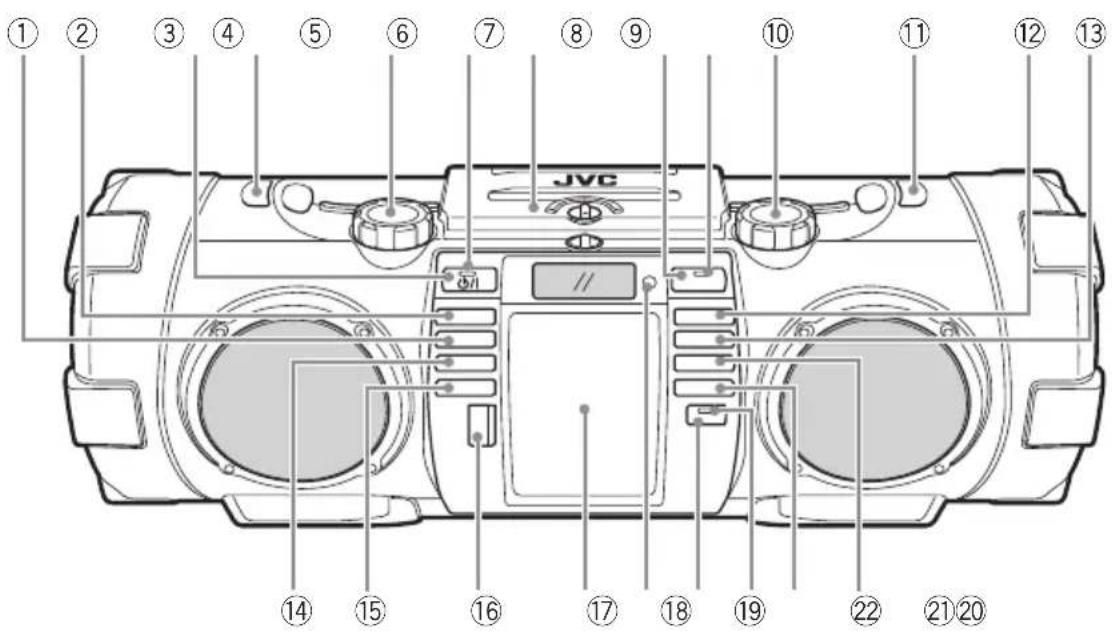

Front of the System

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ JVC // ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉟ ㉳

① CD ▶/|| button
② iPod ▶/|| button
③ STANDBY/ON ⏻/I button
④ Shoulder strap hook
⑤ SUPER WOOFER VOLUME +/-
⑥ STANDBY indicator
⑦ Disc compartment door
⑧ BLUETOOTH button
⑨ BLUETOOTH indicator
⑩ VOLUME +/-
⑪ Shoulder strap hook

⑫ ▶▶|/TEMPO + button
⑬ |◀◀/TEMPO - button
⑭ USB/iPod ▶/|| button
⑮ METRONOME ▶/|| button
⑯ USB connector/cover
⑰ Connector for iPod/Front door
⑱ Remote control sensor
⑲ REC button
⑳ REC indicator
②1 TUNER/AUDIO IN button
⑳ button

Rear of the System

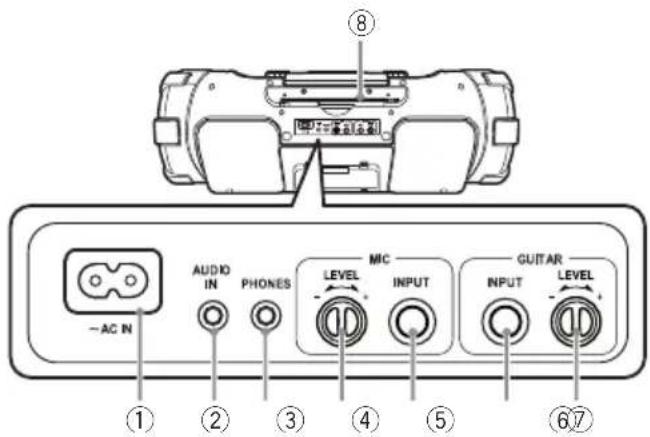

⑧ -AC IN AUDIO IN PHONES LEVEL INPUT MIC GUITAR INPUT LEVEL ① ② ③ ④ ⑤ ⑥⑦

① AC IN jack
② AUDIO IN jack
③ PHONES jack
④ MIC LEVEL -/+
⑤ MIC INPUT connector
⑥ GUITAR INPUT connector
⑦ GUITAR LEVEL -/+
⑧ DAB/FM telescopic antenna

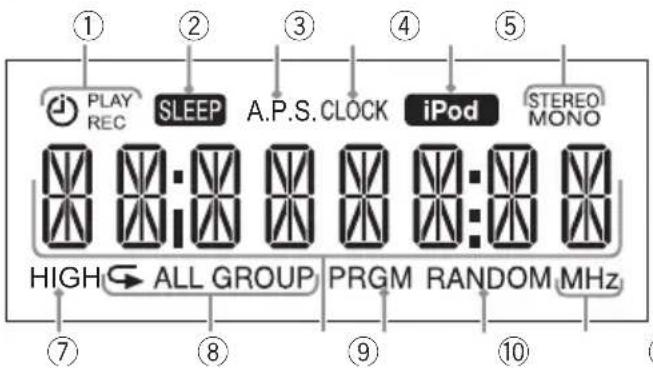

Display window

① PLAY REC SLEEP A.P.S. CLOCK iPod STEREO MONO HIGH ← ALL GROUP PRGM RANDOM MHz ⑦ ⑧ ⑨ ⑩

① Timer indicators
(timer), PLAY, REC
② SLEEP indicator
③ A.P.S. (auto power save) indicator
④ CLOCK indicator
⑤ iPod indicator
⑥ FM mode indicators
STEREO, MONO
⑦ HIGH indicator
⑧ Repeat indicators
▶, ▶ALL,
GROUP
⑨ Main display
⑩ PRGM (program) indicator
⑪ RANDOM indicator
⑫ Frequency unit display

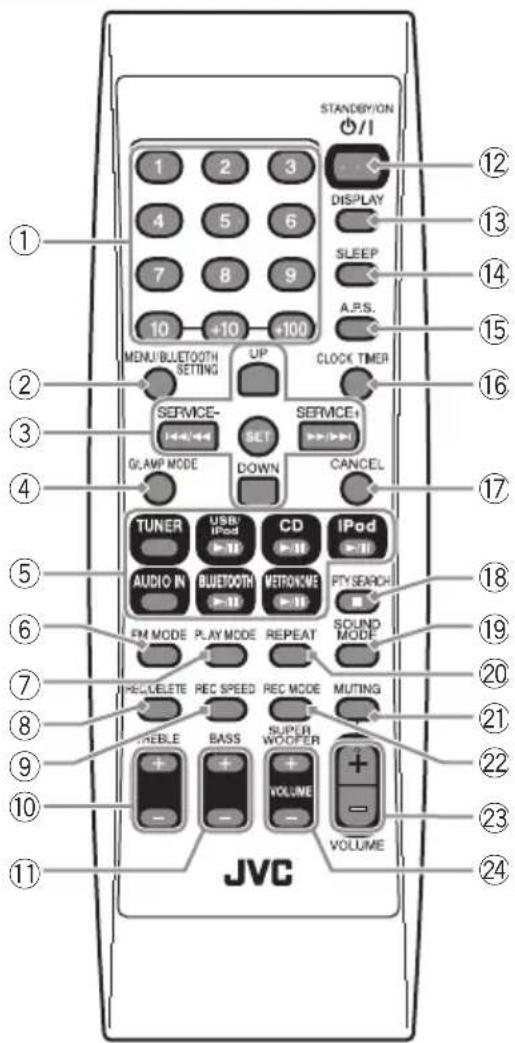

Remote control

STANDAY/ON #/I 1 2 3 DISPLAY 4 5 6 SLEEP 7 8 9 A.P.S. 10 +10 +100 MENU/BLuetooth SETTING UP CLOCK TIMER SERVICE- SET SERVICE+ GLAMP MODE DOWN CANCEL TUNER USB IPod CD IPod AUDIO IN BLUETOOTH METRONIC FM MODE PLAY MODE REPEAT FY SEARCH SOUND MODE RELEElete REC SPEED REC MODE MUTING TREE BASS SUPER WOOFER VOLUME VOLUME JVC

- The reference pages are mainly pages containing descriptions of the respective parts.

① Number buttons (p. 21)
② MENU/BLUETOOTH SETTING button
③ Multi control buttons (p. 15 - 25) • UP, DOWN • |◀◀/◀◀, SET, ▶▶/▶▶|

④ Gt.AMP MODE button (p. 28)

⑤ Source buttons (p. 15 - 26) • TUNER, USB/iPod ▶/□□, CD ▶/□□, iPod ▶/□□, AUDIO IN, BLUETOOTH ▶/□□, METRONOME ▶/□□

⑥ FM MODE button (p. 25)

⑦ PLAY MODE button (p. 16, 22)

⑧ REC/DELETE button (p. 31 - 34)

⑨ REC SPEED button (p. 30)

⑩ TREBLE+/- button (p. 13)

⑪ BASS+/- button (p. 13)

⑫ STANDBY/ON ⏻/l button (p. 12) (Power button)

⑬ DISPLAY button (p. 12, 13)

⑭ SLEEP button (p. 35)

⑮ A.P.S. (auto power save) button (p. 13)

⑯ CLOCK/TIMER button (p. 12, 35, 37)

⑰ CANCEL button (p. 22, 36, 37)

⑱ PTY SEARCH/■ button (p. 20, p. 17 - p. 33)

⑲ SOUND MODE button (p. 13)

⑳ REPEAT button (p. 16, 22)

②1 MUTING button (p. 12)

②2 REC MODE button (p. 32)

②3 VOLUME +/- button (p. 12)

⑳ SUPER WOOFER VOLUME +/- button (p. 12)

Connections

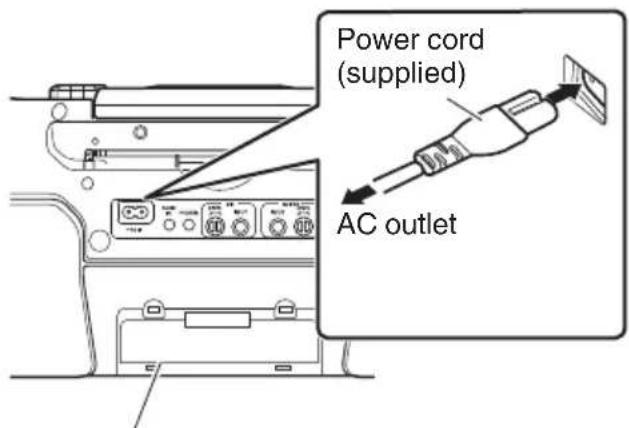

Connecting the power cord

Connect the power cord to a wall outlet only after all other connections have been made.

Power cord (supplied) AC outlet

Battery compartment

Unplug the AC power cord from the System to supply the power through the batteries in the battery compartment; otherwise, the System does not work.

NOTE

• The power can also be supplied through the batteries. (p. 6)
• When the System is turned off using the [STANDBY/ON ⏻/l] button, the standby mode is activated and the STANDBY indicator lights in red.
• A small amount of power is always consumed even while on standby.

CAUTION

• Only use JVC power cord provided for this System to avoid malfunction or damage to the System.
• Remove all the batteries when using the power cord.
• Be sure to unplug the power cord from the outlet when going out or when the System is not in use for an extended period of time.

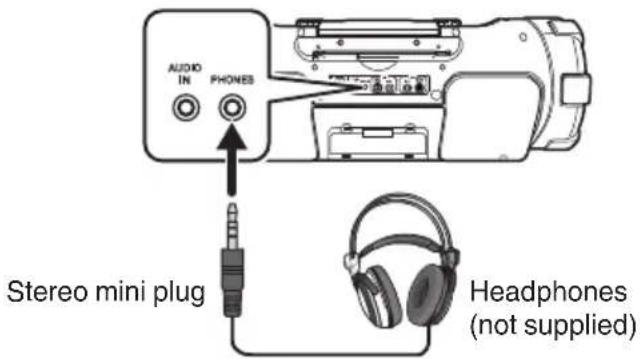

Connecting headphones

Be sure to turn down the volume before connecting or putting on the headphones.

- Connecting the headphones deactivates the speakers.

AUDIO IN PHONES Stereo mini plug Headphones (not supplied)

Basic operations

Turning on/off the System

Press [STANDBY/ON ⏻/l].

The STANDBY indicator goes off.

Press the button again to turn off the System.

- You can also turn on the System by pressing the source buttons.

NOTE

When the power is supplied using the batteries, the System is turned on by pressing [⏻/l] or the source buttons on the main unit. You cannot turn on the System using the remote control.

Setting the clock

1 Press [CLOCK/TIMER].

2 Press [UP] or [DOWN] to display "CLOCK".

3 Press [SET] to display the clock.

CLOCK 0:00

- When setting for the first time, press [CLOCK/TIMER] once.

4 Press [UP] or [DOWN] to adjust the hour.

- When you press and hold the button, the hour digit changes continuously.

5 Press [SET].

6 Repeat 4 and 5 to adjust the minute.

• To go back to the hour setting, press [CANCEL].

Displaying the clock

Press [DISPLAY].

• Each time you press the button, the clock and normal indicator changes alternately.

NOTE

• The clock setting will be reset about an hour after the AC power cord has been disconnected.
• When the power is supplied through the batteries, the clock does not appear on the display when the System is turned off.

Getting started

To select a source

iPod / USB/ USB iTJETOOTN / CF / LTRONOME / TUNER / AUDIO IN

To adjust the volume

Remote control

Main unit

VOLUME +

You can adjust the volume level between MIN 1 to 29, MAX.

To turn off the sound temporarily

Press [MUTING].

• To restore the sound, press [MUTING] again or adjust the volume.

To adjust the super woofer volume

SUPER WOOFER + VOLUME - Main unitRemot SUPER WOOFER + VOLUME -

You can adjust the super woofer volume level between BASS 1 and BASS 6.

- If you have adjusted the tone of the guitar on the System, press and hold [■] on the System for more than 2 seconds to change to super woofer volume adjustment. (p. 28)

Sound mode

Sound modes can be selected to enhance the type of music being played.

Press [SOUND MODE] to select the sound mode.

Each time you press the button, the sound mode changes as follows:

“BEAT” : Select this for music with a heavy beat, such as rock and dance music.

"POP": Select this for light music including popular and vocal music.

“CLEAR” : Select this for crisp and clear sounding music.

“USER” : Select this for music with the configured treble and bass settings. Refer to the following for the setting procedures.

"FLAT": Select this to cancel the sound mode.

NOTE

- The sound mode setting also affects the sound through the headphones.

To set your preferred sound quality

Press [TREBLE+/-] or [BASS+/-] repeatedly.

Each time you press the button, the bass/treble can be adjusted in the following ranges:

Treble : TREBLE -5 to TREBLE +5

Bass : BASS -5 to BASS +5

- The sound mode switches to "USER" and the sound quality is adjusted to the configured values when the [TREBLE+/-] or [BASS+/-] button is pressed.

Auto power save mode

This function turns off the System automatically if no operation is performed for about 15 minutes.

Each time you press [A.P.S.], the auto power save function switches on and off.

This function is on at the initial setting.

A.P.S.

Approximately 30 seconds before the power is turned off, "A.P.S." starts to blink.

The System will not turn off automatically in any of the following conditions:

• “CD”, “USB”, or “METRONOME” is selected as the source, and playback is in progress or in pause mode.
• "FM" is selected as the source.
• "DAB" is selected as the source, and a broadcast is received.
• “iPod” or “BLUETOOTH” is selected as the source, and a device is connected.
• "AUDIO IN" is selected as the source, and there is sound input.
  • Recording is in progress.
• When a microphone or guitar is connected.

NOTE

• The 15-minute countdown restarts when you operate any buttons.
• This function operates even during daily timer and sleep timer operations.
• The System turns off automatically when the volume level is set to "MIN" or when the sound is muted even if a microphone or guitar is connected. However, the System will not turn off automatically while recording is in progress.

Display information

Each time you press the button, the display information switches depending on the source.

• Tag information is shown on the display window while an MP3/WMA file is played back.
• If there is no tag information, "UNKNOWN" is displayed.
• "iPod" cannot show the track information.

iPod

You can operate iPod through the System.

See p. 39 for compatible iPod devices.

CAUTION

• JVC is not responsible for any loss of or damage to iPod that might result from the use of this System.
• Do not connect or disconnect iPod when the System is turned on.
• Do not carry the System with iPod connected. It might cause damage to the dock or you might drop iPod.
• You cannot send any data to iPod from the System.

NOTE

- iPod is charged through the dock when the System is turned on.

Connecting iPod

To connect to the iPod dock

Open the front door Movable part Front door

• A lightning connector is used for the iPod/iPhone dock of the System. Only iPod nano (7th generation), iPod touch (5th generation), iPhone 5s, iPhone 5c, and iPhone 5 support the Lightning connector. iPod/iPhone other than the above mentioned need to be connected to the USB connector.
  • Take the protect case of iPod off before connecting.
• Connect iPod firmly.
• Keep iPod in a straight position while connecting/disconnecting it.
• Do not touch or hit the terminal pins of iPod or connector pins in the dock for iPod directly. Doing so might cause damage to the connector pins.

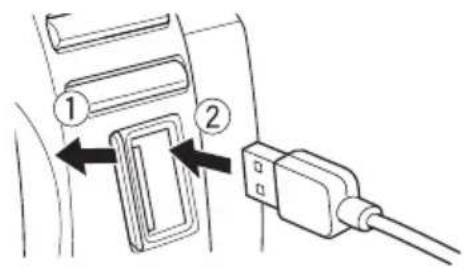

To connect to the USB connector

Diagram showing two labeled components (1 and 2) of a device's internal structure, with arrows indicating direction of movement.

USB cable for iPod (not supplied)

Playback

Press [iPod ▶/■] or [USB/iPod ▶/■].

Each time you press the button, playback is started/paused.

- Press [USB/iPod ▶/■] when iPod is connected to the USB connector.

Display when connected to the iPod dock

iPod iPod

Display when connected to the USB connector

USB iPod

To select a track

Press [|◀◀/◀◀] or [▶▶/▶▶].

• Press [▶▶/▶▶] once to skip to the beginning of the next track.
• Press [l◄◄/◄◄] to skip to the beginning of the track being played. Press [l◄◄/◄◄] twice quickly to skip to the beginning of the previous track.

To fast forward/reverse

Press and hold [◀◀/◀◀] or [▶▶/▶▶] during playback.

To put your iPod on sleep mode

Press and hold [iPod▶/■] or [USB/iPod▶/■].

(Press and hold)

NOTE

• Depending on the type of iPod, iPod may operate differently.

• If you are using an iPhone or iPod touch, operate your iPhone or iPod touch in the following cases:

• when pressing the home button.

• when selecting application icons on the home screen.

• when dragging the slider.

• Sound distortion may occur when playing back audio sources with high recording levels. If distortion occurs, it is recommended to turn off the equalizer of iPod.

• For information on operating iPod, see the instruction manual for iPod.

Shuffle playback

You can play the tracks on iPod in random order.

Press [PLAY MODE].

Each time you press the button, the shuffle mode turns on/off.

To exit from shuffle playback

Press [PLAY MODE] while shuffle playback is in progress.

Repeat playback

Press [REPEAT].

Each time you press the button, the repeat mode changes.

To exit from the repeat mode

Press [REPEAT] repeatedly until the repeat mode is canceled.

iPod menu operation

1 Press [MENU] to display the menu.

Each time you press the button, the previous menu is displayed.

2 Press [UP] or [DOWN] to select an item.

3 Press [SET].

NOTE

- If iPod/iPhone is compatible with iOS 7.0.x, the above menu operations cannot be available on the System. Operate the menu on iPod/iPhone itself.

Listening to a BLUETOOTH device

You can listen to music from your BLUETOOTH device through the System.

When you connect your device for the first time, it is necessary to register (pair) your BLUETOOTH device and the System.

NOTE

• In order to use these functions, the BLUETOOTH device must support the AVRCP and A2DP profiles.
• Some BLUETOOTH devices may not be available to the System.

Connecting a BLUETOOTH device for the first time

1 Press the [BLUETOOTH▶/■] button.

Main unitF BLUETOOTH BLUETOOTH

BT READY

2 Perform the pairing operation on the target BLUETOOTH device.

On the target device, select "RV-NB100" (this System) from the available BLUETOOTH device list.

• When the target device requests for password during pairing, enter "0000".
• For information on operating the target BLUETOOTH device, see the instruction manual for the BLUETOOTH device.

Pairing is completed and the target BLUETOOTH device is connected to the System automatically. The BLUETOOTH indicator lights up.

B T

3 Start playback on the target BLUETOOTH device.

The sound from the BLUETOOTH device is emitted from the System. Playback may start automatically with some BLUETOOTH devices.

NOTE

• Up to five BLUETOOTH devices can be registered. When the sixth BLUETOOTH device is registered, registration of the device with the oldest connection history is deleted.
• By pressing [BLUETOOTH▶/■] while “BT READY” appears on the display window, you can reconnect the BLUETOOTH device that was last connected to the System.
• For the second and subsequent connections, the BLUETOOTH device that was last connected to the System will reconnect only when its BLUETOOTH function is turned on while “CONNECT” blinks on the display window. To reconnect another BLUETOOTH device, operate the BLUETOOTH device to connect while “BT READY” appears on the display window.
• While “CONNECT” is blinking, you cannot perform any operations except for turning the System off.

To control the BLUETOOTH device from the System

operation button
Play/Pause	Press the [BLUETOOTH ▶/■] button.Each time you press the button playback starts/pauses.
Stop Press [■].
Skip	Press [◀◀/◀◀] or [▶▶/▶▶].
Fast Forward/Fast Rewind	Press and hold [◀◀/◀◀] or [▶▶/▶▶].

• Operation may differ depending on the type of BLUETOOTH device you are using.

To turn on/off the BLUETOOTH function of the System

While the System is turned on

"BT OFF": Turns off the BLUETOOTH function of the System.

"BT ON": Turns on the BLUETOOTH function of the System.

The BT indicator lights up in blue when the System is set to "BT ON", and the System is connected to a BLUETOOTH device.

Pairing (registering) other BLUETOOTH devices

1 When "BLUETOOTH" is selected as the source, press and hold [BLUETOOTH▶/■] for more than 2 seconds.

Canceling of connection starts.

DISCNNCT

"BT READY" appears when the connection has been canceled.

2 Perform the pairing operation on the target BLUETOOTH device.

On the target device, select "RV-NB100" (this System) from the available BLUETOOTH device list.

• When the target device requests for password during pairing, enter "0000".
• For information on operating the BLUETOOTH device, see the instruction manual for the BLUETOOTH device.

Pairing is completed and the BLUETOOTH device is connected automatically. The BLUETOOTH indicator lights up.

NOTE

The connection is canceled automatically in the following cases.

• Connection is canceled on the BLUETOOTH device, or BLUETOOTH function is set to "OFF".
• The System or the BLUETOOTH device is turned off (except for BLUETOOTH standby)

CAUTION

• The maximum distance for a possible BLUETOOTH connection is 10 m. The distance may be shorter depending on the usage environment.
• When the iPhone or smartphone is connected to the System via BLUETOOTH, ring alert of phone calls and mails can also be heard from the speakers of the System.
• This System is not equipped with a microphone feature. To make a call, cancel the connection with the System or use the microphone on the iPhone or smartphone.
• Some BLUETOOTH devices may not be available to the System.

Setting the System to BLUETOOTH standby

You can turn on the System using the remote control application on a BLUETOOTH-enabled Android device.

To turn on the System via the BLUETOOTH device, set the System to BLUETOOTH standby in advance.

Set the System to BLUETOOTH standby.

While the power is turned off...

BT STBY

• Press the button again to cancel BLUETOOTH standby. The "BT STBY" indicator goes off.
• To cancel BLUETOOTH standby, wait for about 10 seconds before performing the operation of canceling.
• When the System is set to BLUETOOTH standby, the BLUETOOTH device can be connected to the System when the connecting operation is made on the BLUETOOTH device.
• Pressing [BLUETOOTH ▶/■] during BLUETOOTH standby turns on the System and sets the source to "BLUETOOTH".
• When you use batteries to power the System, BLUETOOTH standby cannot be set.

To control the power of the System using remote control application

- You need to install the remote control application on your Android device.

1 Set "Bluetooth" to "ON" on the BLUETOOTH device.

• Select "Bluetooth" in "Settings" on your Android device,.
  • Refer to the instruction manual of your device for further details.

2 Select "RV-NB100" from the device list.

3 Start the remote control application.

4 Control the power of the System using the "Settings" icon that is located on the bottom-right of the operation screen.

Using a remote control application

You can control the System remotely by using "JVC Audio Control BR1", a special remote control application on an Android device which is compatible with BLUETOOTH.

To use the remote control application, it is necessary to register (pair) your Android device and the System. (p. 17)

NOTE

• Search and download the application from Google Play (Play store).
• Screens and contents of the application are subject to change.
• To use the remote control application, your Android device must be Android OS 2.3 or later, and compatible with SPP (Serial Port Profile) of the BLUETOOTH profile.
• Some devices may not be recognized or may not work properly.

The following operations can be performed using the remote control application.

• Turning on/off the System
• Playing back music on a disc, USB device, or iPod
• Selecting radio stations
• Setting the timer
  • Volume adjustment
• Others

Refer to the help page of the remote control application for operation details.

*The followings are examples of operation screen of the remote control application.

00:15 Track 01

FRESORT CH BI FM 87.50 MHz + AUTO OFF F M -

Left : Example of the CD operation screen

Right : Example of the FM operation screen

CAUTION

- To turn on the System using the remote control application, set the System to "BLUETOOTH standby" in advance.

Playing back a disc/USB device

Preparation

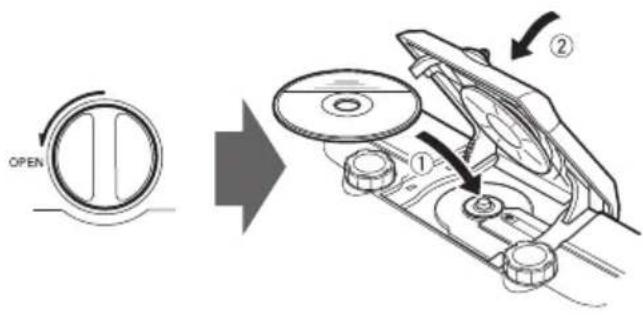

Load a disc or connect a USB device.

Disc

OPEN ① ②

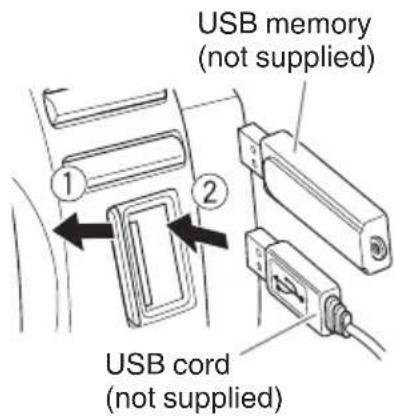

USB device

USB memory (not supplied) USB cord (not supplied)

CAUTION

- Disconnect the USB device after stopping playback. Disconnecting the USB device during recording/playback may cause some problem of the USB device and its files.

Playback

Press [CD ▶/■] or [USB/iPod ▶/■].

or

Display during playback

10

0:45

Current track number

Playback time

To stop playback

Press [■].

To pause

Press [CD ▶/■] or [USB/iPod ▶/■].

- To cancel pause, press the button again. Playback continues from the point where it was paused.

To select a track

Press [◀◀/◀◀] or [▶▶/▶▶].

• Press [▶▶/▶▶] once to skip to the beginning of the next track.
• Press [l◄◄/◄◄] to skip to the beginning of the track being played. Press [l◄◄/◄◄] twice quickly to skip to the beginning of the previous track.

To select a track using the remote control

Examples:

• To select number 5, press 5.
• To select number 15, press +10 then 5.
• To select number 20, press +10 then 10.
- To select number 125, press +100, +10, +10 then 5.

To fast forward/reverse

Press and hold [◀◀/◀◀] or [▶▶/▶▶] during playback.

To select a group (for MP3/WMA)

Press [UP] or [DOWN].

• Press [UP] to skip to the next group.
• Press [DOWN] to skip to the previous group.

NOTE

- When you have stopped playback of an MP3/WMA file by pressing [■], pressing [▶/■] will start playback from the beginning of the stopped file (Resume playback).

- To cancel the Resume playback, press [■] when playback is stopped.

- Resume playback is canceled in the following situations:

• during program playback
• during random playback
• when the disc compartment door is opened
• when another source is selected

Program playback

You can program up to 32 tracks from a disc or a USB device in any desired order including the same tracks.

1 Press [CD▶/■] or [USB/iPod▶/■].
2 Press [■] to stop playback.
3 Press [PLAY MODE].

-->P-01 PRGM

4 Press the number buttons to select the track to program.

- While making a program, you cannot specify a group number to select a track.

5 Press [SET].

6 Repeat step 4 and 5 to select other tracks for the program.

7 Press [CD▶/■] or [USB/iPod▶/■].

Program playback starts.

To confirm the programmed tracks

While program playback is stopped, press [UP] or [DOWN] repeatedly.

The tracks in the program will successively appear on the display in the programmed order.

To add tracks in the program

Press the number buttons while program playback is stopped, and then press [SET].

The track is added to the end of the program.

To delete tracks in the program

While program playback is stopped, press [CANCEL].

• Each time you press the button, the last track in the program is erased.
- All the programmed contents can be deleted by holding the button.
- The program is cleared in the following situations:
- when the power is turned off
- when the disc compartment door is opened
- when the USB device is disconnected
- when another source is selected
- when program mode is exited

To exit from the program playback

Press [PLAY MODE] when playback is stopped to select "NORMAL".

The "PRGM" indicator goes off.

- Programmed contents are also deleted.

Random playback

You can play all the tracks, on the disc or USB device in random order.

Press [PLAY MODE] to select "RANDOM" during playback.

10 0:45 RANDOM

• All tracks are played in random order instead of random playback within a group.
• During random playback, you cannot go back to the previous track even by pressing [l◄◄/◄◄] repeatedly.

To exit from the random mode

Press [PLAY MODE] during random playback.

The "RANDOM" indicator goes off.

• Random playback is also canceled when you stop playback.
• Random playback is canceled in the following situations:
• when the power is turned off
• when the disc compartment door is opened
• when the USB device is disconnected
• when another source is selected

Repeat playback

You can repeat a track or tracks on the disc or USB device as many times as you like.

Press [REPEAT].

Each time you press the button, the play mode changes as follows:

“◀” → “◀GROUP” → “◀ALL” → goes off → (back to the beginning)

“C” : Repeats the current track.

“GROUP” : In normal play mode, repeats all the tracks in a group.

"▶ALL": Repeats all the tracks on the disc or USB device.

“◀” goes off : Cancels repeat playback

- "GROUP" can be selected only when playing back MP3/WMA files.

NOTE

• During program playback, only “▶” and “▶ALL” can be selected. Program playback is repeated.
• During random playback, only "▶ALL" can be selected. Random playback is repeated.
• Repeat playback is canceled in the following situations:
• when the power is turned off
• when the disc compartment door is opened
• when the USB device is disconnected
• when another source is selected

Listening to DAB stations

To listen to DAB/DAB+

1 Press [TUNER] repeatedly to select "DAB".

Remote control

Main unit

(Press repeatedly)

2 Select the service.

- When you change the source to DAB for the first time after plugging in the power cord or after inserting batteries, the System automatically performs the scanning for the DAB bands to pick out available ensembles. It will take a few minutes depending on the location.

SCAN

• When the scanning is complete, the System starts playing the first service of the ensemble found first.
• When you move the System or adjust the antenna position, perform the scanning. Press and hold [SET] while DAB is selected as the source.
• Press [CANCEL] to stop scanning.
• NOSIGNAL is displayed if scanning is completed but no signal is found.

To select an ensemble

Press [UP] or [DOWN].

• You can skip to the next/previous ensemble found in the ensemble scanning.
• It may take some time to change ensembles.

To search for ensembles

1 Press and hold [UP] or [DOWN]. While you press and hold the button, the channel changes through all of the ensembles regardless of their signal status.
2 Release the button at the desired channel of the ensemble.

To preset services

You can preset up to 30 DAB services manually.

1 Tune in to the service you want to preset.
2 Press [SET].

DABP-01

3 Press the number button to select the preset number you want to store.

- You can also select by pressing [UP] or [DOWN].

4 Press [SET] to store the station.

• To cancel the presetting, press [CANCEL].
• When you preset DAB services, you can only preset primary services. If you select a secondary service to store, its primary service is stored instead.

To tune in to a preset service

You can select the preset station directly using the number buttons.

To search for programs using PTY codes (PTY search)

You can locate a particular kind of program from among all the services you can receive by specifying a PTY code.

1 Press [PTY SEARCH] to enter the PTY code setting mode.

"PTY" blinks on the display window.

- Perform the following steps while the indication flashes.

2 Press [UP] or [DOWN] to select a PTY code.

3 Press [SET].

The System starts searching for a program of the selected type. The first one found is tuned in.

- To end the search and resume to the usual display, press [CANCEL].

• To continue searching after it has stopped on an unwanted program, press [PTY SEARCH] while the service label is flashing on the display window.
• If no program is found, "NOTFOUND" appears on the display window.

To change the DAB Information

Each time you press the button, the display window changes as follows:

Service name → Ensemble name → Channel number → Frequency → Programme type (PTY) → Dynamic Label Segment (DLS) → Digital Radio Type/Audio Bit Rate → Preset number → Clock (Non-DAB signal) → (back to the beginning)

- "NOSIGNAL" appears if no signals are sent.

Adjusting the antenna

Adjust the DAB/FM telescopic antenna's length, angle and direction until the best reception is obtained.

Listening to FM stations

1 Press [TUNER] repeatedly to select "FM".

Remote control

Main unit

(Press repeatedly)

FM8750.

MHz

2 Select the station.

Press and hold [l◄◄/◄◄] or [►►/►►] to change the frequency continuously until a station of sufficient signal strength is tuned in.

• To stop the search manually, press the buttons again.
• Pressing the button repeatedly changes the reception frequency in steps of 50 kHz.

Adjusting the antenna

Adjust the DAB/FM telescopic antenna's length, angle and direction until the best reception is obtained.

Line drawing of a portable electronic device with two circular ports and a antenna (no text or symbols)

To improve the FM reception

When an FM stereo (FM) broadcast is hard to receive or noisy, select the monaural reception (MONO) mode.

Press [FM MODE].

Each time you press the button, the setting changes.

"AUTO": Stereo auto reception

"MONO": Monaural reception

NOTE

- Monaural reception improves the reception but the stereo effect is lost.

Presetting stations

You can preset up to 30 FM stations manually.

1 Tune in to a station you want to preset.
2 Press [SET].

FMP-01

• Perform the following steps while the indication flashes.
  3 Press [UP] or [DOWN] to select the preset number you want to store.
• To cancel the presetting, press [CANCEL].
  4 Press [SET].

To tune in to a preset station

Each time you press the button, you can select a preset station.

- You can select the preset station directly using the number buttons.

Examples:

• To select number 5, press 5.
• To select number 15, press +10 then 5.
• To select number 20, press +10 then 10.

Listening to an external device

1 Set the volume level of the System to minimum.
2 Connect the external device.

Refer also to the instruction manual for the external device.

AUDIO IN PHONES Stereo mini plug cord (not supplied) Digital audio player, TV, or other audio device Headphone jack and audio output jack

3 Press [AUDIO IN] to select "AUDIO IN".

Main unitRemote cor TUNER/AUDIO IN (Press repeatedly)

4 Start playback of the external device.
5 Adjust the volume of the System and of the external device.

Adjusting the audio input level

Adjust the audio input level when there is a contrast between the volume of the external device connected to the AUDIO IN jack and that of other sources.

When "AUDIO IN" is selected as the source, press [SET].

Each time you press the button, the input level changes as follows:

"LEVEL1" → "LEVEL2" → "LEVEL3" → (back to the beginning)

"LEVEL1": Standard audio input level

"LEVEL2": Higher level than "LEVEL1"

"LEVEL3": Higher level than "LEVEL2"

The initial setting is "LEVEL3".

Using the metronome function

You can use the System as a metronome.

You can set the tempo and rhythm separately for your guitar practice, etc.

1 Press [METRONOME ▶/II].

Rhythmical beeps are emitted from the speakers.

Each time you press the button, beeps are started/paused.

- The beeps are also canceled when you press [■].

2 Press [◀◀/◀◀] or [▶▶/▶▶] to select the tempo.

• You can select the tempo from 30 to 250.
• When you press and hold the button, the tempo changes continuously.

T120 B4 tempo beat

3 Press [UP] or [DOWN] to select the beat.

• You can select from 1 to 7 beat.
• When you press and hold the button, the beat changes continuously.

Connecting a microphone/guitar

Microphone/guitar mixing

Using a microphone or a guitar, you can mix its sound with a source sound.

CAUTION

• DO NOT connect a bass guitar to the GUITAR INPUT connector, it may damage the System.
• If the output of the guitar is too high, sound distortion may occur. Lower the GUITAR LEVEL.
  • To prevent sound distortion after mixing, the volume level of the current playback source becomes lower when a microphone or a guitar is connected to the System. This is not malfunction.

1 Turn the [LEVEL +/-] control fully counterclockwise.

2 Connect a microphone or guitar to the MIC INPUT or GUITAR INPUT connector on the rear of the System.

φ 6.3 monaural cable(not supplied) MIC LEVEL INPUT GUITAR INPUT LEVEL

Microphone or guitar(not supplied)

3 Start playback of the source.
4 Turn the [LEVEL +/-] control to adjust the volume.

Adjusting the tone of a guitar

Besides the sound mode of the main unit, you can select the tone of the guitar. There are three available tones, and the tone can be selected from 1 to 3 respectively. Set your preferred tone.

NOTE

- When you increase the level, the amount of noise also increases. This is due use of an analog circuit, and is not malfunction.

Using the remote control

Press [Gt.AMP MODE] repeatedly.

CLEAN 1

CLEAN1 Produces a tone with the low frequencies cut off and high frequencies boosted, as with guitar amplifier in general.

CLEAN2 Produces a tone with the low-mid frequencies boosted as compared to CLEAN1.

CLEAN3 Produces a tone with the mid frequencies boosted as compared to CLEAN1.

T-BOOST1 Produces a slightly distorted tone with the high frequencies of CLEAN1 boosted.

T-BOOST2 Produces a slightly distorted tone with the high frequencies of CLEAN2 boosted.

T-BOOST3 Produces a slightly distorted tone with the high frequencies of CLEAN3 boosted.

DISTORTION1 Produces a distorted tone of CLEAN1.

DISTORTION2 Produces a distorted tone of CLEAN2.

DISTORTION3 Produces a distorted tone of CLEAN3.

Using the main unit

1 Press and hold the [■] button on main unit for more than 2 seconds until "G AMP" is displayed.

- Each time you press and hold the button, the function switches between super woofer volume adjustment ("SW VOL" appears on the display window) and the guitar tone adjustment.

2 Turn the [SUPER WOOFER VOLUME] control to the left or right to select the tone of the guitar.

SUPER WOOFER VOLUME

(Turn)

Recording on a USB device

Recording discs

You can record a CD to a USB device in two ways, digital recording and analog recording.

Generally, you can obtain better sound quality by using digital recording than by using analog recording.

However, by using analog recording, you can record sound from a microphone or guitar connected to the System at the same time (mixing recording).

CAUTION

• Before recording, connect the USB device with enough free space to the USB connector. (p. 20)
• You cannot record from your iPod or BLUETOOTH device.
  • Discs other than audio CD such as MP3/WMA discs cannot be recorded.
• Do not shake the System during the recording; otherwise the tracks might not be recorded properly.
• You cannot record sound while the sleep timer (p. 35) is activated.

NOTE

• The volume setting and sound mode have no effect on recording.
• You cannot activate random playback or repeat playback during recording.
• The file is stored in MP3 format (bitrate: 192 kbps).
• Refer to "Recorded files created on the System" (p. 40) for the file and folder structures.

To select the recording speed (only for digital recording)

You can set the recording speed when recording a disc using the digital recording function.

1 Press [CD▶/II].
2 Press [■] to stop playback.
3 Press [REC SPEED] to select the recording speed.

“NORMAL”: Records in normal speed, and sound can be heard during recording.

“HIGH”: Records in high speed (about two times the normal speed), and sound cannot be heard during recording. The “HIGH” icon lights up during clock setting.

To record a music disc using digital recording

1 Press [CD▶/III].
2 Press [■] to stop playback.

- To record all tracks on the disc, skip Step 3 and proceed to Step 4.

3 Press [◀◀/◀◀], [▶▶/▶▶] to select the track.

• Recording starts from the selected track to the last track. To record all tracks on the disc, select the first track of the disc.
• To record the tracks in your preferred order, program the tracks beforehand, and stop playback. (p. 21)

4 Press [REC/DELETE].

Remote control

Main unit

RECSTART

Digital recording of the selected tracks starts.

The "REC" indicator lights while recording.

• In the “CD” folder in the “MUSIC” folder, a folder such as “CD001” is created where the music files are stored.
• Recording stops automatically when playback stops.
  • To stop recording manually, press [■].

To record one track from a music disc using digital recording

You can only select one track to record.

1 Press [CD▶/II].
2 Press [◀◀/◀◀], [▶▶/▶▶] to select the track.
3 Press [CD▶/II] to play back or pause.
4 Press [REC/DELETE].

Remote control

Main unit

Recording starts from the beginning of the selected track.

To record a music disc using analog recording

Use analog recording when digital recording cannot be performed due to SCMS (p. 40).

- Recording is performed in a normal speed. Sound can be heard during recording.

1 Press [CD▶/III].
2 Press [■] to stop playback.

- To record all tracks on the disc, skip Step 3 and proceed to Step 4.

3 Press [|◀◀/◀◀], [▶▶/▶▶] to select the track.

• Recording starts from the selected track to the last track. To record all tracks on the disc, select the first track of the disc.
• To record the tracks in your preferred order, program the tracks beforehand, and stop playback. (p. 21)

4 Press and hold [REC/DELETE].

Analog recording mode is enabled and "ANLG REC" blinks.

5 Press [REC/DELETE] while "ANLGREC" is blinking.

Remote control

Main unit

Analog recording of the selected tracks starts.

NOTE

• To record only one particular track, press and hold [REC/DELETE] when the track is being played back or paused.
• You cannot set "HIGH" for "REC SPEED" when recording a disc using the analog recording function.

Recording other sources

You can record an DAB/FM broadcast, metronome or an external device.

You can divide a file according to the marking setting. (see below)

You can record sound from a microphone or guitar connected to the System at the same time.

• To record from an external device, connect the external device to the System, and adjust the audio input level. (p. 26)
• The music files are stored in the appropriate folder ("DAB", "FM", "AUDIO IN" and "METRONOME" folder) in the "MUSIC" folder.
• Recording stops automatically when the file size exceeds 2 GB (about 20 hours).
• Recording is performed in a normal speed. Sound can be heard during recording.

To select the marking setting

• You can select the way files are divided.
• Select the setting before recording.

Press [REC MODE] when "TUNER (DAB/FM)", "AUDIO IN" or "METRONOME" is selected as the source.

Each time you press the button, the setting changes.

"MANUAL": Divides a file each time you press [SET].

“TIME”: Divides a file automatically every 5 minutes.

• Sound is interrupted for about one second when the file is divided.
• The setting will be memorized even if the System is turned off.

To record DAB/FM stations

1 Press [TUNER].
2 Tune into the station you want to record.
3 Press [REC/DELETE].

Remote control

Main unit

RECSTART

Recording starts.

The "REC" indicator lights while recording.

4 Press [■] to stop recording.

To record an external device

1 Press [AUDIO IN].
2 Press [REC/DELETE].

Recording starts.

3 Start playback of the external device.
The "REC" indicator lights while recording.
4 Press [■] to stop recording.

To record the metronome

1 Press [METRONOME].

Adjust the tempo and rhythm if necessary. (p. 27)

2 Press [REC/DELETE].

Recording starts.

The "REC" indicator lights while recording.

3 Press [■] to stop recording.

To record sound from a microphone or guitar

You can record sound from a microphone or guitar connected to the System at the same time.

1 Connect a microphone or guitar to the System.
2 Select a source to be recorded along with a guitar or a microphone.

Digital recording is not available when “CD” is selected as the source. Perform analog recording. (p. 32)

3 Press [REC/DELETE].

Recording starts.

The "REC" indicator lights while recording.

4 Output sound from the microphone or guitar.
5 Press [■] to stop recording.

Deleting a track

You can delete a track recorded on a USB device.

• Before deleting a track, connect the USB device to the USB connector.
• You cannot restore deleted files. Check the files carefully when deleting.

1 Press the [USB/iPod ▶/■] button.

2 Press [|◀◀/◀◀] or [▶▶/▶▶-] to select the track to delete, then play back or pause.

3 Press [REC/DELETE].

REC/DELETE PUSH SET

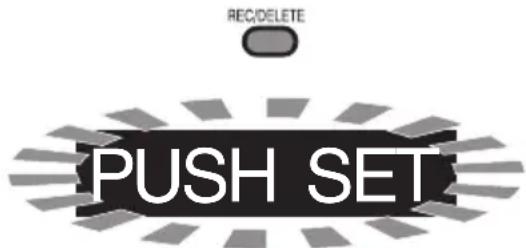

Deleting is in standby.

- You can cancel deletion by pressing [CANCEL] or [■] while "PUSH SET" is blinking.

4 Press [SET] or [REC/DELETE].

"DELETE" appears on the display window, and deleting starts.

"FINISH" appears when deleting is complete.

Using the timer

Setting the sleep timer

The power of the System automatically turns off after the shut-off time you set has elapsed.

Press [SLEEP] repeatedly.

SLEEP SLEEP 10

Each time you press the button, the shutoff time (in minute) changes as follows:

10 → 20 → 30 → 60 → 90 → 120 → 150 → 180

→ OFF → (back to the beginning)

- To cancel the sleep timer, press [SLEEP] repeatedly to select "OFF".

NOTE

- This APS function (p. 13) operates even while the sleep timer is on.

To check the remaining time until the System shuts off

Press the [SLEEP] button once.

The remaining time is displayed for 5 seconds.

Setting the daily timer

Using the daily timer (Playback timer), you can wake up with your favorite music.

By setting the daily timer, the System turns on automatically one minute before the daily timer starts.

NOTE

• Set the clock before setting the recording timer. (p. 12)
• Tune into a DAB/FM station, load a disc, or connect a USB device/iPod to the System, and make sure that the source works properly beforehand.
• Preset the desired DAB/FM station before setting the daily timer. (p. 25)
• Daily timer does not work when the power is supplied through the batteries. Supply the power through an AC outlet.

1 Press [CLOCK/TIMER].
2 Press [UP] or [DOWN] repeatedly until "PLAY TMR" appears.

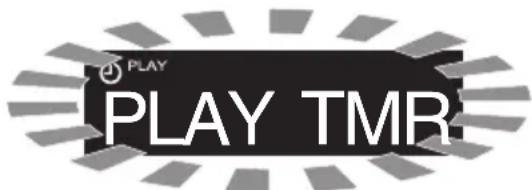

PLAY PLAY TMR

3 Press [SET].
4 Press [UP] or [DOWN] repeatedly until "PLAY SET" appears.
5 Press [SET].

ON 0:00

6 Press [UP] or [DOWN] to adjust the "hour" of the starting time.

- When you press and hold the button, the hour digit changes continuously.

7 Press [SET].

Continue on the next page

8 Press [UP] or [DOWN] to adjust the "minute" of the starting time, the "hour" and "minute" of the ending time, and select the source and the volume.

• Select "DAB", "FM", "CD", "USB", "iPod", or "AUDIO IN" as the source.
• When "DAB/FM" tuner is selected as the source, select a preset number using [UP] or [DOWN] and then press [SET].
• When "CD" or "USB" is selected as the source, select a track number using [UP] or [DOWN] and then press [SET].

9 Press [SET].

After setting up the volume, "PLAY SET" is displayed, followed by the settings in order.

10 Press [⏻/l] to turn off the System.

• The System turns on automatically one minute before the daily timer starts.
• The daily timer works only when the System is turned off.
• While the timer is set, the timer indicator [PLAY] lights up.
• While the timer is working, [PLAY] flashes.
• Once set, the daily timer works every day.
• You cannot set the same time for the starting time and finish time.

NOTE

• To go back to the previous step, press [CANCEL].
• Auto power save function (p. 13) remains active even while the daily timer is working.
• The [SLEEP] button is disabled while the daily timer is functioning.

To cancel the daily timer

After selecting “PLAY TMR” by performing step 1 to 3 in “Setting the daily timer”, select “PLAY OFF”, and then press [SET].

TIMEROFF

To set the daily timer with the same settings again after canceling

After selecting “PLAY TMR” by performing step 1 to 3 in “Setting the daily timer”, select “PLAY ON”, and then press [SET].

"TIMER ON" is displayed, followed by the settings.

Setting the recording timer

You can set the recording timer for DAB/FM stations or an external device.

By setting the recording timer, the System turns on automatically one minute before the recording timer starts.

NOTE

• Set the clock before setting the recording timer. (p. 12)
• Check the reception of the DAB/FM station and the connection of the external device before setting the recording timer.
• Preset the desired DAB/FM station before setting the recording timer. (p. 25)
• Connect the USB device to the unit before setting the recording timer.
• The recording timer does not work when the power is supplied through the batteries. Supply the power through an AC outlet.

1 Press [CLOCK/TIMER].

2 Press [UP] or [DOWN] repeatedly until "REC TMR" appears.

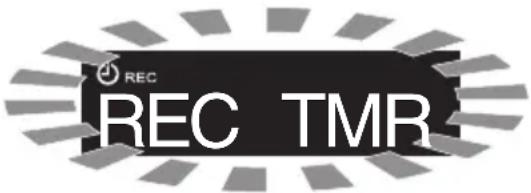

REC REC TMR

3 Press [SET].

4 Press [UP] or [DOWN] repeatedly until "REC SET" appears.

5 Press [SET].

ON 0:00

6 Press [UP] or [DOWN] to adjust the "hour" of the starting time.

• When you press and hold the button, the hour digit changes continuously.
• When you press and hold the [UP] or [DOWN] button, the digit changes continuously.

7 Press [SET].

8 Press [UP] or [DOWN] to adjust the "minute" of the starting time, the "hour" and "minute" of the ending time, and select the source and the volume.

• Select "FM" or "AUDIO IN" as the source.
• When DAB/FM tuner is selected as the source, select a preset number using [UP] or [DOWN] and then press [SET].

9 Press [SET].

After setting up the volume, "REC SET" is displayed, followed by the settings in order.

10 Press [⏻/l] to turn off the System.

• The System turns on automatically and starts recording about one minute before the starting time of the recording timer.
• The "REC" indicator lights while recording.
• The recording timer works only when the System is turned off.
• While the timer is set, the timer indicator [REC] lights up.
• While the timer is working, [ _REC] flashes.
• The recording timer works only once. (However, the settings are stored on the System.)
• You cannot set the same time for the starting time and finish time.

NOTE

• To go back to the previous step, press [CANCEL].
• The [CLOCK/TIMER] and [SLEEP] buttons are disabled while the recording timer is functioning.

To cancel the recording timer

After selecting “REC TMR” by performing Step 1 to 3 in “Setting the recording timer”, select “REC OFF”, and then press [SET].

To set the recording timer with the same setting

After selecting “REC TMR” by performing Step 1 to 3 in “Setting the recording timer”, select “REC ON”, and then press [SET].

"TIMER ON" is displayed, followed by the settings.

Compatible iPod

Made for Version*
iPod nano (7th generation) 1.0.2
iPod nano (6th generation) 1.2
iPod nano (5th generation) 1.0.2
iPod nano (4th generation) 1.0.4
iPod nano (3rd generation) 1.1.3
iPod nano (2nd generation) 1.1.3
iPod touch (5th generation) 7.0.2
iPod touch (4th generation) 6.1.3
iPod touch (3rd generation) 5.1.1
iPod touch (2nd generation) 4.2.1
iPod touch 3.1.3
iPod classic 2.0.4
iPhone 5s 7.0.2
iPhone 5c 7.0.2
iPhone 5 7.0.2
iPhone 4s 7.0.2
iPhone 4 7.0.2
iPhone 3GS 6.1.3
iPhone 3G 5.1.1

* Software version at the time of the operation check.

- A lightning connector is used for the iPod/iPhone dock of the System. Only iPod nano (7th generation), iPod touch (5th generation), iPhone 5s, iPhone 5c, and iPhone 5 support the Lightning connector. iPod/iPhone other than the above mentioned need to be connected to the USB connector.

- Reset your iPod/iPhone if your iPod/iPhone is not playing back correctly. (Please visit Apple's homepage for information about resetting your iPod/iPhone.)

- For details on the iPod/iPhone, check Apple's web site. http://www.apple.com

- To check the latest supporting status of the iPod/iPhone, refer to the product information on our home page.

playable BLUETOOTH devices

- To connect the device to this System via BLUETOOTH, the device must be compatible with the BLUETOOTH 2.1+EDR and the A2DP and AVRCP profiles.

playable discs/files

Discs	AUDIO CD	CD-R	CD-RW
Files	MP3/WMA

- Some MP3/WMA files may not be played back and will be skipped. This results from their recording processes and conditions.

- When making MP3/WMA discs, use ISO 9660 Level 1 for the disc format.

- This system can play back MP3/WMA recorded at the following sampling frequency and bitrate.

Bitrate:

MP3

32 kbps - 320 kbps

WMA

32 kbps - 320 kbps

Sampling frequency:

32/44.1/48 kHz

- This System cannot play "packet write" discs.

- The System can display ID3 TAG VERSION1,2 (song title, artist and album name), names of the files and folders (alphanumeric characters only, lowercase letters are displayed as uppercase letters).

- Up to 128 characters can be displayed.

- This System can recognize up to 99 folders and 999 files on a disc, and up to 300 folders and 999 files on a USB device.

Important for USB mass storage class devices

For connecting/disconnecting:

• Disconnect the USB device after stopping playback. Disconnecting the USB device during recording/playback may cause some problem of the USB device and its files.
• When connecting with a USB cable, use a USB 2.0 cable less than 1 m in length.
• You cannot connect a computer to the USB MEMORY terminal of the System.
• Do not use a USB hub.
• When the power is supplied through the AC outlet and USB is selected as the source, the USB device is charged through the USB MEMORY terminal.
• Deactivate the security function of the USB device before connecting.

For playing back:

• The playing order of MP3/WMA files

• Groups are played in creation order. In a group, tracks are played in recording order.

• The playing order may change if you change a folder name or file name on the PC.

• You cannot play back a file larger than 2 Gigabytes.

• It is recommended to use USB mass storage class devices that are less than 32 GB.
• If your USB device is partitioned, only the first partition is recognized.
• Some USB devices may not be recognized or may not work properly.
  • Copyrighted tracks (WMA-DRM tracks) cannot be played back on the System.
• Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this System and the USB device.
• JVC bears no responsibility for any loss of data on the USB mass storage class device while using this System.

Recorded files created on the System

• Recorded files that are created on the System are MP3 format with a bitrate of 192 kbps.
• A “MUSIC” folder is created automatically in the USB device, and the MP3 files are created in the folder as follows:

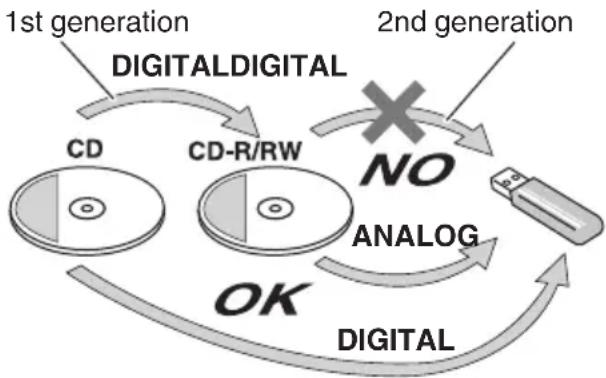

About SCMS (Serial Copy Management System)

The System uses the Serial Copy Management System which allows only first-generation digital copies to be made of premastered software such as regular CDs. If you try to record from a duplicated CD-R or CD-RW onto a USB device, "SCMS ERR" appears on the display.

It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and any literary, dramatic, musical, or artistic work embodied therein.

Maintenance

To get the best performance of the System, keep your discs and mechanism clean.

Handling discs

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.
• Do not touch the shiny surface of the disc, or bend the disc.
• Put the disc back in its case after use.
• Be careful not to scratch the surface of the disc when placing it back in its case.
• Avoid exposure to direct sunlight, temperature extremes, and moisture.

Cleaning discs

- Wipe the disc with a soft cloth in a straight line from center to edge.

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System is heavily stained, wipe it with a cloth soaked in water-diluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following:

• DO NOT wipe it hard.

• DO NOT wipe it with thinner or benzine.
• DO NOT apply any volatile substances such as insecticides to it.
• DO NOT allow any rubber or plastic to remain in contact for a long time.

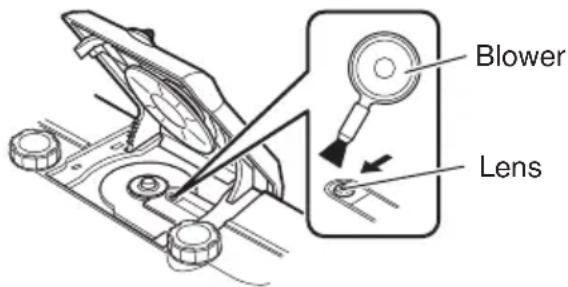

Cleaning the CD pickup lens

- Keep the CD pickup lens clean, or the sound may be degraded. Use a blower (available at a camera store, etc.) to blow dust off the lens.

Blower Lens

Trademarks

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license.
  • Android is a trademark of Google Inc..

Troubleshooting

If you are having a problem with your System, check this list for a possible solution before calling for service.

If the following measures do not resolve the problems:

The System works using a built-in microprocessor. If buttons are not operative, disconnect the AC power cord from the wall outlet, wait for a while, then connect the cord again.

General

Power does not come on.

→ No power is supplied. Check the power cord connection or change the batteries.

The System turns off automatically.

→ Auto power save function is functioning. (p. 13)

Adjustments or settings are suddenly canceled before you finish.

→ There is a time limit. Repeat the procedure.

While the power is supplied using the batteries, sound from the speakers is distorted or too quiet.

→ Batteries are exhausted. Change the batteries.

Unable to operate the System from the remote control.

→ The path between the remote control and the remote sensor on the System is blocked.
→ The batteries are exhausted.

No sound is heard.

→ Adjust the volume.
→ Headphones are connected.

iPod Operations

iPod does not play.

→ Connect the USB cable correctly.
→ Check the compatibility of your iPod. (p. 39)
→ The battery of iPod is low or exhausted. Charge the battery of iPod.

→ Reset your iPod after disconnecting from the System, and unplug the power of the System and plug in again. (Please visit Apple's homepage for further information on resetting your iPod.)

BLUETOOTH Operations

Unable to pair.

→ Set the System in pairing standby, and perform pairing from the target device, such as a smartphone. (p. 17)

Unable to connect to BLUETOOTH device.

→ Check that the BLUETOOTH function of your BLUETOOTH device is set to ON.
→ Your device does not support A2DP. A2DP profile is necessary to stream music data. Refer to the instruction manual of the BLUETOOTH device.

Unable to operate BLUETOOTH device.

→ Your device does not support AVRCP. To operate the BLUETOOTH device from the System, AVRCP is required. Refer to the instruction manual of the BLUETOOTH device.

The sound is choppy. Noise is generated.

The System is out of the BLUETOOTH range limitation, or there may be an equipment interfering with the radio waves between the System and the BLUETOOTH device. Try placing the BLUETOOTH device nearer to the System, or change location.

Disc/USB Mass Storage Class Device Operations

The disc/USB device does not play.

→ The disc is placed upside down. Place the disc with the label side facing up.
→ The disc is scratched or dirty.
The disc is recorded with the “packet writing (UDF file unit)”. It cannot be played. Check the files you want to play back.
→ The USB device is not connected properly.

MP3/WMA groups and tracks are not played back as you expect.

→ Playing order may change if you edit a file name on the PC.

The disc sound is discontinuous.

→ The disc is scratched or dirty.
→ Play MP3/WMA files that are properly written.

Sounds from USB device are interrupted.

→ Noise and static electricity may stop the sound. In this case, disconnect and connect the USB device again after turning off the System.

Radio Operations

Hard to listen to broadcasts because of noise.

→ The DAB/FM antenna is not properly extended and positioned.

Recording Operations

Unable to record.

→ There is not enough free space in the USB device.
→ Disable the write protection of the USB device.
→ Digital recording is prohibited due to SCMS. Perform analog recording. (p. 40)

Timer Operations

Unable to set the sleep timer

→ Timer or recording timer is working. Turn off the timer. During timer/recording timer is working, sleep timer does not work.

Daily timer does not start working.

The clock needs to be set. Clock setting is canceled when the AC power cord is unplugged from the AC outlet, causing the daily timer to stop functioning.
The System is turned on when the on-time comes. Timer starts working only when the System is turned off.

Recording timer does not function.

→ The System is turned on. Recording timer starts working only when the System is turned off.
The System is turned on when the on-time comes. Recording timer starts working only when the System is turned off.

Specifications

Disc player

CD capacity: 1CD

Signal-to-noise ratio: 85 dB

Dynamic range: 90 dB

Tuner

DAB tuning range

• BAND III: 174.928 MHz - 239.200 MHz

FM tuning range: 87.50 MHz – 108.00 MHz

Antenna: Telescopic antenna

BLUETOOTH

BLUETOOTH version: BLUETOOTH 4.0 + EDR certified

Output power: 2.5 mW (MAX), Power

Service area: max. 10 m (10.9 yd.)*

* Communication range may vary depending on the environmental conditions.

Frequency band: 2.402 GHz - 2.480 GHz

BLUETOOTH profile: A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile)

General

Speakers:

• Full range: 8 cm cone × 2

Speaker impedance: 16 Ω

• Super woofer: 13 cm cone × 2

Speaker impedance: 7 Ω

Output power: 40 W

Input terminal

• USB MEMORY: Playable files:

MP3, WMA

- Compatible with USB 2.0 Full-Speed

- Compatible device: Mass storage class

- Compatible system: FAT16, FAT32

• Output power: DC 5 V —— 1A

- Dock for iPod:

DC 5 V 1 A

• AUDIO IN: φ3.5

Input Sensitivity /Impedance (1 kHz):	• LEVEL 1: 500 mV /47 kΩ
	• LEVEL 2: 250 mV /47 kΩ
	• LEVEL 3: 125 mV /47 kΩ
• MIC/GUITAR:	• MIC: 200 Ω - 2 kΩ (φ6.3)
	• GUITAR: 100 kΩ - 1 MΩ (φ6.3)

Output terminal

- PHONES: 3.5

32 Ω - 1 kΩ

15 mW/ch output into 32 Ω

Power supply

• AC: AC 230 V ∼, 50 Hz
• DC: DC 15 V (R20(SUM-1)/D (13D)-size batteries x 10)

Power consumption: 28 W (when powered on)

3.0 W or less (during BLUETOOTH standby)

0.50 W or less (during standby)

Dimensions: 666 mm × 235 mm × 248 mm (W x H x D)

Mass: 7.1 kg (without batteries stored in the battery compartment)

Design and specifications are subject to change without notice.

JVC

CD-SYSTEM MIT POWER WOOFER

RV-NB100B

Line drawing of a JVC portable radio with control panel and buttons (no text or symbols)

MP3/WMA

Made for iPod iPhone

BEDIENUNGSANLEITUNG

Einleitung

Illustration of a portable electronic device with two dials and musical notes (no text or symbols)

Diagram showing connections between a guitar, microphone, and electronic device (no text or symbols)

Inhalt

Einleitung 2

Vorbereitung 3

⑳ REPEAT-Taste (S. 16, 22)

②1 MUTING-Taste (S. 12)

② REC MODE-Taste (S. 32)

②3 VOLUME +/- -Taste (S. 12)

⑳ SUPER WOOFER VOLUME +/- -Taste (S. 12)

Verbindungen

Diagram showing two labeled components: component 1 with an arrow pointing to a rectangular button, and component 2 connected to a USB cable.

Track 01 00:15 Track 01

FRESET CM 81 FM 87.50 MHz + Auto Volume FMS Control

Line drawing of a portable electronic device with two circular ports and a antenna (no text or symbols)

SUPER WOOFER VOLUME

(Drehen)

REC/DELETE PUSH SET

REC REC TMR

It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and any literary, dramatic, musical, or artistic work embodied therein.

Wartung

CHAIN CD A WOOFER AMPLIFIE

RV-NB100B

Line drawing of a JVC radio console with control panels and dials (no text or symbols)

MP3/WMA

Made for iPod iPhone

MANUEL D'INSTRUCTIONS

Introduction

Front view of a smartphone with blank screen (no visible text or symbols)

P.14

Illustration of a portable electronic device with two dials and musical notes (no text or symbols)

• TUNER, USB/iPod ▶/II, CD ▶/II,

iPod ▶/II, AUDIO IN,

⑥ Touche FM MODE (p. 25)

⑦ Touche PLAY MODE (p. 16, 22)

⑧ Touche REC/DELETE (p. 31 - 34)

⑨ Touche REC SPEED (p. 30)

⑩ Touche TREBLE+/- (p. 13)

⑪ Touche BASS+/- (p. 13)

⑫ Touche STANDBY/ON ⏻/I (p. 12) (Touche Alimentation)

⑬ Touche DISPLAY (p. 12, 13)

⑭ Touche SLEEP (p. 35)

⑰ Touche CANCEL (p. 22, 36, 38)

⑱ Touche PTY SEARCH/■ (p. 20, p. 17 - p. 33)

⑲ Touche SOUND MODE (p. 13)

⑳ Touche REPEAT (p. 16, 22)

②1 Touche MUTING (p. 12)

②2 Touche REC MODE (p. 32)

②3 Touche VOLUME +/- (p. 12)

⑳ Touche SUPER WOOFER VOLUME +/- (p. 12)

Connexions

Circular mechanical component diagram with six symmetrical slots and a central hole, no text or symbols present.

Diagram showing two labeled components (1 and 2) connected to a cable, likely illustrating a device or connector assembly.

Cordon USB (non fourni) Mémoire USB (non fourni)

ATTENTION

Line drawing of a portable electronic device with two front panels and a central hub (no text or symbols)

"LEVEL1" → "LEVEL2" → "LEVEL3" → (retour au début)

SUPER WOOFER VOLUME

(touner)

REC/DELETE PUSH SET

SLEEP SLEEP 10

REC REC TMR

- “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

- iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Dimensions: 666 mm × 235 mm × 248 mm (L x H x P)

Line drawing of a JVC portable radio with control panel and buttons (no text or symbols)

MP3/WMA

Made for

iPod iPhone

Bluetooth®

GEBRUIKSAANWIJZING

Introductie

Illustration of a portable electronic device with two dials and musical notes (no text or symbols)

Diagram showing connections between a microphone, an electric guitar, and a device labeled P28 (no text or symbols on components)

Inhoudsopgave

Introductie 2

Voorbereiding 3

Diagram showing two labeled components: component 1 with a cylindrical tube and component 2 with a rectangular connector, connected to an attached USB cable.

Druk op [CD ▶/II] of [USB/iPod ▶/III].

of

-->P-01 PRGM

Vastleggen van services

U kunt maximaal 30 DAB services als voorkeurzenders handmatig vastleggen.

1 Stem af op de service die u als voorkeurzender wilt instellen.
2 Druk op [SET].

DABP-01

Line drawing of a portable electronic device with two circular ports and a antenna (no text or symbols)

De basisinstelling is "LEVEL3".

SUPER WOOFER VOLUME

(Draaien)

REC/DELETE PUSH SET

Wissen is in stand-by.

4 Druk op [SET] of [REC/DELETE].

SLEEP SLEEP 10

REC REC TMR

• Microsoft en Windows Media zijn geregistreerde handelsmerken of handelsmerken van Microsoft Corporation in de Verenigde Staten en/of andere landen.
• “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• De term Bluetooth en de bijbehorende markeringen en logo's zijn geregistreerde handelsmerken en eigendom van Bluetooth SIG, Inc. en JVC KENWOOD Corporation gebruikt deze onder licentie.
• Android is een handelsmerk van Google Inc..

SISTEMA POWERED WOOFER CD

RV-NB100B

Line drawing of a JVC portable radio with control panel and buttons (no text or symbols)

MP3/WMA

Made for

iPod

iPhone

Bluetooth®

ISTRUZIONI

Introduzione

Illustration of a portable electronic device with two front panels and a central control panel, featuring musical notes (no text or symbols)

Diagram showing connections between a microphone, an electric guitar, and a portable electronic device (no text or symbols present)

Pag. 28

Indice

Introduzione 2

Preparazione .... 3

Diagram showing two labeled components (1 and 2) of a device's cable or connector, with arrows indicating direction of movement.

Line drawing of a portable electronic device with two circular ports and a antenna (no text or symbols)

SUPER WOOFER VOLUME + - -

(Ruotare)

SLEEP SLEEP 10

REC REC TMR

3 Premere [[SET]].

• Microsoft e Windows Media sono marchi registrati o marchi di fabbrica Microsoft Corporation negli Stati Uniti e/o in altri Paesi.
• “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• Il termine e i loghi Bluetooth® sono marchi di fabbrica registrati di Bluetooth SIG, Inc. e l'uso di tali marchi fatto da JVC KENWOOD Corporation è concesso in licenza.
• Android è un marchio di fabbrica di Google Inc..
