Brand	Bynolyt
Model	Sparrow WPR 10x32
Product type	Binoculars
Magnification	10x
Objective lens diameter	32 mm
Focusing	Central with diopter adjustment on right eyepiece
Diopter adjustment	Adjustment ring on right eyepiece
Interpupillary distance	Adjustable via central hinge
Eyepieces	With foldable rubber eyecups for glasses
Minimum focusing distance	Depends on model specifications
Dimensions (approx.)	130 x 120 x 50 mm
Weight (approx.)	550 g
Power supply	None (passive optics)
Housing material	Rubber and metal
Included accessories	Case, lens caps, cleaning cloth, strap
Optional accessories	Harness, tripod adapter, Telebackpack, lens pen
Maintenance	Clean lenses with cloth and specific liquid
Safety	Never look directly at the sun
Warranty	25-year extension for models >€150 after registration
Repairability	Spare parts available via after-sales service

Frequently Asked Questions - Sparrow WPR 10x32 Bynolyt

How to adjust the diopter on Bynolyt Sparrow WPR 10x32 binoculars?

To adjust the diopter, start with the left eyepiece: cover the right eyepiece, focus on an object at 100 m using the central wheel. Then look through the right eyepiece and turn the diopter adjustment ring (located on the right eyepiece) until the image is sharp, without touching the central wheel.

What is the minimum focusing distance of the 10x32 binoculars?

The minimum focusing distance depends on the optical characteristics of the model. For the Sparrow WPR 10x32, it is generally about 2 to 3 meters. Check the manual for the exact value.

Can I use these binoculars with glasses?

Yes. The eyepieces are equipped with foldable rubber eyecups. For glasses wearers, fold down the eyecups to bring your eyes closer to the eyepieces and enjoy the full field of view.

How to clean the lenses of the binoculars?

First use a brush or lens pen to remove dust. Then moisten the provided cloth with a specific cleaning liquid (lensclean) and gently wipe the lenses in circular motions. Never use solvents.

What is the interpupillary distance adjustment?

The central hinge allows adjustment of the distance between the two tubes. Spread or bring the binoculars closer until you see a single round and sharp image. This should be done after diopter adjustment.

What accessories are available for these binoculars?

Bynolyt offers a harness (prevents binoculars from dangling), a tripod adapter, a Telebackpack (backpack for tripod), and a lens pen with sponge and brush.

How does the warranty for Bynolyt binoculars work?

Manufacturing defects are repaired free of charge during the warranty period. By registering your binoculars, you get a 25-year extension for models worth over €150. Present the warranty card and receipt.

How to store the binoculars after use?

Always store the binoculars in the provided case, with lens caps on the eyepieces and objectives. Avoid humid and sandy environments. Clean them before storing if necessary.

Is it dangerous to look at the sun with binoculars?

Yes, absolutely. Never look in the direction of the sun, even briefly, as it can cause serious and irreversible eye damage. Only use appropriate solar filters if observing eclipses.

What is the difference between Dakkant and Porro models?

These terms refer to the prism type. Roof prisms (Dakkant) make binoculars more compact, while Porro prisms offer better contrast and a wider field of view, but a bulkier design. The Sparrow WPR is a roof prism model.

USER MANUAL Sparrow WPR 10x32 Bynolyt

Diagram of a human eye with lens system, showing light path and focal point (no text or labels)

Black binoculars with red warning labels, resting on green foliage (no text or symbols visible)

1. OCULAIR (LINKS)
2. OCULAIR INSTELRING
   3.SCHERPSTEL KNOP

BRILDRAGERS

Black tactical vest with straps and straps, no visible text or symbols

Three black electronic devices: a flat shaper, a pen-like tool with a red button, and a cylindrical device (no visible text or symbols)

Close-up of a black binoculars on a checkered shirt (no visible text or symbols)

bynolyt

Garantie

Congratulations on the purchase of your Bynolyt binoculars. Bynolyt is a Dutch brand and guarantees quality and many years of viewing joy!

This manual applies to all Bynolyt roof prism and porro prism models.

Technolyt®

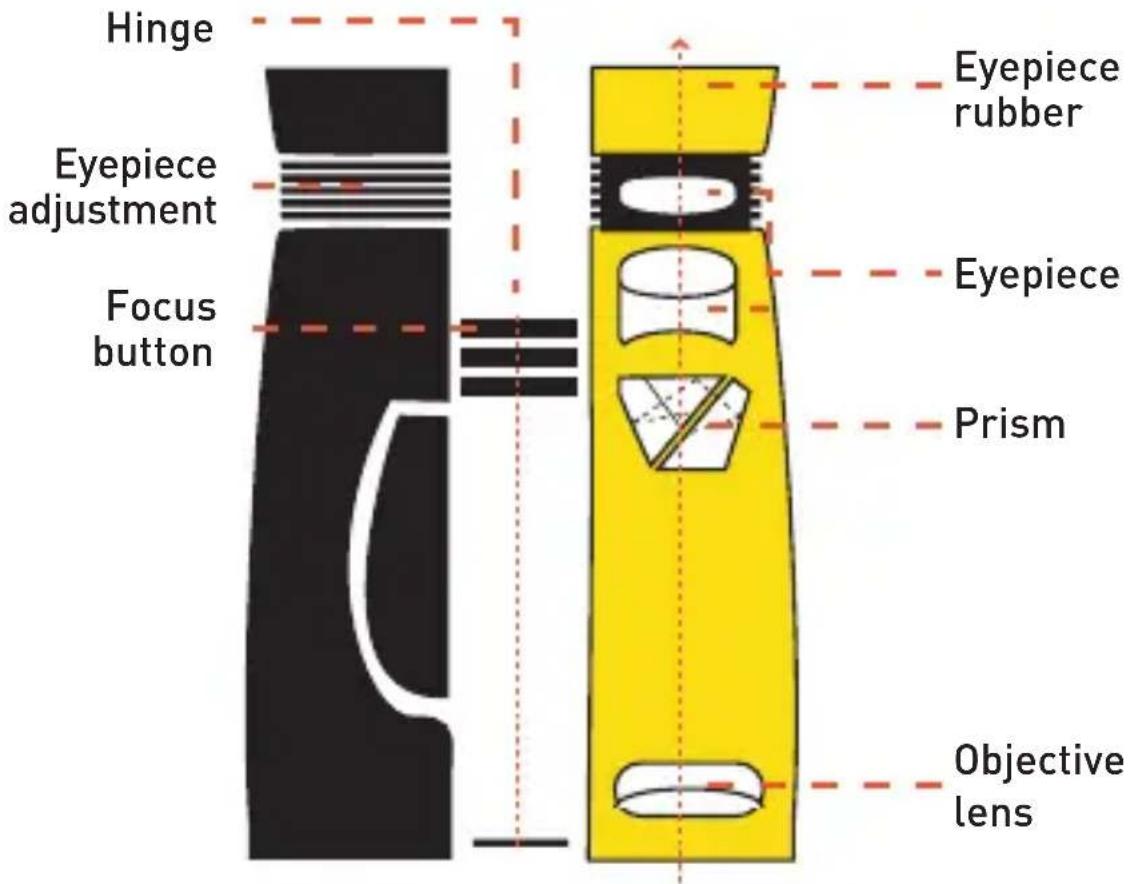

Hinge Eyepiece adjustment Focus button Eyepiece rubber Eyepiece Prism Objective lens

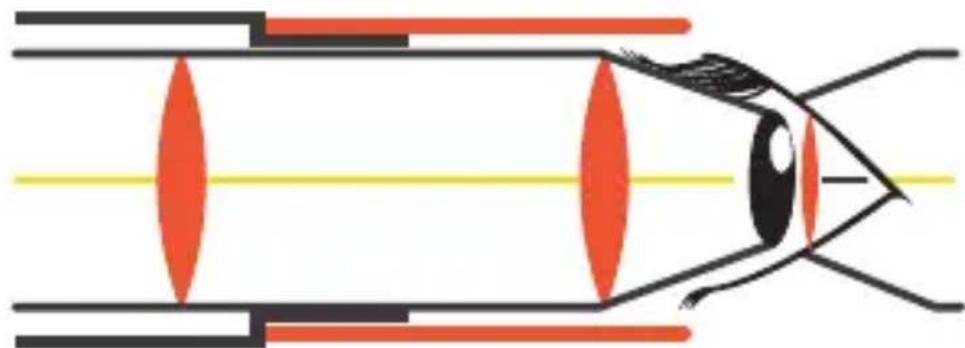

FOCUSSING

Every* pair of binoculars has a central focussing button*. In addition, there is a provision for setting the difference in dioptres between the left and the right eye. This dioptre setting only has to be set once (for multiple users, it will need to be reset). With the central focus button you can then focus on any object.

* : Except for Fixed Focus and Individual Ocular Focus models.

Diagram of a human eye with lens system, showing light path and focal point (no text or labels)

PUPIL DISTANCE

For setting the pupil distance, the binoculars have a hinged middle section. When the binoculars are set optimally, you will have one complete image.

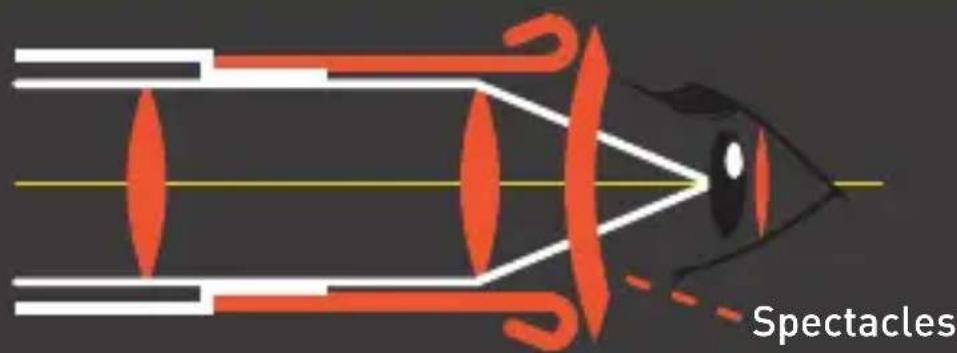

Spectacles

The eyepieces have rubbers, which offer you the option to increase or decrease the distance from your eye to the eyepiece. This feature is included to provide optimum viewing with the binoculars.

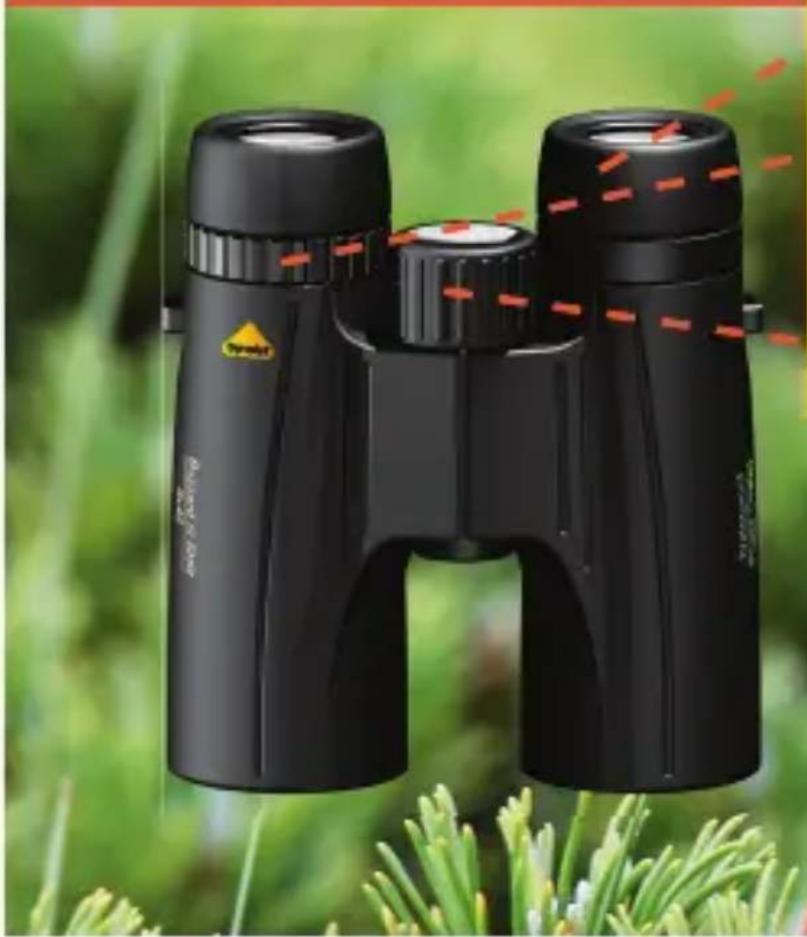

SETTING FOR FIRST USE

Setting the binoculars for first use is done in two steps:

Black binoculars with red warning labels, resting on green foliage (no text or symbols visible)

1. EYEPIECE (LEFT)
2. EYEPIECE ADJUSTMENT RING
3. FOCUSBUTTON

SPECTACLE WEARERS

For people who wear spectacles, the eyepiece rubbers can be turned in, pushed in or folded back. This makes it possible to use the complete angle of the binoculars. The transition from the image to the edge is sharp in a properly set pair of binoculars. If the image is black sometimes, or the edges are vague, you need to adjust the eyepiece rubbers.

**: Exception Tern and Stork. For these binoculars, you must pull out the central focus ring for dioptres. ATTENTION!!: this is for the left eye in the Tern. The procedure for setting is exactly the opposite as what is described above.

The first setting is on the left eyepiece**

(1). Point the binoculars to an object approx. 100 meters from where you are. While looking through the left eyepiece, cover the right barrel with your hand to prevent distraction. Now focus on the object, using the central focus button (3).

Then look at the same object through the right eyepiece and set it with the eyepiece adjustment ring (2)**. (Make sure the central focus button is not turned). If you wish, you may cover the left barrel.

As soon as the image is sharp, the binoculars are set for your eyes. (For multiple users, the dioptres must be adjusted each time.) You can now focus on any object with the central focus button.

Binoculars always have a minimum focus distance. The minimum focus distance depends on the specifications of your binoculars.

ACCESSOIRES

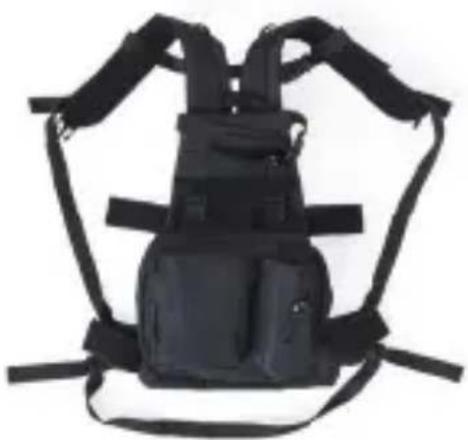

Telebackpack

A handy backpack you can use to bring your tripod and telescope with you very easily without having to continuously dismantle them. By attaching the legs of the tripod to the backpack with a Velcro fastening, you can put the whole thing on your back at once. While observing, the Telebackpack does not have to be taken off the tripod. Two big lockable pockets provide spaces for your camera, lunch, etc.

Black athletic backpack with straps and straps, no visible text or symbols

Three black electronic devices: a flat shaper, a pen-like tool with a red button, and a cylindrical device (no visible text or symbols)

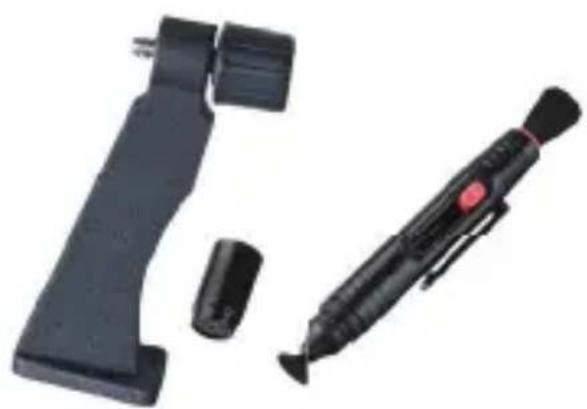

Tripod adapters and Lenspen (with sponge and brush)

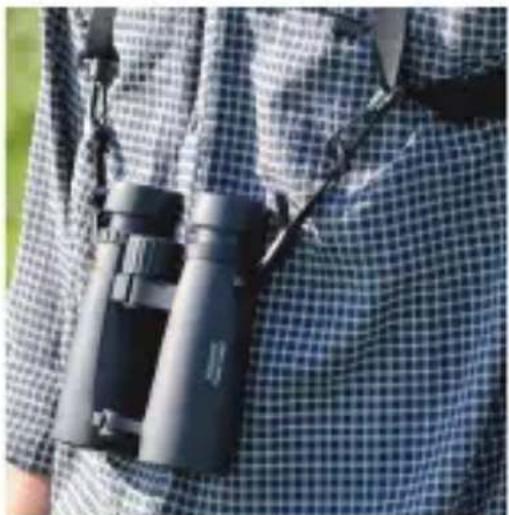

BINOCULAR HARNESS

With this convenient harness, you will never again be bothered by dangling binoculars. For example, you can ride your bike without the binoculars moving back and forth. But the binoculars are always ready for use!

Close-up of binoculars on a checkered shirt (no visible text or symbols)

bynolyt

Warranty

Every pair of Bynolyt binoculars and every Bynolyt telescope that shows manufacturing and/or material flaws, will be repaired FREE OF CHARGE within the warranty term. Warranty is provided only if the binoculars or telescope has a valid proof of warranty and proof of purchase. Please refer to the definitions on the warranty card for the terms and conditions. If you register the binoculars or telescope, you automatically extend the warranty to 25 years (only applies to models over € 150.00).

MAINTENANCE

Your binoculars are a high-quality optical instrument, which protects you from blows, falling, constriction and a sandy-moist environment. After using your binoculars, store them in their case and use the protective caps if appropriate***. To clean the lens parts of your binoculars, you can use the lens tissue included. You may moisten it with its own the lens cleaner fluid. It is recommended to remove grains of sand and such with a lenspen or brush.

***The protective caps are often part of the packaging material and are not always available separately as a service item.

WARNING!

NEVER LOOK DIRECTLY INTO OR TOWARDS THE SUN! THIS MAY CAUSE SERIOUS AND IRREPARABLE DAMAGE TO YOUR EYES.
