Stork 8x42 - Binoculars Bynolyt - Free user manual and instructions

Technical Features	Bynolyt Stork 8x42 binoculars, 8x magnification, 42 mm objective lens diameter, roof prism, multi-coated lenses.
Usage	Ideal for nature observation, hiking, and sporting events. Designed for outdoor use with a good grip.
Maintenance and Repair	Clean the lenses with a soft cloth, avoid harsh chemicals. In case of issues, contact an authorized repair service.
Safety	Do not look directly at the sun through the binoculars. Keep out of reach of children. Use a harness or strap to prevent drops.
General Information	Lightweight, robust construction, waterproof and fog-resistant, manufacturer warranty included.

Frequently Asked Questions - Stork 8x42 Bynolyt

How do I clean the lenses of the Bynolyt Stork 8x42 binoculars?

Use a clean, dry microfiber cloth to gently wipe the lenses. Avoid using chemical or abrasive cleaners.

Are the Bynolyt Stork 8x42 binoculars waterproof?

Yes, the Bynolyt Stork 8x42 are designed to be waterproof and fog-resistant, making them ideal for outdoor use.

What is the minimum focusing distance of the binoculars?

The minimum focusing distance of the Bynolyt Stork 8x42 is 2.5 meters.

How do I adjust the diopter on the Bynolyt Stork 8x42 binoculars?

Use the diopter adjustment wheel located on the right eyepiece to adjust focus according to your vision. Look through the left eyepiece and adjust until the image is sharp.

Do the Bynolyt Stork 8x42 binoculars come with a warranty?

Yes, the Bynolyt Stork 8x42 binoculars are generally covered by a 2-year warranty against manufacturing defects. Please consult your manual for specific details.

Can I use the Bynolyt Stork 8x42 binoculars with glasses?

Yes, the Bynolyt Stork 8x42 are equipped with eyepieces that allow for vision correction with glasses. Simply adjust the interpupillary distance for better comfort.

What are the size and weight of the Bynolyt Stork 8x42 binoculars?

The Bynolyt Stork 8x42 binoculars weigh approximately 750 grams and measure 150 mm long, 130 mm wide, and 60 mm high.

How can I store my Bynolyt Stork 8x42 binoculars to extend their lifespan?

Store your binoculars in a case when not in use, and keep them in a cool, dry place away from direct sunlight.

Are the Bynolyt Stork 8x42 binoculars suitable for bird watching?

Yes, with 8x magnification and a 42 mm objective lens diameter, the Bynolyt Stork 8x42 are ideal for bird watching and other outdoor activities.

What should I do if the Bynolyt Stork 8x42 binoculars are blurry?

Make sure the lenses are clean and the focus is properly adjusted. Adjust the focus wheel and diopter wheel if necessary.

USER MANUAL Stork 8x42 Bynolyt

Congratulations on the purchase of your Bynolyt binoculars. Bynolyt is a Dutch brand and guarantees quality and many years of viewing joy!

This manual applies to all Bynolyt roof prism and porro prism models.

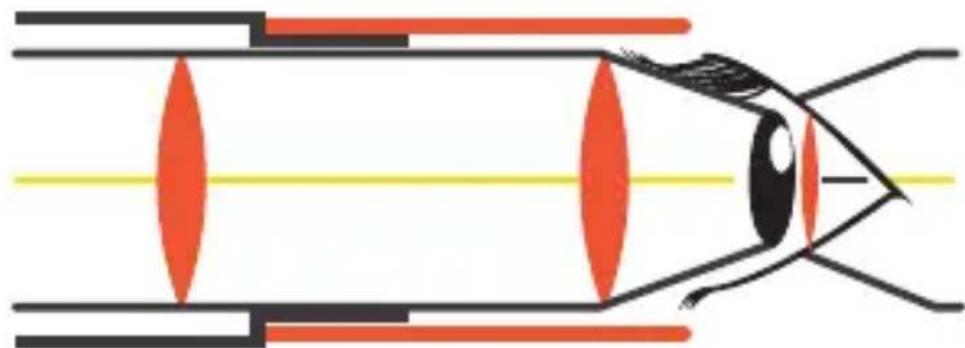

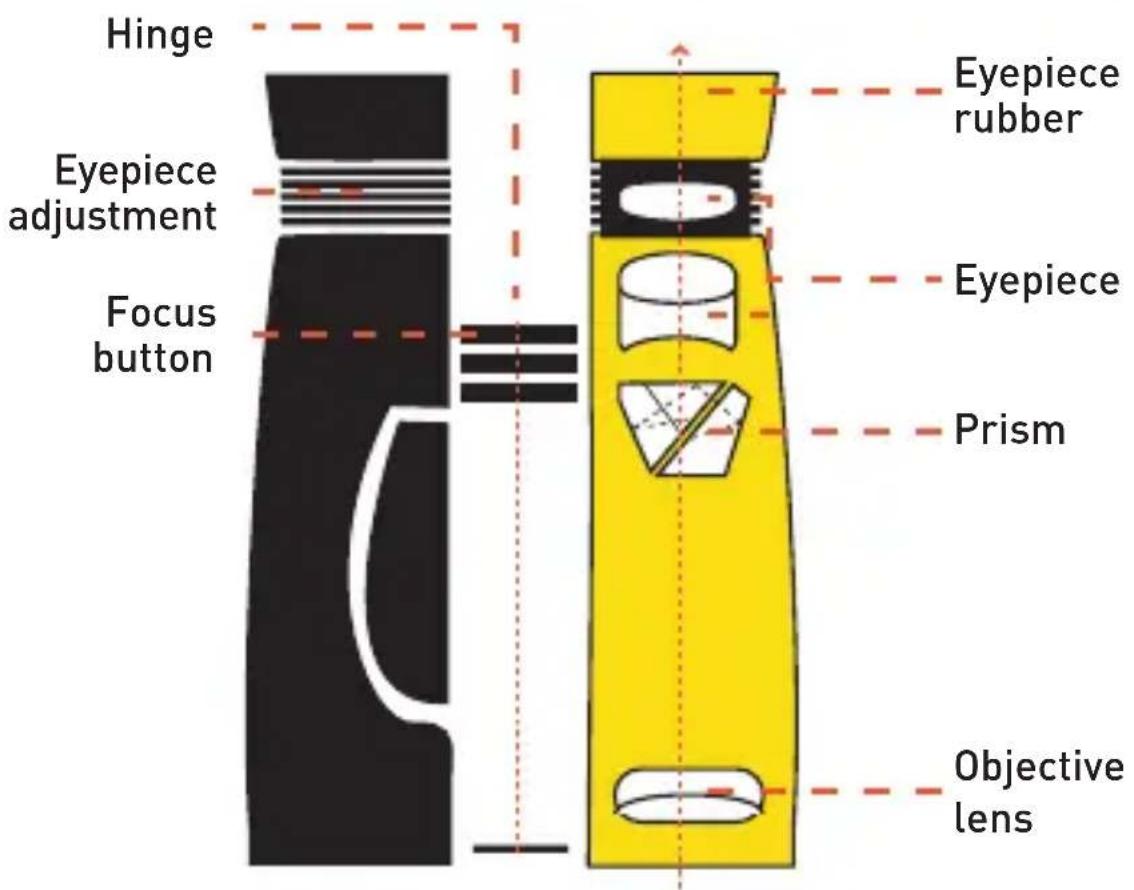

FOCUSSING

Every pair of binoculars has a central focussing button. In addition, there is a provision for setting the difference in dioptres between the left and the right eye. This dioptre setting only has to be set once (for multiple users, it will need to be reset). With the central focus button you can then focus on any object.

*: Except for Fixed Focus and Individual Ocular Focus models.

PUPIL DISTANCE

For setting the pupil distance, the binoculars have a hinged middle section. When the binoculars are set optimally, you will have one complete image.

The eyepieces have rubbers, which offer you the option to increase or decrease the distance from your eye to the eyepiece. This feature is included to provide optimum viewing with the binoculars.

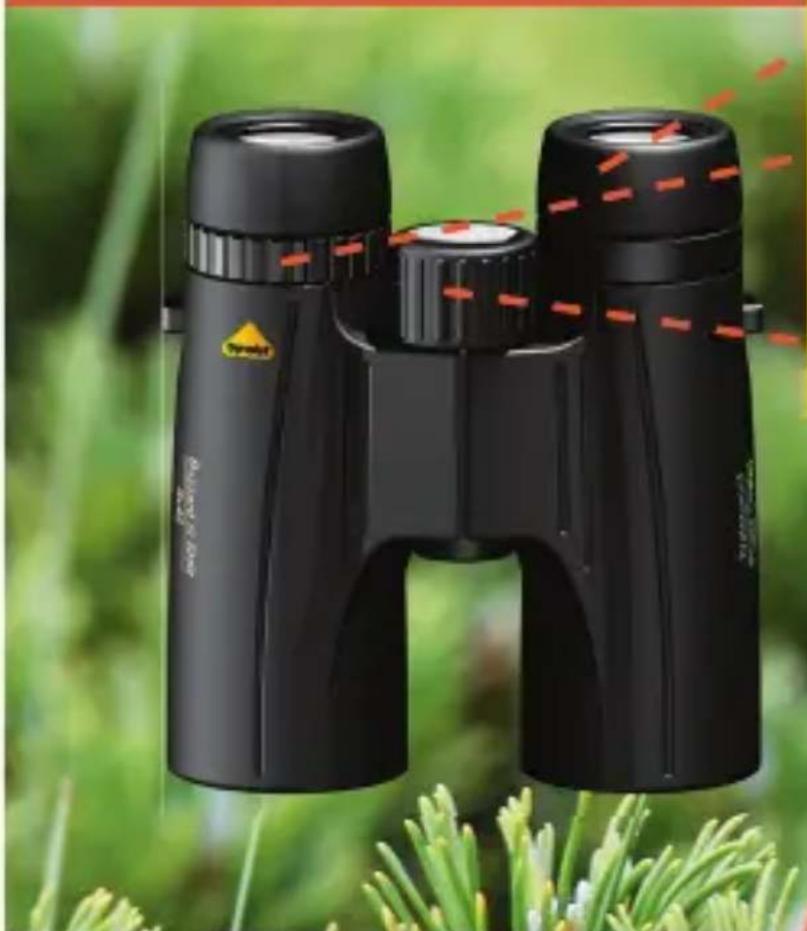

SETTING FOR FIRST USE

Setting the binoculars for first use is done in two steps:

1. EYEPIECE (LEFT)
   2.EYEPIECA ADJUSTMENT RING
2. FOCUSBUTTON

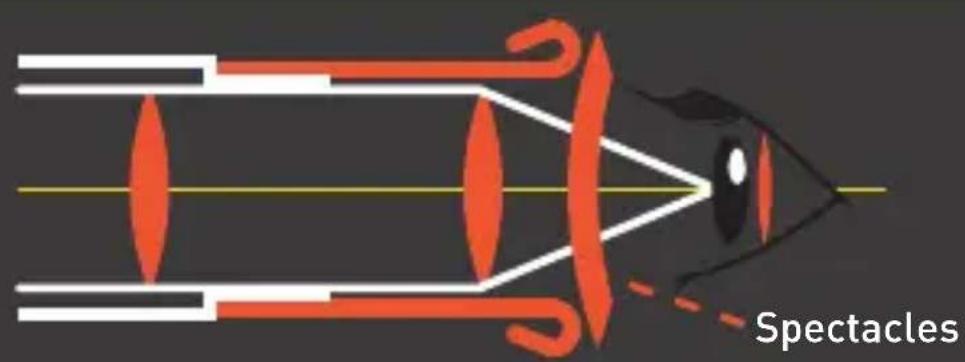

SPECTACLE WEARERS

For people who wear spectacles, the eyepiece rubbers can be turned in, pushed in or folded back. This makes it possible to use the complete angle of the binoculars. The transition from the image to the edge is sharp in a properly set pair of binoculars. If the image is black sometimes, or the edges are vague, you need to adjust the eyepiece rubbers.

**: Exception Tern and Stork. For these binoculars, you must pull out the central focus ring for dioptres. ATTENTION!!: this is for the left eye in the Tern. The procedure for setting is exactly the opposite as what is described above.

The first setting is on the left eyepiece**

(1). Point the binoculars to an object approx. 100 meters from where you are. While looking through the left eyepiece, cover the right barrel with your hand to prevent distraction. Now focus on the object, using the central focus button (3).

Then look at the same object through the right eyepiece and set it with the eyepiece adjustment ring (2)**. (Make sure the central focus button is not turned). If you wish, you may cover the left barrel.

As soon as the image is sharp, the binoculars are set for your eyes. (For multiple users, the dioptres must be adjusted each time.) You can now focus on any object with the central focus button.

Binoculars always have a minimum focus distance. The minimum focus distance depends on the specifications of your binoculars.

ACCESSIONS

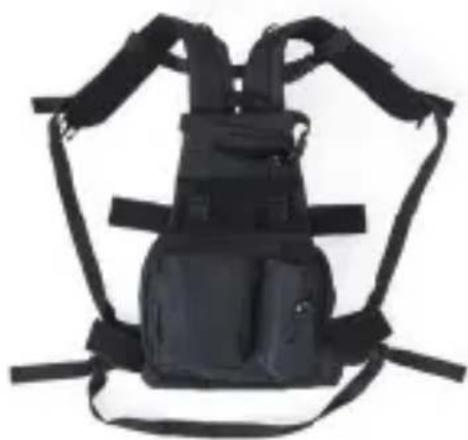

Telebackpack

A handy backpack you can use to bring your tripod and telescope with you very easily without having to continuously dismantle them. By attaching the legs of the tripod to the backpack with a Velcro fastening, you can put the whole thing on your back at once. While observing, the Telebackpack does not have

to be taken off the tripod. Two big lockable pockets provide spaces for your camera, lunch, etc.

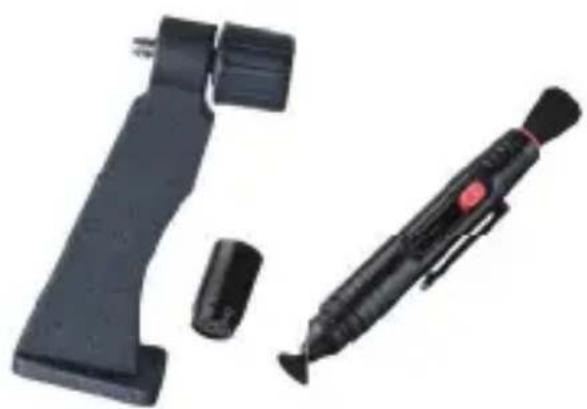

Tripod adapters and Lenspen (with sponge and brush)

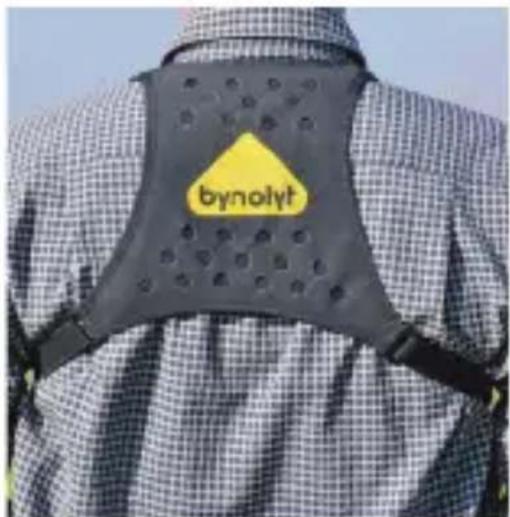

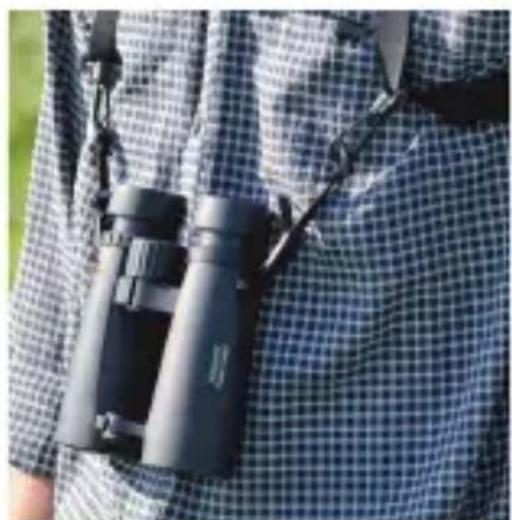

BINOCULAR HARNESS

With this convenient harness, you will never again be bothered by dangling binoculars. For example, you can ride your bike without the binoculars moving back and forth. But the binoculars are always ready for use!

Warranty

Every pair of Bynolyt binoculars and every Bynolyt telescope that shows manufacturing and/or material flaws, will be repaired FREE OF CHARGE within the warranty term. Warranty is provided only if the binoculars or telescope has a valid proof of warranty and proof of purchase. Please refer to the definitions on the warranty card for the terms and conditions. If you register the binoculars or telescope, you automatically extend the warranty to 25 years (only applies to models over € 150.00).

MAINTENANCE

Your binoculars are a high-quality optical instrument, which protects you from blows, falling, constriction and a sandy-moist environment. After using your binoculars, store them in their case and use the protective caps if appropriate***. To clean the lens parts of your binoculars, you can use the lens tissue included. You may moisten it with its own the lens cleaner fluid. It is recommended to remove grains of sand and such with a lenspen or brush.

**The protective caps are often part of the packaging material and are not always available separately as a service item.

WARNING!

NEVER LOOK DIRECTLY INTO OR TOWARDS THE SUN! THIS MAY CAUSE SERIOUS AND IRREPARABLE DAMAGE TO YOUR EYES.
