Sparrow WPR 8x32 - Binoculars Bynolyt - Free user manual and instructions

Product type	Binoculars
Brand	Bynolyt
Model	Sparrow WPR 8x32
Magnification	8x
Objective diameter	32 mm
Prism type	Roof prisms (Dakkant)
Approximate weight	500 g
Focusing	Central with diopter adjustment
Interpupillary adjustment	Central hinge
Eyepieces	Fold-down rubber eyecups for eyeglass wearers
Housing material	Protective rubber
Included accessories	Case, lens caps, strap, cleaning cloth
Warranty	25-year extension possible for models > €150
Maintenance	Cleaning with cloth and lensclean solution
Safety	Never look at the sun
Recommended use	Nature observation, hiking, sports
Manufacturer	Bynolyt (Netherlands)

Frequently Asked Questions - Sparrow WPR 8x32 Bynolyt

How to adjust the binoculars before first use?

Before first use, first adjust the left eyepiece by focusing on an object at 100 m with the central knob, then the right eyepiece with the diopter ring.

How to adjust the diopter for each user?

Turn the adjustment ring on the right eyepiece (or left for some models) to compensate for the difference between your eyes. This adjustment must be redone for each user.

What if I wear glasses?

Fold down or turn the rubber eyecups to bring your eyes closer to the lenses and enjoy the full field of view.

How to maintain the lenses?

Use the included cloth moistened with lensclean solution. First remove sand particles with a stylus or brush.

What accessories are available?

Bynolyt offers a Telebackpack for carrying a tripod and telescope, a harness for carrying binoculars without dangling, and tripod adapters.

What is the warranty on Bynolyt binoculars?

Manufacturing defects are repaired free of charge during the warranty period. By registering the product, you get a 25-year extension for models over €150.

Can I look at the sun with these binoculars?

No, never look at the sun with binoculars, as it can cause irreversible damage to the eyes.

How to adjust the distance between the two barrels?

Fold or spread the two barrels around the central hinge until you get a single circular image.

What is the minimum focusing distance?

The minimum focusing distance depends on the model. It is generally around 2 to 5 meters for 8x32 binoculars.

How to use the included harness?

The harness allows carrying the binoculars close to the body without dangling, ideal for cycling or hiking. Attach it to the lugs on the binoculars and adjust the straps.

USER MANUAL Sparrow WPR 8x32 Bynolyt

Diagram of a human eye with lens system, showing light path and focal point (no text or labels)

Black binoculars with red warning labels, resting on green foliage (no text or symbols visible)

1. OCULAIR (LINKS)

2. OCULAIR INSTELRING

3.SCHERPSTEL KNOP

BRILDRAGERS

Black and white photo of a backpack with straps and straps (no text or symbols visible)

Three black electronic devices: a flat shaper, a pen-like tool with a red button, and a cylindrical device (no visible text or symbols)

Close-up of a black binoculars on a checkered shirt (no visible text or symbols)

bynolyt

Garantie

Congratulations on the purchase of your Bynolyt binoculars. Bynolyt is a Dutch brand and guarantees quality and many years of viewing joy!

This manual applies to all Bynolyt roof prism and porro prism models.

Technolyt®

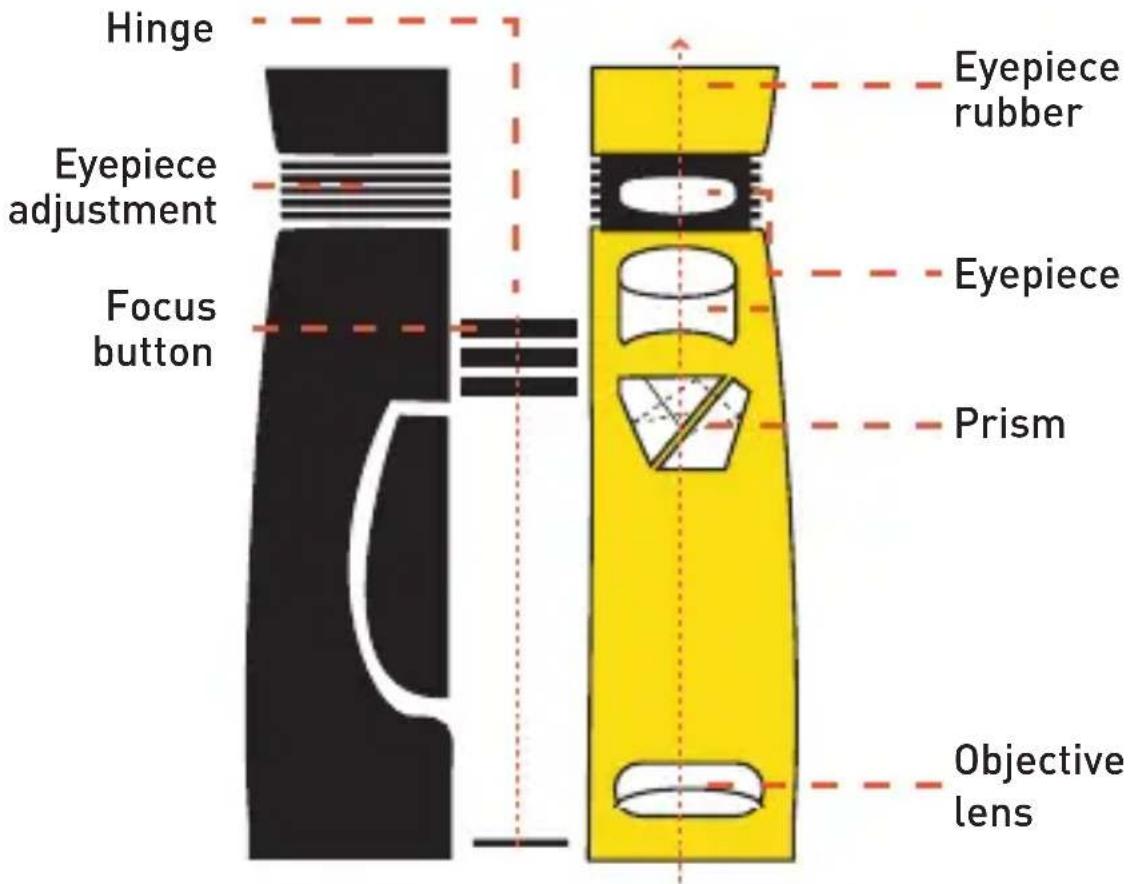

Hinge Eyepiece adjustment Focus button Eyepiece rubber Eyepiece Prism Objective lens

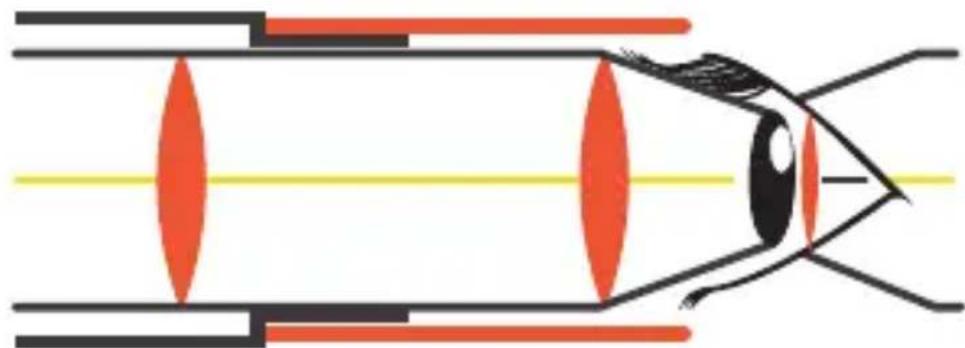

FOCUSSING

Every* pair of binoculars has a central focussing button*. In addition, there is a provision for setting the difference in dioptres between the left and the right eye. This dioptre setting only has to be set once (for multiple users, it will need to be reset). With the central focus button you can then focus on any object.

* : Except for Fixed Focus and Individual Ocular Focus models.

Diagram of a human eye with lens system, showing light path through lenses (no text or labels)

PUPIL DISTANCE

For setting the pupil distance, the binoculars have a hinged middle section. When the binoculars are set optimally, you will have one complete image.

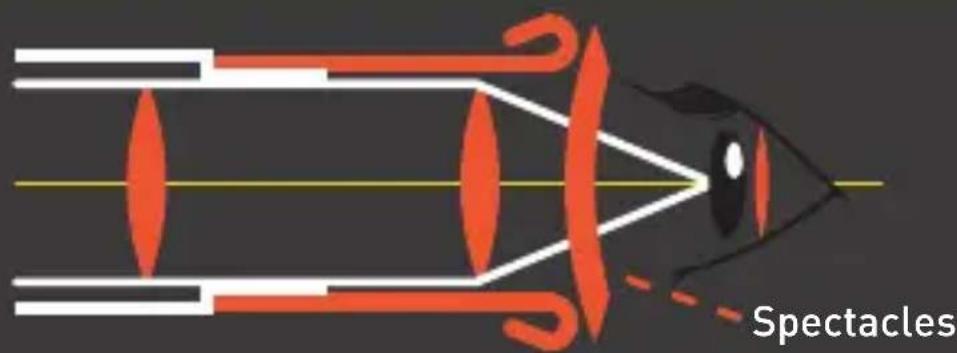

Spectacles

The eyepieces have rubbers, which offer you the option to increase or decrease the distance from your eye to the eyepiece. This feature is included to provide optimum viewing with the binoculars.

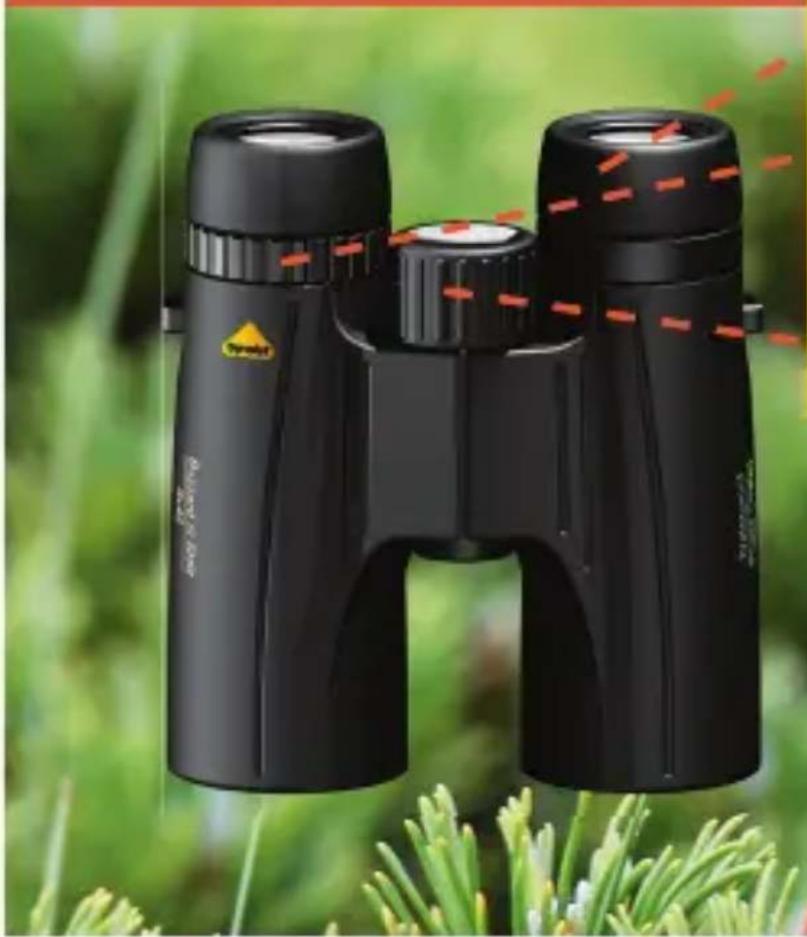

SETTING FOR FIRST USE

Setting the binoculars for first use is done in two steps:

Black binoculars with red warning labels, resting on green foliage (no text or symbols visible)

1. EYEPIECE (LEFT)
2. EYEPIECE ADJUSTMENT RING
3. FOCUSBUTTON

SPECTACLE WEARERS

For people who wear spectacles, the eyepiece rubbers can be turned in, pushed in or folded back. This makes it possible to use the complete angle of the binoculars. The transition from the image to the edge is sharp in a properly set pair of binoculars. If the image is black sometimes, or the edges are vague, you need to adjust the eyepiece rubbers.

**: Exception Tern and Stork. For these binoculars, you must pull out the central focus ring for dioptres. ATTENTION!!: this is for the left eye in the Tern. The procedure for setting is exactly the opposite as what is described above.

The first setting is on the left eyepiece**

(1). Point the binoculars to an object approx. 100 meters from where you are. While looking through the left eyepiece, cover the right barrel with your hand to prevent distraction. Now focus on the object, using the central focus button (3).

Then look at the same object through the right eyepiece and set it with the eyepiece adjustment ring (2)**. (Make sure the central focus button is not turned). If you wish, you may cover the left barrel.

As soon as the image is sharp, the binoculars are set for your eyes. (For multiple users, the dioptres must be adjusted each time.) You can now focus on any object with the central focus button.

Binoculars always have a minimum focus distance. The minimum focus distance depends on the specifications of your binoculars.

ACCESSOIRES

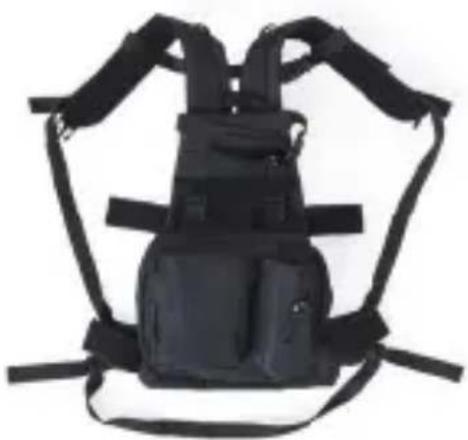

Telebackpack

A handy backpack you can use to bring your tripod and telescope with you very easily without having to continuously dismantle them. By attaching the legs of the tripod to the backpack with a Velcro fastening, you can put the whole thing on your back at once. While observing, the Telebackpack does not have to be taken off the tripod. Two big lockable pockets provide spaces for your camera, lunch, etc.

Black and white photo of a backpack with straps and straps (no text or symbols visible)

Three black electronic devices: a flat shaper, a pen-like tool with a red button, and a cylindrical device (no visible text or symbols)

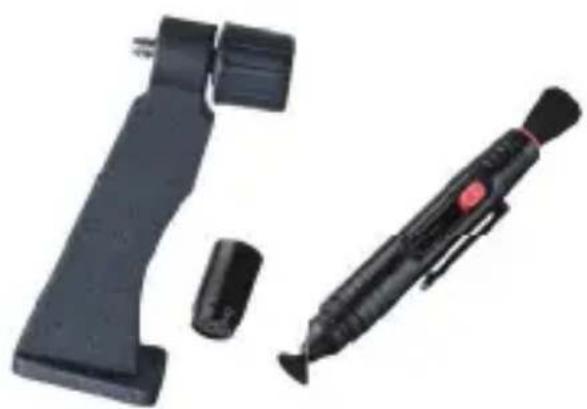

Tripod adapters and Lenspen (with sponge and brush)

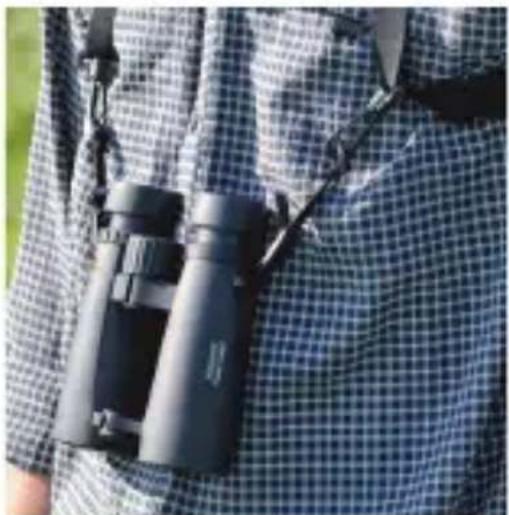

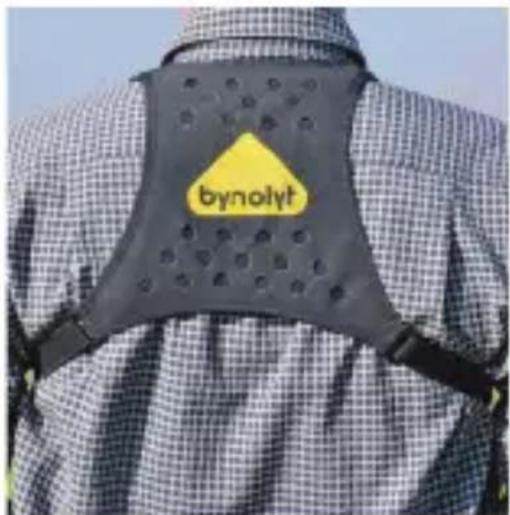

BINOCULAR HARNESS

With this convenient harness, you will never again be bothered by dangling binoculars. For example, you can ride your bike without the binoculars moving back and forth. But the binoculars are always ready for use!

Close-up of binoculars on a checkered shirt (no visible text or symbols)

bynolyt

Warranty

Every pair of Bynolyt binoculars and every Bynolyt telescope that shows manufacturing and/or material flaws, will be repaired FREE OF CHARGE within the warranty term. Warranty is provided only if the binoculars or telescope has a valid proof of warranty and proof of purchase. Please refer to the definitions on the warranty card for the terms and conditions. If you register the binoculars or telescope, you automatically extend the warranty to 25 years (only applies to models over € 150.00).

MAINTENANCE

Your binoculars are a high-quality optical instrument, which protects you from blows, falling, constriction and a sandy-moist environment. After using your binoculars, store them in their case and use the protective caps if appropriate***. To clean the lens parts of your binoculars, you can use the lens tissue included. You may moisten it with its own the lens cleaner fluid. It is recommended to remove grains of sand and such with a lenspen or brush.

***The protective caps are often part of the packaging material and are not always available separately as a service item.

WARNING!

NEVER LOOK DIRECTLY INTO OR TOWARDS THE SUN! THIS MAY CAUSE SERIOUS AND IRREPARABLE DAMAGE TO YOUR EYES.

bynolyt®
