USER MANUAL 3060S Q-ACOUSTICS

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Zubehör

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

3000i Series

OWNER'S MANUAL

Important Safety Information andWarnings

1. Safety Information andWarnings

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains.

When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

NEVER play your sound system at full volume. The position of the volume control is deceptive and does not indicate the power level of the system. Using very high volume settings may damage your hearing.

1.1. Instructions

Read and understand these instructions before you use your loudspeakers. If damage is caused by failure to follow these instructions, the warranty will not apply. Please keep these instructions in a safe place.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

DO NOT connect your loudspeaker terminals to the mains supply.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers that produce heat.

Only use attachments/accessories specified by the manufacturer.

Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Unpacking your loudspeakers

Unpack the speakers fully. Lift the speakers from the cartons by holding the cabinets. Do not use the protective bags to lift them.

When manoeuvring loudspeakers, do not drag them across the floor as this may cause damage - lift each speaker before moving it.

Check the loudspeaker carefully. If any items are damaged or missing, report this to your retailer as soon as possible.

Retain the packaging for future transport. If you dispose of the packaging, please do so following all recycling regulations in your area.

3. Installation

• Only use the accessories supplied with the product.
• To prevent injury, this apparatus must be securely mounted onto the floor in accordance with the installation instructions.
• Do not use makeshift stands. Fit the Q Acoustics dedicated stand according to the instructions and using any fixings provided. Your dealer will advise you.
• If you play your loudspeakers without their grilles fitted, be careful to protect the drive units from damage.
• DO NOT dismantle the loudspeaker. You will invalidate the warranty.
• Do not connect your loudspeaker terminals to the mains supply.
• Do not expose your loudspeakers to excessive cold, heat, humidity or sunlight.
• The use of this apparatus is indicated for tropical and/or moderate climates.

3.1. Moisture

• To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain, moisture, dripping or splashing.
• Do not use this apparatus near water.

3.2. Servicing

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

4.0. Symbols used on this product Hazard Warning Symbol

The 'exclamation mark' calls attention to features for which you should read this manual closely to prevent operation and maintenance problems.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Waste Electrical and Electronic Equipment Symbol

This symbol indicates that when the unit is to be discarded, it must be separated from other household-type waste and sent to separate collection facilities for recovery and recycling of electrical and electronic equipment.

Please make sure you are familiar with your local rules on the separate collection of electrical and electronic products.

Introduction

Thank you for purchasing Q Acoustics.

This manual is intended to take you through setup and installation and will help provide optimum performance from the product.

Please read the instructions, important safety information and warnings carefully before installation and use, to ensure the safe and satisfactory operation of this product.

The Q Acoustics 3000i series is a range of loudspeakers designed to meet the highest expectations of dedicated 2-channel audiophiles and discerning movie enthusiasts.

The range comprises:

3010i: Compact bookshelf speaker with a 100 mm (4.0 inches) bass driver.
3020i: Bookshelf speaker with a 125 mm (5.0 inches) bass driver.

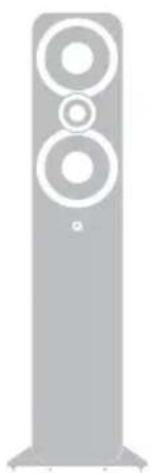

3050i: Floorstander with 2 × 165 mm (6.5 inches) bass drivers.
3060S: 150 Watt active subwoofer with a 200mm (8.0 inches) driver.
3090Ci: Centre channel with 2 × 100 mm (4.0 inches) bass drivers.

In the carton you will find: The loudspeaker/s and this product manual.

In addition the packing for the following models contains:
3050i: Rear stabiliser, spikes and spike covers for each speaker. An Allen key to adjust the spikes once fitted.
3060S: A mains power cord or cords, spikes and spike covers.
Check the product carefully. If any items are damaged or missing, report this to your dealer as soon as possible.

We hope you enjoy the Q Acoustics experience.

Preparation

Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050i and 3060S are heavy - get assistance to lift them if necessary.

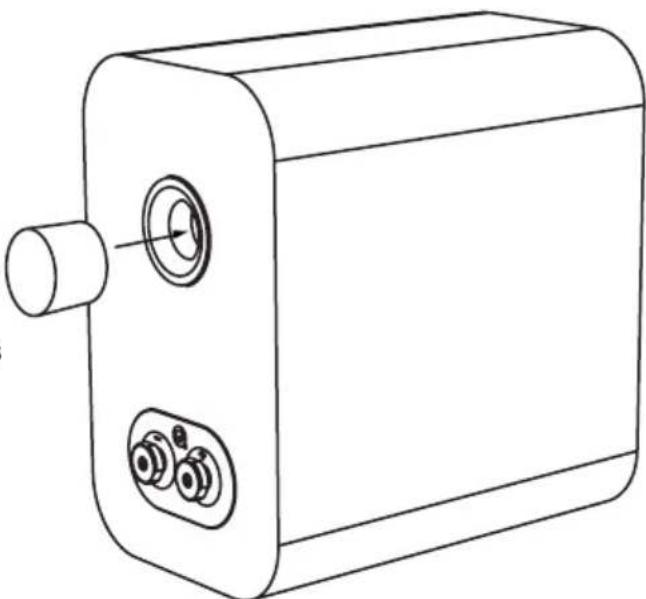

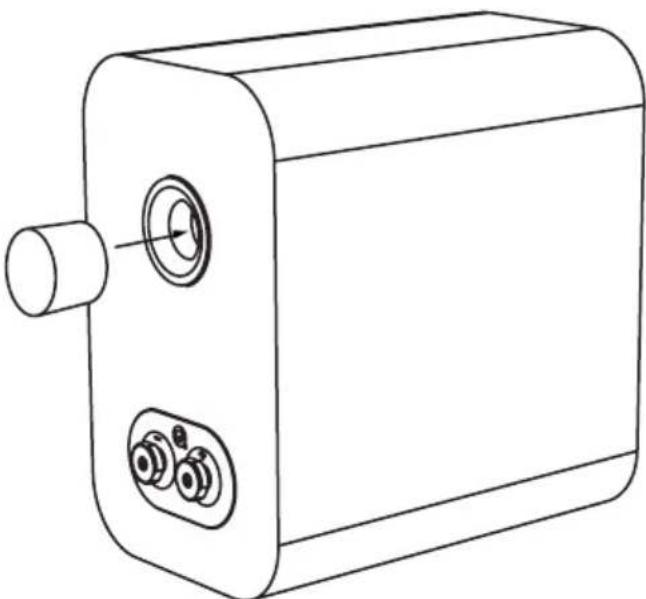

Foam Bung

The 3000i series speakers are rear ported and designed to work best with some space behind them i.e. 200mm or so away from a wall. If you position your speakers close to a wall / corner then the foam bungs should be inserted into the rear ports or there could be too much bass.

Ensure the bungs are fitted snugly into the port without inserting them too far. You will find the level of bass is reduced but definition and bass extension is increased. Experiment to see what you prefer and try making small changes to the position of the speaker to optimise the final result.

Spikes are sharp. Exercise care!

Never place a spiked loudspeaker where it can cause damage!

Always move your loudspeakers by lifting them - never drag them!

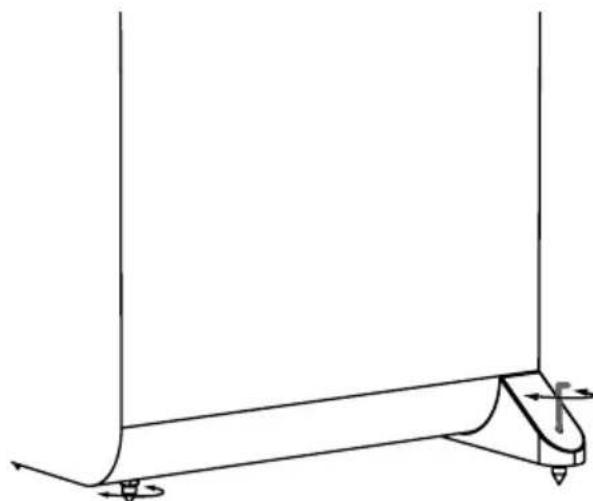

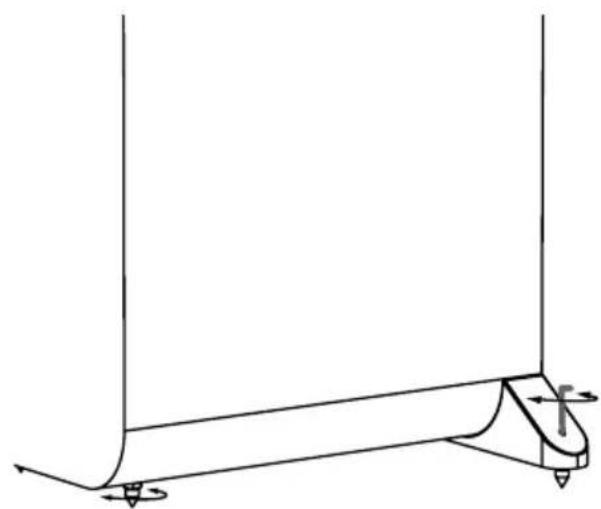

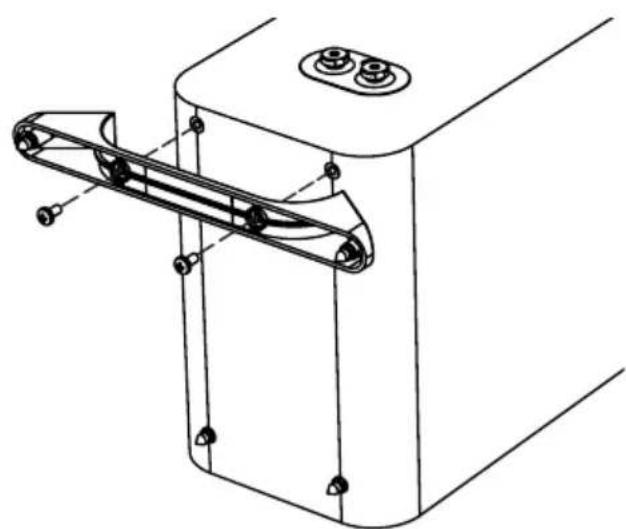

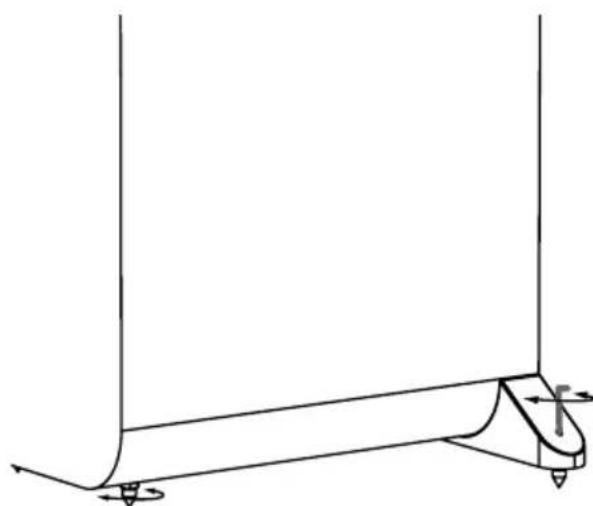

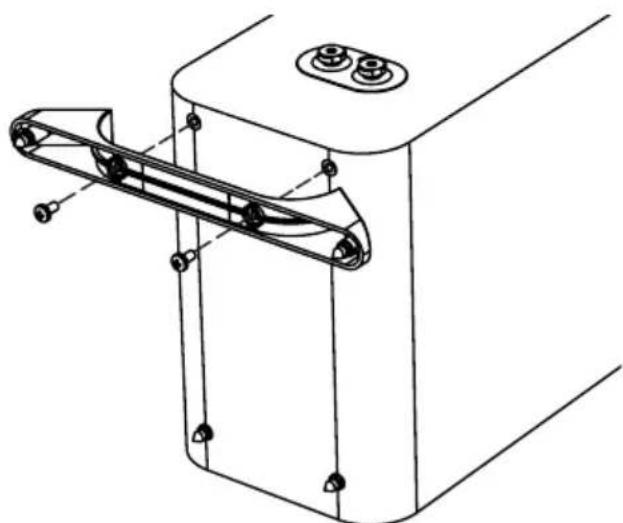

3050i - Attach the rear stabiliser

Thread the spikes fitted with locking nuts half way into the base and return the loudspeaker to the upright position. (If you have a wood or stone floor push a spike protector over each spike before turning the speaker upright) When the speaker is the right way up, insert the Allen key into each rear spike from the top and adjust all the spikes in and out until the loudspeaker is level and stable.

Use screws provided to secure feet as shown.

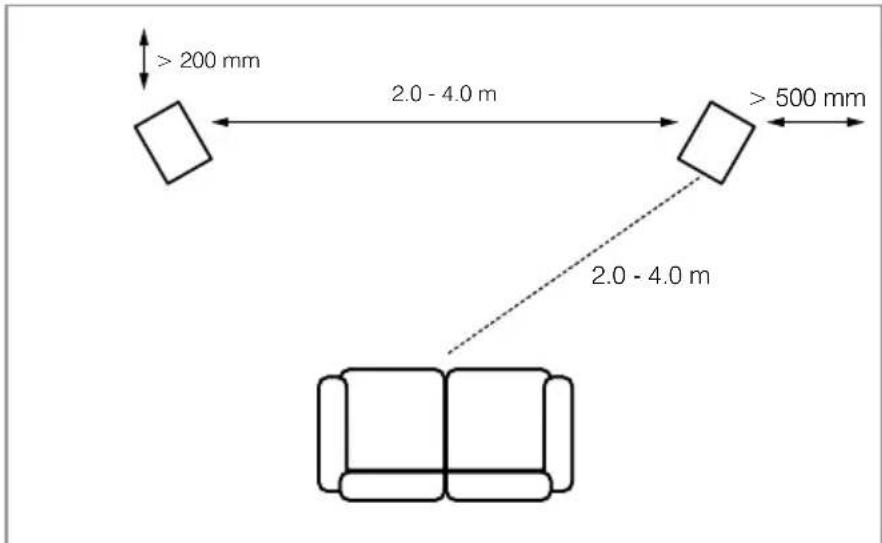

Positioning

All the loudspeakers may be operated close to TV monitors with no ill-effects with the exception of the 3060S which should not be operated within 500mm of TV screens monitors or other magnetically sensitive equipment. Plasma and LCD screens are unaffected.

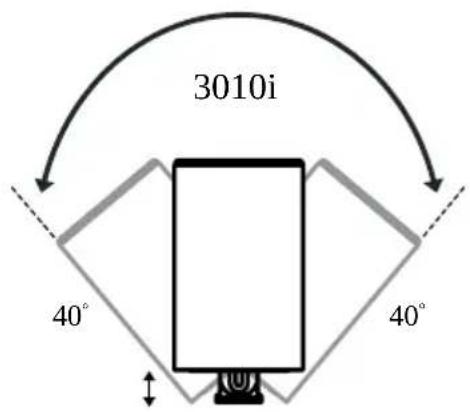

3010i and 3020i

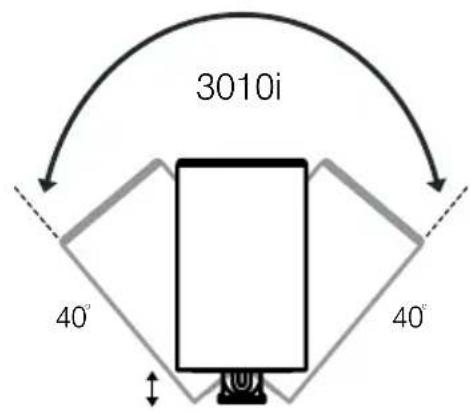

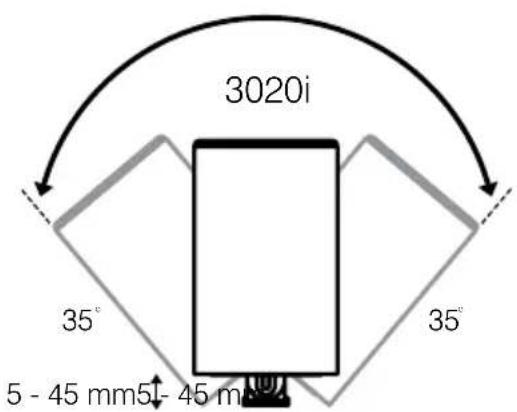

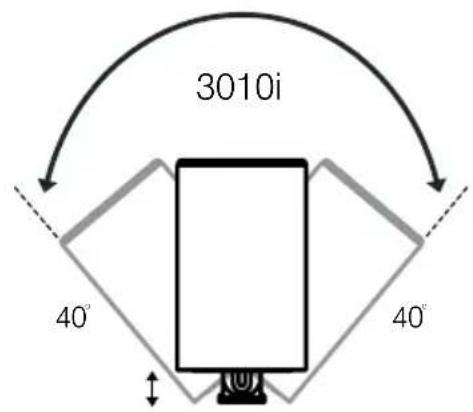

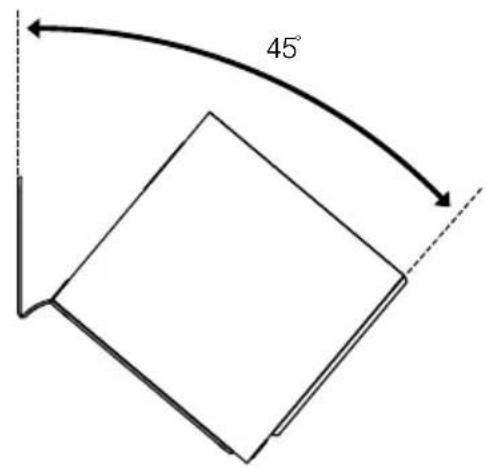

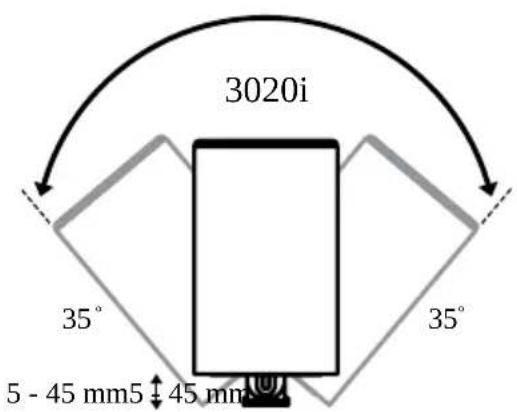

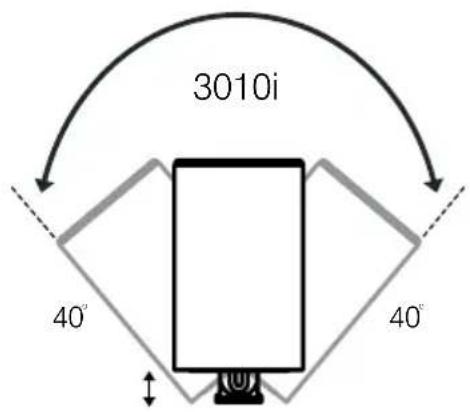

The 3010i and 3020i are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted slighter higher with the speaker angled down. Stand mounted speakers should be treated as floorstanding speakers except that the speaker may be placed a little closer to the back wall. Shelf mounting is also possible.

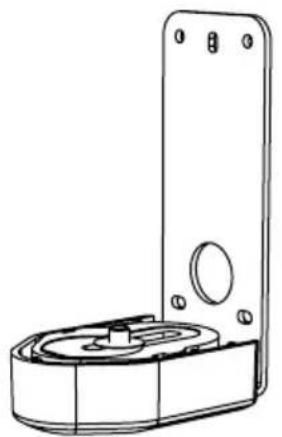

An optional bracket designed specifically to wall mount the Q Acoustics 3010i, 3020i and 3090Ci is available from your dealer. Floor stands for the 3010i and 3020i are also available. Be prepared to experiment to find the best setup for your taste in your particular listening room.

3050i

The 3050i loudspeakers should be positioned at least 200mm from a back wall and 500mm from the side walls. Placing the speakers closer to the wall will increase bass but could cause the sound to boom and lack precision and detail. The speakers should be 2m - 4m apart and central to the seated listener. Turning the speakers slightly inwards will sharpen a stereo image but may cause narrowing of the sound source.

Subwoofer

Bass frequencies are substantially omni directional. Although this means that you can position the subwoofer almost anywhere, the stereo image will still benefit by positioning the subwoofer level with the front loudspeakers and as central to the listening position as possible. This may not be feasible in a multichannel system. If you place the subwoofer close to a wall the bass will be re-enforced therefore in some locations the bass may be boomy and indistinct.

Effects loudspeakers

3090Ci

The 3090Ci is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090Ci to the wall or other suitable surface immediately above or below the screen using the Q Acoustics Wall Bracket. If not, consider placing the TV on a cabinet with the 3090Ci on a secure shelf immediately below the TV.

D1G

DOLBY

ITAL

Dolby and the double-D symbol are

trade marks of Dolby Laboratories.

Surround Speakers

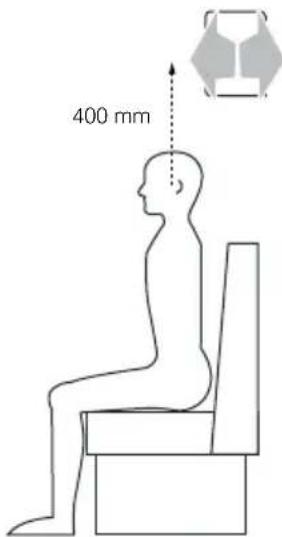

There are recommendations from Dolby labs for 5.1 effects speakers. Surround speakers should be mounted on either side of the listener, slightly behind the listening position. The speakers should be sited facing inward either mounted on the side walls of the room or if the room is large, on high stands and with their centres above ear level to a seated listener.

For overhead speakers used in multi-channel installations we recommend the Q Acoustics Install range.

Connections

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains. When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

Terminals and Connectors

The 3010i, 3020i, 3050i and 3090Ci have standard two terminal crossovers.

3010i, 3020i & 3050i & 3090Ci

Loudspeaker Cables

Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose 'bell' or 'zip' wire. Use cable with generous amounts of copper for the front and centre channels. Thin cables reduce the bass and restrict the dynamic range. Surround (rear) channels are less critical.

Speaker cable has a stripe or tracer along one core. By convention this is connected to the positive terminals. The cables connecting the amplifier to the front loudspeakers should ideally be the same length. Never join cables - use complete lengths.

Preparing Cables

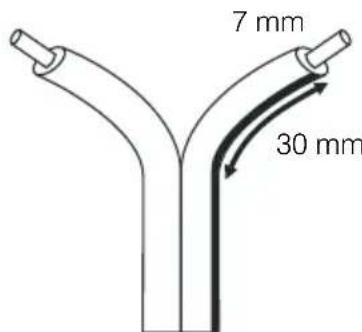

Split the cable to a depth of about 40mm . Bare the wire to a depth of 10mm and twist the ends to gather any stray wires. Crop the cable leaving 7mm of bare wire exposed.

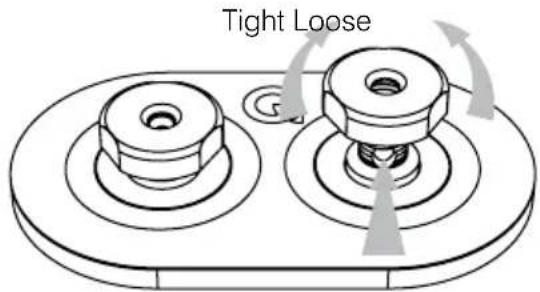

Connecting a Terminal

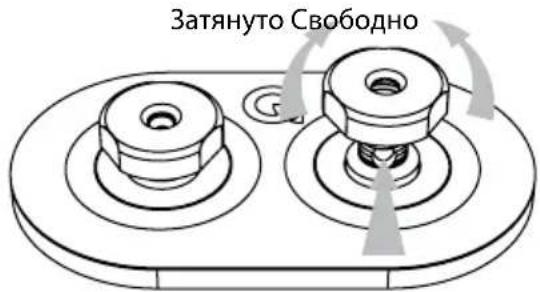

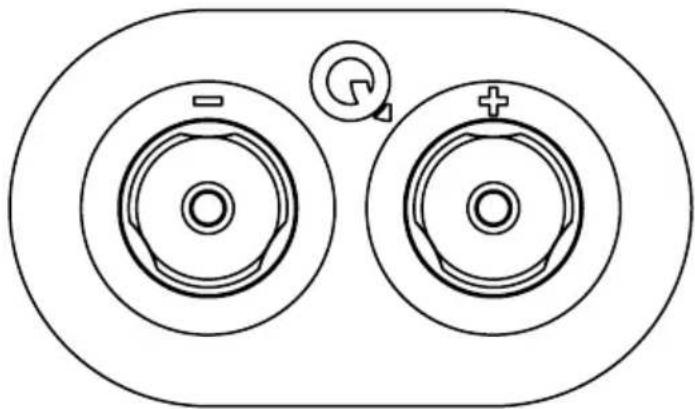

Unscrew the terminal anticlockwise to expose the mounting hole in the base of the terminal column.

Insert the bare end of the cable into the hole. Retighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. In the EU it is against safety regulations to use 4mm loudspeaker plugs.

Stereo Connections

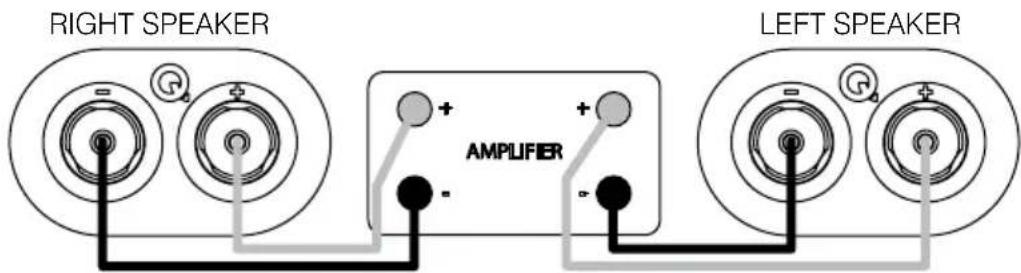

Standard Connections

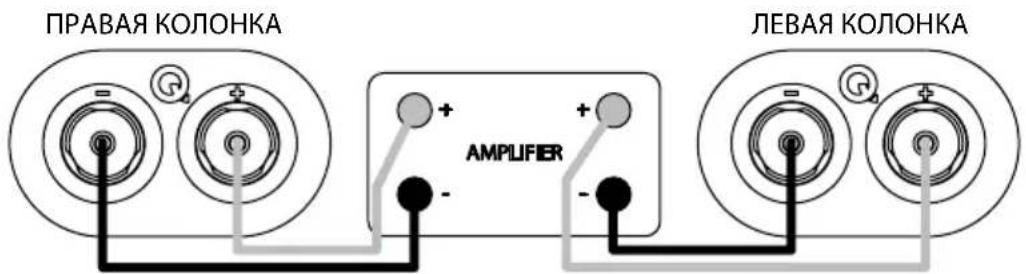

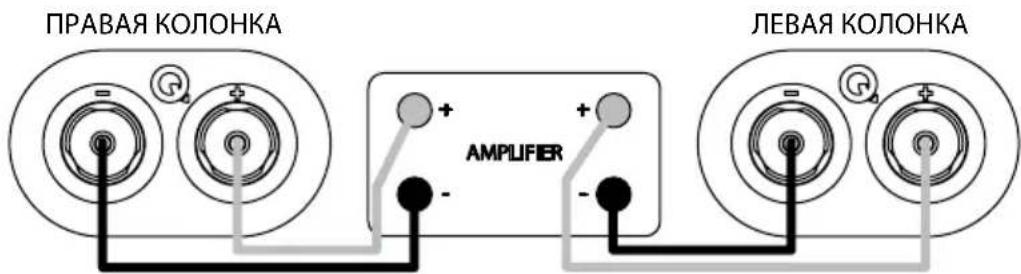

Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT channel of the amplifier. Connect the BLACK (-) terminal of the loudspeaker to the matching BLACK, Negative (-) terminal of the amplifier. Repeat this procedure for the LEFT channel.

Standard Wiring:

Aftercare

Cabinet Care

Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning materials. Never use abrasives of any kind.

The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used, apply the cleaner onto the cloth first and not directly onto the product. Test a small area first, as some cleaning products may damage the finish. Avoid products that are abrasive, or contain acid or alkaline agents. Do not use any cleaning materials on the drive units and avoid touching them as damage may result.

Grilles

Grilles should only be cleaned using a soft brush when necessary.

If using the Q Acoustics speaker with the grilles removed, remember to replace them if pets or children are present.

Drive Units

Do not touch the drive units as they are easily damaged when exposed.

Warranty

Q Acoustics passive loudspeaker products are warranted free of defects in materials and workmanship for a period of 4 years (1 year for subwoofer) from the date of purchase. During the warranty period Q Acoustics will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.

Misuse and fair wear and tear are not covered by warranty.

Goods for repair should in the first instance be returned to the supplying dealer. If this is not possible contact Q Acoustics or their appointed distributor for your area to determine the correct warranty procedure. If possible the original packaging should be used to return the product as damage sustained during transit to the repair centre is not covered by the warranty. The warranty does not in any way affect your legal rights.

Warranty can be extended to 5 years (2 years for subwoofer) by registering your product at www.qacoustics.co.uk/register.

For service information contact: [e-mail]

Q Acoustics

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Accessories

Wall Bracket (Single)

3010i / 3020i / 3090Ci

Black and White

Dimensions (WxHxD): 70 x 159 x 99 mm

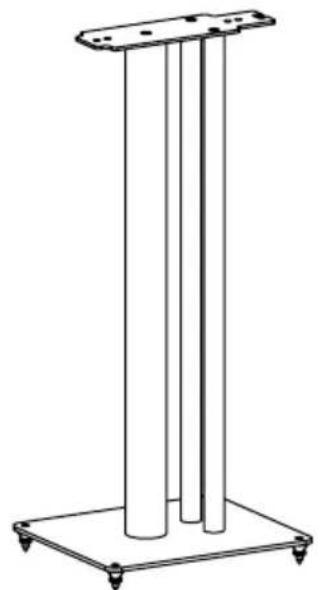

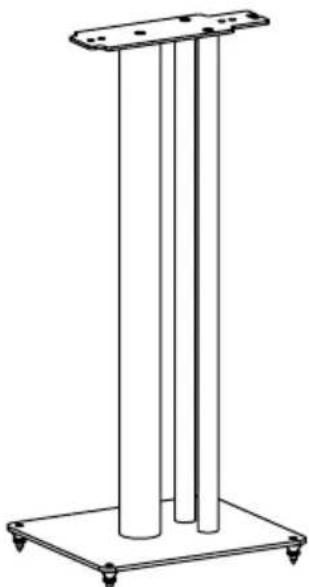

Speaker Stand (Pair)

3010i / 3020i

Black and White

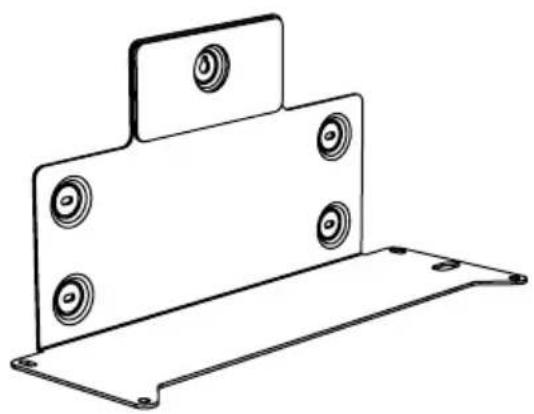

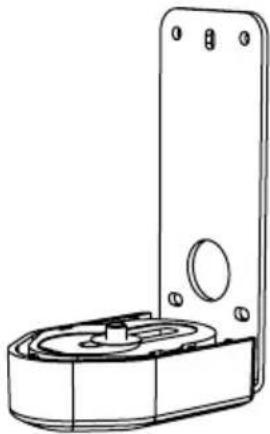

Subwoofer Wall Bracket

3060S

Black

Dimensions (WxHxD): 250 x 682 x 290 mm Dimensions (WxHxD): 422 x 222 x 163 mm

Passive Loudspeakers

Enclosure type:

Bass unit:

Treble unit:

Frequency response (+3dB, - 6dB)

Average impedance:

Minimum impedance:

Sensitivity (2.83v@1m):

Stereo amplifier power:

AV receiver power (2 ch. driven):

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

(inc. grille, terminal and feet)

Enclosure width:

Weight (per speaker):

3010i

2-wayreflex

100 mm (4.0 in)

22 mm (0.9 in)

65 Hz - 30 kHz

6Ω

4Ω

86 dB

15-75W

50-125W

2.6 kHz

4.0 L (244 cu in)

150 × 253 × 252 mm

(5.9× 10.0× 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-wayreflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88dB

25-75W

50-125W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Active Subwoofer

Enclosure type:

Bass unit:

Amplifier power:

Frequency response (+3dB, - 6dB)

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

Weight:

3060S

Infinite baffle

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) inc. spikes

8.5 kg (18.7 lbs)

3050i

2-wayreflex

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25 - 180 W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2× 40.1× 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-wayreflex

2 × 100 ~mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430× 152× 216mm

(16.9× 6.0× 8.5 in)

6.0 kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Reino Unido
CM23 5GZ

Accesorios

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflejo de 2 vías

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Subwoofer activo:

Tipode caja:

Unidad de graves:

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Support mural (simple)

3010i / 3020i / 3090Ci

Noir et blanc

Dimensions (L× H× P) .. 70× 159× 99mm

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex 2 voies

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 ~mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Regno Unito
CM23 5GZ

Accessor

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex a 2 vie

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 ~mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Subwoofer attivo

Tipoinvolucro:

Unità bassi (mm):

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, GB

CM23 5GZ

Accessoires

Wandbeugel (1 stuk)

3010i / 3020i / 3090Ci

Zwart en wit

Afmetingen (B× H× D) .. 70× 159× 99mm

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, Wielka Brytania

CM23 5GZ

Akcesoria

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Acessórios

Suporte de parede (unico)

3010i / 3020i / 3090Ci

Preto e bianco

Dimensoes (LxAxD): 70 × 159 × 99 ~mm

Suporte de altovalante (par)

3010i / 3020i

Preto e bianco

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

3000i Series

OWNER'S MANUAL

EN ENGLISH 01

DE GERMAN 19

ES ESPÁÑOL 37

FR FRENCH 55

IT ITALIAN 73

NL DUTCH 91

PL POLISH 109

PT PORTUGUESE 127

RU RUSSIAN 145

SV SWEDISH 16

ZH CHINESE 181

Important Safety Information andWarnings

1. Safety Information andWarnings

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains.

When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

NEVER play your sound system at full volume. The position of the volume control is deceptive and does not indicate the power level of the system. Using very high volume settings may damage your hearing.

1.1. Instructions

Read and understand these instructions before you use your loudspeakers. If damage is caused by failure to follow these instructions, the warranty will not apply. Please keep these instructions in a safe place.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

DO NOT connect your loudspeaker terminals to the mains supply.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers that produce heat.

Only use attachments/accessories specified by the manufacturer.

Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Unpacking your loudspeakers

Unpack the speakers fully. Lift the speakers from the cartons by holding the cabinets. Do not use the protective bags to lift them.

When manoeuvring loudspeakers, do not drag them across the floor as this may cause damage - lift each speaker before moving it.

Check the loudspeaker carefully. If any items are damaged or missing, report this to your retailer as soon as possible.

Retain the packaging for future transport. If you dispose of the packaging, please do so following all recycling regulations in your area.

3. Installation

• Only use the accessories supplied with the product.
• To prevent injury, this apparatus must be securely mounted onto the floor in accordance with the installation instructions.
• Do not use makeshift stands. Fit the Q Acoustics dedicated stand according to the instructions and using any fixings provided. Your dealer will advise you.
• If you play your loudspeakers without their grilles fitted, be careful to protect the drive units from damage.
• DO NOT dismantle the loudspeaker. You will invalidate the warranty.
• Do not connect your loudspeaker terminals to the mains supply.
• Do not expose your loudspeakers to excessive cold, heat, humidity or sunlight.
• The use of this apparatus is indicated for tropical and/or moderate climates.

3.1. Moisture

• To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain, moisture, dripping or splashing.
• Do not use this apparatus near water.

3.2. Servicing

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

4.0. Symbols used on this product Hazard Warning Symbol

The 'exclamation mark' calls attention to features for which you should read this manual closely to prevent operation and maintenance problems.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Waste Electrical and Electronic Equipment Symbol

This symbol indicates that when the unit is to be discarded, it must be separated from other household-type waste and sent to separate collection facilities for recovery and recycling of electrical and electronic equipment.

Please make sure you are familiar with your local rules on the separate collection of electrical and electronic products.

Introduction

Thank you for purchasing Q Acoustics.

This manual is intended to take you through setup and installation and will help provide optimum performance from the product.

Please read the instructions, important safety information and warnings carefully before installation and use, to ensure the safe and satisfactory operation of this product.

The Q Acoustics 3000i series is a range of loudspeakers designed to meet the highest expectations of dedicated 2-channel audiophiles and discerning movie enthusiasts.

The range comprises:

3010i: Compact bookshelf speaker with a 100 mm (4.0 inches) bass driver.
3020i: Bookshelf speaker with a 125 mm (5.0 inches) bass driver.
3050i: Floorstander with 2 × 165 mm (6.5 inches) bass drivers.
3060S: 150 Watt active subwoofer with a 200mm (8.0 inches) driver.
3090Ci: Centre channel with 2 × 100 mm (4.0 inches) bass drivers.

In the carton you will find: The loudspeaker/s and this product manual.

In addition the packing for the following models contains:
3050i: Rear stabiliser, spikes and spike covers for each speaker. An Allen key to adjust the spikes once fitted.
3060S: A mains power cord or cords, spikes and spike covers.
Check the product carefully. If any items are damaged or missing, report this to your dealer as soon as possible.

We hope you enjoy the Q Acoustics experience.

Preparation

Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050i and 3060S are heavy - get assistance to lift them if necessary.

Foam Bung

The 3000i series speakers are rear ported and designed to work best with some space behind them i.e. 200mm or so away from a wall. If you position your speakers close to a wall / corner then the foam bungs should be inserted into the rear ports or there could be too much bass.

Ensure the bungs are fitted snugly into the port without inserting them too far. You will find the level of bass is reduced but definition and bass extension is increased. Experiment to see what you prefer and try making small changes to the position of the speaker to optimise the final result.

Spikes are sharp. Exercise care!

Never place a spiked loudspeaker where it can cause damage!

Always move your loudspeakers by lifting them - never drag them!

3050i - Attach the rear stabiliser

Thread the spikes fitted with locking nuts half way into the base and return the loudspeaker to the upright position. (If you have a wood or stone floor push a spike protector over each spike before turning the speaker upright) When the speaker is the right way up, insert the Allen key into each rear spike from the top and adjust all the spikes in and out until the loudspeaker is level and stable.

Use screws provided to secure feet as shown.

Positioning

All the loudspeakers may be operated close to TV monitors with no ill-effects with the exception of the 3060S which should not be operated within 500mm of TV screens monitors or other magnetically sensitive equipment. Plasma and LCD screens are unaffected.

3010i and 3020i

The 3010i and 3020i are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted slighter higher with the speaker angled down. Stand mounted speakers should be treated as floorstanding speakers except that the speaker may be placed a little closer to the back wall. Shelf mounting is also possible.

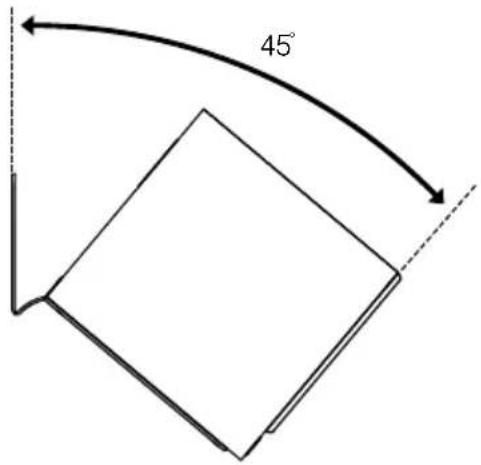

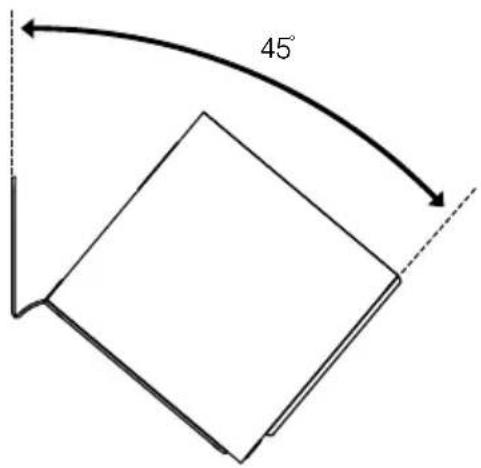

An optional bracket designed specifically to wall mount the Q Acoustics 3010i, 3020i and 3090Ci is available from your dealer. Floor stands for the 3010i and 3020i are also available. Be prepared to experiment to find the best setup for your taste in your particular listening room.

3050i

The 3050i loudspeakers should be positioned at least 200mm from a back wall and 500mm from the side walls. Placing the speakers closer to the wall will increase bass but could cause the sound to boom and lack precision and detail. The speakers should be 2m - 4m apart and central to the seated listener. Turning the speakers slightly inwards will sharpen a stereo image but may cause narrowing of the sound source.

Subwoofer

Bass frequencies are substantially omni directional. Although this means that you can position the subwoofer almost anywhere, the stereo image will still benefit by positioning the subwoofer level with the front loudspeakers and as central to the listening position as possible. This may not be feasible in a multichannel system. If you place the subwoofer close to a wall the bass will be re-enforced therefore in some locations the bass may be boomy and indistinct.

Effects loudspeakers

3090Ci

The 3090Ci is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090Ci to the wall or other suitable surface immediately above or below the screen using the Q Acoustics Wall Bracket. If not, consider placing the TV on a cabinet with the 3090Ci on a secure shelf immediately below the TV.

D1G

DOLBY

ITAL

Dolby and the double-D symbol are

trade marks of Dolby Laboratories.

Surround Speakers

There are recommendations from Dolby labs for 5.1 effects speakers. Surround speakers should be mounted on either side of the listener, slightly behind the listening position. The speakers should be sited facing inward either mounted on the side walls of the room or if the room is large, on high stands and with their centres above ear level to a seated listener.

For overhead speakers used in multi-channel installations we recommend the Q Acoustics Install range.

Connections

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains. When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

Terminals and Connectors

The 3010i, 3020i, 3050i and 3090Ci have standard two terminal crossovers.

3010i, 3020i & 3050i & 3090Ci

Loudspeaker Cables

Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose 'bell' or 'zip' wire. Use cable with generous amounts of copper for the front and centre channels. Thin cables reduce the bass and restrict the dynamic range. Surround (rear) channels are less critical.

Speaker cable has a stripe or tracer along one core. By convention this is connected to the positive terminals. The cables connecting the amplifier to the front loudspeakers should ideally be the same length. Never join cables - use complete lengths.

Preparing Cables

Split the cable to a depth of about 40mm . Bare the wire to a depth of 10mm and twist the ends to gather any stray wires. Crop the cable leaving 7mm of bare wire exposed.

Connecting a Terminal

Unscrew the terminal anticlockwise to expose the mounting hole in the base of the terminal column.

Insert the bare end of the cable into the hole. Retighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. In the EU it is against safety regulations to use 4mm loudspeaker plugs.

Stereo Connections

Standard Connections

Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT channel of the amplifier. Connect the BLACK (-) terminal of the loudspeaker to the matching BLACK, Negative (-) terminal of the amplifier. Repeat this procedure for the LEFT channel.

Standard Wiring:

Aftercare

Cabinet Care

Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning materials. Never use abrasives of any kind.

The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used, apply the cleaner onto the cloth first and not directly onto the product. Test a small area first, as some cleaning products may damage the finish. Avoid products that are abrasive, or contain acid or alkaline agents. Do not use any cleaning materials on the drive units and avoid touching them as damage may result.

Grilles

Grilles should only be cleaned using a soft brush when necessary.

If using the Q Acoustics speaker with the grilles removed, remember to replace them if pets or children are present.

Drive Units

Do not touch the drive units as they are easily damaged when exposed.

Warranty

Q Acoustics passive loudspeaker products are warranted free of defects in materials and workmanship for a period of 4 years (1 year for subwoofer) from the date of purchase. During the warranty period Q Acoustics will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.

Misuse and fair wear and tear are not covered by warranty.

Goods for repair should in the first instance be returned to the supplying dealer. If this is not possible contact Q Acoustics or their appointed distributor for your area to determine the correct warranty procedure. If possible the original packaging should be used to return the product as damage sustained during transit to the repair centre is not covered by the warranty. The warranty does not in any way affect your legal rights.

Warranty can be extended to 5 years (2 years for subwoofer) by registering your product at www.qacoustics.co.uk/register.

For service information contact: [e-mail]

Q Acoustics

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Accessories

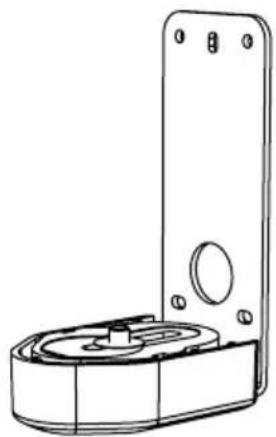

Wall Bracket (Single)

3010i / 3020i / 3090Ci

Black and White

Dimensions (WxHxD): 70 x 159 x 99 mm

Speaker Stand (Pair)

3010i / 3020i

Black and White

Subwoofer Wall Bracket

3060S

Black

Dimensions (WxHxD): 250 x 682 x 290 mm Dimensions (WxHxD): 422 x 222 x 163 mm

Passive Loudspeakers

Enclosure type:

Bass unit:

Treble unit:

Frequency response (+3dB, - 6dB)

Average impedance:

Minimum impedance:

Sensitivity (2.83v@1m):

Stereo amplifier power:

AV receiver power (2 ch. driven):

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

(inc. grille, terminal and feet)

Enclosure width:

Weight (per speaker):

3010i

2-wayreflex

100 mm (4.0 in)

22 mm (0.9 in)

65 Hz - 30 kHz

6Ω

4Ω

86 dB

15-75W

50-125W

2.6 kHz

4.0 L (244 cu in)

150 × 253 × 252 mm

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-wayreflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170× 278× 282mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Active Subwoofer

Enclosure type:

Bass unit:

Amplifier power:

Frequency response (+3dB, - 6dB)

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

Weight:

3060S

Infinite baffle

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) inc. spikes

8.5 kg (18.7 lbs)

3050i

2-wayreflex

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25 - 180 W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2× 40.1× 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-wayreflex

2 × 100 ~mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25 - 100 W

50-165W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 ~mm

(16.9× 6.0× 8.5 in)

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

EN ENGLISH 01
DE	DEUTSCH	19
ES	ESPÁÑOL	37
FR	FRENCH 55
IT	ITALIAN 73
NL	DUTCH 91
PL	POLISH 109
PT	PORTUGUESE 127
RU	RUSSIAN 145
SV	SWEDISH 16
ZH	CHINESE 181

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Zubehör

Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Reino Unido
CM23 5GZ

Accesorios

17.8kg (39.2 lbs)

3090Ci

Re ejo de 2 vias

2 × 100 ~mm (4.0 in)

22mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25 - 100 W

50-165W

2.7 kHz

6.6 L (403 cu in)

430× 152× 216mm

(16.9× 6.0× 8.5 in)

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

FR	FRANÇAIS	0
DE	ALLEMAND	1
ES	ESPAGNOL	2
FR	FRANÇAIS	5
IT	ITALIEN	73
NL	NÉERLANDAIS	91
PL	POLONAIS	3
PT	PORTUGAIS	127
RU	RUSSE	145
SV	SUÉDOIS	163
ZH	CHINOIS	181

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Support mural (simple)

3010i / 3020i / 3090Ci

Noir et blanc

Dimensions (L× H× P) .. 70× 159× 99mm

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex 2 voies

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 ~mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Regno Unito
CM23 5GZ

Accessor

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex a 2 vie

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88 dB

25-75W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 ~mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

Subwoofer attivo

Tipoinvolucro:

Unità bassi (mm):

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, GB

CM23 5GZ

Accessoires

Wandbeugel (1 stuk)

3010i / 3020i / 3090Ci

Zwart en wit

Afmetingen (B× H× D) .. 70× 159× 99mm

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, Wielka Brytania

CM23 5GZ

Akcesoria

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

EN	INGLÉS	01
DE	ALEMÃO	19
ES	ESPANHOL
FR	FRANCÉS	55
IT ITALIANO 73
NL	HOLANDÉS
PL	POLACO	109
PT	PORTUGUES
RU	RUSSO	145
SV	SUECO	163
ZH	CHINÊS	181

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Acessórios

Suporte de parede (unico)

3010i / 3020i / 3090Ci

Preto e branco

Dimensoes (LxAxD): 70 × 159 × 99 ~mm

Suporte de altovalante (par)

3010i / 3020i

Preto e branco

JaHHaIINHeKa BkIouaet Bce6cJeDyUOne MoeJI:

MoeIb 3010i: KompaKTHaNoLOUHaN KOLOHKa C MOuHbIM 100-MuJIINMeTpOBoBIM (4,0 IIOMa) Hn3KOaCTOTHbIM DnHaMVKOM.

MoIeIb 3020i: IonoUHnA KOLOHka c MoUHbIM 125-MuJIImMeTpObBIM (5,0 JIOMa) Hn3KOaCTOTHbIM DInHaMnKOM.

MoJIb 3050i: HanoIbHaa akCyIuecka cnCTema C dBMy MoUHbIMn 165-MuIIImeTpObIMn (6,5 IIOma) HN3KOaCTOTHbIMn DInHaMnKamn.

MoIeIb 3060S: AKTuBhI ca6Byep MoUHocTbIO 150 Bt c DByMra 200-MnJIImMeTpObIMn (8,0 IIOMa) dINHaMnKaMn.

MoIeIb 3090Ci: LcHtpaIbHbI KaHaJI c DByMa MoUHbIMn 100-MuJIImMeTpObBIMn (4,0 dIOMa) HN3KOaCTOTHbIMn DNHaMnKaMn.

B KapToHNo yNaKOBKe Bbl HaIeTe KOIoHKn I daHHe pyKOBoDCTBO NO 3KcIyatauN.

Kpome Toro, ynapokbka cneyuoux MoJeNe coepknt:

Modelb 3050i: Cta6nna3atop dny 3aHne yactn, uuui n o6motka dny uunne Jkaoon KoONKn.

UectnirpaHbI KIOU dIy 3aKpeIeHn yCTaHOBJIeHHbIX IINJIe.

Moelb 3060S: lHypbl nTahnna, hn nn o6MOTkn nnne.

BHHMaTeNbHo npOBepbTe n3dEne. B cnyae ecn KaKne-ln6o DeTaN OTCyTCTBYOT nn NIOBpeXeHbl, coo6uTe o6 3tOMy CBOemy dIJIepy KaK MoXHO CKopee.

Haedeemc, yTo Bbl noJyUHTe ydoBOLbCTBne O T nCnoJIb3ObaHn npOdyKun Q Acoustics.

Poirotobka

N3BneKaIte KOLOHKn n3 KapTOHbIX KOpO6OK, npndepKnBaInx 3a Kopnyc. He npNKacaiTeCb K npedKOHeYbIM KACKaAM nn NcNoB3yIe 3aunTHbIe qexbl npn nx n3BLeuehen. MoDen 3050i n 3060S TjXeJIbe: npn Heo6xOAnMocTn nonpocnte Koro-H6ydb NmOuB Bam.

Ipo6ka n3 neHonnlaacta

KoONKc cepnn 3000i ochauehbl 3aHnMn nopTaMn Inyuwe Bcero pa6otaOT ByCNOBnAx, KOrda 3a HmNnMEeTc HekOTOpoe npoctpaHCTBO, TO eCTb OKOJIO 20 cm do cTeHbl. Ecn BBi pacnoLoXnTe KOOnHKn 6n3KO K cTeHe/yrny, Heo6xOdImo 6yDet BCTaBnTB b 3aHnne NopTbI NeHONJaCTOBle npo6Kn, INaYe MOKeT NOBtBCr CInlKOM MHOro Hn3Knx YaCTOT.

Y6eHNTecb, yTO npo6Kn NIOHTO CnT B nOpTAX n He BCTabHeBcI CNuKOM rny60ko. Bbl O6hApyXnte, 4TO yPOBeH H3KNX YAcTOT NOHN3NtCra, HO npn 3TOM NOBicNTcra YETKOCTb N CTeneHb rny6nHb b6aca. 3KcnpemEnTpPynte n Do6NBaITecb HyxHoro BAM 3ByaHna. DnA DOCTNXKeHn ONTNMaJIbHOr KOHeUHOro pe3yNbTaT a npo6ynte BHOCNTb He6Obnue n3MeHeHn B paCNOJoxKeHne KONOHOK.

UHnnn Oueh bocpbe. BybTe octopoxhbl!

HnkOrda He cTabbTe KOJOnHKy Ha WnIaX TaM, rKe OHN MOrYr YTO-JIn6o NOBpeuNTb!

IpepeMaTe KOLOHKn Bcerda no BO3dyxu HnKOrDa He BOIoUHe No NOBepxHOCTaM!

3050i. Ipnkpene 3aHn cTa6nn3atop

BctabbTe 7nnn, o6opydoBaHHbIe cTOnOpHbIM raKamN, do NOJOBnHb I OCHOBaHne n BepHnTe KOJHOY B BepTKaJIbHOe NIOJOKeHne. (EcIn y Bac depeBraHHbI nn KaMeHHbI pON, HadeHbTe npOTEkTOpHa KaJdbI 7nnIb n 3aTeM BepHnTe KOJOHky B BepTKaJIbHOe NIOJOKeHne). KOrda KOJOHka HaxoHTcB n PpaBnHOM NIOJOKeHn, BCTabbTe WeCTINrpaHHbIKIOUc CBepxv B KaJdbI 3aHN J nn INOTpeynpuYte BCE 7nnIb TaK, YTO6bl KOJOHKa CToJa npRMO n He 7aTaIacb.

IcnoB3yIe BnHTbI IaI 3aKpeNneHna HOKe, KaYKa3aHO Ha KapTINHe.

Pa3meueHne

Bcemn AkyctHecMM OCTeMM MOKHO NOBOTBPOPAOM C TENEVBIOHbIM MOHITOPAM63 KAKORIINBOpeHOro BO3peCTBV, KPOWEMODEN 3060S,KOTpyHO HepeKOMHeDyETOHKTITAYTIPoBaTH Ha pacrToHHM Mehee 500 MM OT EkaHa TENEVBOPa MM DpyTORO MarHHTOyBCTBNTBHorO 6OpdyobAHn PImaMeHHbIeXKK-ekpaHbTIakkeHeNpOpeRKeHbIBpeHOMy BO3peCTBVIO.

3010i n 3020i

KoONKn 3010i n 3020i ndealbHO noxOJr Iy yCTaHOBKn Ha HAnlbHbIe NOCTabKn Q Acoustics nn MOHTaKa Ha cTeHy. Ecn Bbl npOn3BOJnte MOtXn Ha NoCTabKn, co6nOJaTe npocToe npabIno: 6nok, OTBeuaoum 3a nepeauy BepxHnx YactOT, dONKeH HaxODITbcr Ha ypOBHe rONobbl CnJaUero CnyuataTEn. KOONKn, MoHTnpyEmble Ha cTeHy, MoXHo paCNoIOXNtB HeMHoro Bblwe, ecnn nx CnerKa HaKNOHTb. KOONKn, MoHTnpyEmble Ha NoCTabKn, cJeDyeT paccMaTpNBaTB KaK HAnOBHbIe KOLOHKn, 3a NCKLIOUeHNEM TORO, qTO INx MoXHO paCNoIOXNtB HeMHoro 6nke K 3aDHeN cTeHe. Bo3MOxH TaKxe MoHTaK Ha ONKn.

Y BaWero DnIepa HMeETcB HAnuHOn OngNoHaJIbHO NoCTabIeMbIn KPOHHTeH, CneuaJIbHO pa3pa6OtaHHbI dIy MoTaxa Ha cTeHy KONoHOK Q Acoustics 3010i, 3020i n 3090Ci. IMeIoTc TaKHe HAnOBHbIe NODCTaBKn dIy MoDenei 3010i n 3020i. BydTe roTOBbl EKcnepImeHTipoBaT B NOnCKe HAnNyUWeRo Ha BaW BKc pacNOJIOKeHn KONOHOK B KOHKpeTHOM, Bbl6paHHOM Bamn NOMEueHN.

3050i

KoONK 3050i cIeNyET
paCNOJoxNtB MNHIMyM B
20 CM OT 3aHHei CTeHbI N
B 50 CM OT 6OKOBbIX CTeH.
Pa3MeueHne KOHOK 6nXke K
CTeH YeCNIT Hn3Kne YactOTbl,
HO MoKET Bb13BaTb rYI IN
HeuyetKOCTb 3Byka. KOONK
DOJXHBi HaxOuNTbcra B 2-4
MeTpax Dpyr OT dpyra n CBOUMn
ZeHTpAMn ObaaTaBCa
K cnJaUeMy CnyuataJIIO.
He6oJbWOn NobOpOT KOONOK
fpoHTaJIbHbIMn CTOPOHAMN

CtepeofoHnueckne coeDnHeHn

Ctahapthbce coeHHeHH

PoiKIOHnTE KAPCHbI (+) noIOc npaBOK KOIOHKn K KPACHOMY noIOXHTBHOMy (+) noIOcy PPABOTo KaHana ycINTeJI. PoiKIOUHTe YEPHbI (-) noIOc KOIOHKn K COOTBEcTByIOUeMy UEPHOMY, OtpuataeHbOMy (-) noIOcy ycINTeJI. PioJeaTe Tj Xe npoUeDpy B OTHOseHH JIEBOTO KaHana.

CtAnapTha cnTeMa npoBoJIoB:

PoclenpoJauKHoe o6cIyXuBaHne

Yxoid3aKopnycom

Kopnyc MoXHO uHCTNtB ToIbKO cIeRka CMOeHHo CaJIeTko. He nCNoJb3yIte uHCTaIne cpeDCTBa Ha OCHOBe pAcTBOpHTeNe. HIKoRa He nCNoJb3yIte a6pa3uBBbl.

KaK npabnlo, NOBepxHocTb KOpnyca Tpe6yeT ToIbKO JERKO OUcCTKN OT nbll. PpN NcNoIb3OBaHIn a3po30JbHoro nn KaKOro-ln6o DpyrOro UcTJeero CpeDCTBa HAnOCHTe rO Ha cAfoTeKy, a He Ha camo n3dEne. IJa NaUaIa NoPb6yIte YnCTaIe e CpeDCTBO Ha MaIeHbKOM yAcTKe NOBepXHOCTu 3dEJIa, TaK KaK HeKOTOpBie YnCTaIe CpeDCTBa MOrTy NOBpeDITb NOKpbItne. N36eraIte NcNoIb3OBaHIn a6pa3INBOv nn CpeDCTB, CoedePkaunx KncIoTHbe nn IIn IeNoUHbIe peAreHtbl. Bo n36exKaHne NOBpeXdEHH ne NcNoIb3yIte YnCTaIe CpeDCTBa dLn YnCTKn rONOBok n He TporaiTe nx.

3aHTbIe cETKn

3aunthbte cetkn npn Heo6xodmoctn CneJeT uCTntb TOnbKO MrgKo 8eTKO.

EcnBbI nCnoJIb3yeTe CnCTeMbI Q Acoustics 6e3 3aunTHbIX CeTOK, 6o3aTeJbHO yCTaHaBnBaIte INx Ha MeCTO, KOrJa B KOMHaTe HaxoJrTcJeTIn NII DomaUHHe XJBOTHbIe.

y3nbl npB0da

K y3nam npuBOna lyUwe He npKacTaBcra, TaK KaK nx IerKo nobpeDntb.

TapaHTnA

Ha npodykuni KOMnAHN Q Acoustics npedocTabIeTc rapaHTnOCTBn IeEeKTOB C TOUKN 3peHn KaueCTBa MaTePnAIOB n N3rOToBneHn Cpokom Ha 4 roda (1 roD dny ca6Byeepa) C daTbI npno6peTeHn. B TeueHne rapaHTnHOro cpoKa KOMnAHN Q Acoustics o6a3yeTc npoIN3BeCTn peMOHT nn 3aMeHnTB n3denn, ecIn nocJe npoBeHn npOBepKn OHa nn ee Na3NaueHHb JDCTp6bHOTop nn yPOJHomOueHHb npedCTabNTel b O6Hapyka T deEeKT B npedocTabHeHOM Ha npOBepKy n3deHN.

TapaHTnHaPacnpocTppaHReTcHa HEnpabNtBHOe NcNoJIb3OBaHne n ECTeCTBeHHbI N3HOC.

TobapbI dIpeMOHTa DOJIKHbI B nepByIO uepeB 6bITb BO3BpaUeHbI NOCTABNBWeMy Ix DInepy. EcnI eTO He npedctabJIeTcR BO3MOXHbIM, CBJNTecb C Q Acoustics nII Ha3HaueHHbIM KOMNaHnei DnCTpN6bIOTOpom dIra BaWero perNoHa, UTo6bl OnpedeINrB npaBnBHyO rapaHTnHyO npoceDpy. Po BO3MOXHOCTn CNe dyET NcNOJb3OBaTb opuINHaJIbHyO yNAKOBYI Da BO3BpaTa n3DeIeNIA, TAK KaK Ha yUeP6, npuHNHeHHbI BO Bpemr TpaHCnOPTnOBKn B ceHTp peMOHTa, He paCnpocTpAHHetcra papaHTn. 3Ta rapaHTn HIKoIM 6pbazOM He BnREt Ha BaUN 3aKOHHbIe npaba.

Cpok DeiCTBnra rapaHTn moXHo npOJnTb do 5 neT (2 roJa dIra ca6Byepa), 3aperncTpnpobab n3dennne
Ha Be6-CTpaHnce
www.qacoustics.co.uk/register.

HaTeHHbI KPOHHTeH (OdH)

3010i/3020i/3090Ci

UepHbI n 6ebbl

Pa3MepbI (UxBxΓ): 70 x 159 x 99 mm

CtoiKa dIy KonoHok (napa)

3010i/3020i

UepHbI n 6ebbl

HacteHHbI KpOHHTeH nla ca6ByΦepa

3060S

UepHbI

Pa3Mepbl (LxxBxΓ): 250 x 682 x 290 mm Pa3Mepbl (LxxBxΓ): 422 x 222 x 163 mm

PaccNBbIe akyCTnueckne cntEmbl

Tun Kopnyca:

BLOK HIXKHX YACTOT:

BLOK BepxHnx qactoT:

AMNITyHNo-chaTOTHa

xapaktepuctnka (+3dB, - 6dB)

MnHmMaJIbHbIy mIeJaHc:

CpeDHee conpoTnBLeHne:

YbCTBNTeJIbHOCTb (2,83V@1M):

MoHocb cTepeoynnteJia:

MoIHHoCTb AV-pecNBepa (dByxKaHaJIbHbI)

Yactota KpoccoBepa:

Pa6ochn o6bem:

Pa3mepbIkopnyca (× × )

(BkIIOUapeWeTky,pa3bEmnHOxKn)

Unpna ukaa:

Bec (Ha cπιkep):

3010i

2-noIOChbIe c

100 mm (4.0 in)

22 mm (0.9 in)

65 Hz - 30 kHz

6Ω

4Ω

86 dB

15-75W

50-125W

2.6 kHz

4.0 L (244 cu in)

150 × 253 × 252 mm

(5.9× 10.0× 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-NOIOChbIe C

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88dB

25-75W

50-125W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 ~mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

AKTNBbI ca6Byep

Tun Kopnyca:

BJOK HIXHINX YACTOT:

MoUHOCb yCUNITeJIa:

Yachotnha xapaKTepeNCTnka(+3 dB, -6 dB):

YacToTa KpoccoBepa:

Pa6ochn o6bem:

Pa3MepbI Kopnyca (XxBxΓ):

Bec:

3060S

BeckoHeHbI 3KpaH

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) Bknoa ynnn

8.5 kg (18.7 lbs)

3050i

2-NOIOCHbIe C

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25-180W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-nOIOChbIe c

2 × 100 ~mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25-100W

50-165W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9× 6.0× 8.5 in)

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

3000i-serial

AGARMANUAL

EN	ENGELSKA	0
DE	TYSKA	19
ESSPANSKA37
FR	FRANSKA	55
IT	ITALIENSKA
NL	HOLLANDSDSKA	91
PL	POLSKA	109
PT	PORTUGISISKA	127
RU	RYSKA	145
SV	SVENSKA	16
ZH	KINESISKA	1

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Tillbehör

Vaggfeste (enkel)

3010i/3020i/3090Ci

Svart och vitt

Matt (BxHxD mm): 70 × 159 × 99 ~mm

Kabinettets matt (BxHxD mm):

Kabinettets matt (BxHxD):

Vikt:

3060S

Sluten lada

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) inkl. spikes

8.5 kg (18.7 lbs)

3050i

2-vagsreflex

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25 - 180 W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2× 40.1× 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-vagsreflex

2 × 100 ~mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25 - 100 W

50-165W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 ~mm

(16.9× 6.0× 8.5 in)

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

Vär policy ar en kontinuereg likkortforbättring.

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

配件

壁架（单个）

3010i / 3020i / 3090Ci

黑与白

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

JaHHaIINHeKa BkIouaet Bce6cJeDyUOne MoeJI:

MoeIb 3010i: KomnakTHaNoLOOHKa KOLOHka C MOUHBIM 100-MuJIINMeTpOBbIM (4,0 IIOMa) HN3KOaCTOTHbIM DnHaMVKOM.

MoIeIb 3020i: IonoUHnA KOLOHka c MoUHbIM 125-MuJIImMeTpObBIM (5,0 JIOMa) Hn3KOaCTOTHbIM DInHaMnKOM.

MoJIb 3050i: HanoIbHaa akCyTeUeCKa cnCTema C dBMy MoUHbIMn 165-MuIIImeTpObIMn (6,5 IIOma) HN3KOaCTOTHbIMn DInHaMnKamn.

MoIeIb 3060S: AKTuBhI ca6Byep MoUHocTbIO 150 Bt c DByMra 200-MnJIImMeTpObIMn (8,0 IIOMa) dINHaMnKaMn.

MoIeIb 3090Ci: LcHtpaIbHbI KaHaJI c DByMa MOUHbIMn 100-MuJIImMeTpOBbIMn (4,0 dIOMa) HN3KOaCTOTHbIMn DnHaMnKaMn.

B KapToHNo yNaKOBKe Bbl HaIeTe KOIoHKn I daHHe pyKOBoDcTBo NO 3KcnIyatauN.

Kpome Toro, ynapokbka cneyuoux MoJeNe coepknt:

Modelb 3050i: Cta6nna3atop dny 3aHne yactn, uuui n o6motka dny uunne Jkaoon KoONKn.

UectnirpaHbI KIOU dIy 3aKpeIeHn yCTaHOBJIeHHbIX IINJIe.

Moenb 3060S: Hpybl nntaHn, nnu n o6mOTKn nnneJ.

BHHMaTeNbHo npOBepbTe n3dene. B cnyae ecn KaKne-ln6o deTaN OTCyTCTBYOT nn NIOBpeXeHbl, coo6uTe o6 3tOMy CBOemy dIJIepy KaK MoXHO CKopee.

Haedeemc, yTo Bbl noJyUHTe ydoBOLbCTBne O T nCnoIb3ObaHn npOdyKuN Q Acoustics.

POnDrToBka

I3BleKaIte KOLOHKn I3 KapTOHbIX KOpO6K, npInepKnBaI IN 3a Kopnyc. He npInkacaiTecb K npEIOKOHeYbIM Kackaam NIN NCNoB3yIe 3aunTHbIe qexJIbI npN IN3BneHem. Modenn 3050i n 3060S TjKeIbe: npN Heo6xOdMocTn nonpocnte Koro-H6yDb NOMOy BaM.

Ipo6ka n3 nehonlaacta

KoHKn cepN 3000i oHaueHb 3aHnMn nopTaMn I Nyuwe Bcero paOtaIOT B yCIOBnX, KOrda 3a HmN NMeetc HekOTOpoe npocTpaHCTBO, TO eCTb OKOJIO 20 cm do cTeHb. Ecn BBpacnoJoxnte KOHOKN 6n3KO K cTeHe/yrny, Heo6xOJIMO 6yDet BCTaBNTb B 3aHnne NOPtBl NeHONJaCTOBle IpO6Kn, INaYe MOKeT NOBtCB CInhKom MHOrO Hn3Knx YaCTOT.

Y6eNTecb, yTO npo6Kn NIOtHO CnT B nOpTaX He BCTabIeHbI CnIuKOM rIy6Oko. Bbl ObHApJxnte, YTO yPOBeH H3Knx YAcTOT NOHN3NtCra, HO npi ATOM NOBicNTcA YeTKoCTb I CTeNEb rIy6uHbI 6aca. 3KcnepeMentupyIte NdoNBaIteCb HxHoro Bam 3ByaHn. JnI aOCTNXeHn ONTMaJIbHORO KOHeUHOr pe3yIbTaT a npo6yIte BHOCNTb He6oNbIe N3MeHeHn B paCNOJoxHeNe KONOHOK.

UHnnn Oueh bocptbe. BydbTe octopoxKbI!

HnkOrda He cTabbTe KOLOhky Ha 7nnIax TaM, rJe OHI MoryT YTO-JIn6o NOBpeDntb!

IpepeMaTe KOJOnHKn Bcerda No Bo3dyxu HnKOrJa He BOJOnTe nx no NOBepxHocTAm!

3050i.Прикpeniteзадн стбилзatop

BctabbTe 7nnn, o6opydoBaHHbIe CTOnOpHbIM raKamN, do nolOBnHb I OCHOBaHne u BepHtE KOJHOy B BeptkAalbHoe noJoxHe. (EcIn y Bac depeBraHHbI nn KaMeHHbI pOteKTop Ha KaJdbI WnIb N 3aTeM BePHTe KOJOHky B BepTKaJIbHoe noJoxHe). KOrda KOJONKa HaxoITcB I npAbINbHOM noJoxHeHn, BCTabbTe WeecTIRpaHHbIKIOUc CBepxu B KaJdbI 3aHN Jn OTPerynpuYte BCE 7nnn TaK, YTO6bl KOJOHKa cTOnJa npRMO n He 7aTaIaNb.

IcnoB3yInTe BnHTbI DnA 3aKpenHnHOKeK, KaK yKa3aHo Ha KapTINHe.

Pa3meueHne

Bcemn AkyctHecMM OCTeMM MOKHO NOBOTBPOPAOM C TENEVBIOHbIM MOHITOPAM63 KAKORIINBOpeHOro BO3peCTBV, KPOWEMODEN 3060S,KOTpyHO HepeKOMHeDyETOHKTITAYTIPoBaTH Ha pacrToHHM Mehee 500 MM OT EkaHa TENEVBOPa MM DpyTORO MarHHTOyBCTBNTBHorO 6OpdyobAHn PImaMeHHbIeXKK-ekpaHbTIakkeHeNpOpeRKeHbIBpeHOMy BO3peCTBVIO.

3010i n 3020i

KoNoHKn 3010i n 3020i ndeaIbHo noxOJr dny yctaHOBKn Ha HanoNbHbIe noCTabKn Q Acoustics nn MoTataHa cTeHy. Ecn Bbl npOn3BODnTe MOHTaX Ha noCTabKn, co6nOaIte npocToe npabIno: 6nok, OTBeuaUoiu 3a nepeDauy BepxHnx YactOT,doJKeH haoNTbcra Ha ypOBHe rONobBi CnJaIeero CnyuataeY. KonoHKn, MOHTpyEmble Ha cTeHy, moXHO paCnoLOXNtB HeMHorO Bblue, eCIn INx CnerKa HaKNOHTb. KoNoHKn,MOHTpyEmble Ha noCTabKn, cJeDyET paccMaTpNBaTb KaK HanoNbHbIe KOLOHKN, 3a NCKIOUeHNEM TORO, UTO INx MoXHO paCnoLOXNtB HeMHorO 6nHex K 3aDHe N CTHe. Bo3MoXeH TaKke MOHTaX Ha NoIKN.

Y BaWero DnIepa HMeETcB HAnuHOn OngNoHaJIbHO NocTabIeMbIn KPOuTeH, CneuaJIbHO pa3pa6oTaHHbI dJa MOHTaKa Ha cTeHy KOLOHOK Q Acoustics 3010i, 3020i n 3090Ci. IMeIoTcraKHe HAnOJIbHbIe NODCTaBKn dJa MoJeNe 3010i n 3020i. Bydte roTOBbl EKcnepImeHTnpoBaTb B NOnCKe HAnLyUWeRo Ha BaW BKyc PaCNOJIOKeHnRA KOLOHOK B KOHKpeTHOM, Bbl6paHHOM Bamn NOMEseHn.

3050i

KoJohKn 3050i cIeNyet
paCnoJIOXnTb MNHmym B
20 cm OT 3aJHei CTehbl n
B 50 CM OT 6OKOBbIX CTEH.
Pa3MeueHne KOJOHok 6nHexe K
CTHe ycNlNT Hn3Kne yAcTObbl,
HO MoKET BbI3BaTb rJn
HeueTKOcTB 3Byka. KOJOHKn
DOJXHbl HaxODnTbcra B 2-4
MeTpax Dpyr OT dpyra n CBOUMn
ZeHTpAMn o6paatbcra
K cnJaUeMy CNyWateJIIO.
He6oJbwoi NobOpOT KOJOHOK
fpoHTaJIbHbIMn CTOPOHAmn

Dpyr K Dpyry CdeNaeT YeTHe CTepeOKapTHy, HO MOXKeT «Cy3NTb» NCTOCHNK 3ByKa.

Ca6ByΦep

Hn3Kne 3ByKObIe YAcTOTb B OCHOBOM OINHaKObI NO BCem HAnpabLeHNrM. XOTa 3TO O3Haayet, YTO Bbl MOxKeTe yCTaHOBtB BAI sCa6Byoep IpaKTnueckn B IIObOM MeCTe, BCE JxE 3ByKOba KApTHNa 6yDet LyuWe, ECIN Bbl yCTaHOBtCe Ca6Byoep Ha yPoBHe nepeDnHex DnHAMNKOB N, HAckOJIbKO BO3MOXHO, NO CEHTpy OT N03UcN CnywateJ. B MHorokAHaJIbHOH CNCTeMe 3TO MOxET 6bITb HEOCUeCTBUMO. EcIn Bbl NoCTaBtE ca6Byoep 6bn3Ko K CTeHe, TO HxKHe 3ByKObIe YAcTOTb MOryT YcNIITbcra N IO3TOMy B HeKOTOpbIX MecTaX 3BYK MOxET CTaTB HeYeTKIM.

KolonknIynepeaun 3BykoBbIX 00

3090Ci

KoNoHka 3090Ci npedHa3NaueHa dna pa6ObI B6n3n TeNe3KpaHa n pa3Meuen no ero ceHTpaBHO cn. Ee cneDyET pa3Mecntb HEnocpeCTBeHHo Ha dKpaHom nn Nn NDn. Ecn y BaC nla3MeHHbI nn XXK-MOHITOp, MOHTpyNe KOOnHKy 3090Ci Ha CTeHy nn Dpyryo NpOxDyUIO NOBepxHocTb HEnocpeCTBeHHo Ha dKpaHom nn Nn NDn NpN NOMuN HAcTeHHoro KpOHsteYHa Q-Acoustics. B npOTNBOM cnyae NoDymaTe O pa3MeueHnn TeLeBn3Opa Ha CTennJk, Ha KOTpbM MoXHoo Bydet TaKke NOCTABNTb N KOLOHky 3090Ci (Ha npOCHyIO NOKy HEnocpeCTBeHHo NOd TeneBn3Opom).

Cnmbolbl Dolby n DD -3To Toprobble Mapkn KOMnaHnn Dolby Laboratories.

Akyctnuecka cnctema o6bemHoro 3ByaHna

Kompania Dolby daet cneyuounie pekomehdaunn B OTHOweHN ayuioocteMbI dnypepaun 3ofoektob 5.1. KonoHKn Iy nepeaun o6bemHoro 3Byka cneuyet MOHTnpoBaTb no 6okam OT cnuwateJn HEMHORO c3aHn Hero. KonoHKn cneuyET NOBepHyTB dpyr Kdpry, npocTo pa3MeCTNB IX Ha 6OKOBbIX CTehax NOMeHn HNN, ecnn NOMEueHne CNIWKOM BENIKO, Ha BBICOKNX IOdctabKax. Ppi 3tOM cneDyET paCNOLOXNTb ceHTpbI KOLOHOK Bbiwe ypOBHra TOnOBbl Cndaero cnuwateJn.

ДлгNotOnoHbIX KOLOHOK, KOTOpbIe IcNoJb3yOToCЯ MHorokaHaJIbHbIX yCTaHOBOK, mbl peKOMeHdyem accOPTUmEHTyCTaHOBOuHoro kpenexa Q Acoustics.

CoeinnHeHn

Ipeep noKIOHnEM KAKORO-JIO6O 06OpDobAHnK KOONKaM y6eNTecb, YTO Bce pa6oue 6noKn Baew CnCTembl OTKIOUeHbI OT 3JeKTPnueckoCetn. Ppi BKIOUeHN ayIOOCCTembl Nn IpeKIOUeHm INTOOHNKB BXODhBIX CNHAIOB, YCTaHOBITE O6uim peYyIaTOp rPOMKoCTn Ha Hn3Km IyPoBeHb. IOnbIIaTe yPoBeHb rPOMKOCTn NOCTeNEHO.

PonocncoeHHTeJI

KoNoHKn 3010i, 3020i, 3050i n 3090Ci oshauehbl cTaNdapThbIMn KpoccoBepamc DByMa NOIocAmN.

3010i, 3020i, 3050i, 3090Ci

Akyctnueckne ka6einn

CneuHaun3nupoBaHHbIe akyCTnueckNe Ka6eNIO bcncpeuHbAOT 6OJe BBICOKN CTaHdAPT BOCnpOn3BeDeHn, Yem Ka6eNIO o6Uero Ha3NaueHnra Tnna "bell" (ToHKne I nIPOXo N3OJIupoBaHHbIe Ka6eN) nn "zip" (DbYxKnlbHbIe Ka6eNc pa3DenITeBbHbIM OCHOBHnEM).ДЯ nepeHrero n cHTpaNbHorO kaHaNoB INcNoJb3yInTe Ka6eNc 6OJbShm KONueCTBOM Mei. ToHKne Ka6eNc cOKpaUaOT Hn3Kne qACTOTbl N orpAnuHbAOT dINHaMnueckn dnaPAn3OH. Mehbsee 3NaueHne irpaIoT KaHaJIb IOsbEmHO r 3ByaHnra (3aHNHe).

Akyctnueckn Ka6eIb Imeet noLocKy nIIM MeTKy BdoJIb OndHO Ka6eIbHO JINJIb. IIO npaBnIam erO HyxHNO pNDKIOUaTb K NOLOXHTeJIbHbIM NOnIOcAM. Ka6eI, NODKIIoUaIOUne ycNITeJIb K nepeDnIM KOLOHKaM, B INeaeIeONJHbI 6bITb OOnHaKOBOI dInHbI. HNKOrda He coeDNHrTe Ka6eJIb n3 HeCKOJIbKnx OTpe3KOB — BCerDa IcNoJIb3yIte cElyB Ka6eJIb.

IpoTobKa Ka6eNei

Pacuente Knlb Ka6eHa rny6nHy Okono 40 MM. OroInTe KOHeu KaKdoi Xnlb Ha rny6nHy 10 MM n cKpynte erO, TTo6bl C6paTb B CEJeoe BCE Topaune B CTOpOHb IpOBoDNk. POnpeXbTe oroneHHyU qactb Ka6eNo dnnHb7 MM.

IopknHueHne noJIOca

OTKpyTnte nonoc npotnb yacoboi ctpeNk nIra TORO,TO6bl CTaIO BnIDHO MOHTaxHoe OTBepCTne BOCHOBAHNI KOLOHKI NOIocA.

BctabbTe oroIeHHbIKOHeu Ka6eJI B OTBepCTne. 3aKpyTnte noIIOc pyKo I O tKa3a. Y6eIntecb, UTO He NMeETcH NHKaIX Topuaux NPOBOIDKOB, KOTOpblc MoryT KacaTbcra CoceHNX NIOUCOB. B EC INCNoB3OBaHnE 4-MINlIMeTPOBbIX WTeNCEJbHbIX AkyCTNuueckNX BNLOK IpOTNBopeuyt HopMaM 6e3OnaCH

CtepeofoHnueckne coeDnHeHn

Ctahapthbce coeHHeHH

PoiKIOUHTe KPACHbI (+) noIOc npaOB KOIOHKn K KPACHOMY noIOXHTbHOMy (+) noIOcy PPABOTo KaHana ycINTeJI. PoiKIOUHTe YEPHbI (-) noIOc KOIOHKn K COOTBeTCTByIOUeMy YEPHOMY, OtpuataTeNbHOMy (-) noIOcy ycINTeJI. PpOeJaTe Ty Je npoceDpyB oTHoSeHHJLEBOTO KaHana.

CtAnapTha cnCTema npoBOJIOB:

PoclenpoJauKHoe o6cIyXuBaHne

Yxoid3aKopnycom

Kopnyc MoXHO uHCTNtB ToIbKO cIeRka CMOeHHo CaJIeTko. He nCNoJb3yIte uHCTaIne cpeDcTBa Ha OCHOBe pAcTBOpHTeNe. HIKoRa He nCNoJb3yIte a6pa3uBBbl.

KaK npabnlo, NOBepxHocTb KOpnyca Tpe6yeT ToIbKO JERKO OUcCTKN OT nbll. PpN IcNoIb3OBaHN a3po30JbHoro nn KaKOro-ln6o DpyrOro UcCTaero CpeCDtBa HAnOCHTe rO Ha cAfoTeKy, a He Ha cAmo n3dEne. Ira Nauchana NopPo6yIte UcCTaue CpeCDtBO Ha MaJeHbKOM yAcTKe NOBepXHOCTu 3dEInr, TaK KaK HeKOToPbIe YnCTaue CpeCDtBA MOrTy NOBpeDITb NOKpbItne. N36eraIte NcNoIb3OBaHN a6pa3INBOB nn CpeCDTB, CoedeJkaunx KncIoTHbe nn IeNoUHbIe peAreHtbl. Bo n36exKaHne NobpeXdEnn He NcNoIb3yIte UcCTaue CpeCDtBa dJa NcCTKn rONOBOK n He TporaiTe nx.

3aHTbIe cETKn

3aunthbte cetkn npn Heo6xodmoctn CneJeT uCTntb TOnbKO MrgKo 8eTKO.

EcnBbI nCnoJIb3yeTe CnCTeMbI Q Acoustics 6e3 3aunTHbIX CeTOK, 6o3aTeJbHO yCTaHaBnBaIte INx Ha MeCTO, KOrJa B KOMHaTe HaxoJrTcJeTIn NII DomaUHHe XuBOTHie.

y3nbl npB0da

K y3nam npuBOna lyUwe He npKacTaBcra, TaK KaK nx IerKo nobpeDntb.

TapaHTnA

Ha npodykuni KOMnAHN Q Acoustics npedocTabIeTc rapaHTnOCTBnI dekeTOB c TOnKu 3peHn KaueCTBa MaTePnAIOB n N3rOToBneHn Cpokom Ha 4 roda (1 roJ dJa ca6Byepa) c DaTbI npno6peTeHn. B TeueHne rapaHTnHOro cpoKa KOMnAHN Q Acoustics o6a3yeTc npoIN3BeCTn peMOHT nn 3aMeHnTB n3dEIne, ecJn NocJI npoBeHn npOBepKn OHa nn ee Ha3NaueHHb IINCTpn6bHTOp nn yPOJHomOueHHb npedCTabNTel b O6HapykaT deeEKT B npedeOCTabHeHHOM Ha npOBepKy n3deHN.

TapaHTnHa pacnpoctpaHReTcHa HEnpaBnIbHOe IcNoJIb3OBAHne I eCTeCTBeHHbI u3HOC.

TobapbI dIpeMOHTa DOJXHbIB NepByIO OuepeB 6bITb BO3BpaUeHbI NOCTABUBWemy INx DnIepy.EcIN ITo He npedctabJIeTcB BO3MOXHbIM, CBJXITcB c Q Acoustics nII Ha3HaueHHbIM KOMpAHneI dNCTPb6bIOTOpOM dIra BaWero pRHOHa, UTO6bl ONpeDenITb PpaBnBHyO rapaHTnHyO npoEdupy. IIO BO3MOXHOCTn CNeDyET NCNOJB3OBaTB OpIRnHaJIbHyO yNAKOBYI dIra BO3BpATA N3dEIny, TAK KaK Ha yUeP6, npuHNHeHHbI BO BpEMr TpaHCnOPTnpOBKn B ceHTp peMOHTa, He paCnpoCTpaHReTcRApaHTn. 3Ta rapaHTn HIKoIM o6pa3OM He BnREt Ha BaUN 3aKOHHbIe npaBA.

Cpok DeiCTBnra rapaHTn moXHo npOJnTb do 5 neT (2 roJa dIra ca6Byepa), 3aperncTpnpobab n3dennne
Ha Be6-CTpaHnce
www.qacoustics.co.uk/register.

Для получени Информаци O ТЕХИЧЕСКО M OБслУЖИВАПИ OБрацайТecь NO aДпесу ΝЛeКТрОНночы [e-mail]

Q Acoustics
Stortford Hall Industrial Park
Bishop Stortford, Xapтфордшир, Великовптуни CM23 5GZ

Приноалесноctи

HaTeHHbI KPOHHTeH (OdH)

3010i/3020i/3090Ci

UepHbI n 6ebbl

Pa3MepbI (UxBxΓ): 70 x 159 x 99 mm

CtoiKa dIy KonoHok (napa)

3010i/3020i

UepHbI n 6ebbl

HacTeHHbI KPOHHTeH nla ca6ByΦepa

3060S

UepHbI

Pa3Mepbl (LxxBxΓ): 250 x 682 x 290 mm Pa3Mepbl (LxxBxΓ): 422 x 222 x 163 mm

PaccNBbIe akyCTnueckne cntEmbl

Tun Kopnyca:

BLOK HIXKHX YACTOT:

BLOK BepxHnx qactoT:

AMNITyHNo-chaTOTHa

xapaktepuctnka (+3dB, - 6dB)

MnHmMaJIbHbIy mMeJaHc:

CpeDHee conpoTnBLeHne:

YbCTBNTeJIbHOCTb (2,83V@1M):

MoHocb cTepeoynnteJia:

MoIHHoCTb AV-pecNBepa (dByxKaHaJIbHbI)

Yactota KpoccoBepa:

Pa6ochn o6bem:

Pa3mepbIkopnyca (× × )

(BkIIOUapeWeTky,pa3bEmnHOxKn)

Unpna ukaa:

Bec (Ha cπnkep):

3010i

2-nOIOChbIeC

100 mm (4.0 in)

22 mm (0.9 in)

65 Hz - 30 kHz

6Ω

4Ω

86 dB

15-75W

50-125W

2.6 kHz

4.0 L (244 cu in)

150 × 253 × 252 mm

(5.9× 10.0× 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-NOIOChbIe C

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6Ω

4Ω

88dB

25-75W

50-125W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 ~mm

(6.7× 11.0× 11.1 in)

5.5 kg (12.1 lbs)

AKTNBbI ca6Byep

TnKopnyca:

BJOK HIXHINX YACTOT:

MoUHOCb yCUNITeJIa:

Yachotnha xapaKTepeNCTnka(+3 dB, -6 dB):

YacToTa KpoccoBepa:

Pa6ochn o6bem:

Pa3MepbI Kopnyca (XxBxΓ):

Bec:

3060S

BeckoHeHbI 3KpaH

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) BkIoua Ynnn

8.5 kg (18.7 lbs)

3050i

2-NOIOCHbIe C

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25-180W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-nOIOChbIe C

2× 100mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25-100W

50-165W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9× 6.0× 8.5 in)

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

ACOUSTICS

3000i-serial

AGARMANUAL

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Tillbehör

Vaggfaste (enkel)

3010i/3020i/3090Ci

Svart och vitt

Matt (BxHxD mm): 70 × 159 × 99 ~mm

Kabinettets matt (BxHxD mm):

Kabinettets matt (BxHxD):

Vikt:

3060S

Sluten lada

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) inkl. spikes

8.5 kg (18.7 lbs)

3050i

2-vagsreflex

2 × 165 ~mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25 - 180 W

50-165W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 ~mm

(12.2× 40.1× 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-vagsreflex

2 × 100 ~mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4Ω

89 dB

25 - 100 W

50-165W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 ~mm

(16.9× 6.0× 8.5 in)

6.0 kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK

Vär policy ar en kontinuereg likkortforbättring.

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

配件

壁架（单个）

3010i / 3020i / 3090Ci

黑与白

6.0kg (13.2 lbs)

ACOUSTICS

QACOUSTICS.CO.UK
