USER MANUAL PD732C Power Dynamics

SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. ATTENTION RISQUE D’ÉLECTROCUTION ! NE PAS OUVRIR ! WARNING TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT AND FULLY INSERT. Copyright 2017, Samson Technologies Corp. v4 Samson Technologies Corp. 278-B Duffy Ave Hicksville, NY 11801 www.samsontech.com If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Private households in the 28 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.Owner’s Manual

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked

on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories

specified by the manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug the apparatus during lightning

storms, or when unused for long periods of time.

14. Refer all servicing to qualified personnel.

Service is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This appliance shall not be exposed to

dripping or splashing water and no object filled with liquid such as vases shall be placed on the apparatus.

16. Caution-to prevent electrical shock,

match wide blade plug wide slot fully insert.

17. Please keep a good ventilation

environment around the entire unit.

18. The direct plug-in adapter is used as

disconnect device, the disconnect device shall remain readily operable.

19. Batteries (battery pack or batteries

installed) shall not be exposed to excessive heat such as sunshine, fire or the like.Go Mic Mobile

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

2. Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. RF Exposure Statement (SAR) This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Gov- ernment. The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conduct- ed using standard operating positions accepted by the FCC with the device transmitting at its highest certificated power level in an tested frequency bands. To maintain compliance with the FCC RF exposure requirements. The maximum summation of SAR was:0.90W/Kg 1g Body SAR for GMM,0.61W/Kg 1g Body SAR for HXD2,0.48W/Kg 1g Body SAR for PXD2.

WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive

heat such as sunshine, fire or the like. Hereby, Samson Technologies Corp., declares that this Go Mic Mobile Wireless System is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/ EU. The declaration of conformity may be consulted at: http://www.samsontech.com/site_media/support/manuals/GMM_DOC.pdfOwner’s Manual

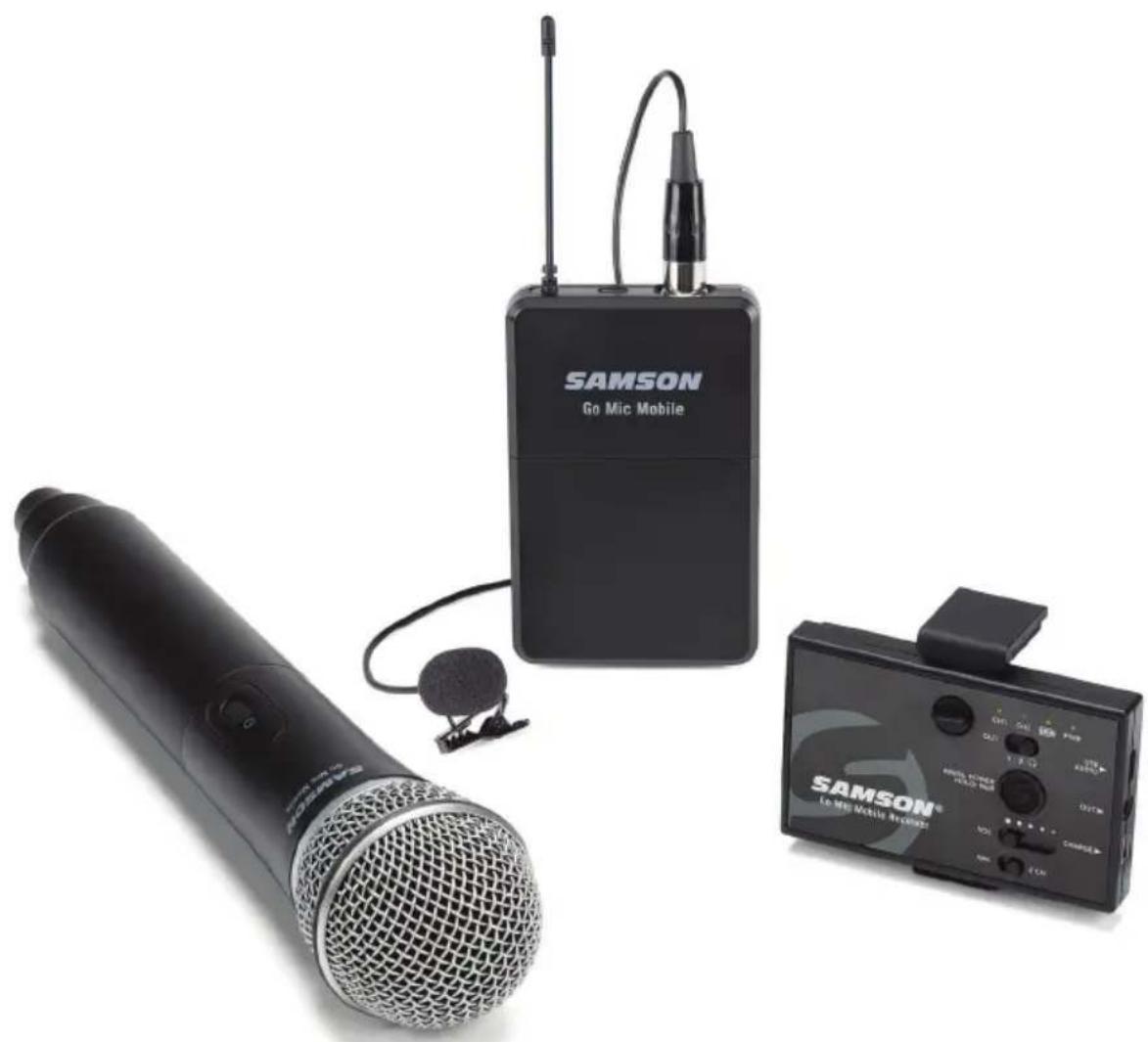

Introduction Congratulations on purchasing the Samson Go Mic Mobile Wireless System. The Go Mic Mobile is a dual wireless system designed to deliver professional quality audio for mobile video. Pair and mix two transmitters to the GMM and turn your mobile device into a complete video production studio. It is the ideal solution for mobile journalists, filmmakers, videographers or anyone looking to add wireless audio to their video projects. The Go Mic Mobile includes all the cables needed to connect the Go Mic Mobile Receiver (GMM) to a smartphone or digital camera (with an audio input). The Go Mic Mobile will work with iOS, Android, Mac OS and Windows devices. The locking mount arms enable the Go Mic Mobile receiver to mount directly onto the rear of a smartphone out of the way of the phone’s lens. The arms can be removed to attach the receiver to a tablet (using the included hook-and-loop strips) or affix to a camera using the included shoe mount adapter. In these pages, you’ll find a detailed description of the features of the Go Mic Mobile wireless system, instructions for its setup and use, and specifications. If your wireless system was purchased in the United States, you’ll also find a registration card enclosed—don’t forget to follow the instructions so that you can receive technical support and so that we can send you updated information about this and other Samson products in the future. Also, be sure to check out our website (www. samsontech.com) for complete information about our full product line. We recommend you keep the following records for reference, as well as a copy of your sales receipt. Transmitter & Receiver Serial number: _________________________________ Date of purchase: ___________________________________________________ If you have any questions or comments regarding the Go Mic Mobile Wireless Microphone System or any other products from Samson, do not hesitate to contact us at support@samsontech.com. With proper care and maintenance, your Go Mic Mobile Wireless System will operate trouble- free for many years. Should your Go Mic Mobile Wireless System ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your Go Mic Mobile Wireless System was purchased outside of the United States, contact your local distributor for warranty details and service information.Go Mic Mobile

Charging the Go Mic Mobile Receiver Battery Getting the most out of the rechargeable battery:

• Completely charge the batteries before first use

• Fully charge the battery before it will be used.

• After the battery is charged, unplug the adapter from the outlet.

• The optimal temperature range for using and storing the battery is 50°F - 86°F (10°C - 30°C). The battery performance and operation may decrease in temperatures below 50°F (10°C).

• To extend the battery life, power off the Go Mic Mobile receiver when not in use. The Go Mic Mobile Receiver has an internal lithium-ion rechargeable battery. The receiver is charged via the Mini USB jack located on the side of the receiver. To charge the receiver, use the included USB charging cable and AC adapter. Charging may also be done with 3rd party AC 5V adapters, or by connecting the units to a standard computer USB port. The total full charge time is 3 hours if you use a fast charger or a fast-charging USB port (with a lightning symbol next to it), but if connected to a “standard computer USB port” it will take 10 hours. The max run time from a full battery is approximately 7–13 hours. Note: The Go Mic Mobile receiver does not recharge from the Micro USB port, so the battery level will decrease if plugged into a computer. If you want to power the receiver while it is connected to a device, you will also need to connect the Mini USB port to the computer or AC adapter.Owner’s Manual

1. Power/Pair Switch - Press less

than 5 seconds to turn the unit on or off. Press and hold for more than 5 seconds to enter pairing mode. Note: The Go Mic Mobile receiver and transmitter are pre- paired from the factory.

2. Analog Output Select Switch - Sets

the wiring of the analog output. The OUT 1 & 2 positions are for connecting to a smartphone’s TRRS headset input. The Headphone/Line output is for connecting the receiver to a camera, mixer or headphones.

3. VOL Control - This slider sets the

level of the audio signal sent to the receiver’s digital and analog outputs.

4. MIX / 2 CH Switch - Sets the receiver audio output to either mixed mono or split

5. CH 1 & CH 2 Indicators - When lit white, the LEDs indicate the receiver is paired

with a transmitter. When the transmitter input or the receiver output is clipped, the LEDs flash red.

6. Battery Level Indicator - This indicator lights green when the battery is charged,

lights red when the battery is low, and orange when the battery is charging.

7. Power Indicator - This indicator lights green when the Go Mic Mobile Receiver is

9. OUT Jack - Use this 3.5mm jack when connecting to an analog input or

Receiver to the included AC adapter to charge the receiver’s internal battery.

11. Lock Screw - Turn left to loosen the screw and adjust the mounting arm. Turn

right to lock the mounting arm in place. Go Mic Mobile Receiver (GMM) Callouts

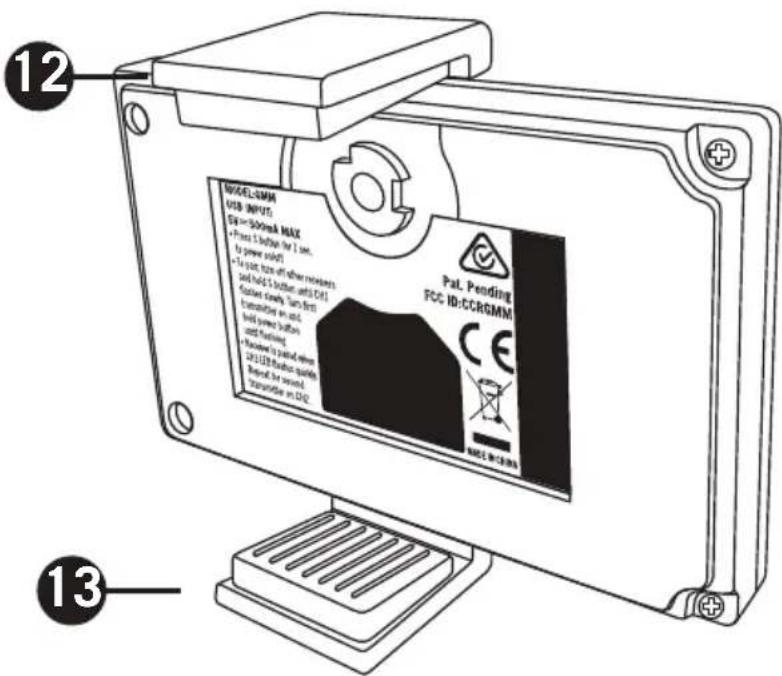

12. Adjustable Mounting

Arm - This mounting arm is adjustable to affix the GMM Receiver to a smartphone. To adjust, loosen the Lock Screw on the top of the GMM Receiver. To fix the arm in place, tighten the Lock Screw. Note: The Adjustable Mounting Arm can be removed by loosening the Lock Screw, sliding the arm to the closed position, then unscrew the Lock Screw completely and remove. Now slide the Mounting Arm out of the GMM Receiver and replace the Lock Screw.

13. Fixed Mounting Arm - This fixed mounting

arm is used to mount the GMM Receiver to a smartphone. A 1/4”-20 adapter is included to mount the GMM to a standard camera tripod. To remove the fixed mounting arm, unscrew the two Phillips screws.

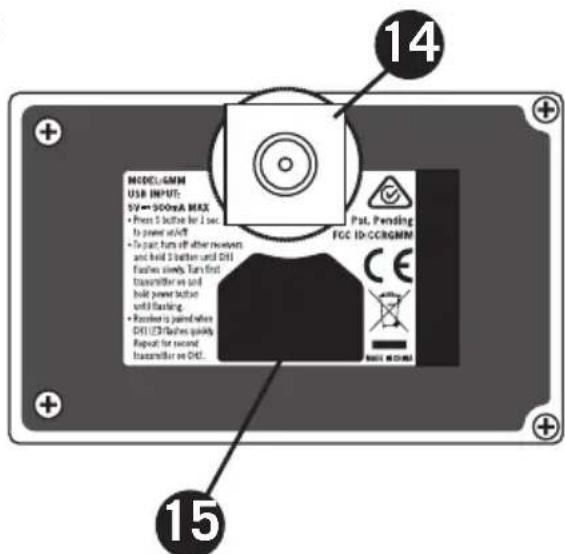

14. Cold Shoe Adapter - This removable shoe

mount adapter is used to affix the GMM Receiver to a camera or mobile filming case.

15. Hook and Loop Area - Use the included

self adhesive hook and loop pieces to affix the GMM to a tablet. Before attaching the GMM to a tablet, remove the standard mounting arms and/or cold shoe adapter.

Go Mic Mobile Receiver (GMM) Callouts

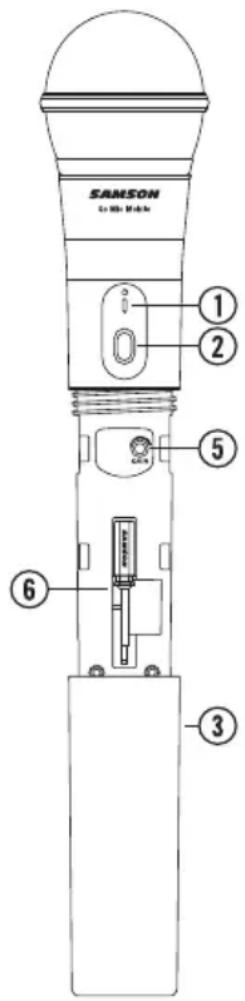

HXD2 Handheld Transmitter Callouts

2. Power/Pair Switch - Press <5 seconds to turn

the unit on or off. Press >5 seconds to enter pairing mode.

3. Battery Cover - Unscrew the battery cover

and slide down to open the Go Mic Mobile Handheld battery compartment.

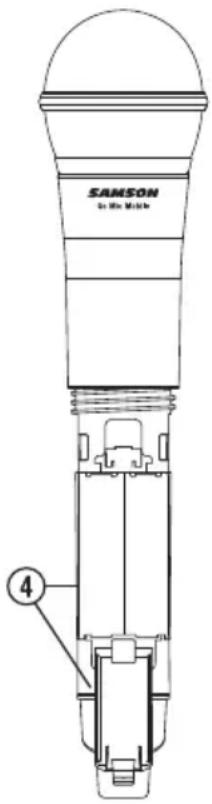

4. Battery Holder - Open the battery holder by

pressing the tab and lifting the cover. Insert two standard AA (LR6) batteries here, being sure to observe the plus and minus polarity markings shown.

WARNING: Do not insert the batteries

backwards; doing so can cause severe damage to the transmitter and will void your warranty.

5. Input GAIN Control - This control adjusts

the transmitter input sensitivity. This input sensitivity control has been factory preset to provide optimum level for the particular microphone capsule provided with the Go Mic Mobile system and so we recommend that this not be adjusted manually. If necessary, however, you can use the supplied plastic screwdriver to raise or lower the input level.

via the mini-XLR connector. The PXD2 is supplied with a lavalier microphone.

3. Power/Pair Switch - Press <5 seconds to turn

the unit on or off. Press >5 seconds to enter pairing mode.

4. Input GAIN Control - This control adjusts the

transmitter input sensitivity.

5. Battery Holder - Insert two standard AA (LR6)

batteries here, being sure to observe the plus and minus polarity markings shown.

WARNING: Do not insert the batteries

backwards; doing so can cause severe damage to the PXD2 and will void your warranty.

6. Plastic Screwdriver - Used to adjust the input

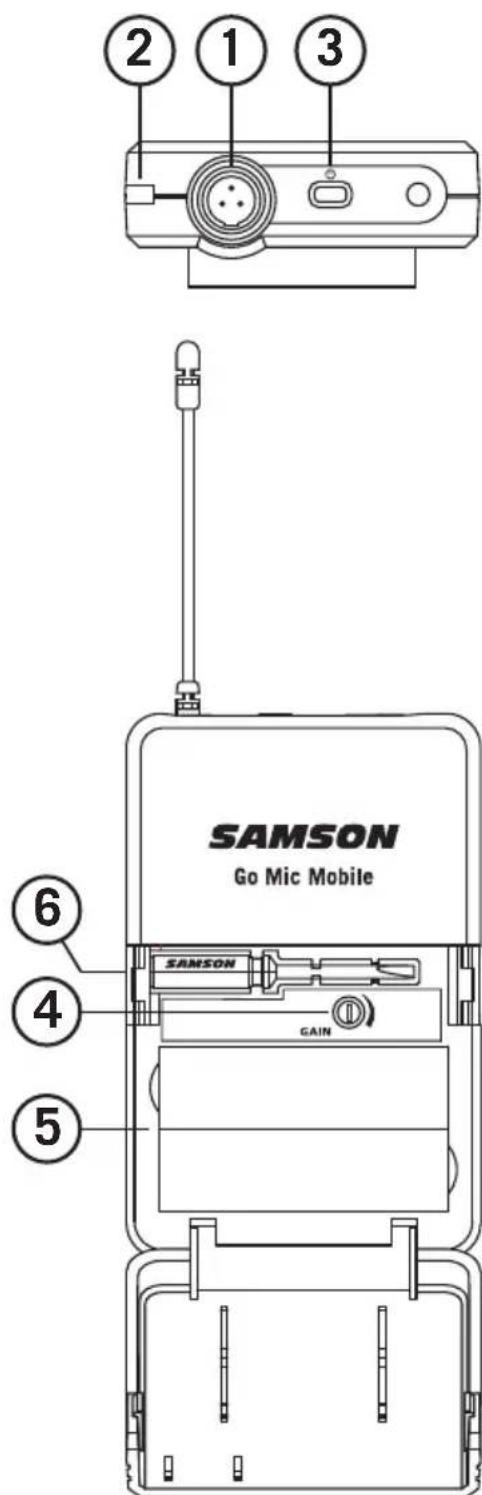

GAIN control. PXD2 Belt Pack Transmitter Callouts

Getting Started - Pairing The Go Mic Mobile system will come paired from the factory. If you need to re-pair the system for any reason follow these steps:

1. Turn on the Go Mic Mobile Receiver (GMM) and Go Mic Mobile transmitter by

pressing their Power/Pair buttons for less than 5 seconds.

2. On the GMM, press and hold the Power/Pair button for more than 5 seconds. The

CH1 LED will start flashing slowly.

3. On the Go Mic Mobile transmitter, press and hold the Power/Pair for more than 5

seconds. The transmitter LED will start flashing slowly.

4. When the receiver and transmitter are paired the LEDs will quickly flash and the

transmitter will light solid Green and the GMM CH 1 LED will light solid white. The Go Mic Mobile Receiver CH2 LED will now start flashing slowly.

5. To pair a second transmitter, press and hold the Power/Pair button on the second

transmitter for more than 5 seconds. The transmitter LED will start flashing slowly. When the receiver and transmitter are paired the LEDs will quickly flash and the indicator on the second transmitter will light solid green and the GMM CH 2 LED will light solid white. Note: If you do not wish to pair a second transmitter, the receiver will time out of pairing mode after 20 seconds.

7. To re-pair the paired transmitters with the Go Mic Mobile receiver, press and hold

the Power/Pair button on the receiver for more than 5 seconds. The receiver will erase the current paired transmitters and enter pairing mode. If no transmitters are paired with the receiver, the GMM will time out and return to the previously paired state. Note: When pairing your Go Mic Mobile system, make sure only one GMM receiver is turned on and only one microphone is in pairing mode at a time.Go Mic Mobile

Getting Started - Audio Connections The Go Mic Mobile can be connected to a smartphone using the Micro USB digital output or 3.5mm analog output. Connecting to an iOS device (iPhone, iPad or iPod Touch) Using the included Micro USB to Lightning cable, connect the cable to the USB Audio Output jack on the GMM to the Lightning connector on the iOS device. Once connected, the iOS device will recognize the Go Mic Mobile as the audio input device. Open a recording or video application and start recording. Note: It is recommended to put your iOS device in Do Not Disturb mode or Airplane mode to eliminate the video or audio recording from being interrupted by a phone call. Leave Airplane Mode off to keep geolocation information tagged to your video files. Connecting to an Android device with the digital audio output Go Mic Mobile offers digital audio compatibility with Android devices running Android 5.0 (Lollipop) or later that allow USB digital audio connectivity. Not all Android applications support USB audio, and you may need to download a third party app to use this feature. To connect using the USB Audio Output jack, make sure your Android device can accept a digital audio input. Using the Micro USB to USB type-C or Micro USB to Micro USB cable, connect the cable to the Micro USB audio output on the GMM and the USB input of the Android mobile device. Connecting to a mobile device with the analog audio output If your mobile device does not accept digital audio input, the GMM can be connected using the 3.5mm analog output. When connecting to a smartphone, you will need to set the Analog Output Select Switcb switch to either the Out 1 or Out 2 position. For most smartphones the Out 1 (CTIA / AHJ) position is the appropriate setting. If your mobile device uses OMTP wiring for the input, use the Out 2 position. For more information on smartphone wiring visit www.samsontech.com/support/go-mic-mobile Connecting to a DSLR, cinema camera, or mixer When connecting the GMM to a DSLR camera, cinema camera or mixer, use the included 3.5mm analog audio output. Set the Output Selector switch to the Line/ Headphone setting. Monitoring with the Go Mic Mobile The GMM 3.5mm output can be used to monitor the audio transmitted to the receiver. The headphone output follows the MIX / 2 CH Switch. The level of the headphones is controlled by the VOL output slider and follows the output level of the USB Audio Output.Owner’s Manual

Getting Started - Setting the system volume Good audio can vastly improve a poorly shot video, but bad audio can hurt any video. In order to achieve the best results when adding audio to video with the Go Mic Mobile, it is important to pay attention to the gain staging of the transmitters and receiver. If the signal is too high, it can overload or distort. Conversely if the signal is too low, you will need to raise it up in post-production which can add background noise. The GMM Receiver CH 1 and CH 2 LEDs include peak or overload indication when the input to the receiver (signal sent from the transmitter) is overloaded. To set the level of the transmitters, while talking into the Go Mic Mobile Transmitter, turn the Gain control (inside the battery compartment) up until you reach a good recording level. If the corresponding CH indicator flashes red, turn the Gain control down until you no longer see the indicator flash red or it lights occasionally during very loud signals. When the transmitter level is set, perform a test recording to set the level of the GMM Receiver. If the recording app has an input meter, adjust the GMM Receiver VOL control until the meter is as close to 0 dB (or clip) as possible without going over. Note: The receiver VOL control does not affect the transmitter gain setting. For example, if the transmitters are sending a distorted signal, lowering the receiver volume will not fix the audio, it will only lower the overall level of the distorted signal. MIX / 2 CH Switch The GMM Receiver can be paired with two transmitters for audio from two independent sound sources. The MIX / 2 CH switch selects how the audio will be sent to the audio outputs of the receiver. In the MIX position the two channels are mixed in mono on both the left and right audio tracks. In the 2 CH switch position, the CH 1 transmitter is on the left audio channel and CH 2 transmitter is on the right audio channel. In 2 CH mode, each input can be routed to a separate track in your computer recording software. To do this create two mono tracks, and set the inputs to Samson Go Mic Mobile Left (Input 1) and Samson Go Mic Mobile Right (Input 2) respectively. The MIX / 2 CH Switch mixes the audio prior to the audio outputs of the GMM Receiver. The audio from both transmitters will be present on the left and right audio tracks of your video or recording software.Go Mic Mobile Go Mic Mobile Mounting Instructions Mounting Accessories Insert Cover Thumb Screw Adjustable Mounting Arm Cold Shoe Adapter Mounting Arm Large Hook-and- loop 1/4”-20 Mounting Arm Small Hook-and- loop

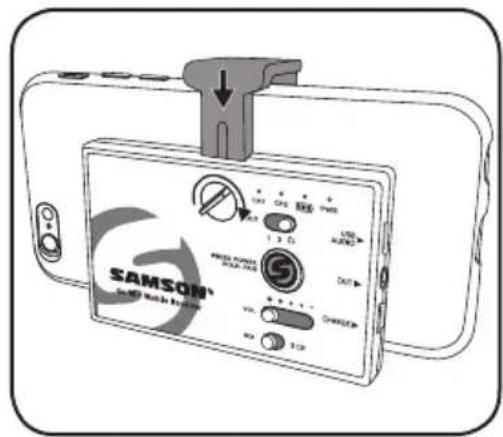

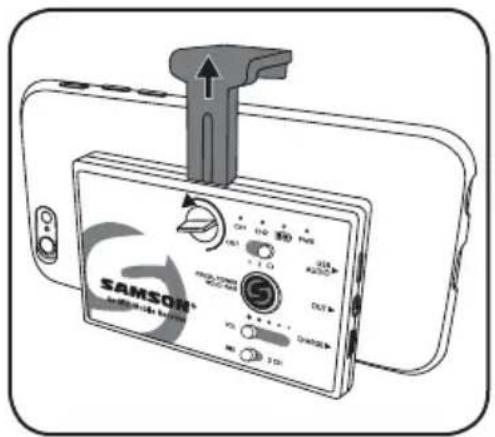

1. Loosen the Lock Screw until the Adjustable Mounting Arm can be moved.

2. Position the receiver on the rear side of the smartphone.

3. Slide the Adjustable Mounting Arm so that it is tight with the edge of the

4. Apply pressure to the Adjustable Mounting Arm and tighten the Lock Screw.

Mounting to a smartphoneOwner’s Manual

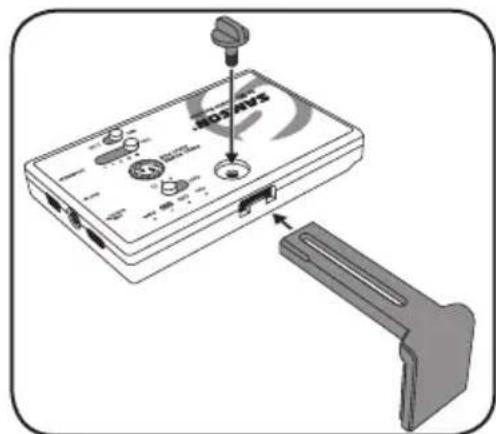

1. Completely loosen and remove the Lock Screw.

2. Slide and remove the Adjustable Mounting Arm.

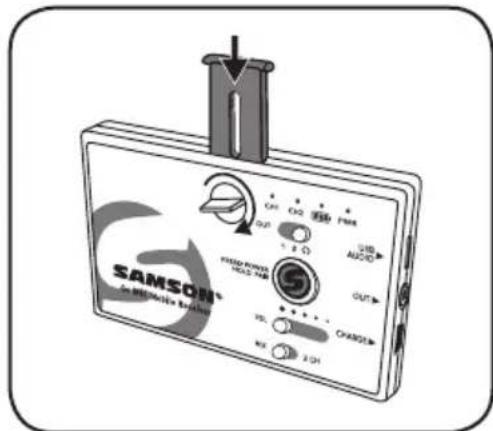

3. Slide the Insert Cover into the receiver and tighten the Lock Screw

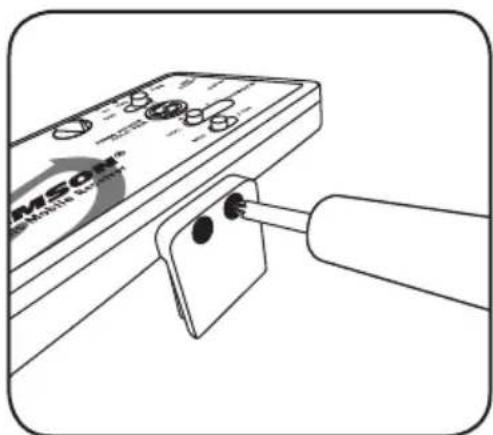

4. Remove the fixed Mounting Arm by removing the two Phillips head screws.

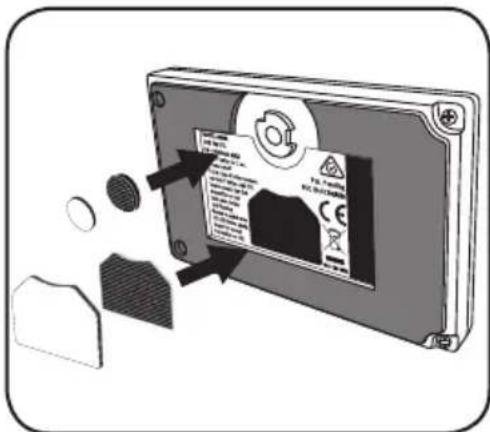

5. Affix the Large Hook-and-loop piece by peeling the adhesive backing off of the

hook side and placing the Large Hook-and-loop section onto the back of the Go Mic Mobile Receiver.

6. Remove the backing of the loop side and position the receiver on the rear side of

7. Press the Go Mic Mobile Receiver against the tablet to secure.

8. If the Go Mic Mobile Receiver is not secure, use the additional Small Hook-and-

loop section.. Mounting to a tabletGo Mic Mobile

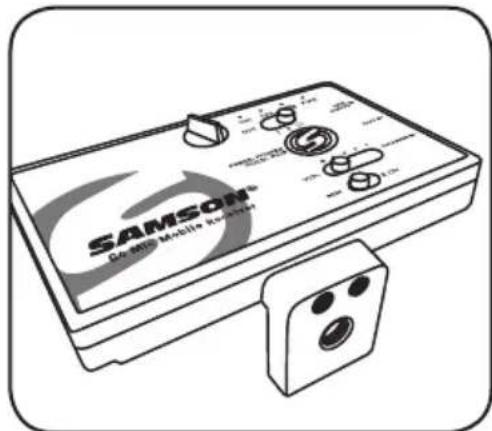

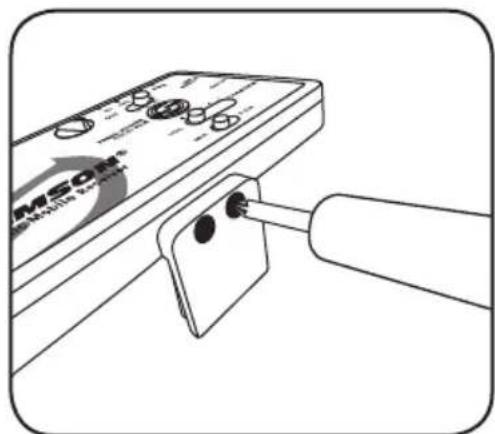

1. Affix the 1/4”-20 Mounting Arm to the Go Mic Mobile Receiver by first removing

the fixed Mounting Arm using the two Phillips head screws.

2. Attach the GMM to the tripod following the tripod mounting instructions.

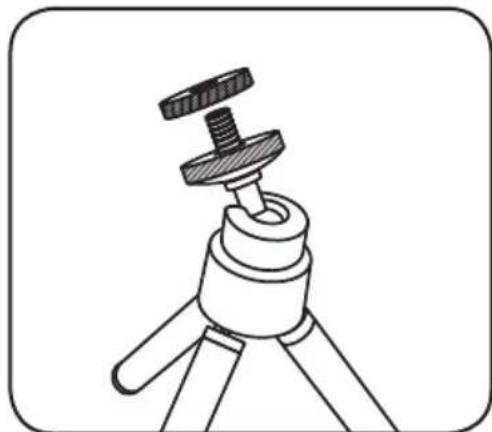

3. If the tripod 1/4”-20 mounting stud is longer than 3/8”, use the include Thumb

Screw before mounting the Go Mic Mobile Receiver to the tripod.

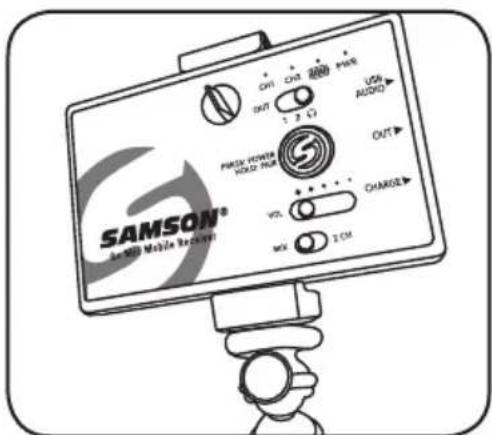

4. Mount the smartphone to the Go Mic Mobile Receiver following the instructions

from the section titled “Mounting to a Smartphone”. Mounting to a tripodOwner’s Manual Affixing to a cold shoe adapter

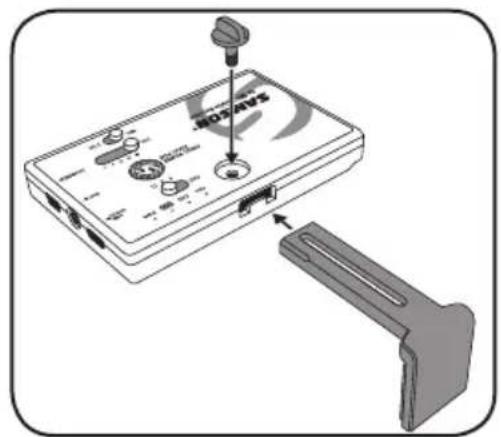

1. Remove the Fixed Mounting Arm by removing the two screws.

2. Remove the Adjustable Mounting Arm by loosening the Lock Screw, sliding the

arm to the closed position, then unscrew the Lock Screw completely and remove.

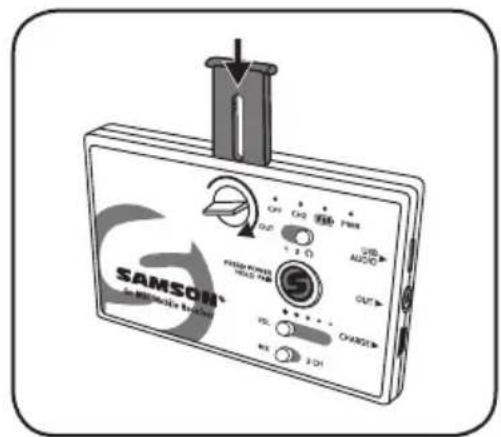

3. Slide the mounting arm out of the receiver. Replace the Adjustable Mounting

Arm with the Insert Cover piece.

4. Replace the Lock Screw

5. Position the included shoe mount adapter on the bottom of the Go Mic Mobile

Receiver, take note that the shoe mount adapter is keyed so it will stay in position when attached to the receiver.

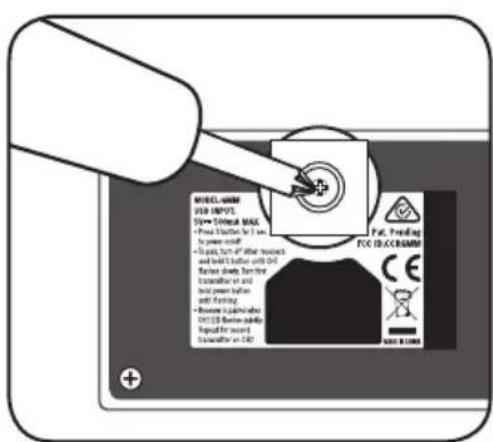

6. Using a Phillips screwdriver, fasten the shoe mount adapter to the receiver by

tightening the included screw.

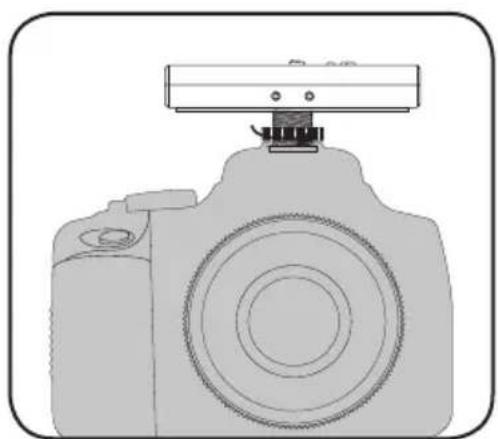

7. Slide the GMM Receiver into the shoe mount of the connecting device.

8. Once positioned, tighten the large thumb screw on the receiver shoe mount to

Specifications Go Mic Mobile Wireless System Working Range 100’ (30m) line of sight Working Frequency 2.406 ~ 2.478 GHz Frequency Response 10 Hz – 22 KHz Operating Temperature -10°C ~ +50°C Firmware Version V1.0 Hardware Version V1.0 Signal To Noise 90 dB (A) mic at minimum gain 78 dB (A) mic at maximum gain Accessories Micro USB to Lightning cable, Micro USB to Micro USB cable, Micro USB to USB-C cable, Mini-B USB to USB-A cable, 3.5mm audio cable, shoe mount adapter GMM Receiver Max. Analog Audio Output Level +6 dBu, =4.4 Vpp, =70 mW per side into 32Ω USB Audio Sample Rate 48 kHz USB Audio Support Windows, Mac OS, iOS, Android, Linux Battery Life 7 – 13 hours depending on use Power Internal rechargeable lithium-ion battery Operating Voltage 5V DC 500mA HXD2 Handheld Transmitter Microphone Type Unidirectional RF Power <10 mW EIRP Power Requirements Two AA (LR6) alkaline batteries Battery Life 20 hours PXD2 Belt Pack Transmitter Input Connector Mini-XLR (P3) RF Power <10 mW EIRP Power Requirements Two AA (LR6) alkaline batteries Battery Life 20 hours At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice.Owner’s Manual Declaration “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc. The trademark “iPhone” is used with a license from Aiphone K.K. Made for iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5 iPad Pro (9.7-inch), iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad AIr, iPad mini 2, iPad mini, iPad (4th generation) iPod touch (6th generation), iPod touch (5th generation)Go Mic Mobile Informations de sécurité importantes
