Type	UHF wireless microphone
Marque	Power Dynamics
Modèle	PD524
Gamme de fréquences	UHF (license-free in listed countries)
Alimentation du récepteur	220-240 V~, 50 Hz via 12 V adapter
Alimentation des émetteurs	Batteries or rechargeable batteries, charging via USB (5 V)
Connectiques récepteur	Balanced XLR outputs, unbalanced 6.3 mm jack output, antenna inputs, USB charging port
Affichage	LCD display with frequency, channel, volume, RF and AF signal
Synchronisation	Infrared (IR) synchronization between receiver and transmitters
Nombre de canaux	4 groups, adjustable channels
Fonctions principales	Frequency and volume adjustment, group locking, charge indication
Émetteurs inclus	Handheld and bodypack (with 3.5 mm lavalier microphone input)
Portée	Approximately 50 m (line of sight), depending on conditions
Entretien et nettoyage	Use a dry cloth, no chemicals
Sécurité	Do not open the casing, avoid moisture, unplug during thunderstorms
Température d'utilisation	5 °C to 35 °C
Pays d'utilisation autorisée	BE, DK, FR, FI, DE, HU, IT, NL, NO, PL, PT, RO, SI, ES, SE, CH, GB
Pièces détachées et réparabilité	Replaceable batteries/rechargeable batteries, repair by authorized technician
Informations générales	Indoor use, keep original packaging

Frequently Asked Questions - PD524 Power Dynamics

How to synchronize the microphone with the receiver?

Turn on the receiver and the microphone. On the receiver, select the desired channel. Place the microphone IR sensor near the receiver IR emitter. Briefly press the IR button of the corresponding channel. Synchronization is successful when the RF bar graph appears.

What is the maximum range of the system?

The range can reach approximately 50 meters line of sight, but it can be reduced by metal obstacles or interference. Avoid obstructions and keep microphones at least 5 meters away from the receiver.

How to replace the batteries of the handheld microphone?

Turn the battery cover counterclockwise to open it. Replace used batteries with new ones of the same type (not specified, probably AA). Close the cover by turning in the opposite direction.

Can I use the microphone with a power adapter?

The receiver is powered by a supplied 12 V adapter (220-240 V). The transmitters can be charged via USB (5 V) if rechargeable batteries are used. Do not use any adapter other than the one supplied.

What to do if the receiver screen does not turn on?

Check that the power adapter is properly connected and that the outlet works. Make sure the receiver is turned on via the switch. If nothing happens, contact a technician.

How to clean the microphone and receiver?

Use a dry, soft cloth. Never use chemicals, aerosols, or liquids. Do not clean the switches with sprays.

The sound is distorted or weak, what to do?

Check that the batteries are charged. Move away from interference sources (phones, Wi-Fi, etc.). Ensure line of sight is clear. Adjust the volume on the receiver. If the problem persists, resynchronize the microphones.

Can I use multiple microphones at the same time?

Yes, the receiver supports multiple channels. Make sure each microphone is synchronized on a different channel to avoid interference.

How to lock settings to prevent accidental changes?

Press the lock button to lock the selected group. Settings cannot be modified while locking is active.

The microphone does not synchronize, what to do?

Check that the microphone batteries are in good condition. Place the microphone IR sensor exactly opposite the receiver IR emitter, a few centimeters away. Make sure you have selected the correct channel. Try again.

USER MANUAL PD524 Power Dynamics

Power Dynamics Professional Audio

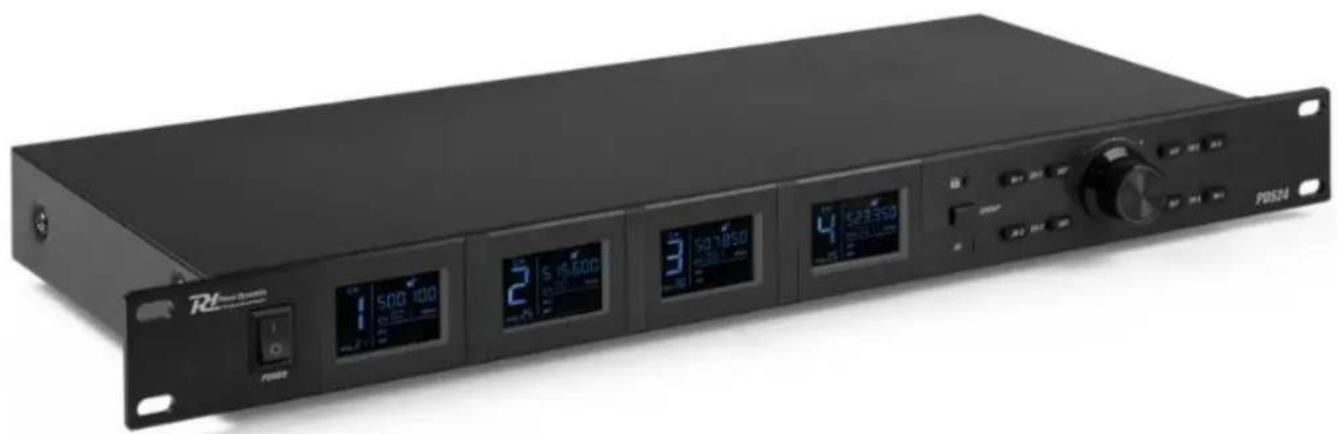

PD524 Series UHF Digital Wireless Microphone

Ref. nr.: 179.024; 179.026

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

NÁVOD K POUŽITÍ

V1.1

ENGLISH

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on.
• Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product has a built-in lead-acid rechargeable battery: please recharge every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5° C/41°F and 35° C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

RECEIVER OVERVIEW FRONT

1. Power On/Off

Switch to turn the device on/off.

2. LCD display

Shows the frequency, channel, volume and signal.

3. Lock button

Locks the group (1-4).

4. Group button

With this button you can set the frequency by group.

5. IR sensor

Infrared transmitter for synchronizing frequencies between receiver and handheld transmitters.

6. IR button

Button to select the channel to be synchronized with a handheld transmitter.

7. Set

Press to switch between frequency- and volume setting modes. Rotate the rotary dial to select the desired values.

8. Rotary dial

Rotate to change the volume- and frequency values.

RECEIVER OVERVIEW REAR

1. Antenna connectors

2. Mix out

Unbalanced microphone output connector (6.3mm jack) for channels 1-4.

3. XLR connector

XLR balanced microphone outputs for connecting to (for example) mixers, power amplifiers or other audio devices.

4. Power input for 12V adapter

Connector for inserting the supplied power adapter.

5. Transmitter charge

USB connectors for recharging the handheld transmitters.

RECEIVER OPERATION

• Switch on the receiver. The LCD will light up.
• Select the frequency by pressing the SET button. Turn the rotary dial to the desired setting and then press SET to save. By pressing SET twice you can adjust the volume level.
• Pressing the group button allows you to set the desired frequency for the group by rotating the rotary dial.
• When you press the lock button the group (1-4) is locked and no changes can be made in the settings.

RECEIVER DISPLAY

1. Channel

Shows the corresponding channel.

2. Volume

Shows the volume level of the corresponding channel.

3. Lock

Shows frequency lock status of the corresponding channel.

4. Frequency

Indicates the channels' frequency.

5. RF signal

Indicates the RF signal strength.

6. AF signal

Indicates the audio signal strength.

For optimum receiving:

• Position the receiver so there is nothing obstructing a line of sight to the microphones.
• Avoid placing microphones and receiver where metal or other dense materials may be present.
• Remove nearby sources of wireless interference, such as cell phones, two-way radios, computers, media players, Wi-Fi devices, and digital signal processors.
• Make sure that the microphone batteries are fully charged.
• Keep microphones more than two meters (6 feet) from each other.
• Keep the microphones and receiver more than 5 meters (16 feet) apart.

HANDHELD TRANSMITTER

1. On/Off

Press to turn the handheld microphone on/off.

2. IR Sensor

Infrared sensor for synchronizing frequencies between receiver and transmitter. Rotate the battery cover to open and expose the IR sensor.

Transmitter function:

• Open the battery covers of the microphones and install new or full charged batteries inside. Press the power switch on the microphones. On the receiver: select your transmission channel. Hold the IR sensor of the corresponding microphone close to the IR transmitter of the receiver. Press the IR button of the respective channel shortly to synchronize the microphone.
• When the receiver and the microphone have been synchronized to the same channel, the RF bargraph on the receiver's display will indicate that a radio signal is being received.
  Note: the more bars are displayed, the better the reception is.
• Reinstall the battery cover onto the microphone again.

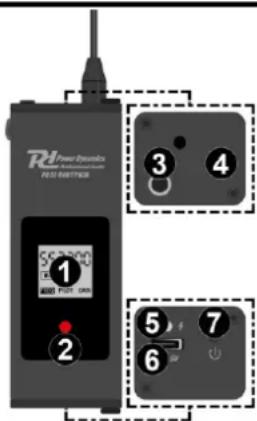

BODYPACK TRANSMITTER

1. LCD display

Shows the frequency, channel, battery status and signal.

2. IR sensor

Infrared sensor for synchronizing frequencies between receiver and transmitter.

3. Microphone input

3.5mm microphone input jack for connecting a lavalier microphone.

4. Antenna

5. LED charge indicator

Shows charging status. Red = charging, blue = full charge.

6. Charge port

5V USB type-C charging port.

7. On/off

Press to turn the bodypack microphone on/off.

Transmitter function:

• Press the power switch on the microphones. On the receiver: select your transmission channel.
  Hold the IR sensor of the corresponding microphone close to the IR transmitter of the receiver. Press the IR button of the respective channel shortly to synchronize the microphone.
• When the receiver and the microphone have been synchronized to the same channel, the RF bargraph on the receiver's display will indicate that a radio signal is being received.
  Note: the more bars are displayed, the better the reception is.

UHF

No license required
(excluding geographical restrictions)

BE	DK	F	FI	DE
HU	IT	NL	NO	PL
PT	RO	SI	ES	SE
CH	GB

Belgium (BE), Denmark (DK), France (F), Finland (FI), Germany (DE), Hungary (HU), Italy (IT), Netherlands (NL), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Spain (ES), Sweden (SE), Switzerland (CH), Great Britain (GB)

8. Volume and frequentie

BODYPACK ZENDER

1. LCD display

3.5mm microphone input jack for connecting a lavalier microphone.

4. Antenna

5. LED charge indicator

Transmitter function:

1. Antennenanschlüsse

2. Mix out

Unsymmetrischer

TASCHENSENDER

1. LCD-Anzeige

TRANSMISOR BODYPACK

1. Pantalla LCD

5. Signal RF

BODYPACK VYSILAC

1. Écran LCD

NADAJNIK BODYPACK

BODYPACK VYSÍLAČ

1. LCD displej

Belgium (BE), Denmark (DK), France (F), Finland (FI), Germany (DE), Hungary (HU), Italy (IT), Netherlands (NL), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Spain (ES), Sweden (SE), Switzerland (CH), Great Britain (GB)

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2024 by Tronios The Netherlands
