PD781 - Microphone Power Dynamics - Free user manual and instructions

Product type	UHF Wireless Microphone
Brand	Power Dynamics
Model	PD781
Frequency band	863 - 865 MHz (class 1)
Frequency response	50 Hz - 18 kHz
Signal-to-noise ratio	> 105 dB
Number of channels	8 (receiver)
Receiver power supply	220-240 V~ / 50 Hz via power adapter 13-15 V DC / 500 mA
Handheld transmitter power supply	2 x 1.5 V batteries type R6 (AA)
Receiver dimensions	215 x 170 x 50 mm
Handheld transmitter dimensions	238 x 50 x 50 mm
Receiver weight	Approx. 1.2 kg (estimated)
Handheld transmitter weight (with batteries)	Approx. 0.3 kg (estimated)
Audio outputs	Balanced XLR and 6.35 mm jack
Display	LCD on receiver and transmitter
Range	Up to 50 m in open field (estimated)
Maintenance and cleaning	Clean with a dry cloth, do not use solvents
Safety	Use indoors, keep away from children, disconnect during thunderstorms
Spare parts and repairability	Batteries, power adapter, antenna, optional lavalier/headset microphone; repair by qualified personnel
Warranty	Warranty void if unauthorized opening or modification
General information	PLL synthesized system, ideal for conferences, shows, presentations

Frequently Asked Questions - PD781 Power Dynamics

How to turn on the PD781 system?

Press the Power ON/OFF switch on the receiver, then on the transmitter. The LCD screen lights up and the system sets to the last used channel.

How to pair the transmitter with the receiver?

Set the same channel number on both transmitter and receiver using the Up and Down buttons. The RF indicator lights up when the link is established.

What type of batteries to use in the handheld transmitter?

Use two 1.5 V alkaline batteries type R6 (AA). Observe the polarity indicated in the compartment.

What to do if the sound is cut off or low?

Check that the transmitter is on (red LED) and that Mute is disabled. Increase the volume on the receiver and amplifier. Make sure the frequencies match.

How to reduce radio interference?

Move the receiver away from RF sources (other microphones, phones). Place antennas at 45° and avoid metal surfaces. Change channel if necessary.

What is the maximum range of the system?

In open field, the range can reach about 50 meters. Indoors, it may be reduced by obstacles.

Can I use a lavalier microphone with the PD781?

Yes, the PD781 is compatible with the optional bodypack transmitter (ref. PDB3) and lavalier or headset microphones. Connect the microphone to the audio input of the transmitter.

How to clean the microphone?

Use a soft, dry cloth. Never use liquids or solvents. For the grille, you can dust it with a soft brush.

What to do if sound is lost while moving?

Identify dead zones by testing before use. Move the receiver and avoid these areas. Ensure the antenna is properly positioned.

How to store the system during prolonged inactivity?

Remove the batteries from the transmitter to prevent leakage. Store the receiver in a dry, dust-free place. Unplug the power adapter.

USER MANUAL PD781 Power Dynamics

Power Dynamics Professional Audio

UHF WIRELESS MICROPHONE SYSTEMS

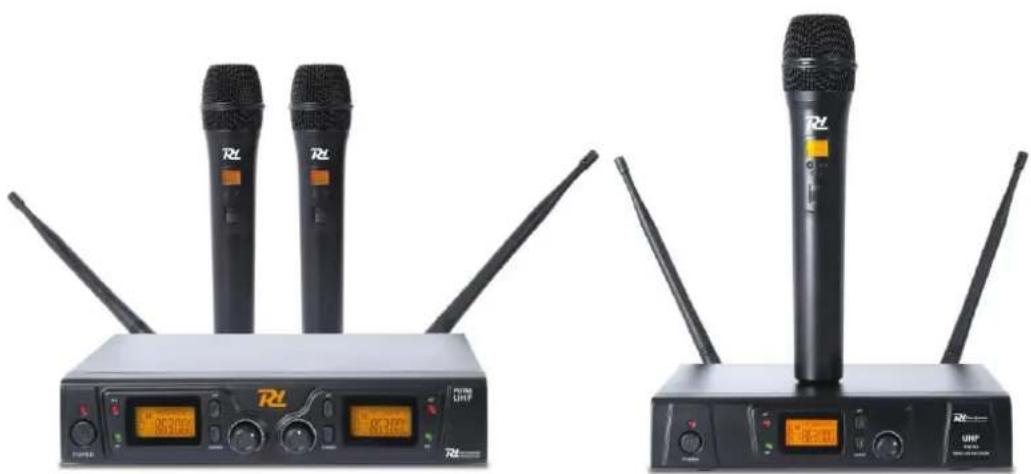

179.193 - PD781 Wireless Mic UHF 1x8Ch

179.196 - PD782 Wireless Mic UHF 2x8Ch

Instruction Manual

Gebruiksaanwijzing

Gebrauchsanleitung

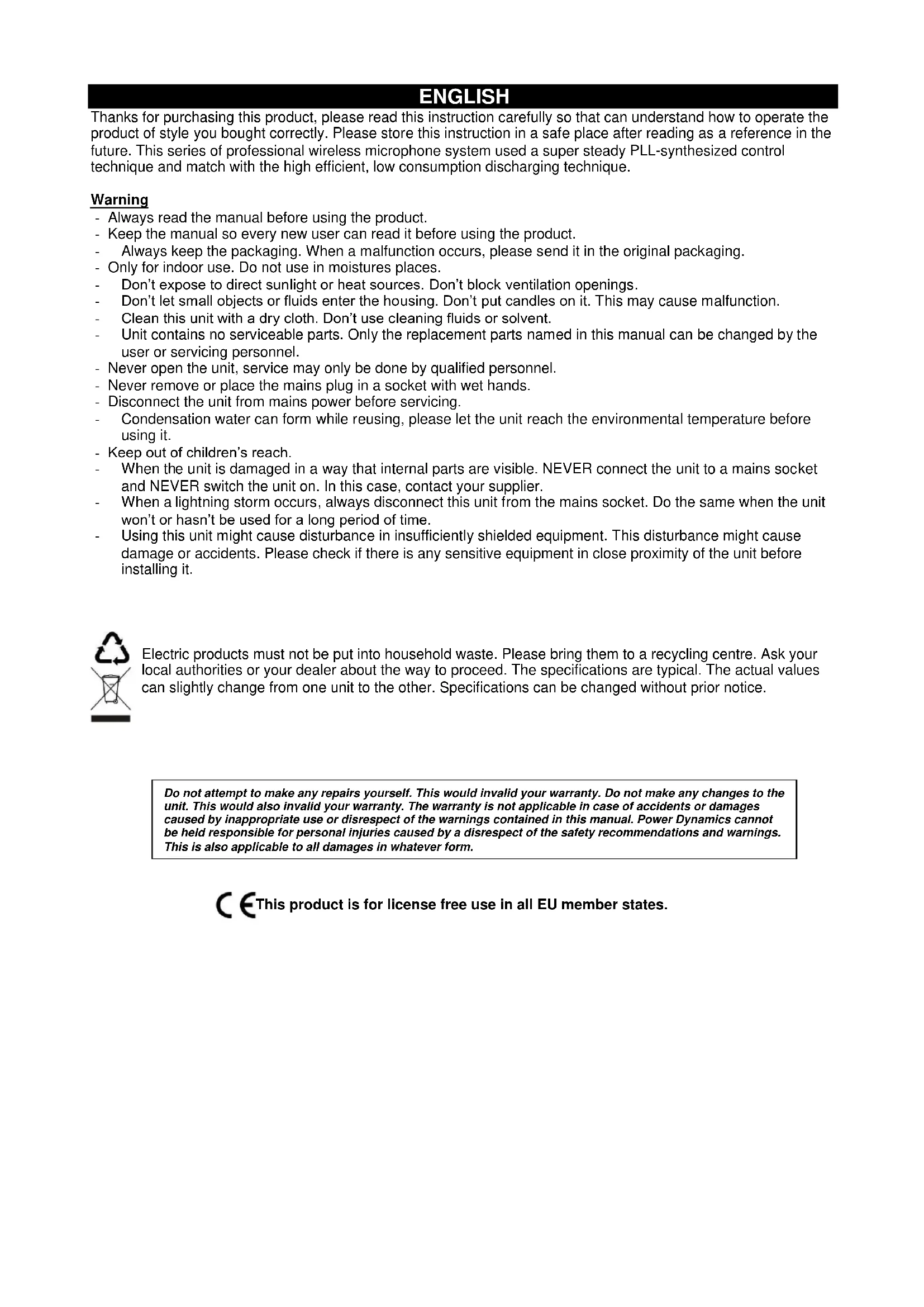

Thanks for purchasing this product, please read this instruction carefully so that can understand how to operate the product of style you bought correctly. Please store this instruction in a safe place after reading as a reference in the future. This series of professional wireless microphone system used a super steady PLL-synthesized control technique and match with the high efficient, low consumption discharging technique.

Warning

• Always read the manual before using the product.
• Keep the manual so every new user can read it before using the product.
  Always keep the packaging. When a malfunction occurs, please send it in the original packaging.
• Only for indoor use. Do not use in moistures places.
• Don't expose to direct sunlight or heat sources. Don't block ventilation openings.
• Don't let small objects or fluids enter the housing. Don't put candles on it. This may cause malfunction.
  Clean this unit with a dry cloth. Don't use cleaning fluids or solvent.
  Unit contains no serviceable parts. Only the replacement parts named in this manual can be changed by the user or servicing personnel.
• Never open the unit, service may only be done by qualified personnel.
• Never remove or place the mains plug in a socket with wet hands.
• Disconnect the unit from mains power before servicing.
• Condensation water can form while reusing, please let the unit reach the environmental temperature before using it.
• Keep out of children's reach.
• When the unit is damaged in a way that internal parts are visible. NEVER connect the unit to a mains socket and NEVER switch the unit on. In this case, contact your supplier.
• When a lightning storm occurs, always disconnect this unit from the mains socket. Do the same when the unit won't or hasn't be used for a long period of time.
  Using this unit might cause disturbance in insufficiently shielded equipment. This disturbance might cause damage or accidents. Please check if there is any sensitive equipment in close proximity of the unit before installing it.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

This product is for license free use in all EU member states.

FRONT- AND BACKSIDE

179.193 PD781 Wireless Microphone UHF 1x8Ch 1 Microphone
179.196 PD782 Wireless Microphone UHF 2x8Ch 2 Microphone

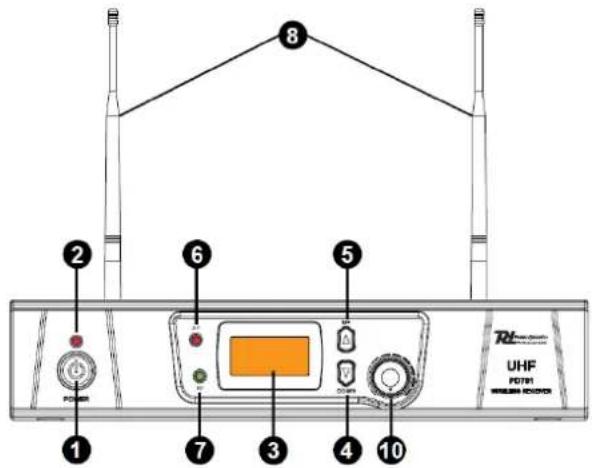

1. Power switch to switch ON/OFF the system
2. Power indicator ON/OFF
3. LCD Information Display: Show the receiver frequency channel ect.
4. Down button: Sets channel data.
5. Up button: Sets channel data.
6. "AF" Audio level indicator: Indicate the wireless system audio signal level.
7. "RF" signal Indicator: Indicate when receive RF signal from transmitter.
8. Antenna.

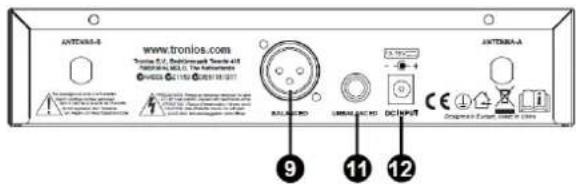

1. XLR- connector balanced: Connect the audio cable from this jack to the input port of amplifier, mixer.

2. Volume knob

3. 1/4" Jack connector: Connect the audio cable from this jack to the input port of amplifier, mixer.
4. Power inlet, 12-15Vdc

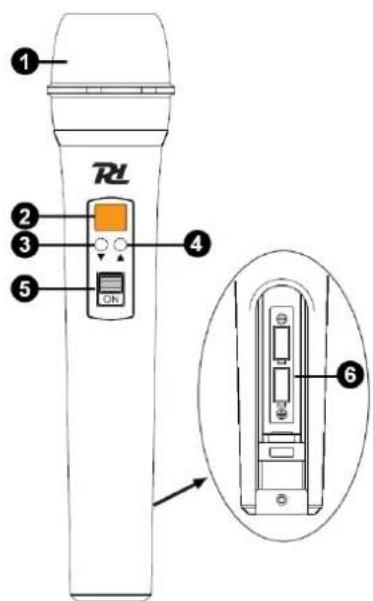

HANDHELD TRANSMITTER

1. Grille: Protects the cartridge and help reducing the breath sounds and wind noise.
2. LCD Information Display: Show the transmitter frequency channel ect.
3. Down button: Sets channel data.
4. Up button: Sets channel data.
5. Power ON/OFF and Audio Mute Switch.
6. Battery Cover: Open it to install the battery. remove batteries in case of long time no use (prevent leakage).

BODYPACK TRANSMITTER (OPTIONAL)

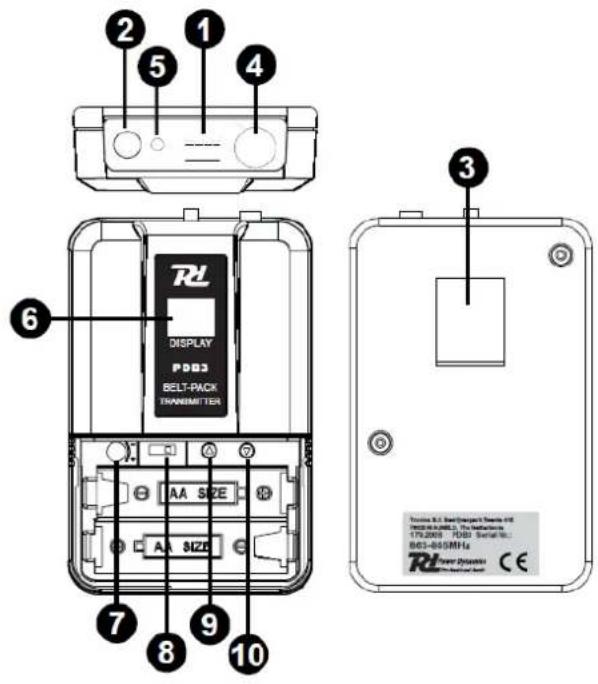

1. Power ON/OFF and Audio mute switch.
2. Antenna: Transmit the RF signal of transmitter.
3. Belt Clip
4. Audio Input Jack: it is suitable for lavalier tie-clip or headset system.
5. Low Battery Indicator: Red light glows when the power is low and change the battery.
6. LCD Information Display: Show the transmitter frequency channel ect.
7. Gain Adjusting Volume: Adjust the transmitter audio input gain.
8. State Setting Switch: Set the using state of lavalier tie-clip or headset system.
9. Up Function Button: Sets channel data.
10. Down Function Button: Sets channel data.

LAVALIER TIE-CLIP MICROPHONE

Connect the connector of supplied lavalier microphone to the connecting jack of transmitter (Shown as below). Set the transmitter work state in wireless lavalier system (8).

HEADSET MICROPHONE

Connect the connector of supplied headset microphone to the connecting jack of transmitter (Shown as below). Set the transmitter work state in wireless headset system (8).

SYSTEM CONNECTIONS

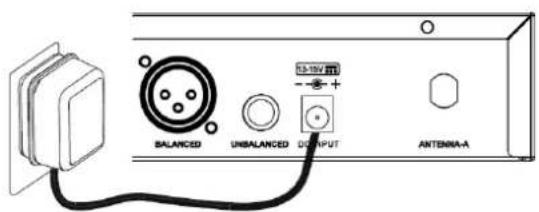

1. Receiver power connection: Connect the AC adapter into the DC power connector on the back of the receiver. Plug the AC adapter into a AC230V 50Hz outlet.

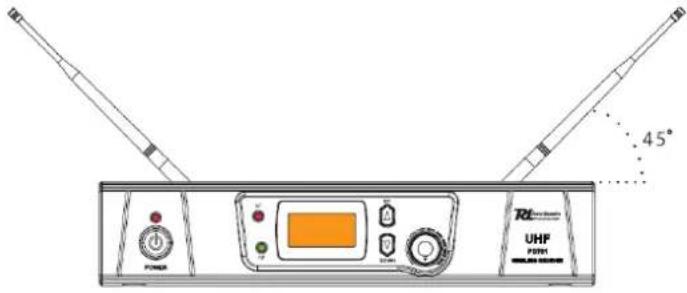

1. Antenna: Keep the position of antenna at a 45^ angle from vertical. Shown as below.

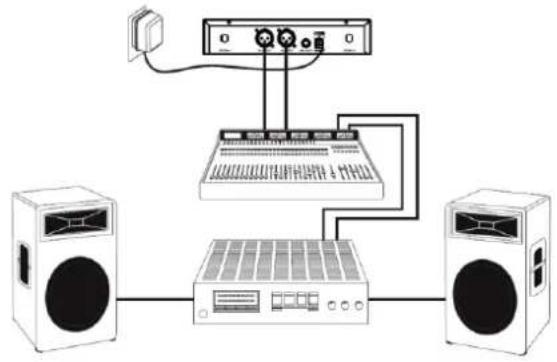

1. Audio connection: Connect the audio cable from the audio output on the receiver to the input on your amplifier equipment.

OPERATION

Turn off the system first, turn down the receivers volume to the minimum and then turn on the receiver, CPU initializes, the LCD screen begins to display and the system reverts to the last shutdown's state!

Tune to the desired frequency of the receiver and observe the RF- and AF signal level. If the signal level is displayed it means the receiver has interference from other signals or noise. The system has a mute circuit to avoid interference noise. If interfere with each other occurs it is recommended to use other frequencies.

If the system is turned on look at the transmitter and receiver's frequency.

Then the receiver display shows RF signal level value, the antenna status will display antenna A or B. Adjust the volume to the desired level.

Volume adjustment

Adjust the receiver's volume to the 12 o'clock position, then adjust the volume of the amplifier or mixer to a desired level. If the receiver volume has been adjusted too loud the amplifier will produce a saturated distortion which will blow the amplifier or/and the loudspeaker(s)!

Best acoustics:

1. You should always see the receiver antenna from your transmitter location.
2. The distance between transmitter and receiver should be as short as possible.
3. If the receiver has two antennas, they should be adjusted 45^ with a vertical line.
4. Keep the antennas away from metal surfaces and shelter.
5. Let the antennas not contact or cross each other.
6. Before using the system during the presence of public do a test to find out where the "dead spots" are. Avoid these spots when operational.

TROUBLESHOOTING

PROBLEM	INDICATOR	SOLUTION
No sound	Red transmitter indicator is not flash	Slide transmitter POWER ON/OFF switch to ON position. Make sure battery is inserted properly, observing battery (+/-). If battery is inserted properly, replace with fresh battery.
No sound	Red transmitter indicator is flash.	Slide transmitter MUTE/ON switch to ON position.
No sound	Red receiver indicator POWER light off.	Make sure AC adapter is securely plugged into electrical outlet and into DC input connector. Make sure AC electrical outlet works and supplies proper voltage.
No sound	Receiver signal indicators A/B lights glowing.	Turn up receiver volume control. Confirm that the output connections from the receiver to the external equipment are secure.
No sound	Receiver signal indicators A/B lights off. Transmitter and receiver POWER light glowing.	Confirm transmitters and receivers frequencies match. Move transmitter closer to receiver.
Sound level differs from level of a cabled instrument.	Receiver signal indicators A/B lights glowing.	Adjust transmitter gain level to compessary. Adjust receiver volume as necessary.
Distortion level increases gradually	Receiver signal indicators A/B lights and transmitter LOW BATTERY light glowing	Replace transmitter battery
Bursts of noise or other audible radio signals present.	Signal indicators A/B/ lights on.	Identify potential sources of interferences (other RF-sources) and turn off, remove or use a wireless system operating on a different frequency.
Momentary loss of sound as transmitter is moved around performing area.	Receiver signal indicator A/B lights of when sound is lost	Reposition receiver and perform walk-through test again. If audio dropouts persist, mark “dead” spots and avoid them during performance.

TECHNICAL SPECIFICATION

	PF781	PD782
Ref.nr:	179.193	179.196
Frequency range	863-865Mhz	863-865Mhz
Frequency response	50Hz-18kHz	50Hz-18kHz
Signal/Noise ratio	>105dB	>105dB
Class	1	1
Rated voltage	AC220~240V 50Hz	AC220~240V 50Hz
Adapter	13-15V DC / 500mA	13-15V DC / 500mA
Dimensions per unit	215 x 170 x 50 mm	215 x 170 x 50 mm

Handheld PDM3		Bodypack PDB3 (OPTIONAL)
Ref.nr:	179.193H	179.200
Frequency range	863-865Mhz	863-865Mhz
Battery	2x 1.5V AA Battery	2x 1.5V AA Battery
RF output	>10dBm	>10dBm
Class	1	1
Dimensions per unit	238 x 50 x 50 mm	100 x 65 x 30 mm

Class I product for use in Frequency band 863-865MHz.
The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

NEDERLANDS

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

SOLUTION DE PROBLEMAS

C∈R&TTE Declaration of Conformity

Importer: TRONIOS BV

Tel: [phone]

Fax: [phone]

Bedrijivenpark Twente 415

7602 KM - ALMELO

The Netherlands

Product number: 179.193; 179.196

Product Description:

Power Dynamics PD781 Wirel.Micro UHF 1x8Ch 1 Micro

Power Dynamics PD782 Wirel.Micro UHF 2x8Ch 2 Micro

Regulatory Requirement: EN 60065 :2002+A1: 2006+A11 :2008

EN 301489-1 :2008-04

EN301489-9:2007-11

EN300422-1:2008-03

EN 300422-2:2008-03

EN 62479 :2010

EN 301357-1:2008-01

EN 301357-2:2008-01

The product conforms to the essential requirements stated in Directives 2006/95 and 2004/108/EC and other relevant provisions of the R&TTE Directive (1999/5/EC).

ALMELO.

11-02-2015

Signed:

P.Feldman

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2015 by TRONIOS the Netherlands
