USER MANUAL DUH523Z MAKITA

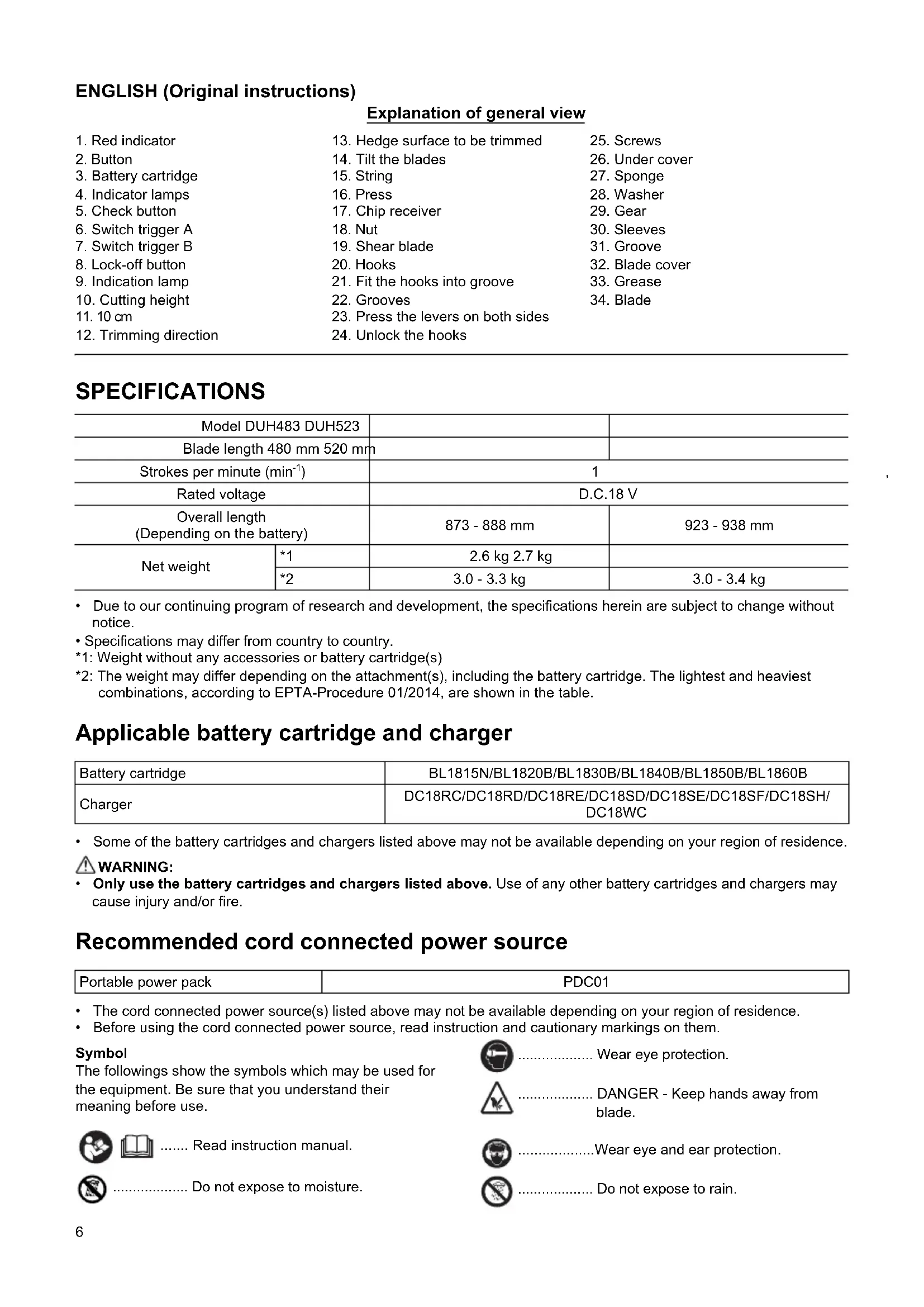

ENGLISH (Original instructions) Explanation of general view SPECIFICATIONS

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.

• Specifications may differ from country to country. *1: Weight without any accessories or battery cartridge(s) *2: The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heaviest combinations, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

• Only use the battery cartridges and chargers listed above. Use of any other battery cartridges and chargers may cause injury and/or fire. Recommended cord connected power source

• The cord connected power source(s) listed above may not be available depending on your region of residence.

• Before using the cord connected power source, read instruction and cautionary markings on them. Symbol The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use. ....... Read instruction manual. ................... Do not expose to moisture. ................... Wear eye protection. ................... DANGER - Keep hands away from blade. ...................Wear eye and ear protection. ................... Do not expose to rain.

12. Trimming direction

13. Hedge surface to be trimmed

23. Press the levers on both sides

)1,350 Rated voltage D.C.18 V Overall length (Depending on the battery)

873 - 888 mm 923 - 938 mm

Net weight *1 2.6 kg 2.7 kg *2 3.0 - 3.3 kg 3.0 - 3.4 kg Battery cartridge BL1815N/BL1820B/BL1830B/BL1840B/BL1850B/BL1860B Charger DC18RC/DC18RD/DC18RE/DC18SD/DC18SE/DC18SF/DC18SH/ DC18WC Portable power pack PDC017 ............ Only for EU countries Due to the presence of hazardous components in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health. Do not dispose of electrical and electronic appliances or batteries with household waste! In accordance with the European Directive on waste electrical and electronic equipment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste electrical equipment, batteries and accumulators should be stored separately and delivered to a separate collection point for municipal waste, operating in accordance with the regulations on environmental protection. This is indicated by the symbol of the crossed-out wheeled bin placed on the equipment. ................. Guaranteed sound power level according to EU Outdoor Noise Directive. ................. Sound power level according to Australia NSW Noise Control Regulation. Intended use ENE014-1 The tool is intended for trimming hedges. General power tool safety warnings GEA010-2

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Cordless hedge trimmer safety warnings GEB278-1

1. Do not use the hedge trimmer in bad weather

conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

2. Keep all power cords and cables away from

cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.

3. Wear ear protection. Adequate protective equipment

will reduce the risk of hearing loss.

4. Hold the hedge trimmer by insulated gripping

surfaces only, because the blade may contact hidden wiring. Blades contacting a “live” wire may make exposed metal parts of the hedge trimmer “live” and could give the operator an electric shock.

5. Keep all parts of the body away from the blade. Do

not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

6. When clearing jammed material or servicing the

hedge trimmer, make sure all power switches are off and the battery pack is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.

7. Carry the hedge trimmer by the handle with the

blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.

8. When transporting or storing the hedge trimmer,

always use the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades. Additional Safety Instructions Preparation

1. Check the hedges and bushes for foreign objects,

such as wire fences or hidden wiring before operating the tool.

2. The tool must not be used by children or young

persons under 18 years of age. Young persons over 16 years of age may be exempted from this restriction if they are undergoing training under the supervision of an expert.

3. First-time users should have an experienced user

show them how to use the tool.

4. Use the tool only if you are in good physical

condition. If you are tired, your attention will be reduced. Be especially careful at the end of a working day. Perform all work calmly and carefully. The user is responsible for all damages to third parties.

5. Never use the tool when under the influence of

alcohol, drugs or medication.

6. Work gloves of stout leather are part of the basic

equipment of the tool and must always be worn when working with it. Also wear sturdy shoes with anti-skid soles.

7. Before starting work check to make sure that the

tool is in good and safe working order. Ensure guards are fitted properly. The tool must not be used unless fully assembled. Operation

1. Hold the tool firmly with both hands when using

2. The tool is intended to be used by the operator at

ground level. Do not use the tool on ladders or any other unstable support. Ni-MH Li-ion8

3. DANGER - Keep hands away from blade. Contact

with blade will result in serious personal injury.

4. Do not use the tool in the rain or in wet or very

damp conditions. The electric motor is not waterproof.

5. Make sure you have a secure footing before

6. Do not operate the tool at no-load unnecessarily.

7. Immediately switch off the tool and remove the

battery cartridge if the shear blades should come into contact with a fence or other hard object. Check the blades for damage, and if damaged, replace the blades immediately.

8. Before checking the shear blades, taking care of

faults, or removing material caught in the shear blades, always switch off the tool and remove the battery cartridge.

9. Never point the shear blades to yourself or others.

10. If the blades stop moving due to the stuck of

foreign objects between the blades during operation, switch off the tool and remove the battery cartridge, and then remove the foreign objects using tools such as pliers. Removing the foreign objects by hand may cause an injury for the reason that the blades may move in reaction to removing the foreign objects.

11. Avoid dangerous environment. Don't use the tool

in damp or wet locations or expose it to rain. Water entering the tool will increase the risk of electric shock. Maintenance and storage

1. Switch off the tool and remove the battery

cartridge before doing any maintenance work.

2. When moving the tool to another location,

including during work, always remove the battery cartridge and put the blade cover on the shear blades. Never carry or transport the tool with the blades running. Never grasp the blades with your hands.

3. Clean the tool and especially the shear blades

after use, and before putting the tool into storage for extended periods. Lightly oil the blades and put on the blade cover.

4. Store the tool with the blade cover on, in a dry

room. Keep it out of reach of children. Never store the tool outdoors.

5. Do not dispose of the battery(ies) in a fire. The cell

may explode. Check with local codes for possible special disposal instructions.

6. Do not open or mutilate the battery(ies). Released

electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

7. Do not charge battery in rain, or in wet locations.

SAVE THESE INSTRUCTIONS.

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge ENC007-17

1. Before using battery cartridge, read all

instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge. It may result in a fire, excessive heat, or explosion.

3. If operating time has become excessively shorter,

stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them out

with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material. (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery cartridge

in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if it is

severely damaged or is completely worn out. The battery cartridge can explode in a fire.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a fire, excessive heat, or explosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject to

the Dangerous Goods Legislation requirements. For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove it

from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products specified

by Makita. Installing the batteries to non-compliant products may result in a fire, excessive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time, the

battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low9 temperature burns. Pay attention to the handling of hot battery cartridges.

15. Do not touch the terminal of the tool immediately

after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge. It may cause heating, catching fire, burst and malfunction of the tool or battery cartridge, resulting in burns or personal injury.

17. Unless the tool supports the use near high-voltage

electrical power lines, do not use the battery cartridge near high-voltage electrical power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery cartridge.

Overcharging shortens the battery service life.

3. Charge the battery cartridge with room

temperature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove it

from the tool or the charger.

5. Charge the battery cartridge if you do not use it for

a long period (more than six months). FUNCTIONAL DESCRIPTION CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge (Fig. 1) CAUTION:

• Always switch off the tool before installing or removing of the battery cartridge.

• Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury. To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. CAUTION:

• Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

• Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. Tool / battery protection system The tool is equipped with a tool/battery protection system. This system automatically cuts off the power to extend tool and battery life. The tool will automatically stop during operation if the tool or battery is placed under one of the following conditions: Overload protection This protection works when the tool is operated in a manner that causes it to draw an abnormally high current. In this situation, turn the tool off and stop the application that caused the tool to become overloaded. Then turn the tool on to restart. Overheat protection This protection works when the tool or battery is overheated. In this situation, let the tool and battery cool before turning the tool on again. Overdischarge protection This protection works when the remaining battery capacity gets low. In this situation, remove the battery from the tool and charge the battery. Indicating the remaining battery capacity Only for battery cartridges with the indicator Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for a few seconds. (Fig. 2) Indicator lamps Remaining capacity Lighted Off Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned.10 NOTE:

• Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

• The first (far left) indicator lamp will blink when the battery protection system works. Switch action CAUTION:

• Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released. (Fig. 3) For your safety, this tool is equipped with a dual switching system. To turn on the tool, press the lock-off button and triggers A and B. Release either one of the two pressed triggers to turn off. The sequence of switching is unimportant as the tool only starts when both switches are activated. Indication lamp (Fig. 4) Running the tool allows the indication lamp to show the battery cartridge capacity status. When the tool is also overloaded and has stopped during operation, the lamp lights up in red. Refer to the following table for the status and action to be taken for the indication lamp. Note 1: The time at which the indication lamp lights up varies by the temperature around the work area and the battery cartridge conditions.

• Be careful not to accidentally contact a metal fence or other hard objects while trimming. The blade will break and may cause serious injury.

• Overreaching with a hedge trimmer, particularly from a ladder, is extremely dangerous. Do not work from anything wobbly or infirm. NOTICE: Do not attempt to cut branches thicker than 10 mm in diameter with the tool. Cut branches to 10 cm lower than the cutting height using branch cutters before using the tool. (Fig. 5) CAUTION:

• Do not cut off dead trees or similar hard objects. Failure to do so may damage the tool. (Fig. 6) Hold the trimmer with both hands and pull the switch trigger A or B and then move it in front of your body. (Fig. 7) As a basic operation, tilt the blades towards the trimming direction and move it calmly and slowly at the speed rate of 3 - 4 seconds per meter. (Fig. 8) To cut a hedge top evenly, it helps to tie a string at the desired hedge height and to trim along it, using it as a reference line. (Fig. 9) Attaching the chip receiver (optional accessory) on the tool when trimming the hedge straight can avoid cut off leaves’ being thrown away. (Fig. 10) To cut a hedge side evenly, it helps to cut from the bottom upwards. (Fig. 11) Trim boxwood or rhododendron from the base toward the top for a nice appearance and good job. Installing or removing chip receiver (optional accessory) CAUTION:

• Always be sure that the tool is switched off and unplugged before installing or removing chip receiver. NOTE:

• When replacing the chip receiver, always wear gloves so that hands and face does not directly contact the blade. Failure to do so may cause personal injury.

• Always be sure to remove the blade cover before installing the chip receiver.

• The chip receiver receives cut-off leaves and alleviates collecting thrown-away leaves. This can be installed on either side of the tool. (Fig. 12) Press the chip receiver on the shear blades so that its slits overlap with the nuts on the shear blades. (Fig. 13) At this time, the chip receiver needs to be installed so that its hooks fit into grooves in the shear blade unit. (Fig. 14) To remove the chip receiver, press its lever on both sides so that the hooks are unlocked. CAUTION:

• The blade cover (standard equipment) cannot be installed on the tool with the chip receiver being installed. Before carrying or storing, uninstall the chip receiver and then install the blade cover to avoid blade exposure. NOTE:

• Check the chip receiver for secure installment before use.

• Never try to uninstall the chip receiver by an excessive force with its hooks locked in the blade unit grooves. Using the excessive force may damage it. Indication lamp Status Action to be taken The lamp blinks in red This indicates the appropriate time to replace the battery cartridge when the battery power becomes low. Recharge the battery cartridge as soon as possible. The lamp lights up in red. (Note 1) This function works when the battery power is almost used up. At this time, tool stops immediately. Recharge the battery cartridge. The lamp lights up in red. (Note 1) Autostop due to overload Turn off the tool.11 MAINTENANCE CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance. Cleaning the tool Clean out the tool by wiping off dust with a dry or soap- dipped rag. CAUTION:

• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. Blade maintenance Smear the blade before and once per hour during operation using machine oil or the like. NOTE:

• Before smearing the blade, remove the chip receiver. After operation, remove dust from both sides of the blade with wired brush, wipe it off with a rag and then apply enough low-viscosity oil, such as machine oil etc. and spray-type lubricating oil. CAUTION:

• Do not wash the blades in water. Failure to do so may cause rust or damage on the tool. Removing or installing shear blade CAUTION:

• Before removing or installing shear blade, always be sure that the tool is switched off and the battery cartridge is removed.

• When replacing the shear blade, always wear gloves without removing blade cover so that hands and face does not directly contact the blade. Failure to do so may cause personal injury. NOTE:

• Do not wipe off grease from the gear and crank. Failure to do so may cause damage to the tool. Removing the shear blades (Fig. 15) Reverse the tool and loosen four screws and remove the under cover. NOTE:

• Be careful not to get your hands dirty as grease is applied in the shear blade driving area. (Fig. 16) Loosen four screws and remove the blades. Remove the washer and sponge from the shear blades and put them aside. They are required for the later installation. (Fig. 17) If the sleeves are still left in the holes of the gear, remove the gear and push the sleeves out of it with a screwdriver or the like. NOTE: The washer underneath the gear may come off by mistake when removing the gear. In this case, return it to the original position as it was installed. Installing the shear blade (Fig. 18) Remove the blade cover from the old shear blades and fit it onto the new ones to avoid contact with blades. (Fig. 19) Adjust the hole positions by turning the gear as illustrated. (Fig. 20 & 21) Apply some grease provided with the new shear blades as illustrated. (Fig. 22) Put the removed sponge in the same position as the old one. Make sure that the sleeves provided with the new shear blades are put on the pins of the blade. Place the new shear blades on the tool so that the pins fit in the holes of the gear. If the sleeves on the pins come off mistakenly, put them into the holes of the gear beforehand. (Fig. 23) Install the blade and tighten the four screws and put the removed washer in the same position as the old one. (Fig. 24) Install the under cover on the tool and tighten the four screws firmly. Storage The hook hole in the tool bottom is convenient for hanging the tool from a nail or screw on the wall. (Fig. 25) Remove the battery cartridge and put the blade cover on the shear blades so that the blades are not exposed. Store the tool out of the reach of children carefully. Store the tool in the place not exposed to water and rain. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Makita genuine battery and charger

• Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.12 Noise The typical A-weighted noise level determined according to EN62841-4-2: ENG907-1

• The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.

• The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

• Wear ear protection.

• The noise emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Vibration The vibration total value (tri-axial vector sum) determined according to EN62841-4-2: Vibration emission (a

• The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.

• The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

• The vibration emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Declarations of Conformity For European countries only The Declarations of conformity are included in Annex A to this instruction manual. Model Sound pressure level Guaranteed sound power level Measured sound power level

(dB (A)) Uncertainty K (dB (A))

14. Incline as lâminas
