Heating type	Infrared electric heating
Power	3000 W
Heating area	Up to 30 mb2
Dimensions	120 x 20 x 10 cm
Weight	8 kg
Material	Aluminum
Indoor/outdoor use	Indoor
Installation	Wall mounting or stand
Energy consumption	Energy efficient
Adjustable temperature	Yes, with built-in thermostat
Safety	Overheat protection
Maintenance	Regular surface cleaning
Warranty	2 years
Included accessories	Mounting bracket
Certification	CE

Frequently Asked Questions - TRIPLE SH SunRed

How do I turn on the SunRed TRIPLE SH heater?

To turn on the heater, plug it into an electrical outlet, then turn the control knob to the desired position. The heater will turn on immediately.

The heater is not working, what should I do?

Check that the device is properly plugged in and that the outlet is working. Also make sure the thermostat is set to a temperature higher than the environment.

What is the heating power of the SunRed TRIPLE SH?

The SunRed TRIPLE SH has a power of 1500 watts, making it suitable for heating spaces up to 30 mb2.

Can the SunRed TRIPLE SH be used outdoors?

Yes, the SunRed TRIPLE SH is designed for outdoor use, but it is important to protect it from the weather and not use it in the rain.

How do I clean the SunRed TRIPLE SH heater?

Unplug the device before cleaning. Use a soft, dry cloth to wipe the casing. Avoid using abrasive products or liquids to clean the device.

The heater emits a strange smell, is this normal?

It is normal for the heater to emit a slight smell during first use, due to heating of the elements. If the smell persists, unplug the device and contact customer service.

What is the estimated lifespan of the heating element?

The heating element of the SunRed TRIPLE SH has an estimated lifespan of 5000 hours of use.

Is the heater equipped with a safety system?

Yes, the SunRed TRIPLE SH is equipped with an overheat protection system and a safety device that automatically turns it off in case of tipping.

How do I adjust the temperature on the SunRed TRIPLE SH?

The heater has an adjustable thermostat. Turn the control knob to select the desired temperature.

Where can I buy spare parts for the SunRed TRIPLE SH?

Spare parts can be ordered from SunRed customer service or via the official website.

USER MANUAL TRIPLE SH SunRed

Manual Ceiling Hung electric Heater (EN)

Handleiding Plafondmodel elektrische Heater (NL)

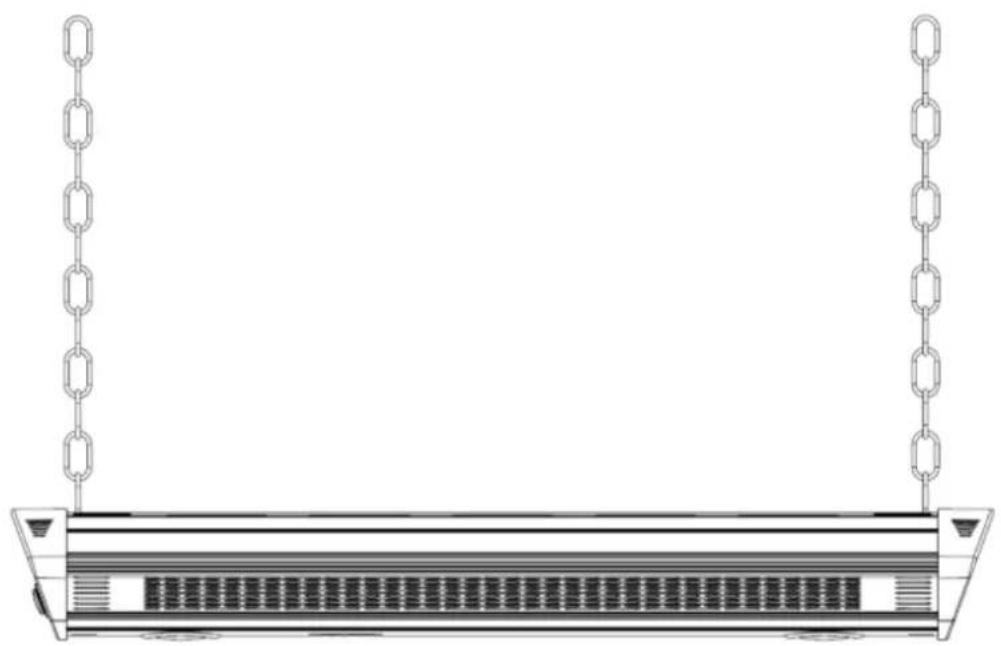

Triple S-H – Ceiling Hung electric Heater

Diagram of a mechanical pulley system with two hanging chains and a central spring bar (no text or symbols)

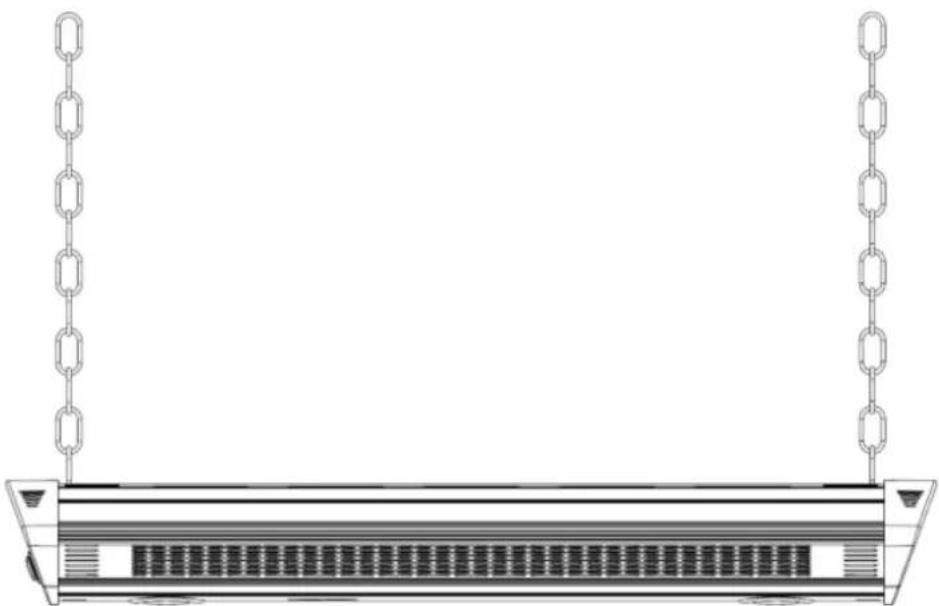

Ceiling Hung electric Heater (TRIPLE S-H) EN

User instructions - please keep for future references

Simple line drawing of a horizontal bar with two vertical chain links above it (no text or symbols)

TECHNICAL INFORMATION

Wattage: 1000w/2000w

Element type: Golden Tube

Insulation Class I

Expected Life span elements: 5000 hrs.

Weight: 4,85 kg

Ingress Protection Rating: IP55

Certificates: CE, GS, PAH, Rohs

Cable Cord: 1.8 Meters

Dimensions: 69x38,5x11cm

Remarks: chain included

All measurements are approximate

IMPORTANT – Carefully remove any packaging before use, but retain the safety instructions.

These instructions form part of the product.

Please take note of all the safety warning listed in these instructions.

Please read these instructions in their entirety and retain them for future reference.

These instructions should be stored with the product.

This product is for domestic use ONLY and should not be used commercially or for contract purposes.

IMPORTANT! KEEP FOR FUTURE REFERENCE

Thank you for choosing our indoor/outdoor Electric Heater. This manual will provide you with information necessary for the proper assembly, care and maintenance of your new product.

Please take a few moments to thoroughly read the instructions and familiarise yourself with all the operational aspects of your new heater. When using this electric unit please follow the safety precautions detailed below. This should reduce the risk of fire, electric shock and injury to persons.

WARNING - CAUTION!

READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS UNIT. KEEP THE ASSEMBLY INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THE ORIGINAL PACKAGING FOR USE WHEN STORING THE HEATER DURING EXTENDED PERIODS OF NON-USE.

CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.

• This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater.
• Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3 ft from the front of the heater and keep them away from the sides, top, and rear. DO NOT place towels or other objects on the heater.
• Extreme caution is necessary when any heater is used by or near children or the disabled, or when the heater is left operating and unattended.
• DO NOT operate any heater with a damaged cord or after the heater malfunctions, has been drooped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
• This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER locate heater where it may fall into a bathtub or other water container. To protect against electrical hazards, DO NOT immerse in water or other liquids.
  • DO NOT touch the control panel or plug with a wet hand.
• DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, DO NOT blocks the air intakes or exhaust in any manner. DO NOT use on soft surfaces, like a bed, where openings may become blocked.
• A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.
• Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you use an extension cord, the cord shall be NO.13 AWG minimum size.
  • To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet.
• To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on plug, DO NOT unplug by pulling on the cord.
  • Always unplug the unit before moving or cleaning, or whenever the heater is not in use.
• Use only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by unauthorized dealers may cause hazards.
  • Always use on a dry, level surface. Use on ceiling only.
  • WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state speed control device.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. Qualified personnel should perform all servicing only.
• Connect to properly grounded outlets only.
• This appliance is not intended for use by persons (including children) with reduced physical. Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • The marketing concerning covering shall be visible after the heater has been installed.
• Save these instructions.

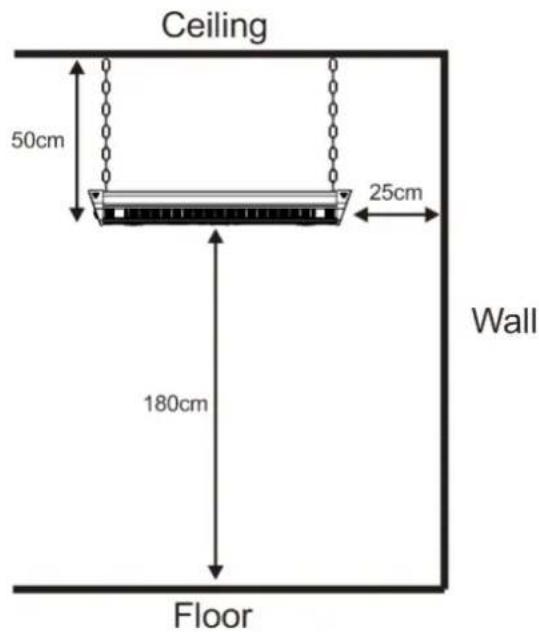

Minimum DISTANCE

Ceiling 50cm 25cm Wall 180cm Floor

OPERATING INSTRUCTIONS

• Place the heater on a firm, level ceiling surface;
  • The Ceiling hook must be suitably strong and be able to hold a minimum weight of 8 Kg.
• Place the Hook A around the Ceiling Hook and clip on any Ring of the Chain to adjust the height of the Patio Heater to the Floor.
  • The distance between the bottom of the Patio Heater to the Floor must be over 1.8 meters.
• Only operate the heater when it is in the upright position.
• To turn on the heater manually, please press the button (I). Press (0) to switch off. Press on time for 1000W, two times for 2000W and three times to turn on the lights without the heater and four times to turn on the heater and the lights. Press five times to turn it off.

Simple diagram of concentric circles with a central symbol, no text or labels present

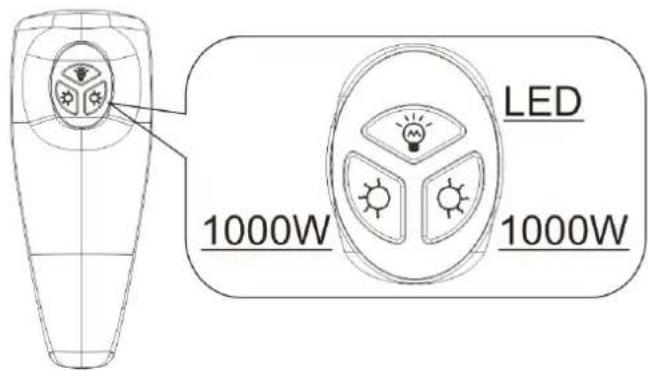

- To turn on the heater per remote control, please press the top button to operate the LED light. Press left or right button to operate the heater for 1000W and press both buttons to operate for 2000 W.

LED 1000W 1000W

MAINTENANCE

- Unplug the unit and let it cool completely.

• To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth.
• DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
  • Although this heater is outdoor approved, DO NOT immerse the heater in water for your safety.
  • Wait until the unit is completely dry before use.

STORAGE

• Ensure the unit is completely cold before storing in a cool, dry location.
  • To prevent dust and dirt to build-up, use the original packaging to repack the unit.
• CHOKING HAZARD: Store out of reach of children and pets. Contains small parts.

DISPOSAL

• DO NOT dispose of via your weekly household waste collection service. ONLY dispose of this product at your local, licensed recycling/waste centre.
  • For further information on the disposal of electrical goods, please contact your local authority.

TROUBLESHOOTING

• If the heater will not operate, please check the following before seeking repair of service:
- Check if the power cord is plugged into an electrical outlet, if not, plug in.
- Check if electricity to the main fuse is working.
• Make certain the power switches are turned on. If not, choose a setting.

ENSURE YOU HAVE READ THESE INSTRUCTIONS THOROUGHLY PRIOR TO USE

Plafondmodel elektrische Heater (TRIPLE S-H) NL

Diagram of a horizontal bar with two vertical chain links above it, no text or symbols present

TECHNISCHE SPECIFICATIES

Wattage: 1000w/2000w

Element type: Golden Tube

Verwachte levensduur elementen: 5000 hrs.

Gewicht: 4,85 kg

IP waardering: IP55

Certificaten: CE, GS, PAH, Rohs

Simple line drawing of a curved pipe with circular components and a separate plate with a bowl (no text or symbols)

Diagram of a horizontal bar with two vertical chain links above it, no text or symbols present

Simple line drawing of a curved pipe with a circular component and a separate plate with food items (no text or symbols)

Diagram of a mechanical pulley system with two hanging chains and a central grating (no text or symbols)

INFORMATION TECHNIQUE

Puissance: 1000w/2000w

Typ d'éléments: Golden Tube

Qualification IP: IP55

Certificates: CE, GS, PAH, Rohs

Simple line drawing of a curved arc with concentric circles and a separate plate with food items (no text or symbols)
