Product type	Infrared radiant heater
Brand	SunRed
Model	Polaris 3000
Power	3000 W max
Heating element type	Golden infrared tube (Golden Tube Infrared)
Element lifespan	5000 hours
Weight	2.2 kg
Protection rating (IP)	IP54
Power cord length	1.9 m
Supply voltage	220-240 V ~
Recommended current	13 A
Installation	Wall or suspended (ceiling)
Adjustable heating angle	Yes (loosening M6x10 screws)
Controls	On/off switch on the device; remote control included
Indicator light	Red indicator light in ready mode
Lateral safety distance	500 mm min
Ceiling safety distance	500 mm min
Recommended installation height	≥ 1.8 m
Safety distance to flammable materials	2.0 m min (4.0 m in workshop/garage)
Usage	Domestic use only
Maintenance	Clean with a damp cloth after disconnecting; do not use corrosive products
Repairability	Replacement of halogen tubes by a qualified electrician
Included accessories	M6x50 bolts (4), ring, M6x10 bolts (3), M6 nuts (3), M6 washers (2), remote control, hex key, M6 spanner, chains (2)

Frequently Asked Questions - Polaris 3000 SunRed

Can I use the Polaris 3000 in a bathroom?

The Polaris 3000 has an IP54 rating, which protects it against water splashes. However, it is not designed for outdoor use or in damp conditions. For a bathroom, respect safety distances and install it out of reach of direct splashes. Never use it in rain.

How to install the heater on the wall?

Drill four holes in the wall, insert the M6x50 expansion bolts. Attach the ring to the wall using the nuts and washers. Then, screw the heater onto the ring with the M6x10 screws and M6 nuts. Make sure the narrow part of the mounting holes is facing down.

What is the minimum distance to respect from walls and ceiling?

Allow at least 500 mm from each side wall and 500 mm from the ceiling. The installation height must be above 1.8 m to ensure good heat distribution and safety.

Can I use the heater in a garage or workshop?

Yes, but with caution. Keep the appliance at least 4 m away from flammable materials, paints, or solvents. Do not use it during spray painting operations and avoid dusty or explosive areas.

How to clean the Polaris 3000?

Always unplug the device before cleaning. Use a damp cloth (not wet) to wipe the surface. Never use corrosive cleaners, solvents, or excessive water. Do not immerse the device in water.

What to do if the heating element no longer works?

The halogen tubes have a lifespan of 5000 hours. In case of failure, only a qualified electrician or authorized service center should replace the tube. Do not attempt to do it yourself.

Can the heater be used by children?

Children under 3 years old must be kept away unless under constant supervision. Children aged 3 to 8 can turn the device on/off only if it is properly installed and under supervision. Cleaning and maintenance should not be performed by children.

Should the heater be left plugged in all the time?

No, always unplug the device when not in use. Never leave the power cord plugged in unattended. This avoids electrical risks and saves energy.

What accessories are included with the Polaris 3000?

The kit includes: 4 M6x50 bolts, 1 mounting ring, 3 M6x10 bolts, 3 M6 nuts, 2 M6 washers, 1 remote control, 1 hex key, 1 M6 spanner, and 2 chains. These parts allow wall or suspended installation.

Can I use an extension cord?

Use an extension cord suitable for the device's power (3000 W) and properly grounded. Make sure the cord is not damaged and is not at risk of being stepped on or bent. When in doubt, consult an electrician.

USER MANUAL Polaris 3000 SunRed

Manual Electric Patio Heater WMGT13D (EN)

Handbuch Terrasse Heizing WMGT13D (DE)

Handleiding Terrasheater WMGT13D (NL)

Instructions Chauffe-terrasse WMGT13D (FR)

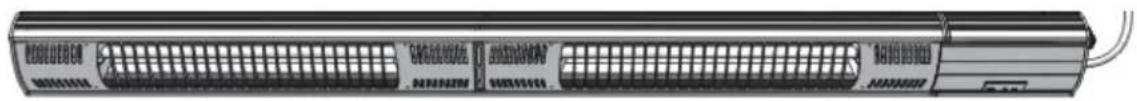

Electric Patio Heater WMGT13D Golden Tube

Manual Electric Patio WMGT13D UK

User instructions - please keep for future reference

TECHNICAL INFORMATION

Wattage: 3000 Watt

Element type: Golden tube infrared

Weight: 2,2 kg

IP Rating: 54

Power supply 240V 50Hz

Insulation class I

Dimensions: W10cm/L59,5cm

All measurements are approximate

Certified by international recognized standards.

Steel with powder coated or stainless steel.

Cover separately available.

IMPORTANT - Carefully remove any packaging before use, but retain the safety instructions.

These instructions form part of the product.Please take note of all the safety warning listed in these instructions.

Please read these instructions in their entirety and retain them for future reference. These instructions should be stored with the product.This product is for domestic use ONLY and should not be used commercially or for contract purposes.

Please keep this manual for future references

Unpack the heater to make sure that all the items are present and that there are no components left in the box and that the heater head is free from any packing material. Using the detailed drawing and follow the steps to assemble your heater. Do not connect the heater to the electrical supply until all the assembly is complete. Do not connect the heater to the electrical supply if any of the components or the power cord is damaged in any way. If in doubt contact your supplier.

CAUTION

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

Caution

• Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• Mount the heater outside or in a large open area and well away from any obstructions such as branches or where the heater is near any objects that can be affected by heat, such as furniture, curtains or other inflammable objects (minimum distance 1 meter).
• Do not position immediately above or below an electrical socket.
• The unit must be placed with the clearance of 180cm to the floor and 30cm to the ceiling.
• When the power supply cord is damaged, it must be replaced by authorized agent or other professional people to avoid danger.
• This appliance is not intended for use by persons (including children) with reduced physical. Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use it near bath tubs, wash areas or swimming pools.

• Do not use it in unventilated areas

• Do not use where gas, petrol, paint or other inflammable goods are stored.

• Do not move when connected to an electrical supply and always wait until the patio heater cool down before storing away.
• Do not touch the heater head when in use.
  Do not leave after turn it on and unattended especially when children or animals are in the vicinity.
  The indication of different positions of switches should be visible from a distance of 1M at least.
• The Marking concerning covering shall be visible after the heater has been installed. It shall not be placed on the back of heaters.
• The heater must be correctly installed according to the instructions.
• The heater must be securely placed on a horizontal and flat Wall surface.
• The heater will be at high temperature when in use. It keeps hot for a period after shut down. Potential danger would occur when you touch it during this period.
• Don't place the heater closed to curtain or other flammable objects. Otherwise there will be a danger of catching fire.
• Don't cover the heater with anything when in use or a short time after it is shut down.
• Don't wrap the power supply cord on the heater.
• The heater must be handled with care, and avoid vibration or hitting.
• The heater must be securely grounded when in use.
• If the heater gets damaged, it must be repaired by professional electricians.
• When assembling, keep away from any board or flammable material.
• The heater must be supervised by adults when it is used by a child.
• It is not safe to install the heater near a swimming pool, in a bathroom or shower area.
• The heater is for household use only. It is not safe to use on a building site, greenhouse, barn or stable where there's flammable dust.
• The heater is at high temperature when in use. Unplug the heater and wait until it cools down before cleaning.
• Don't use this heater in place where causticity or volatile air exists, such as dust, steam, gas, etc.
• Don't use this heater as a cloth drier or towel drier.
• Don't use this heater as a sauna heater.
• Don't use this heater in place of animal propagating and raising.
• The heater should be plugged in a socket, which is easily visible and reachable.
  Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exist if the heater is covered or positioned incorrectly.
• Place the heater outside or in a large open area and well away from any obstructions such as branches or where the heater is close to any objects that can be affected by heat, such as furniture, curtains or other inflammable objects (minimum distance 1 meter).
• The instruction manual shall provide adequate instructions for connection to the supply ensuring an equivalent protection!
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

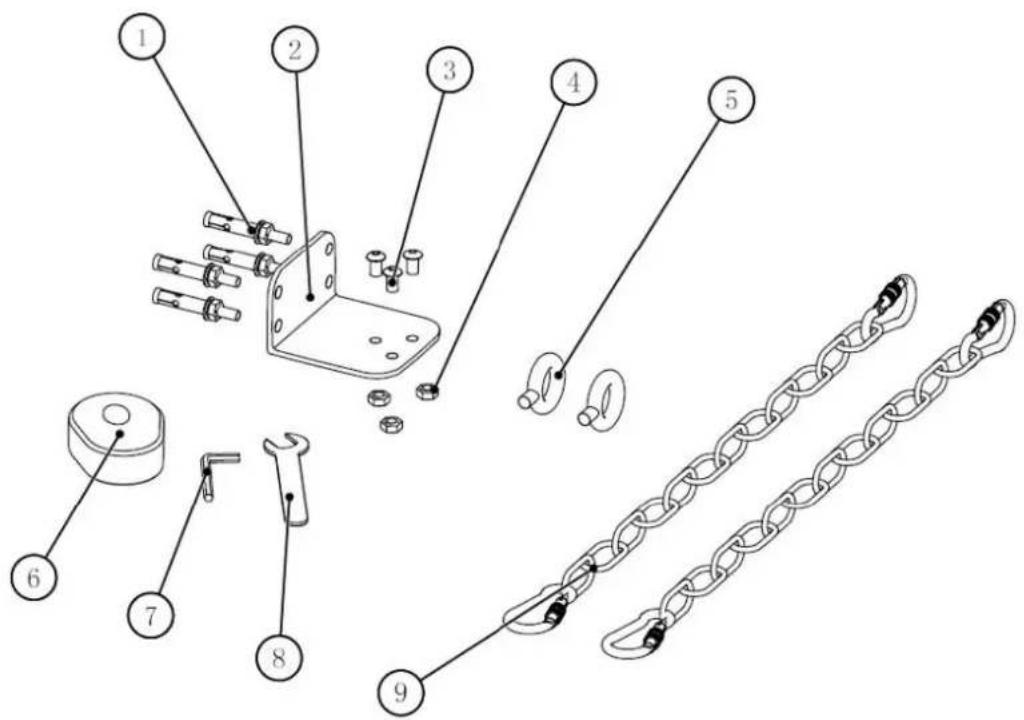

Accessories

Ref.	Name	Qty
1	Explosive bolt M6*50	4
2	Bracket	1
3	Hexagon socket button head screws M6*10	3
4	Nuts M6	3
5	eye boltsM6	2
6	Remote control	1
7	‘L’ hexagonal wrench	1
8	M6 spanner	1
9	Chaine	2

Installation

Heater ZHQ1580-BG-WM-RM is built with the best quality components in accordance to the prevailing legal regulations and certified for safety in use. For best results from the appliance please ensure that the installation is done by a qualified electrician in accordance with the following instructions and taking full account of current regulations.

When using the heater, please carefully follow the instructions and recommendations below.

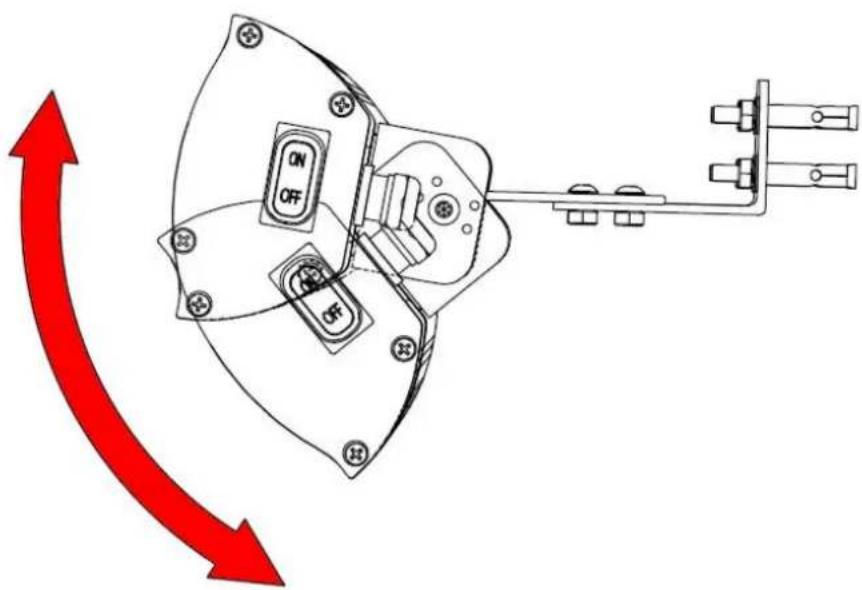

You could loosen the two M6*10 screws to change the best Angle of heating. Then retighten them.

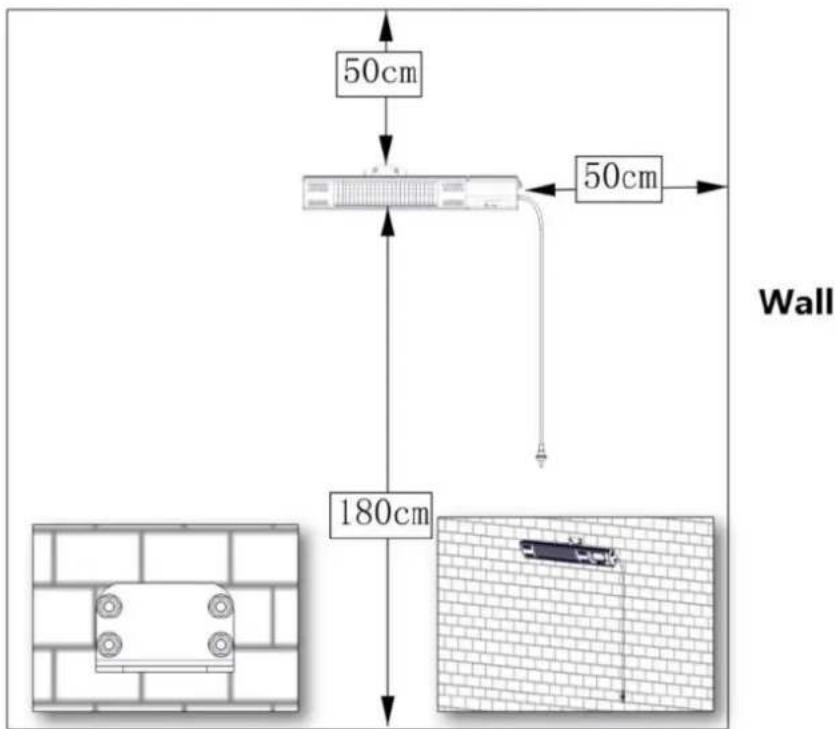

Installation to Wall

• When fixing the heater to a wall, ensure hinges are in the underside so that the lid hands down in the open position.

• Minimum required distances:

a) 500mm from the side wall
b) 500mm from the ceiling
c) Installation height above 1.8M

Floor

• The heater must be fixed to a wall with the bracket supplied to allow adequate ventilation.
• Never fix or place heater near flammable or combustible materials.
• Generally heaters must be placed at a safe distance (clear space) of at least 2.0m from combustible materials and glass walls. If installed in workshops or garages where inflammable or combustible paints are used, the heaters must be installed at a distance of at least 4.0m from the source of danger.
  If the heaters are placed in areas where spray painting of any description is taking place, they should not be used during the painting operations.
• Never use the heater in particularly dusty and explosive areas.

Connection to 220-240 Volts Power Supply

• It is important to ensure that the electricity supply is of adequate capacity for the electrical load required by the appliance being installed.
• These appliances must be earthed.

Assembling Process

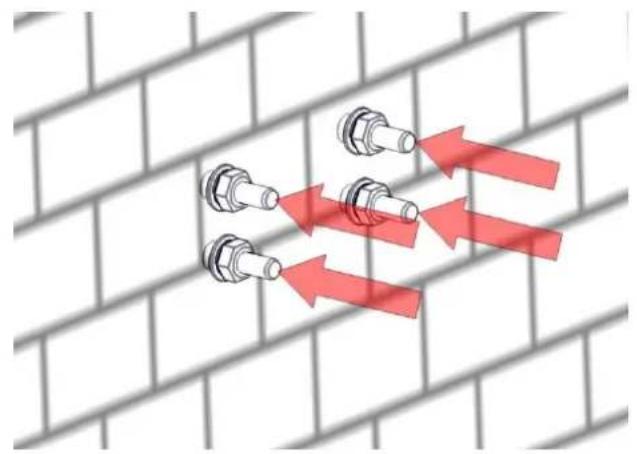

Step 1:

Bore four holes in the wall, Hammer the four explosive bolts M6^*50 , 1 into the wall.

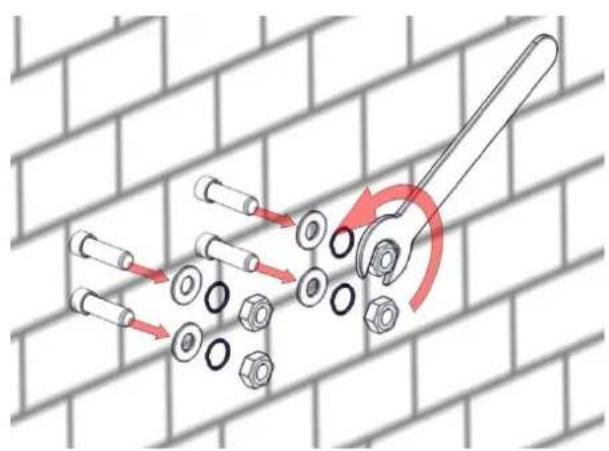

Step 2:

Take off the nuts, the spring locks washers and the plain washers from four explosive bolts. Keep them for the next step.

Step3:

Fix the bracket ,2 on the wall.

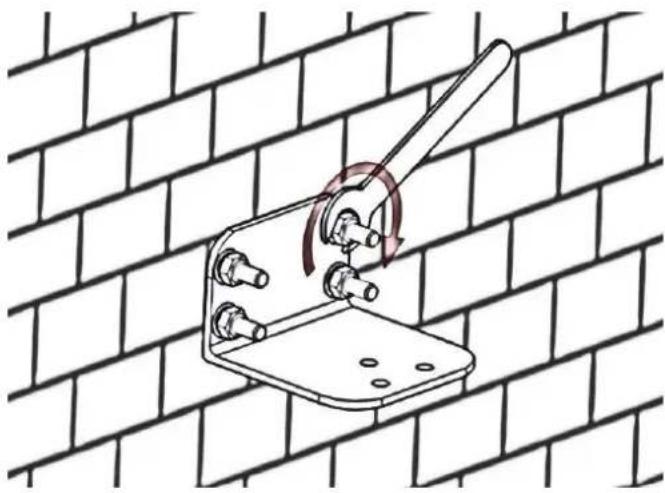

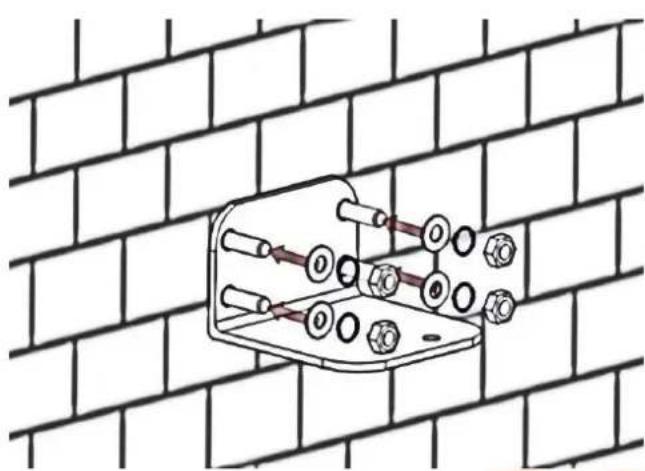

Step 4:

Tighten the four nuts, the four spring locks washers and the four plain washers(The parts of explosive bolt M6*50)with M6 spanner,7.

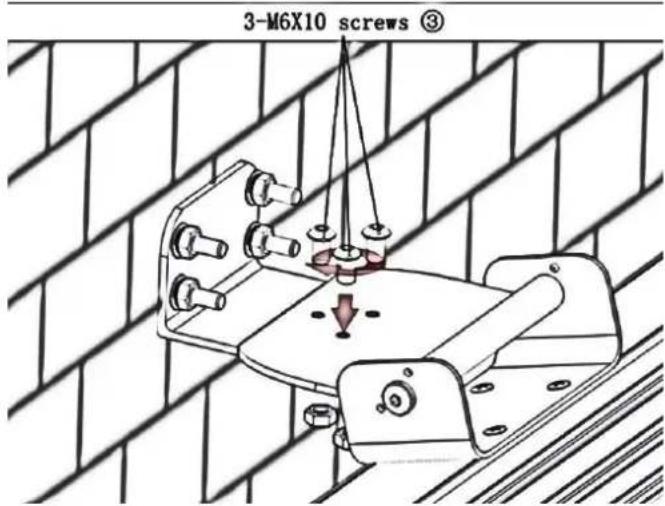

Step 5:

Put the heater on the bracket, fix it by three M6*10 screws and three nuts M6 4 then tighten them.

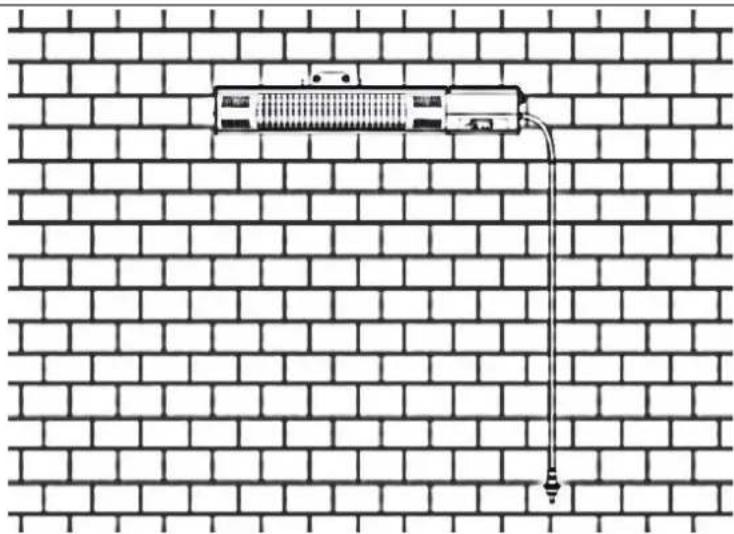

Complete!

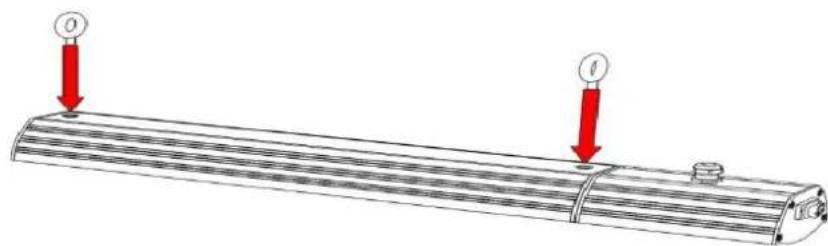

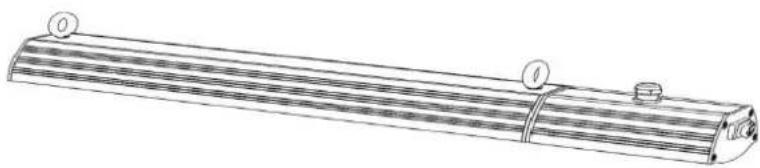

Assembling Process for ceiling

Step 1: Prepare

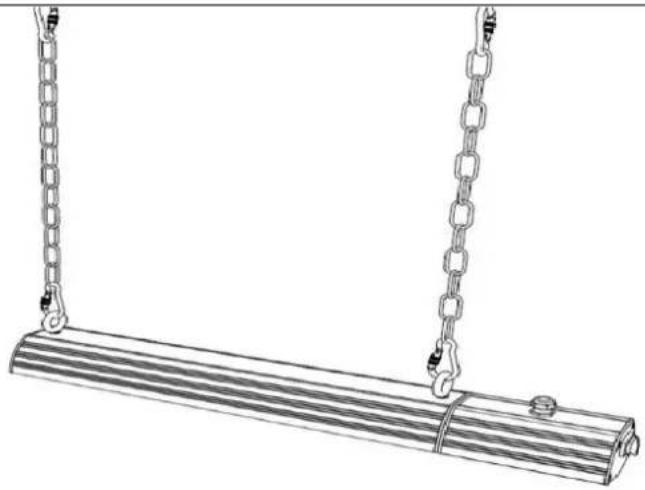

Step 2: tighten them

Complete!

Operation

Connect the power cable to a 13 amp supply which is located in a safe, dry area.

• The switch on the heater is used to control the Heater. When the position mean on the 【ON】, the first indicator light will be turn red, the heater will be in standby mode. The 【OFF】 position will turn off the Heater.

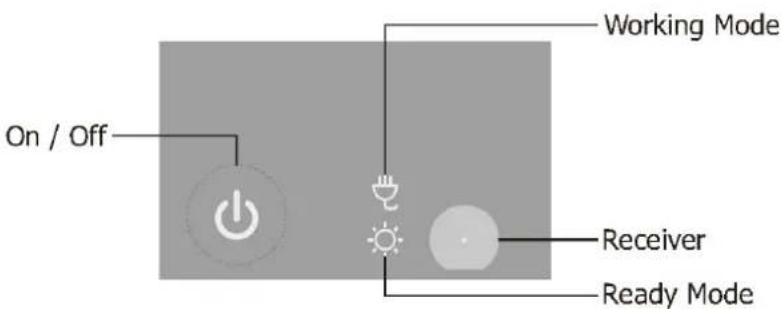

• The panel control:

• Although the patio heater is waterproof, do not use when raining or in wet conditions.
• Never connect the power cable from the electrical supply, when the patio heater is not in use.

Care and maintenance

• When disconnected from the electrical supply, clean the surface of the patio heater with a damp cloth. Never use corrosive or solvent cleaners or immerse in water.
  Any maintenance or repairs including replacing the halogen tube should only be carried out by a qualified electrician or by a recommended service center.

Handleiding Electrische terrasheater WMGT13D NL

Element type: Golden tube infrared

Gewicht: 2,2 kg

IP waarde: 54

Power supply 240V 50Hz

Isolatieklasse I

Afmetingen: W10cm/L59,5cm

Incl. wandhouser

Ref.	Name	Qty
1	Explosive bolt M6*50	4
2	Bracket	1
3	Hexagon socket button head screws M6*10	3
4	Nuts M6	3
5	eye boltsM6	2
6	Remote control	1
7	‘L’ hexagonal wrench	1
8	M6 spanner	1
9	Chaine	2

Installatie

Certificates: CE, GS, PAH, Rohs

Dimensions: L 57cm; L 12cm

Remarques: Telecommande inclus
