Product Type	Electric quartz heater
Brand	SunRed
Model	SMQ2000A
Power	650 W / 1300 W / 2000 W (3 positions)
Heating Element Type	Quartz
Element Lifespan	3000 hours
Weight	1.6 kg
Dimensions (W × H × D)	50 × 16 × 36 cm
Power Cord Length	1.9 m
Power Supply	230 V ~ 50 Hz, Class I (with grounding)
Main Functions	Position 0: Off, 1: 650 W (normal), 2: 1300 W (intermediate), 3: 2000 W (full power)
Usage	Indoor and outdoor (indoor outlet only), domestic use
Mounting	Wall mounting via included bracket
Safety	Tip-over switch (automatic shut-off if knocked over, automatic restart after uprighting)
Protection	Do not cover, do not place under a socket, do not use with a timer
Maintenance	No special maintenance; clean with a dry cloth after complete cooling
Repairability	Do not disassemble yourself; contact an authorized service center
Warranty	Void in case of misuse; professional use excluded
General Information	Manual included; suitable for living room, bedroom, garden

Frequently Asked Questions - SMQ2000A SunRed

What are the available power settings on the SunRed SMQ2000A heater?

The heater offers three power levels: 650 W (position 1, normal), 1300 W (position 2, intermediate), and 2000 W (position 3, full power). Position 0 corresponds to off.

How to mount the heater on the wall?

Use the four screws provided to fix the wall bracket to the chosen location. Then, hang the heater on the bracket at the three fixing points marked '1'. Make sure the unit is correctly oriented (not suspended or turned).

What to do if the heater tips over?

The heater is equipped with a tip-over switch: it automatically turns off if it falls. Once placed upright, it turns back on automatically. Always ensure it is stable.

Can I use this heater outdoors?

Yes, the unit is designed for outdoor use (garden), but the power outlet must be connected indoors. Do not use it in the immediate vicinity of a bathtub, shower, or swimming pool.

How to clean the heater?

Always unplug the unit and wait for it to cool completely. Clean it with a dry cloth. Never use water or abrasive products, and never immerse it in water.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any risk. Do not use the unit if the cord is damaged.

Can the heater be used with a timer?

No, it is forbidden to use a timer, a programmable switch, or any automatic activation device as this presents a fire risk if the unit is covered or poorly positioned.

What are the essential safety precautions?

Never touch the heater while in operation (risk of burns). Do not place it near curtains or combustible materials. Do not cover the unit. Ensure the mains voltage matches that indicated on the unit. Use a 30 mA residual current device.

How to adjust the angle of the heater?

To change the angle of the heating element, wait at least 15 minutes after turning off the unit. Never force rotation while in operation.

What to do in case of malfunction?

Immediately unplug the unit and do not attempt to repair it yourself. Contact an authorized service center of the SunRed network. Any unauthorized repair voids the warranty.

USER MANUAL SMQ2000A SunRed

Manual Wall-mounted Quartz Heater (UK)
Handleiding Wandmodel elektrische heater (NL)
Handbuch Quarz Wandheizung (DU)
Manuel Appareil de chauffage mural (FR)

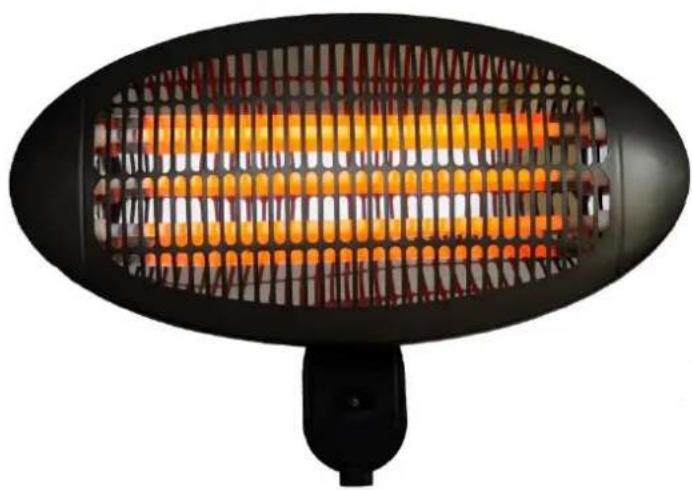

WMQ2000A – Manual Wall-mounted Quartz Heater

Manual Wall-mounted Quartz Heater (WMQ2000A) UK

User instructions - please keep for future reference

TECHNICAL INFORMATION

Wattage: 650W/1300W/2000W

Element type: Quartz

Expected element lifespan: 3000 hrs.

Weight: 1,6 kg

Ingress Protection Rating: IPX4

Certificates: CE, GS, ROHS

Cable Cord: 1,9 Meters

Dimensions: 50 × 16 × 36 cm

All measurements are approximate

www.sunred.nl

IMPORTANT - Carefully remove packaging before use, but retain the safety instructions.

These instructions are part of the product.

Please take note of all the safety regulations listed in these instructions.

Please read these instructions and retain them for future reference.

These instructions should be stored with the product.

This product is for domestic use ONLY and should not be used commercially or for contract purposes.

WARNING

• This electrical appliance comp lies with technical safety and electromagnetic compatibility standards.
• Never touch your heater when in operation (risk of burns).
• Never touch it with wet hands.
• Never rotate the heating part of the appliance during operation. To change the angle of the heating part, we advise you to wait for 15 minutes after the appliance has switched off.
• Never place clothing or towels on your heater's safety guard as this may cause overheating.
• Never use your appliance for dry washing.
• Although the heating element has stopped glowing, It may still be warm and potentially dangerous. Check that the selection indicator is in off position before taking any action.
• Switch off your appliance:

After use
In the event of malfunction
Before cleaning it.

• Never operate your appliance if it has fallen down.
• Never dismantle your appliance. An incorrectly repaired appliance maybe dangerous to the user. If you encounter any problems, please take it to one of the approved service centers in our customer service network.
• The warranty will be void in the event of damage arising from improper use.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

This movable appliance is designed for use in gardens, and can be used indoor and outdoor. The warranty will not apply to appliances used for professional usage. Although the heater may be used outdoors, the main plug must only be connected to the supply indoors.

Children or person who lack the knowledge or experience to use the device or all whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or instruction by a person responsible for their safety. Children are never allowed to play with the device.

The heater is provided with an anti-tilt switch. This will switch off the heater if it is overturned, and it will switch on again automatically when it is restored to its upright position.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervisions or instruction concerning use of the appliance by a person responsible for the safety. Children should be supervised to ensure that they do not play with appliance.

VOLTAGE

Before using the appliance at the first time, ensure that your mains voltage corresponds to pound indicated voltage on the appliance. It is a class I appliance and must be earthed.

SAFETY

CAUTION: Before fitting or removing the appliance, ensure that the heater's power line supplying the heater is disconnected. Check that the power line is connected to a 30mA differential circuit breaker.

• This appliance is designed for use in gardens
• When it is switch on, an electrical heating appliance reaches very high temperature to cause burns.
  Make sure that all other users are aware of the risks.
• If you have any doubts concerning installation possibilities for this heater, please consult a qualified electrician.
• Children may not always be aware of the danger 'involved in using electrical appliances. Never allow this appliance to be used without supervision.
• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similar qualified person in order to avoid a hazard
• The heater must not be located below a socket outlet
• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not place the appliance close to curtains and other combustible materials.

HOW TO ASSEMBLE

• Before installing your appliance, you must disconnect the electrical supply at the circuit breaker.
• Use the four screws to fix the bracket of the heater on the wall on a right position and then fix the heater on the bracket.

OPERATION

The appliance is switched on by means of the pull switch. The slight vibration noticeable when the appliance is switched on will stop after a few seconds.

OUTPUT

Model: PHP-2000D

-Position 0: Stop
-Position 1:650W (normal power)
-Position 2:1300W (intermediate power)
-Position 3:2000W (full power)

MAINTENANCE

Your appliance does not require any particular maintenance. However, in the event of a malfunction, please consult an approved service center.

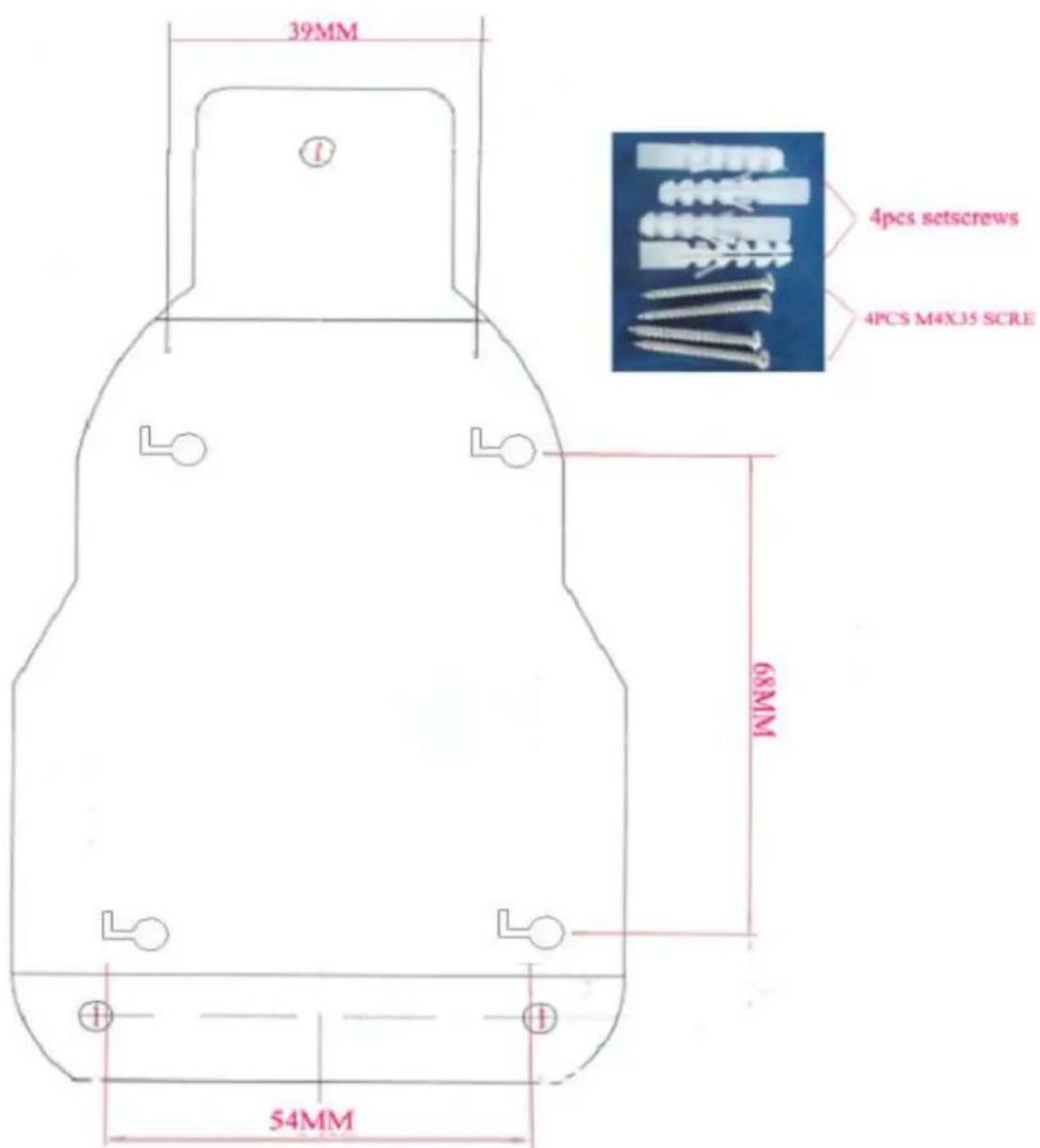

HOW TO HANG THE HEATER ON THE WALL

Remarks:

1. Three positions for "1" are for fixing the item to the bractet.
2. The four positions for "2" are for fixing the bracket to the wall.
3. At the ideal position and height for the heater, firstly you fix the four setscrews on the wall with the distance on the above, and fix four M4X35 screws in the setscrews securely, then you can hang the heater.

IMPORTANT FIXING INFORMATION. PLEASE NOTE!
DO NOT HANG PRODUCT FROM CEILING	DO NOT HANG PRODUCT UPSIDE-DOWN
CORRECT WALL FIXING POSITION

Certificate: CE, GS, ROHS

1.Three positions for "1" are for fixing the item to the bractet.
2. The four positions for "2" are for fixing the bracket to the wall.
3. At the ideal position and height for the heater, firstly you fix the four setscrews on the wall with the distance on the above, and fix four M4X35 screws in the setscrews securely, then you can hang the heater.

Wandmontage:

Ingress Protection IPX4

Zertifikate: CE, GS, ROHS

1. Three positions for "1" are for fixing the item to the bractet.
2. The four positions for "2" are for fixing the bracket to the wall.
3. At the ideal position and height for the heater, firstly you fix the four setscrews on the wall with the distance on the above, and fix four M4X35 screws in the setscrews securely, then you can hang the heater.

WICHTIGE INFO MONTAGE!
Nicht AM DECKE HANGEN	Nicht UMGEDREHT AUFHANGEN
RICHTIGE MONTAGE

Manuel Appareil de chauffage mural (WMQ2000A) FR

Qualification IP:IPX4

Certificates: CE, GS, ROHS

1.Three positions for "1" are for fixing the item to the bractet.
2. The four positions for "2" are for fixing the bracket to the wall.
3. At the ideal position and height for the heater, firstly you fix the four setscrews on the wall with the distance on the above, and fix four M4X35 screws in the setscrews securely, then you can hang the heater.

Montage mural:

Manual Wall-mounted Quartz Heater (UK)

Handleiding Wandmodel elektrische verwarmer (NL)

Handbuch Quarz Wandheizung (DU)

Manuel Appareil de chauffage mural (FR)

OutTrade BV

De Grift 1A

7711 EP Nieuwleusen

Tel [phone]

Fax [phone]

Email [e-mail]

Website www.outtrade.eu

WMQ2000A 02-10-16
