Spica Square - Heating SunRed - Free user manual and instructions

Product type	Electric infrared heater
Brand	SunRed
Model	Spica Square
Power	1000 W / 2000 W (2 levels)
Heating element type	Halogen infrared
Element lifespan	5000 hours
Weight	3.5 kg
IP protection rating	IP24
Power cord length	1.8 m
Dimensions (height)	26.5 cm
Included accessories	Suspension chain, remote control
Main functions	2-level heating, ambient LED light, remote control
Power supply	220-240 V ~ 50/60 Hz
Usage	Indoor and outdoor (sheltered)
Care and cleaning	Unplug, wipe with a damp cloth, do not immerse
Safety	Do not cover, minimum distance 1 m from walls, do not use with a timer
Certifications	IEC/EN 55014-1, 55014-2, 61000-3-2, 61000-3-3, 60335-1, 60335-2-30
Storage	In a cool, dry place, use original packaging
Disposal	Do not dispose of with household waste, recycle at an approved center

Frequently Asked Questions - Spica Square SunRed

What is the maximum power of the Spica Square heater?

The heater offers two power levels: 1000 W and 2000 W. You can select them using the remote control or the activation button.

How to use the remote control?

Press the on/off button to activate heating. For 1000 W, press the power button once; for 2000 W, press twice. An additional press activates the LED light without heating, and so on.

Can I use this heater outdoors?

Yes, it is designed for indoor and outdoor use, but must be protected from rain and direct moisture. The IP24 rating ensures protection against water splashes.

What minimum distance should I keep around the heater?

Place the heater at least 1 meter from any wall or partition, and 30 cm from the ceiling. Avoid placing it under a power outlet.

How to clean the heater?

Unplug the device and let it cool down. Wipe the exterior with a soft, damp cloth (not too wet). Do not use solvents, alcohol, or abrasive products. Never immerse in water.

What to do in case of malfunction?

Do not attempt to repair the device yourself. Contact customer service or a qualified technician. First check that the power cord is not damaged.

Can I use an extension cord?

It is recommended not to use an extension cord. Plug the device directly into a grounded wall outlet.

How to turn off the heater completely?

Use the remote control or the activation button: press the button 5 times to turn off the light and heating. You can also unplug the device.

Can the heater be used in a bathroom?

No, do not use it near a bathtub, shower, or swimming pool. The device is not designed for excessive humidity.

How should I store the heater in summer?

Make sure it is completely cooled down and dry. Store it in a cool, dry place, preferably in its original packaging, out of reach of children.

USER MANUAL Spica Square SunRed

Manual Ceiling Hung electric Heater (EN)

Handleiding Plafond Model elektrische Heater (NL)

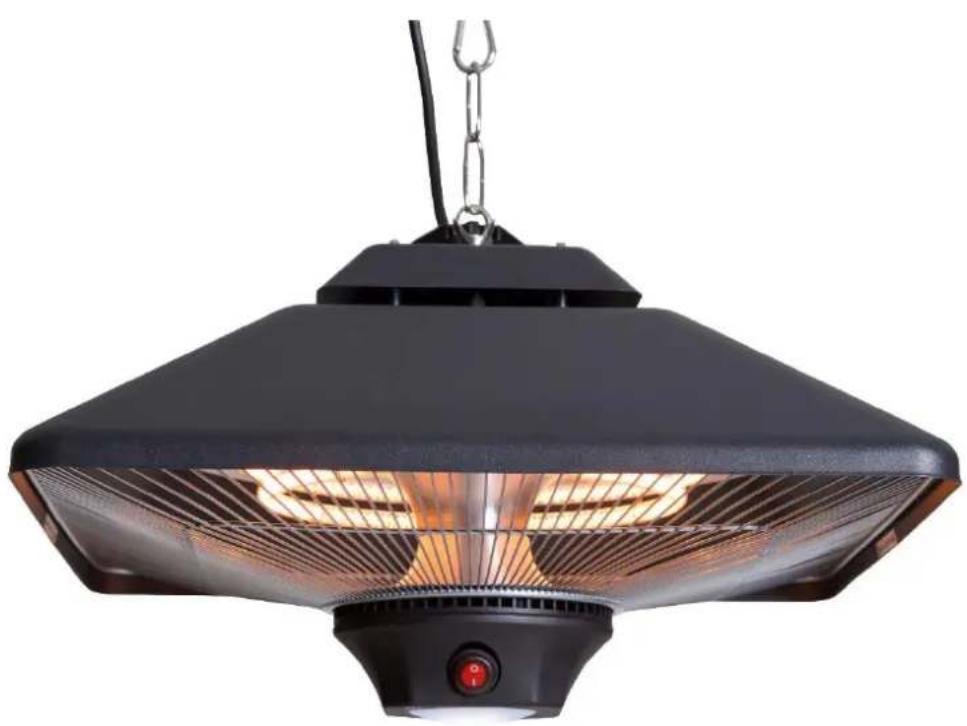

CE17SQ-B - Ceiling Hung electric Heater 1000-2000Watt

Ceiling Hung electric Heater (CE17SQ-B) EN

User instructions - please keep for future references

TECHNICAL INFORMATION

Wattage: 1000/2000W

Element type: Infrared Halogen

Expected Life span elements: 5000 hrs.

Weight: 3,5 kg

Ingress Protection Rating: IP24

Certificates: CE, GS, PAH, Rohs

Cable Cord: 1.8 Meters

Dimensions: H 26,5

Remarks: chain included

All measurements are approximate

IMPORTANT - Carefully remove any packaging before use, but retain the safety instructions.

These instructions form part of the product.

Please take note of all the safety warning listed in these instructions.

Please read these instructions in their entirety and retain them for future reference.

These instructions should be stored with the product.

This product is for domestic use ONLY and should not be used commercially or for contract purposes.

IMPORTANT! KEEP FOR FUTURE REFERENCE

Thank you for choosing our indoor/outdoor Electric Heater. This manual will provide you with information necessary for the proper assembly, care and maintenance of your new product.

Please take a few moments to thoroughly read the instructions and familiarise yourself with all the operational aspects of your new heater. When using this electric unit please follow the safety precautions detailed below. This should reduce the risk of fire, electric shock and injury to persons.

WARNING - CAUTION!

READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS UNIT. KEEP THE ASSEMBLY INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THE ORIGINAL PACKAGING FOR USE WHEN STORING THE HEATER DURING EXTENDED PERIODS OF NON-USE.

CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.

This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater.
- Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3 ft from the front of the heater and keep them away from the sides, top, and rear. DO NOT place towels or other objects on the heater.
Extreme caution is necessary when any heater is used by or near children or the disabled, or when the heater is left operating and unattended.
DO NOT operate any heater with a damaged cord or after the heater malfunctions, has been drooped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER locate heater where it may fall into a bathtub or other water container. To protect against electrical hazards, DO NOT immerse in water or other liquids.
DO NOT touch the control panel or plug with a wet hand.
DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
To prevent a possible fire, DO NOT blocks the air intakes or exhaust in any manner. DO NOT use on soft surfaces, like a bed, where openings may become blocked.
- A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.
- Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you use an extension cord, the cord shall be NO.13 AWG minimum size.
- To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet.
To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on plug, DO NOT unplug by pulling on the cord.
Always unplug the unit before moving or cleaning, or whenever the heater is not in use.
- Use only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by unauthorized dealers may cause hazards.
Always use on a dry, level surface. Use on ceiling only.
WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state speed control device.
DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. Qualified personnel should perform all servicing only.
- Connect to properly grounded outlets only.
This appliance is not intended for use by persons (including children) with reduced physical. Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The marketing concerning covering shall be visible after the heater has been installed.
- Save these instructions.

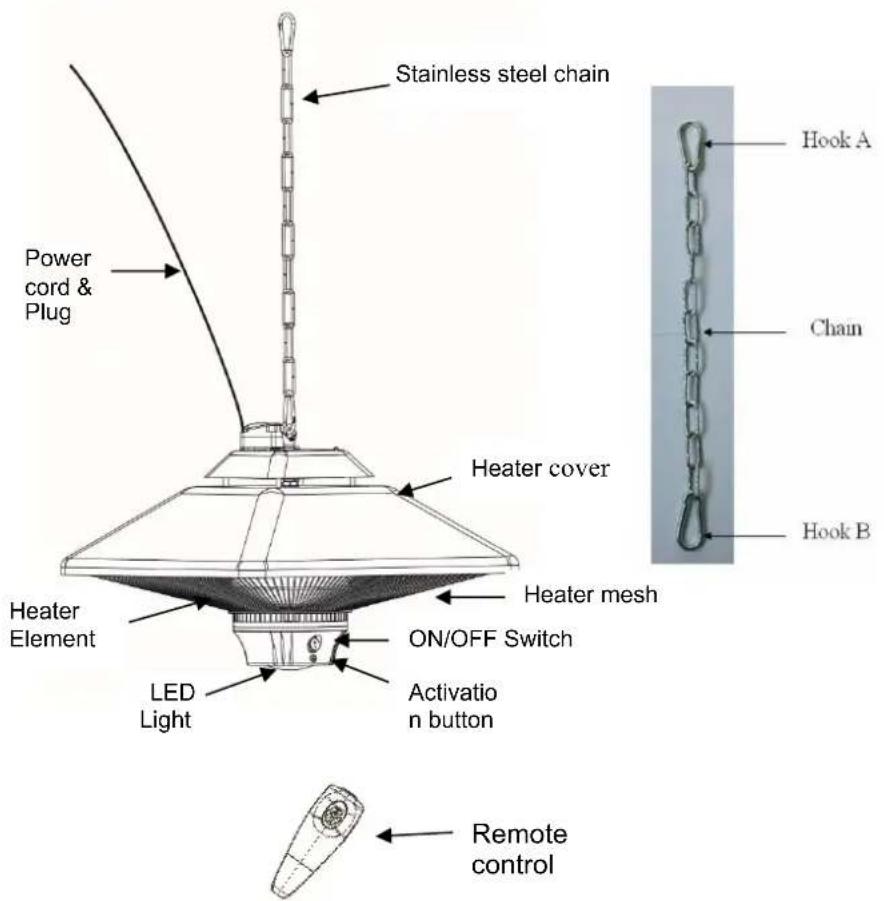

PRODUCT DIAGRAM

OPERATING INSTRUCTIONS

WANRING: The heater must be properly installed before it is used. This unit is equipped with one heat setting On / Off.

Remote control

A. Press on the On/Off switch to activate the heater.
B. To operate the heater on 1000W, press on the left or right side button of the remote control.
C. To operate the heater on 2000W, press on both the left and right side button of the remote control.
D. To operate the LED light, press the top button of the remote control.

Activation button

A. Press on the On/Off switch to activate the heater
B. Press on the button once to operate the heater on 1000W power.
C. Press on the button twice to operate the heater on high 2000W power.
D. Press on the button three times to activate the LED ambient lighting without heat.
E. Press on the button four times to activate the LED ambient lighting and to operate the heater on 2000W power.
F. Press on the button five times to shut the light and heat off

MAINTENANCE

Unplug the unit and let it cool completely.
To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth.
DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
Although this heater is outdoor approved, DO NOT immerse the heater in water for your safety.
- Wait until the unit is completely dry before use.

STORAGE

• Ensure the unit is completely cold before storing in a cool, dry location.
• To prevent dust and dirt to build-up, use the original packaging to repack the unit.
• CHOKING HAZARD: Store out of reach of children and pets. Contains small parts.

DISPOSAL

DO NOT dispose of via your weekly household waste collection service. ONLY dispose of this product at your local, licensed recycling/waste centre.
For further information on the disposal of electrical goods, please contact your local authority.

TROUBLESHOOTING

If the heater will not operate, please check the following before seeking repair of service:
- Check if the power cord is plugged into an electrical outlet, if not, plug in.
- Check if electricity to the main fuse is working.
- Make certain the power switches are turned on. If not, choose a setting.

ENSURE YOU HAVE READ THESE INSTRUCTIONS THOROUGHLY PRIOR TO USE

Plafondmodel elektrische Heater (CE17SQ-B) NL

Wattage: 1000w/2000w

Element type: Infrarood Halogeen

Verwachte levensduur elementen: 5000 hrs.

Gewicht: 3,5 kg

IP waardering: IP24

Certificaten: CE, GS, PAH, Rohs

Certificates: CE, GS, PAH, Rohs
