Technical Features	Mobicool F16 AC refrigerator, 16-liter capacity, AC 230V power supply, 60W power
Dimensions	Compact dimensions for easy transport, lightweight
Usage	Ideal for travel, camping, and home use
Maintenance	Regular cleaning recommended, do not immerse in water
Safety	Do not use near water sources, follow usage instructions
General Information	Manufacturer warranty, after-sales service available

Frequently Asked Questions - F16 AC Mobicool

Why is my Mobicool F16 AC not cooling properly?

Check that the device is properly plugged in and that the outlet is working. Also ensure that the set temperature is low enough and that the refrigerator is not too full, which could block air circulation.

The refrigerator is making a strange noise, what should I do?

A slight operating noise is normal. However, if the noise is loud or unusual, check that the device is level and that nothing is vibrating against it. If the problem persists, contact customer service.

How do I clean the inside of the Mobicool F16 AC?

Unplug the device and use a mixture of warm water and baking soda to clean the interior. Avoid using harsh chemicals that could damage the surfaces.

Can I use the Mobicool F16 AC outdoors?

Yes, the Mobicool F16 AC can be used outdoors, but it is recommended to protect it from bad weather and excessive heat to ensure optimal operation.

What type of current should I use to power the refrigerator?

The Mobicool F16 AC operates on standard alternating current (AC) power. Make sure the voltage is compatible with the device specifications.

Is there a warranty for the Mobicool F16 AC?

Yes, the Mobicool F16 AC is generally covered by a limited warranty. Check the documents provided with your device for specific details regarding the duration and conditions of the warranty.

How do I adjust the refrigerator temperature?

Use the control panel located on the front of the device to adjust the temperature. Refer to the user manual for specific instructions on the settings.

What should I do if the power cord is damaged?

If the power cord is damaged, do not attempt to use it. Unplug the device and contact a professional to replace it to ensure your safety.

USER MANUAL F16 AC Mobicool

Our Name is our Mission

EN	Mini-refrigerator Operating manual. 4
DE	Mini-Kühlschrank Bedienungsanleitung. 12
FR	Mini réfrigérateur Notice d'utilisation. 21
ES	Minifrigorífico Instrucciones de uso. 30
IT	Mini frigorifero Istruzioni per l'uso. 39
NL	Minikoelkast Gebruiksaanwijzing. 48
DA	Mini-køleskap Betjeningsvejledning. 56
SV	Mini-kylskåp Bruksanvisning. 64
NO	Mini-kjøleskap Bruksanvisning. 72
FI	Minijäkaappi Käytöohje. 80
PT	Mini-Frigorífico Manual de instruetões. 88
RU	MiHN-холодningsk Инстукция по заclпунату榴. 97
PL	Minilodówka Instrukcja obslugi. 106
CS	Miniaturní chladnička Návod k obsluze. 115
SK	Mini chladnička Návod na obssluho. 123

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is resold, this operating manual must be handed over to the purchaser along with it.

The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Contents

1 Explanation of symbols 4
2 Safety instructions 5
3 Intended use 7
4 Scope of delivery 7
5 Technical description 7
6 Operation 8
7 Cleaning and maintenance 10
8 Troubleshooting 10
9 Disposal 11
10 Technical data 11

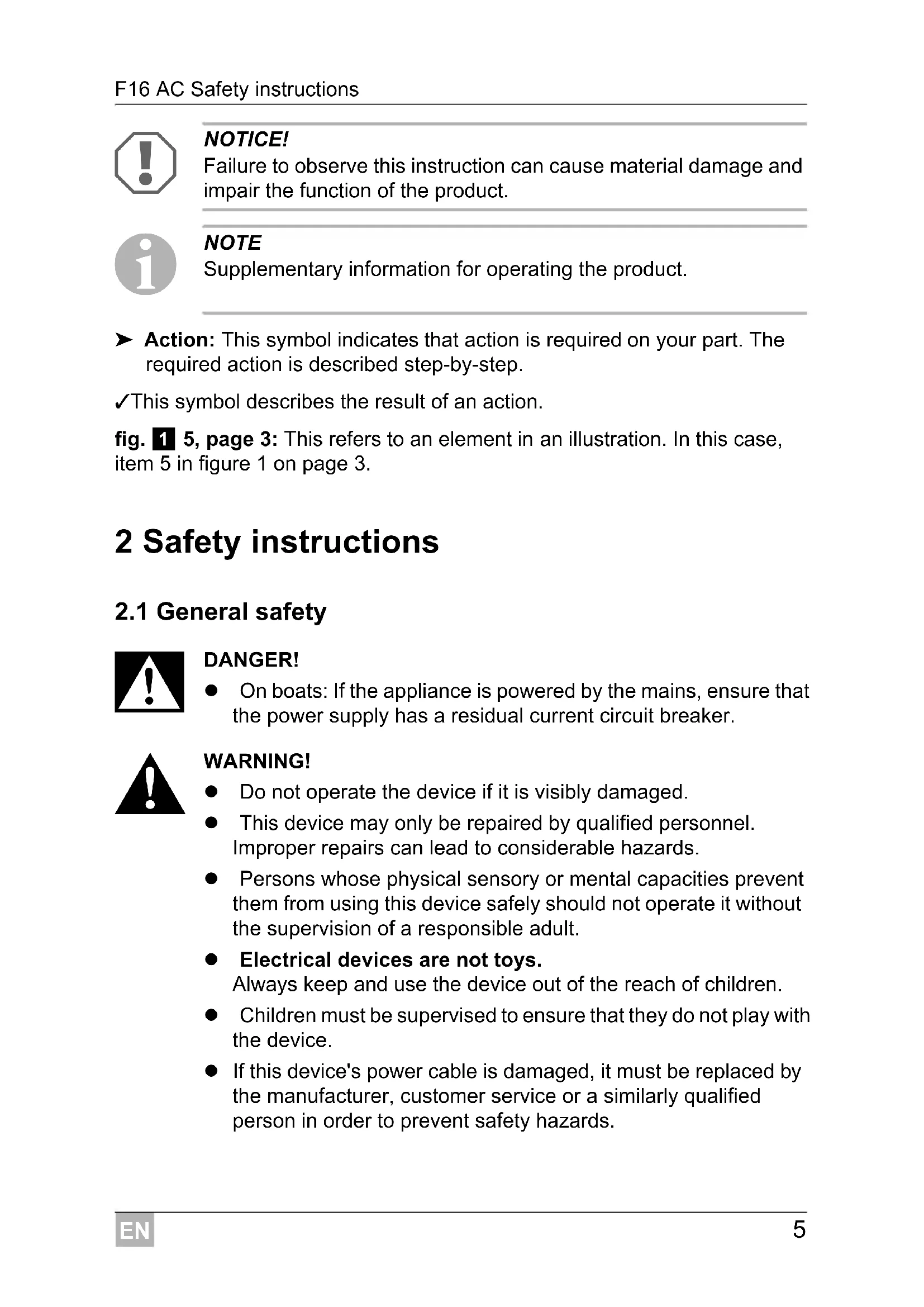

1 Explanation of symbols

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

Action: This symbol indicates that action is required on your part. The required action is described step-by-step.
This symbol describes the result of an action.

2 Safety instructions

2.1 General safety

fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

DANGER!

• On boats: If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker.

WARNING!

• Do not operate the device if it is visibly damaged.
• This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• Persons whose physical sensory or mental capacities prevent them from using this device safely should not operate it without the supervision of a responsible adult.
• Electrical devices are not toys.

Always keep and use the device out of the reach of children.

Children must be supervised to ensure that they do not play with the device.
- If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.

CAUTION!

• Disconnect the device from the mains
• before cleaning and maintenance
• a f t e r u s e
• Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Connect the device with the 230 V connection cable to the 230 V AC mains supply
• Check that the voltage specification on the type plate corresponds to that of the energy supply.
• The cooling device is not suitable for transporting caustic materials or materials containing solvents.
• Never pull the plug out of the socket by the cable.

2.2 Operating the device safely

DANGER!

• Do not touch exposed cables with your bare hands.

CAUTION!

• Before starting the device, ensure that the power supply line and the plug are dry.

NOTICE!

• Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
• Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
• Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

• Ensure that the ventilation slots are not covered.

• Do not fill the inner container with ice or fluid.

• Never immerse the device in water.

• Protect the device and the cable against heat and moisture.

3 Intended use

The cooling device is suitable for cooling foodstuffs.

The device is designed for use with a 230 V AC mains supply.

CAUTION! Health hazard!

If you wish to cool medicines, please check if the cooling capacity of the device is suitable for the medicine in question.

4 Scope of delivery

Quantity Description

1 Cooling device
1 Connection cable for 220 - 240V connection
1 Operating manual

5 Technical description

The refrigerator can cool products to a maximum of 20^ under the ambient temperature and keep them cool. A grid divider can be used to separate foodstuffs, e.g. bottles and sweets.

Its cooling system is a non-wearing Peltier cooling, the heat is discharged by a fan.

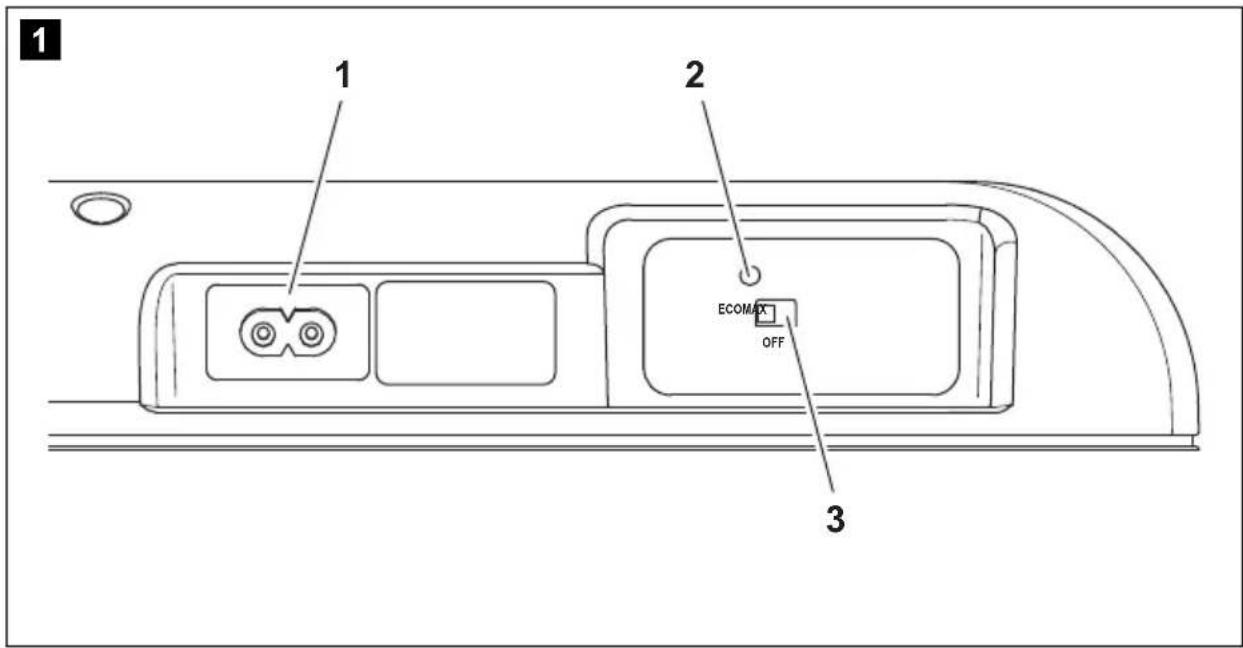

5.1 Description of the device

Connection sockets and control panel (rear of the device):

No. in fig. 1, page 3	Bezeichnung
1	AC voltage socket
2	Status LED
3	ECO switch

6 Operation

CAUTION! Health hazard!

Food may only be stored in its original packaging or in suitable containers.

NOTE

• Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter "Cleaning and maintenance" on page 10).
• A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.

6.1 Energy saving tips

• Choose a well ventilated installation location which is protected against direct sunlight.
• Allow warm food to cool down first before placing it in the device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooler unit open for longer than necessary.
• If you want to set an increased energy efficiency and a limited cooling capacity for the cooler unit, use the cooler's ECO mode.

6.2 Using the cooler

NOTICE! Risk of damage

• Ensure that the objects placed in the cooler are suitable for cooling or heating to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy the glass containers.
• Ensure that your cooler is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents.

NOTE

If you are not going to use the refrigerator for a long time, leave the door slightly ajar to prevent unpleasant odours building up.

Place the refrigerator on a firm base.

Ensure that the ventilation slots are at least 10cm away from the wall so that the heat that arises during operation can be drawn off.

Plug the 230 V connection cable into the AC voltage socket (fig. 1 1, page 3) and connect it to the 230 V AC mains supply.

Push the ECO switch to the required position ("ECO" or "MAX").
- The green LED (fig. 12, page 3) lights up. The refrigerator starts cooling the interior.
When you stop using the device, push the ECO switch to the "OFF" position.

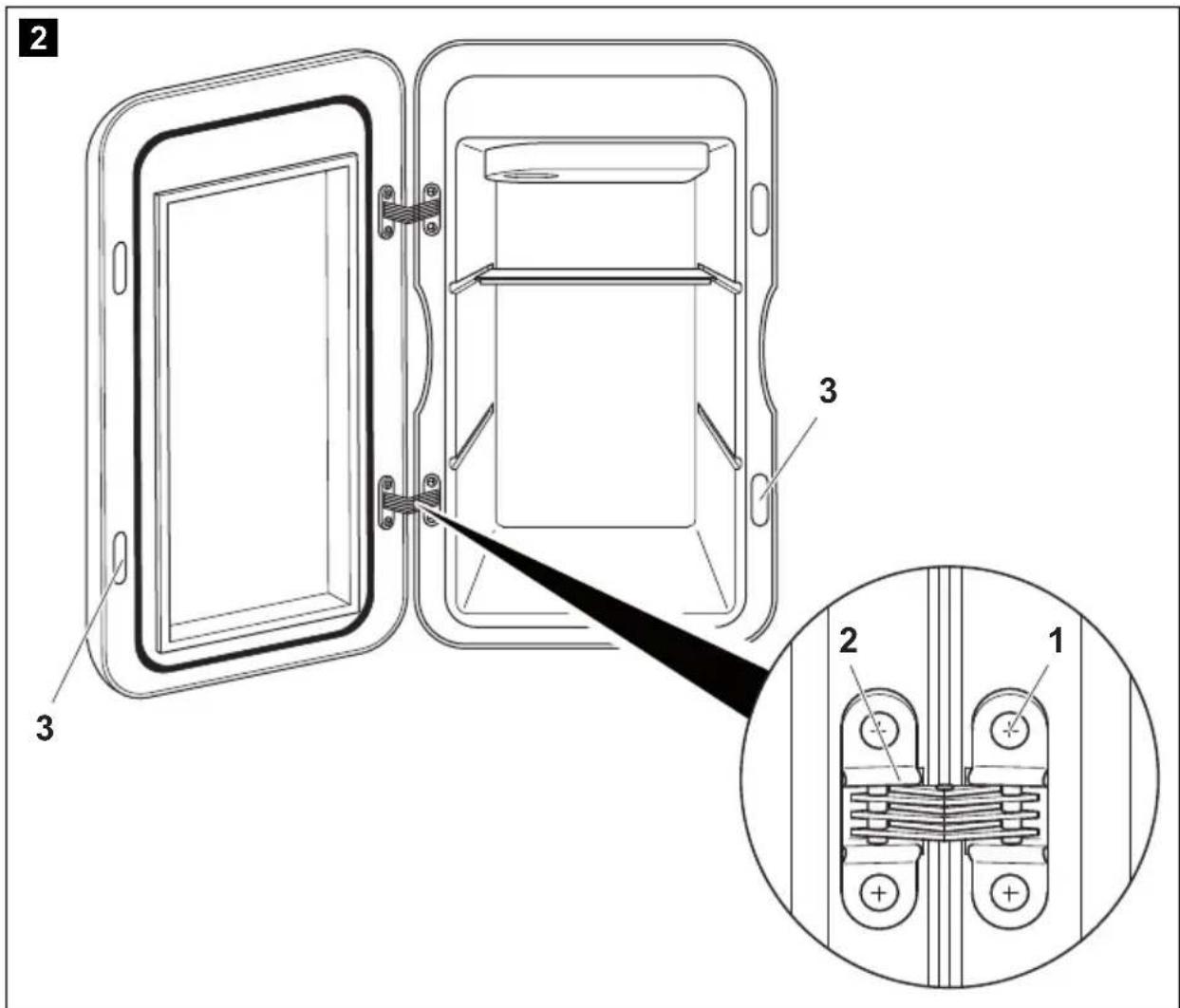

6.3 Changing the door hinge (fig. 2, page 3)

You can also change the hinge of the door, so that it opens to the left rather than the right.

Proceed as follows to change the hinges:

Loosen the four fixing screws (1) on the two hinges (2) with a screwdriver.
Take off the door and the two hinges.
Loosen the two blanking plugs (3) on the door as well as on the refrigerator at the opposite side.

Press the blanking plugs into the door and the refrigerator where you have unscrewed the hinges.
Insert the hinges at the left side of the door.
Fasten the hinges each with two screws at the door.
Fasten the door and the hinges each with two screws at the right side of the refrigerator.

7 Cleaning and maintenance

WARNING!

Always disconnect the device from the mains before you clean and service it.

NOTICE! Risk of damage

• Never clean the cooler under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

Occasionally clean the device interior and exterior with a damp cloth.
Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.

8 Troubleshooting

Problem Possible cause Suggested remedy

Your device is not working (plug is inserted).	No voltage present in the AC voltage socket.	Try using another plug socket.
	The inner fan or the cooling element is defective.	This can only be repaired by an authorised repair centre.
	The integrated mains adapter is defective.	This can only be repaired by an authorised customer services unit.

9 Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

10 Technical data

	F16 AC
Gross capacity: 15 l
Connection voltage:	220-240 V~, 50/60 Hz
Power consumption: max. 37 W
Cooling capacity: max. 20 °C under ambient temperature
Category: Pantry
Energy efficiency class: A++
Energy consumption: 48 kWh/annum
Usable capacity: 14 l
Climate class:	ST
Ambient temperature:	+16 °C- +38 °C
Noise emission:	33 dB
Dimensions (W x D x H):	266 x 270 x 493 mm
Weight:	5 kg
Testing/certification:	CE TÜV G
