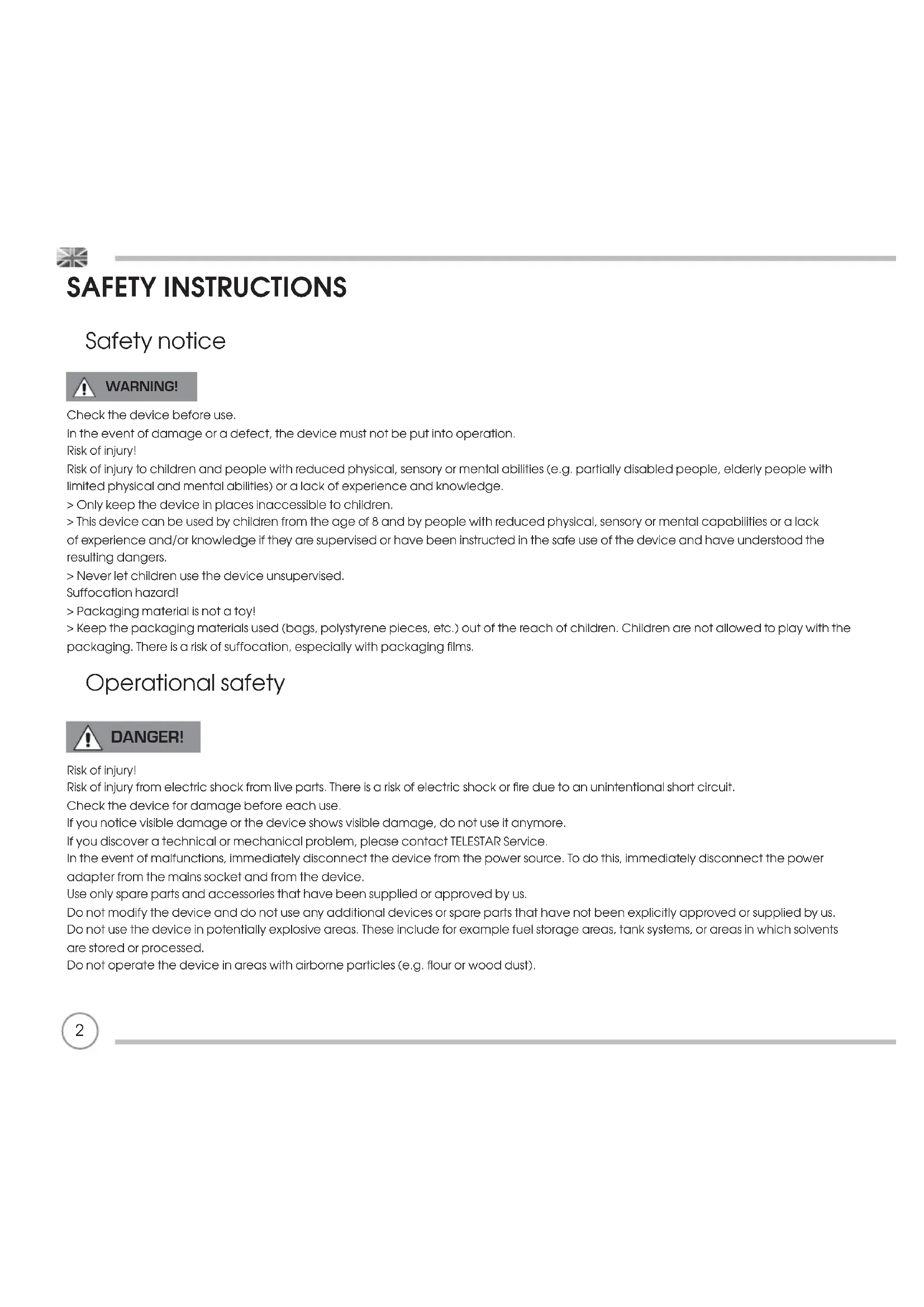

USER MANUAL SuperCD REVO
Check the device before use.
In the event of damage or a defect, the device must not be put into operation.
Risk of injury!
Risk of injury to children and people with reduced physical, sensory or mental abilities (e.g. partially disabled people, elderly people with limited physical and mental abilities) or a lack of experience and knowledge.
Only keep the device in places inaccessible to children.
This device can be used by children from the age of 8 and by people with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they are supervised or have been instructed in the safe use of the device and have understood the resulting dangers.
Never let children use the device unsupervised.
Suffocation hazard!
Packaging material is not a toy!
Keep the packaging materials used (bags, polystyrene pieces, etc.) out of the reach of children. Children are not allowed to play with the packaging. There is a risk of suffocation, especially with packaging films.
Operational safety
DANGER!
Risk of injury!
Risk of injury from electric shock from live parts. There is a risk of electric shock or fire due to an unintentional short circuit.
Check the device for damage before each use.
If you notice visible damage or the device shows visible damage, do not use it anymore.
If you discover a technical or mechanical problem, please contact TELESTAR Service.
In the event of malfunctions, immediately disconnect the device from the power source. To do this, immediately disconnect the power adapter from the mains socket and from the device.
Use only spare parts and accessories that have been supplied or approved by us.
Do not modify the device and do not use any additional devices or spare parts that have not been explicitly approved or supplied by us.
Do not use the device in potentially explosive areas. These include for example fuel storage areas, tank systems, or areas in which solvents are stored or processed.
Do not operate the device in areas with airborne particles (e.g. flour or wood dust).
SAFETY INSTRUCTIONS
Operating malfunctions can take the form of heating of the device or the development of smoke from the device or the device's power adapter.
Operational safety
Loud or unusual noises can also be a sign of a malfunction.
In this case, pull the power adapter out of the socket immediately.
Only touch the power adapter by the housing.
Never pull the power adapter by the cable.
If you are going to be absent for a long period of time or during a thunderstorm, pull the device out of the socket.
Make sure that contact with moisture, water or splash water is avoided and that no objects filled with liquids -
such as vases - are placed on or near the appliance or power adapter.
If foreign bodies or liquids get into the device or the power adapter, pull the power adapter out of the socket immediately. Have the device checked by qualified personnel before you use it again.
Otherwise, there is a risk of electric shock.
Make sure that the device or the power adapter is not exposed to dripping or splashing water and that there are no open sources of fire (e.g. burning candles) near the device or the power adapter.
Connect device
Please ensure that the power source (socket) is easily accessible.
Do not kink or squeeze any cable connections.
Before using the device, check that the voltage information on the device corresponds to the local mains voltage. The information on the power adapter must correspond to the > local power supply.
Place the device on a firm, level surface.
The device consumes power in standby mode. To completely disconnect the device from the mains, the power adapter must be disconnected.
SAFETY INSTRUCTIONS
Protect the device from defects
NOTE!
Unfavourable environmental conditions such as moisture, excessive heat or lack of ventilation can damage the device.
Only use the device in dry rooms.
Avoid the direct vicinity of: Heat sources such as radiators, open flames such as candles, devices with strong magnetic fields such as speakers.
Do not expose the device to extreme conditions, e.g. direct sunlight, high humidity, moisture, extremely high or low temperatures, open fire.
Ensure that there is sufficient distance from other objects so that the device is not covered so that adequate ventilation is always guaranteed.
Avoid direct sunlight and locations with an unusually large amount of dust.
Do not place any heavy objects on the device or the power adapter.
Do not use the device in potentially explosive areas.
These include for example fuel storage areas, tank systems, or areas in which solvents are stored or processed.
Do not operate the device in areas with air contaminated with particles (e.g. flour or wood dust).
Risk of injury
WARNING!
Excessive sound pressure when using earphones or headphones can cause damage or loss of hearing.
Listening with earphones or headphones at a high volume over a long period of time can cause damage to the user.
Please check the volume before inserting or putting on earphones or headphones in your ears.
Set the volume to a low value and only increase the volume enough that you still find it comfortable.
Notes on the radio interface
The device generates an electromagnetic field.
Please pay attention to notices in your area that prohibit or restrict the operation of electronic devices.
This can be the case, for example, in hospitals, at petrol stations and tank farms or at airports.
If there are corresponding warnings, immediately disconnect the device from the power adapter.
The components contained in the device generate
electromagnetic energy and magnetic fields. These can affect medical devices such as pacemakers or defibrillators.
Therefore, please keep a safe and sufficient distance between medical devices and the radio.
If you have reason to believe that the radio is causing interference with a medical device, immediately turn off or unplug the radio.
SAFETY INSTRUCTIONS
Handling batteries
In principle, only use the type of battery included in the scope of delivery.
DANGER!
Risk of injury!
Improper handling of batteries poses a risk of injury!
Never open, short-circuit or throw batteries into open flames.
Never charge batteries. Attempting to charge batteries can create a risk of explosion.
The polarity must be observed! Make sure that the plus (+) and minus (-) poles are inserted correctly to avoid a short circuit.
Use only batteries specified for this product.
Remove batteries from the device if it is not going to be used for a long period of time.
Immediately remove exhausted or leaked batteries from the device.
If batteries have leaked, there is a risk of burns if they come into contact with the skin.
Keep both new and used batteries out of the reach of children.
There is a risk of internal injuries if batteries are swallowed. The battery acid in the batteries can cause injuries if it comes into contact with the skin.
In the event of accidental ingestion or signs of skin burns, rinse the affected areas with plenty of clean water and seek medical help immediately.
Batteries are not toys! Always keep new and used batteries away
from children.
Remove leaking batteries from the device immediately and clean the contacts before inserting new batteries.
WARNING!
There is a risk of explosion if batteries are used improperly!
Only use new batteries of the same type.
Please never use new and old batteries together in one device.
Pay attention to the correct polarisation when inserting the batteries.
Never charge batteries.
Batteries should only be stored in cool and dry places.
Never throw batteries into fire.
If the device is not used for a longer period of time, please remove the batteries from the device.
Never expose batteries to extreme heat or direct sunlight.
SAFETY INSTRUCTIONS
Batteries must not be deformed or opened.
Stop using the remote control if the battery door no longer closes properly.
Cleaning the device
Before cleaning, unplug the device from the socket.
Use a dry, soft cloth to clean the device. Please do not use any liquids to clean the device.
Do not use any solvents or cleaning agents, as these will damage the surface and/or markings on the device.
Cleaning must not be carried out by children.
TECHNICAL SUPPORT
Should you encounter problems using this product, please refer to the troubleshooting section on page 38 of this owner's guide. Alternatively, call Revo technical support on :
+49 (0) 2676 / 9520101
Alternatively, e-mail support@revo.co.uk or visit the troubleshooting section of our website at: www.revo.co.uk/support
ENVIRONMENTAL INFO
PRODUCT DISPOSAL INSTRUCTIONS (WEEE DIRECTIVE)
The symbol shown here and on the product means that it is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life.
The Waste of Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill.
For more information please contact your local authority or the retailer where the product was purchased.
RoHS COMPLIANT & CE MARK
This product has been designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) and has been designed and type-tested to comply with EU requirements and carries a CE mark.
SAFETYWARNINGS
- Do not operate this radio near water
- Do not remove screws or casing parts
- Use only the power supply unit supplied
- Avoid small objects and liquids from entering the product
WARRANTY
Revo Technologies Ltd warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of one year from the date of purchase. This guarantee covers breakdowns due to manufacturing faults and does not apply in cases such as accidental damage, general wear and tear, user negligence, modification or repair not authorised by TELESTAR DIGITAL GmbH
To register your purchase please visit www.revo.co.uk/register
COPYRIGHTS AND ACKNOWLEDGEMENTS
Copyright 2021 TELESTAR DIGITAL GmbH. All rights reserved.
No part of this publication may be copied, distributed, transmitted or transcribed without the permission of Revo Technologies Limited.
REVO and SUPERCD and are trademarks or registered trademarks of TELESTAR DIGITAL GmbH
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. aptX® is a trademark of CSR plc.
The Spotify software is subject to third party licenses found here: www. Spotify.com/connect/third-party-licenses
DISCLAIMER
Revo Technologies Limited makes no representation or warranties with respect to the content of this publication, and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Revo Technologies Limited reserves the right to make changes to this publication from time to time, without notification to any person or organisation.
CONTENTS
02 Safety Instructions
07 Technical Support
07 Environmental Info
07 Warranty
07 Copyrights and Acknowledgements
07 Disclaimer
08 Welcome/Unpacking
09 Anatomy
10 Remote Control
11 Power Supply
11 Set-Up
12 Control and Menu Structure
13-14 DAB Mode
15-16 DAB Mode Menu Options
17 FM Mode
18 FM Mode/AUX-IN Mode
19-20 Bluetooth
23-26 Internet Radio Mode
27-28 Internet Radio Portal
29-30 Setting Up A Music Server
31-33 Music Player Mode
34-35 Airable Services
36 Spotify Connect
37 App Control
38-39 Alarm Clock
40-44 System Settings
45-46 Troubleshooting
47 Error Messages
WELCOME
Thank you for purchasing our SUPERCD radio. we are sure that it will provide you with many years of enjoyment and reliable service.
SUPERCD is the ultimate expression of our design and engineering philosophy, and the culmination of everything we have learnt in 10 years of award-winning product design and development.
Functionalism meets craft and technology, a next-generation audio device that beats at the heart of your musical ecosystem, providing whatever soundtrack you need. Radio from around in the globe, access to your personal music collection or an almost limitless supply of songs from the world's leading music streaming service.
This guide has been designed to quickly get you up-and-running with your radio, offer guidance on the more complex features of this product and provide information on safety, warranty details and troubleshooting.
UNPACKING YOUR RADIO
The SUPERCD box should include the following items:
SUPERCD radio
Remote control
Power supply with multi-country adaptors
- Screen cleaning cloth
Warranty card
- Owner's guide
Should any item be missing or damaged, please contact your point of purchase or call Revo directly on +49 (0) 2676 / 9520101
NOTE: All packaging should be retained for possible future use, it is the safest way to transport your radio should it be necessary.
ANATOMY OF SUPERCD

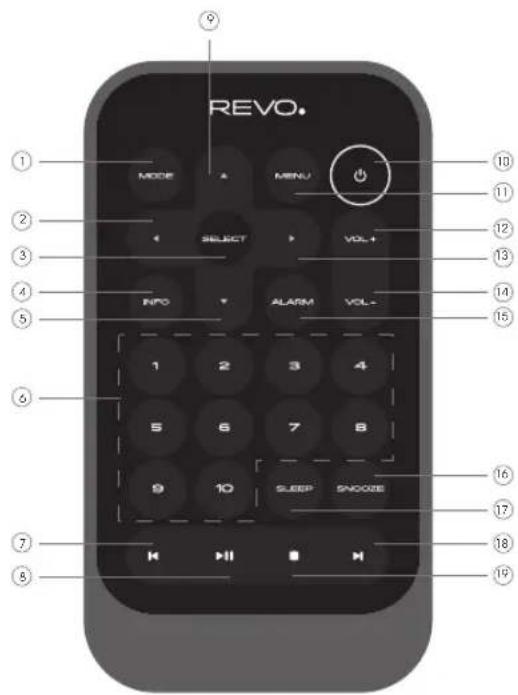

REMOTE CONTROL
01-Mode
02-Skip Back (Fast Rewind)
03-Select
04-Info
05-Scroll Down
06 - Presets 1-10 / CD Track Selection
07 - Skip Back
08-Play/Pause
09-ScrollUp
10-Power
11-Menu
12 -Volume Increase
13 - Right (Forward)
14 - Volume Decrease
15-Alarm
16-Snooze
17-Sleep
18-Skip Forward (Fast Forward)
19-Stop

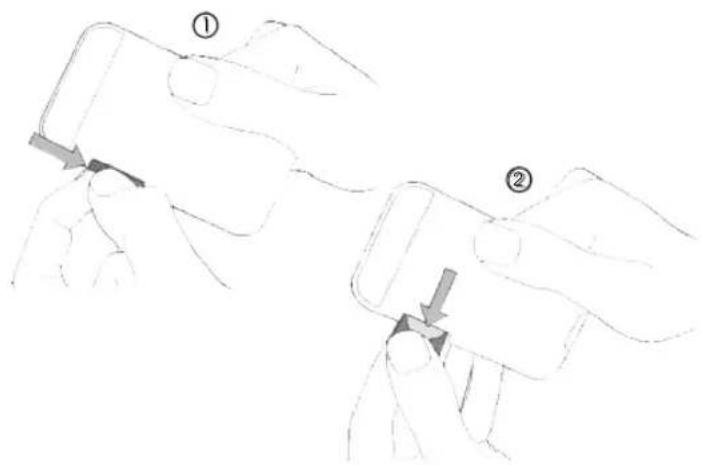

BATTERY REPLACEMENT
The SUPERCD remote control is powered by a single 3V lithium battery. Depending on usage, the battery should happily run for between 1 and 2 years.
Replace the battery when button presses seem sluggish, or when the operating range appears to have reduced significantly.
Replace the old battery with a new CR2025 lithium cell.

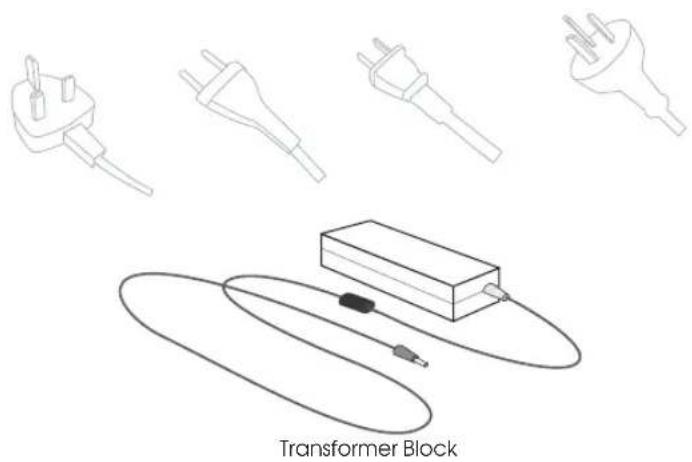

POWER SUPPLY (PSU)
Your SUPERCD is supplied with a multi-region power supply, meaning that it can be operated in a number of countries around the world.
Select the correct plug for your country then connect it to the transformer block.

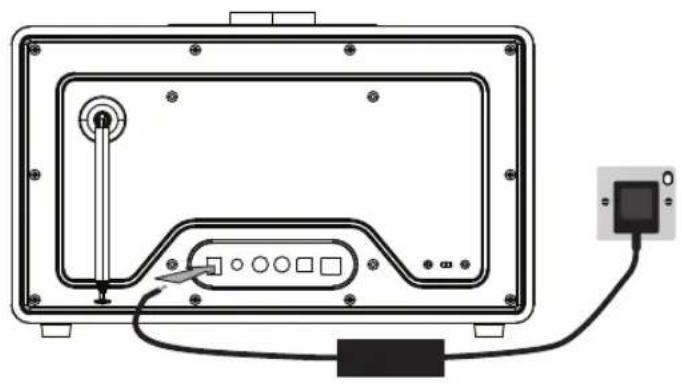

SET-UP
Using the PSU supplied, connect one end to the DC power socket found on the rear of your radio, then plug the opposite end into the mains socket on the wall.

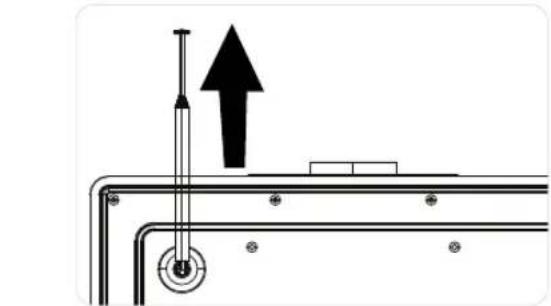

② Fully extend the antenna for DAB or FM operation

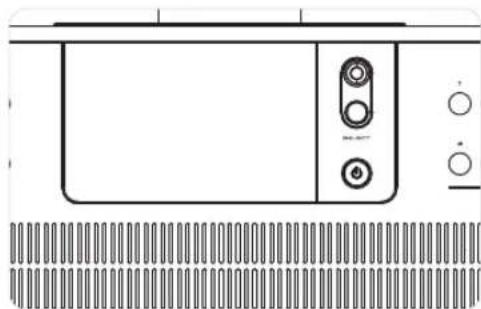

③ Press the POWER button once to begin start-up process.
CONTROLLING SUPERCD
In order for you to get the most from your radio, it is important for you to understand how its joystick and menu system operates.

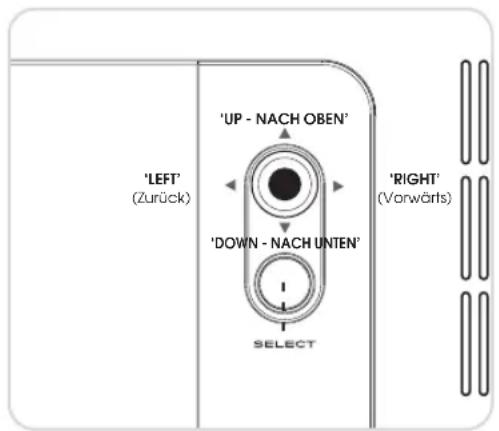

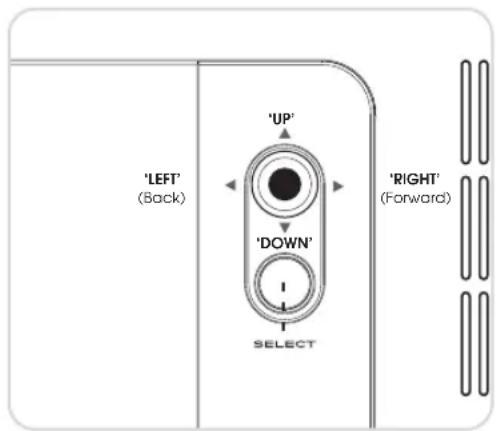

JOYSTICK CONTROL
Your radio uses a joystick based control system for ease of use.
The joystick controller has four functions and is used in conjunction with a separate SELECT button.
UP Scrols Up
DOWN Scrol1s Down
LEFT Scrols Left and moves back through menus
RIGHT Scrols Right and moves forward through menus
SELECT Selects current option
MENUBUCTION
Pressing the button will take you to the Mode Menu for the particular mode of operation you are in. For example, pressing when in DAB Mode will take you to the DAB MODE MENU.
Pressing the button for a second time will return you to the 'playing screen' that you just left.
MODE BUTTON
Pressing the MODE button will sequentially cycle through each of SUPERCD's modes of operation. It is also possible to move between modes of operation via the MAIN MENU (see below).
MENUSTRUCTURE EXPLAINED
MAIN MENU
This is SUPERCD's principle (top level) menu, and allows you to enter different operating modes, change settings and view Information such as your radio's ID number software version.
The MAIN MENU provides access to the following modes and sub-menus:
- Internet radio - Amazon Music - Bluetooth
TIDAL •Spotify Auxiliary Input - Napster - Music player - Sleep
-
Deezer DAB
Qobuz FM -
Alarms
- System settings
MODE MENUS
The Mode Menus are so called because they show the functions available within the currently selected mode.
Pressing the button at any time will take you to the Mode Menu for the mode of operation your radio is currently in.
Each of the Mode Menus also includes a listing for MAIN MENU, allowing you to return to the top level MAIN MENU.
DAB RADIO MODE
Please ensure that the radio's antenna is extended before operation in DAB Mode.
To enter DAB MODE, press the button until the DAB MODE intro screen is displayed, alternatively press then select MAIN MENU, then DAB from menu option list.
When in DAB MODE for the first time, SUPERCD will automatically perform a full scan to see what stations are being broadcast in your area, before storing them alphabetically in the radio's memory.
It may be necessary to perform a manual scan from time to time, in order to update your radio's station list. This may be required for any one of the following reasons:
- Station availability can change from time to time as new stations appear, or existing stations cease broadcasting.
- If reception was poor during the initial automatic scan, for example the radio's antenna was not completely extended, it may be that the station list is incomplete or even empty.
- If you have poor reception on some of the stations (resulting in broken or poor quality audio), you may wish to list only stations that have a strong signal strength.
To start a manual scan, press the button then select SCAN from the menu list.
When the scan is complete, your radio will list all available stations.
To remove stations that are listed but unavailable, press then choose PRUNE INVALID. When asked whether you wish to "remove all invalid stations", select YES.
DAB RADIO MODE
SELECTING A STATION
To access your radio's station list, press UP, DOWN or LEFT on the joystick controller at any time, alternatively press then select STATION LIST.
Scroll through the available stations using UP and DOWN on the joystick controller, then either press the SELECT button to select your station choice, or tap the joystick RIGHT.
FAVOURITE STATION PRESETS
SUPERCD allows you to store your favourite stations as presets, either via Its 8 front panel mounted 'hot-keys', or the numbered preset buttons located on the remote control.
To store the station you are currently listening to as a preset, simply press and hold a preset button until "Preset Stored" is displayed on your radio's screen. The preset number that has been assigned to the station is displayed at the bottom of the screen next to a star icon.
If you want to change a particular preset in the future, repeat the process and the previously stored preset will be automatically overwritten.
DAB MODE MENU OPTIONS
STATION INFO
In DAB MODE, SUPERCD is capable of displaying various pieces of information on its screen. By pressing the button, you can sequentially cycle through the following types of information.
STANDARD DAB SCREEN Shows scrolling text info from broadcaster
PROGRAMME TYPE For example News, Rock Music, Classical etc.
MULTIPLEX AND FREQUENCY Multiplex owner and station frequency
SIGNAL STRENGTH Station's current signal strength
BIT RATE AND CODEC Audio format, sample rate, mono or stereo
DATE
Today's
date
DAB MODE MENU OPTIONS
DYNAMIC RANGE COMPRESSION (DRC)
If you are listening to music with a high dynamic range in a noisy environment (for example, classical music while cooking), you may wish to compress the audio's dynamic range. This has the effect of making quiet sounds louder, and loud sounds quieter.
To change the DRC setting, press then choose the DRC option, before selecting OFF, LOW or HIGH.
STATION ORDER
It is possible to choose the order of the DAB station list to be either ALPHANUMERIC, ENSEMBLE or VALID.
As the name implies, ALPHANUMERIC lists stations in alphanumeric order.
ENSEMBLE lists groups of stations that are broadcast together on the same ensemble, for example BBC or Central Scotland Local.
VALID lists valid stations first, alphanumeric, then off-air stations.
To change the station order, press then select STATION ORDER, before choosing either ALPHANUMERIC, ENSEMBLE or VALID.
STATION ORDER DESCRIPTION
ALPHANUMERIC Display all stations in alphanumeric order.
ENSEMBLE List active stations (ones that are currently broadcasting) before inactive ones.
VALID Remove Inactive stations from the station list.
FM RADIO MODE
FM OPERATION
Please ensure that the radio's antenna is extended before operation in FM MODE.
To enter FM MODE, press the button until the FM MODE intro screen is displayed, alternatively press then select MAIN MENU, then FM from menu option list.
If this is the first time that SUPERCD has been used in FM MODE, scanning will start at the beginning of the frequency range - otherwise SUPERCD will default to the station that was being listened to last.
Pressing the SELECT button will start the radio scanning for the next available station. SUPERCD will automatically stop scanning when a station is found.
To fine tune, use UP or DOWN on the joystick controller to incrementally change the frequency.
When on an FM station that has a strong signal and is broadcasting RDS information, SUPERCD will display the station name and other pieces of text information on-screen.
FAVOURITE STATION PRESETS
SUPERCD allows you to store your favourite stations as presets, either via its 8 front panel mounted 'hot-keys', or the numbered preset buttons located on the remote control.
To store the station you are currently listening to as a preset, simply press and hold a preset button until "Preset Stored" is displayed on your radio's screen. The preset number that has been assigned to the station will be displayed at the bottom of the screen.
If you want to change a particular preset in the future, repeat the process and the previously stored preset will be automatically overwritten.
FM RADIO MODE
FM SETTINGS
Press the button to access the FM MODE MENU.
From here you can set some FM preferences such as SCAN SETTING and AUDIO SETTING.
SCAN SETTING allows you to decide whether the radio should stop scanning only when it finds a station with a strong signal.
AUDIO SETTING gives you the option of listening to a station in mono, should the signal strength not be sufficiently strong to allow stereo reception.
AUX IN MODE
AUX IN MODE allows you to play audio from an external source (such as an MP3 player) through your radio.
To do so, connect your external audio source to the 3.5mm AUX IN connector on the rear of SUPERCD.
Turn the volume down low on both SUPERCD and, if adjustable, the external device.
Now press until the AUX IN screen is displayed, alternatively
press then select MAIN MENU, then choose AUX IN.
Adjust the volume of SUPERCD and, if necessary, the external audio device as required.
BLUETOOTH MODE
Wirelessly stream music from your Bluetooth smartphone, tablet, laptop or other Bluetooth enabled device directly to SUPERCD, without the need for physical docking or connection.
PAIRING WITH BLUETOOTH DEVICES
'Pairing' occurs when two Bluetooth devices talk to each other and establish a connection. This connection is stored in the memory of both devices, meaning that once you 'pair' a particular device with SUPERCD, you shouldn't have to go through the pairing process again.
HOW TO PAIR A BLUETOOTH DEVICE WITH SUPERCD
To enter Bluetooth mode, press the button until the Bluetooth mode intro screen is displayed. Alternatively, press the then select MAIN MENU then Bluetooth from the option list. SUPERCD will now enter pairing mode, signified by the flashing Bluetooth icon at the bottom of the screen.
On your Bluetooth device, ensure that Bluetooth is enabled then initiate a 'Search' for a new device. When the search process has been completed, your device will list all the available Bluetooth devices in your close proximity.
SELECT SUPERCD FROM THE LIST.
Your Bluetooth device will confirm when pairing has been completed, and SUPERCD will now display a static Bluetooth logo on screen.
PASSKEY
During the pairing process some Bluetooth devices may prompt you to enter a Passkey. Should your device require a Passkey, enter 0000.
Should you experience problems when pairing your device with SUPERCD, please see the Bluetooth Troubleshooting section on page 46.
BLUETOOTH MODE
STREAMING MUSIC
Selecting and controlling music playback can be done in one of two ways: either directly from the source device (smartphone, tablet or laptop etc.), or by using the buttons mounted on your radio's front panel.
Please note, the playback volume level can be independently controlled from either SUPERCD or the source device.
MANAGEMENT OF MULTIPLE BLUETOOTH DEVICES
If you have paired only one Bluetooth device, on entering Bluetooth mode, SUPERCD will automatically seek to connect with this device.
Should you wish to pair another device, press then select 'BT Disconnect'.
SUPERCD will now disconnect its current Bluetooth device and enter pairing mode again. This will allow you to repeat the 'Pairing with Bluetooth Devices' procedure.
SUPERCD will remember up to 8 individual Bluetooth devices. When you reach the point of having a 9th device you wish to pair, SUPERCD will pair with the 9th device and automatically erase the oldest-paired device from its memory.
You can continue to pair new devices and your radio will always remember the previous 8 devices it has paired with.
aptX®
SUPERCD's Bluetooth solution is equipped with CSR's patented aptX® technology, meaning that when it is used in conjunction with a device that also supports aptX®, the streamed audio will be of CD quality rather than the MP3 quality of a standard Bluetooth stream.
INTERNET SETUP
USING THE INTERNET RADIO SETUP WIZARD
The first time you use SUPERCD in INTERNET RADIO MODE, you will be asked whether you would like to run the SETUP WIZARD. The 'WIZARD' will run through a series of questions, and is the simplest way to get internet radio up and running on your device.
If you have already run the SETUP WIZARD.
You can run the SETUP WIZARD again at any time, it can be found in the SYSTEM SETTINGS MENU.
To set up your radio for online operation using the INTERNET WIZARD, follow these steps:
Press the SELECT button, and start the SETUP WIZARD procedure.
Choose and select your preferred hour format (12 or 24 hour).
Choose and select UPDATE FROM NETWORK.
③ Scroll and select your local timezone from the menu.
Choose and select your preferred daylight savings status.
⑤ Scroll and select your Wien region.
INTERNET SETUP
Scroll and select your NETWORK. In some cases your radio may find more than one. Simply choose the one you want to use.
If your wireless network is not password protected, SUPERCD will automatically connect, and the following screen will be displayed:
If you do use password protection, enter your network password using the joystick controller to scroll through the alphanumeric characters, pressing SELECT to enter each number or letter. When you have correctly entered your entire password, select OK.
SelectBKSPback space) if you have entered an Incorrect character.
SUPERCD will save the password into its memory. There will be no need to re-enter the password again.
INTERNET RADIO MODE
GETTING STARTED
To enter INTERNET RADIO MODE, press the button until the INTERNET RADIO MODE Intro screen is displayed, alternatively press then select MAIN MENU, then INTERNET RADIO from the menu option list.
On entering the INTERNET RADIO MAIN MENU you will be offered the choice of accessing the LAST LISTENED station or selecting a new one.
To choose a new station select the STATION LIST menu entry, you will then be offered the following options:
My Favourites: Used to navigate to your favourite stations. These can be set up by visiting the Frontier Silicon Radio Portal (using your PC or Mac). See page 27 for further information.
Local: A comprehensive list of all the stations being broadcast from within your own geographical area (or country).
BBC: Used as a shortcut to all BBC stations broadcast worldwide.
Stations: Find stations using a number of search criteria such as: location, genre, most popular etc.
Podcasts: Find Podcasts or 'Listen-Again' broadcasts by location, genre or search by name.
My Added Stations: Shows stations that you have personally added to your radio's station list via the Frontier Silicon Radio Portal. See page 23 for full details.
Help: Find your radio's ACCESS CODE here. Required to access the Frontier Silicon Radio Portal. See page 27.
CHOOSING A STATION
To choose a station, select STATION LIST from the INTERNET RADIO MENU, then select STATIONS using the joystick controller.
You now have the option to choose or find a station using the following search criteria:
LOCATION (country of origin) GENRE SEARCH STATIONS (by name) POPULAR STATIONS NEW STATIONS
INTERNET RADIO MODE
CHOOSING A STATION (Continued)
Using the joystick controller, scroll through the options and press SELECT to choose your search criteria.
For example, choosing LOCATION will give you an alphabetical list of continents/regions, and then a list of countries. Use the joystick controller to scroll through the list and press SELECT to choose your chosen continent, then country. You will then be given the option of choosing ALL STATIONS or a GENRE, to further refine your search.
After selecting your search criteria, you will be presented with a list of stations. Simply select a station from the list to begin listening.
SEARCH
You can search for an internet radio station by name (if you know it), or by using a keyword from within its title.
To SEARCH for a station, select SEARCH STATIONS from the STATIONS MENU, then enter a keyword using the keyboard input screen (similar to the keyboard screen you used for password input).
If your station is found, simply select to listen.
If you searched for a keyword, SUPERCD will list all the stations found that contain that particular keyword. Scroll through the list and select your station.
CHOOSING A PODCAST
Podcasts (also referred to as 'Listen Again') are searched and selected in the same way as a regular station.
Select PODCAST from STATION LIST in the INTERNET RADIO MENU, then search by location, genre or a combination of both.
The main difference when searching for a Podcast, is that when you have selected a station, you will then be presented with a list of Shows (or Podcasts) available from that station.
Simply select your choice from the list.
INTERNET RADIO MODE
MY FAVOURITES
It is possible to compile a list (or lists) of your favourite stations, allowing quick and easy access to a number of stations from different countries and genres.
To do this you must first register your radio with the Frontier Silicon Radio Portal. See the INTERNET RADIO PORTAL section on page 27.
To store a station as a favourite, press and hold the SELECT button until FAVOURITE ADDED appears on the screen. The chosen station will now appear in the default favourites stations list.
To access the MY FAVOURITES list, select STATION LIST, then MY FAVOURITES, followed by STATIONS. You can now scroll through and select any station in the list.
MY ADDED STATIONS
If you have added any of your own stations to the internet radio station list (via the Frontier Silicon Radio Portal, see page 27), they will be listed here. The MY ADDED STATIONS option can be found under the STATION LIST MENU, in INTERNET RADIO MODE.
BBC
The BBC option is a shortcut to the entire BBC station list.
Simply select this option from the STATION LIST MENU, then scroll through and select a station in the normal way.
LAST LISTENED
When you enter INTERNET RADIO MODE, the last-listened station is automatically selected. To select another station that you've listened to recently, select LAST LISTENED. A full list will be displayed (the most recent being at the top).
INTERNET RADIO MODE
HELP
The HELP option can be found in the STATIONS LIST MENU. Under HELP, you will find the ACCESS CODE that you require to register your radio on the Frontier Silicon Radio Portal (see page 27 for full instructions).
LOCAL
The LOCAL station list can be found under the STATION LIST MENU and will differ depending on which country you are currently located in. For example, if you are based in the UK, this selection will display stations originating from the UNTIED KINGDOM. Likewise, if you are using your radio in Germany, this selection will display only stations that are being broadcast from Germany.
Select this option to navigate either all of the available local stations, or alternatively you can search the list by genre.
INTERNET RADIO PORTAL
ACCESSING ADDITIONAL FEATURES
Some of SUPERCD's more advanced internet radio features can only be accessed by visiting the Frontier Silicon Radio Portal.
In order to access these features you must first register your radio.
REGISTERING YOUR RADIO
In order to register your radio, you will need your radio's unique access code.
To find the access code, firstly enter INTERNET RADIO MODE, then press
Select STATION LIST, then HELP. Now select GET ACCESS CODE.
Write down the access code.
Now, using your PC or Mac, visit the portal website at -
https://nuvola.link/sr
Adding Station/Podcast to "My Favourites"
You have two ways to add your favorite Internet Radio stations and podcasts to "My Favourites" list. It will make you easier to find the stations and podcasts that you like.
Adding stations via the website

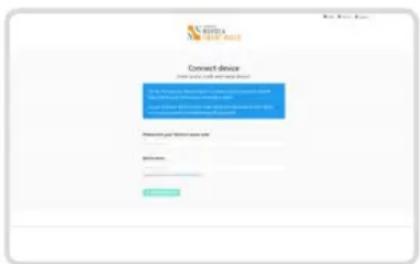

- To link your radio to your Nuvola account on the portal: https://nuvola.link/sr
- Select "Manage Favourites" box and then login in with your Nuvola account. If you don't have an account, select "Sign up" to creat one.
- Enter the access code of your radio and/or your preferred device name to link your radio.
- Select "Connect device" box after access code is verified.
- The linked radio shows under "Devices" tab. It can be set to share favourites with other devices by select "Yes" uneder "Share Favourites" option, or remove it by select "Unlink Device".
INTERNET RADIO PORTAL

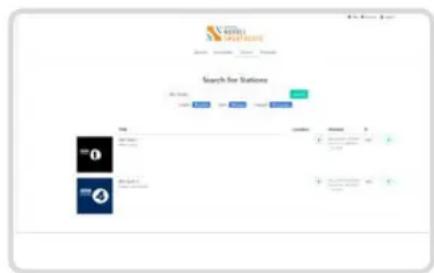

- To add a favourite internet station, search station under "Stations" tab and then select "Heart" icon to add station. To add a favourite podcast, search station under "Podcasts" tab and then select "Heart" icon to add podcast.

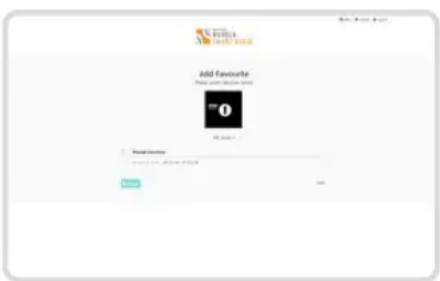

- Tick "Shared Favourites" to select device, and then select "Save" box.
- The added stations are accessible by pressing MENU button Station list - My Favourites on the radio. The added podcasts are accessible by pressing MENU button Station list -Podcasts -My Favourites on the radio. Note: doing a factory reset will not erase "My Favourites".
Adding a Station while listening to it
- For registered radio, while you are listening to an Internet Radio station or a podcast, press and hold SELECT button until display shows "Favourite added".
- The added stations are accessible by pressing MENU button Station list - My Favourites on the radio. The added podcasts are accessible by pressing MENU button Station list -Podcasts -My Favourites on the radio
Adding Station to "My Added Stations" Even though the Internet Radio portal contains thousands of stations, you may want to listen to stations not listed. You can add your own stations via the portal (https://nuvola.link/sr).
- Visit portal https://nuvola.link/sr and login with your Nuvola account. Please refer to steps 1-5 of section Adding Station/Podcast to Favourites".

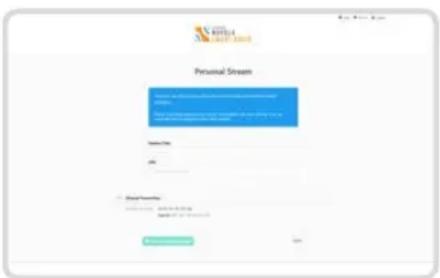

- To add your own station, select "Personal Streams" sub-tab under "Favourites" tab, and then select "Personal Streams" box.
- Enter station name and URL of the station, tick "Shared Favou rites" to select device, and then select "Save Personal Stream" box to add station.
- The added stations are accessible by pressing MENU button Station list - My Added Stations on the radio. Note: doing a factory reset will not erase "My Added Stations".
SETTING UP A MUSIC SERVER
In order for SUPERCD to be able to play music files from a connected computer, the computer must first be set up for media sharing. UPnP media sharing allows devices like SUPERCD to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre.
If you are running a PC with Windows Media Player 11 or later (WMP), or an Apple Mac with OS X 10 or later and a UPnP application installed, you can connect SUPERCD and stream audio.

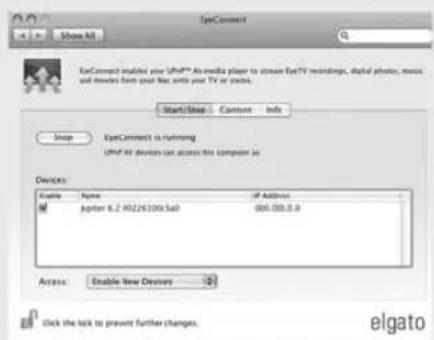

NOTE: iTunes does not currently operate as a UPnP media server, but there are a number of third party software add-ons available that will allow you to access your iTunes library.
SHARING MEDIA WITH WINDOWS MEDIA PLAYER
The most common UPnP server is Windows Media Player (version 1 or later) although other UPnP platforms and servers may be used.
To set up WMP for media sharing, performs the following steps:
Ensure that your PC and radio are connected to the same network. SUPERCD will be recognised as 'SUPERCD' by your PC.

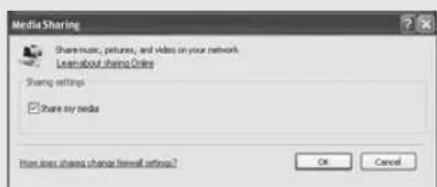

① In WMP, add to the media library the audio files and folders you want to share with SUPERCD (LIBRARY > ADD TO LIBRARY...).

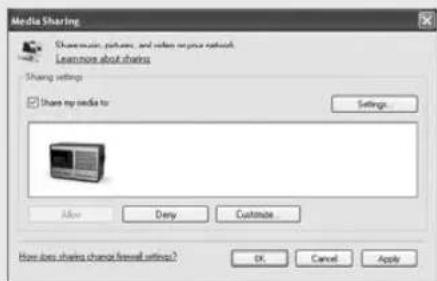

Make sure that the radio has access to the shared media by selecting it and clicking ALLOW. You can also set a name for the shared media settings.
The PC is now ready to stream music to your radio. The WMP UPnP service runs in the background; there is no need to start WMP explicitly.
1 In WMP, add to the media library the audio files and folders you want to share with SUPERCD (LIBRARY > ADD TO LIBRARY . . .).
2 Make sure that the radio has access to the shared media by selecting it and clicking ALLOW. You can also set a name for the shared media settings.. The PC is now ready to stream music to your radio. The WMP UPnP service runs in the background; there is no need to start WMP explicitly.
SETTING UP A MUSIC SERVER
SHARING MEDIA WITH A MAC
In order to connect SUPERCD to your Apple Mac, a third party UPnP server application is required. There are a number of applications available to download from the Internet.
One such application is EyeConnect. This is an easy to install media sharing application that enables SUPERCD to stream audio. EyeConnect can be downloaded from:
http://www.elgato.com
Once Installed, EyeConnect can be found on the System Preference panel. When connecting SUPERCD, make sure EyeConnect is shown as running on its setup screen.
SUPERCD will appear as 'SUPERCD' in the EyeConnect list of devices. The ENABLE box must be checked and the ACCESS selection set to ENABLE NEW DEVICES.
Your Mac is now ready to stream music to your radio. EyeConnect will normally run automatically after boot up.
MUSIC PLAYER MODE
PLAYING AUDIO TRACKS IN THE MUSIC PLAYER
MUSIC PLAYER MODE allows you to play audio files such as MP3s, AACs, WMAs or FLACs directly from a computer or music server on your local network.
To enter MUSIC PLAYER MODE, press the Button until the MUSIC PLAYER MODE intro screen is displayed, alternatively press then select MAINMENU, then MUSIC PLAYER from the menu option list.
Once in music player mode, press then select either SHARED MEDIA or USB Playback. You can navigate your way through the list using the joystick controller, using UP and DOWN to scroll through the list, and either Push (SELECT) or RIGHT to advance through folders. When you reach your desired track, a short press of the select button will start the track playing, a long press will add the track to the playlist (see PLAYLISTs on page 33 for more information). Audio tracks can also be controlled using the buttons mounted on your radio's top panel.
Pressing and holding the button will fast-rewind the track your are currently playing, while doing the same with the button will fast-forward.
CD PLAYER MODE
PLAYING A CD
Insert your CDs with the label facing towards you. Upon inserting the CD, SUPERCD will enter 'CD Mode'
Alternatively, press the MODE button until the CD Mode intro screen is displayed.
SUPERCD will spend a few seconds reading the contents of the CD. The CD will then automatically start playing.
Your CD's audio tracks can be controlled using the buttons mounted on your SUPERCD's front panel.
Pressing and holding the button will fast-rewind the track you are currently playing, while doing the same with the button will fast-forward.
To choose a specific track, you can use the 10 'hot-keys' on SUPERCD's front panel or your remote. In CD mode, the '10' button will act as a '0'. So, for example, to play track number 10 press '1' then '10'.
SHUFFLE AND REPEAT
PRESS (MEN) button to access the CD menu
From within the CD menu you can access the SHUFFLE and REPEAT features.
To eject the CD, simply press the button on SUPERCD's front panel.
MUSIC PLAYER MODE
SHARED MEDIA (From a UPnP Media Server)
In MUSIC PLAYER MODE select SHARED MEDIA. If you have set up shared media (as described on page 29), you should see an entry, for the server you set up, example "SB-Laptop: Audio". If you have more than one computer sharing media, the alternatives are listed.
Select the shared media you want to play.
From this point on, the menus are generated from the shared media server (typically Windows Media Player). The first menu shows a list of media types, for example music, video, pictures and playlists. SUPERCD can only play music and playlists.
There is also a search function, which finds tracks in a similar way to Internet radio search, as described on page 24.
For music there are numerous ways of selecting tracks, including:
Genre | Artist | Album |Composer | Rating
Once you have found a track you want to play, press the select button to select. A short press plays the track immediately, while a long press will add the track to the PLAYLIST.
MUSIC PLAYER MODE
PLAYLISTS
SUPERCD is capable of holding a queue of up to 500 tracks in its playlist. Playlist tracks can be mixed from multiple and UPnP servers devices. To manage the playlist, select MY PLAYLIST from the MUSIC PLAYER MENU.
To view the contents of the playlist, scroll through it using the joystick control. To play the playlist from a certain track, give the select button a short press. To delete a track from the playlist, give the select button a long press, then confirm YES to erase.
If you select a track/album/folder for instant playback, without using the playlist feature, the playlist will be preserved and will continue to be stored by your radio until you choose to delete it.
REPEAT/SHUFFLE
You can choose to repeat tracks or play them in random order by selecting REPEAT PLAY or SHUFFLE PLAY from the MUSIC PLAYER MENU.
NOW PLAYING INFORMATION
While a track is playing, SUPERCD will display the track and artist name (UPnP). There is also a progress bar with displays elapsed and total track time.
To view further track information, press
Each time you press another piece of information is displayed as follows:
UPnP: Track name/artist, progress bar/track times, album, codec/sampling rate, playback buffer and today's date.
AIRABLE SERVICES
TIDAL
TIDAL comes preinstalled on your radio. Tracks, playlists and other programmes available from TIDAL can be selected using your radio or UNDOK app, and enjoy music on your radio.
You'll need a TIDAL account. Learn more at tidal.com.
Control from UNDOK app
- Press MODE button to select TIDAL mode.
- Your radio prompts to use UNDOK app to login TIDAL.
- Start UNDOK app on your smartphone or tablet using the same WIFI network as your radio.
- Find "BROWSE" tab and login with a Tidal account.
- Once login successfully, use UNDOK app or operate joystick and SELECT button on the radio to access you preferred music.
Napster
Napster comes preinstalled on your radio. Tracks, playlists and other programmes available from Napster can be selected using your radio or UNDOK app, and enjoy music on your radio.
You'll need a Napster account. Learn more at www.napster.com.
Play Music on Your radio
- Press MODE button to select Napster mode.
- You're require to input Napster username and then password as follows:
Alternatively, use UNDOK app to login.
3. Once login successfully, operate Joystick and SELECT button on the radio or use UNDOK app to access you preferred music.
Deezer
Deezer comes preinstalled on your radio. Tracks, playlists and other programmes available from Deezer can be selected using your radio or UNDOK app, and enjoy music on your radio.
You'll need a Deezer account. Learn more at www.deezer.com. Play Music on Your radio
- Press MODE button to select Deezer mode.
- You're require to input Deezer username and then password as follows:
Alternatively, use UNDOK app to login.
AIRABLE SERVICES
- Once login successfully, operate joystick and SELECT
button on the radio or use UNDOK app to access you
preferred music.
Qobuz
Qobuz comes preinstalled on your radio. Tracks, playlists and other
programmes available from Qobuz can be selected using your radio or UNDOk app, and enjoy music on your radio.
You'll need a Qobuz account. Learn more at www.Qobuz.com.
Play Music on Your radio
- Press MODE button to select Qobuz mode.
- You're required to input Qobuz username and then password as follows:
Alternatively, use UNDOK app to login. - Once login successfully, operate joystick and SELECT button
on the radio or use UNDOK app to access you preferred
music.
Amazon Music
Your radio has Amazon Music built in. This enables you control the music using the UNDOK app on your mobile, tablet or PC.
You'll need an Amazon account to use Amazon Music.
Control from UNDOK app
- Press MODE button to select Amazon Music mode.
- Your radio prompts to use UNDOK app to login Amazon Music.
- Start UNDOK app on your smartphone or tablet using the same WiFi network as your radio.
- Find "BROWSE" tab and login with Amazon Music account.
- Once login successfully, use UNDOK app or operate Joystick and SELECT button on the radio to access you preferred
music.
Use your phone, tablet or computer as a remote control for Spotify.
Go to Spotify.com/connect to learn how.
The Spotify Software is subject to third party licenses found here:
https://www.spotify.com/connect/third-party-licenses
APP CONTROL
You should now have an understanding of SUPERCD's various modes of operation.
UNDOK App
This innovative and easy-to-use application not only acts as a full remote control for a single SUPERCD.
Firstly, download the 'UNDOK' app from the Apple App Store (iOS devices) or the Google Play Store (Android Devices).
Ensure that your phone or tablet is connected to the same wireless network as your SUPERCD. Load the UNDOK app and your UNDOK-enabled devices should appear in the 'Audio Systems' opening screen. Using the app you can control individual devices.
The UNDOK system is constantly being updated and improved. For the latest information and quick-start guides, please visit www.revo.co.uk
ALARM CLOCK
SETTING AN ALARM
SUPERCD is able to store two individual alarm settings. To set or change an alarm, either press the button, or select MENU, then MAIN MENU, then ALARM. Select which of the ALARM SETTINGS (Alarm 1 or Alarm 2) you would like to modify or enable.
Using the joystick controller, scroll through the options below, setting your preferences.
- Enable: on/off
Frequency: Daily, Once, Weekends or Weekdays.
Time
Mode: Buzz, Internet Radio, DAB or FM - Preset: Last listened or favourite station preset 1-8
Volume:0-32
When your preferences have been set, remember to select SAVE.
SUPERCD shows any active alarms by displaying an icon at the bottom of its screen.
When in STANDBY MODE, by simply pressing the button, you can turn any alarms held in memory ON or OFF. Pressing will cycle through ALARM 1 and ALARM 2 settings, enabling, and disabling them. If the ALARM Icons are displayed, the alarm is enabled. If no alarm icon is shown, the alarms are switched off.
STOPPING AN ALARM
When an alarm is sounding, pressing or will STOP the alarm.
When the alarm has been cancelled, an ALARM OFF message will be displayed on SUPERCD's screen.
ALARM CLOCK
SLEEP MODE
By using the SLEEP function, you can set SUPERCD to automatically switch itself into STANDBY mode.
Press then select MAIN MENU, then SLEEP. You can now set the SLEEP timer to any one of the following: 5, 10, 15 or 30 minutes.
When you have selected a sleep duration, SUPERCD will return to the MAIN MENU.
Press to return to the NOW PLAYING screen.
SNOOZE FUNCTION
SUPERCD includes a TOUCH-SNOOZE feature which is incorporated into your radio's aluminium front panel. SNOOZE is activated by tapping anywhere on the metal area during an alarm. SNOOZE allows you to temporarily silence the alarm for a period of up to 30 minutes.
The SNOOZ duration can only be set when your radio is actually in the process of alarming. At this point, simply tap the FRONT PANEL to cycle through a range of pre-set SNOOZ durations, either 5, 10, 15 or 30 minutes.
Please note: that the Snooze function will only register a touch for a period of 60 seconds from the commencement of the alarm, meaning that after 60 seconds the front panel can be touched without the Snooze function being activated.
When SNOOZE is activated, SUPERCD will return to standby for the set period with the icon of the SNOOZED alarm shown on-screen.
SYSTEM SETTINGS
EQUALISER
SUPERCD provides the user with a significant degree of control over its standard (factory default) audio settings. This includes control over BASS and TREBLE, LOUDNESS and the ability to use one of a number of preset EQ settings. It is also possible to create your own personalised EQ setting - known as "My EQ".
To adjust the audio settings, press then select MAIN MENU, followed by SYSTEM SETTINGS. Now select EQUALIZER from the menu.
SUPERCD will display a list of nine EQ options as follows: Normal, Flat, Jazz, Rock, Movie, Classic, Pop, News and My EQ.
Simply select your preference from the list by highlighting your option and pressing the select button. SUPERCD will now store this setting in its memory. For reference, the current EQ setting is highlighted by an asterisk (*) in the EQ list.
To configure your own personal EQ setting, select MY EQ PROFILE SETUP from the EQUALISER menu. Now adjust the BASS and TREBLE levels, decide whether you would like the LOUDNESS function OFF or ON - before selecting SAVE. Your personalised EQ setting can now be selected by choosing MY EQ from the EQUALISER menu.
SYSTEM SETTINGS
NETWORK
The NETWORK MENU can be found under SYSTEM SETTINGS in the MAIN MENU and includes an entry for the INTERNET WIZARD, which will assist you in setting up your radio's internet connection.
For the more experienced user, a variety of manual settings can also be accessed from here, as follows:
INTERNET WIZARD:
Simplifies the setup of your radio's Internet connection by taking you through step-by-step instructions.
PBC WLAN SETUP:
Used to pair your radio with a router that uses WPS security.
VIEW SETTINGS:
View the MAC address, Wlan region, etc.
WLAN REGION:
Where you are using your radio - Europe, USA etc.
MANUAL SETTINGS:
Detailed control of Wired and Wireless connections.
NETWORK PROFILE :
Shows the names of the last four wireless networks SUPERCD has been connected to.
NOTE: SUPERCD remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. It's possible however to delete unwanted networks, simply select SYSTEM SETTINGS, then NETWORK, then
NETWORK PROFILE. Now select the network profile you'd like to delete by selecting and confirming delete YES.
Internet Setup
Network Wizard scannins
SYSTEM SETTINGS
TIME / DATE
Found in the SYSTEM SETTINGS menu, this menu offers you the option of changing a number of time/date related settings. The TIME/DATE menu has three listings as follows:
SET TIME / DATE: Allows you to manually set the time/date.
AUTO UPDATE : Choose from three different automatic setting options.
SET FORMAT : Choose whether you would like to use 12hr or 24hr formats.
Update from DAB :
Automatically takes time/date from DAB signal. SUPERCD needs to have been operated in DAB MODE (and have received a signal) before this information can be extracted.
Update from Network:
Takes time/date from your internet connection.
CONTRAST
SUPERCD allows a degree of control over the contrast of its OLED display, meaning that both its STANDBY and POWER ON contrast levels can be independently set to either HIGH, MEDIUM or LOW brightness levels.
To change the contrast settings, press then select MAIN MENU, followed by SYSTEM SETTINGS. Now select CONTRAST from the menu list. You will now be able to modify the default brightness level settings for the two modes of operation - STANDBY and POWER ON. Select the mode you'd like to change from these two options, then choose your desired brightness level. Your chosen settings will be held in memory indefinitely, but can be changed at any time.
SYSTEM SETTINGS
LANGUAGE
The default language on your radio is English, though 12 other languages are supported as follows:
Danish Dutch Finnish French German Italian Norwegian Polish Portuguese Spanish Swedish Turkish
To change the current language setting, select SYSTEM SETTINGS from the MAIN MENU, then LANGUAGE, then select your choice.
FACTORY RESET
By selecting FACTORY RESET from the SYSTEM SETTINGS menu, you can reset SUPERCD to its default factory values, erasing any personal settings that may have been configured (time/date, network configuration and presets will be erased). However, your radio's current software version is maintained, as is its registration with the internet radio portal. Internet radio favourites are therefore retained, unless you re-register your radio with another account on the portal.
To perform a factory reset, press then select MAIN MENU, followed by SYSTEM SETTINGS, then FACTORY RESET. Now answer YES.
SOFTWARE UPDATES
From time to time we will make software updates available for your radio. These are necessary for general maintenance reasons, as well as for adding additional functionality to your radio. Software updates are carried out 'over-the-al', via your broadband connection.
SUPERCD will check for software updates each time it is switched on, and if an update is available, will ask you to confirm that you'd like to go ahead and commence the download.
Please note that after a software upgrade, all user settings are maintained.
SYSTEM SETTINGS
SOFTWARE UPDATES (Continued)
If you'd prefer to manually check for software updates, press then select MAIN MENU. Now choose SYSTEM SETTINGS, then SOFTWARE UPDATES. Select AUTO-CHECK SETTING then choose NO when prompted.
To manually check for updates, select CHECK NOW from the SOFTWARE UPDATES menu.
CAUTION: Before commencing a software upgrade, ensure that SUPERCD is plugged into a stable mains power connection. Disconnecting power during a software update may permanently damage your radio.
SETUP WIZARD
The SETUP WIZARD simplifies the set-up of both time/date and internet settings, by running through a series of questions.
To access the SETUP WIZARD, press then select MAIN MENU, followed by SYSTEM SETTINGS. Now select SETUP WIZARD from the menu list.
INFO
When dealing with a technical support issue, you may be asked for the SOFTWARE VERSION or RADIO ID number. Both these pieces of information can be found under the INFO heading, in the SYSTEM SETTINGS menu.
Press then select MAIN MENU, followed by SETTINGS, then INFO.
TROUBLESHOOTING
| PROBLEM CAUSE SOLUTIONS | ||
| FM: HISsDAB: Burbling/IntermittentCut-Out | Low signal strength. Check/move an antenna.Low signal strength. Check/move an antenna. | fenna.Moveto another location.Rescan local (high-strength)stations only.For DAB, check local coverage atwww.ukdigitalradio.com/coverage |
| DAB: 'No stations available' Low signal strength. As above, then rescan stations. | ||
| Cannot connect to network Network | down. Check that network is working | between computer and the router. |
| Router restricts access to listed MAC addresses. | Obtain the SUPERCD MAC addressfrom MENU > SYSTEM SETTINGS >NETWORK > VIEW SETTINGS andadd to router listNOTE: SUPERCD has separate MAC addressesfor wired and wireless networks; only the currentnetwork adaptor method address is displayed,but the other address can be obtained bychanging the first pair of digits between '00'(wireless) and '02' (wired). | |
| Insufficient Wi-Fi signal strength. Check | distance to router.See if a computer can connect tothe network in this location. | |
| Unknown encryption method. Change | encryption method onrouter. SUPERCD supports WEP, WPAand WPA2. | |
| Unusual network configuration. Setup | network manually throughMENU > SYSTEM SETTINGS >NETWORK > MANUAL SETTINGS | |
| Firewall preventing access. Check the following ports are openon the router:UDP and TCP ports 80 and 123DNS port 53Windows shares: ports 135 - 139 and445Windows media player; varies -Non-Microsoft firewalls may requireconfiguration for UPnP. | ||
TROUBLESHOOTING
| PROBLEM CAUSE SOLUTIONS | ||
| Cannot connect to Internet Internet connection down Check that the Internet is working for a computer connected to the same network. | ||
| Firewall preventing access Check the following ports are open: UDP and TCP ports 80 and 123 DNS port 53. Some Internet radio stations may require additional ports to be opened. | ||
| Cannot play particular Internet radio station | Station not broadcasting Overloaded or insufficient bandwidth. Station broadcasting using unknown codec. Link out of date. | Try other stations. Try listening on computer via Internet radio portal website. Try later. |
| Bluetooth Mode: Can't connect to a paired device | Select BT DISCONNECT from the Bluetooth Menu and delete SU-PERCD's profile from your Bluetooth device, then re-pair the devices as normal | |
| Bluetooth Mode: Poor audio quality | • Your Bluetooth device may be out of range • Electromagnetic interference | Move your Bluetooth device closer to SUPERCD Move your Bluetooth device away from other sources of interference such as other Bluetooth devices, wireless routers etc. |
ERROR MESSAGES
| MESSAGE DESCRIPTION EXAMPLE | |
| Failed to connect Correct key entered, but router rejects request. | MAC filtering enabled on router. |
| Format error Cannot recognise file format - independent of network. | Received .wma, but found that the stream wasn't WMA when trying to decode. |
| Network error Problem past router - incorrect data being received from network. | Data obtained from server is un-readable. |
| Network timeout Problem past router - no response being received from network. | Streaming IR station and suddenly station becomes unavailable. |
| No UPnP media found No UPnP servers found. | |
| Service not available (DAB) No DAB reception. | |
| Unauthorized Access not grated by UPnP server. Allow access for SUPERCD | in UPnP server settings. |
| Update failed Software upgrade failed. | |
| Network not ready problem with connection to router. Router switched off. | |
INFORMATION ABOUT THE POWER ADAPTER
www.revo.co.uk/register
Copyright 2021 TELESTAR DIGITAL GmbH. All rights reserved.
- Internet radio - Amazon Music - Bluetooth
TIDAL •Spotify Auxiliary Input - Napster - Music player - Sleep
- Deezer DAB
Qobuz FM
- Alarms
- System settings
MODUS MENUS
MEDIA-SHARING MIT MAC
The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses
APP CONTROL
CHOOSING A STATION (Continued)
The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses
APP CONTROL
MISE A JOUR LOGICIEL
E-MAIL - support@revo.co.uk
WEB - www.revo.co.uk/support
