Product Type	Steam Iron
Brand	AEG
Model	DB1710
Water Tank Capacity	300 ml
Soleplate Type	Smooth soleplate (not specified)
Power	2200 W (approximate)
Power Cord Length	1.8 m (approximate)
Weight	1.2 kg (approximate)
Main Functions	Dry ironing, continuous steam, steam burst, spray, vertical steam
Steam Selector	Continuous adjustment from off to maximum, self-clean position
Temperature Selector	Adjustable thermostat (positions for different fabrics)
Hot Soleplate Indicator	ThermoSafe™ (changes from black to red when hot)
Self-Clean Function	Yes, via steam selector
Care and Cleaning	Clean soleplate with soft damp cloth, self-clean, descaling not recommended with chemical agent
Safety	Automatic shut-off in vertical position (not specified), cord with anti-twist protection (not specified), children +8 years under supervision
Power Supply	220-240 V, 50-60 Hz (standard approximate)
Included Accessories	Measuring cup, base
Warranty	Manufacturer's warranty (depending on country)
Repairability	AEG spare parts available, cord replacement by qualified professional

Frequently Asked Questions - DB1710 AEG

How to fill the water tank of the DB1710 iron?

Unplug the appliance, turn the steam selector to OFF, open the filling cap, use the measuring cup to pour water up to the maximum level (indicator B). Close the cap. Do not exceed the maximum level.

What type of water to use?

The iron can use tap water. It is recommended to use distilled water or a mixture 50% distilled + 50% tap to reduce scale.

What to do if the iron does not produce steam?

Check the water level (refill if necessary). Ensure the steam selector is in a position between OFF and MAX. Check that the temperature is sufficient (at least ●● for steam).

How to use the steam burst function?

Fill the tank at least halfway. Hold the iron horizontally and press the steam burst button several times to prime the pump. For vertical steam, hold the iron 10-20 cm from the fabric and press the button.

How to clean the iron's soleplate?

Use a soft damp cloth after cooling. Never use abrasive pad or chemical cleaner. For burnt residues, iron over a damp hot cloth.

How to perform self-cleaning?

Fill the tank, set the thermostat to maximum temperature. Hold the iron over a sink, place the steam selector on the self-clean position (beyond STEAM) and hold for at least 60 seconds until water flows through the soleplate. Release the button to stop.

What does the ThermoSafe™ indicator mean?

It is a hot soleplate indicator. When the soleplate is hot (temperature >40°C), the indicator changes from black to red. When it cools below 40°C, it turns black again, indicating you can safely store the iron.

How to adjust temperature for different fabrics?

Use the temperature selector. For delicate fabrics (acrylic, nylon) set to ● (low temperature). For cotton and linen, set to ●●● (high temperature). Refer to the ironing chart in the manual for more details.

Why do brown marks appear on laundry?

This may be due to hard water causing scale. Use the self-clean function several times. Do not use chemical descaler. Burnt fibers can also accumulate; clean the soleplate with a soft damp cloth.

What safety precautions are important?

Never leave the iron unattended while plugged in. Use on a stable surface. Do not immerse in water. Do not exceed the max water level. Keep out of reach of children under 8 years. Unplug before filling or cleaning.

USER MANUAL DB1710 AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy accessories and consumables for your appliance: www.aeg.com/shop

Iron shoe Ref:ACA20

Iron pad Ref: AES 067

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

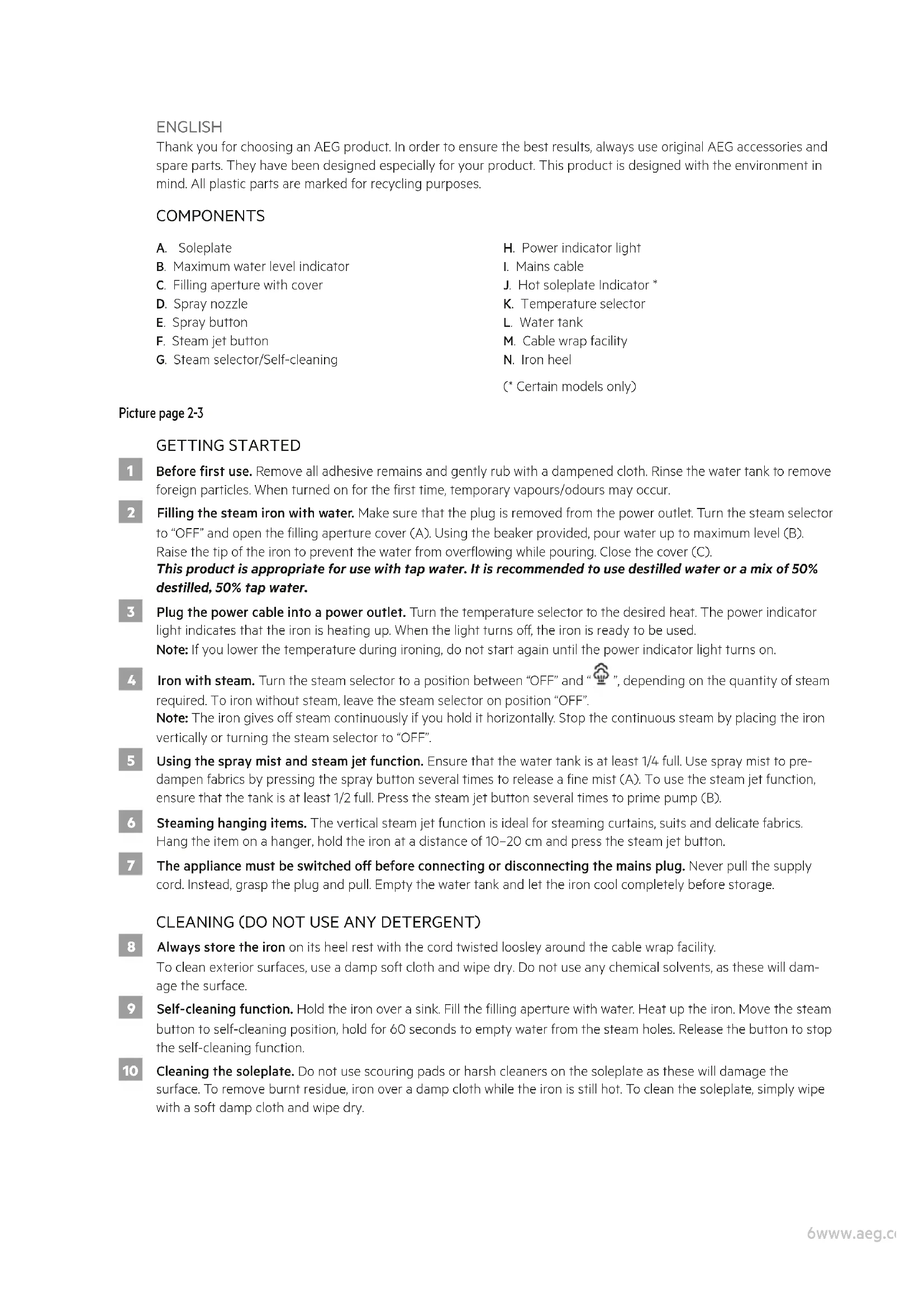

ENGLISH

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS

A. Soleplate
B. Maximum water level indicator
C. Filling aperture with cover
D. Spray nozzle
E. Spray button
F. Steam jet button
6. Steam selector/ Self-cleaning

H. Power indicator light
I. Mains cable
J. Hot soleplate Indicator *
K. Temperature selector
L. Water tank
M. Cable wrap facility
N. Iron heel

*Certain models only)

Picture page 2-3

GETTING STARTED

Before first use. Remove all adhesive remains and gently rub with a dampened cloth. Rinse the water tank to remove foreign particles. When turned on for the first time, temporary vapours/odours may occur.
2 Filling the steam iron with water. Make sure that the plug is removed from the power outlet. Turn the steam selector to "OFF" and open the filling aperture cover (A). Using the beaker provided, pour water up to maximum level (B). Raise the tip of the iron to prevent the water from overflowing while pouring. Close the cover (C).

This product is appropriate for use with tap water. It is recommended to use distilled water or a mix of 50% distilled, 50% tap water.

Plug the power cable into a power outlet. Turn the temperature selector to the desired heat. The power indicator light indicates that the iron is heating up. When the light turns off, the iron is ready to be used.

Note: If you lower the temperature during ironing, do not start again until the power indicator light turns on.

Iron with steam. Turn the steam selector to a position between "OFF" and " ", depending on the quantity of steam required. To iron without steam, leave the steam selector on position "OFF".
Note: The iron gives off steam continuously if you hold it horizontally. Stop the continuous steam by placing the iron vertically or turning the steam selector to "OFF".
5 Using the spray mist and steam jet function. Ensure that the water tank is at least 1/4 full. Use spray mist to dampen fabrics by pressing the spray button several times to release a fine mist (A). To use the steam jet function, ensure that the tank is at least 1/2 full. Press the steam jet button several times to prime pump (B).
6 Steaming hanging items. The vertical steam jet function is ideal for steaming curtains, suits and delicate fabrics. Hang the item on a hanger, hold the iron at a distance of 10 - 20cm and press the steam jet button.
The appliance must be switched off before connecting or disconnecting the mains plug. Never pull the supply cord. Instead, grasp the plug and pull. Empty the water tank and let the iron cool completely before storage.

CLEANING (DO NOT USE ANY DETERGENT)

8 Always store the iron on its heel rest with the cord twisted loosley around the cable wrap facility.
To clean exterior surfaces, use a damp soft cloth and wipe dry. Do not use any chemical solvents, as these will damage the surface.
Self-cleaning function. Hold the iron over a sink. Fill the filling aperture with water. Heat up the iron. Move the steam button to self-cleaning position, hold for 60 seconds to empty water from the steam holes. Release the button to stop the self-cleaning function.
10 Cleaning the soleplate. Do not use scouring pads or harsh cleaners on the soleplate as these will damage the surface. To remove burnt residue, iron over a damp cloth while the iron is still hot. To clean the soleplate, simply wipe with a soft damp cloth and wipe dry.

11

Your appliance is equipped with ThermoSafe™ hot soleplate indicator which detects when the soleplate is hot by changing its colour from black to red. Once the temperature of the soleplate is <40C^ , the colour changes back to black to show that the iron is ready to be stored away.

Enjoy your new AEG product!

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
• The surfaces are liable to get hot during use .
• This product is appropriate for use with tap water. It is recommended to use distilled water or a mix of 50% distilled, 50% tap water.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate.
• The iron is not to be used if it has been dropped, if there are visible signs of damage on the iron or its cord or if it is leaking.
• The appliance must only be connected to an earthed socket.
• The filling aperture must not be opened during use.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
• The iron must be used and rested on a stable surface. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
• Never leave the appliance unattended while connected to the supply mains.
• The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.
• The plug must be removed from the socket outlet before the water reservoir is filled with water.
• The mains cable must not come into contact with any hot parts of the appliance.
• Do not immerse the appliance in water or any other liquid.
• Do not exceed the maximum filling volume as indicated on the appliances.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• Be careful when turning a steam iron upside down – there may be hot water in the reservoir.

IRONING CHART

FABRIC TEMPERATURE SETTING IRONING RECOMMENDATION
Acrylic	●	Dry iron on the wrong side.
Acetate	●	Dry iron on the wrong side while still damp or use spray to dampen.
Nylon & Polyester	●	Iron on the wrong side while still damp or use spray to dampen.
Rayon	●	Iron on the wrong side of fabric.
Viscose	●	Mainly dry iron. Steam can be used under manufacturer's instructions.
Silk	● Iron on the wrong side. Use an ironing cloth to prevent shine marks.
Cotton blends	● Check the label and follow the manufacturer's instructions. Use setting for the fibre requiring lowest setting.
Wool & Wool blends	● Steam iron on the wrong side or use ironing cloth.
Cotton	● Dry iron while still damp or use spray to dampen. Use steam medium to high.
Corduroy	● Steam iron on the wrong side or use ironing cloth.
Linen	● No "MAX" Iron on the wrong side or use ironing cloth to prevent shine marks, especially with dark colours. Dry iron while still damp or use spray to dampen. Use steam medium to high.
Denim	● No "MAX" Use maximum steam.
Varied ironing speed and fabric dampness might cause optimal setting to differ from that recommended in the table!

TIPS AND TRICKS

Temperature settings

The iron heats up faster than it cools down, so we recommend that you start ironing the fabrics requiring the lowest temperature. Use the lowest temperature with fabrics that have unusual finishes, such as sequins or embroidery. If you are unsure about the fabric, start with a low temperature and iron on a hidden corner. Then increase the temperature gradually if needed.

Avoiding marks on the fabric

Never iron areas with traces of perspiration or other marks, the heat fixes the stains on the fabric.

Washing fabrics before ironing

If the washing machine is heavily loaded or the spin drying revolutions are very high, the fabrics may come out more creased. However, many fabrics are easier to iron if they are damp.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The soleplate is not heating even though the iron is turned on.	Connection problem. Check the main power supply cable, plug, and outlet.
	The temperature selector is in “MIN” position.	Select adequate temperature.
The iron does not produce steam.	Not enough water in tank. Fill the water tank (see “Getting started”, no 2).
	Steam selector is set in non-steam position.	Set the steam selector between positions of minimum steam and maximum steam (see “Ironing chart”).
	The selected temperature is lower than that specified to use with steam.	Increase the temperature to at least ● ●
The spray function does not work.	Not enough water in tank. Fill the water tank (see “Getting started”, no 2).
The steam jet and vertical steam jet functions does not work.	The steam jet function was used very frequently within a short period.	Put the iron in a horizontal position and wait before using the steam jet function.
	The iron is not hot enough. Adjust the proper temperature to steam ironing (up to ● ●. Put the iron in vertical position and wait until the temperature indicator light turns off.
Brown streaks come out of the soleplate while ironing and stain the linen.	You have used hard water, which has caused scale flakes to develop in the water tank.	Use the self-clean function one or more times.
	You have used chemical descaling agents.	Do not use any descaling agents.
	Fabric fibres have accumulated in the holes of the soleplate and are burning.	Use the self-clean function one or more times. Clean the soleplate with a damp soft cloth.
	The fabrics might not be properly rinsed or the garments are new and have not been washed before ironing.	Please rinse the laundry properly again.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.
