Product type	Manual pasta machine
Brand	Beper
Model	90.345
Intended use	Domestic use
Main functions	Rolling and cutting fresh pasta
Included accessories	Rolling roller, fettuccine cutter, tagliatelle cutter
Mechanism	Manual crank
Thickness adjustment	9 positions (1 to 9)
Cutting blades	Two widths: fettuccine and tagliatelle
Material	Chrome-plated steel
Cleaning and maintenance	Dry cloth or brush; do not wash with water or in dishwasher
Fixing	Hand clamp for worktop
Weight	Approximately 1.5 kg
Dimensions (L x W x H)	Approximately 25 x 15 x 15 cm
Safety	Keep out of reach of children; do not use as a toy
Warranty	24 months
Country of origin	Italy

Frequently Asked Questions - 90.345 Beper

How to use the Beper 90.345 pasta machine?

Secure the machine to a stable surface using the hand clamp. Turn the crank and pass the dough between the rolling rollers, gradually reducing the thickness using the adjustment knob. Use the cutting accessories for fettuccine or tagliatelle.

How to clean the machine?

Never wash the machine with water or in the dishwasher. Use a dry cloth or a brush to remove residues. Pass a piece of dough between the rollers to clean them, then discard that dough.

How to adjust the dough thickness?

Turn the adjustment knob (G) to adjust the roller gap, from position 1 (thin) to 9 (thick). Pass the dough through several times, gradually reducing the thickness.

What types of pasta can be made?

You can make flat pasta (lasagna) and ribbon pasta: fettuccine and tagliatelle, thanks to the included cutting accessories.

Is the machine difficult to assemble?

No, assembly is simple. Secure the machine with the hand clamp on the edge of a table. Insert the crank into the corresponding clutch. For the accessories, attach them to the retaining wings.

The dough sticks to the rollers, what to do?

Make sure the dough is at room temperature and slightly floured. If it sticks, pass a piece of dough between the rollers to clean them after use.

What is the warranty of the machine?

The warranty is 24 months from the date of purchase, covering material or manufacturing defects. Keep the receipt and the warranty certificate.

Can the accessories be washed in the dishwasher?

No, no part should be washed in the dishwasher or immersed in water. Clean them with a dry cloth or a brush.

Is the machine suitable for professional use?

No, it is designed exclusively for domestic use. Intensive use could damage the appliance and void the warranty.

Where to find spare parts?

Contact your dealer or Beper after-sales service at the address indicated in the manual. Use only original parts.

USER MANUAL 90.345 Beper

For further information and/or for instructions for use in other languages, please visit: beper.com

Fig. 2

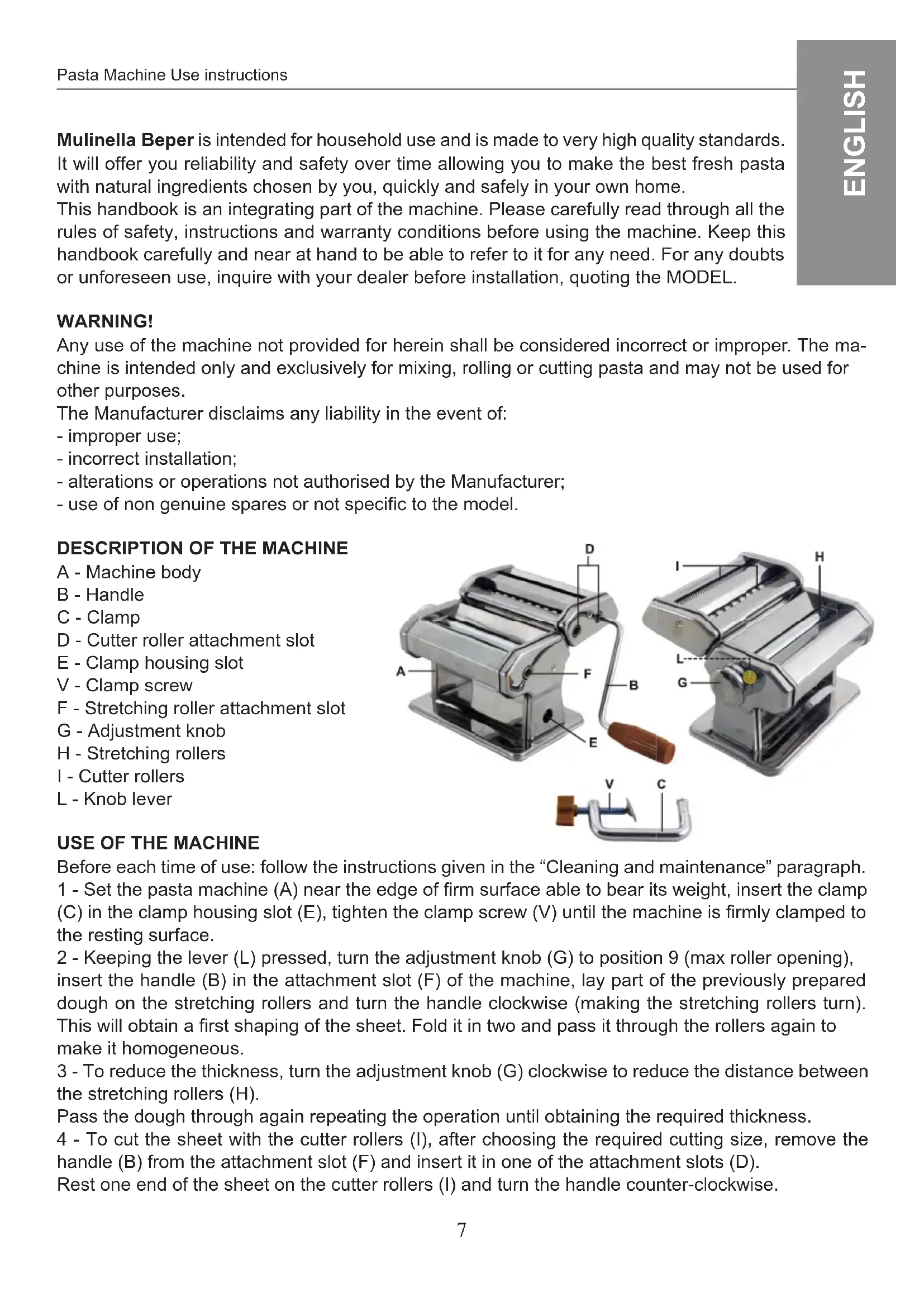

Mulinella Beper is intended for household use and is made to very high quality standards. It will offer you reliability and safety over time allowing you to make the best fresh pasta with natural ingredients chosen by you, quickly and safely in your own home.

This handbook is an integrating part of the machine. Please carefully read through all the rules of safety, instructions and warranty conditions before using the machine. Keep this handbook carefully and near at hand to be able to refer to it for any need. For any doubts or unforeseen use, inquire with your dealer before installation, quoting the MODEL.

WARNING!

Any use of the machine not provided for herein shall be considered incorrect or improper. The machine is intended only and exclusively for mixing, rolling or cutting pasta and may not be used for other purposes.

The Manufacturer disclaims any liability in the event of:

-improper use;
- incorrect installation;
- alterations or operations not authorised by the Manufacturer;
- use of non genuine spares or not specific to the model.

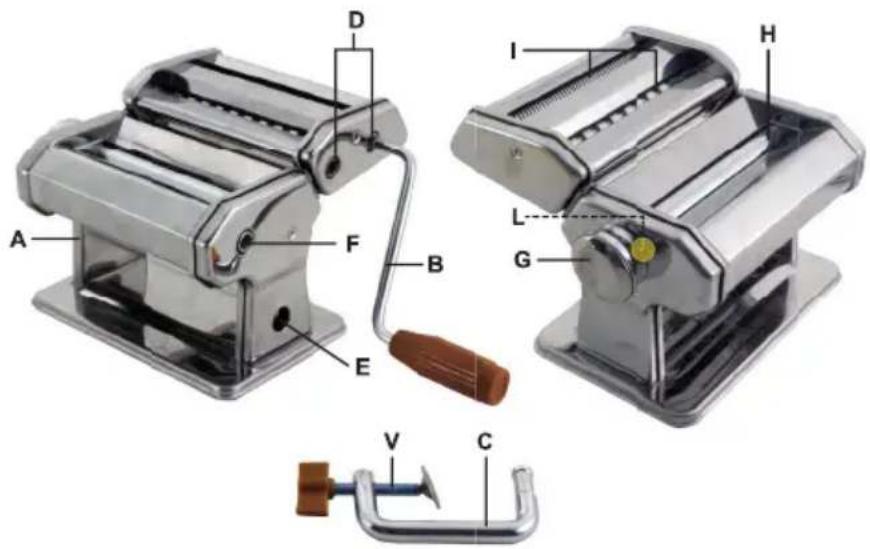

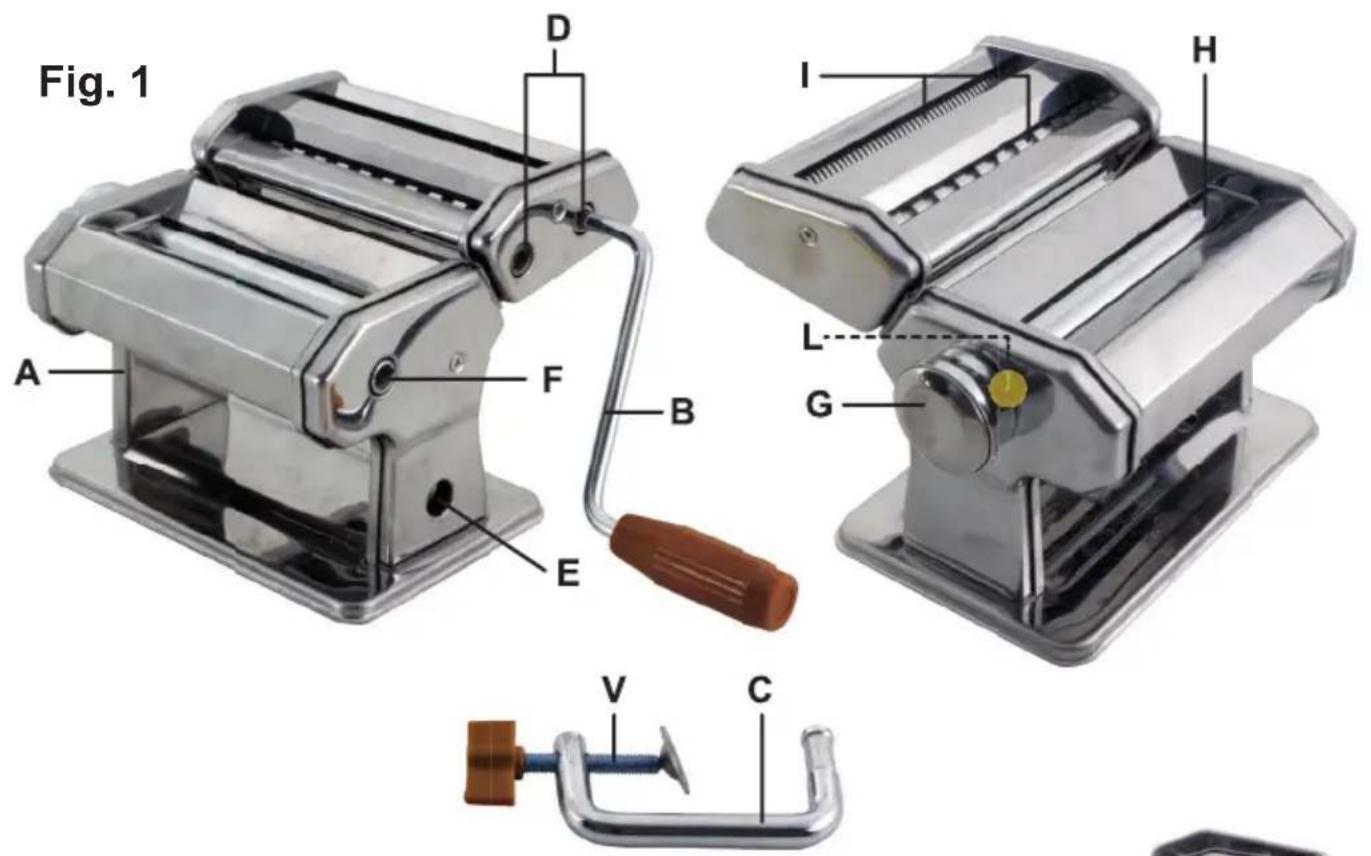

DESCRIPTION OF THE MACHINE

A - Machine body
B-Handle
C - Clamp
D - Cutter roller attachment slot
E - Clamp housing slot
V - Clamp screw
F - Stretching roller attachment slot
G - Adjustment knob
H - Stretching rollers
I - Cutter rollers
L - Knob lever

USE OF THE MACHINE

Before each time of use: follow the instructions given in the "Cleaning and maintenance" paragraph.

1 - Set the pasta machine (A) near the edge of firm surface able to bear its weight, insert the clamp (C) in the clamp housing slot (E), tighten the clamp screw (V) until the machine is firmly clamped to the resting surface.
2 - Keeping the lever (L) pressed, turn the adjustment knob (G) to position 9 (max roller opening), insert the handle (B) in the attachment slot (F) of the machine, lay part of the previously prepared dough on the stretching rollers and turn the handle clockwise (making the stretching rollers turn). This will obtain a first shaping of the sheet. Fold it in two and pass it through the rollers again to make it homogeneous.
3 - To reduce the thickness, turn the adjustment knob (G) clockwise to reduce the distance between the stretching rollers (H).
Pass the dough through again repeating the operation until obtaining the required thickness.
4 - To cut the sheet with the cutter rollers (I), after choosing the required cutting size, remove the handle (B) from the attachment slot (F) and insert it in one of the attachment slots (D).
Rest one end of the sheet on the cutter rollers (I) and turn the handle counter-clockwise.

5 - The dough must be kept at room temperature.

After each time of use: Follow the instructions given in the "Cleaning and maintenance" paragraph.

MANUAL ACCESSORIES

1 - Stretching rollers
2 - Cutter rollers for fettuccine
3 - Cutter rollers for tagliatelle

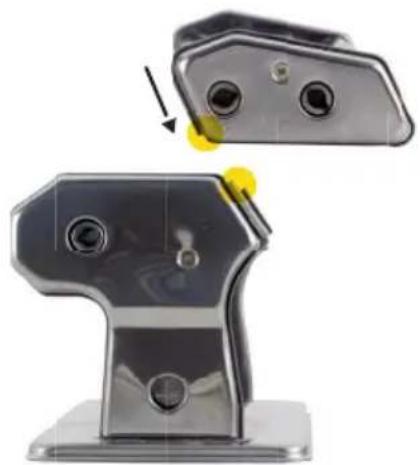

FITTING ACCESSORIES (Fig.2)

Before each time of use: follow the instructions given in the "Warnings" page of the "Cleaning" paragraph. Set the pasta machine near the edge of firm surface able to bear its weight, insert the clamp in the clamp housing slot, tighten screw until the machine is firmly clamped to the resting surface.

2 - Connect the required accessory to the retainer fins provided on the machine.
3 - Insert the handle provided in the slot present on all accessories.

This procedure is the same for all the manual devices shown on this page

MANUAL USE OF CUTTERS

Before each time of use: follow the instructions given in the "Warnings" page of the "Cleaning" paragraph.

Rest one end of the sheet obtained previously on the cutter rollers, insert the handle in the slot of the device and turn clockwise to obtain the cutting action.

CLEANING AND MAINTENANCE

Cleaning is the only type of maintenance normally required.

Thoroughly clean the machine with a dry cloth or soft brush.

AFTER FASTENING THE MACHINE TO A SUITABLE SURFACE cleaning can be completed passing a piece of dough through the stretching rollers and cutter rollers (to remove any remaining dust). Of course, the dough used for this purpose is to be eliminated. NEVER wash any part of the machine and its accessories in a dishwasher or with water and detersives. Do not use sharp objects to remove any remainders. Absolutely avoid using knives or other utensils to put the dough between the machine rollers.

AFTER EACH TIME OF USE:

NEVER use sharp objects to remove any remaining dough. NEVER wash any part of the machine and its accessories in a dishwasher or with water and deterives. Make sure that all the components are perfectly dry before stowing them.

WARNING!

THESE MACHINES ARE NOT TOYS. THEREFORE DURING USE KEEP THEM UNDER CONTROL AND OUT OF THE REACH OF CHILDREN.

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

Guarantee conditions

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• The appliance has not been tampered with, otherwise it is not maintainable.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

Technical assistance

Even after the guarantee period we will always pay attention to repairs for defected appliances. For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

Assistance technique
