90.506 - Food Dehydrator Beper - Free user manual and instructions

Technical Features	Details not specified
Usage	Details not specified
Maintenance and Repair	Details not specified
Safety	Details not specified
General Information	Details not specified

Frequently Asked Questions - 90.506 Beper

How can I turn on the Beper 90.506?

To turn on the Beper 90.506, plug the device into an electrical outlet and press the power button.

What should I do if the device does not turn on?

Check that the device is properly plugged in and that the outlet is working. If the device still does not turn on, contact customer service.

How do I clean the Beper 90.506?

Unplug the device before cleaning it. Use a soft, damp cloth to wipe the surface. Do not immerse the device in water.

What is the power of the Beper 90.506?

The power of the Beper 90.506 is 800 watts.

The device makes noise during use, is this normal?

A slight noise may be normal depending on the type of device, but if the noise is excessive or unusual, stop the device and check if there is a problem.

How can I adjust the temperature on the Beper 90.506?

Use the temperature adjustment button to select the desired temperature. Refer to the manual for precise instructions.

Are spare parts available for the Beper 90.506?

Yes, spare parts may be available. Please contact customer service to check availability.

Where can I find the user manual for the Beper 90.506?

The user manual is usually included in the packaging. You can also find it on the manufacturer27s website.

What is the warranty for the Beper 90.506?

The Beper 90.506 is generally covered by a 2-year warranty. Check the exact details on the warranty card provided with the product.

What should I do if the device overheats?

If the device overheats, turn it off immediately and unplug it. Let it cool down before using it again. Refer to the manual for more details.

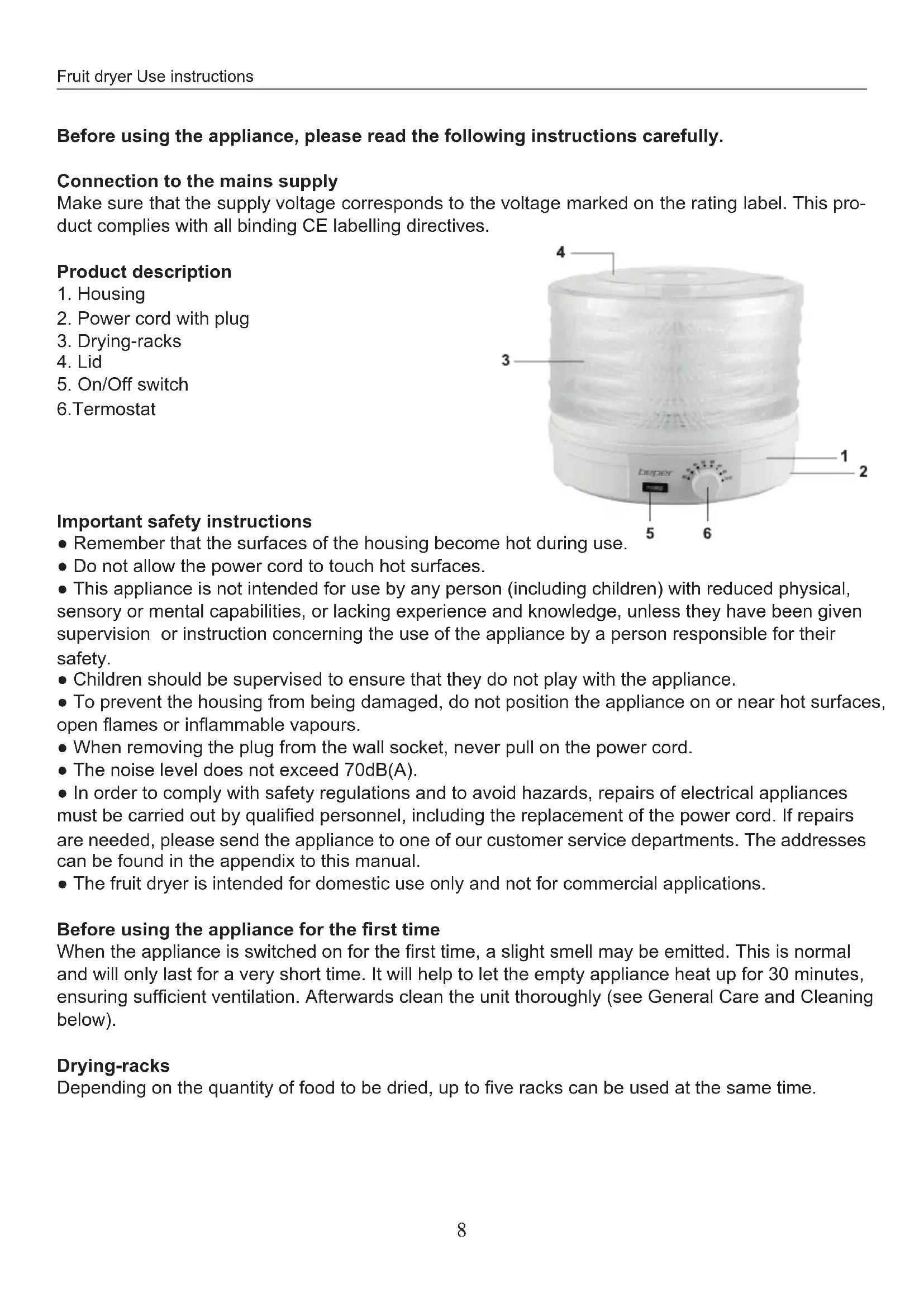

USER MANUAL 90.506 Beper

For further information and/or for instructions for use in other languages, please visit: beper.com

Gentile Cliente,

Before using the appliance, please read the following instructions carefully.

Connection to the mains supply

Make sure that the supply voltage corresponds to the voltage marked on the rating label. This product complies with all binding CE labelling directives.

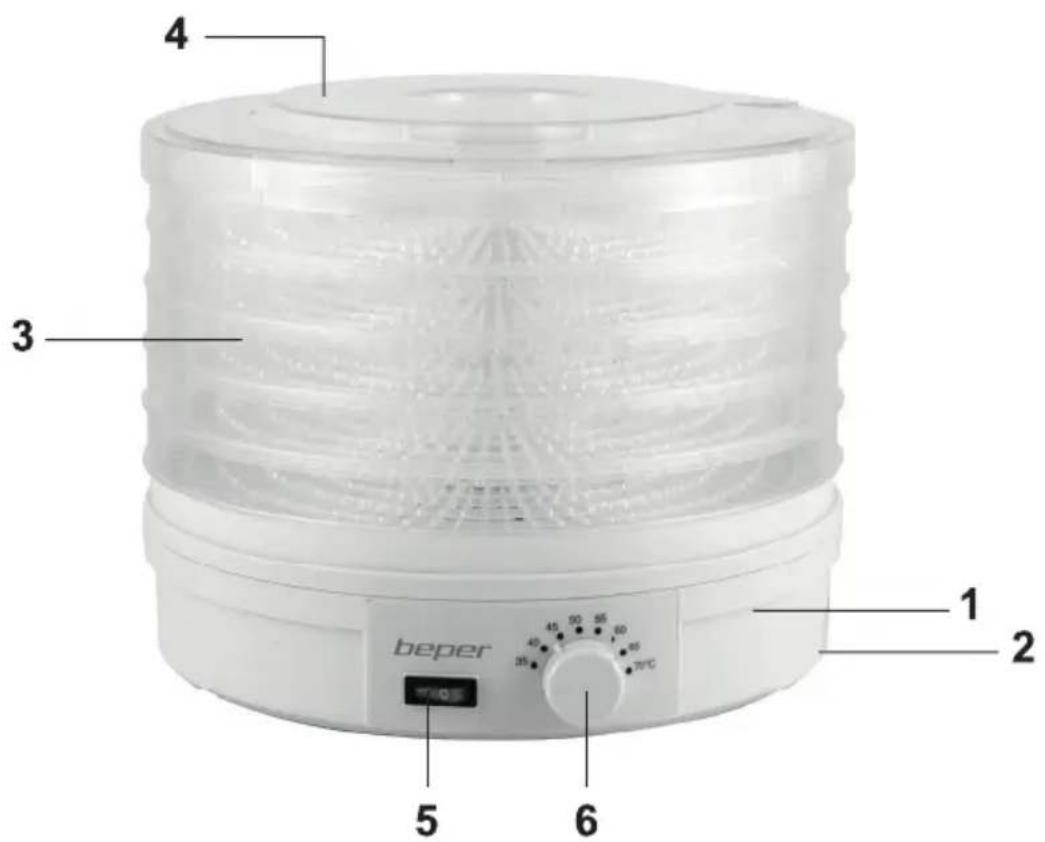

Product description

1. Housing
2. Power cord with plug
3. Drying-racks
4. Lid
5. On/Off switch
   6.Termostat

Important safety instructions

• Remember that the surfaces of the housing become hot during use.
• Do not allow the power cord to touch hot surfaces.
• This appliance is not intended for use by any person (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• To prevent the housing from being damaged, do not position the appliance on or near hot surfaces, open flames or inflammable vapours.
• When removing the plug from the wall socket, never pull on the power cord.
  The noise level does not exceed 70dB(A).
• In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please send the appliance to one of our customer service departments. The addresses can be found in the appendix to this manual.
• The fruit dryer is intended for domestic use only and not for commercial applications.

Before using the appliance for the first time

When the appliance is switched on for the first time, a slight smell may be emitted. This is normal and will only last for a very short time. It will help to let the empty appliance heat up for 30 minutes, ensuring sufficient ventilation. Afterwards clean the unit thoroughly (see General Care and Cleaning below).

Drying-racks

Depending on the quantity of food to be dried, up to five racks can be used at the same time.

General information:

The food or vegetables to be dried should be ripe, fresh, healthy and clean.

Dried foods keep their flavour and nutritional value, and they do not lose their mineral content. Once dried, they can be stored easily for many years, but it is imperative to use only ripe, fresh, healthy and clean fruit or vegetables etc.

When drying fruit, always remove the entire core, stems and stones (with the exception of cherries). Do not peel the fruit before drying. The use of lemon juice prior to the drying process prevents the fruit from discouining (i.e. turning brown).

Operation

Temperature is adjustable, the maximum temperature reached during operation is around 70^

• The fruit or vegetables to be dried should be cut into thin pieces of regular size and thickness.
• Spread the items to be dried evenly across each drying-rack. To ensure proper air circulation, make sure that the pieces do not touch each other.
• When using several drying-racks, the operating temperature decreases from the bottom to the top of the appliance;

accordingly, the drying time on the upper racks will increase.

• Replace the lid on the unit, insert the plug into a suitable wall socket and switch the unit on (note the time when switching on).
• Once the food items on the lower racks are sufficiently dried, the lower racks should be removed.

Should you wish to re-fill an emptied rack with fresh items, the rack should be inserted in the top position. The position of the drying-racks may be changed at any time.

DO NOT COVER THE HOLE OF THE RACK WITH FRUIT AND/OR VEGETABLES.

Storing dried food

Before the dried food items are stored, make sure that they are absolutely dry, and that they have cooled down completely after the drying process: this is essential for proper storage.

It is also of great importance that dried food is prevented from absorbing humidity during storage. Any storage tins, glasses or plastic bags should be sealed airtight. The preferred method is the use of an electric heat bag sealer to seal the bags containing the dried food. Do not expose dried food to light, but keep them in a dark location.

When the dried food items come to be used

Dried fruit and vegetables should be left in lukewarm water (make sure they are entirely covered by water) and oaked overnight. For soups or sauces, dried vegetables and herbs may be added without soaking them first.

Dried fruit, vegetables and herbs may be used in various ways when preparing food.

For details, please refer to the information available in cook books.

General Care and Cleaning

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• Do not clean the appliance with water, and do not immerse it in water, but clean it with a slightly damp, lint-free cloth.
• The drying-racks and the lid may be cleaned with a damp cloth, using a mild detergent if necessary. The drying-racks are dish-washer safe.

Drying times

The drying times listed below are approximate times and depend on the size, consistency and load quantity.

Food type to be dried	Preparation	Quantity per rack	Drying time in hrs.	Consistency when dried	Proportion of fresh weight remaining
Pineapple	peel, cut into ca. 8 mm slices	500 g	12-13	very flexible	25-30%
Apples	pieces ca. 15 mm thick, or cut into ca. 8 mm slices	600 g	76-7	very flexible	10-15%
Apricots	halve, place cut face upwards	500 g	11-13	flexible	20%
Bananas	peel, halve or quarter	600 g	9-13	flexible	20-25%
Basil, Savoury, Dill, Tarragon, Parsley, Rosemary, Sage, Chives	dry whole or cut. Rinse, place on absorbent surface and let dry	-	1.5-2.5	brittle	-
Pears	whole fruit, (but boil until tender before drying). halve, place cut face upwards cut into ca. 8 mm slices	800 g600 g500 g	25167	flexibleflexibleflexible	20-25%
Beans	boil whole beans until tender before drying	400 g	6-7	brittle	15%
Peas	shell, blanche briefly	400 g	10	hard	25%
Strawberries	halve, or leave whole	250 g500 g	10-16	flexible	20%
Cucumber	do not peel; cut into ca. 1 cm slices	400 g	8	hard	15%
Carrots	peel, cut into ca. 8 mm slices	400 g	7	hard	15%
Cherries	leave whole	500 g	11-13	leathery	25-30%
Leek	halve downwards, cut into 6-8 cm long segments, blanche	500 g	8	brittle	20%
Chillies/ green pepper	cut in strips, ca. 8 mm	400 g	9	flexible	20%
Mushrooms	clean thoroughly; leave smaller mushrooms whole, cut bigger ones into strips	-	3-4	rubbery	-
Celery	remove outer parts, cut into ca. 8 mm slices, blanche	400 g	7	hard	15%
Vegetables for soup	cut carrots, celery, leek, kohlrabi, cabbage into thin slices, blanche	300 g	6-7	rubbery	10-15%
Tomatoes	halve, place cut face upwards, or cut into ca. 6 mm slices	400g300g	108-9	flexiblehard	15%10%
Grapes	halve, place cut face upwards	500 g	13	very flexible	20%
Zucchini	do not peel, cut into ca. 8 mm slices	400 g	8	flexible	15%
Plums	halve, place cut face upwards	500 g	11-13	flexible	20%

Technical data

Power 245W

Power supply: 220-240V 50 / 60Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

Guarantee conditions

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• The appliance has not been tampered with, otherwise it is not maintainable.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

Technical assistance

Even after the guarantee period we will always pay attention to repairs for defective appliances. For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

Chere cliente, Cher client,

Assistance technique
