USER MANUAL Easy Fry 4611 ARIETE

3D rendering of a stainless steel flatbread toaster with black lid and white handle (no text or symbols)

easy fry

199 202 250

NUMERO UNICO

-Ariete

De' Longhi Appliances Srl

H I L M A B G F E D C

Fig. 1

Diagram of a container with a square lid and an arrow indicating downward motion (no text or symbols)

Illustration of a kitchen appliance with a downward arrow indicating a drop, shown from front and side views (no text or symbols)

Fig. 2 Fig. 3

Diagram showing two different cable or wire installation methods with arrows indicating direction (no text or symbols present)

Fig. 4 Fig. 5

Illustration of a square<|im_start|> Guy's grater with a downward arrow indicating compression or reduction (no text or symbols)

3D rendering of a square<|im_start|> Greenland's flat-screen kitchen grater with handle and mesh interior (no text or symbols)

Close-up of a white appliance with a black handle and lid, no visible text or symbols

Fig. 6 Fig. 7

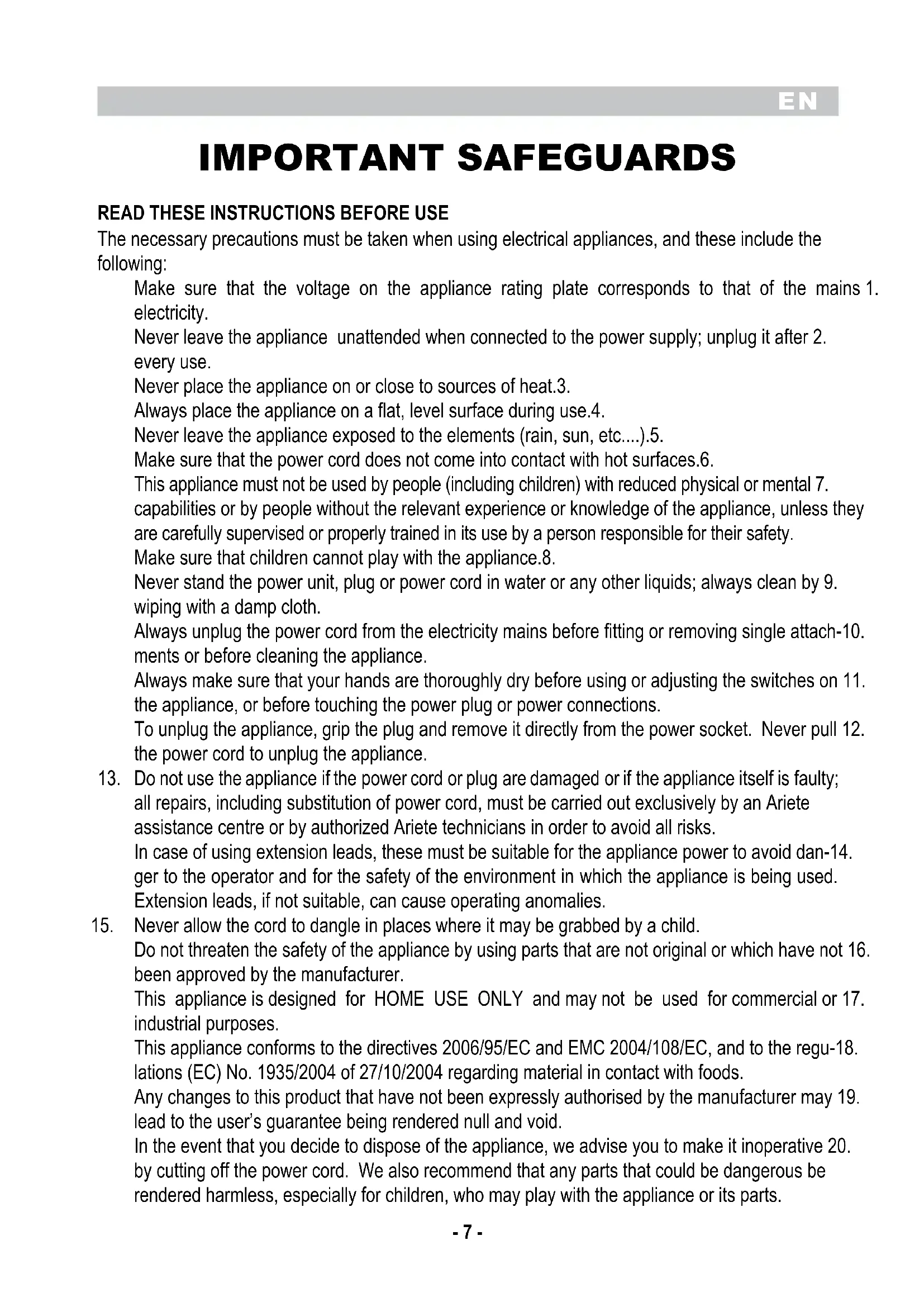

AVVERTENZE IMPORTANTI

LEGGERE QUESTE ISTRUZIONI PRIMA DELL'USO.

The necessary precautions must be taken when using electrical appliances, and these include the following:

Make sure that the voltage on the appliance rating plate corresponds to that of the mains 1. electricity.

Never leave the appliance unattended when connected to the power supply; unplug it after 2. every use.

Never place the appliance on or close to sources of heat.3.

Always place the appliance on a flat, level surface during use.4.

Never leave the appliance exposed to the elements (rain, sun, etc....).5.

Make sure that the power cord does not come into contact with hot surfaces.6.

This appliance must not be used by people (including children) with reduced physical or mental 7. capabilities or by people without the relevant experience or knowledge of the appliance, unless they are carefully supervised or properly trained in its use by a person responsible for their safety.

Make sure that children cannot play with the appliance.8.

Never stand the power unit, plug or power cord in water or any other liquids; always clean by 9. wiping with a damp cloth.

Always unplug the power cord from the electricity mains before fitting or removing single attach-10. ments or before cleaning the appliance.

Always make sure that your hands are thoroughly dry before using or adjusting the switches on 11. the appliance, or before touching the power plug or power connections.

To unplug the appliance, grip the plug and remove it directly from the power socket. Never pull 12. the power cord to unplug the appliance.

1. Do not use the appliance if the power cord or plug are damaged or if the appliance itself is faulty; all repairs, including substitution of power cord, must be carried out exclusively by an Ariete assistance centre or by authorized Ariete technicians in order to avoid all risks.

In case of using extension leads, these must be suitable for the appliance power to avoid dan-14. ger to the operator and for the safety of the environment in which the appliance is being used. Extension leads, if not suitable, can cause operating anomalies.

1. Never allow the cord to dangle in places where it may be grabbed by a child.

Do not threaten the safety of the appliance by using parts that are not original or which have not 16. been approved by the manufacturer.

This appliance is designed for HOME USE ONLY and may not be used for commercial or 17. industrial purposes.

This appliance conforms to the directives 2006/95/EC and EMC 2004/108/EC, and to the regu-18. lations (EC) No. 1935/2004 of 27/10/2004 regarding material in contact with foods.

Any changes to this product that have not been expressly authorised by the manufacturer may 19. lead to the user's guarantee being rendered null and void.

In the event that you decide to dispose of the appliance, we advise you to make it inoperative 20. by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts.

Packaging must never be left within the reach of children since it is potentially dangerous.21.

1. The appliance must not be powered from an external timer or from separate, remote-controlled systems.

Before operating the appliance, make sure it has been perfectly assembled.23.

Never use the appliance if there is no oil in the container.24.

Fill the container with oil before plugging the appliance into the mains power.25.

Be careful of any steam that may be emitted during use and when the appliance lid is lifted.26.

Never touch the container, move the appliance or remove the oil while it is still hot.27.

Before removing the parts from the appliance for cleaning, switch off the appliance, unplug it 28. from the mains power and wait for the oil inside it to cool down.

1. To dispose of product correctly according to European Directive 2009/96/CE, please refer to and read the provided leaflet enclosed with the product.

DO NOT THROW AWAY THESE INSTRUCTIONS

DESCRIPTION OF THE APPLIANCE (Fig. 1)

A Temperature selector
B Power unit
C Handle
D Basket
E Viewing window
F Lid with filter
G Lid handgrip
H Appliance body
I Tank
L Temperature light
M On/off light

INSTRUCTIONS FOR USE

• Before use, clean the basket (D), lid (F) and container (I) using a cloth with hot water and a mild detergent. Wipe the heating element on the power unit (B) clean with a damp cloth. Dry thoroughly, making sure that no parts have any water residues.

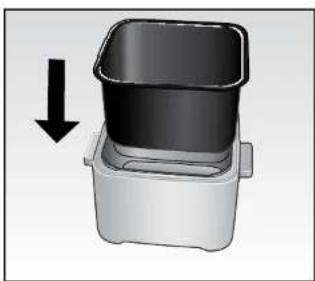

• Insert the tank (I) into the appliance body (H), positioning the part with the references "MIN" (2 litres) and "MAX" (2.5 litres) so that it is at the back (Fig. 2).

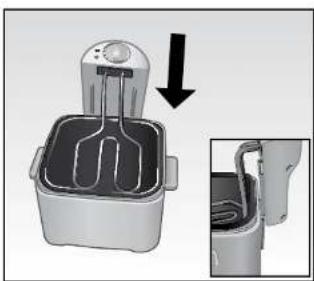

• Position the power unit (B) in its housing inside the appliance body (H) so that the tabs slide into the relevant slots; press the unit down gently until it is locked into place (M) (Fig. 3).
• Fill the tank (I) with cooking oil, making sure that the oil level is between the "MIN" and "MAX" references.

NOTE: Only use olive, corn or peanut oil, or a good quality lard. Never mix different types of oil or lard together or use butter or margarine, as this could cause smoke and also overspill from the appliance. If using lard, melt it beforehand over a low flame and in a different container and then pour it into the tank (l) in the fryer. Never melt fat directly inside the tank (l).

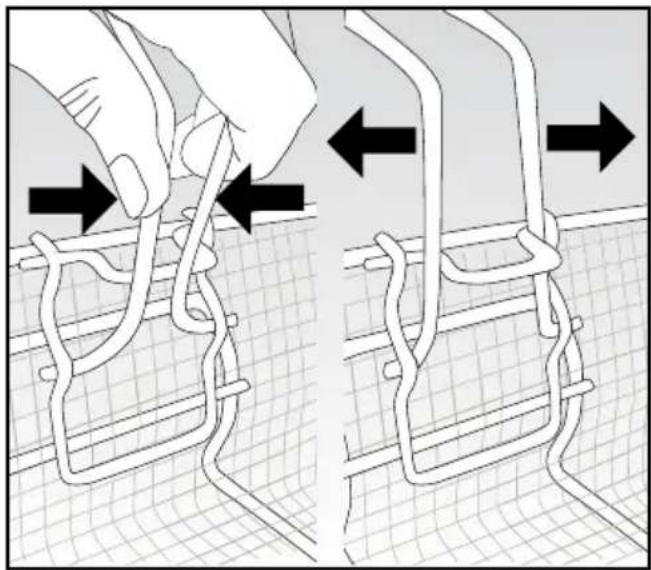

• Fit the handle (C) to the basket (D), inserting the two handle pins into the housing on the basket (Fig. 4).

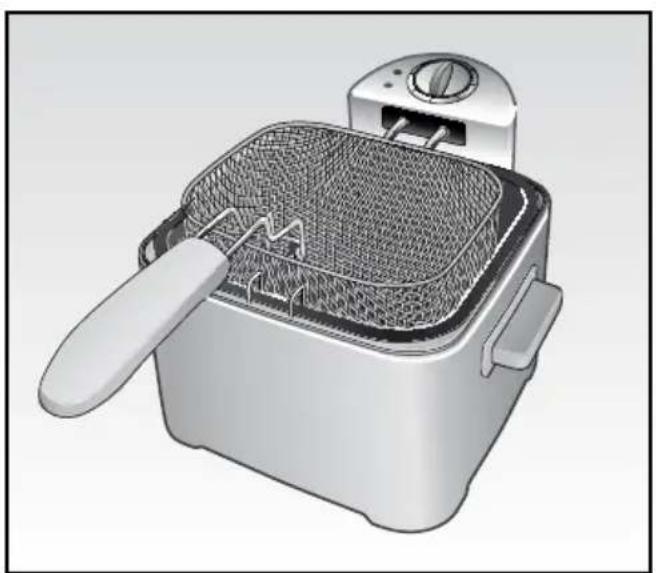

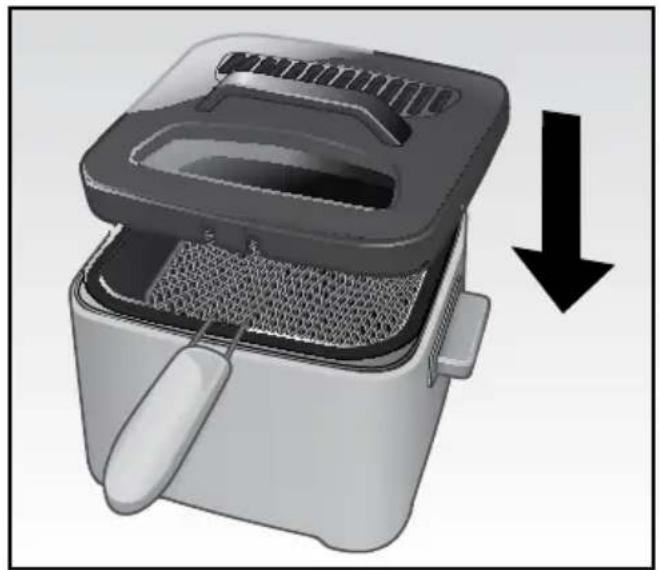

• Immerse the basket (D) into the oil, resting the handle (C) on the appliance body (H) and then cover with the lid (F) (Fig. 5), using the relevant handgrip (G) and resting the slots over the handle (Fig. 6).
• Plug the appliance into the mains power. The On/Off light (M) will switch on.
• Set the required temperature according to the food being fried, using the special selector dial (A). The temperature light (L) will switch on.
• When the oil reaches the correct temperature and it is ready for frying, the temperature light (L) will switch off. The light may switch on and off during use to indicate that the fryer is maintaining the correct temperature.

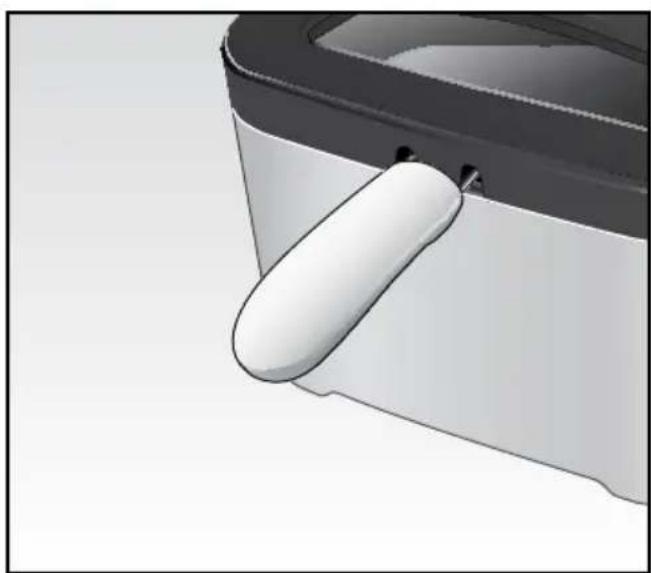

• Remove the lid (F) using the special handgrip (G) and take out the basket (D), resting it on the edge of the appliance body (H) with the relevant hook (Fig. 7).
• Place the food for frying inside the basket (D) without overloading it and referring to the table below. Lower the basket and close the lid (F) as described previously.
• Look at the cooking time, which varies according to the food, in the table on the appliance body. Always check the cooking through the viewing window (E) on the lid (F).
• When the food is cooked, move the temperature selector (A) to "0", unplug the appliance from the mains power and repeat the steps described above to raise the basket (D). Leave the oil to drain into the tank (I) before taking out the fried food.

IMPORTANT

Before using the appliance, always make sure that all parts have been correctly assembled.

Dry off any excessively wet foods before immersing them in the oil. Remove any excess ice from frozen foods before immersing them in oil by tapping the basket (D) on a sink bowl. Ice and/or water can cause boiling oil to splash.

Take care not to come into contact with boiling oil.

CARING FOR YOUR APPLIANCE

IMPORTANT:

Before removing the parts from the appliance for cleaning, switch off the appliance, unplug it from the mains power and wait for the oil inside it to cool down.

Never place the power unit (B) in water or under running water from the tap.

• Take out the parts from the appliance body (H), and remove the handle (C) from the basket (D).
• Empty the oil from the tank (I) and dispose of it.
• Remove any residues from inside the tank (I) using a cloth or some kitchen towel.
• All parts, except the power unit (B), can be washed in hot water and are also dishwasher safe. Do not use abrasive sponges or detergents.
• Wipe the power unit (B) clean with a damp cloth.
• Dry all parts with great care.
• The permanent filter, which is part of the lid (F), is washable and will not need replacing.

HELPFUL HINTS FOR USE

CHOICE AND DURATION OF FATS

• We recommend using oil or fat that is able to withstand high temperatures.
• The fat must never be below the "MIN" level. If this happens while cooking, then top up with more.
• Filter the oil, when it is cold, after each use.
• The duration of the oil depends on its quality and on how often it is used. Coated foods, for example, make the oil dirtier than plain foods do.
• Oil that has been heated and reheated will deteriorate and therefore, we recommend replacing it completely on a frequent basis. Replace it if it smells unpleasant, if it gives off smoke when hot or when it is dark in colour.

THE RIGHT WAY TO FRY

• Cut foods into small pieces of the same size, so that they cook evenly.
• Dry foods perfectly. This will prevent oil spillage as well as helping oil to last longer.
• Coat water-rich foods with breadcrumbs or flour, making sure to shake off any excess before adding the foods to the fryer.
• Rinse potatoes in cold water and dry thoroughly before frying. This removes starch and prevents potatoes from sticking together while cooking.
• Drain any excess batter from coated foods before frying.
• Do not overfill the basket and if possible, fry half of the maximum recommended amount (see table below), otherwise the oil temperature will drop suddenly, making the foods very greasy.
• Fry foods at the right temperature (see table below). If too low, the food will absorb the oil and if too high, it will burn on the outside and remain uncooked in the centre.
• Only immerse foods when the oil has reached the right temperature.
• Do not leave fried foods to drain for too long as the steam from the fryer will make them lose their crispness.
• Only add salt to fried foods just before serving. Salt softens the outer coating.

	Quantity (g)FRESH FOODS(°C)		MinutesTemperature
CHIPS			6 - 7190350
			9 - 13190700
			5 - 6170200FISH
SEAFOOD			6 - 7160250SHELLFIS
			4 - 7180250MEAT
			4 - 6160200VEGETAB

	Quantity (g)FROZEN FOODS(°C)		MinutesTemperature
	350CHIPS	190	4 - 6
			4 - 5150FISH
SEAFOOD			4 - 5150SHELLFISH /
			3 - 5250MEAT
			4 - 5200VEGETABLES

Cooking times and temperatures are intended as a guide. They will vary according to the amount of food and to personal taste. For frozen foods, follow the manufacturer's instructions.
