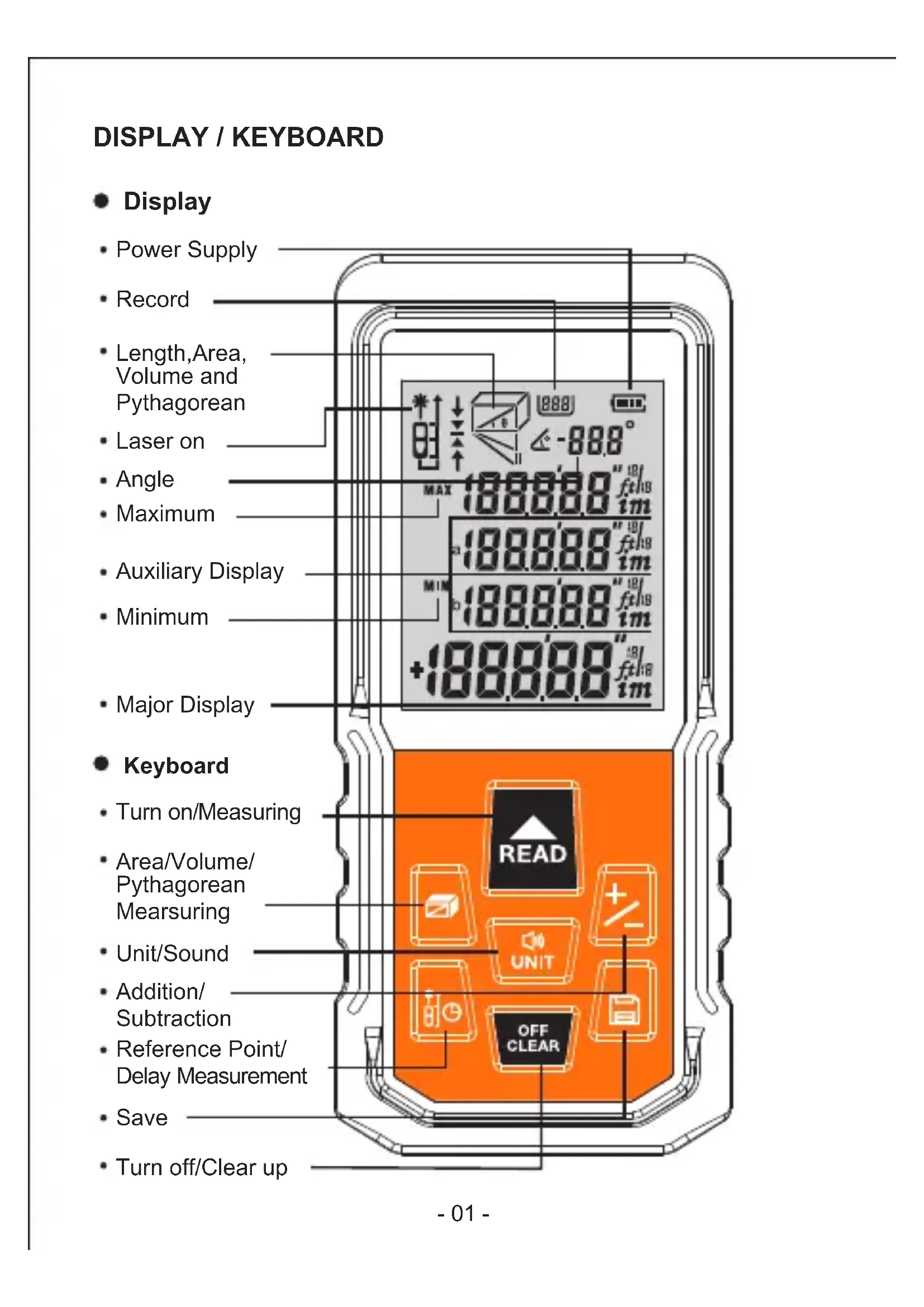

USER MANUAL S350 Tacklife

• Length, Area, Volume and Pythagorean

- Laser on

- Angle

- Maximum

- Auxiliary Display

- Minimum

- Major Display

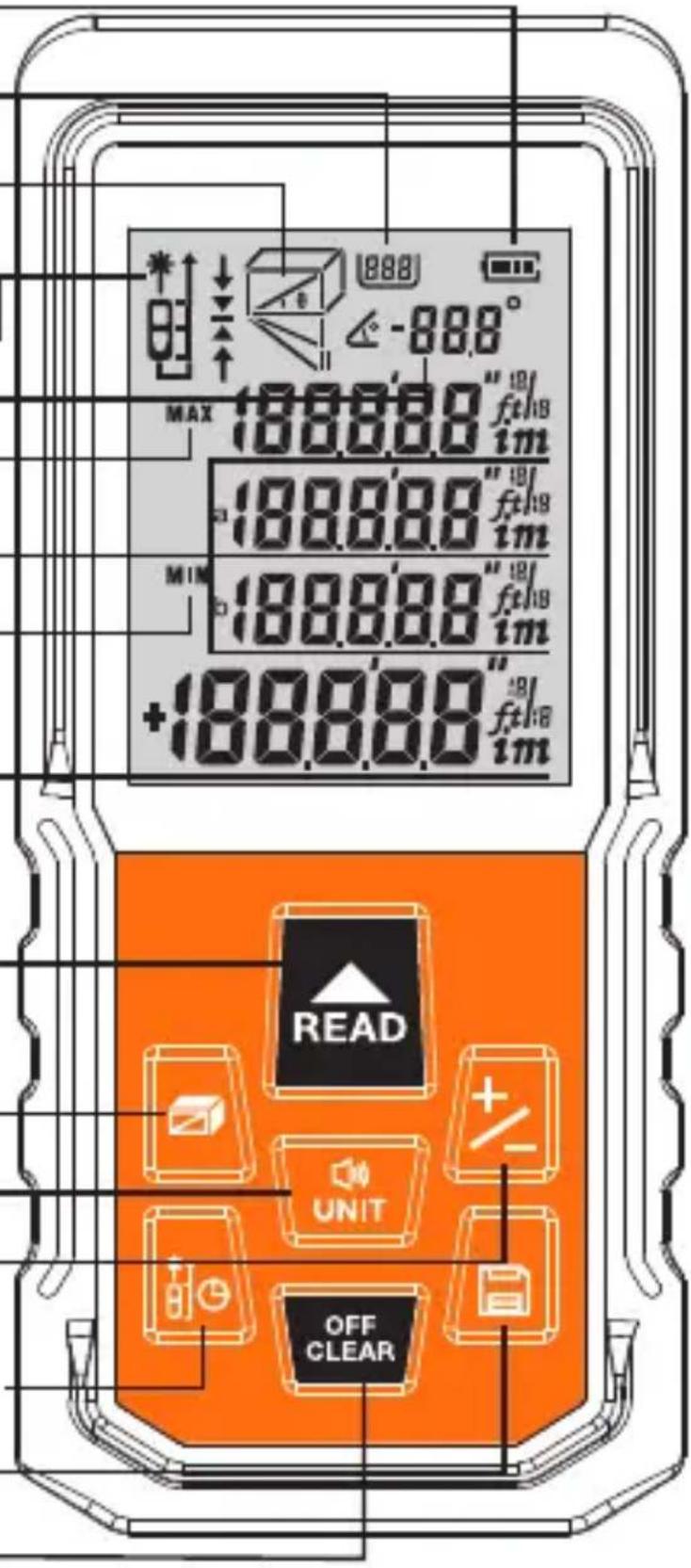

- Keyboard

- Turn on/Measuring

• Area/Volume/Pythagorean Mearsuring

- Unit/Sound

- Addition/ Subtraction

• Reference Point/Delay Measurement

- Save

- Turn off/Clear up

MAX 1888'89" 18/ft/18 im 1888'89" 18/ft/18 im MIN 1888'89" 18/ft/18 im +1888'89" 18/ft/18 im READ UNIT OFF CLEAR

Battery Installation

Black rectangular device with a white arrow pointing right, no visible text or symbols

Close-up of a battery pack with three cylindrical cells, no visible text or symbols

• Discharge the battery door on the back of device, and place battery according to correct polarity, then cover the battery door.
• Only 1.5 V AAA alkaline battery is applied to the meter.
• If the meter is not used frequently, please take out the battery to avoid battery corrosion to meter body.

Start and Settings

• Turn on / off the Instrument

Under off status, press button instantly and start to work.

, device and laser get starting

Under on status, long press button for 3 seconds to turn off the device. The device can also be off without any operation for 150 seconds.

- Unit setting

Under the measuring mode, long press button , reset measurement unit, the default unit is: 0.000m

There are 6 units for selection.

Units:

	Length	Area	Volume
1	0.000m	0.00m^2	0.000m^3
2	0.00m	0.00m^2	0.00m^3
3	0.0in	0.00ft^2	0.00ft^3
4	1/16in	0.00ft^2	0.00ft^3
5	0'00'1/16	0.00ft^2	0.00ft^3
6	0.00ft	0.00ft^2	0.00ft^3

- Changing Reference Point

Short press 📄 key to change the reference point. System default reference point is under its bottom.

- Delaying Measurement

Long press 📄, values shows in the screen. User can press 📋 or ✕ to adjust the time of measurement between 3s to 60s.

Press to start, the measure start when the time turns to 0.

- Back Light On / Off

The back light is set to turn on and off automatically. The back light can be on for 15s while operating, and it will be shut off automatically in 15s when there is no operation to the device.

- Sound on/off

Short press button 📄 to turn on or off the buzzer.

Self-Calibration

This function can keep the precision of the device automatically. Instruction: Power off, press button 📄 and 📆 till "CAL" and a figure under it displays on the screen. User can adjust the figure with button + , according to the accuracy of the meter. Adjusting range: -9 to 9mm, then press button to save the calibration result.

Length Measurement & Calculation

• Single Distance Measuring:

Short press 📄 to turn on the laser beam under measuring mode. Press the button 📄 again for single measurement of length, then the measured results will display on the major display area.

• Continuous Measurement:

Long press button 📄 under measuring mode and enter into continuous measuring mode. Maximum and Minimum measuring result will display in auxiliary display area, current result will show in major display area. Short press button 📄 or 📄 to withdraw continuous measuring mode.

• Area Measurement

Press button once, shows on the screen. One of the side of rectangle blinking on the display, please follow the below instructions for area measuring:

Press 📄 once for length measurement

Press 🖱️ again for width measurement

The device calculates and shows the result in the major display area.

The resent measuring result of length is showed in the auxiliary display area.

Press , clear off the result and measuring again if necessary.

Press again to exit the mode.

• Volume Measurement

Press button twice to enter volume measurement mode. A will shows on the top of screen. Please follow the below instruction for volume measuring:

Press for Length measurement

Press 📄 again for Width measurement

Press thirdly for height measurement

The device calculates and shows the result in the major display area.

The resent measuring result of length is showed in the auxiliary display area.

Press OFF CLEAN, clear off the result and measuring again if necessary.

Press OFF CLEAN again to exit the mode.

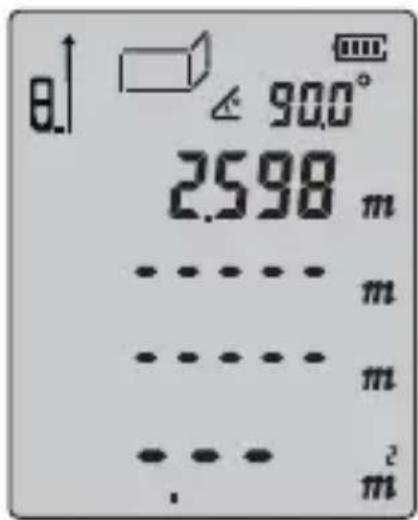

- Painter Function

When the meter is in area mode, you can use the add / subtract function to total up the area of several surfaces.

Press button three times till showing in the display.

Press to measure the height of the wall first;

Press 📂 to measure the bottom edge of the first wall, get the first area in the major display area;

Press 📄 to measure the bottom edge of another wall, get the sum of these two walls.

θ↑ ∠ 900° 25.98 m ------ m ------ m ------ m² . m

0.0° 2.598 m 2.536 m ------ m 6.589 m²

0 25.98 m 25.36 m 25.16 m 13.125 m²

Repeat these operations for more walls. Press button to previous measuring result and start new measurement.

ear the

When there is no data in the Auxiliary Display area, press 📄 to exit the mode.

- Pythagoras

a α b h

x b a ②

③ a b c x

④ = ≡ a b c x

There are four Pythagoras modes in case that user gets difficulties to measure directly.

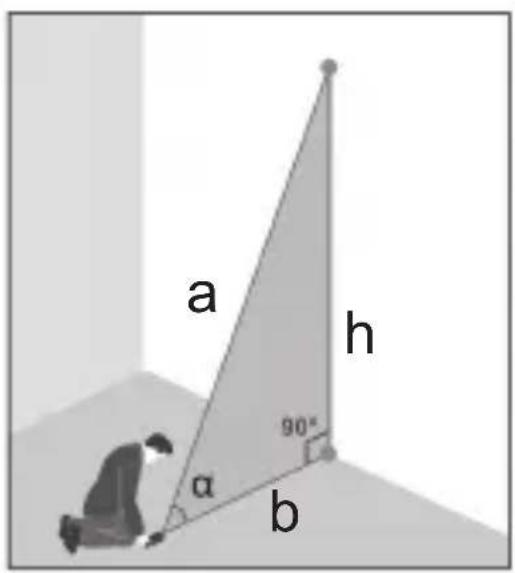

1. Calculate the length of two legs by measuring the hypotenuse and the angle.

Short press four times, when the hypotenuse of blinking, Press , measure the length of hypotenuse (a), and calculates the angle (α) between the bevel and the bottom at the same time.

Device calculates the horizontal distance (b) and vertical height (h).

a h 90° α b

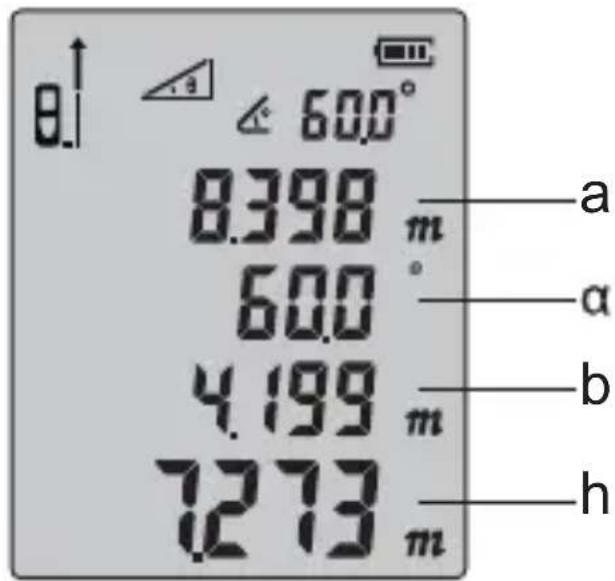

8.1 ∠ 60.0° 8.398 m 60.0 ° 4.199 m 7273 m a α b h

1. Calculate the hypotenuse by measuring the length of two legs.

Short press five times, when one leg of blinking,

Press 📄, measure the length of one leg (a)

Press , measure the length of another leg (b)

Device calculates the length of hypotenuse (x)

1. Press six times till the one side of blinking on the screen.

Press 📄, measure the length of one side (a)

Press 📄, measure the length of the median line (b)

Press , measure the length of another side (c)

Device calculates the length of the leg in full line (x)

1. Press seven times till the hypotenuse of blinking on the screen.

Press , measure the length of one hypotenuse (a)

Press , measure the length of another hypotenuse (b)

Press , measure the length of one leg (c)

Device calculates the length of the leg in full line (x)

Legs must short than hypotenuse, or there will be "err" shows on screen. In order to guarantee the accuracy, please make sure all measurements are start from the same point.

- Addition / subtraction

The device can be used for length addition and subtraction. Press to select the function once get the length measuring result.

Press ☑, "+" shows in the major display area, entering cumulation mode. Value of last measurement and the result of cumulation will be showed on the screen.

Press + again, "-" shows in the major display area, entering regressive mode. Value of last measurement and the result of cumulation will be showed on the screen.

Can choose the addition or subtraction mode by pressing the button. Not only length can be calculated in addition and subtraction, but area and volume can do the calculation as well. Take area as example:

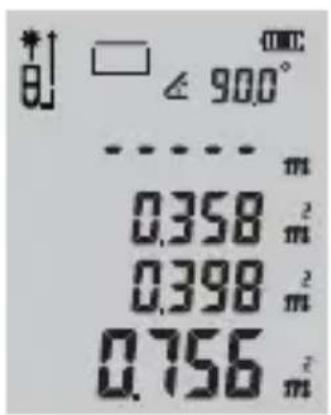

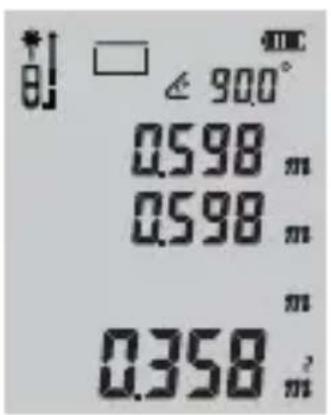

Area cumulative function: Measure the first area as showing in PIC1. Then press button ✦, and measure the second area as showing in PIC2, there is a "+" in the left bottom. At last, press button ✦ to get the summation result of these two areas which is showing in PIC3.

0.598 m 0.598 m m 0.358 m

PIC1 PIC2 PIC3

0.598 m 0.665 m + 0.398 m

0.358 0.398 0.756

Memory Function

Long press button 📄 for 3s to record your measuring result under measuring mode.

It can also record the result under Area, Volume and Pythagoras mode. All the calculating records can be saved by the device.

- Read / Delete the Record:

Short press button , read the records by press button and . Short press to delete recent record and long press to clear up all the records. Press or to exit record mode.

When the storage is full, the screen will display the [FUL] mark.

• Angle measurement

The angle information is displayed at the top of the screen, and the angle measurement range is -90.0^ to 90.0^ .

Tips

You may get some warning information as below:

Info message	Cause Solution
Err	Out of distance measurement range	Use the device within the range
Err1	Signal is too weak	Chose the surface with stronger reflectance. Use the reflecting plate.
Err2	Signal is too strong	Chose the surface with weaker reflectance. Use the reflecting plate.
Err3	Low battery voltage	Change the power supply.
Err4	The working temperature is out of working range	Use the device in the specified temperature.
Err5	Pythagoras measuring error.	Re-measure and ensure that Hypotenuse is bigger than Cathetus.
Err6	Angle sensor error	Depot Repair

Technology specifications :

ITEM S3-50 S3-100
Working Range	0.05 ~ 50m	0.05 ~ 100m
Distance measurement precision	±2mm *
Continuous measurement function	yes
Area measuremen function	yes
Volume measurement function	yes
Pythagorean proposition measurement function	Full mode
Painter function	yes
Angel function	yes
Add and subtract meas-urement function	yes
Min/Max value yes
Self-Calibration	yes
Laser level II
Laser type 635nm,<1mW
Max storage 30 units
Automatically cut off laser	20s
Automatic shutdown	150s
Battery life	8000 times for single measurement
Laser level	II
Storage temperature	-20°C~60°C
Working temperature	0°C~40°C
Storage humidity	RH 20%~85%
Battery	3x1.5V AAA
angle Range	±90°
Dimension 118*52*27mm

Note: Use a target plate to increase the measurement range during daylight or if the target has poor reflection properties.

Typical Tolerance: ±2mm, when reflectivity 100% (white surface), environment light <2000 LUX. 25°C Tolerance is usually affected by the distance, reflectivity, and environment light etc. It probably gets tolerance around ±(2mm+0.2mm/m).

Instrument Maintenance:

• The meter should not be stored in high temperature and strong humidity environment for long time; if it is not used very often, please take out the battery and place the meter in the allocated potable bag and store in cool and dry place.
• Please keep the device surface cleaning. Wet soft cloth is applied to clean dust, but erosion liquid is never allowed to use for the meter maintenance. Laser output window and its focus lens can be maintained according to maintenance procedures for optical device.
