Brand	Tacklife
Model	ACP1A
Product type	Portable air compressor (inflator)
Power supply	12 V DC (cigarette lighter socket)
Maximum pressure	150 PSI (10.3 bar)
Air flow rate	13 liters per minute
Display	Backlit digital display in PSI
Continuous capacity	Up to 4 car tires
Air hose length	20 cm (8 inches)
Power cord length	3.05 m (10 ft)
Included accessories	1 balloon needle, 3 nozzles, 1 spare fuse
Flashlight function	Built-in LED light with flash mode
Control	On/off switch
Protection	Spare fuse included
Operating temperature	From -7 °C to 49 °C (20 °F to 120 °F)
Intended use	Occasional inflation of tires, balls, inflatable mattresses
Safety	Do not leave unattended, avoid overheating (cool down 30 min), do not use while driving
Maintenance	Clean connectors, check for leaks, store away from moisture
Recycling	Electrical appliance to be recycled at a suitable collection point

Frequently Asked Questions - ACP1A Tacklife

How to connect the Tacklife ACP1A inflator?

Plug the power cord into a 12 V cigarette lighter socket (engine running). Remove the valve cap, screw the connector onto the tire valve, then press the ON/OFF button to start.

What maximum pressure can this inflator reach?

The maximum pressure is 150 PSI (approximately 10.3 bar). Do not exceed this limit to avoid any risk of bursting.

Can you inflate car tires with it?

Yes, it can inflate up to 4 car tires continuously. Be sure to respect the pressure recommended by the vehicle manufacturer.

What to do if the inflator does not start?

Check the plug connection in the cigarette lighter socket, clean the contacts if necessary, and ensure that the vehicle's fuse is at least 10 amps.

The inflator works but does not send air, why?

Ensure that the connector properly touches the valve core. Inspect the hose for leaks or breaks. If the problem persists, the fuse may have blown.

How to avoid overheating of the device?

Do not use the inflator continuously: after each extended use, let it cool down for 30 minutes. If the metal fittings become very hot, stop immediately.

Can you use this inflator while driving?

No, it is prohibited to use the inflator while driving. Use it only with the vehicle stationary.

How to maintain the Tacklife ACP1A?

Regularly clean the connectors of the plug and hose. Store the device in a dry place, away from frost (< -7 °C) and excessive heat (> 49 °C).

What accessories are included?

The kit includes: 1 balloon needle, 3 nozzles for different inflations, and 1 spare fuse (10 A).

How to recycle the device at the end of its life?

Do not throw the device into household waste. Drop it off at a collection point for waste electrical and electronic equipment (WEEE) to recycle the materials.

USER MANUAL ACP1A Tacklife

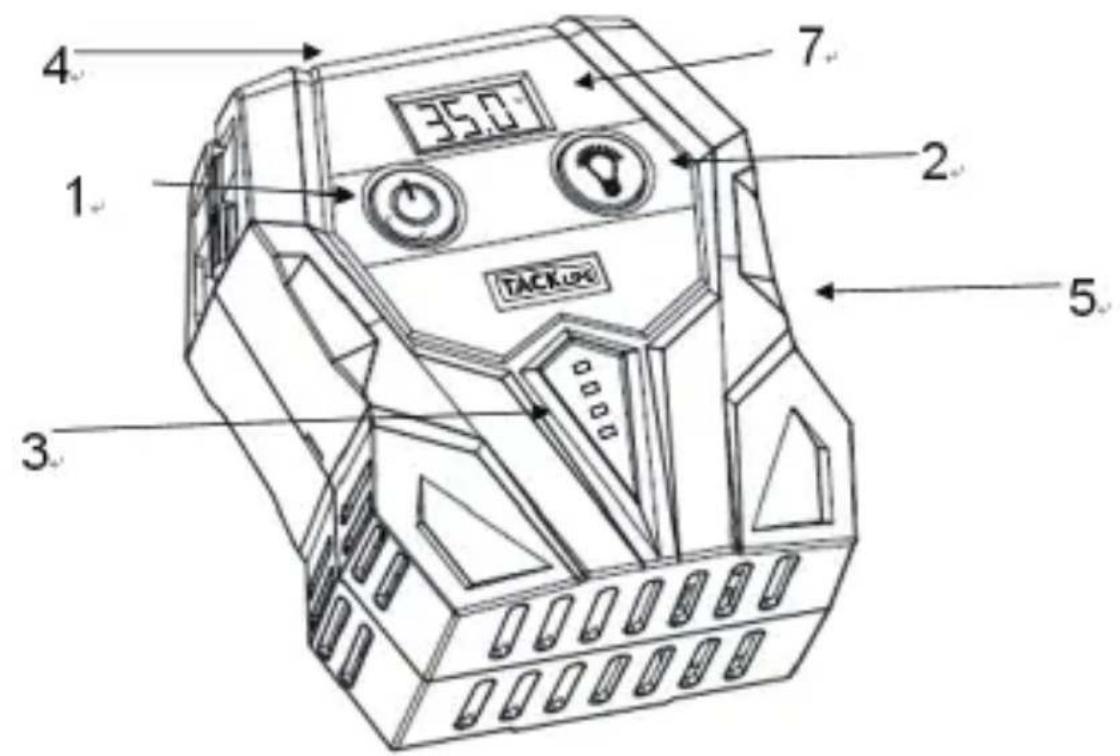

1. ON/OFF Switch
2. Flashlight Switch
3. LED Light
4. Air hose
5. Power Cord

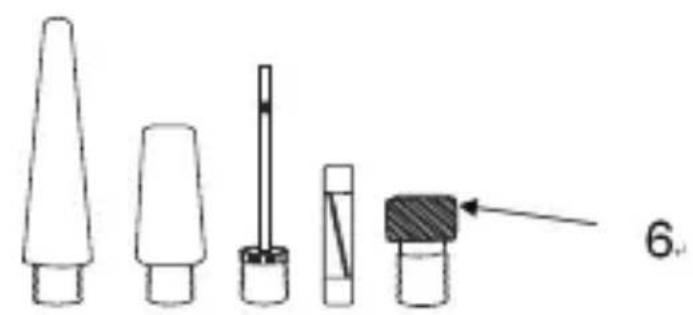

6. 1 sports needle 3 nozzles and 1pc spare fuse
7. Digital Backlight Display

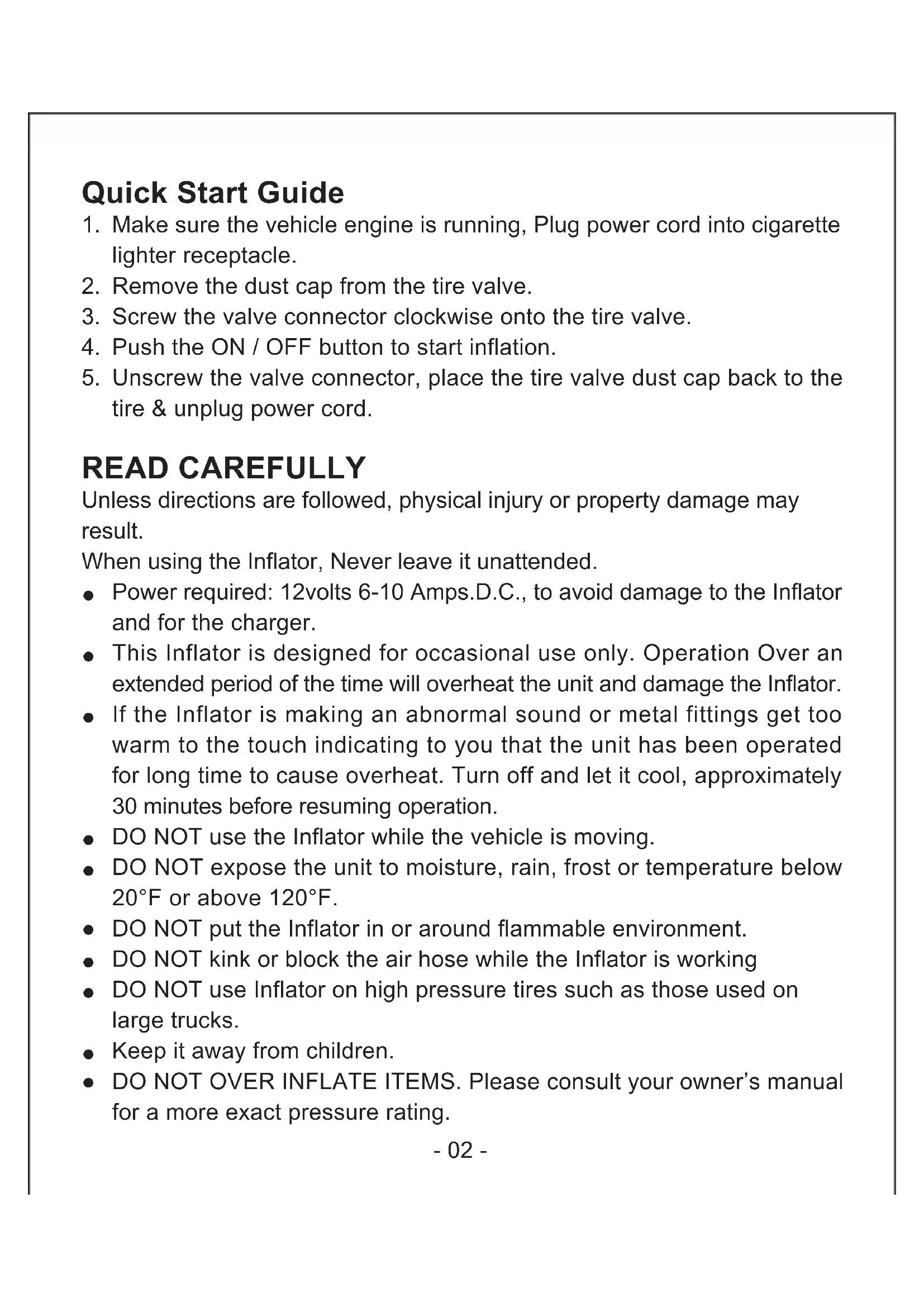

Quick Start Guide

1. Make sure the vehicle engine is running, Plug power cord into cigarette lighter receptacle.
2. Remove the dust cap from the tire valve.
3. Screw the valve connector clockwise onto the tire valve.
4. Push the ON / OFF button to start inflation.
5. Unscrew the valve connector, place the tire valve dust cap back to the tire & unplug power cord.

READ CAREFULLY

Unless directions are followed, physical injury or property damage may result.

When using the Inflator, Never leave it unattended.

• Power required: 12volts 6-10 Amps.D.C., to avoid damage to the Inflator and for the charger.
• This Inflator is designed for occasional use only. Operation Over an extended period of the time will overheat the unit and damage the Inflator.
• If the Inflator is making an abnormal sound or metal fittings get too warm to the touch indicating to you that the unit has been operated for long time to cause overheat. Turn off and let it cool, approximately 30 minutes before resuming operation.
  DO NOT use the Inflator while the vehicle is moving.
  DO NOT expose the unit to moisture, rain, frost or temperature below 20^ or above 120^ .
  DO NOT put the Inflator in or around flammable environment.
  DO NOT kink or block the air hose while the Inflator is working
• DO NOT use Inflator on high pressure tires such as those used on large trucks.
• Keep it away from children.
• DO NOT OVER INFLATE ITEMS. Please consult your owner's manual for a more exact pressure rating.

Over inflating may cause serious injury and burst.

Specification

• Volatage: 12V DC
• Power Source: 12 Volt Cigarette Lighter Plug Socket
  Maximum Working Pressure: 150PSI
  Inflating Speed: 13L / Min
• Display Units: PSI
• Can be continue inflate 4 car tire
  Air Hose Length: 8 inches
  Power Outlet Length: 10 Feet
• Ambient Temperature: 20^ 120^
• Flashlight: Bright Torch
  Adapters for balls and inflatable and one spare fuse included.

Troubleshooting

• INFLATOR DOES NOT START / BLOWS FUSES

• Make sure the power plug connect into the receptacle correctly.

• Clean receptacle and plug terminals if there is any dirt.
  Check vehicle lighter fuse. Should be 10 amps or higher.

• INFLATOR RUNS BUT CAN NOT INFLATE

• Make sure the connector always touches the core of the valve stem.
  Check hose for breaks and leaks at fittings.
  INFLATOR RUNS SLOWLY
  Overhead from excessive use. Shut it off and let it cool for 30 minutes.

• Voltage too low. Check condition of your vehicle battery.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal.

The materials are recyclable as mentioned in its marking. By recycling material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment.
