PCD02B - Screwdriver Tacklife - Free user manual and instructions

Brand	Tacklife
Model	PCD02B
Product type	Cordless drill/driver
Intended use	Screwing and drilling in wood, plastic and metal
Power supply	Battery 10-12 V, specific charger included
Variable speed	Yes, with electronic trigger
Adjustable torque	Yes, multi-position adjustment ring
Rotation direction	Reversing switch for screwing and unscrewing
Chuck	Quick-release chuck (keyless)
Weight	Approximately 1.2 kg (with battery)
Dimensions (L x W x H)	Approximately 20 x 6 x 18 cm
Noise level	< 70 dB(A)
Charging temperature	0°C to 45°C
Battery storage temperature	-20°C to 50°C
Electrical safety	Double insulation, short-circuit protection
Housing material	Reinforced plastic
Maintenance and cleaning	Clean with a damp cloth, do not immerse in water
Spare parts	Available from the manufacturer or after-sales service
Warranty	2 years (subject to general terms and conditions)
Package contents	Drill/driver, charger, battery, bits, user manual

Frequently Asked Questions - PCD02B Tacklife

What is the battery voltage of the Tacklife PCD02B drill/driver?

The drill/driver operates with a 10-12 V battery included with the unit.

Can this drill/driver be used to drill metal?

Yes, it is designed to drill in wood, plastic and metal, within the limits of the technical data.

How to adjust the tightening torque?

Turn the torque adjustment ring located behind the chuck to select the torque suitable for screwing.

Is the charger compatible with other batteries?

No, only use the charger provided with this model, as it is specifically designed for the PCD02B battery.

What to do if the battery does not charge?

Check that the ambient temperature is between 0°C and 45°C and that the contacts are clean. If the problem persists, contact after-sales service.

How to reverse the rotation direction?

Use the rotation direction switch located above the trigger. Push it left for screwing, right for unscrewing.

Is it safe to use this drill/driver in the rain?

No, never expose the tool to rain or moisture. This increases the risk of electric shock.

How to clean the drill/driver?

Disconnect the battery and clean the exterior with a damp cloth. Never immerse the device in water.

What accessories are included in the package?

The package contains the drill/driver, a charger, a battery, a set of bits, and the user manual.

Is the drill/driver suitable for intensive professional use?

It is designed for household and semi-professional use. For intensive use, choose a professional-grade tool.

USER MANUAL PCD02B Tacklife

TACK LIFE

User Manual

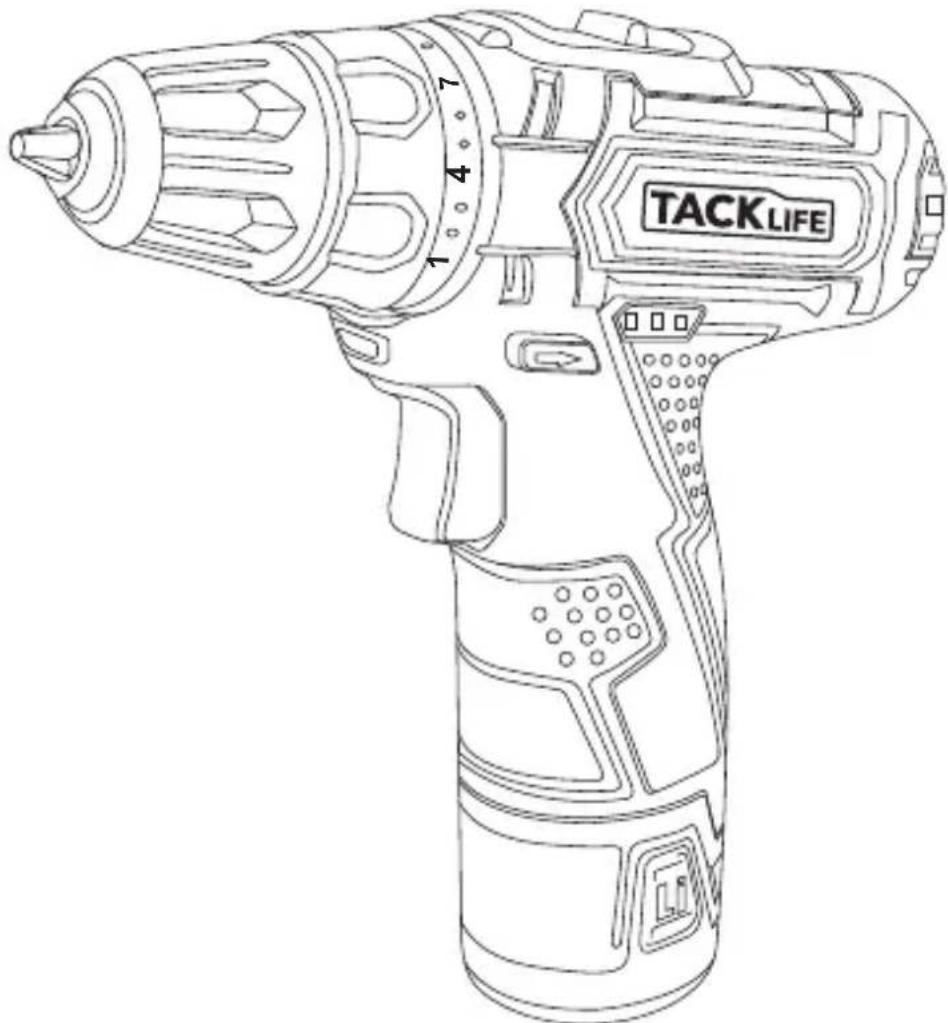

Cordless Drill/Driver

TACK LIFE

Model: PCD02B

Contents

English 01\~03

Deutsch 04\~07

Français 08\~11

Españo 12\~15

Italiano 16\~19

日本語 20\~22

For your own safety thoroughly read the operating manual!

Intended use

Only use the device PCD02B 10-12V

• for screwing,
• for drilling in wood, plastic and metal, whilst adhering to the technical data (see operating manual).

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

General Power Tool Safety Warnings – Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

General Power Tool Safety Warnings – Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

• Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

General Power Tool Safety Warnings – Personal safety

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

General Power Tool Safety Warnings – Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

General Power Tool Safety Warnings – Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

General Battery Pack / Charger Safety Warnings

• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Do not charge other battery packs. The charger is only suitable for use with the supplied battery pack and with the voltages specified in the technical data. Otherwise, there is a risk of fire and explosion.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• In case of damage and improper use of the battery, vapours may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapours can irritate the respiratory system.
• Do not open the battery. There is danger of a short circuit.
• Do not short-circuit the battery. There is danger of explosion.
• Batteries must not be exposed to mechanical impacts.
• Protect electrical parts against moisture. To prevent an electric shock, never immerse them in water or other liquids during cleaning or operation. Never hold the charger under running water. Please observe the instructions for cleaning and maintenance.

Residual risks

Danger!

Do not expose the battery to temperatures above 45 °C ! Do not let the battery come into contact with water or fire! Avoid direct sunlight and moisture. There is a risk of explosion!

Caution

Set the torque and rotational direction according to the operating mode. A wrong selection may damage the device.

ADD: No.31, Qing Linxi Road, Longgang District,

Shenzhen, Guangdong, China 518172

Made in China
