Product type	Dehumidifier
Brand	Scheppach
Model	DH6500i
Rated power	750 W
Maximum power	1080 W
Supply voltage	230 V / 50 Hz
Current draw	3.3 A
Operating temperature range	5 to 35 °C
Adjustable humidity range	26% to 90%
Dehumidification capacity	65 L/day (30 °C / 80% RH)
Refrigerant	R410a (560 g)
Air flow rate	400 m³/h
Recommended area	80 to 100 m²
Drain hose length	5 m
Maximum pumping height	4.5 m
Weight	38 kg
Digital display	Yes
Automatic drain	Yes
Built-in pump	Yes
Automatic defrost function	Yes
Filter maintenance	Wash with warm water once a month
Remote control battery	6F22 9 V (replaceable)
Operating principle	Condensation
Use	Domestic, enclosed rooms

Frequently Asked Questions - DH6500i SCHEPPACH

How to start the Scheppach DH6500i dehumidifier?

Plug the appliance into a 230 V socket, then press the ON/OFF button. The appliance starts automatically. Set the desired humidity level with the arrow buttons.

Why is the dehumidifier not working?

Check the power supply and that the plug is properly inserted. If code E4 appears, empty the water tank. The appliance may also be in automatic defrost mode (wait a few minutes).

How to set the desired humidity?

Use the arrow buttons to choose a level between 26% and 90%. If you go below 26%, the display shows CO (continuous operation).

What does the 'defrost' display mean?

When the temperature is low, the appliance defrosts automatically. The compressor stops but the fan continues. After defrosting, dehumidification resumes on its own.

How to clean the air filter?

Remove the filter and wash it with warm water (no detergent). Dry it well before putting it back. Monthly cleaning is recommended.

Why is the appliance making noise?

Check that it is placed on a flat surface and that the air inlets/outlets are not obstructed. A slight compressor noise is normal.

How to drain water manually?

Press the P (Purge) button to empty the tank. Otherwise, the appliance drains automatically via the drain hose. Make sure the hose is not kinked.

Can I use an extension hose for the air outlet?

Yes, you can connect a plastic hose with a diameter of 170 mm to the air outlet to expel humid air more effectively.

What to do in case of water leakage?

Check the seal of the collection tank. If necessary, replace the tank. Also ensure the drain hose is not punctured.

How to transport the dehumidifier?

Unplug the appliance and empty the water. Always transport it in an upright position. If it has been laid down, let it stand upright for at least 1 hour before restarting.

USER MANUAL DH6500i SCHEPPACH

Table of contents: Page:

1. Introduction 16
2. Device description 16
3. Scope of delivery 16
4. Intended use 16
5. Safety information 17
6. Technical data 19
7. Assembling 19
8. Operation 19

9. Maintenance 20

10. Storage 20

11. Electrical Connection 20
12. Transport 21
13. Disposal and recycling 21
14. Troubleshooting 21
    15.Declaration of conformity 34
15. Guarantee certificate 35

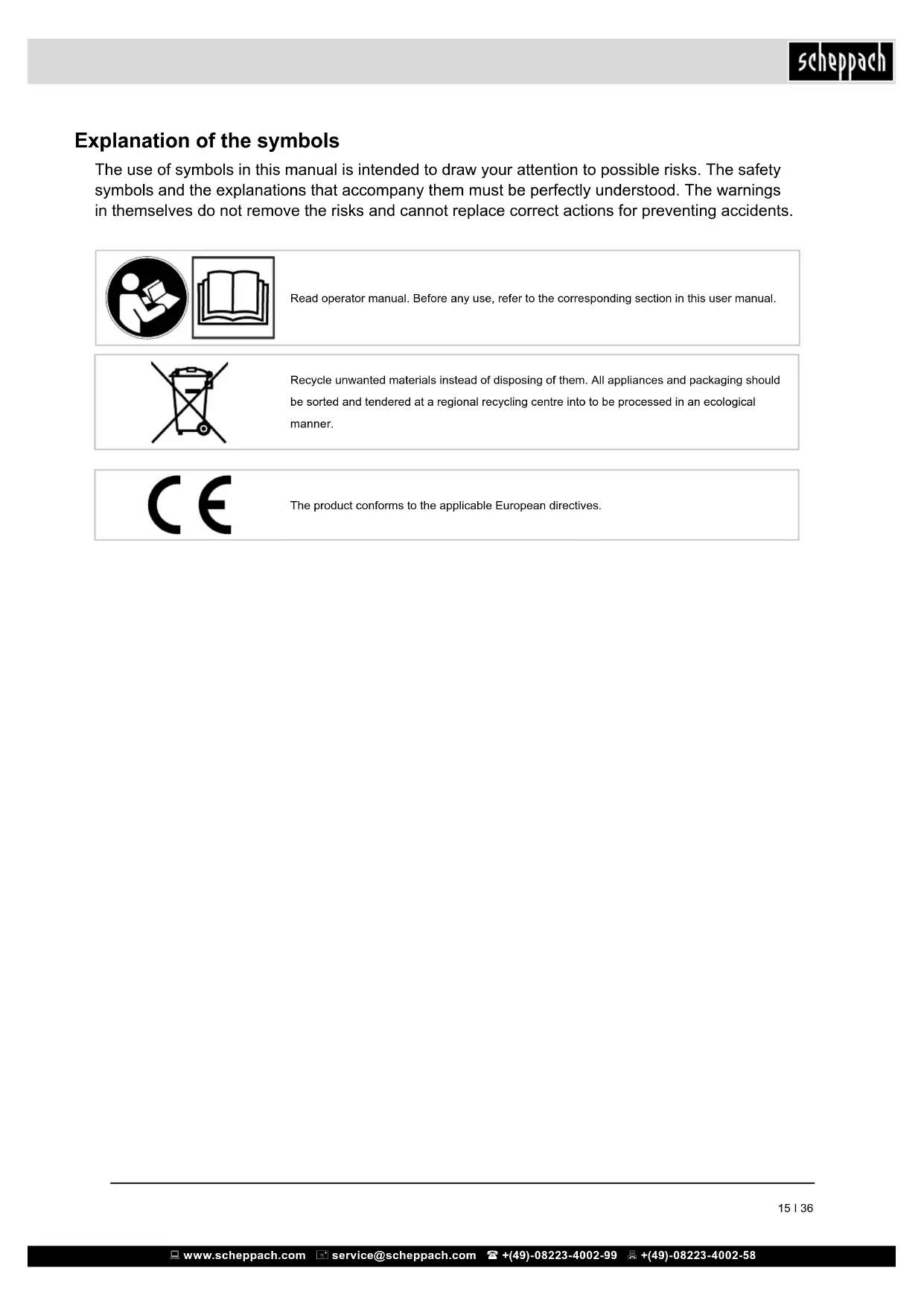

Explanation of the symbols

The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents.

Read operator manual. Before any use, refer to the corresponding section in this user manual.

Recycle unwanted materials instead of disposing of them. All appliances and packaging should be sorted and tendered at a regional recycling centre into to be processed in an ecological manner.

The product conforms to the applicable European directives.

1. Introduction

Manufacturer:

scheppach

We hope you have a lot of fun and success using your new machine.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• improper handling,
• noncompliance of the operating instructions,
• repairs by third parties, not by authorized service technicians.
• installation and replacement of non-original spare parts,
  non-intended use,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

We recommend:

that you read through the entire operating instructions before putting the machine into operation.

These operating instructions are to assist you in getting to know your machine and utilize its proper applications. The operating instructions contain important notes on how you work with the machine safely, expertly, and economically, and how you can avoid hazards, save repair costs, reduce downtime and increase the reliability and service life of the machine. In addition to the safety requirements contained in these operating instructions, you must be careful to observe your country's applicable regulations.

The operating instructions must always be near the machine. Put them in a plastic folder to protect them from dirt and humidity. They must be read by every operator before beginning work and observed conscientiously. Only persons who have been trained in the use of the machine and have been informed of the various dangers may work with the machine. The required minimum age must be observed. In addition to the safety requirements in these operating instructions and your country's applicable regulations, you should observe the generally recognized technical rules concerning the operation of identically constructed devices.

2. Device description (Fig. 1-3)

1. Handle
2. Control Panel
3. Air Inlet Grille
4. Wheels
5. Water pipe bracket
6. Air Outlet Grille
7. Power Cord
8. Water Pipe

A. Purge key
B. Humidity and Time Display
C. Time key
D. Operating Indicator
E. ON/OFF key
F. Defrosting Indicator
G. Up and Down key
H. Purging Indicator

3. Scope of delivery

1x-DH6500i
1x-Handle
1x - Manual

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available)
• Check that the delivery is complete.
• Check the device and its spare parts for possible damage caused by transportation. In the event of complaints, you must contact the distributor without delay. Claims at a later stage will not be accepted.
• If possible, store the packaging until the warranty period has expired

Attention!

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

4. Intended use

The device is designed for applications operated with a 230V alternating current source.

Be sure to observe the restrictions in the safety instructions.

This air dehumidifier is only designed for indoor use to dry moist walls damage caused by water or to reduce the air humidity in confined spaces.

The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.

Follow the relevant accident prevention rules for operation and other generally recognised health and safety at work rules.

The machine is to be used only for its prescribed

purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

Function principle

This air dehumidifier works on the basis of the condensation principle.

Room air is sucked through a refrigerating element where water vapour in the air condense as water droplets. Then, the water droplets flow into a condensation water bowl and further into the water container while the dried cold air is piped through the condenser of the device, heated and blown again into the room.

The temperature of the blown out air is approx. 2 - 5^ above the room temperature. This increase of heat is caused by power introduced in the compressor and fan and by heat which is released by the condensation of the water vapour.

The relative humidity of air is gradually reduced thanks to continuous recirculation of the room air through the device resulting in a quick and gentle drying of the room.

Water vapours move easily and unhindered through the air. Therefore, it is essential to "seal" the room as tight as possible. That means doors and windows must kept closed and entering and leaving the room should be restricted if possible. Otherwise the drying efficiency of the device is considerably impaired.

5. Safety information

These operating instructions provide places concerning your safety which are marked with this indication:

Furthermore this manual contains other important sections which are marked with the word "ATTENTION!".

Attention!

While using the machine some safety precautions must be observed to prevent injuries and damage. Read the directions with due care. If you give the equipment to any other person, give them these operating instructions as well. We assume no liability for injuries or damages which are results of noncompliance of this manual and its safety notes.

DANGER

Failure to follow these instructions may cause serious danger to life or fatal injuries.

WARNING

Failure to follow these instructions may cause danger to life or danger of serious injuries.

CAUTION

Failure to follow these instructions may cause light to medium risk of injury.

NOTE

Failure to follow these instructions may cause danger of damage of the engine or other property values.

General Power Tool SafetyWarnings

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains operated (cored) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current

device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If dam

aged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

ADDITIONAL SAFETY INSTRUCTIONS FOR DEHUMIDIFIER

DEHUMIDIFIER SAFETY WARNINGS

1. Guard against electric danger.
2. Do not touch any mechanically moving parts or hot parts. Do not remove protective covers.
3. Do not use electrical equipment (including extension cables and connectors) that are faulty.
4. Check whether the mains voltage matches the one on the label of the device.
5. Don't pull the mains plug in order to unplug the device from the socket.
6. Make sure not to damage or run over cables when moving the device.
7. The socket has to be earthed and appropriately secured.
8. The dehumidifier must not be covered when used. Don't put clothes or other objects on it.
9. Keep foreign objects away from air inlet/outlet openings.
10. Only use the dehumidifier on sturdy and even ground.
11. Do not turn, tip or change the device position while it is working.
12. Don't put the device close to sources of heat, like radiators, radiant heaters, etc.
13. Don't use the product close to chemicals and acids. Those might damage the collection container or even the whole device.
14. Unplug the device if it is not used for a longer period or you want to clean it.
15. If you want to use permanent drainage, make sure that the hose is not banded and the water can flow through unhindered. Don't use permanent drainage when temperatures are very low and the water could freeze.
16. Protect the device from splashing water.
17. Only use an earthed standard socket with a 220-240V AC connection.
18. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. Drain the water container before transporting the device to prevent spills.
2. Unplug the device if problems like smell of burning occur while using it.

SAFETY INFORMATIONS SERVICE/ MAINTENANCE

1. Only original parts may be used for maintenance and accessories.
2. Before using, always visually inspect to see that the tools are not worn or damaged. Replace worn or damaged elements and bolts. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.

WARNING!

Improper maintenance or ignoring/ not rectifying a problem during the operation may become a source of danger. Operate your machine only if regularly maintained. Only in this way you can assume that your device is operating safe, economical and without malfunctions.

Do not clean, maintain, setup or repair the machine whilst running. Moving parts may cause serious injuries.

Do not use fuel or other flammable solvents to clean the equipment.

Repairs must be carried out by qualified experts with appropriate knowledge about the product.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

RESIDUAL RISKS

Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose. Residual risks can be minimised if the "Safety advices" and the "Intended usage" as well as the whole of the operating instructions are observed. Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

• Risk from electricity when using improper electrical connections.
• Touching live parts of opened electrical components.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

6. Technical data

Model DH6500i
Rated power 750 W
Max. power 1080 W
Electrical power supply 230 V / 50 Hz
Rated current 3.3A
Temperature range 5° - 35°C
Humidity of air range 26% - 90%
Dehumidification performance at (30°C/80%)	65 L/d
Refrigerant R410a
CO2 Equivalent 1.169 t
Global Warming Potential 2088
Refrigerant quantity	560g
Self purging	Yes
Pump power	2.5 L/min
Air flow rate	400 m3/h
Room area	80 - 100 m2
Hose length	5 m
Pump height	4.5 m
Display	Yes
Weight	38 kg

Subject to technical modifications!

7. Montage

Attaching wheels and handle Fig.

Put handle into the recesses provided and fix it with 6 screws.

8. Operation

1. Operate the dehumidifier in an enclosed area. Close all doors and windows. Place the dehumidifier away from walls and furnishings. (Fig.4)
2. The dehumidifier pump connects to a plastic drainage hose. Uncoil the entire hose ensuring there are no kinks or restrictions and place the unattached end into a water vessel or run to outdoors. The Position of drain water pipe would not be too high (until 4.5m ) (Fig.5)
3. Plug in the device
4. Press the ON/OFF key to turn the unit on, it will get into working mode automatically.
5. Set the humidity as described.
6. After using, press ON/OFF key to turn the unit off, while water pump will turn on automatically for 40 seconds to drain the rest water, ant turn off automatically.
7. As to a much wetter space, use a plastic pipe with diameter larger than 170~mm and tie the pipe to hood, it will be much faster and more effective to make it dry.

Functions of Keys:

1. Press the ON/OFF key to turn the unit On or Off
2. Press the PURGE key to empty water

from the pump reservoir. During normal operation the pump purges automatically when the reservoir is full. Use PURGE before moving the machine to avoid water sillage The pump will close automatically after forty seconds continuous operation.

1. Use UP and Down key to set or adjust humidity in the range between 26% and 90% . When the environmental humidity is below 26% "CO" will be displayed.
2. Press the "T" key to view working time and press the "T". If you want to view the totally working time, please press "T" once more, and it will show for 10 seconds and return automatically to the original working hours.
3. Defrost Indicator: The unit begins to defrost when the defrost indicator lights. When defrosting finishes, the unit begins to dehumidify automatically again.
4. As to a much wetter space, use a plastic pipe with diameter larger than 170mm and tie the pipe to hood, it will be much faster and more effective to make it dry.(Fig. 6)

Lock function

If the keys of "T" and "P" are pressed for 2 seconds at the same time, the operating light will keep shining and all the keys on the control panel will be in lock, but it can be unlock by the same action again.

Important Instructions

• The compressor turns itself on three minutes after turning on the dehumidifier.
• The ideal temperature for the dehumidifier to work in is from about +5^ up to about +35^
• When the device defrosts the cooling fan works properly but the inserted compressor switches it-self off.
• It is recommended to clean the filter once a month. Carefully clean it with clear warm water.
• Leave a safe distance between wall and air in- and outlets.
• Empty the collection container after each use.
• Unplug the device and attach the mains plug to the product if it is not in use over a longer period.
• Don't tilt the device more than 45^ , neither when moving nor when operating.
• If the dehumidifier was tilted by accident, don't use it for a period of 12 hours.

9. Maintenance

The air dehumidifier is designed for a trouble free operation and a minimum of maintenance. All movable parts are permanently lubricated. Inside the device, there are no other parts to be maintained.

Replacing the Battery (Fig 7)

• Remove the screws in the four corners of the control panel.
• Once the screws are removed, carefully lift the control panel.
• On the PCB is a 6F22 9V battery. Remove the battery and replace with new.
• Refit the control panel onto the PCB
• Refit the four screws.

Cleaning (Fig 8)

• Using luke-warm water to wash the airfilter.
• Keep all safety devices, air vents and the motor housing free of dirt and dust. Wipe the equipment with a clean cloth or clean it with compressed air at low pressure.
• We recommend that you clean your device after each use.
• Clean the unit regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; they may damage the plastic parts of the appliance. Make sure that no water can get inside the unit.

10. Storage

Store unused equipment in a dry, locked place out of the reach of children.

Note the following to extend the service life of your air dehumidifier and to ensure a perfect function:

• Drain the water collecting container and dry it carefully.
• Check the air dehumidifier for perfect condition to ensure a safe use of it after a longer period of storage.
• Carefully cover the air dehumidifier.

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Important information

In the event of an overloading the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

Passage points, where connection cables are passed through windows or doors.
- Kinks where the connection cable has been improperly fastened or routed.
- Places where the connection cables have been cut due to being driven over.
Insulation damage due to being ripped out of the wall outlet.
- Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection. Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the marking "H07RN".

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 230V
• Extension cables up to 25m long must have a cross-section of 1.5mm^2

Connections and repairs of electrical equipment may only be carried out by an electrician. Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate
  Machine data - type plate

MAINS CONNECTION

• The compressor is equipped with a mains cable with shock-proof plug. This can be connected to any 230V 50Hz shock-proof socket which is protected by a 16 A fuse.
• Before you use the machine, make sure that the mains voltage is the same as the operating voltage (see the rating plate).
• Long supply cables, extensions, cable reels etc. cause a drop in voltage and can impede motor start-up.
• At low temperatures below +5^ , sluggishness may make starting difficult or impossible.

12. Transport

Always transport the air dehumidifier in upright (vertical) position to prevent compressor damages. If you have transported the air dehumidifier in another than upright position (horizontal or tilted), allow the air dehumidifier to stand in upright position for at least one hour before starting it up.

14. Troubleshooting

13. Disposal and recycling

Please dispose the appliance, its accessories and packaging environmentally friendly and do not dispose them in household garbage (2012/19/EU). Within the EU, this symbol indicates that this product may not be dis

posed of with household waste. This article contains valuable recyclable materials and should be fed to a recycling system to protect the environment and human health that could be damaged from uncontrolled waste disposal. Please dispose of the product using appropriate collection systems or send the product for disposal to the place where you bought it. From there the product will then be delivered to recycling.

Recycling-alternative to returning the product: The owner of the electrical device is, alternatively instead of shipping the device back, obligated to participate in the proper disposal of the device. The used electrical device can be given over to a collection point where the disposal will be carried out according to the national recycling management and waste law. To receive information regarding public collection points, please contact the responsible local authority.

ERROR ERROR SOLUTION
Dehumidifier does not work. • Device has no power.Mains plug is not plugged in prop- erly.Display shows error code E4.	Turn on the power supplyConnect the mains plug properlyEmpty the water collection container.
Bad Dehumidification Perfor- mance	Air in- or outlet is covered. Room is not closed. Low moisture and temperature.	Uncover Air in- and outlet.Close all doors and windows.The lower the room temperature the worse the dehumidification perfor- mance.
High Noise Level	Device was not put on even ground. Air in- or outlet is covered.	Position the device on even ground.Uncover Air in- and outlet..
Water flows out of the device	Leakage of the water collecting con- tainer.	Check the water collecting container.Replace the water collecting con- tainer.

Table des matieres: Page:

hereby declares the following conformity under the EU Directive and standards for the following article

FR

89/686/EC_96/58/EC
2006/42/EC
	Annex IV Notified Body: Notified Body No.: Reg. No.:
2000/14/EC_2005/88/EC
	Annex V
	Annex VI
2004/26/EC
Emission. No:

Standard references: EN 62233: EN 60335-2-40: EN 6335-1: ZEK 01.4-08: EN 55014-1: EN 55014-2: EN 610003-2: EN 6100-3-3:

Subject to change without notice

Documents registrar: Schwarz Benjamin

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not

manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
