ESB5700BK - Blender ELECTROLUX - Free user manual and instructions

Product type	Blender
Brand	Electrolux
Model	ESB5700BK
Functions	Mixing, pulse, ice crushing (ICE CRUSH)
Speed control	Speed selector with Pulse and Ice Crush positions
Blade type	Removable blade
Included accessories	Bowl, lid, measuring cap, sealing gasket
Cleaning	Bowl, lid and measuring cap dishwasher safe; motor unit wipe clean with a damp cloth
Safety	Motor unit not submersible; very sharp blades; do not blend boiling liquids (max 90°C); do not use without lid
Use	Household use; mixing of warm liquids and solids; ice crushing
Cord storage	Compartment under the appliance
Non-slip feet	Yes
Sealing gasket	Rubber gasket for the blade unit
Maximum liquid temperature	90°C
Maximum operating time	2 minutes with heavy load, then 10 minutes cooling

Frequently Asked Questions - ESB5700BK ELECTROLUX

How to assemble the Electrolux ESB5700BK blender?

Place the sealing gasket on the blade unit, screw it under the bowl by turning counterclockwise. Snap the bowl onto the motor unit aligning the arrows. Cover and lock the lid.

Can I blend boiling liquids?

No, let hot liquids cool to warm temperature (max 90°C) before pouring into the bowl. Fill halfway and start at low speed.

How to clean my blender quickly?

Pour hot water with a few drops of detergent into the bowl, activate Pulse for a few seconds, then rinse with clear water.

The blender does not turn on, what to do?

Check that all parts are correctly assembled, the speed selector is in the correct position, the bowl is not too full, and the plug is connected. If the problem persists, contact an authorized service center.

Are the bowl and lid dishwasher safe?

Yes, the lid, bowl, and measuring cap can be cleaned in the dishwasher. The motor unit must be cleaned with a damp cloth.

How to crush ice with the blender?

Use the ICE CRUSH or Pulse function by pressing the selector in intervals of 3 to 5 seconds. You can add ice cubes through the filling opening while running.

Can I use accessories from other brands?

It is recommended to use only original Electrolux accessories and spare parts to ensure safety and performance.

What is the maximum capacity of the bowl?

The maximum capacity is indicated on the bowl. In general, do not exceed the fill line to avoid splashes.

How to store the power cord?

The cord stores in the compartment under the appliance.

Can the blender run for more than 2 minutes continuously?

With a heavy load, do not exceed 2 minutes of continuous operation. Then let it cool down for at least 10 minutes.

USER MANUAL ESB5700BK ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

ENGLISH

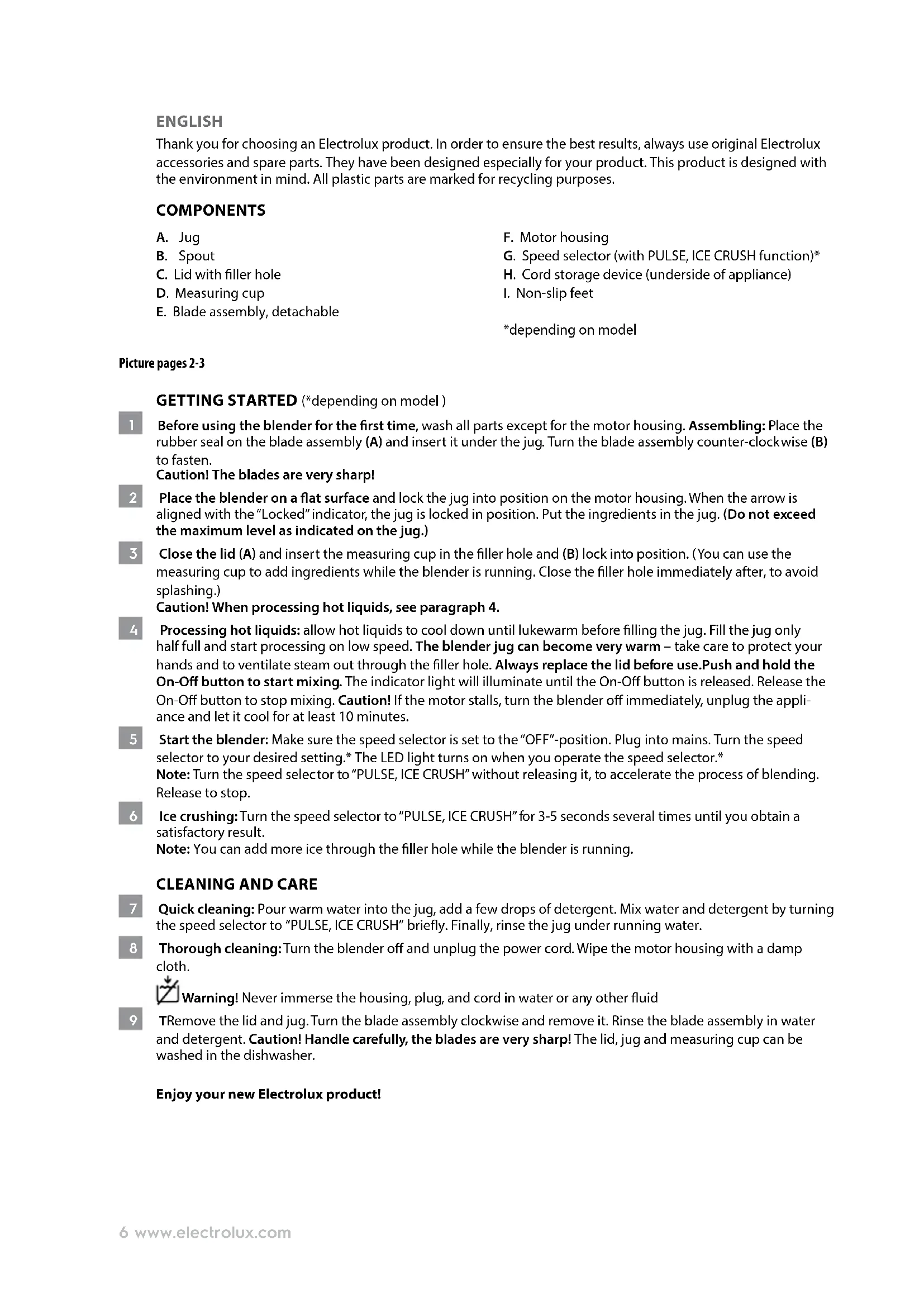

Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS

A. Jug

F. Motor housing

B. Spout

G. Speed selector (with PULSE, ICE CRUSH function)*

C. Lid with filler hole

H. Cord storage device (underside of appliance)

D. Measuring cup

E. Blade assembly, detachable

I. Non-slip feet

*depending on model

Picture pages 2-3

GETTING STARTED (*depending on model)

Before using the blender for the first time, wash all parts except for the motor housing. Assembling: Place the rubber seal on the blade assembly (A) and insert it under the jug. Turn the blade assembly counter-clockwise (B) to fasten. Caution! The blades are very sharp! 2 Place the blender on a flat surface and lock the jug into position on the motor housing. When the arrow is aligned with the "Locked" indicator, the jug is locked in position. Put the ingredients in the jug. (Do not exceed the maximum level as indicated on the jug.) 3 Close the lid (A) and insert the measuring cup in the filler hole and (B) lock into position. (You can use the measuring cup to add ingredients while the blender is running. Close the filler hole immediately after, to avoid splashing.)

Caution! When processing hot liquids, see paragraph 4.

4 Processing hot liquids: allow hot liquids to cool down until lukewarm before filling the jug. Fill the jug only half full and start processing on low speed. The blender jug can become very warm - take care to protect your hands and to ventilate steam out through the filler hole. Always replace the lid before use. Push and hold the On-Off button to start mixing. The indicator light will illuminate until the On-Off button is released. Release the On-Off button to stop mixing. Caution! If the motor stalls, turn the blender off immediately, unplug the appliance and let it cool for at least 10 minutes. 5 Start the blender: Make sure the speed selector is set to the "OFF"-position. Plug into mains. Turn the speed selector to your desired setting. The LED light turns on when you operate the speed selector. Note: Turn the speed selector to "PULSE, ICE CRUSH" without releasing it, to accelerate the process of blending. Release to stop. Ice crushing: Turn the speed selector to "PULSE, ICE CRUSH" for 3-5 seconds several times until you obtain a satisfactory result.

Note: You can add more ice through the filler hole while the blender is running.

CLEANING AND CARE

Quick cleaning: Pour warm water into the jug, add a few drops of detergent. Mix water and detergent by turning the speed selector to "PULSE, ICE CRUSH" briefly. Finally, rinse the jug under running water. 8 Thorough cleaning:Turn the blender off and unplug the power cord. Wipe the motor housing with a damp cloth.

Warning! Never immerse the housing, plug, and cord in water or any other fluid

9 Remove the lid and jug. Turn the blade assembly clockwise and remove it. Rinse the blade assembly in water and detergent. Caution! Handle carefully, the blades are very sharp! The lid, jug and measuring cup can be washed in the dishwasher.

Enjoy your new Electrolux product!

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if
• the supply cord is damaged,
• the housing is damaged.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
• Always place the appliance on a flat, level surface.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Never touch the blades or inserts with your hand or any tools while the appliance is plugged in.
• The blades and inserts are very sharp! Danger of injury! Caution when assembling, disassembling after use or when cleaning! Ensure that the appliance is disconnected from the mains supply. Do not immerse the appliance in water or any other liquid.
• Do not let the blender run for more than 2 minutes at a time using heavy loads. After running for 2 minutes with heavy loads, the blender should be left to cool for at least 10 minutes.
• Do not exceed the maximum filling volume as indicated on the appliances.
• Never process boiling liquids (max 90°C).
• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Never operate appliance without lid.
• Do not let the power cord touch hot surfaces or hang over the edge of a table or counter.
• Never use accessories or parts made by other manufacturers that are not recommended or sold; this may cause a risk of injury to persons.
• The appliance cannot be used for blending or grinding hard and dry substances, except for ice cubes.
• Keep hands and utensils out of the blender during operation to reduce the risk of severe injury to persons or damage to the blender.
• Ensure that the blender is switched off before removing it from the stand.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments; - farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

RECIPES

MAXIMUM PROCESSING TIME WITH HEAVY LOAD

2 min

WHISKING/WHIPPING QUANTITIES AND PROCESSING TIMES
Ingredients Quantity Time Speed
Cream 200-400 g 50~60 sec 1
Note: The temperature of the cream should be between 4 and 8 Degree Celsius.

RECOMMENDED BLENDING SPEED
Recipe Ingredients Quantity Time Speed
Pureeing raw vegetables	Carrots 20~80 g			20~30 sec 8
	Potatos	20~80	g
	Onions 20~80 g
	Water	60~160	g
Strawberries margaritas (Cocktail)	Tequila 240 ml			≤120 sec	8
	Triple sec	60	ml
	Frozen strawberries	225	g
	Frozen Lemonade concentrate	145	g
	Ice cubes	150	g
Pineapple-apricots Smoothie	Pineapple in slices	250	g	≤120 sec	8
	Dried Apricots	40	g
	Yoghurt	300	g
Milkshake	Milk	150-300	ml	20~30 sec 4
	Vanilla Ice cream	200-400	g
	Banana	1/4 - 1/2 pcs
	Chocolate syrup	30-60	g
Potato leek soup Leek	Potatoes	300	g	50~60 sec 4
	300	g
	Water	600	g
Pancake (Batters)	Wheat flour	150	g	40~50 sec 4
	Salt	1	Pinch
	Eggs	3	pcs
	Milk	250	ml
	Water	140	ml
	Butter	50	g

CHOPPING QUANTITIES AND PROCESSING TIMES

Ingredients Quantity Quality Time			Quality Time	Quality Time Speed
Bread crumbs 100-200 g			Coarse	3 sec	PulseMedium	3~5 sec	Fine	5~10 sec Pulse
Almonds 100-200 g	3 sec 3~5 sec			5~10 sec
Peppar	20-100 g 3 sec 5 sec			5~10 sec Pulse

TROUBLESHOOTING

SYMPTOM	CAUSE	SOLUTION
The blender does not switch on.	Components are not fixed properly.	Check if all the components are properly locked into position.
	The speed selector is not on the right position.	Choose the appropriate speed. To use PULSE function, make sure the speed selector is on PULSE position.
	The jug is overfilled.	Empty the jug so you do not exceed the maximum level.
	The plug is not properly connected to the power outlet.	Check the connection of the plug to the outlet or try another outlet.
	Power outage.	Wait until power outage is over.
	Functional problem.	Contact authorized service.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Electrolux reserves the right to change products, information and specifications without notice.

FRENCH

CLEANING AND MAINTENANCE

7 Quick cleaning: Pour warm water into the jug, and add a few drops of dishwashing liquid. Mix water and dishwashing liquid by turning the speed selector to "PULSE, ICE CRUSH" (PULSE, ICE CRUSH) for a short moment. Rinse the jug under running water. 8 Thorough cleaning: Turn off the blender and unplug the cord. Wipe the motor base with a damp cloth.

Warning: The motor base, plug, or power cord must never be immersed in water or any other liquid.

SAFETY PRECAUTIONS

Before first use of the device, carefully read the following instructions.

This device is not intended for use by children. Keep the device and its power cord out of reach of children. This device may be used by persons with reduced physical, sensory, or mental capabilities, or with a lack of experience and knowledge, provided they are supervised or have been instructed on the safe use of the device and understand the associated dangers. Do not let children play with the device. - The device may only be connected to a power outlet with a voltage and frequency that match the technical data table! Do not use the device if the power cord or housing is damaged. For safety reasons, a damaged device or power cord must be replaced by the manufacturer, a service agent, or another qualified specialist. Always place the device on a flat, horizontal surface. Always disconnect the device from the power supply when leaving it unattended, and before assembly, disassembly, or cleaning. Do not touch the blades or attachments with your hands or tools while the device is plugged in. - The blades and attachments are very sharp! Risk of injury! Be careful when assembling and disassembling after use and when cleaning! Make sure the device is unplugged from the power supply. Do not immerse the device in water or any other liquid. - Under heavy load, do not run the blender for more than 2 minutes continuously. After running under heavy load for 2 minutes, let the blender rest for at least 10 minutes. Do not fill beyond the maximum capacity indicated on the device. - Never process boiling liquids (temperature must not exceed 90°C). - Do not use the device for mixing paint. This could cause an explosion! Do not use the device without the lid. Do not allow the power cord to come into contact with hot surfaces, and do not leave it hanging from the table or work surface. Do not use additional accessories or spare parts from third-party manufacturers that have not been recommended for use with this product; this may lead to injury. - This device is not intended for crushing or grinding any hard or dry substances, except for ice cubes.

Caution: When operating the blender, do not touch its sharp parts and ensure that no foreign objects fall into the working blender. Failure to comply with these requirements may result in damage to the blender and serious injury. - Before removing the power supply, make sure the blender is switched off. This device is intended for household use only. The manufacturer is not responsible for any damage resulting from improper use. - This appliance is intended for domestic and similar applications, such as: - staff kitchen areas in shops, offices, and other working environments; - farmhouses; - by clients in hotels, motels, and other residential type environments; - bed and breakfast type environments.

RECIPES

MAXIMUM OPERATING TIME AT HIGH LOAD

2 MIN

QUANTITY AND TIME
