Product Type	Hi-Fi System
Brand	Aiwa
Model	XRM25
Main Unit Dimensions (W × H × D)	173 × 255.2 × 248.8 mm
Main Unit Weight	3.65 kg
Speaker Dimensions (W × H × D)	155 × 253 × 220 mm
Speaker Weight	2.6 kg
Power Supply	AC 120 V, 60 Hz
Power Consumption	50 W
Output Power	20 W + 20 W (1 kHz, THD 10%, 6 ohms)
Playback Formats	Audio CD, cassettes (Type I, II, IV), FM/AM radio
Main Functions	CD player, cassette deck, FM/AM tuner, graphic equalizer (ROCK/POP/JAZZ), T-BASS system, sleep timer, recording timer, karaoke (microphone)
Station Memory	32 preset stations (20 per band max)
CD Playback	Random, repeat, program (30 tracks)
Supplied Accessories	Remote control, FM antenna, AM loop antenna, speakers (left, right), instruction manual
Maintenance	Cabinet cleaning (soft dry cloth), head/path cleaning (every 10 h), head demagnetization (every 20-30 h)
Safety	Do not use near water, ensure ventilation (10 cm rear/top, 5 cm sides), avoid condensation, do not repair yourself
Repairability	Contact qualified technician; do not open

Frequently Asked Questions - XRM25 AIWA

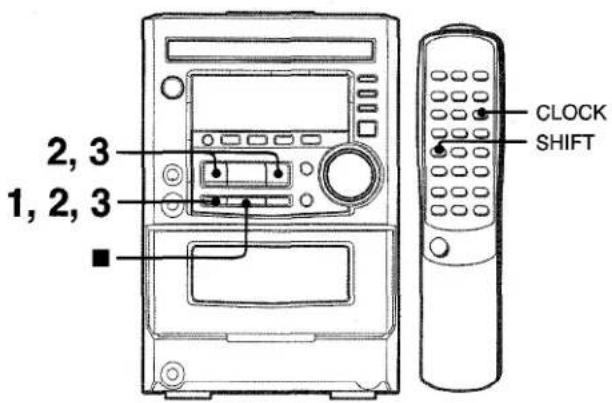

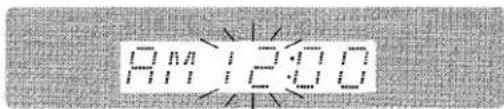

How do I set the clock on the Aiwa XRM25?

Simultaneously press SHIFT and CLOCK on the remote, then within 4 seconds press SET. The hour blinks: use DOWN or UP to set the hour, then press SET. Then set the minutes the same way and press SET. The clock starts at 00 seconds.

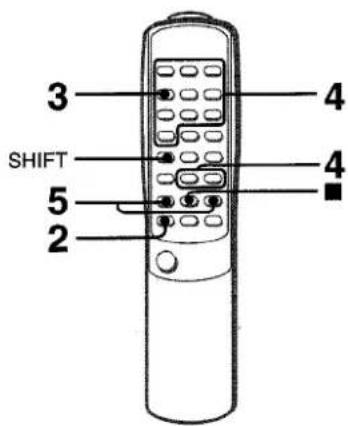

How do I record a CD to cassette with intelligent editing (AI EDIT)?

Insert the cassette (side to record facing outward). Select CD function. Press SHIFT + EDIT/CHECK once: 'EDIT' lights up and 'AI' blinks. Indicate the cassette duration (e.g., 60 with 6 and 0). The unit calculates the track order. To start, press TAPE REC/REC MUTE then within 2 seconds press ▶. The tape rewinds and recording begins.

How do I clean the cassette deck heads?

Use a cleaning cassette or a cotton swab soaked in denatured alcohol. Clean the record/playback head, erase head, capstans, and pinch rollers. Wait for complete drying before inserting a cassette. Perform this cleaning every 10 hours of use.

What if the unit does not power on?

Check that the power cord is properly plugged into a 120 V AC outlet. Ensure the outlet works. If the unit still does not turn on, unplug the cord and contact a qualified technician. Do not attempt to repair it yourself.

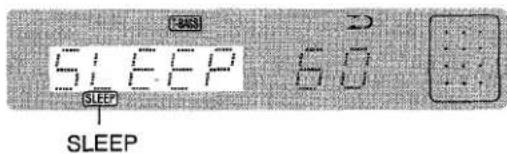

How do I use the sleep timer?

On the remote, press SHIFT + SLEEP. Within 4 seconds, use ◀ or ▶ to set the duration (from 5 to 240 minutes). The unit will automatically turn off after this time. To cancel, press SHIFT + SLEEP twice until 'SLEEP OFF' is displayed.

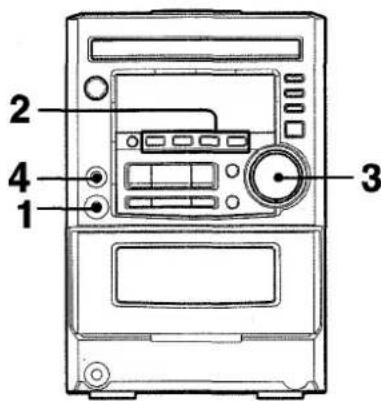

How do I connect a microphone and use karaoke?

Plug a microphone (3.5 mm mini-jack) into the MIC jack. Adjust the microphone volume with MIC VOL on the front panel. Select the music source (CD, tuner, etc.) and start playback. You can sing along. To record the mix, follow the normal recording procedure.

How do I preset radio stations?

Press TUNER/BAND to select FM or AM band. Use DOWN or UP to tune to a station. Press SET to memorize. A memory number is assigned automatically. Repeat for up to 32 stations. To recall, use the numeric keys on the remote or DIR/PRESET on the main unit.

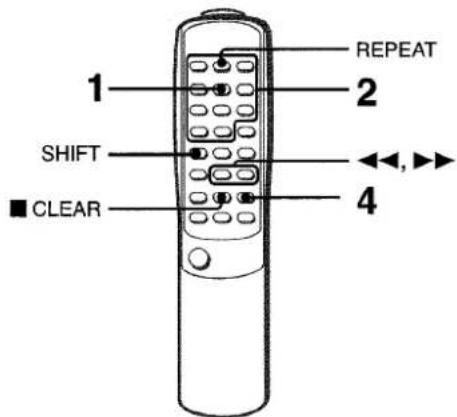

How do I program CD playback?

In stop mode, press SHIFT + PRGM on the remote. 'PRGM' is displayed. Use the numeric keys (0-9, +10) to select tracks in the desired order (max 30 tracks). Press ▶ to start programmed playback. To check the program, press ◀ or ▶ in stop mode.

What types of cassettes can I use?

You can use Type I (normal), Type II (high/CrO₂), and Type IV (metal) cassettes. For recording, use only Type I cassettes. Ensure the anti-erase tabs are not broken, otherwise recording is impossible.

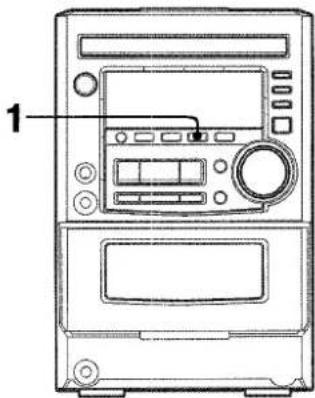

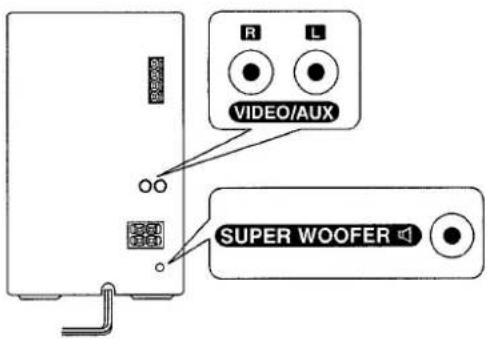

How do I connect an external device (e.g., turntable)?

Use the VIDEO/AUX jacks on the rear (RCA red/white). Connect the audio output of the external device. To listen, press AUX/VIDEO on the main unit. You can change the displayed name ('AUX', 'TV' or 'VIDEO') by simultaneously pressing AUX/VIDEO and POWER.

USER MANUAL XRM25 AIWA

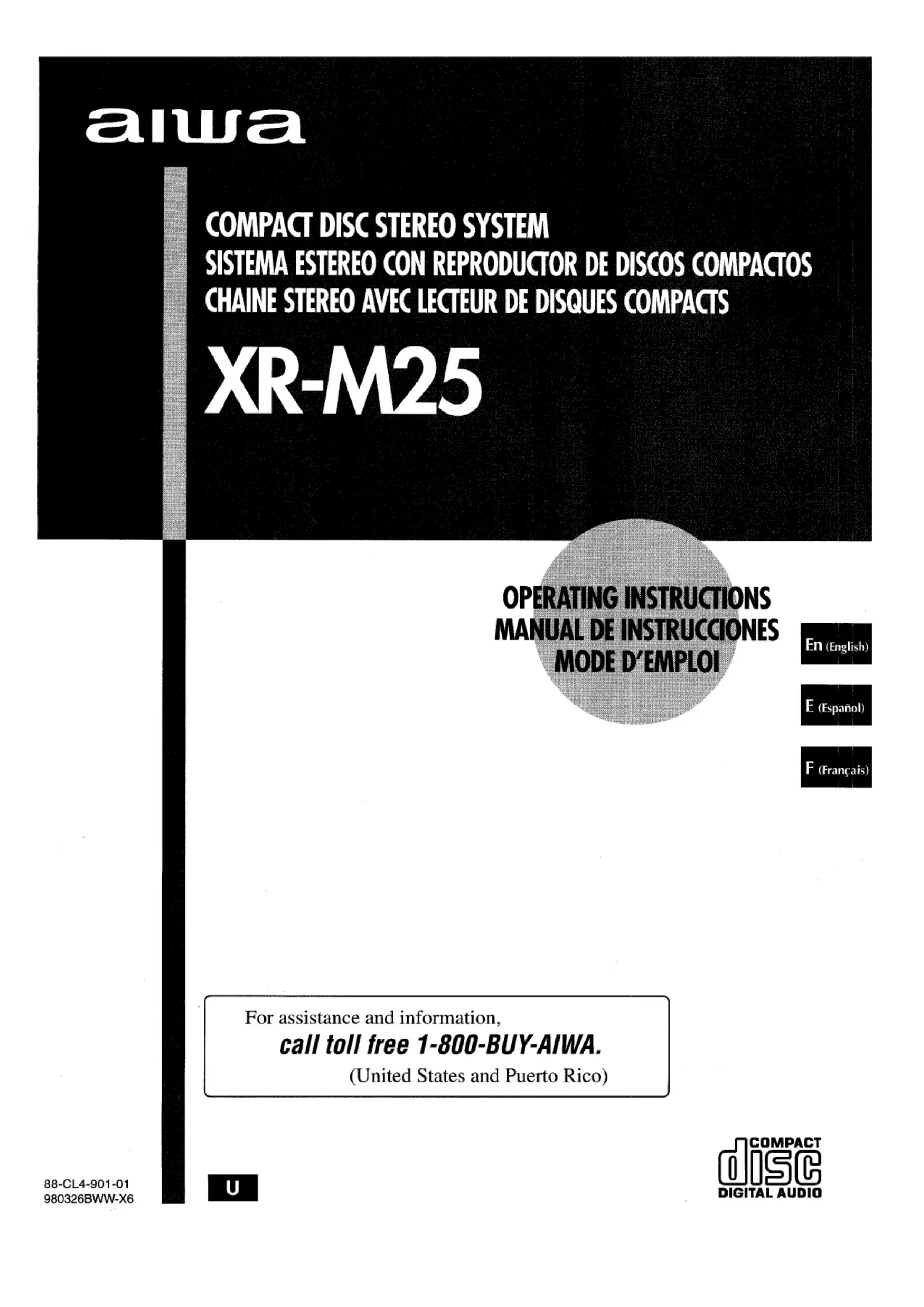

COMPACT DISC STEREO SYSTEM SISTEMA ESTEREO CON REPRODUCTOR DE DISCOS COMPACTOS CHAINE STEREO AVEC LECTEUR DE DISQUES COMPACTS

XR-M25

OPERATING INSTRUCTIONS MANUAL DE INSTRUCCIONES MODE D'EMPLOI

En (English)

E (Espanol)

F (Francais)

For assistance and information, call toll free 1-800-BUY-AIWA. (United States and Puerto Rico)

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

"CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

PRECAUTIONS

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.

Installation

1 Water and moisture - Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like.

2 Heat - Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5^ (41^) or greater than 35^ (95^) .

3 Mounting surface - Place the unit on a flat, even surface.

4 Ventilation - The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10cm (4 in.) clearance from the rear and the top of the unit, and 5cm (2 in.) from the each side.

• Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.
• Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.

5 Objects and liquid entry - Take care that objects or liquids do not get inside the unit through the ventilation openings.
6 Carts and stands - When placed or mounted on a stand or cart, the unit should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.

7 Condensation - Moisture may form on the CD pickup lens when:

• The unit is moved from a cold spot to a warm spot
• The heating system has just been turned on.
• The unit is used in a very humid room
• The unit is cooled by an air conditioner

When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.

8 Wall or ceiling mounting — The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.

Electric Power

1 Power sources — Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.
2 Polarization—As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.

3 AC power cord

• When disconnecting the AC power cord, pull out by the AC power plug. Do not pull the cord itself.
• Never handle the AC power plug with wet hands, as this could result in fire or shock.
• Power cord should be routed to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket.
• Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock.

4 Extension cord - To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.
5 When not in use — Unplug the AC power plug from the power socket if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

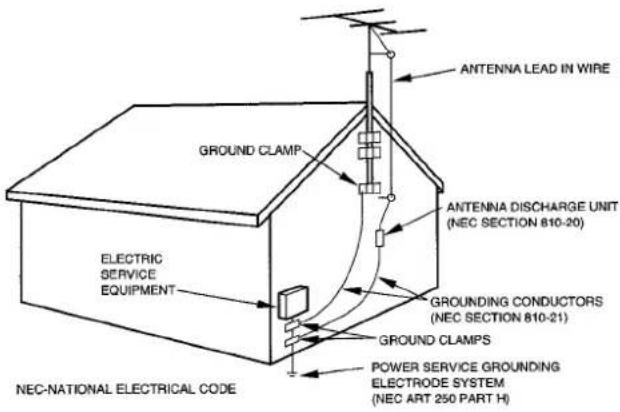

Outdoor Antenna

1 Power lines - When connecting an outdoor antenna, make sure it is located away from power lines.
2 Outdoor antenna grounding - Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals.

Antenna Grounding According to the National Electrical Code

Maintenance

Clean the unit only as recommended in the Operating Instructions.

Damage Requiring Service

Have the units serviced by a qualified service technician if:

• The AC power cord or plug has been damaged
• Foreign objects or liquid have gotten inside the unit.
• The unit has been exposed to rain or water
• The unit does not seem to operate normally
• The unit exhibits a marked change in performance
• The unit has been dropped, or the cabinet has been damaged
  DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

Owner's record

For your convenience, record the model number and serial number (you will find them on the rear of your set) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.

Model No.	Serial No. (Lot No.)
XR-M25 U

TABLE OF CONTENTS

PRECAUTIONS 1

PREPARATIONS

CONNECTIONS 3

REMOTE CONTROL 5

BEFORE OPERATION 5

SOUND

AUDIO ADJUSTMENTS 6

GRAPHIC EQUALIZER 6

RADIO RECEPTION

MANUAL TUNING 7

PRESETTING STATIONS 8

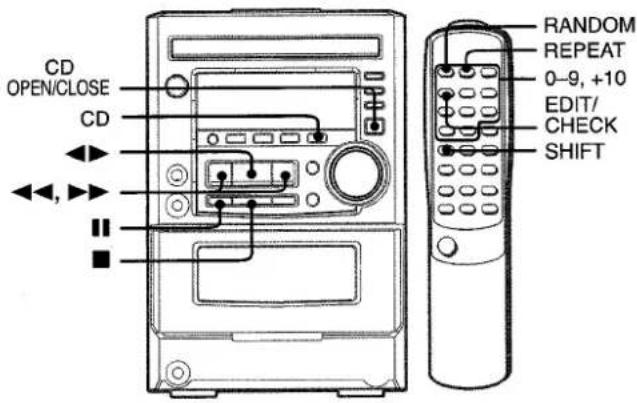

CD PLAYING

BASIC OPERATIONS 9

PROGRAMMED PLAY 10

TAPE PLAYBACK

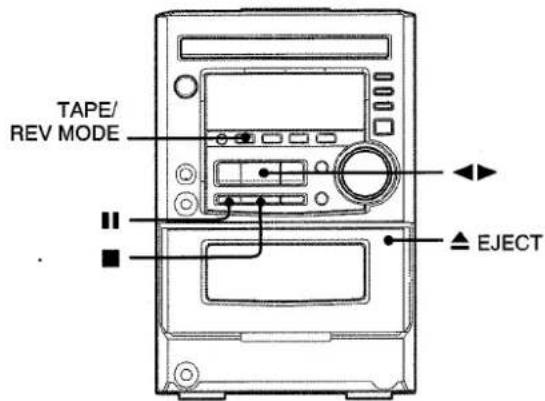

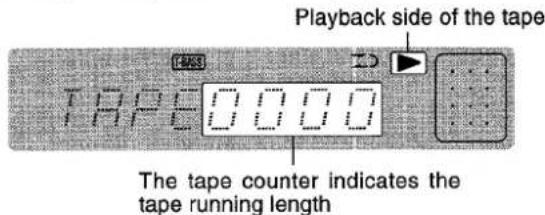

BASIC OPERATIONS 11

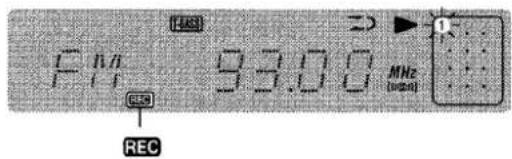

RECORDING

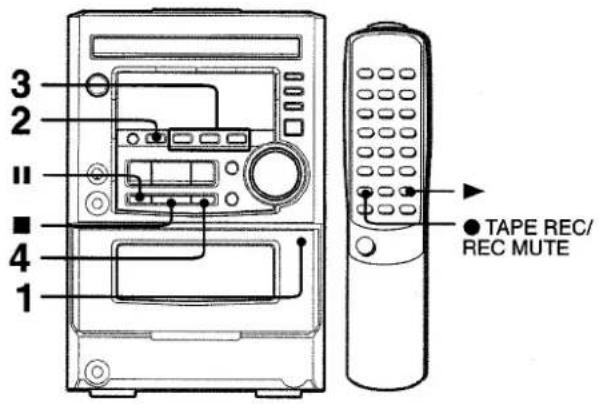

BASIC RECORDING 12

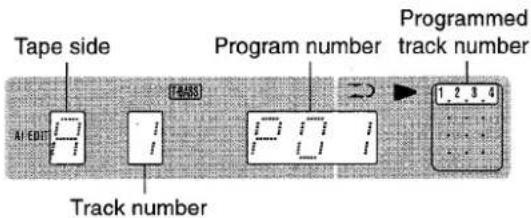

AI EDIT RECORDING 13

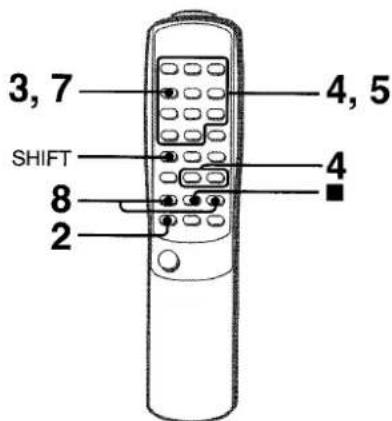

PROGRAMMED EDIT RECORDING 14

KARAOKE

TROUBLESHOOTING GUIDE 19

SPECIFICATIONS 20

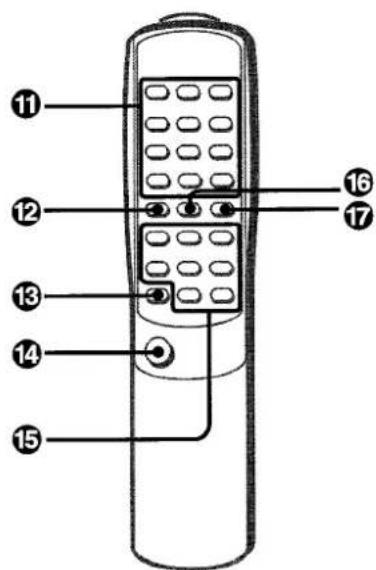

PARTS INDEX 21

CONNECTIONS

Check your system and accessories

XR-M25 Compact disc stereo cassette receiver

Speakers (L, R)

Remote control

FM antenna

AM antenna
Operating Instructions, etc.

Before connecting the AC cord

The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.

IMPORTANT

• Connect the speakers, antennas, and all optional equipment first. Then connect the AC cord.
• There are no differences between the front speakers. Both speakers can be connected as L (Left) or R (Right)

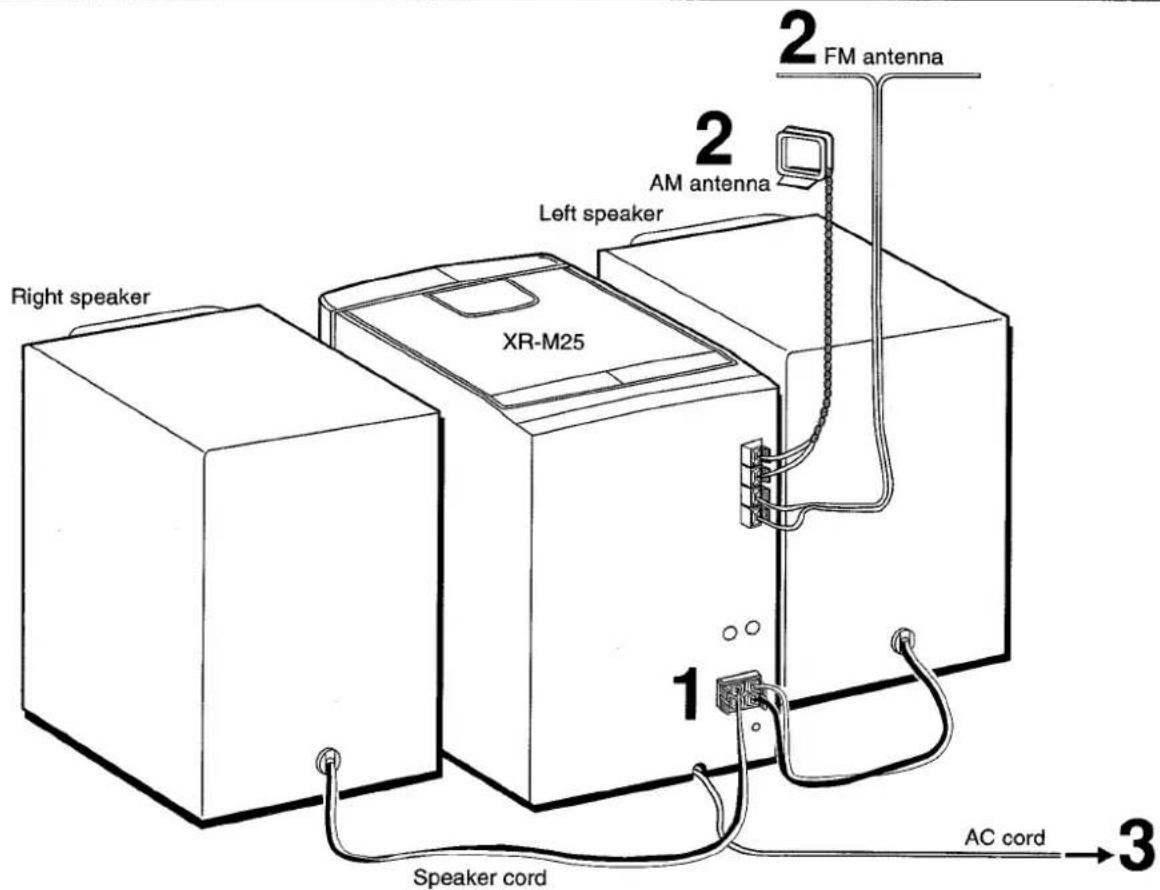

1 Connect the speaker cord to the main unit.

The speaker cord with the white stripe should be connected to terminal and the black cord to terminal.

2 Connect the supplied antennas.

Connect the FM antenna to FM 75Ω terminals and the AM antenna to AM LOOP terminals.

3 Connect the AC cord to an AC outlet.

To stand the AM loop antenna on a surface

Fix the claw to the slot.

To position the antennas

FM feeder antenna:

Extend this antenna horizontally in a T-shape and fix its ends to the wall.

AM loop antenna:

Position for the best reception.

NOTE

• Do not connect any speakers to the unit other than the supplied ones.
• Be sure to connect the speaker cords correctly. Improper connections can cause short circuits in SPEAKERS terminals.

• Do not leave objects generating magnetism, such as credit cards, near the speakers, as these objects may be damaged.
• Do not bring the FM antenna near metal objects or curtain rails.
• Do not bring the AM antenna near other optional equipment, the stereo system itself, the AC cord or speaker cords, since noise will be picked up.
• Do not unwind the AM antenna wire.

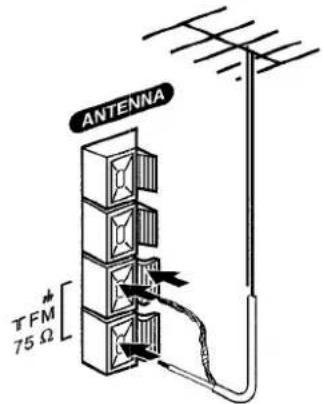

CONNECTING AN OUTDOOR ANTENNA

For better FM reception, use of an outdoor antenna is recommended.

Connect the outdoor antenna to FM 75Ω terminals.

To connect other optional equipment page 18

REMOTE CONTROL

Inserting batteries

Detach the battery cover on the rear of the remote control and insert two size AA (R6) batteries.

When to replace the batteries

The maximum operational distance between the remote control and the sensor on the main unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.

Using the remote control

The instructions in this manual refer mainly to the buttons on the main unit. Buttons on the remote control with the same names as those on the main unit can be used as well.

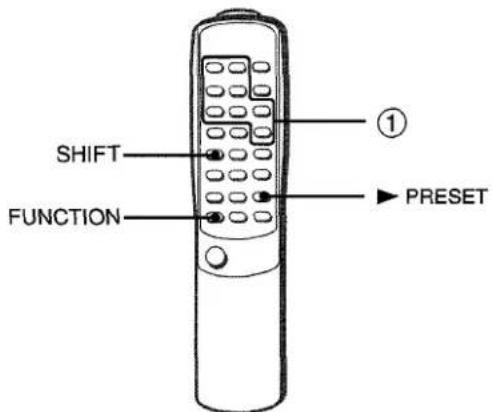

To use SHIFT on the remote control

Buttons ① have two different functions. One of these functions is indicated on the button, and the other on the plate above the button.

To use the function on the button, simply press the button.

To use the function on the plate above the button, press the button while pressing SHIFT.

To use FUNCTION on the remote control

The FUNCTION substitutes for the function buttons (TAPE, TUNER, AUX/VIDEO, CD) on the main unit.

Each time FUNCTION is pressed while power is on, the next function is selected cyclically.

PRESET on the remote control

The function is the same as that of on the main unit.

NOTE

• If the remote control is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage.
  The remote control may not operate correctly when:

• The line of sight between the remote control and the remote sensor beside TAPE is exposed to intense light, such as direct sunlight

• Other remote controls are used nearby (those of a television, etc.)

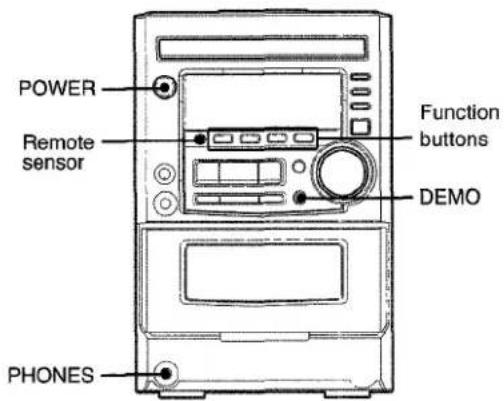

BEFORE OPERATION

To turn the unit on

Press one of the function buttons (TAPE, TUNER, AUXVIDEO, CD). Playback of the inserted disc or tape begins, or the previously tuned station is received (Direct Play Function). POWER is also available.

To turn the power off

Press POWER.

DEMO (Demonstration) mode

When the AC cord is connected, the display window demonstrates the functions of the unit. When the power is turned on, the DEMO display is overridden by the operation display. When the power is turned off, the DEMO mode is restored.

To cancel DEMO mode

Press DEMO. The clock display appears. (To set the current time, see "SETTING THE CLOCK" on page 16.) To re-activate the DEMO mode, press DEMO again.

Using the headphones

Connect the headphones to PHONES jack with a stereo mini plug (Ø3.5 mm, 1/8 inch).

No sound is output from the speakers while the headphones are plugged in.

AUDIO ADJUSTMENTS

VOLUME

Turn VOLUME on the main unit, or press VOLUME on the remote control.

The volume level is displayed as a number from 0 to MAX (31). The volume level is automatically set to 20 when the power is turned off with the volume level set to 21 or more.

SUPER T-BASS SYSTEM

The T-BASS system enhances the realism of low-frequency sound.

Press T-BASS.

Each time it is pressed, the level changes. Select one of the three levels, or the off position to suit your preference.

NOTE

Low frequency sound may be distorted when the T-BASS system is used for a disc or tape in which low frequency sound is originally emphasized. In this case, cancel the T-BASS system.

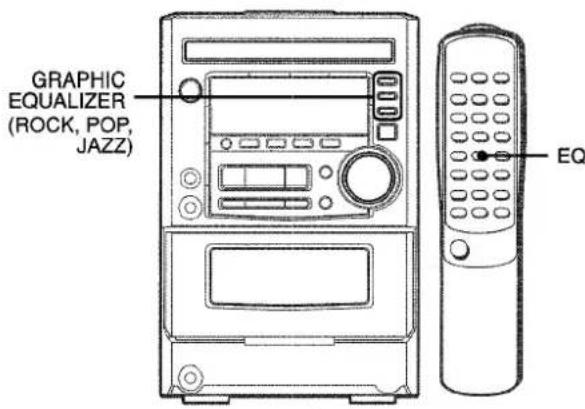

GRAPHIC EQUALIZER

This unit provides the following three different equalization curves.

ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange

JAZZ: Accented lower frequencies for jazz-type music

Press one of GRAPHIC EQUALIZER

The selected equalization mode is displayed.

To cancel the selected mode

Press the selected button again. "GEQ oFF" is displayed.

To select with the remote control

Press EQ repeatedly. The GEQ mode is displayed cyclically as follows.

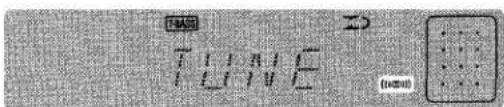

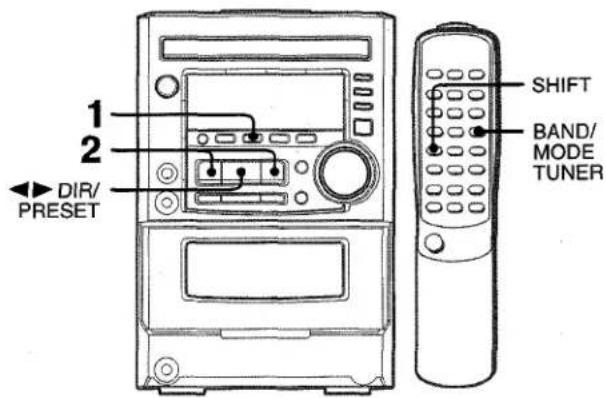

MANUAL TUNING

1 Press TUNER/BAND repeatedly to select the desired band.

When TUNER/BAND is pressed while the power is off, the previously tuned station will be played (Direct Play Function).

To select a band with the remote control Press BAND/MODE TUNER repeatedly.

2 Press DOWN or UP to select a station.

Each time the button is pressed, the frequency changes. When a station is received, "TUNE" is displayed for 2 seconds. During FM stereo reception, "(10)!" is displayed.

To search for a station quickly (Auto Search)

Keep DOWN or UP pressed until the frequency starts to change rapidly. After tuning in to a station, the search stops. To stop the Auto Search manually, press DOWN or UP.

The Auto Search may not stop at stations with very weak signals.

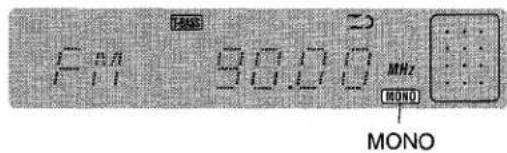

When an FM stereo broadcast contains noise

Press BAND/MODE TUNER while pressing SHIFT on the remote control so that "MONO" appears on the display.

Noise is reduced, although reception is monaural.

To restore stereo reception, press these buttons so that "MONO" disappears.

To change the AM tuning interval

The default setting of the AM tuning interval is 10kHz step. If you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval.

Press POWER while pressing DIR/PRESET during power on.

To reset the interval, repeat this procedure.

NOTE

When the AM tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.

PRESETTING STATIONS

The unit can store a total of 32 preset stations (Each band has a maximum of 20 available preset stations). When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.

1 Press TUNER/BAND to select a band, and press DOWN or UP to select a station.
2 Press SET to store the station.

A preset number beginning from 1 in consecutive order for each band is assigned to the station.

3 Repeat steps 1 and 2.

The next station will not be stored if a total of 32 preset stations for all the bands or a total of 20 preset stations for one band have already been stored.

PRESET NUMBER TUNING

Use the remote control to select the preset number directly.

1 Press BAND/MODE TUNER to select a band.
2 Press numbered buttons 0-9 and +10 to select a preset number.

Example:

To select preset number 20, press +10, +10 and 0.

To select preset number 15, press +10 and 5.

Selecting a preset number on the main unit

Press TUNER/BAND to select a band. Then, press DIR/ PRESET repeatedly.

Each time DIR/PRESET is pressed, the next ascending number is selected.

To clear a preset station

Select the preset number of the station to be cleared. Then, press CLEAR, and press SET within 4 seconds.

The preset numbers of all other stations in the band with higher numbers are also decreased by one.

BASIC OPERATIONS

LOADING DISC

Press CD, then press CD OPEN/CLOSE to open the disc compartment. Load a disc with the label side up. Close the disc compartment by pressing CD OPEN/CLOSE.

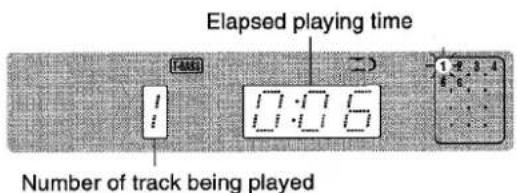

PLAYING DISC

Load a disc.

Press

Play begins with the first track.

To stop play, press

To pause play, press III. To resume play, press again.

To search for a particular point during playback, keep or pressed and release it at the desired point.

To skip to the beginning of a track during playback, press or repeatedly.

To remove disc, press CD OPEN/CLOSE.

To start play when the power is off (Direct Play Function) Press CD. The power is turned on and play of the loaded disc begins.

When CD OPEN/CLOSE is pressed, the power is also turned on and the disc compartment is opened.

To check the remaining time

During play, press EDIT/CHECK while pressing SHIFT on the remote control. The amount of time remaining until all tracks finish playing is displayed. To restore the playing time display, repeat the above.

Selecting a track with the remote control

Press numbered buttons 0-9 and +10 to select a track.

Example:

To select the 25th track, press +10, +10 and 5.

To select the 10th track, press +10 and 0.

The selected track starts to play and continues to the end of that disc.

NOTE

• When removing the disc, press to stop play before pressing CD OPEN/CLOSE.
• When loading an 8-cm (3-inch) disc, put it onto the inner circle of the tray.
• Do not place more than one compact disc on one disc tray.
• Do not tilt the unit with disc loaded. Doing so may cause malfunctions.

RANDOM/REPEAT PLAY

RANDOM play

All the tracks on the disc can be played randomly.

Press RANDOM while pressing SHIFT on the remote control "RANDOM" lights up on the display.

To cancel random play, press the buttons again.

NOTE

During random play, it is not possible to skip to the previously played track with.
- During random play, direct selection of the tracks with the numbered buttons will cancel random play.
- During random play "G1" play cannot be performed.

REPEAT play

One or all the tracks can be played repeatedly.

To repeat the entire disc, turn on "C".

To repeat the desired track, turn on "▶ 1".

Press REPEAT while pressing SHIFT on the remote control.

Each time they are pressed, the operations can be selected cyclically.

Cancel

NOTE

• During "G" play, random play can be performed.
• When you start random play during “ 1” play, the repeat play will be canceled.
  To repeat only selected tracks, program the desired tracks (see below) before choosing "C" function.

To cancel repeat play, press the buttons again.

PROGRAMMED PLAY

Up to 30 tracks can be programmed from the inserted disc.

Use the remote control.

1 Press PRGM while pressing SHIFT in stop mode.

"PRGM" flashes on the display.

2 Press numbered buttons 0-9 and +10 to program a track.

Example:

To select the 12th track, press +10 and 2.

To select the 20th track, press +10 , +10 and 0.

3 Repeat step 2 to program other tracks.

4 Press to start play.

To check the program

Each time or is pressed in stop mode, a track number and program number will be displayed.

To clear the program

Press CLEAR in stop mode.

To add tracks to the program

Before playing, repeat step 2. The track will be programmed after the last track.

To change the programmed tracks

Clear the program and repeat all the steps again.

To play the programmed tracks repeatedly

After programming the tracks, press REPEAT while pressing SHIFT on the remote control, "G" lights up on the display.

NOTE

• During programmed play, the following operations cannot be performed:
• Random play.
  -One-track repeat (一 1)
• If programmed time is more than 99:59 minutes, or the disc track number 31 and above is programmed, total playing time show ----- in the display.

BASIC OPERATIONS

INSERTA TAPE

• You can select a reverse mode to playback one or both sides.
• Use Type I (normal), Type II (high/ CrO_2 ) or Type IV (metal) tapes for playback.

Press TAPE/REV MODE and press EJECT mark to open the cassette holder

Insert a tape with the exposed side down. Push the cassette holder to close.

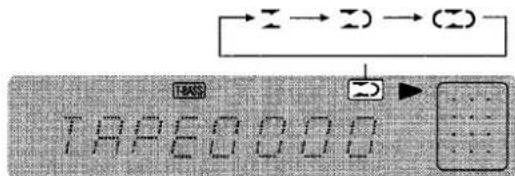

To select a reverse mode

Each time TAPE/REV MODE is pressed, the reverse mode changes.

To play one side only, select

To play from front side to back side once only, select

To play both sides repeatedly, select (2).

PLAYING BACK A TAPE

Insert a tape. Then press to start play.

: The front side is being played (forward).
: The back side is being played (reverse).

To stop play, press

To pause play, press II. To resume play, press again.

To change the playback side, press DIR/PRESET in play or pause mode.

To fast forward or rewind, press or in stop mode.

Then press to stop the tape.

To start play when the power is off (Direct Play Function)

Press TAPE. The power is turned on and play of the inserted tape begins.

To set the tape counter to 0000

Press CLEAR in stop mode.

The counter is also set to 0000 when the cassette holder is opened.

About cassette tapes

• To prevent accidental erasure, break off the plastic tabs on the cassette tape after recording with a screwdriver or other pointed tool.

To record on the tape again, cover the tab openings with adhesive tape, etc.

• 120-minute or longer tapes are extremely thin and easily deformed or damaged. They are not recommended.
• Take up any slack in the tape with a pencil or similar tool before use. Slack tape may break or jam in the mechanism.

BASIC RECORDING

This section explains how to record from the tuner, CD player, or external equipment.

Preparation

• Use Type I (normal) tapes only.
• Set the tape to the point where recording will start.

1 Insert the tape to be recorded on into deck.

Insert the tape with the side to be recorded on first facing out from the unit and the exposed side down.

2 Press TAPE/REV MODE to select the reverse mode.

To record on one side only, select. To record on both sides, select or (2).

3 Press function (TUNER, AUX/VIDEO or CD) and prepare the source to be recorded.

To record from a CD, press CD and load the disc.
To record from a radio broadcast, press TUNER/BAND and tune in to a station.
To record from a connected source, press AUX/VIDEO and play.

4 Press REC/REC MUTE to start recording.

When the selected function is CD, playback and recording start simultaneously.

To stop recording, press

To pause recording, press (applicable when the source is TUNER or AUX/VIDEO). To resume recording, press it again.

To start recording with the remote control

First press TAPE REC/REC MUTE, and then press within 2 seconds.

Sound adjustment during recording

The output volume and tone of the speakers or headphones may be freely varied without affecting the recording.

INSERTING BLANK SPACE

Insertion of 4-second blank spaces may help you to locate the beginning of the track on other equipments. This unit can add blank spaces only when the source is TUNER or AUX/VIDEO.

1 Press REC/REC MUTE during recording or while in recording pause mode.

REC on the display flashes for 4 seconds and the tape runs without recording. After 4 seconds, the deck enters the recording pause mode.

2 Press II to resume recording.

To insert a blank space of less than 4 seconds, press REC/REC MUTE again while REC is flashing.

To insert blank spaces of more than 4 seconds, after the deck enters the recording pause mode, press REC/REC MUTE again.

Each time REC/REC MUTE is pressed, a 4-second blank space is added.

*This unit does not have the function to locate the beginning of track.

NOTE

Recording cannot be done when TAPE function is selected.

To erase a recording

Make sure the microphone is not connected to this unit.

1 Insert the tape to be erased into the deck.
2 Set the tape to the point where the erasure is to be started.
3 Set the reverse mode by pressing TAPE/REV MODE.
4 Press AUXVIDEO and turn the connected equipment off.
5 Press REC/REC MUTE to start the erasure.

AI EDIT RECORDING

The AI edit recording function enables CD recording without worrying about tape length and track length. When a CD is inserted, the unit automatically calculates the total track length. If necessary, the order of tracks is rearranged so that no track is cut short.

(AI: Artificial Intelligence)

NOTE

AI edit recording will not start from a point halfway into the tape. The tape must be recorded from the beginning of either side.

Use the remote control from steps 2 to 5.

1 Insert the tape into deck.

Insert the tape with the side to be recorded on first facing out from the unit.

2 Press FUNCTION repeatedly until "CD" is displayed and load the disc.

3 Press EDIT/CHECK once while pressing SHIFT button.

"EDIT" lights up and "Al" flashes on the display.

Each time it is pressed, the display changes as follows.

4 Press numbered buttons 0-9 to designate the tape length.

10 to 99 minutes can be specified.

Example: When using a 60-minute tape, press 6 and 0.

In a few seconds, the tracks to be recorded on each side of the tape are determined.

• and are also available to designate the tape length.

5 First press TAPE REC/REC MUTE and then press within 2 seconds to start recording.

The tape is rewound to the beginning of the front side, the lead segment is played through for 10 seconds, and recording starts. When recording on the front (side A) ends, recording on the back (side B) starts.

To stop recording

Press. Recording and CD play stop simultaneously.

To clear the edit program

Press CLEAR twice so that "EDIT" disappears on the display.

To check the order of the programmed track numbers

Before recording, press EDIT/CHECK while pressing SHIFT to select side A or B, and press or repeatedly.

Time on cassette tapes and editing time

The actual cassette recording time is usually a little longer than the specified recording time printed on the label. This unit can program tracks to use the extra time. When the total recording time is a little longer than the tape's specified recording time after editing, the display shows the extra time (without a minus mark), instead of the time remaining on the tape (with the minus mark).

NOTE

• Recording is inhibited if the erasure prevention tab on either side of the tape is broken off.
  The AI edit function cannot be used with discs containing 31 tracks or more.

PROGRAMMED EDIT RECORDING

In the programmed edit recording function, the track can be programmed while checking the remaining time on each side of the tape as the tracks are programmed.

NOTE

The programmed edit recording will not start from a point halfway in the tape. The tape must be recorded on from the beginning of either side.

Use the remote control from step 2 to 8.

1 Insert the tape into deck.
Insert the tape with the side to be recorded on first facing out from the unit.
2 Press FUNCTION repeatedly until "CD" is displayed and load the disc.
3 Press EDIT/CHECK twice while pressing SHIFT button.

"EDIT" lights up and "PRGM" flashes on the display.

4 Press numbered buttons 0-9 to designate the tape length.

10 to 99 minutes can be specified.

Example: When using a 60-minute tape, press 6 and 0.

The and are also available to designate the tape length.

5 Press the numbered buttons 0-9 and +10 to program a track.

Example: To select the 10th track, press +10 and 0.

6 Repeat step 5 for the rest of the tracks for side A. A track whose playing time is longer than the remaining time cannot be programmed.

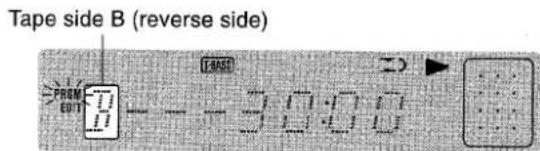

7 Press EDIT/CHECK while pressing SHIFT to select side B and program the tracks for side B. After confirming "B" on the display, repeat step 5.

8 Press TAPE REC/REC MUTE and then press within 2 seconds to start recording.

The tape is rewound to the beginning of the front side, the lead segment is played through for 10 seconds, and recording starts. When recording on the front (side A) ends, recording on the back (side B) starts.

To stop recording

Press. Recording and CD play stop simultaneously.

To check the order of the programmed track numbers Before recording, press EDIT/CHECK while pressing SHIFT to select side A or B, and press or repeatedly.

To change the program of each side

Press EDIT/CHECK while pressing SHIFT to select side A or B, and press Clear to clear the program on the selected side. Then program tracks again.

To clear the edit program

Press CLEAR twice so that "EDIT" disappears on the display.

NOTE

Recording is inhibited if the erasure prevention tab on either side of the tape is broken off.

MICROPHONE MIXING

A microphone (not supplied) can be connected to this unit, allowing you to sing along to music sources.

Use a microphone with mini plugs (Ø3.5 mm, 1/8 inch).

Before connecting a microphone Set the MIC VOL to MIN.

1 Connect your microphone to MIC jack.

2 Press one of the function buttons to select the source to be mixed, and play the source.
3 Adjust the volume and tone of the source.
4 Turn MIC VOL to adjust the microphone volume.

If TAPE function is selected as the source, the microphone sound can only be output from the speakers when the tape is being played.

To record microphone sound mixed with source sound Follow the procedure for recording from the sound source (see page 12).

The TAPE function cannot be used for mixing recording.

When the microphone is not in use

Set MIC VOL to MIN and remove the microphone from the MIC jack.

NOTE

• If a microphone is held too near the speakers, a howling sound may be produced. In this case, hold the microphone away from the speakers, or decrease the microphone volume.
• If sound through the microphone is extremely loud, it may be distorted. In this case, decrease the microphone volume.

Recommended microphone

The use of unidirectional type microphone is recommended to prevent howling. Contact your local Aiwa dealer for details.

SETTING THE CLOCK

1 Press CLOCK while pressing SHIFT on the remote control and press SET within 4 seconds. The hour flashes.

2 Press DOWN or UP to designate the hour, then press SET. The hour stops flashing and the minute starts flashing.
3 Press DOWN or UP to designate the minute, then press SET. The minute stops flashing on the display and the clock starts from 00 seconds.

To display the current time

Press CLOCK while pressing SHIFT on the remote control. The time is displayed for 4 seconds. However, the time cannot be displayed during recording.

To switch to the 24-hour standard

Press CLOCK while pressing SHIFT on the remote control and then press within 4 seconds. Repeat the same procedure to restore the 12-hour standard.

If the clock display flashes

This is caused by a power interruption. The current time needs to be reset. If power is interrupted for more than approximately 24 hours, all settings stored in memory after purchase need to be reset.

SETTING THE SLEEP TIMER

The unit can be turned off automatically at a specified time.

Use the remote control.

1 Press SLEEP while pressing SHIFT.

2 Within 4 seconds, press or to specify the time until the power is turned off. Each time the button is pressed, the time changes between 5 and 240 minutes in 5-minute steps.

To check the time remaining until the power is turned off Press SLEEP once while pressing SHIFT. The remaining time is displayed for 4 seconds.

To cancel the sleep timer

Press SLEEP twice while pressing SHIFT so that "SLEEP oFF" appears on the display.

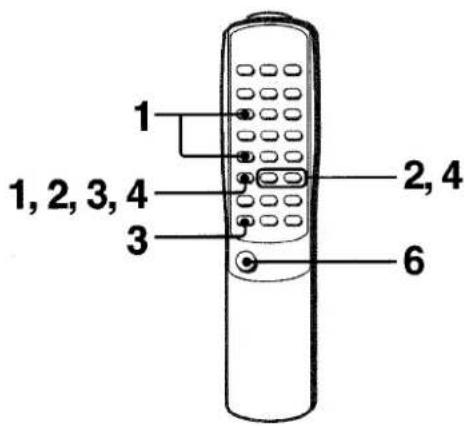

SETTING THE TIMER

The unit can be turned on at a specified time every day with the built-in timer.

Preparation

Make sure the clock is set correctly. (See page 16).

Use the remote control.

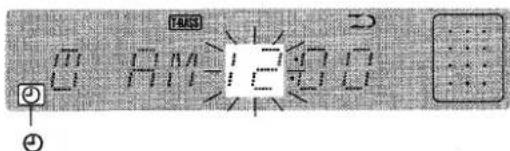

1 Press TIMER once while pressing SHIFT to display “①”, then press SET within 4 seconds.

"O" is displayed and the hour flashes.

NOTE

If you press SET after 4 seconds, another operation may start.

2 Designate the hour of the timer-on time by pressing DOWN or UP, then press SET. Repeat to designate the minute of the timer-on time.

After you designate the timer-on time, one of the source names flashes on the display.

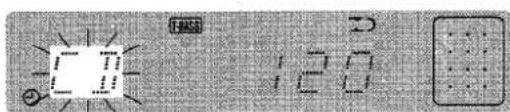

3 Press FUNCTION repeatedly to select a source, then press SET.

The selected source name flashes.

The and are also available to select a source.

• If TUNER is pressed, the band cannot be selected in this step.

4 Select the duration for the timer-activated period with DOWN or UP, then press SET.

The duration for the timer-activated period can be set between 5 and 240 minutes in 5-minute steps.

5 Prepare the source.

To listen to a CD, load the disc.

To listen to a tape, insert the tape into deck.

To listen to the radio, tune in to a station.

To listen to the equipment connected toVIDEO/AUX jacks, set the timer of the connected source (with an external timer) and prepare for the play.

6 Press POWER to turn the unit off after adjusting the volume and tone.

"O remains on the display after the power is turned off (timer standby mode).

When the timer-on time is reached, the unit turns on and begins play with the selected source.

The volume level is automatically set to 20 when the power is turned off with the volume level set to 21 or more.

To check the specified time and source

Press TIMER while pressing SHIFT on the remote control. The timer-on time, the selected source name and the duration for the timer-activated period flash alternately for 4 seconds.

To cancel timer standby mode temporarily

Press TIMER repeatedly while pressing SHIFT on the remote control until "O" or "O REC" disappears on the display.

To restore the timer standby mode, press TIMER once or twice while pressing SHIFT to display "0" or "0"REC".

Using the unit while the timer is set

You can use the unit normally after setting the timer.

Before turning off the power, carry out step 5 to prepare the source, and adjust the volume and tone.

NOTE

• Timer playback and timer recording will not begin unless the power is turned off.
• Connected equipment cannot be turned on and off by the built-in timer of this unit. Use an external timer.

TIMER RECORDING

Timer recording is applicable for TUNER and AUX/VIDEO (with an external timer) sources only.

Press TIMER repeatedly while pressing SHIFT on the remote control until "①" appears on the display, then press SET within 4 seconds. Carry out the steps of "SETTING THE TIMER" from step 2 and insert the tape to be recorded on into deck after step 5.

CONNECTING OPTIONAL EQUIPMENT

Refer to the operating instructions of the connected equipment for details.

• The connecting cords are not supplied. Obtain the necessary connecting cords.
• Consult your local Aiwa dealer for optional equipment.

VIDEO/AUX JACKS

This unit can input analog sound signals through these jacks. Use a cable with RCA phono plugs to connect audio equipment (turntables, LD players, VCRs, etc.). Connect the red plug to the VIDEO/AUX R jack, and the white plug to the VIDEO/AUX L jack.

When connecting a turntable

Use an Aiwa turntable equipped with a built-in equalizer amplifier.

SUPER WOOFER JACK

• Connect an optional powered subwoofer with a built-in amplifier to the jack.

LISTENING TO EXTERNAL SOURCES

To play equipment connected to theVIDEO/AUX jacks, proceed as follows.

1 Press AUX/VIDEO.

"AUX" appears on the display.

2 Play the connected equipment.

To change a source name in the display

When AUXVIDEO is pressed, "AUX" is displayed initially. It can be changed to "TV" or "VIDEO".

With the power on, press POWER while pressing AUX/VIDEO. Repeat the procedure to select one of the source names.

CARE AND MAINTENANCE

Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.

To clean the cabinet

Use a soft and dry cloth.

If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.

To clean the heads and tape paths

After every 10 hours of use, clean the heads and tape paths with a head cleaning cassette or cotton swab moistened with cleaning fluid or denatured alcohol. (These cleaning kits are commercially available.)

When cleaning with a cotton swab, wipe the recording/playback head, erasure head, capstans, and pinchrollers.

After cleaning the heads and tape paths with a liquid head cleaning cassette or a moistened swab, wait until the cleaned parts are completely dry before inserting the tapes.

To demagnetize the heads

The heads may become magnetized after long-term use. This may narrow the output range of recorded tapes and increase noise. After 20 to 30 hours use, demagnetize the heads with any commercially available demagnetizer.

Care of discs

• When a disc becomes dirty, wipe the disc from the center out with a cleaning cloth.

After playing a disc, store the disc in its case. Do not leave the disc in places that are hot or humid.

Care of tapes

• Store tapes in their cases after use.
• Do not leave tapes near magnets, motors, television sets, or any source of magnetism. This will downgrade the sound quality and cause noise.
• Do not expose tapes to direct sunlight, or leave them in a car parked in direct sunlight.

TROUBLESHOOTING GUIDE

If the unit fails to perform as described in these Operating Instructions, check the following guide.

GENERAL

There is no sound.

Is the AC cord connected properly?
Is there a bad connection? (→ page 3)
- There may be a short circuit in the speaker terminals.

Disconnect the AC cord, then correct the speaker connections.

Was an incorrect function button pressed?
Sound is emitted from one speaker only.
Is the other speaker disconnected?

An erroneous display or a malfunction occurs.

Reset the unit as stated below.

TUNER SECTION

There is constant, wave-like static.

Is the antenna connected properly? ( page 3)
Is the signal weak?

Connect an outdoor antenna.

The reception contains noise interferences or the sound is distorted.

• Is the system picking up external noise or multipath distortion?
  Change the orientation of the antenna.
  Move the unit away from other electrical appliances.

CASSETTE DECK SECTION

The tape does not run.

Is deck in pause mode? ( page 11)
The sound is off-balance or not adequately high.
Is the playback head dirty? ( page 19)

Recording is not possible.

Is the erasure prevention tab on the tape broken off? (→ page 11)
- Is the recording head dirty? (→ page 19)

Erasure is not possible.

Is the erasure head dirty? ( page 19)
Is a metal tape being used?

High frequency sound is not emitted.

Is the recording/playback head dirty? ( page 19)

CD PLAYER SECTION

The CD player does not play.

Is the disc correctly placed? ( page 9)
Is the disc dirty? ( page 19)
Is the lens affected by condensation?

Wait approximately one hour and try again.

To reset

If an unusual condition occurs in the display window or the cassette decks, reset the unit as follows.
1 Press POWER to turn off the power.
2 Press POWER to turn the power back on while pressing CLEAR. Everything stored in memory after purchase is canceled.

If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord, and connect it again. Then carry out step 2.

SPECIFICATIONS

Main unit XR-M25
FM tuner section
Tuning range	87.5 MHz to 108 MHz
Usable sensitivity (IHF)	13.2 dBf
Antenna terminals	75 ohms (unbalanced)
AM tuner section
Tuning range	530 kHz to 1710 kHz (10 kHz step)
	531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity	350 μV/m
Antenna	Loop antenna
Amplifier section
Power output	20 W + 20 W (1kHz, T.H.D. 10%, 6 ohms)
Total harmonic distortion	0.08 % (10.5 W, 1 kHz, 6 ohms)
Inputs	VIDEO/AUX: 0.4 V
	MIC: 1.8 mV (10 kohms)
Outputs	SUPER WOOFER: 1.0 V
	SPEAKERS: accept speakers of 6 ohms or more
	PHONES (stereo minijack): accepts headphones of 32 ohms or more
Cassette deck section
Track format	4 tracks, 2 channels stereo
Frequency response	CrO2 tape: 50 Hz - 16000 Hz
	Normal tape: 50 Hz - 15000 Hz
Signal-to-noise ratio	50 dB (CrO2 tape peak level above 1 kHz)
Recording system	AC bias
Heads	Recording/playback head × 1 Erase head × 1
Compact disc player section
Laser	Semiconductor laser (λ = 780 nm)
D-A converter	1 bit dual
Signal-to-noise ratio	75 dB (1 kHz, 0 dB)
Harmonic distortion	0.1% (1 kHz, 0 dB)
Wow and flutter	Unmeasurable
General
Power requirements	AC : 120 V, 60 Hz
Power consumption	50 W
Dimensions of main unit	173 × 255.2 × 248.8 mm
(W × H × D)	(67/8 × 10^18 × 9^7/8 in)
Weight of main unit	3.65 kg
	(8 lbs 1oz)

Speaker system

Cabinet type	2 way, bass reflex (magnetic shield type)
Speakers	Woofer:120 mm (43/4 in) cone typeTweeter:20 mm (13/16 in) ceramic type
Impedance	6 ohms
Output sound pressure level	87 dB/W/m
Dimensions (W × H × D)	155 × 253 × 220 mm(61/8 × 10 × 83/4 in)
Weight	2.6 kg(5 lbs 12 oz)

Specifications and external appearance are subject to change without notice.

COPYRIGHT

Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in which the machine is being used.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.

PARTS INDEX

Name

Page

1 POWER 5
TAPE/REV MODE 11

TUNER/BAND 7,8

AUX/VIDEO 18

CD 9

MIC VOL. 15

MIC 15

4 DOWN 7-11,13,14,16

DIR/PRESET 7-14
UP 7-11,13,14,16
SET. 8-12,16,17
CLEAR 8-14
REC/REC MUTE 12-14

5
6 GRAPHIC EQUALIZER

(ROCK,POP,JAZZ) 6

CD OPEN/CLOSE 9
8 T-BASS 6
9 VOLUME 6
10 DEMO 5

Name

Page

0-9, +10 8-10,13,14
RANDOM 9
REPEAT 10
EDIT/CHECK 9,13,14
PRGM 10
TIMER 17
SLEEP 16
CLOCK 16
BAND/MODE TUNER 7

② SHIFT 5
18 FUNCTION 5
14 POWER 5

15 SET. 8-12,16,17

DOWN 7-11,13,14,16,17
UP 7-11,13,14,16,17
TAPE REC/REC MUTE.....12
CLEAR 8-14
PRESET 9-14
VOLUME (-, + ) 6

16 EQ 6
T-BASS 6

ADVERTENCIA

PARA REDUCIRE L RIESGO DE INCENDIOS O DESCARGAS ELECTRICAS, NO EXPONGA ESTE APARATO A LA LLUVIA N I A LA HUMEDAD.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

"CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

SINTONIZATION MANUAL 7

PREAJUSTE DE EMISORAS 8

REPRODUCCION DE DISCOS COMPACTOS

SINTONIZATION MANUAL

Para guitar el disco, pulse CD OPEN/CLOSE.

CLEAR 8-14
REC/REC MUTE 12-14

5 PHONES 5
③ GRAPHIC EQUALIZER (ROCK,POP,JAZZ) 6
CD OPEN/CLOSE 9
B T-BASS 6
9 VOLUME 6
10 DEMO 5

Piezas

Páginas

0-9, +10 8-10,13,14
RANDOM 9
REPEAT 10
EDIT/CHECK 9,13,14
PRGM 10
TIMER 17
SLEEP 16
CLOCK 16
BAND/MODE TUNER 7

② SHIFT 5
FUNCTION 5
14 POWER 5

15 SET. 8-12,16,17

DOWN 7-11,13,14,16,17
UP 7-11,13,14,16,17

TAPE REC/REC MUTE 12
CLEAR 8-14
PRESET. 9-14

VOLUME(-,+) 6

16 EQ 6
T-BASS 6

AVERTISSEMENT

POUR REDUIRE TOUT RISQUE DE COURT-CIRCUIT OU D'ELECTROCHOC, VEILLER A CE QUE L'APPAREIL SOIT A L'ABRI DE LA PLUIE OU DE L'HUMIDITE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

"CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

Explication des symboles:

Mode DEMO (Demonstration)

Effacement impossible.

For assistance and information,

call toll free 1-800-BUY-AIWA. (United States and Puerto Rico)
