LCX151 - Hi-fi system AIWA - Free user manual and instructions

Product type	Hi-fi system (stereo system)
Brand	Aiwa
Model	LCX151
Dimensions (main unit)	160 × 236.2 × 209.3 mm
Weight (main unit)	2.6 kg
Dimensions (speakers)	150 × 236.2 × 210.5 mm
Weight (speakers)	1.1 kg (each)
Power supply	120 V AC, 60 Hz
Power consumption	22 W
Output power	5 W + 5 W (1 kHz, 10% THD, 4 ohms)
FM range	87.5 MHz to 108 MHz
AM range	530 kHz to 1710 kHz (10 kHz steps) / 531 kHz to 1602 kHz (9 kHz steps)
CD player	Semiconductor laser (780 nm), 1 bit dual converter
Cassette deck	4 tracks, 2 stereo channels, response 50 Hz – 12.5 kHz (normal tape)
Speakers	100 mm cone type, impedance 4 ohms
Main functions	CD playback, FM/AM radio, cassette, recording, timer, equalizer (ROCK/POP/JAZZ), remote control
Included accessories	Remote control, FM antenna, AM loop antenna

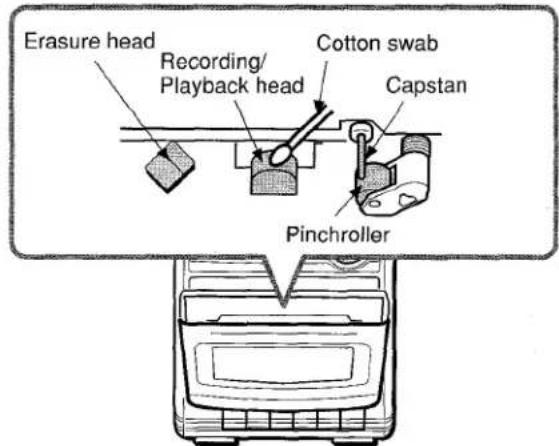

Care and cleaning	Clean the cabinet with a soft dry cloth; tape heads with a cleaning cassette or cotton swab moistened with alcohol
Safety	Do not use near water or heat sources; leave 10 cm ventilation at the back and top; disconnect during thunderstorms
Spare parts and repairability	Speakers and antennas are supplied; no information on repairability
General information	FCC Class B compliant; can be reset by unplugging and turning on again using the ■ button

Frequently Asked Questions - LCX151 AIWA

How to turn the unit on and off?

Press the POWER button to turn on or off. When turned off, the display shows the time.

Can I use headphones?

Yes, plug stereo headphones with a 3.5 mm mini plug into the PHONES jack. The speakers are then muted.

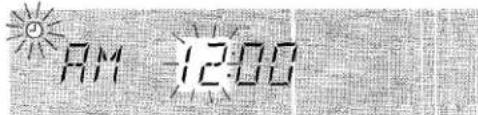

How to set the clock?

With the unit turned off, press SET. The hour blinks. Use ◀◀◀ or ▶▶▶ to set the hour, then press SET for minutes, and finally SET to confirm.

How to program CD playback?

In stop mode, press SET on the remote. Use the numeric keys and +10 to select up to 30 tracks. Then press ▶II to start programmed playback.

What to do if the sound is inaudible?

Check that the speaker cords are not short-circuited. If so, unplug the power cord, reconnect the speakers properly, then plug the unit back in.

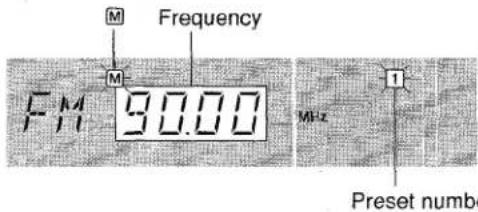

How to memorize radio stations?

Select a station with ◀◀◀ or ▶▶▶, then press SET. A preset number is assigned. You can memorize up to 16 stations per band.

Why doesn't the cassette tape move?

Make sure the deck is not in pause mode (PAUSE). Press ■/▲ to stop, then ▶ to play.

How to program a timer to turn on?

First set the clock. Press TIMER on the remote, then SET within 2 seconds. Set the on time and duration (5 to 240 min). Prepare the source (CD, radio) and turn off the unit. The symbol ② remains displayed.

How to use the equalizer?

Press the EQUALIZER MODE button to select ROCK (boosts treble and bass), POP (vocal presence) or JAZZ (deep bass). To cancel, press again.

What to do if the remote does not work?

Check that there is no obstacle between the remote and the sensor (upper left corner of the main unit). Replace the batteries (2 × R6/AA) if the range decreases.

USER MANUAL LCX151 AIWA

COMPACT DISC STEREO SYSTEM SISTEMA ESTEREO CON REPRODUCTOR DE DISCOS COMPACTOS CHAINE STEREO AVEC LECTEUR DE DISQUES COMPACTS

LCX-150 LCX-151

OPERATING INSTRUCTIONS MANUAL DE INSTRUCCIONES MODE D'EMPLOI

En (English)

E (Español)

F (Français)

For assistance and information, call toll free 1-800-BUY-AIWA.

(United States and Puerto Rico)

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN 、"CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

PRECAUTIONS

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.

Installation

1 Water and moisture — Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like.
2 Heat — Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41°F) or greater than 35°C (95°F).
3 Mounting surface — Place the unit on a flat, even surface.
4 Ventilation—The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from the each side.

- Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.

5 Objects and liquid entry — Take care that objects or liquids do not get inside the unit through the ventilation openings.
6 Carts and stands — When placed or mounted on a stand or cart, the unit should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.

PREPARATIONS

7 Condensation — Moisture may form on the CD pickup lens when:

• The unit is moved from a cold spot to a warm spot
• The heating system has just been turned on
• The unit is used in a very humid room
• The unit is cooled by an air conditione

When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.

8 Wall or ceiling mounting — The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.

Electric Power

1 Power sources — Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.
2 Polarization — As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.

3 AC power cord

• When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself.
• Never handle the AC power plug with wet hands, as this could result in fire or shock.
• Power cord should be routed to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket.
• Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock.

4 Extension cord — To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.
5 When not in use — Disconnect the AC power cord from the AC outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

Outdoor Antenna

1 Power lines — When connecting an outdoor antenna, make sure it is located away from power lines.
2 Outdoor antenna grounding — Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals.

Antenna Grounding According to the National Electrical Code

ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUND CLAMP GROUNDED CONDUCTORS (NEC SECTION 810-21) ELECTRIC SERVICE EQUIPMENT GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250 PART H)

NEC-NATIONAL ELECTRICAL CODE

Welcome to the Aiwa Stereo System

Congratulations on your purchase of an Aiwa Stereo System. To optimize the performance of this system, please take the time to read through these Operating Instructions and become familiar with the operating procedures.

Check your system and accessories

LCX-150/LCX-151
Compact disc stereo system

Line drawing of a multi-chamber electronic device with control panel and buttons (no text or symbols)

FM antenna

Remote control

Simple line drawing of a cylindrical container or container with a side outlet (no text or symbols)

Simple line drawing of a rectangular container with a side panel (no text or symbols)

AM antenna

Operating Instructions, etc.

Owner's record

For your convenience, record the model number and serial number (you will find them on the rear of your set) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.

Model No.	Serial No. (Lot No.)
LCX-150U/LCX-151U

TABLE OF CONTENTS

PREPARATIONS

PRECAUTIONS 1

CONNECTIONS 3

BEFORE OPERATION 4

SOUND

TROUBLESHOOTING GUIDE 12

PARTS INDEX ...... Back cover

To stand the AM antenna on a surface

Fix the claw to the slot.


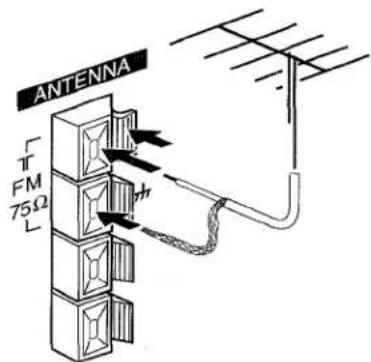

Connecting an outdoor antenna

For better FM reception, use of an outdoor antenna is recommended.

Connect the outdoor antenna to the FM 75 Ω terminals.

ANTENNA FM 75Ω L

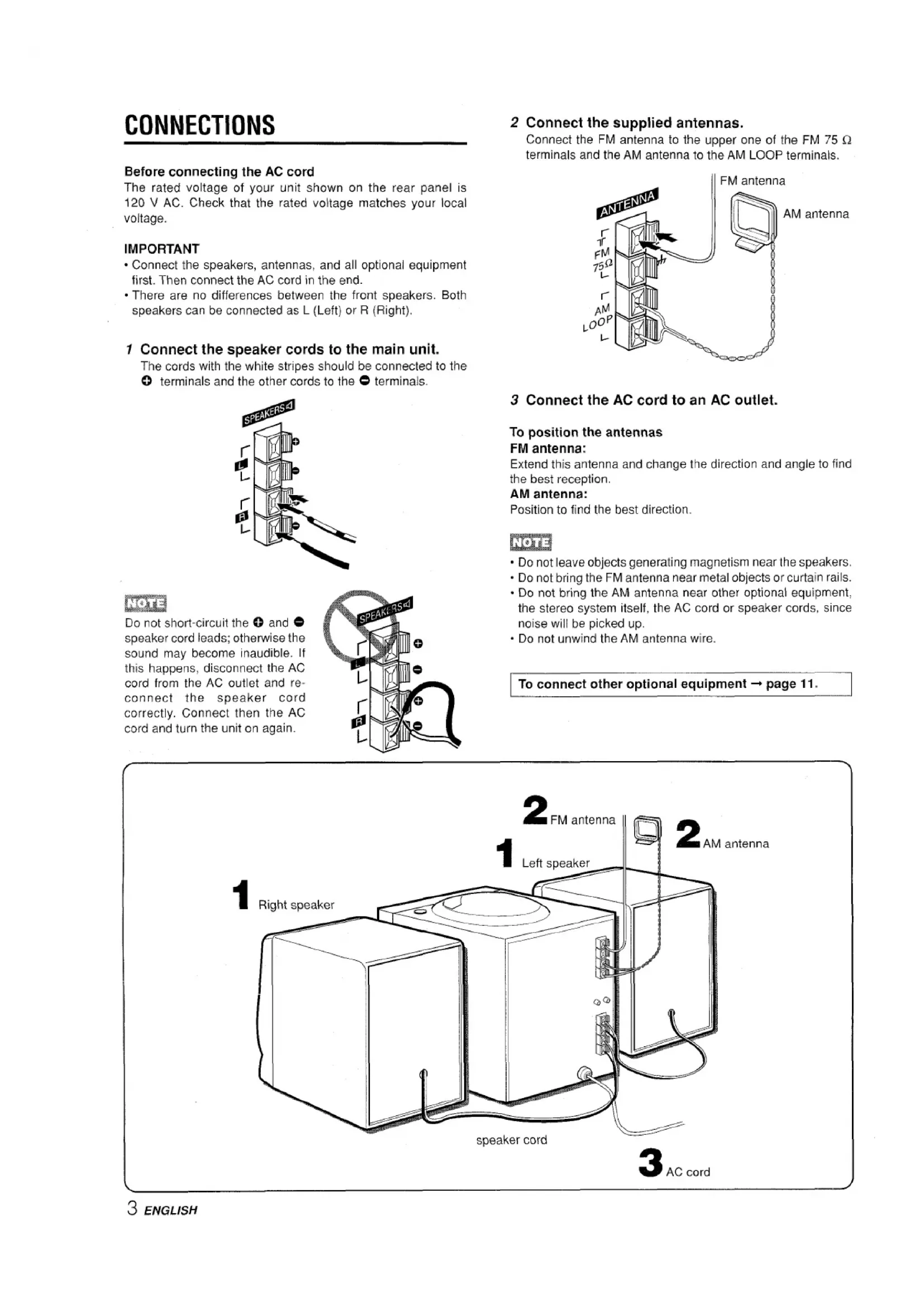

CONNECTIONS

Before connecting the AC cord

The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.

IMPORTANT

• Connect the speakers, antennas, and all optional equipment first. Then connect the AC cord in the end.
• There are no differences between the front speakers. Both speakers can be connected as L (Left) or R (Right).

1 Connect the speaker cords to the main unit.

The cords with the white stripes should be connected to the + terminals and the other cords to the - terminals.

SPEAKERS4 A

NOTE

Do not short-circuit the + and - speaker cord leads; otherwise the sound may become inaudible. If this happens, disconnect the AC cord from the AC outlet and reconnect the speaker cord correctly. Connect then the AC cord and turn the unit on again.

SPEAKERS L + - B + - +

2 Connect the supplied antennas.

Connect the FM antenna to the upper one of the FM 75 Ω terminals and the AM antenna to the AM LOOP terminals.

ANTENNA FM 75Ω AM LOOP FM antenna AM antenna

3 Connect the AC cord to an AC outlet.

To position the antennas

FM antenna:

Extend this antenna and change the direction and angle to find the best reception.

AM antenna:

Position to find the best direction.

NOTE

• Do not leave objects generating magnetism near the speakers.
• Do not bring the FM antenna near metal objects or curtain rails.
• Do not bring the AM antenna near other optional equipment, the stereo system itself, the AC cord or speaker cords, since noise will be picked up.
• Do not unwind the AM antenna wire.

To connect other optional equipment → page 11.

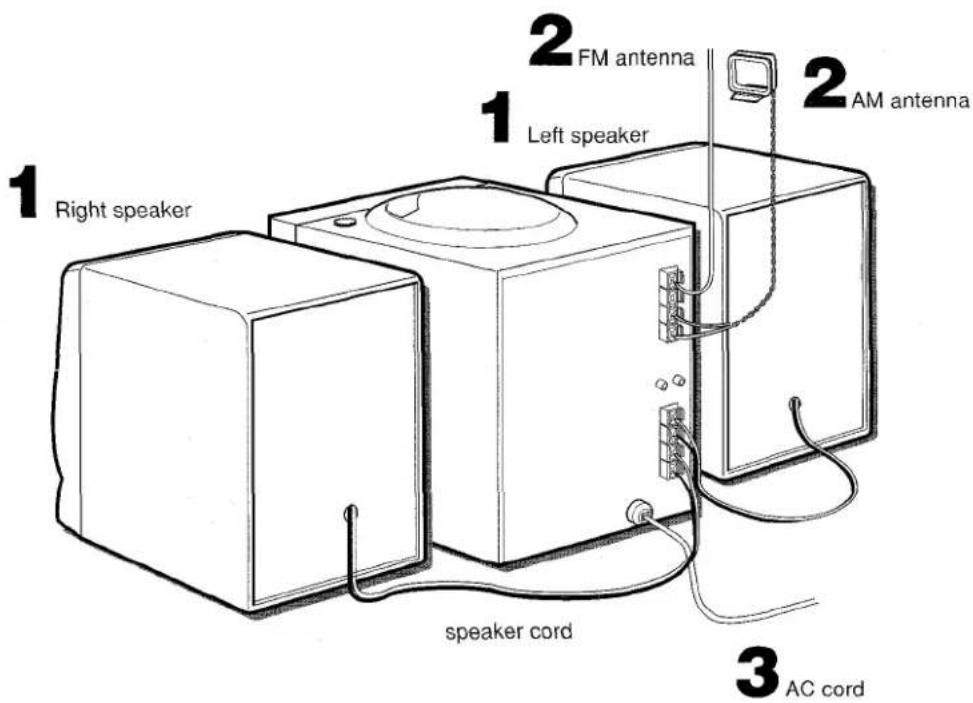

1 Right speaker 2 FM antenna 1 Left speaker 2 AM antenna speaker cord 3 AC cord

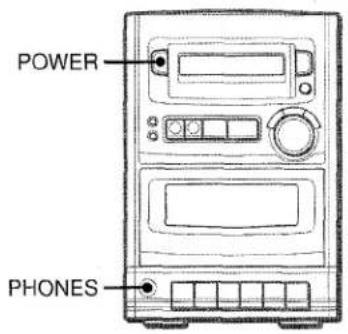

BEFORE OPERATION

POWER PHONES

To turn the unit on

Press the POWER button.

After use

Press the POWER button to turn off the power. The display changes to the clock.

Using the headphones

Connect headphones to the PHONES jack with a stereo mini plug (ø3.5 mm, 18 inch).

No sound is output from the speakers while the headphones are plugged in.

REMOTE CONTROL

Inserting batteries into the remote control

Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries.

R6(AA)

When to replace the batteries

The maximum operational distance between the remote control and the sensor on the main unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.

NOTE

• If the unit is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage.
• The remote control may not operate correctly when:
• The line of sight between the remote control and the remote sensor (located in the POWER button) is exposed to intense light, such as direct sunlight
• Other remote controls are used nearby (television, etc.)

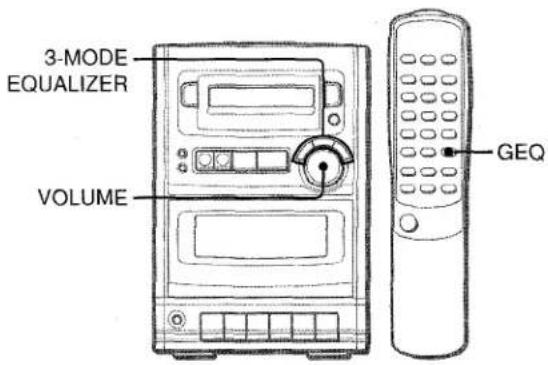

ADJUSTING THE SOUND

3-MODE EQUALIZER VOLUME GEQ

SOUND

ADJUSTING THE VOLUME

Press the VOLUME control.

Press the upper side to increase the volume, and the lower side to decrease it.

The volume level is shown on the display for 4 seconds. It can be set from 0 (minimum) to 30, and then MAX (maximum).

The volume remains memorized even after the power is turned off. However, if the power is turned off when the volume is set to more than 20, it is automatically set to 20 the next time the power is turned on.

GRAPHIC EQUALIZER

Press one of the 3-MODE EQUALIZER buttons.

ROCK/POP/JAZZ POP 6 7 9 12

ROCK: Powerful sound emphasizing treble and bass.

POP: More presence in the vocals and midrange.

JAZZ: Sound enriched with heavy bass and fine treble.

To cancel the selected mode

Press the selected button again.

When using the remote control

Press the GEQ button until the desired equalization mode is displayed.

The equalization mode changes to ROCK, POP, JAZZ or no equalization cyclically.

SOUND ADJUSTMENT DURING RECORDING

The output volume and tone of the speakers or headphones may be freely varied without affecting the level of the recording.

PLAYING A CD

OPEN REPEAT 0-9,+10 RANDOM

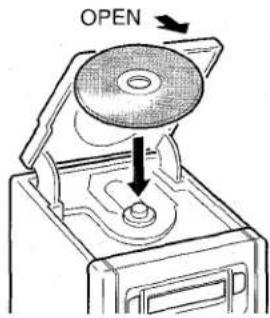

LOADING A DISC

Press the OPEN mark to open the disc compartment. Load a disc with the label side up and close the disc compartment.

OPEN

PLAYING A DISC

Load a disc.

Press the ▶II button.

Play begins with the first track.

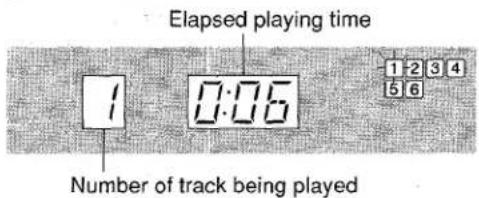

Elapsed playing time 1 0:05 Number of track being played

To stop play, press the ■ button.

To pause play, press the ▶II button. To resume play, press again.

To search for a particular point during playback, keep the ◀◀◀ or ▶▶◀ button pressed and release the button at the desired point.

To skip to the beginning of a track during playback, press the ◀◀◀ or ▶▶▶ button repeatedly.

Display in stop mode

Total playing time Music calender (only the first 16 tracks are displayed) 50:42 1 2 3 4 5 6 Total number of tracks

To start play when the power is off (Direct Play Function)

Press the ▶■ button. The power is turned on and play of the loaded disc begins.

If other than CD play is selected with the power on, one press of the ▶■ button selects the CD function and starts play.

To select a track with the remote control

Press the numbered buttons and the +10 button to select a track. Example:

To select the 25th track, press the +10, +10 and 5 buttons.

To select the 10th track, press the +10 and 0 buttons.

The selected track starts to play and play continues to the end of that disc.

NOTE

• Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunction.
• Do not place more than one compact disc in the disc compartment.
• Do not try to open the disc compartment during play.

RANDOM PLAY

All the tracks on the disc can be played randomly.

Press the RANDOM button on the remote control in stop mode to display "RAN".

Press the ▶II button to start play.

To cancel random play, press the RANDOM button again in stop mode.

NOTE

• Even if the ◀◀ button is pressed, a previously played track cannot be skipped. The unit returns to the beginning of the current track only.
• When you select a track with the numbered buttons on the remote control during the random play mode, the selected track starts to play and the random play mode is cancelled.

REPEAT PLAY

One track, all the tracks or programmed tracks can be played repeatedly.

Press the REPEAT button to display "REPEAT 1" or "REPEAT ALL".

To repeat the current track only, display "REPEAT 1".

To repeat all the tracks, display "REPEAT ALL".

To cancel repeat play, press the REPEAT button to turn off "REPEAT".

To repeat the desired tracks only, program the tracks and press the REPEAT button to display "REPEAT ALL".

PROGRAMMED PLAY

Up to 30 tracks can be programmed from the inserted disc.

2 1 4

Use the remote control.

1 Press the SET button in stop mode.

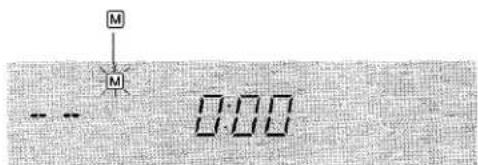

"M" flashes on the display.

M M 0:00

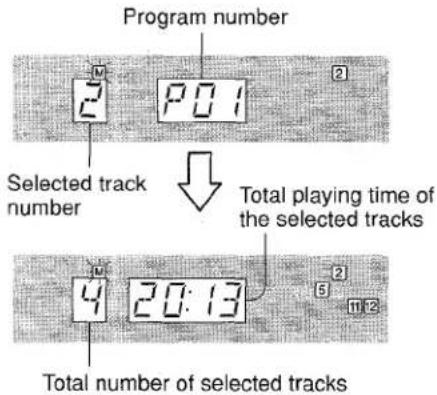

2 Press the numbered buttons and +10 button to program track.

Example:

To select the 12th track, press the +10 and 2 buttons.

To select the 20th track, press the +10, +10 and 0 buttons.

CD PLAYING

3 Repeat step 2 to program other tracks.

4 Press the ▶II button to start play.

To check the program

Each time the ▶▶I button on the main unit is pressed in stop mode, a track number and program number will be displayed.

To clear the program

Press the ■ button in stop mode.

To add tracks to the program

Before playing, repeat step 2. The track will be programmed after the last track.

To change the programmed tracks

Clear the program and repeat all the steps again.

NOTE

- During programmed play, the following operations cannot be performed.

- Random play

- One-track repeat (REPEAT 1)

- If the programmed time is more than 99:59 minutes, or the disc track number 31 or above is programmed, the display shows - - - as the total playing time.

MANUAL TUNING

1 2 TUNER MODE

1 Press the BAND button repeatedly to select the desired band.

2 Press the ◀◀ or ▶▶ button to select a station.

Each time the button is pressed, the frequency changes. When a station is tuned in, "TUNE" is displayed for a moment. During FM stereo reception, "STEREO" is displayed.

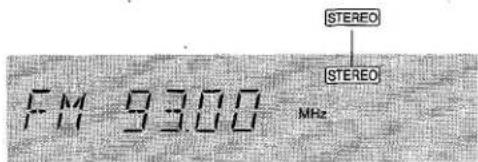

STEREO STEREO FM 9300 MHz

To play a tuned station when the power is off (Direct Play Function)

Press the BAND button. The power is turned on and the tuned stations is played.

To search for a station quickly (Auto Search)

Keep the ◄◀ or ▶▶ button pressed until the tuner starts searching for a station. After tuning in to a station, the search stops.

To stop the Auto Search manually, press the ◀◀◀ or ▶▶◀ button. • The Auto Search may not stop at stations with very weak signals.

When an FM stereo broadcast contains noise

Press the TUNER MODE button on the remote control.

"MONO" appears on the display.

Noise is reduced, although reception is monaural.

To restore stereo reception, repeat the above again.

To change the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/step. If you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval.

Press the POWER button while pressing the BAND button.

To reset the interval, repeat this procedure.

NOTE

When the AM tuning interval is changed, all preset stations (see "PRESETTING STATIONS") are cleared. The preset stations have to be set again.

PRESETTING STATIONS

1 2 P-SCAN 0-9,+10

The unit can store a total of 32 preset stations. When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.

1 Press the BAND button to select a band. Then, press the ◀◀◀ or ▶▶▶I button to select a station.

2 Press the SET button to store the station.

A station is assigned a preset number, beginning from 1 in consecutive order for each band.

M Frequency FM 90.00 MHz 1 Preset numbo

3 Repeat steps 1 and 2.

NOTE

Each band can only store a maximum of 16 preset stations.

To listen to preset stations

Use the remote control to select the preset number directly.

1 Press the BAND button to select a band.

2 Press the numbered buttons to select a preset number. Example:

To select preset number 15, press the +10 and 5 buttons. To select preset number 10, press the +10 and 0 buttons. When operating on the main unit, press the ■ button repeatedly.

Each time the button is pressed, the next higher number is selected.

To clear a preset station

Select the preset number of the station to be cleared. Then, press the SET button, and press the ▶■ button within 4 seconds while the frequency flashes.

The preset numbers of all other stations in the band with higher numbers are also decreased by one.

To scan preset stations

Press the P-SCAN button on the remote control until "P.SCAN" is displayed. The preset stations are received in order for 5 seconds each. The preset number flashes during reception.

To stop scanning, press the VOLUME button.

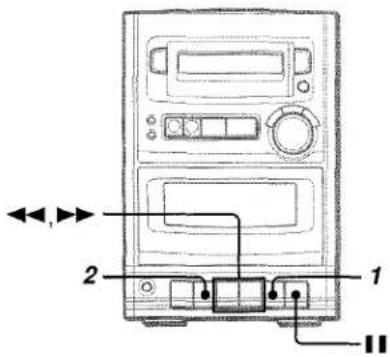

PLAYING A TAPE

Diagram of a desktop computer tower with labeled ports and connection arrows

Use only type I (normal) tapes.

1 Press the ■/▲ button to open the cassette holder and insert a tape with the exposed side down. Push the cassette holder to close it.

Line drawing of a microwave oven with a speaker and control panel, showing an arrow indicating sound pressure (no text or symbols)

2 Press the ▶ button.

TAPE function is selected and play begins.

Only the side facing out from the unit can be played back.

To stop play, press the ■/▲ button.

To pause play, press the Ⅱ button. To resume play, press again.

To fast forward or rewind, press the ◀◀ or ▶▶ button in stop mode. Then press the ■/▲ button to stop the tape.

To start play when the power is off (Direct Play Function)

Press the ▶ button. The power is turned on and play of the inserted tape begins.

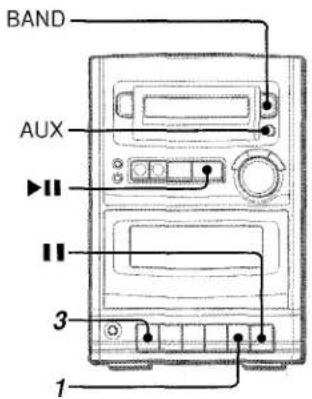

RECORDING

This section explains how to record from the tuner, CD player or other external equipment.

BAND AUX 1 2 3

Preparation

• Wind up the tape to the point recording starts.
- Note that recording is done on only one side of the tape.
• Use only type I (normal) tapes.

1 Insert the tape to be recorded on into the deck. Insert the tape with the side to be recorded on facing out from the unit and the exposed side down.

2 Get the source ready for recording.

To record from a CD, press the ▶II button and load the disc.

To record from a radio broadcast, press the BAND button and tune in to a station.

To record from a connected source, press the AUX button and prepare the source for play.

3 Press the ● button to start recording.

The ▶ button is pressed simultaneously.

When the selected function is CD, playback and recording start simultaneously.

When the selected function is AUX, start playback manually.

To stop recording, press the ■/▲ button.

To pause recording, press the Ⅱ button. To resume recording, press again.

When the tape reaches its end, the tape stops and the ● button is released. During CD recording, CD play pauses automatically. Change the tape and press the ● button, then CD play will automatically resume.

To record the selected tracks of the CD

Program the tracks (see "PROGRAMMED PLAY") and press the ● button.

About cassette tapes

• 120-minute or longer tapes are extremely thin and easily deformed or damaged. They are not recommended.
  • Take up any slack in the tape with a pencil or similar tool before use. Slack tape may break or jam in the mechanism.

COPYRIGHT

Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in which the machine is being used.

SETTING THE CLOCK

2,4 REPEAT 1,3,5

When the AC cord is connected for the first time, the time on the display flashes.

Set the time as follows while the power is off.

1 Press the SET button.

The hour flashes.

AM 12:00

2 Press the ◀◀◀ or ▶▶◀ button to designate the hour.
3 Press the SET button to set the hour.

The hour stops flashing and the minute starts flashing.

4 Press the ◀◀◀ or ▶▶◀ button to designate the minute.
5 Press the SET button to set the minute and complete setting.

The minute stops flashing on the display and the clock starts from 00 seconds.

To correct the current time

Press the POWER button to turn the unit off and press the SET button. Then, carry out steps 1 to 5 above.

To display the current time

Keep the ■ button pressed until the clock is displayed. The time is displayed for 4 seconds.

To switch to the 24-hour standard

While the power is on, keep the ■ button pressed until the clock is displayed and then press the REPEAT button within 4 seconds.

Repeat the same procedure to restore the 12-hour standard.

If the clock display flashes while the power is off

This is caused by a power interruption. The current time needs to be reset.

If power is interrupted for more than approximately 12 hours, all settings stored in memory after purchase need to be reset.

SETTING THE TIMER

BAND 5 1,2,3 2,3 5 1

The unit can be turned on at a specified time with the built-in timer.

Preparation

Make sure the clock is set correctly.

1 Press the TIMER button on the remote control to display ①, and press the SET button within 2 seconds.

Ⓐ is displayed, and the hour flashes.

AM - 12:00

NOTE

If you do not press the SET button within 2 seconds, another operation may start.

2 Designate the hour of the timer-on time by pressing the ◄◀ or ▶▶I button, and press the SET button. Repeat to designate the minute of the timer-on time.

3 Select the duration for the timer-activated period with the ◀◀◀ or ▶▶◀ button and press the SET button.

60

The duration for the timer-activated period can be set between 5 and 240 minutes in 5-minute steps.

4 Prepare the source.

To listen to a CD, press the ▶II button and load the disc. To listen to the radio, press the BAND button and tune in to a station.

5 Press the POWER button to turn the unit off after adjusting the volume.

④ remains on the display after the power is turned off (timer standby mode).

When the timer-on time is reached, the unit turns on and begins play with the selected source.

- You cannot set the volume level to 21 or higher.

To check the specified time

Press the TIMER button on the remote control. The timer-on time flashes for 2 seconds. However, the duration for the timer-activated period will not be displayed.

To cancel timer standby mode temporarily

Press the TIMER button on the remote control twice to turn off ⏻.

Using the unit while the timer is set

You can use the unit normally after setting the timer.

Before turning off the power, repeat step 4 to prepare the source, and adjust the volume.

NOTE

• Timer playback will not begin unless the power is turned off.
• Connected equipment cannot be turned on and off by the built-in timer of this unit. Use an external timer.
• When power is interrupted, Ⓐ display disappears and the clock flashes. Reset the clock and set the timer again.

SETTING THE SLEEP TIMER

1 2

The unit can be turned off automatically at a specified time.

Use the remote control.

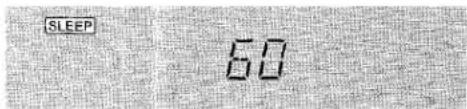

1 Press the SLEEP button.

SLEEP 60

2 Within 4 seconds, press the ◀◀ or ▶▶ button to specify the time until the power is turned off.

Each time the button is pressed, the time changes between 5 and 240 minutes in 5-minute steps.

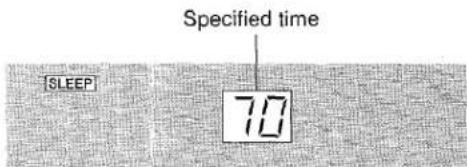

Specified time SLEEP 70

To check the time remaining until the power is turned off

Press the SLEEP button once. The remaining time is displayed for 4 seconds.

To cancel the sleep timer

Press the SLEEP button twice so that "SLEEP" on the display disappears.

NOTE

If the unit is turned off during tape playback, the ▶ button is kept pressed. Press the ■/▲ button to release the ▶ button.

CONNECTING OPTIONAL EQUIPMENT

CONNECTING TO AUX JACKS

AUX

Sound signals can be input to this unit through the AUX jacks.

Use a cable with RCA phono plugs to connect equipment (turntables, LD players with analog output jacks, DAT decks, MD players, VCRs, TVs, etc.).

Connect the red plug to the R jack, and the white plug to the L jack.

Refer to the operating instructions of the connected equipment for details.

• The connecting cords are not supplied. Obtain the necessary connecting cords.
• Consult your local Aiwa dealer for recommended equipment.

When connecting a turntable

Use an Aiwa turnable equipped with a built-in equalizer amplifier.

LISTENING TO EXTERNAL SOURCES

AUX

To play equipment connected to the AUX jacks, press the AUX button and start play. "AUX" appears on the display.

CARE AND MAINTENANCE

Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.

To clean the cabinet

Use a soft and dry cloth.

If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.

To clean the heads and tape paths

After every 10 hours of use, clean the heads and tape paths with a head cleaning cassette or cotton swab moistened with cleaning fluid or denatured alcohol. (These cleaning kits are commercially available.)

When cleaning with a cotton swab, wipe the recording/playback head, erasure head, capstan, and pinchroller.

Erasure head Recording/ Playback head Cotton swab Capstan Pinchroller

After cleaning the heads and tape paths with a head cleaning cassette or a moistened swab, wait until the cleaned parts are completely dry before inserting the tapes.

Care of discs

- When a disc becomes dirty, wipe the disc from the center out with a cleaning cloth.

Illustration of hands holding a CD or DVD with a cloth partially covering the disc (no text or symbols)

• After playing a disc, store the disc in its case. Do not leave the disc in places that are hot or humid.

Care of tapes

• Store tapes in their cases after use.
• Do not leave tapes near magnets, motors, television sets, or any source of magnetism. This will downgrade the sound quality and cause noise.
• Do not expose tapes to direct sunlight, or leave them in a car parked in direct sunlight.

SPECIFICATIONS

Main unit

FM tuner section

Tuning range

87.5 MHz to 108 MHz

Antenna terminals

75 ohms (unbalanced)

AM tuner section

Tuning range

530 kHz to 1710 kHz (10 kHz step)

Antenna

531 kHz to 1602 kHz (9 kHz step)

Loop antenna

Amplifier section

Power output

5 W + 5 W (1 kHz, T.H.D. 10 %, 4 ohms)

3.5 W + 3.5 W (100 - 15 kHz,

T.H.D. less than 1 %, 4 ohms)

Cassette deck section

Track format

4 tracks, 2 channels stereo

Frequency response

Normal tape: 50 Hz - 12500 Hz

Recording system

AC bias

Erasure system

Magnet erase

Heads

Recording/playback head × 1

Erase head × 1

Compact disc player section

Laser

Semiconductor laser (λ = 780 nm)

D-A converter

1 bit dual

Wow and flutter

Unmeasurable

Speaker system

Speakers

100 mm (4 in.) cone type, 4 ohms

Dimensions (W × H × D)

150×236.2×210.5mm

(6 × 9 ^3 /8 × 8 ^3 /8 in.)

Weight

1.1 kg (2 lbs 7 oz.)

General

Power requirements

120 V AC, 60 Hz

Power consumption

22 W

Dimensions of main unit

160×236.2×209.3mm

(W× H× D)

(6^3/8 × 9^3/8 × 8^1/_4 in.)

Weight of main unit

2.6 kg (5 lbs 12 oz.)

Specifications and external appearance are subject to change without notice.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.

TROUBLESHOOTING GUIDE

If the unit fails to perform as described in these Operating Instructions, check the following guide.

GENERAL

There is no sound.

• Is the AC cord connected properly?

• Is there a bad connection? (→ page 3)

- Was an incorrect function button pressed?

The sound becomes inaudible.

- There may be a short circuit in the speaker terminals.

→ Disconnect the AC cord from the AC outlet and re-connect the speaker cords correctly. Then connect the AC cord and turn the unit on again.

Sound is emitted from one speaker only.

• Is the other speaker disconnected?

TUNER SECTION

There is constant, wave-like static.

- Is the antenna connected properly? (→ page 3)

The reception contains noise interferences or the sound is distorted.

- Is the system picking up external noise or multipath distortion?

→ Change the orientation of the antenna.
→ Move the unit away from other electrical appliances.

CASSETTE DECK SECTION

The tape does not run.

• Is the deck in pause mode? (→ page 8)

The sound is off-balance or not adequately high.

• Is the playback head dirty? (→ page 11)

Recording is not possible.

- If the tab on a cassette broken off, cover the hole with adhesive tape.

Tab for side A

• Is the recording head dirty? (→ page 11)

Erasure is not possible.

• Is the erasure head dirty? (→ page 11)
• Is a CrO_2 or metal tape being used?

High frequency sound is not emitted.

• Is the recording/playback head dirty? (→ page 11)

CD PLAYER SECTION

The CD player does not play.

• Is the disc correctly loaded ? (→ page 5)
• Is the disc dirty? (→ page 11)
• Is the lens affected by condensation?
→ Wait approximately one hour and try again.

CLOCK AND TIMER SECTION

Timer setting is not possible.

- Does the clock flash on the display?

→ Reset the clock. (→ page 9)

To reset

If an unusual condition occurs in the display window or the cassette decks, reset the unit as follow.

1 Press the POWER button to turn off the power.
2 Press the POWER button to turn the power back on while pressing the ■ button. Everything stored in memory after purchase is canceled.

If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord and repeat step 2.

ESPANOL

ADVERTENCIA

PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS ELÉCTRICAS, NO EXPONGA ESTE APARATO A LA LLUVIA NI A LA HUMEDAD.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN "CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

Line drawing of a multi-tiered electronic device with control panel and buttons (no text or symbols)

Antena FM

Control remoto

Simple line drawing of a rectangular container with a side outlet (no text or symbols)

Simple line drawing of a rectangular container with a textured interior and a side knob (no text or symbols)

Antena AM

Manual de Instrucciones, etc.

ANTENNA FM 75Ω L

CONEXIONES

SPEAKERS L R

NOTA

3-MODE EQUALIZER VOLUME GEQ

AJUSTE DEL VOLUMEN

Presione el control VOLUME.

Diagram of a desktop computer tower with labeled ports and connection arrows indicating data flow or ports.

Diagram showing a device with an arrow pointing to a screen, labeled with symbols and an arrowhead pointing to the bottom right.

Simple diagram of two sun icons with radiating lines, no text or symbols present

Illustration of hands holding a CD or DVD with a cloth partially covering the disc (no text or symbols)

TABLE DES MATIÈRES

PRÉPARATIONS

PRÉCAUTIONS .... 1

CONNEXIONS 3

ANTENNA FM 75Ω L

CONNEXIONS

SPEAKERS L R

REMARQUE

ANTENNA Antenne FM FM 75Ω L h AM LOOP L Antenne AM

3-MODE EQUALIZER VOLUME GEQ

SON

RÉGLAGE DU VOLUME

Diagram of a desktop computer tower with labeled ports and indicators, showing internal components and connections.

Diagram of a device with an arrow pointing to a screen, connected to a power outlet (no text or symbols present)

Illustration of hands holding a CD or DVD with a cloth partially covered, showing motion (no text or symbols)

The parts on the main unit and remote control are listed in alphabetical order with the pages on the right side. Refer to each page for instructions about each part.

INDICE DE LAS PARTES

▶◀, ▶▶TUNING DOWN, UP 5, 7, 9

VOLUME 4

0-9,+10 5,6,7

3-MODE EQUALIZER 4

For assistance and information,

call toll free 1-800-BUY-AIWA. (United States and Puerto Rico)
