USER MANUAL NSXA909 AIWA
For assistance and information
call toll free 1-800-BUY-AIWA
(United States and Puerto Rico)
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
"CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."
Explanation of Graphical Symbols:
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Owner's record
For your convenience, record the model number and serial number (you will find them on the rear of your set) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.
| Model No. | Serial No. (Lot No.) |
| CX-NA909 | |
| SX-WNA909 |
PRECAUTIONS
Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.
Installation
1 Water and moisture - Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like.
2 Heat - Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5^ (41^) or greater than 35^ (95^) .
3 Mounting surface - Place the unit on a flat, even surface.
4 Ventilation - The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10cm (4 in.) clearance from the rear and the top of the unit, and 5cm (2 in.) from each side.
- Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.
5 Objects and liquid entry—Take care that objects or liquids do not get inside the unit through the ventilation openings.
6 Carts and stands When placed or mounted on a stand or cart, the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.
7 Condensation - Moisture may form on the CD pickup lens when:
- The unit is moved from a cold spot to a warm spot
- The heating system has just been turned on
- The unit is used in a very humid room
- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.
8 Wall or ceiling mounting - The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.
Electric Power
1 Power sources - Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.
2 Polarization - As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.
3 AC power cord
- When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this could result in fire or shock.
- Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power outlet.
- Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock.
4 Extension cord-To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.
5 When not in use—Unplug the AC power cord from the power outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.
Outdoor Antenna
1 Power lines - When connecting an outdoor antenna, make sure it is located away from power lines.
2 Outdoor antenna grounding - Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves.

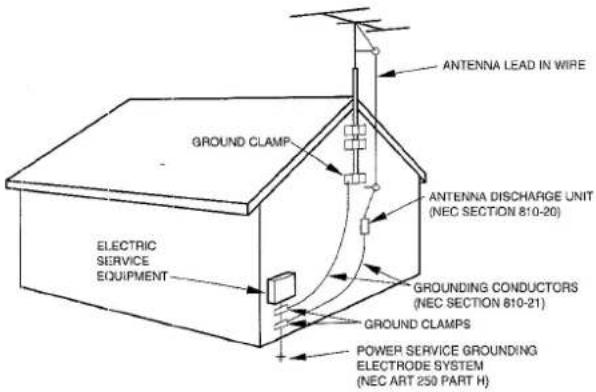

Antenna Grounding According to the National Electrical Code
NEC-NATIONAL ELECTRICAL CODE
Maintenance
Clean the unit only as recommended in the Operating Instructions.
Damage Requiring Service
Have the units serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- Foreign objects or liquid have gotten inside the unit.
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been damaged.
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
TABLE OF CONTENTS
PRECAUTIONS 1
PREPARATIONS
CONNECTIONS 3
REMOTE CONTROL 5
BEFORE OPERATION 5
SOUND
AUDIO ADJUSTMENTS 6
RHYTHM PLAY FUNCTION (BEAT MASTER) 7
GRAPHIC EQUALIZER 8

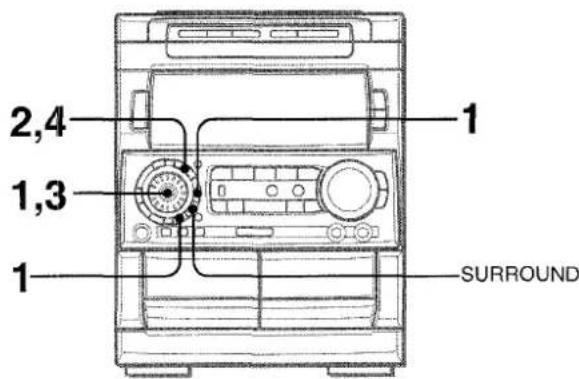

DSP SURROUND 9
RADIO RECEPTION
MANUAL TUNING 11
PRESETTING STATIONS 12
TAPE PLAYBACK
BASIC OPERATIONS 13
CONTINUOUS PLAY 14
CD PLAYING
BASIC OPERATIONS 15
PROGRAMMED PLAY 16
RECORDING
BASIC RECORDING 17

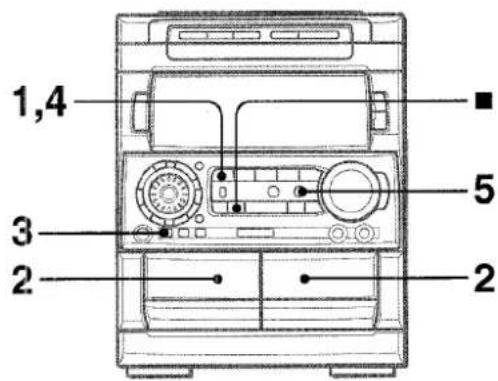

DUBBING A TAPE MANUALLY 18
DUBBING THE WHOLE TAPE 18
AI EDIT RECORDING 19
PROGRAMMED EDIT RECORDING 20
KARAOKE
MICROPHONE MIXING 21

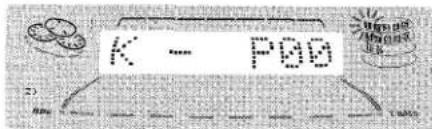

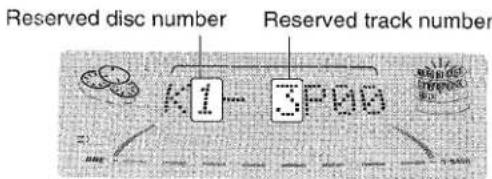

KARAOKE PROGRAM 22
CLOCK AND TIMER
SETTING THE CLOCK 23
SETTING THE SLEEP TIMER 23
SETTING THE TIMER 24
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT 25

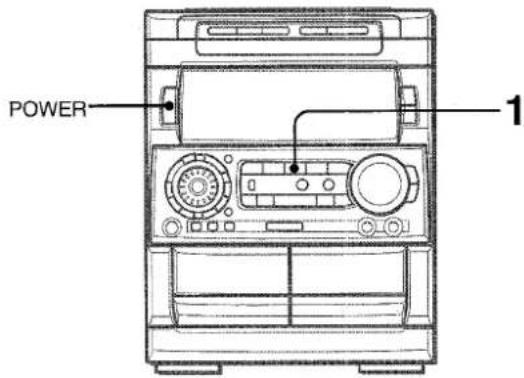

LISTENING TO EXTERNAL SOURCES 253
GENERAL
CARE AND MAINTENANCE 26
TROUBLESHOOTING GUIDE 26
SPECIFICATIONS 27
PARTS INDEX Back cover

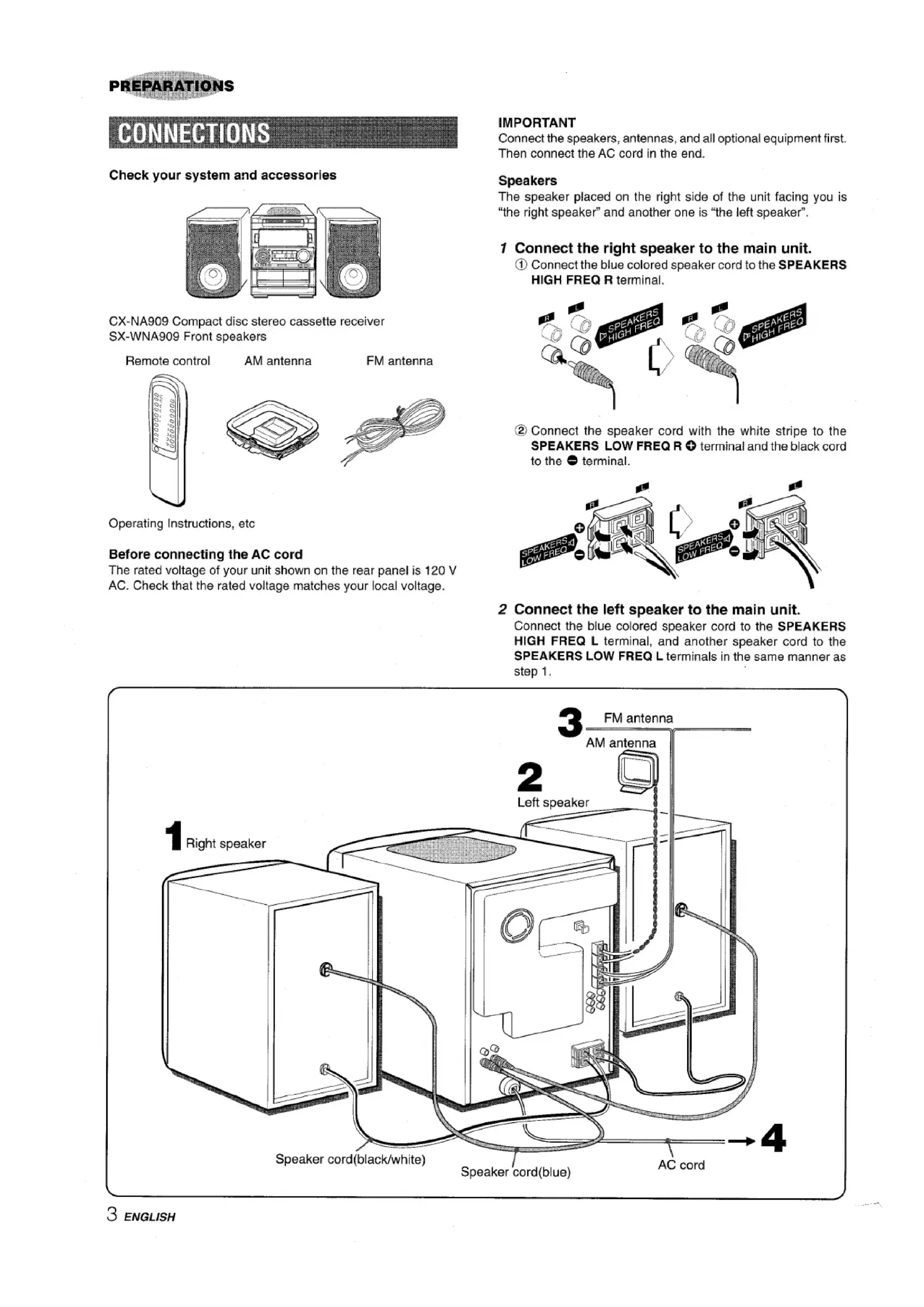

CONNECTIONS
Check your system and accessories

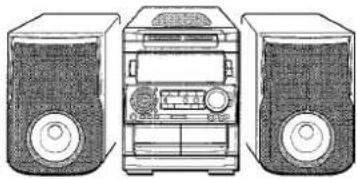

CX-NA909 Compact disc stereo cassette receiver SX-WNA909 Front speakers
Remote control
AM antenna
FM antenna
Operating Instructions, etc
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.
IMPORTANT
Connect the speakers, antennas, and all optional equipment first. Then connect the AC cord in the end.
Speakers
The speaker placed on the right side of the unit facing you is "the right speaker" and another one is "the left speaker".

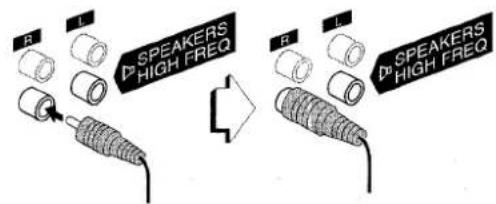

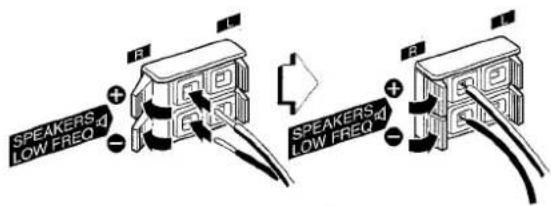

1 Connect the right speaker to the main unit.
① Connect the blue colored speaker cord to the SPEAKERS HIGH FREQ R terminal.
② Connect the speaker cord with the white stripe to the SPEAKERS LOW FREQ R + terminal and the black cord to the terminal.
2 Connect the left speaker to the main unit.
Connect the blue colored speaker cord to the SPEAKERS HIGH FREQ L terminal, and another speaker cord to the SPEAKERS LOW FREQ L terminals in the same manner as step 1.
3 Connect the supplied antennas.
Connect the FM antenna to FM 75Ω terminals and the AM antenna to AM LOOP terminals.
4 Connect the AC cord to an AC outlet.
To position the antennas
FM feeder antenna:
Extend this antenna horizontally in a T-shape and fix its ends to the wall.
AM antenna:
Position to find the best possible reception.
To stand the AM antenna on a surface
Fix the claw to the slot.
NOTE

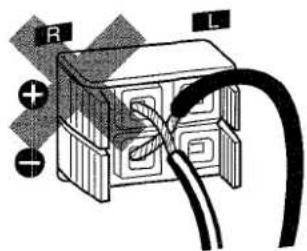

- Be sure to connect the speaker cords correctly. Improper connections can cause short circuits in SPEAKERS terminals.
- Do not leave objects generating magnetism, such as credit cards, near the speakers, as these objects may be damaged.
- Do not bring the FM antenna near metal objects or curtain rails.
- Do not bring the AM antenna near other optional equipment, the stereo system itself, the AC cord or speaker cords, since noise will be picked up.
- Do not unwind the AM antenna wire.

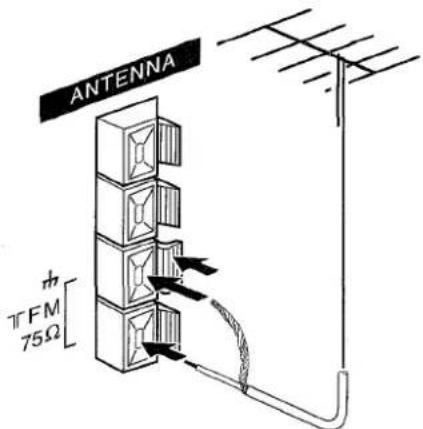

CONNECTING AN OUTDOOR ANTENNA
For better FM reception, use of an outdoor antenna is recommended.
Connect the outdoor antenna to FM 75Ω terminals.
To connect other optional equipment page 25.
REMOTE CONTROL

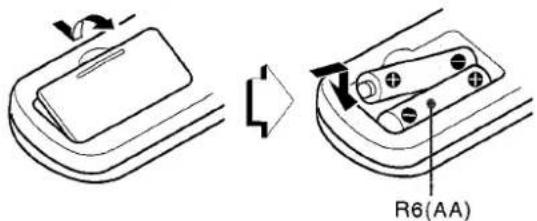

Inserting batteries
Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries.
When to replace the batteries
The maximum operational distance between the remote control and the sensor on the main unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.
Using the remote control
The instructions in this manual refer mainly to the buttons on the main unit. Buttons on the remote control with the same names as those on the main unit can be used as well.
NOTE
-
If the remote control is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage.
The remote control may not operate correctly when: -
The line of sight between the remote control and the remote sensor inside the display window is exposed to intense light, such as direct sunlight
- Other remote controls are used nearby (those of a television, etc.)

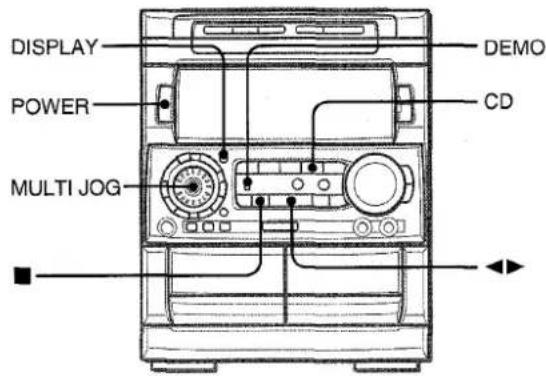

BEFORE OPERATION
To turn the power on
Press one of the function buttons (TAPE, TUNER, VIDEO/AUX, CD, MD). Playback of the inserted disc or tape begins, or the previously tuned station is received (Direct Play Function).
POWER is also available.
When the unit is turned on, the disc compartment may open and close to reset the unit.
To turn the power off
Press POWER.
Flash windows
The windows on the top of the unit and the cassette decks light up or flash while the unit is being powered on.
To turn off the light of the top window, press while pressing CD. To turn back on, repeat the above.
The light of the cassette decks cannot be turned off.
To dim the illumination of the display
1 Press DISPLAY twice so that "DIMMER" is displayed.
2 Within 4 seconds, turn MULTI JOG to select the dimmer mode as follows.
DIMMER0←DIMMER1←DIMMER2←DIMMER3
DIMMER 0: The normal display.
DIMMER 1: The illumination of the display is dimmer than usual.
DIMMER 2: The illumination of the display is dimmer than DIMMER 1.
DIMMER 3: The illumination of the display is dimmer than DIMMER 2, and the spectrum analyzer and the illumination on the buttons light off.
SOUND
Game Demo
When the AC cord is connected, the display window demonstrates the game Demo. When the power is turned on, the game Demo is overridden by the operation display. When the power is turned off, the game Demo is restored.
To cancel the game Demo
Press DEMO. To re-activate the game Demo, press DEMO again.
To play the game Demo
1 Press Demo so that the game Demo displays.
2 Press
Three numbers on the display start to run.
3 Press once.
The number on the left side stops.
4 Press twice to stop the remaining two numbers.
- You can enjoy the game Demo with game sound by pressing DEMO while the power is on.
Scoring:
20 points are given to start the game.
If all the numbers are equal, 50 points are added to the score.
If not equal, one point is subtracted.
If the gained points reach 9999, you win.
If the gained points fall to 0, you lose.
To reset the game Demo
Press DEMO twice, then press . The game starts again.
To mute the game sound
Once, cancel the game Demo by pressing DEMO. Then, keep pressing DEMO until "OFF" is displayed.
To restore the game sound, keep pressing DEMO again until
"ON" is displayed.
NOTE
- During playing the game Demo, and are available only for the game Demo. Cancel the game Demo to use these buttons for the functions such as CD playing, etc.
To change the game sound, see "RHYTHM PLAY FUNCTION" on page 7.
During the game Demo, some indicators unrelated with the actual operation light up on the display.
AUDIO ADJUSTMENTS
VOLUME
Turn VOLUME on the main unit, or press VOLUME on the remote control.
The volume level is displayed as a number from 0 to MAX (50).
The volume level is automatically set to 20 when the power is turned off with the volume level set to 21 or more.
BBESYSTEM
The BBE system enhances the clarity of high-frequency sound. It also enriches the Karaoke function to make your voice sound clear and pleasant.

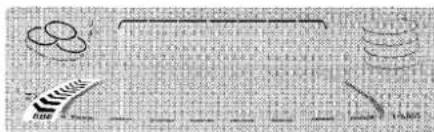

Press BBE.
Each time it is pressed, the level changes. Select one of the three levels, or the off position to suit your preference.
SUPER T-BASS SYSTEM
The T-BASS system enhances the realism of low-frequency sound.
Press T-BASS.
Each time it is pressed, the level changes. Select one of the three levels, or the off position to suit your preference.
NOTE
Low frequency sound may be distorted when the T-BASS system is used for a disc or tape in which low frequency sound is originally emphasized. In this case, cancel the T-BASS system.
The Multi Amplifier System equipped with your system
The Multi Amplifier System has two amplifiers with lefts and rights channels; one for middle-and-high frequency sound from 200Hz to 20kHz , the other for low frequency sound from 20Hz to 200Hz .
If both middle-and-high and low frequency sounds are output from one amplifier, middle-and-high frequency sound may be distorted. On the other hand, if each frequency sound is output from separate amplifier, each sound will be played back in good quality.
So, good quality sound will be played back with this Multi Amplifier System which has separate amplifiers for two frequency ranges.
RHYTHM PLAY FUNCTION (BEAT MASTER)
You can enjoy music of CDs, tapes or etc. mixed with rhythm patterns programmed in the unit.
TO SELECT A RHYTHM PATTERN

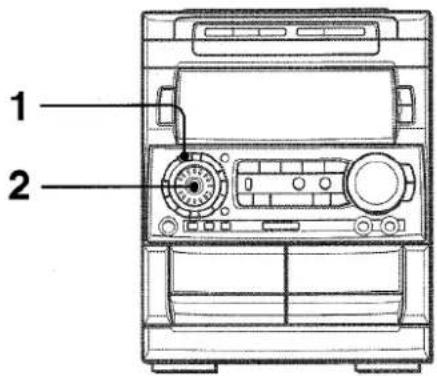

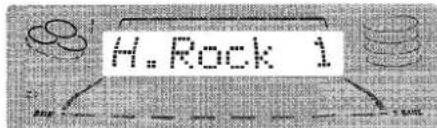

1 Press RHYTHM.
One of the rhythm patterns is displayed.

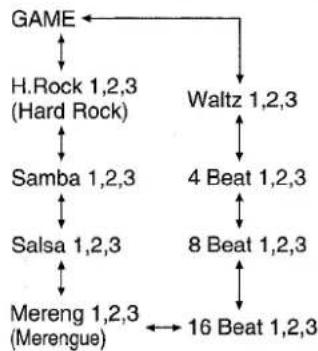

2 Turn MULTI JOG to select the desired rhythm pattern.
The rhythm pattern is displayed cyclically as follows.
To change the tempo of the selected rhythm pattern

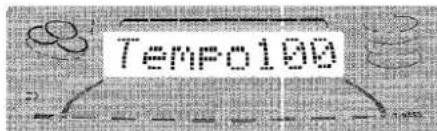

Press RHYTHM once while the selected rhythm pattern is displayed, then turn MULTI JOG to select the rhythm tempo. The rhythm tempo can be changed from 90 to 160.
To change the volume level of the selected rhythm pattern
Press RHYTHM twice while the selected rhythm pattern is displayed, then turn MULTI JOG to select the volume level. The volume level can be changed from 1 to 4.
To cancel the rhythm play function
Press MULTI JOG.
To restart the rhythm play function
Press MULTI JOG again. The rhythm pattern selected last time starts.
NOTE
- When the GAME pattern is selected, the rhythm tempo and the rhythm volume level cannot be changed.
The signal output from LINE OUT jack is affected with the rhythm play function.
GRAPHIC EQUALIZER
SELECTING THE PROGRAMMED EQUALIZATION CURVE
This unit provides the following 5 different programmed equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
JAZZ: Accented lower frequencies for jazz-type music
CLASSIC: Enriched sound with heavy bass and fine treble.
LATIN: Accented higher frequencies for latin music.

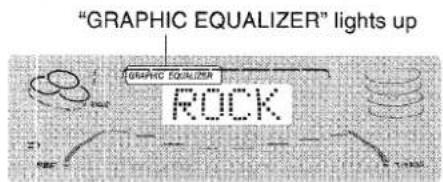

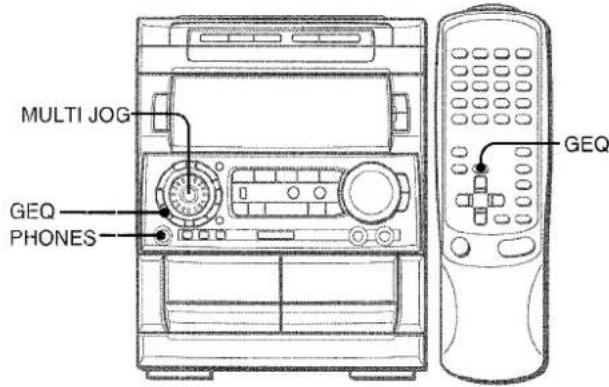

Press GEO, and turn MULTI JOG to select one of the programmed equalization curve within 4 seconds.

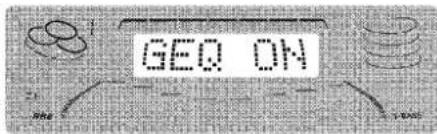

"GRAPHIC EQUALIZER" appears (except "GEQ OFF") and the GEQ mode is displayed cyclically as follows.
To display the current GEQ mode
Press GEQ. The current mode is displayed for 4 seconds.
To cancel the selected mode
Press GEQ, and turn MULTI JOG to select"GEQ OFF" within 4 seconds. "GRAPHIC EQUALIZER" disappears.
To change the spectrum analyzer display
3 patterns of spectrum analyzer display can be shown.
Press DISPLAY once, and turn MULTI JOG within 4 seconds to select the desired spectrum analyzer display.
Using the headphones
Connect headphones to the PHONES jack with a standard stereo plug (Ø6.3 mm, 1/4 inch).
No sound is output from the speakers while the headphones are plugged in.
Sound adjustment during recording
The output volume and tone (except BBE and Rhythm play function) of the speakers or headphones may be freely varied without affecting the recording.
SETTING A NEW EQUALIZATION CURVE MANUALLY
The equalization curve can be customized to suit your preference.

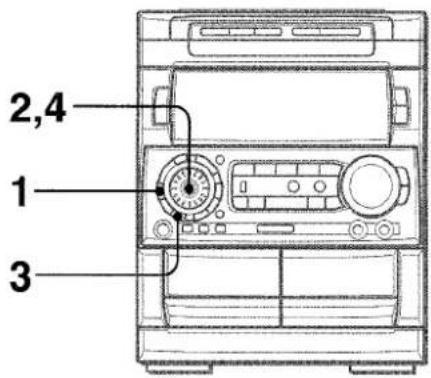

1 Press GEQ LOW.
The lowest level frequency indicator flashes for 4 seconds.
2 Within 4 seconds, turn MULTI JOG to adjust the level of the lowest frequency.
3 Press GEQ HIGH.
The highest level frequency indicator flashes for 4 seconds.
4 Within 4 seconds, turn MULTI JOG to adjust the level of the highest frequency.
The frequency level indicators of between the lowest and the highest are adjusted accordingly.

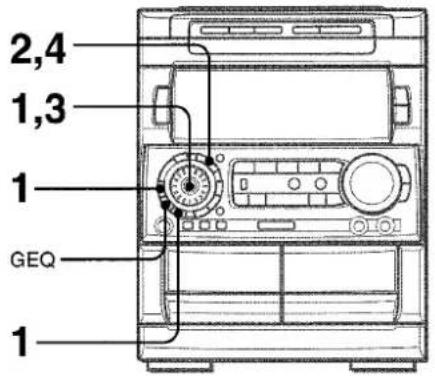

MEMORIZING THE NEW EQUALIZATION CURVES
Up to 4 customized equalization curves can be stored as the manual modes M1 - M4.
1 Set a new equalization curve with HIGH, LOW, and MULTI JOG.
See "SETTING AN NEW EQUALIZATION CURVE MANUALLY". The created curve is displayed for 4 seconds.
2 Within 4 seconds, press ENTER.
"M 1" flashes on the display for 4 seconds.
- If this step is not completed within 4 seconds, press GEO first to display "GEQ ON". Then press ENTER within 4 seconds.
3 Within 4 seconds, turn MULTI JOG to select one of the manual modes M1 - M4 to store the curve.
4 Within 4 seconds, press ENTER.
The new equalization curve is stored.
To select the stored equalization curve
Press GEQ, and turn MULTI JOG to select one of the manual modes M1 - M4 within 4 seconds.
DSP SURROUND
The DSP (Digital Signal Processor) SURROUND adjusts the delay time, the input mode and the feedback level to give a resonant surround sound, allowing you to enjoy the real sound presence of different environments.
This unit has been programmed with 4 different SURROUND modes. You can also create and memorize up to 4 of your own surround settings.
SELECTING A PROGRAMMED DSP SURROUND MODE
When you select the programmed DSP SURROUND mode, the sound presence of a disco (DISCO), live music performance (LIVE), movie theater (MOVIE) or concert hall (HALL) can be obtained.
Press SURROUND, and turn MULTI JOG to select the desired Programmed mode within 4 seconds.
"DSP SURROUND" appears and the DSP SURROUND mode is displayed cyclically as follows.
Equalization curves are selected automatically to match the DSP SURROUND modes and can also be selected or turned off to suit your preference.
To display the current DSP SURROUND mode
Press SURROUND. The current mode is displayed for 4 seconds.
To cancel the selected mode
Press SURROUND, and turn MULTI JOG to select "DSP OFF" within 4 seconds. "DSP SURROUND" disappears.
When the music source is monaural
Select "LIVE" or "MOVIE" to obtain a simulated stereo effect. When "DISCO" or "HALL" is selected, no sound will be heard from the surround speakers.
The elements of the DSP SURROUND sound can be customized.
DELAY (delay time)
Increasing the number in the display increases the delay time and surround effect. "15", "20", "30", "50" or "140" mSec can be selected.
To adjust the delay time
Press DELAY, and turn MULTI JOG to select one of the levels within 4 seconds.
L-R, L+R (input mode)
When L + R is displayed, the surround effect increases, especially in the center.
When "L-R" is displayed, it increases on the outside.
To select a input mode

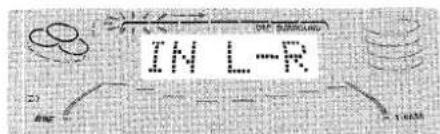

Press EFFECT once, and turn MULTI JOG to select "L-R" or "L+R" within 4 seconds.
FB (feedback level)
Increasing the number in the display increases the echo.
A level from "OFF" (0) to "7" can be selected.
To adjust the level of feedback
Press EFFECT twice, and turn MULTI JOG to select one of the levels within 4 seconds.
Up to 4 DSP SURROUND sound can be memorized as the manual modes M1 - M4.
1 Set a new DSP SURROUND sound with DELAY, EFFECT, and MULTI JOG.
2 Within 4 seconds, press ENTER.
"M1" flashes on the display.
If this step is not completed within 4 seconds, press SURROUND first to display "DSP ON". Then press ENTER within 4 seconds.
3 Within 4 seconds, turn MULTI JOG to select one of the manual modes M1 - M4.
4 Within 4 seconds, press ENTER.
The new DSP SURROUND sound is memorized.
To select the stored DSP SURROUND sound
Press SURROUND, and turn MULTI JOG to select one of the manual modes M1 - M4 within 4 seconds.
NOTE
When the MIC or ECHO level is changed (page 21), the SURROUND mode is automatically canceled.
MANUAL TUNING
1 Press TUNER/BAND repeatedly to select the desired band.
When TUNER/BAND is pressed while the power is off, the power is turned on directly.
2 Press DOWN or UP to select a station.
Each time the button is pressed, the frequency changes.

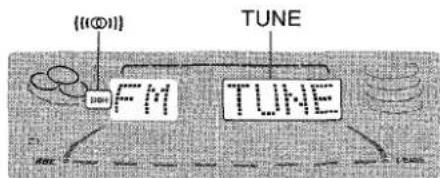

When a station is received, "TUNE" is displayed for 2 seconds.
During FM stereo reception, () is displayed.
To search for a station quickly (Auto Search)
Keep DOWN or UP pressed until the frequency starts to change rapidly. After tuning in to a station, the search stops. To stop the Auto Search manually, press DOWN or UP.
The Auto Search may not stop at stations with very weak signals.
When an FM stereo broadcast contains noise
Press MONO TUNER on the remote control so that "MONO" appears on the display.
Noise is reduced, although reception is monaural.
To restore stereo reception, press MONO so that "MONO" disappears.
To change the AM tuning interval
The default setting of the AM tuning interval is 10kHz step. If you use this unit in an area where the frequency allocation system is 9kHz step, change the tuning interval.
Press POWER while pressing TUNER/BAND.
To reset the interval, repeat this procedure.
NOTE
When the AM tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.

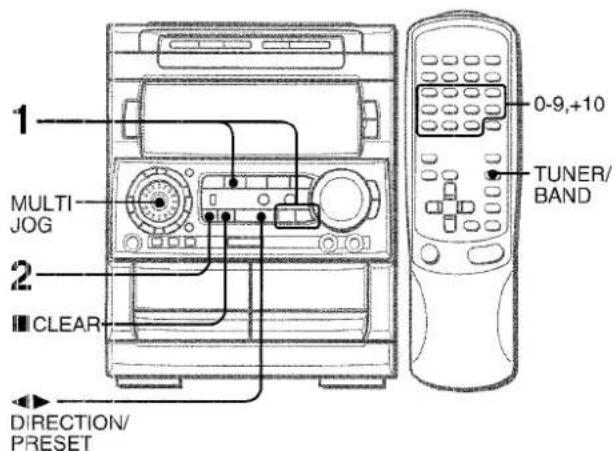

PRESETTING STATIONS
The unit can store a total of 32 preset stations. When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.
1 Press TUNER/BAND to select a band, and press DOWN or UP to select a station.
2 Press SET to store the station.
A preset number beginning from 1 in consecutive order for each band is assigned to the station.
3 Repeat steps 1 and 2.
The next station will not be stored if a total of 32 preset stations for all the bands have already been stored.
PRESET NUMBER TUNING
Use the remote control to select the preset number directly.
1 Press BAND to select a band.
2 Press numbered buttons 0-9 and +10 to select a preset number.
Example:
To select preset number 20, press +10, +10 and 0.
To select preset number 15, press +10 and 5.
Selecting a preset number on the main unit
Press TUNER/BAND to select a band. Then, press DIRECTION/PRESET repeatedly or turn MULTI JOG.
Each time DIRECTION/PRESET is pressed, the next ascending number is selected.
To clear a preset station
Select the preset number of the station to be cleared. Then, press CLEAR, and press SET within 4 seconds.
The preset numbers of all other stations in the band with higher numbers are also decreased by one.
BASIC OPERATIONS
INSERTING TAPES
- On deck 1, tapes are always played back on both sides. On deck 2, you can select a reverse mode to play back one or both sides.
- Use Type I (normal), Type II (high/CrO _2 ) or Type IV (metal) tapes for playback.

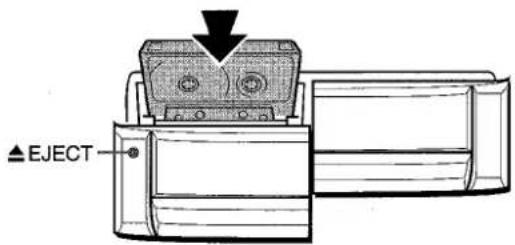

Press TAPE and press EJECT to open the cassette holder.
Insert a tape with the exposed side down. Push the cassette holder to close.

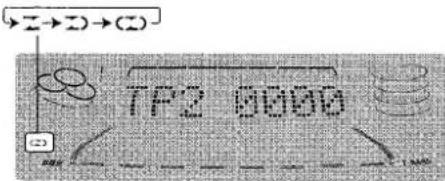

To select a reverse mode (deck 2 only)
Each time REV MODE is pressed, the reverse mode changes.
To play one side only, select
To play from front side to reverse side once only, select
To play both sides repeatedly, select (2).
- When tapes are loaded in both decks, on the display indicates Continuous Play.
PLAYING BACK A TAPE
Insert a tape.

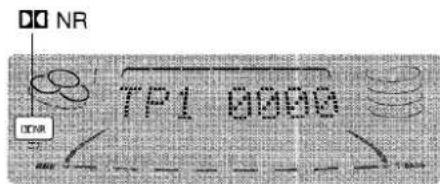

1 Press DOLBY NR and turn Dolby NR on or off to match the playback tape.
For tapes recorded with DOLBY NR, turn on NR. For tapes recorded without DOLBY NR, turn off NR.
2 Press to start play.
Playback side indicator
The tape counter indicates the tape running length.
The front side is being played (forward).
The back side is being played (reverse).
When tapes are loaded in both decks
Press TAPE first to select a deck.
The selected deck number is displayed.
To stop play, press
To pause play (deck 2 only), press. To resume play, press again.
To change the playback side, press DIRECTION/PRESET in play or pause mode.
To fast forward or rewind, press or . Then press to stop the tape.
To start play when the power is off (Direct Play Function)
Press TAPE. The power is turned on and play of the inserted tape begins.
To set the tape counter to 0000
Press CLEAR in stop mode.
The counter is also set to 0000 when the cassette holder is opened and closed.
MUSIC SENSOR
If there is a 4-second or longer blank between each track, a search for the beginning of the current or next track during playback can be done easily.
Press or during playback referring to the playback side indicator (or on the display.
For example, when is pressed while is displayed, playback of the next track starts.
Music sensor function may not be able to detect tracks under the following conditions:
- Eblanks of less than 4 seconds between tracks
- Noisy blanks
- Long passages of low-end sound
Low overall recording levels
CONTINUOUS PLAY
After playback on one deck finishes, the tape in the other deck will start to play without interruption.
1 Insert tapes into deck 1 and deck 2.
2 Press TAPE/DECK1/2 to select the deck to be played back first.
3 Press REV MODE to select
4 Press to start playback.
Playback continues until is pressed.
About cassette tapes
- To prevent accidental erasure, break off the plastic tabs on the cassette tape after recording with a screwdriver or other pointed tool.
To record on the tape again, cover the tab openings with adhesive tape, etc. (On Type II tapes, take care not to cover the Type II tape detection slot.)
120-minute or longer tapes are extremely thin and easily deformed or damaged. They are not recommended.
- Take up any slack in the tape with a pencil or similar tool before use. Slack tape may break or jam in the mechanism.
DOLBY NR system
The Dolby Noise Reduction system reduces tape hiss noise. For optimum performance when playing back a tape recorded with the DOLBY NR system, turn on the DOLBY NR system.
BASIC OPERATIONS

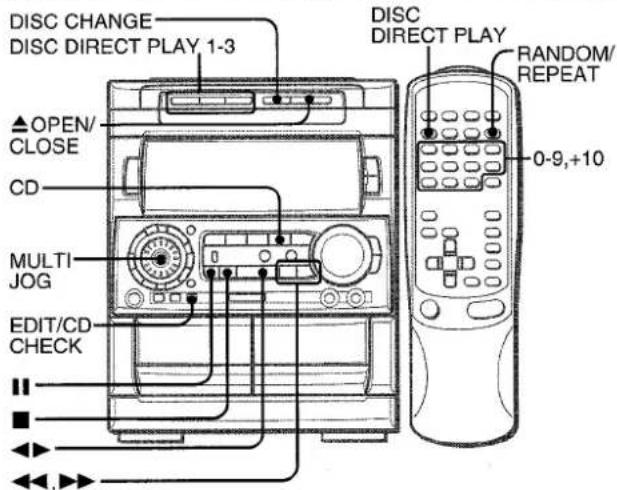

LOADING DISCS

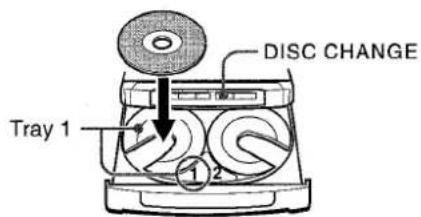

Press CD, then press OPEN/CLOSE to open the disc compartment. Load disc(s) with the label side up.
To play one or two discs, place the discs on tray 1 and 2. To play three discs, press DISC CHANGE to rotate the trays after placing two discs. Place the third disc on tray 3. Close the disc compartment by pressing OPEN/CLOSE.
Tray number of the disc to be played

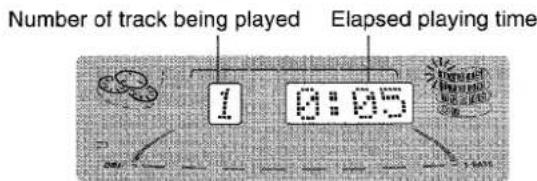

PLAYING DISCS
Load discs.
To play all discs in the disc compartment, press Play begins with the disc on tray 1.
To play one disc only, press DISC DIRECT PLAY 1-3. The selected disc is played once.
To play with the remote control
Press DISC DIRECT PLAY, then press numbered buttons 1-3 within 3 seconds to select a disc.
To stop play, press
To pause play, press. To resume play, press again.
To search for a particular point during playback, keep or pressed and release it at the desired point.
To skip to the beginning of a track during playback, press or repeatedly or turn MULTI JOG.
To remove discs, press OPEN/CLOSE.
To start play when the power is off (Direct Play Function) Press CD. The power is turned on and play of the loaded disc(s) begins.
When OPEN/CLOSE is pressed, the power is also turned on and the disc compartment is opened.
To check the remaining time
During play, press CD EDIT/CHECK. The amount of time remaining until all tracks finish playing is displayed. To restore the playing time display, repeat the above.
Selecting a track with the remote control
1 Press DISC DIRECT PLAY, then press numbered buttons 1-3 within 3 seconds to select a disc.
2 Press numbered buttons 0-9 and +10 to select a track. Example:
To select the 25th track, press +10 , +10 and 5.
To select the 10th track, press +10 and 0.
The selected track starts to play and continues to the end of that disc.
Replacing discs during play
While one disc is playing, the other discs can be replaced without interrupting play.
1 Press DISC CHANGE
2 Remove the discs and replace with other discs.
3 Press OPEN/CLOSE to close the disc compartment.
NOTE
- When loading an 8-cm (3-inch) disc, put it onto the inner circle of the tray.
- Do not place more than one compact disc on one disc tray.
- Do not tilt the unit with discs loaded. Doing so may cause malfunctions.
- Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunctions.
RANDOM /REPEAT PLAY
Use the remote control.
RANDOM play
All the tracks on the selected disc or all the discs can be played randomly.
REPEAT play
A single disc or all the discs can be played repeatedly.
Press RANDOM/REPEAT.
Each time it is pressed, the function can be selected cyclically.
RANDOM play — RANDOM lights up on the display.
REPEAT play lights up on the display.
RANDOM/REPEAT play — RANDOM and light up on the display.
Cancel — RANDOM and disappear from the display.
To play all discs, press to start play.
To play a single disc, press one of DISC DIRECT PLAY 1-3 to start play.
NOTE
During random play it is not possible to skip to the previously played track with

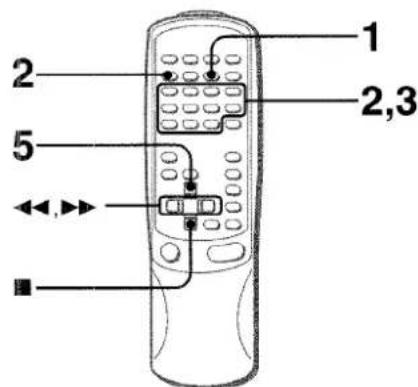

PROGRAMMED PLAY
Up to 30 tracks can be programmed from any of the inserted discs.
Use the remote control.

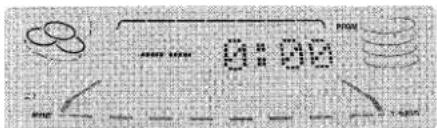

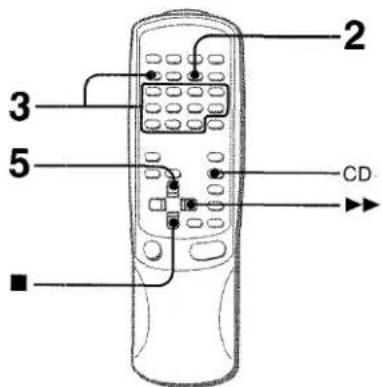

1 Press PRGM twice in stop mode.
"PRGM" is displayed.
- When the PRGM is pressed once in step 1, the unit enters the KARAOKE PROGRAM (page 22).
2 Press DISC DIRECT PLAY, then press numbered buttons 1-3 within 3 seconds to select a disc.
Go to the next step when the tray stops rotating.

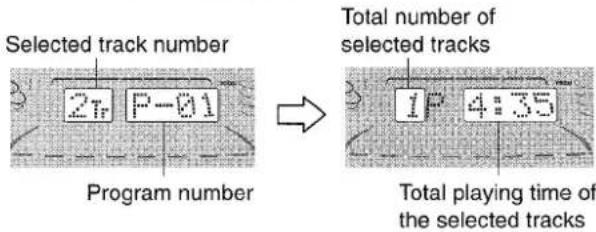

3 Press numbered buttons 0-9 and +10 to program a track.
Example:
To select the 25th track, press +10, +10 and 5.
To select the 10th track, press +10 and 0.
4 Repeat steps 2 and 3 to program other tracks.
5 Press to start play.
To check the program

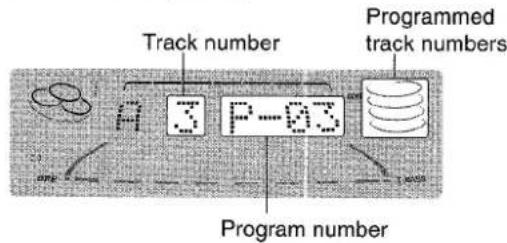

Each time or is pressed in stop mode, a disc number, track number, and program number will be displayed.
To clear the program
Press Clear in stop mode.
To add tracks to the program
Repeat steps 2 and 3 in stop mode. The track will be programmed after the last track.
To change the programmed tracks
Clear the program and repeat all the steps again.
To play the programmed tracks repeatedly
After programming the tracks, press RANDOM/REPEAT repeatedly until appears on the display.
NOTE
During programmed play, you cannot perform random play, checking the remaining time, and selecting a disc or track.

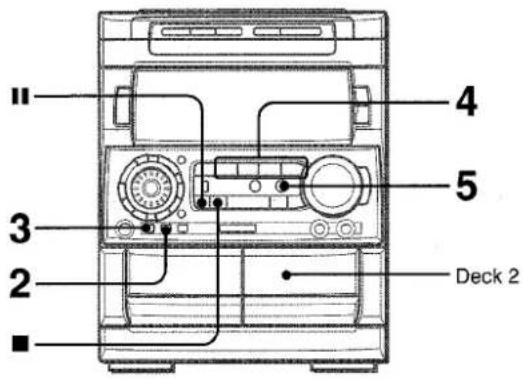

BASIC RECORDING
This section explains how to record from the tuner, CD player, or external equipment.
Preparation
- Use Type I (normal) and Type II (high/CrO₂) tapes for recording.
- Set the tape to the point where recording will start.
1 Insert the tape to be recorded on into deck 2.
Insert the tape with the side to be recorded on first facing out from the unit.
2 Press REV MODE to select the reverse mode.
To record on one side only, select Z
To record on both sides, select or () .
3 Press DOLBY NR to turn Dolby NR on or off.
To record with DOLBY NR, turn on DO NR.
To record without DOLBY NR, turn off NR.
4 Press function (CD, TUNER,VIDEO/AUX or MD) and prepare the source to be recorded.
To record from a CD, press CD and load the disc(s).
To record from a radio broadcast, press TUNER and tune in to a station.
To record from a connected source, press VIDEO/AUX on MD.
5 Press REC/REC MUTE to start recording.
When the selected function is CD, playback and recording start simultaneously.
To stop recording, press
To pause recording, press II. (Applicable when the source is TUNER,VIDEO/AUX or MD) To resume recording, press it again.
Sound adjustment during recording
The output volume and tone (except BBE and Rhythm play function) of the speakers or headphones may be freely varied without affecting of the recording.
INSERTING BLANK SPACES
Insertion of 4-second blank spaces enables you to activate the Music Sensor function. (Applicable when the source is TUNER,VIDEO/AUX or MD.)
1 Press REC/REC MUTE during recording or while in recording pause mode.
REC on the display flashes for 4 seconds and the tape runs without recording. After 4 seconds, the deck enters the recording pause mode.
2 Press II to resume recording.
To insert a blank space of less than 4 seconds, press REC/REC MUTE again while REC is flashing.
To insert blank spaces of more than 4 seconds, after the deck enters recording pause mode, press REC/REC MUTE again. Each time the button is pressed, a 4-second blank space is added.
To erase a recording
Make sure the microphone is not connected to this unit and the Rhythm play function (page 7) is canceled.
1 Insert the tape to be erased into deck 2 and press TAPE/ DECK 1/2 to display "TP 2".
2 Set the tape to the point where the erasure is to be started.
3 Set the reverse mode by pressing REV MODE.
4 Press REC/REC MUTE to start the erasure.
DUBBING A TAPE MANUALLY
NOTE
- Set the tape to the point where recording will start.
The reverse mode is automatically set to
Note that recording will be done on one side of the tape only.
1 Press TAPE.
2 Insert the original tape into deck 1 and the tape to be recorded on into deck 2.
Insert the tapes with the sides to be played back or recorded on facing out from the unit.
3 Press DOLBY NR to turn off the Dolby NR.
NR on the display goes out.
4 Press TAPE DECK 1/2 to select deck 1.
"TP 1" is displayed.
5 Press REC/REC MUTE to start recording.
Playing and recording start simultaneously.
To stop dubbing
Press
To set the Dolby NR when playing back the dubbed tape Press DOLBY NR and turn Dolby NR on or off to match the original tape.

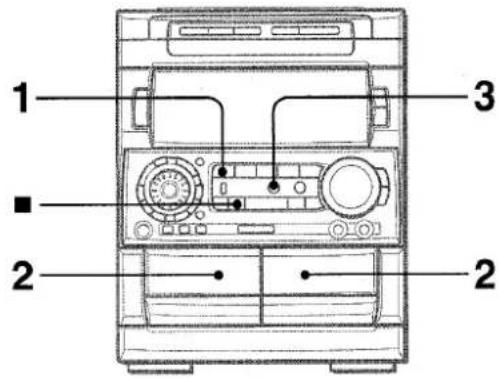

DUBBING THE WHOLETAPE
This function allows you to make exact copies of both sides of the original tape. The reverse side of both tapes will start simultaneously as soon as the longer tape has been reversed.
NOTE
- Dubbing does not start from a point halfway in the tape.
The reverse mode is automatically set to 0
The Dolby NR does not affect recording.
1 Press TAPE.
2 Insert the original tape into deck 1 and the tape to be recorded on into deck 2.
Insert each tape with the side to be played back or recorded on facing out from the unit.
3 Press SYNC DUB once or twice to start recording.
① For recording at normal speed, press it once to display NORM-DUB.
For recording at high speed, press it twice to display HIGH-DUB.
①
2
The tapes are rewound to the beginning of the front sides, and recording starts.
To stop dubbing
Press
To set the Dolby NR when playing back the dubbed tape Press DOLBY NR and turn Dolby NR on or off to match the original tape.
NOTE
Recording does not start, if the erasure prevention tab on either side of the tape is broken off.
AI EDIT RECORDING
The AI edit recording function enables CD recording without worrying about tape length and track length. When a CD is inserted, the unit automatically calculates the total track length. If necessary, the order of tracks is rearranged so that no track is cut short.
(AI: Artificial Intelligence)
NOTE
AI edit recording will not start from a point halfway into the tape.
The tape must be recorded from the beginning of either side.
1 Insert the tape into deck 2, and press DOLBY NR to turn Dolby NR on or off.
Insert the tape with the side to be recorded on first facing out from the unit.
2 Press CD and load the disc(s).
3 Press CD EDIT/CHECK once.
"EDIT" is displayed.
- When "PRGM" is displayed, press CD EDIT/CHECK again.
4 Press DISC DIRECT PLAY 1-3 to select a disc.
5 Press numbered buttons 0-9 on the remote control to designate the tape length.
10 to 99 minutes can be specified.
Example: When using a 60-minute tape, press 6 and 0.

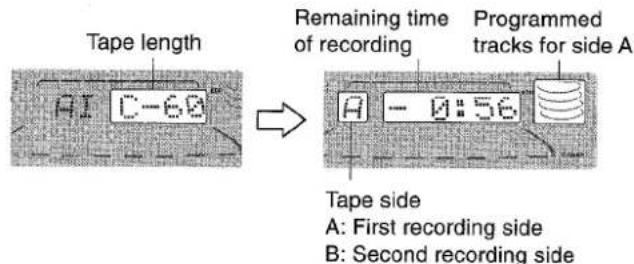

In a few seconds, the tracks to be recorded on each side of the tape are determined.
- or MULTI JOG are also available to designate the tape length.
6 Press REC/REC MUTE to start recording on the first side.
The tape is rewound to the beginning of the front side, the lead segment is played through for 10 seconds, and recording starts. When recording on the front (side A) ends, recording on the back (side B) starts.
To stop recording
Press CLEAR. Recording and CD play stop simultaneously.
To clear the edit program
Press CLEAR twice so that "EDIT" disappears on the display.

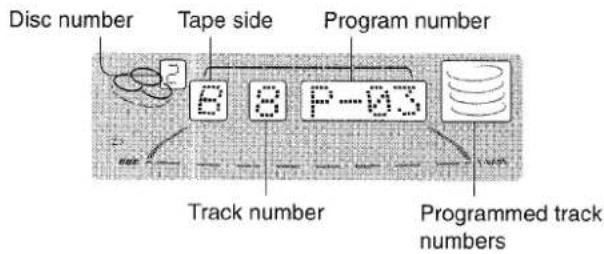

To check the order of the programmed track numbers
Before recording, press CD EDIT/CHECK to select side A or B, and press or repeatedly.
To add tracks from other discs to the edit program
If there is any time remaining on the tape after step 5, you can add tracks from other discs in the CD compartment.
1 Press CD EDIT/CHECK to select side A or B.
2 Press DISC DIRECT PLAY 1-3 to select a disc.
3 Press numbered buttons on the remote control to select tracks. A track whose playing time is longer than the remaining time cannot be programmed.
4 Repeat steps 2 and 3 to add more tracks.
Time on cassette tapes and editing time
The actual cassette recording time is usually a little longer than the specified recording time printed on the label. This unit can program tracks to use the extra time. When the total recording time is a little longer than the tape's specified recording time after editing, the display shows the extra time (without a minus mark), instead of the time remaining on the tape (with the minus mark).
NOTE
The AI edit recording function cannot be used with discs containing 31 tracks or more.

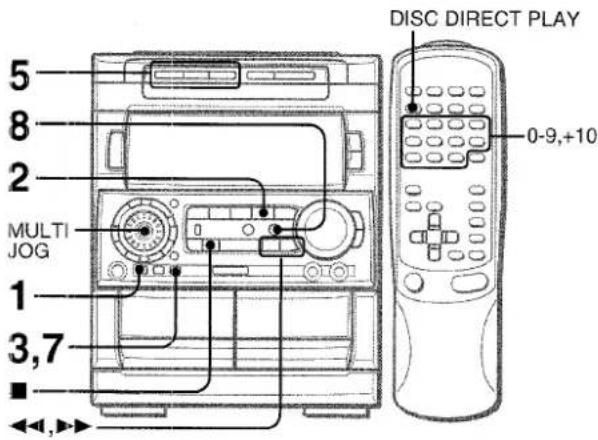

PROGRAMMED EDIT RECORDING
In the programmed edit recording function the tracks can be programmed while checking the remaining time on each side of the tape as the tracks are programmed.
NOTE
The programmed edit recording will not start from a point halfway in the tape. The tape must be recorded on from the beginning of either side.
1 Insert the tape into deck 2, and press DOLBY NR to turn Dolby NR on or off.
Insert the tape with the side to be recorded on first facing out from the unit.
2 Press CD and load the disc(s).
3 Press CD EDIT/CHECK twice.
"EDIT" and "PRGM" are displayed.
- When "Al" is displayed, press CD EDIT/CHECK again.
4 Press numbered buttons on the remote control to designate the tape length.
10 to 99 minutes can be specified.
The , or MULTI JOG are also available to designate the tape length.
5 Press DISC DIRECT PLAY 1-3 to select a disc. Then, press numbered buttons 0-9 and +10 on the remote control to program a track.
Example: To select the 10th track of disc 2, press DISC DIRECT PLAY 2, then press +10 and 0.

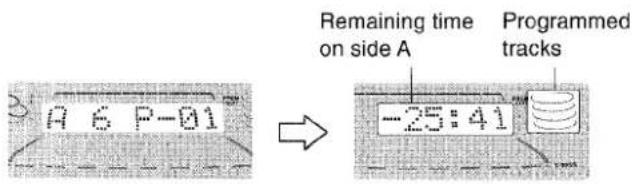

6 Repeat step 5 for the rest of the tracks for side A. A track whose playing time is longer than the remaining time cannot be programmed.
7 Press CD EDIT/CHECK to select side B and program the tracks for side B.
After confirming "B" on the display, repeat step 5.
8 Press the REC/REC MUTE button to start recording.
The tape is rewound to the beginning of the front side, the lead segment is played through for 10 seconds, and recording starts. When recording on the front side (A) ends, recording on the back side (B) starts.
To stop recording
Press. Recording and CD play stop simultaneously.
To check the order of the programmed track numbers
Before recording, press CD EDIT/CHECK to select side A or B, and press or repeatedly.
To change the program of each side
Press CD EDIT/CHECK to select side A or B, and press CLEAR to clear the program on the selected side. Then program tracks again.
To clear the edit program
Press CLEAR twice so that "EDIT" disappears on the display.
NOTE
Recording is inhibited if the erasure prevention tab on either side of the tape is broken off.
MICROPHONE MIXING
Two microphones (not supplied) can be connected to this unit, allowing you to sing along to music sources. Use microphones with mini plugs ( 3.5mm,1 / 8 inch).
1 Connect your microphones to MIC 1 and MIC 2 jacks.
2 Press one of the function buttons to select the source to be mixed, and play the source.
3 Adjust the volume and tone of the source.
4 Press MIC and turn VOLUME within 4 seconds to adjust the microphone volume.
The microphone volume can be selected from 1 to MAX (7) or OFF (cancel). The volume of both microphones is adjusted simultaneously.
5 Press ECHO and turn VOLUME within 4 seconds to adjust the echo level.
The echo level can be selected from 1 to MAX (7) or OFF (cancel).
To change the delay time of echo
Hold down ECHO while the echo is on. "L" (Long) and "M" (Middle) are displayed alternately. At the desired position, release the button.
To record microphone sound mixed with source sound
Follow the procedure for recording from the sound source (see page 17).
SYNC DUB cannot be used for mixing recording.
When not using the microphones
Set the microphone volume and echo level to OFF and remove the microphones from MIC jacks.
NOTE
- When the MIC or ECHO level is changed, the SURROUND mode is automatically canceled.
- If a microphone is held too near the speakers, a howling sound may be produced. In this case, hold the microphone away from the speakers, or decrease the microphone volume.
- If sound through the microphone is extremely loud, it may be distorted. In this case, decrease the microphone volume.
- When the function is changed, the microphone volume and the echo volume are set to off.
Recommended microphones
The use of unidirectional type microphones is recommended to prevent howling. Contact your local Aiwa dealer for details.
VOCAL FADER/MULTIPLEX FUNCTIONS
This unit can use discs or tapes as Karaoke sources.
Use the Vocal fader function for ordinary discs or tapes.
Use the Multiplex function for multi audio discs or tapes.
Press KARAOKE repeatedly to select the vocal fader or multiplex function.
Each time KARAOKE is pressed, one of these functions is selected cyclically.
① Vocal Fader
The singer's voice becomes softer than the accompaniment.
② Auto Vocal Fader
The singer's voice becomes softer only while there is audio input through a microphone.
③ Multiplex
Only the sound on the left channel is heard from both speakers, and the sound on the right channel is muted.
④ AutoMultiplex
The sound on the left channel is heard from both speakers, and the sound on the right channel is muted only while there is audio input through a microphone.
⑤ Cancel
To change the time lag setting in Auto Vocal Fader or Auto Multiplex function
The muted original singer's voice can be turned faster to the normal level.
When Auto Vocal Fader or Auto Multiplex is selected, "A-VF" or "A-MPX" is displayed for 3 seconds and changes to the selsected function name. After the selected function name is displayed, hold down KARAOKE until FAST is displayed.
To return to the initial setting, select SLOW.
When the power is turned off, SLOW is restored.
To change the audible channel in Multiplex function
Only the sound on the right channel can be heard from both speakers.
When Multiplex is selected, "MPX-L" is displayed for 3 seconds and changes to the selected function name. After the selected function name is displayed, hold down KARAOKE until MPX-R is displayed.
To return to the initial setting, select MPX-L.
When the power is turned off, MPX-L is restored.
NOTE
The Karaoke functions may not operate correctly with the following kinds of CDs or tapes.
- Those with monaural sound
- Those recorded with strong echoes
- Those with the vocal part recorded on the right or left side of the sound width
While the Karaoke function is on, the sound is output as monaural.
- When the function is changed, the Karaoke function is canceled.
KARAOKE PROGRAM
Before or during CD play, you can reserve up to 15 tracks to be played after the current track. Each reservation is cleared when it finishes playing.
Use the remote control.
1 Press CD and load the discs.
2 Press PRGM once.
3 Press DISC DIRECT PLAY, then press numbered buttons 1-3 within 3 seconds to select a disc. Then, press numbered buttons 0-9 and +10 to program a track.
4 Repeat step 3 to reserve other tracks.
5 Press to start play.
After a track is played, it is cleared from the program.

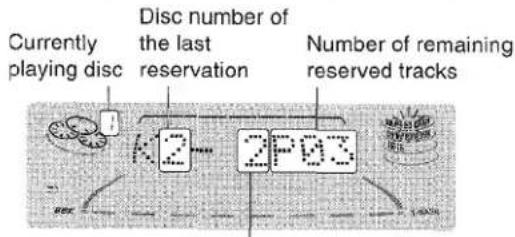

Track number of the last reservation
To add a reservation during play
Repeat step 3.
To check the reserved tracks
Press CD EDIT/CHECK repeatedly. Each time it is pressed, the disc number and track number are displayed in the reserved order.
To stop play
Press
When is pressed, the play starts from the last track again.
To skip a current track
Press▶. The skipped track is cleared from the program.
To clear all the reservations
Press repeatedly until "K - P00" is displayed.
Press it once more to cancel the Karaoke programs. The display returns to that of CD play.
NOTE
- If the reserved track number does not exist on the selected disc, the unit stops playing and the display flashes. In this case, press▶ to skip the error track. Then press▶ to start play with the next reserved track.
- When PRGM is pressed repeatedly in step 1, PRGM is displayed and the unit enters CD program play mode (page 16).
To cancel program play, press CLEAR.
SETTING THE CLOCK
1 Press CLOCK/TIMER once, then press IT SET within 4 seconds.

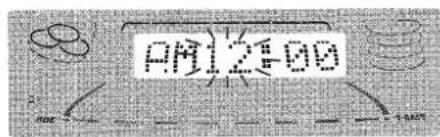

2 Press DOWN or UP to designate the hour, then press SET.
The hour stops flashing and the minute starts flashing.
3 Press DOWN or UP to designate the minute, then press SET.
The minute stops flashing on the display and the clock starts from 00 seconds.
To display the current time
Press CLOCK. The time is displayed for 4 seconds.
However, the time cannot be displayed during recording.
To switch to the 24-hour standard
Press the CLOCK and then press within 4 seconds.
Repeat the same procedure to restore the 12-hour standard.
If the clock display flashes
This is caused by a power interruption. The current time needs to be reset.
If power is interrupted for more than approximately 24 hours, all settings stored in memory after purchase need to be reset.
- MULTI JOG is also available instead of and
ENTER is also available instead of SET.
SETTING THE SLEEP TIMER
The unit can be turned off automatically at a specified time.
Use the remote control.
1 Press SLEEP.

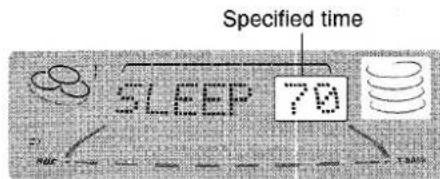

2 Within 4 seconds, press or to specify the time until the power is turned off.
Each time the button is pressed, the time changes between 5 and 240 minutes in 5-minute steps.
To check the time remaining until the power is turned off Press SLEEP once. The remaining time is displayed for 4 seconds.
To cancel the sleep timer
Press SLEEP twice so that "SLEEP OFF" appears on the display.
*MULTI JOG is also available instead of and

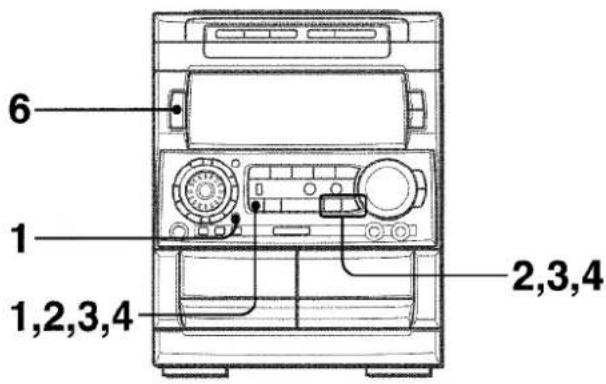

SETTING THE TIMER
The unit can be turned on at a specified time every day with the built-in timer.
Preparation
Make sure the clock is set correctly.

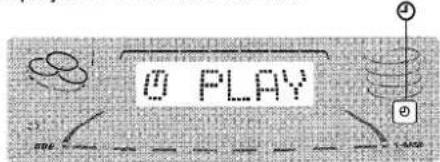

1 Press CLOCK/TIMER twice to display ②, then press SET within 6 seconds.
is displayed and the hour flashes.
NOTE
If you press SET after 6 seconds, another operation may start.

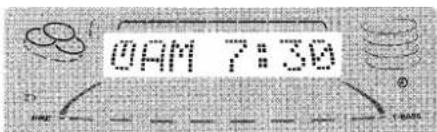

2 Designate the hour of the timer-on time by pressing DOWN or UP, then press SET.
Repeat to designate the minute of the timer-on time.
After you designate the timer-on time, one of the source names flashes on the display.

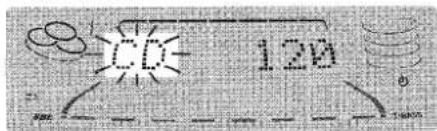

3 Press DOWN or UP to select a source, then press SET.
If TUNER (AM or FM) is selected, the band cannot be selected in this step.

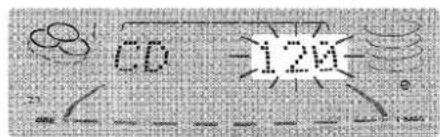

4 Select the duration for the timer-activated period with DOWN or UP, then press SET.
The duration for the timer-activated period can be set between 5 and 240 minutes in 5-minute steps.
5 Prepare the source.
To listen to a CD, load the CD to be played first on tray 1.
To listen to a tape, insert the tape into deck 1 or 2.
To listen to the radio, tune in to a station.

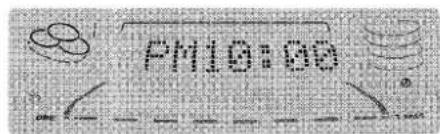

6 Press POWER to turn the unit off after adjusting the volume and tone.
② remains on the display after the power is turned off (timer standby mode).
When the timer-on time is reached, the unit turns on and begins play with the selected source.
The volume level is automatically set to 20 when the power is turned off with the volume level set to 21 or more.
To check the specified time and source
Press CLOCK/TIMER twice. The timer-on time, the selected source name and the duration for the timer-activated period are displayed for 4 seconds.
To cancel timer standby mode temporarily
Press CLOCK/TIMER repeatedly until or REC disappears on the display.
To restore the timer standby mode, press CLOCK/TIMER repeatedly to display or REC.
Using the unit while the timer is set
You can use the unit normally after setting the timer.
Before turning off the power, carry out step 5 to prepare the source, and adjust the volume and tone.
NOTE
- Timer playback and timer recording will not begin unless the power is turned off.
- Connected equipment cannot be turned on and off by the built-in timer of this unit. Use an external timer.
- MULTI JOG is also available instead of and .
- ENTER is also available instead of SET.
TIMER RECORDING
- Timer recording is applicable for TUNER and VIDEO/AUX (with an external timer) sources only.
Press CLOCK/TIMER repeatedly until ① TIMER REC flashes on the display, then press SET within 6 seconds. Carry out the steps of "SETTING THE TIMER" from step 2 and insert the tape to be recorded on into deck 2 after step 5.

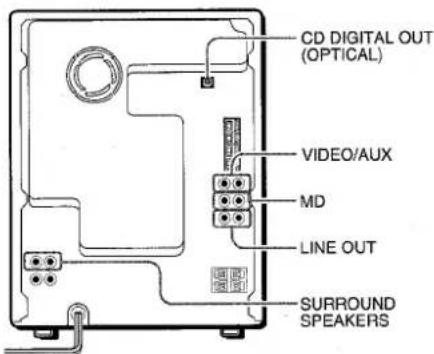

CONNECTING OPTIONAL EQUIPMENT
Refer to the operating instructions of the connected equipment for details.
- The connecting cords are not supplied. Obtain the necessary connecting cords.
- Consult your local Aiwa dealer for optional equipment.
VIDEO/AUX JACKS
This unit can input analog sound signals through these jacks. Use a cable with RCA phono plugs to connect audio equipment (turntables, LD players, MD players, VCRs, TV, etc.). Connect the red plug to the VIDEO/AUX R jack, and the white plug to the VIDEO/AUX L jack.
When connecting a turntable
Use an Aiwa turntable equipped with a built-in equalizer amplifier.
MD JACKS
This jack is recommended to connect with an MD player. Use a cable with RCA phono plugs. Connect the red plug to the MD R jack, and the white plug to the MD L jack.
LINE OUT JACKS
This unit can output analog sound signal through these jacks. Use a cable with RCA phono plugs to connect audio equipment with LINE IN (analog input) jacks. Connect the red plug of a cable to LINE OUT R jack, and the white plug to LINE OUT L jack.
NOTE
Do not connect an equipment to LINE OUT jacks and VIDEO/ AUX jacks simultaneously. Otherwise, noise is generated and malfunction occurs.
CD DIGITAL OUT (OPTICAL) JACK
This unit can output CD digital sound signals through this jack. Use an optical cable to connect digital audio equipment (DAT deck, MD recorder, etc.). Remove the dust cap @ from the CD DIGITAL OUT (OPTICAL) jack. Then, connect an optical cable plug to the CD DIGITAL OUT (OPTICAL) jack.
When the CD DIGITAL OUT (OPTICAL) jack is not being used Attach the supplied dust cap.
Connect optional surround speakers with the 8 ohms to 16 ohms impedance to the jacks.
25 ENGLISH
LISTENING TO EXTERNAL SOURCES
To play a equipment connected to VIDEO/AUX jacks or MD jacks proceed as follows.
1 PressVIDEO/AUX or MD.
To play the equipment connected toVIDEO/AUX, pressVIDEO/AUX. "VIDEO" appears on the display. To play the equipment connected to MD, press MD. "MD" appears on the display.
2 Play the connected equipment.
To change a source name in the display
WhenVIDEO/AUX is pressed, "VIDEO" is displayed initially. It can be changed to "AUX" or "TV". With the power on, press POWER while pressingVIDEO/AUX. Repeat the procedure to select one of the names.
To adjust the sound level of the external source
When the sound level of the external source is much higher or much lower than that of other function sources, adjust it as follows.
1 PressVIDEO/AUX or MD and play the equipment.
2 Press or so that the sound level becomes the same as that of other function sources.
NOTE
During recording, the sound level can not be adjusted.
CARE AND MAINTENANCE
Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.
To clean the cabinet
Use a soft and dry cloth.
If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.
To clean the heads and tape paths
After every 10 hours of use, clean the heads and tape paths with a head cleaning cassette or cotton swab moistened with cleaning fluid or denatured alcohol. (These cleaning kits are commercially available.)
When cleaning with a cotton swab, wipe the recording/playback head (deck 2 only), erasure head (deck 2 only), capstans, and pinchrollers.
After cleaning the heads and tape paths with a liquid head cleaning cassette or a moistened swab, wait until the cleaned parts are completely dry before inserting the tapes.
To demagnetize the heads
The heads may become magnetized after long-term use. This may narrow the output range of recorded tapes and increase noise. After 20 to 30 hours use, demagnetize the heads with any commercially available demagnetizer.
Care of discs
- When a disc becomes dirty, wipe the disc from the center out with a cleaning cloth.
After playing a disc, store the disc in its case. Do not leave the disc in places that are hot or humid.
Care of tapes
- Store tapes in their cases after use.
- Do not leave tapes near magnets, motors, television sets, or any source of magnetism. This will downgrade the sound quality and cause noise.
- Do not expose tapes to direct sunlight, or leave them in a car parked in direct sunlight.
TROUBLESHOOTING GUIDE
If the unit fails to perform as described in these Operating Instructions, check the following guide.
GENERAL
There is no sound.
Is the AC cord connected properly?
Is there a bad connection? (→ page 3)
- There may be a short circuit in the speaker terminals.
Disconnect the AC cord, then correct the speaker connections.
Was an incorrect function button pressed?
Sound is emitted from one speaker only.
- Is the other speaker disconnected?
The output sound is not stereo.
Is the Karaoke function turned on? ( page 21)
An erroneous display or a malfunction occurs.
Reset the unit as stated below.
TUNER SECTION
There is constant, wave-like static.
- Is the antenna connected properly? (→ page 4)
Is the signal weak?
Connect an outdoor antenna.
The reception contains noise interferences or the sound is distorted.
Is the system picking up external noise or multipath distortion?
Change the orientation of the antenna.
Move the unit away from other electrical appliances.
CASSETTE DECK SECTION
The tape does not run.
Is deck 2 in pause mode? ( page 13)
The sound is off-balance or not adequately high.
Is the playback head dirty? ( page 26)
Recording is not possible.
Is the erasure prevention tab on the tape broken off? (→ page 14)
Is the recording head dirty? (→ page 26)
Erasure is not possible.
Is the erasure head dirty? ( page 26)
Is a metal tape being used?
High frequency sound is not emitted.
Is the recording/playback head dirty? ( page 26)
Is a tape recorded without Dolby NR played back with the Dolby NR system operating? ( page 17)
CD PLAYER SECTION
The CD player does not play.
Is the disc correctly placed? ( page 15)
Is the disc dirty? ( page 26)
Is the lens affected by condensation?
Wait approximately one hour and try again.
To reset
If an unusual condition occurs in the display window or the cassette decks, reset the unit as follows.
1 Press POWER to turn off the power.
2 Press POWER to turn the power back on while pressing CLEAR. Everything stored in memory after purchase is canceled.
If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord, and connect it again. Then carry out step 2.
SPECIFICATIONS
Main unit CX-NA909
| FM tuning section | |
| Tuning range | 87.5 MHz to 108 MHz |
| Usable sensitivity (IHF) | 13.2 dBf |
| Antenna terminals | 75 ohms (unbalanced) |
| AM tuning section | |
| Tuning range | 530 kHz to 1710 kHz (10 kHz step) |
| 531 kHz to 1602 kHz (9 kHz step) | |
| Usable sensitivity | 350 μV/m |
| Antenna | Loop antenna |
| Amplifier section | |
| Mid-high frequency amplifier | |
| Power output | 30 W + 30 W (200 Hz - 20 kHz, THD less than 1%, 6 ohms) |
| Total harmonic distortion | 0.1 % (17 W, 1 kHz, 6 ohms, DIN AUDIO) |
| Low frequency amplifier | |
| Power output | 80 W + 80 W (20 Hz - 200 Hz, THD less than 1%, 6 ohms) |
| Total harmonic distortion | 0.1 % (70 W, 70 Hz, 6 ohms, DIN AUDIO) |
| Inputs | VIDEO/AUX: 210 mV (adjustable)MD: 210 mV (adjustable)MIC 1, MIC 2: 1.4 mV (10 kohms) |
| Outputs | LINE OUT: 280 mVSPEAKERS: accept speakers of 6 ohms or moreSURROUND SPEAKERS: accept speakers of 8 ohms to 16 ohmsPHONES (stereo jack): accepts headphones of 32 ohms or more |
| Cassette deck section | |
| Track format | 4 tracks, 2 channels stereo |
| Frequency response | CrO2 tape: 50 Hz - 16000 HzNormal tape: 50 Hz - 15000 Hz |
| Signal-to-noise ratio | 60 dB (Dolby B NR ON, CrO2 tape peak level) |
| Recording system | AC bias |
| Heads | Deck 1: Playback head × 1Deck 2: Recording/playback head × 1, erase head × 1 |
| Compact disc player section | |
| Laser | Semiconductor laser (λ = 780 nm) |
| D-A converter | 1 bit dual |
| Signal-to-noise ratio | 85 dB (1 kHz, 0 dB) |
| Harmonic distortion | 0.05 % (1 kHz, 0 dB) |
| Wow and flutter | Unmeasurable |
| General | |
| Power requirements | 120 V AC, 60 Hz |
| Power consumption | 140 W |
| Dimensions of main unit | 260 × 329 × 369 mm |
| (W × H × D) | (10/4 × 13 × 14/8 in.) |
| Weight of main unit | 9.8 kg (21 lbs 10 oz.) |
Speaker system SX-WNA909
| Cabinet type | 4 way, subwoofer (magnetic shielded type) |
| Speakers | Subwoofer:200 mm (7 7/8 in.) cone typeWoofer:120 mm (4 3/4 in.) cone typeTweeter:60 (2 3/8 in.) mm ceramic typeSuper tweeter:20 mm (13/16 in.) ceramic type |
| Impedance | 6 ohms/6 ohms |
| Output sound pressure level | 87 dB/W/m |
| Dimensions (W × H × D) | 240 × 324 × 330 mm(9 1/2 × 12 7/8 × 13 in.) |
| Weight | 6 kg (13 lbs 4 oz.) |
Specifications and external appearance are subject to change without notice.
DDE SYSTEM
The word "BBE" and the "BBE symbol" are trademarks of BBE Sound, Inc.
Under license from BBE Sound, Inc.
DOLBY NR
Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
COPYRIGHT
Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in which the machine is being used.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.
ADVERTENCIA
PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDIDAS ELECTRICAS, NO EXPONGA Este APARATO A LA LLUVIA NI A LA HUMEDAD.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
"CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."
SINTONIZATION MANUAL
Paraocularly, a macular examination is necessary to confirm the presence of macular degeneration.
TOMA CD DIGITAL OUT (OPTICAL)
PRISE CD DIGITAL OUT (OPTICAL)
For assistance and information
call toll free 1-800-BUY-AIWA
(United States and Puerto Rico)
